Trinity: An Air-Shower Imaging System for the Detection of Ultrahigh Energy Neutrinos

A. Nepomuk Otte (1) , Anthony M. Brown (2) , Abraham D. Falcone (3) , Mos\`e Mariotti (4) , Ignacio Taboada (1) ((1) School of Physics & Center for Relativistic Astrophysics , Georgia Institute of Technology , Atlanta , GA
show 13 more authors
USA (2) Center for Advanced Instrumentation Department of Physics Durham University Durham UK (3) Department of Astronomy & Astrophysics Pennsylvania State University University Park PA (4) Dipartimento di Fisica e Astronomia Universit\`a di Padova & INFN Sezione di Padova Padova Italy)
This is my paper

Pith reviewed 2026-05-24 19:03 UTC · model grok-4.3

classification 🌌 astro-ph.IM
keywords ultrahigh energy neutrinostau neutrinosair-shower imagingCherenkov lightfluorescence lightearth-skimming neutrinosneutrino detectionTrinity detector
0
0 comments X

The pith

A mountain-top imaging system reaches a sensitivity of 3·10^{-9} GeV cm^{-2}s^{-1}sr^{-1} for ultrahigh energy tau neutrinos at 2·10^8 GeV after three years.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper investigates whether air-shower imaging with Cherenkov and fluorescence light can detect ultrahigh energy neutrinos above 10^7 GeV, addressing open questions about the sources of IceCube neutrinos, ultrahigh energy cosmic rays, and ANITA events. It presents a case study for an instrument called Trinity consisting of an imaging detector placed on a mountain and aimed at the horizon to observe showers from earth-skimming tau neutrinos. The study finds that a relatively small modular configuration can reach the target sensitivity after three years of operation, offering an optical alternative to radio-based detectors.

Core claim

The central claim is that an air-shower imaging system located on top of a mountain and pointed at the horizon can achieve a sensitivity of 3·10^{-9} GeV cm^{-2}s^{-1}sr^{-1} at 2·10^8 GeV for earth-skimming tau neutrinos after three years of observation with a relatively small and modular detector configuration.

What carries the argument

The Trinity imaging system that captures Cherenkov and fluorescence light from air showers produced by earth-skimming tau neutrinos.

If this is right

  • Provides an optical method to detect neutrinos above 10^7 GeV as an alternative to radio signatures.
  • Can help identify the sources of astrophysical neutrinos observed by IceCube.
  • Can probe the origins of ultrahigh energy cosmic rays.
  • Can test whether ANITA events require new physics.
  • The modular design supports straightforward scaling or replication at additional sites.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • A working prototype would allow direct testing of the assumed efficiencies before committing to a full array.
  • Combining Trinity data with radio or optical observations at other sites could improve source localization for multi-messenger events.
  • The horizon-pointing geometry might also capture signals from other types of neutrino interactions or cosmic-ray showers under similar conditions.

Load-bearing premise

The sensitivity projection assumes specific values for detector efficiency, background rejection, and atmospheric transmission that are not validated by existing hardware.

What would settle it

A field measurement of background rejection efficiency and atmospheric transmission using a prototype mountain-top imager pointed at the horizon would confirm or refute the projected sensitivity.

Figures

Figures reproduced from arXiv: 1907.08732 by (2) Center for Advanced Instrumentation, (4) Dipartimento di Fisica e Astronomia, Abraham D. Falcone (3), A. Nepomuk Otte (1), Anthony M. Brown (2), Atlanta, Department of Physics, Durham, Durham University, GA, Georgia Institute of Technology, Ignacio Taboada (1) ((1) School of Physics & Center for Relativistic Astrophysics, Italy), Mos\`e Mariotti (4), PA, Padova, Pennsylvania State University, UK (3) Department of Astronomy & Astrophysics, Universit\`a di Padova & INFN Sezione di Padova, University Park, USA.

Figure 1
Figure 1. Figure 1: All-flavor sensitivity of Trin￾ity (red) assuming three years of obser￾vation and the detection of one tau neu￾trino. Also shown are sensitivity predic￾tion for other proposed UHE neutrino ex￾periments (solid lines) and limits on the flux of UHE neutrinos from the Pierre Auger Observatory, IceCube, and Anita (dashed lines). The yellow data points at PeV energies show the IceCube measure￾ment of the astroph… view at source ↗
Figure 2
Figure 2. Figure 2: Absorbed Cherenkov spec￾trum simulated for different distances to an air shower induced by an earth￾skimming tau neutrino. In the calcula￾tion the observer is assumed to be located 1 km above ground. 2. Characteristics of air showers induced by earth-skimming tau neutrinos Trinity detects air-showers induced by earth-skimming tau neutrinos. The characteristics of these air-showers differ substantially from… view at source ↗
Figure 3
Figure 3. Figure 3: Detected Cherenkov intensity per square meter mirror area and GeV shower energy. From top to bottom the distances to the shower are 55 km, 85 km, 135 km, and 195 km. The intensity is shown as a function of the angle un￾der which the shower is viewed rela￾tive to the shower axis. For example, 10 photons will be detected (photoelec￾trons) from a 109 GeV shower and per square meter light collection area if th… view at source ↗

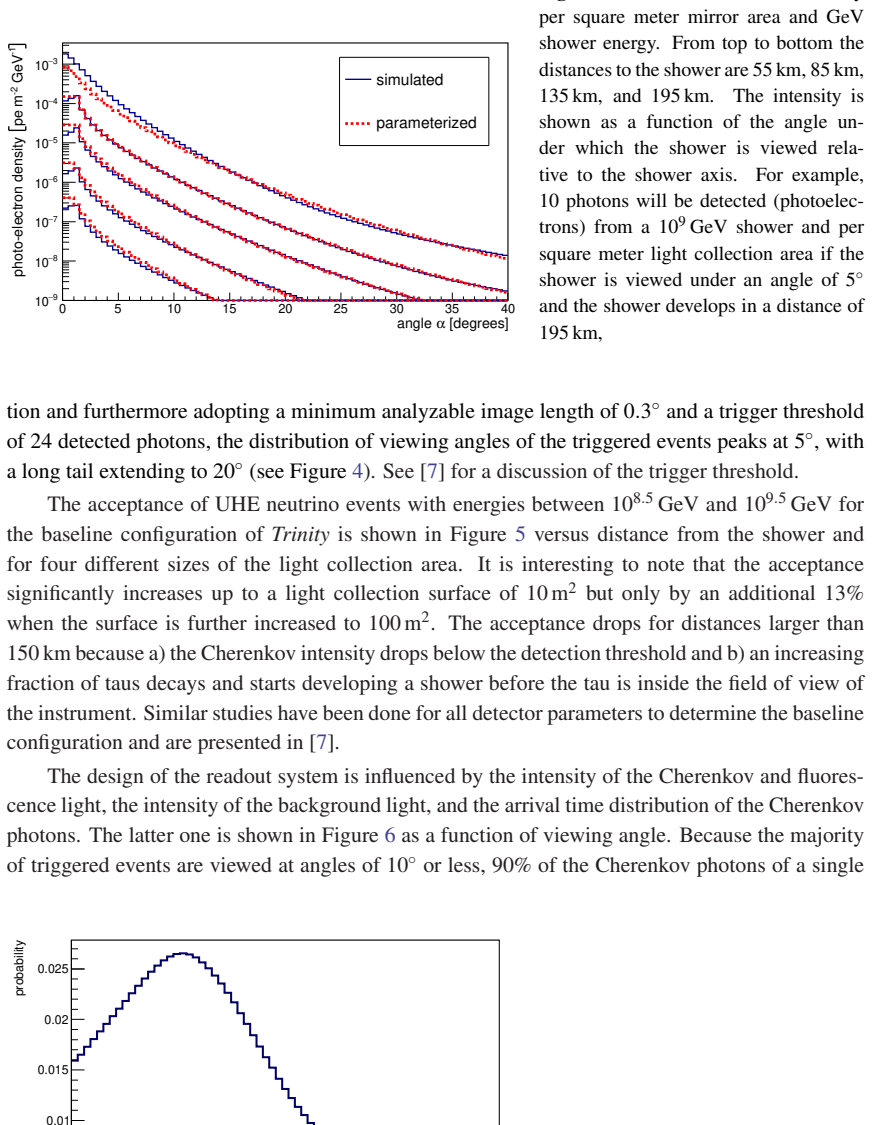

Figure 4
Figure 4. Figure 4: Distribution of viewing angles relative to the shower axis of triggered air showers. For this calculation a dif￾fuse neutrino source is assumed with a power-law spectrum and -2 index. 3 [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Acceptance versus distance from the air shower for four light collec￾tion areas. The peak on the left is due to events detected via fluorescence emis￾sion and includes about 20% of all trig￾gered events. The broader peak on the right is due to events detected through Cherenkov emission. The peak of the Cherenkov detected events at 150 km co￾incides with the distance from the tele￾scope to the horizon. even… view at source ↗
Figure 6
Figure 6. Figure 6: Arrival time distribution of Cherenkov photons from a 30 TeV elec￾tromagnetic shower developing in a dis￾tance of 130 km. The horizontal axis gives the viewing angle relative to the shower axis. The different curves are for different fractions of the Cherenkov pho￾tons arriving at the detector. 4 [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Proposed optics for Trinity based on the MACHETE optics. The primary mirror is composed of 68, 1 m2 mirrors. the focal plane (red curved sur￾face) is populated with 3,300 pixels each consisting of a solid non-imaging light concentrator coupled to an SiPM. The field of view covered by one telescope is 5 ◦ ×60◦ . All requirements are fulfilled by the optics developed for MACHETE [9]. A version of that optics… view at source ↗
Figure 8
Figure 8. Figure 8: Setup to test the EUSO-SPB2 sig￾nal chain. A picosecond laser flashes a Hama￾matsu S14520-6050CN. The light intensity is varied with calibrated neutral density filters. In the background, the MicroTCA crate with the CoBo and MCH modules are seen, which are needed to communicate with the AGET chips on the AsAd boards and transfer the data to a computer. coverage can also be achieved by deploying telescopes … view at source ↗

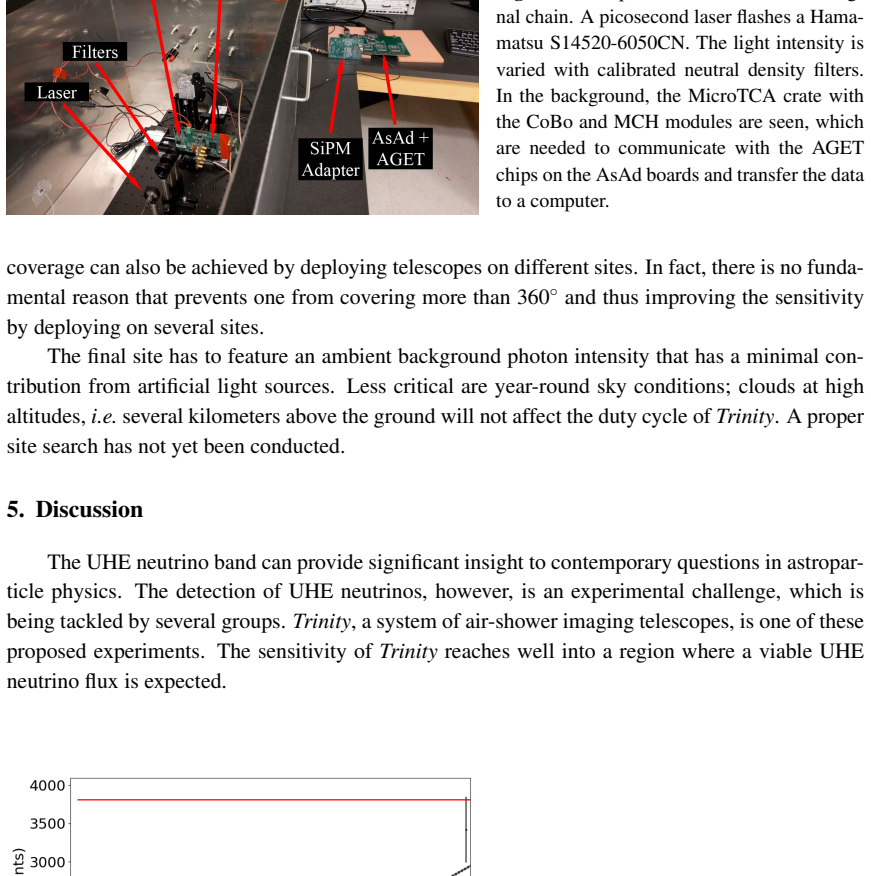

Figure 9
Figure 9. Figure 9: Amplitude response of the tested signal chain consisting of a Hamamatsu S14520-6050CN, the MU￾SIC front-end chip, and the 12-bit resolu￾tion AGET digitizer. The response of the system is linear up to an input signal of 450 photoelectrons. The red lines shows the baseline subtracted limit of the digi￾tizer. The MUSIC chip starts to saturate at 450 photoelectrons. 6 [PITH_FULL_IMAGE:figures/full_fig_p007_9.png] view at source ↗
read the original abstract

Efforts to detect ultrahigh energy neutrinos are driven by several objectives: What is the origin of astrophysical neutrinos detected with IceCube? What are the sources of ultrahigh energy cosmic rays? Do the ANITA detected events point to new physics? Shedding light on these questions requires instruments that can detect neutrinos above $10^7$ GeV with sufficient sensitivity - a daunting task. While most ultrahigh energy neutrino experiments are based on the detection of a radio signature from shower particles following a neutrino interaction, we believe that the detection of Cherenkov and fluorescence light from shower particles is an attractive alternative. Imaging air showers with Cherenkov and fluorescence light is a technique that is successfully used in several ultrahigh energy cosmic ray and very-high energy gamma-ray experiments. We performed a case study of an air-shower imaging system for the detection of earth-skimming tau neutrinos. The detector configuration we consider consists of an imaging system that is located on top of a mountain and is pointed at the horizon. From the results of this study we conclude that a sensitivity of $3\cdot10^{-9}$ GeV cm$^{-2}$s$^{-1}$sr$^{-1}$ can be achieved at $2\cdot10^8$ GeV with a relatively small and modular system after three years of observation. In this presentation we discuss key findings of our study and how they translate into design requirements for an imaging system we dub Trinity.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript proposes Trinity, a mountain-top air-shower imaging system pointed at the horizon to detect earth-skimming tau neutrinos via Cherenkov and fluorescence light. A case study of this configuration yields a claimed sensitivity of 3·10^{-9} GeV cm^{-2}s^{-1}sr^{-1} at 2·10^8 GeV after three years of observation with a relatively small modular detector.

Significance. If the performance parameters can be realized, the result would demonstrate a viable optical alternative to radio techniques for ultrahigh-energy neutrino detection, with the modular design offering practical advantages for deployment. The work correctly identifies the scientific motivation from IceCube, UHECR, and ANITA observations.

major comments (2)
  1. [Case study results] Case study (abstract and § on results): The headline sensitivity depends on specific assumed values for detector efficiency, background rejection power, and atmospheric transmission in the horizon-pointing geometry. These inputs are treated as given without independent validation, hardware demonstration, or references to measured performance in equivalent conditions, rendering the central claim sensitive to untested parameters.
  2. [Methods / Case study] Simulation and analysis description: No details are supplied on the Monte Carlo methods, event selection criteria, background estimation, or systematic error propagation used to convert the assumed efficiencies into the quoted exposure and sensitivity after three years. This absence prevents assessment of whether the result is robust or circular with respect to the input assumptions.
minor comments (1)
  1. [Abstract] The abstract states the sensitivity without units consistency check or comparison to existing limits (e.g., IceCube or ANITA); a brief contextual plot or table would improve clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thorough review and constructive comments. We address each major comment below.

read point-by-point responses

  1. Referee: [Case study results] Case study (abstract and § on results): The headline sensitivity depends on specific assumed values for detector efficiency, background rejection power, and atmospheric transmission in the horizon-pointing geometry. These inputs are treated as given without independent validation, hardware demonstration, or references to measured performance in equivalent conditions, rendering the central claim sensitive to untested parameters.

    Authors: We agree that the quoted sensitivity is derived from assumed performance parameters for efficiency, background rejection, and atmospheric transmission. As this is a case study, the values are drawn from the established performance of existing air-shower imaging instruments (e.g., fluorescence and Cherenkov telescopes). In the revised manuscript we will add an explicit table or subsection listing each assumption together with supporting references to measured or simulated performance in comparable geometries and wavelengths. A dedicated hardware demonstration lies outside the scope of the present work, but the modular design is intended to facilitate such tests in the future. revision: yes

  2. Referee: [Methods / Case study] Simulation and analysis description: No details are supplied on the Monte Carlo methods, event selection criteria, background estimation, or systematic error propagation used to convert the assumed efficiencies into the quoted exposure and sensitivity after three years. This absence prevents assessment of whether the result is robust or circular with respect to the input assumptions.

    Authors: We acknowledge that the manuscript currently provides insufficient detail on the underlying simulation and analysis chain. We will expand the methods section in the revised version to describe the Monte Carlo framework, the event selection cuts, the background estimation procedure, and the treatment of systematic uncertainties. These additions will allow readers to evaluate the robustness of the exposure calculation independently of the input assumptions. revision: yes

Circularity Check

0 steps flagged

No circularity; sensitivity is forward calculation from case-study inputs

full rationale

The manuscript is a detector design proposal that performs a case study to arrive at a quoted sensitivity figure. The abstract and available text present this as the output of assumed numerical values for efficiency, rejection power, and transmission in a mountain-top geometry; no equations, fitted parameters, or self-citations are shown that would make the sensitivity equivalent to its own inputs by construction. No self-definitional steps, uniqueness theorems imported from prior author work, or renaming of known results appear. The derivation chain remains a standard forward simulation from design parameters and is therefore self-contained.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review provides no information on specific free parameters, axioms, or invented entities; the sensitivity figure necessarily rests on unstated modeling assumptions about detector response and backgrounds.
