arxiv: 2605.23855 · v1 · pith:Q66QVVFCnew · submitted 2026-05-22 · ❄️ cond-mat.mtrl-sci

Phase-dependent electronic structure of two-dimensional Ag layers at the graphene/SiC interface

Sawani Datta , Boyang Zheng , Arpit Jain , Kathrin K\"uster , Joshua A. Robinson , Vincent H. Crespi , Ulrich Starke This is my paper

Pith reviewed 2026-05-25 03:39 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords graphenesilver intercalationSiC interfaceARPESDFTunfolding entropycharge carrier densityinterface screening
0
0 comments X

The pith

The denser, 30-degree-rotated Ag(2) phase of silver at the graphene/SiC interface produces about 1.75 times higher charge carrier density in the overlying graphene than the standard epitaxial Ag(1) phase.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper demonstrates that two distinct structural phases of two-dimensional silver can be stabilized by intercalation beneath graphene on silicon carbide, each affecting the graphene layer differently. The Ag(2) phase, obtained via an in situ ultra-high-vacuum method, forms a rotated supercell structure whose calculated bands, when selected by a new unfolding entropy metric, align closely with angle-resolved photoemission measurements. As a direct result, graphene on Ag(2) exhibits higher doping and modified charge-plasmon coupling relative to the conventional Ag(1) phase. These findings establish that the choice of intercalated silver phase provides a handle on the electronic environment and screening experienced by the graphene.

Core claim

Intercalated silver beneath graphene on SiC forms two phases: Ag(1) with a (1x1) epitaxial relation to the SiC lattice and Ag(2) rotated by 30 degrees that forms supercells with higher packing density. An in situ UHV preparation method yields the Ag(2) phase. Low-energy electron diffraction confirms the structural distinction, while high-resolution ARPES reveals richer band dispersion for Ag(2). Density functional theory calculations introduce an unfolding entropy that quantifies which phase's bands unfold most appropriately to the SiC primitive cell, finding superior agreement with experiment for Ag(2). Relative to Ag(1), the Ag(2) phase increases the charge carrier density in the graphene

What carries the argument

The unfolding entropy, a quantified metric that selects which calculated silver band structure is more suitable to unfold onto the SiC primitive cell for direct comparison with ARPES data.

If this is right

  • The Ag(2) phase becomes accessible through conventional in situ UHV methods rather than requiring high-pressure confinement.
  • Graphene on Ag(2) displays a richer silver-derived band dispersion and higher doping level than on Ag(1).
  • The charge-plasmon interaction in the graphene layer changes with the choice of underlying silver phase.
  • Effective screening at the graphene/SiC interface is phase-dependent on the intercalated silver structure.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Phase selection between Ag(1) and Ag(2) could serve as an internal control for carrier density in graphene devices without external gates or chemical doping.
  • The unfolding entropy metric may extend to other rotated or supercell 2D interfaces where multiple structural phases complicate band unfolding.
  • Altered plasmon interactions suggest the phases could be used to tune optoelectronic response in graphene heterostructures.

Load-bearing premise

The assumption that the newly defined unfolding entropy provides a reliable, unbiased metric for deciding which phase's calculated bands can be unfolded to the SiC primitive cell and will match ARPES data without post-hoc adjustments.

What would settle it

Preparation of both Ag phases under identical conditions followed by quantitative comparison of graphene charge carrier density from ARPES Fermi surface area or Hall measurements that shows no 1.75-fold difference.

Figures

Figures reproduced from arXiv: 2605.23855 by Arpit Jain, Boyang Zheng, Joshua A. Robinson, Kathrin K\"uster, Sawani Datta, Ulrich Starke, Vincent H. Crespi.

Figure 1
Figure 1. Figure 1: FIG. 1. LEED patterns of (a) Ag [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2 [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. (a) The band structure for the [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Comparison of DFT and ARPES data. (a) DFT band structure of Ag [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗
Figure 5

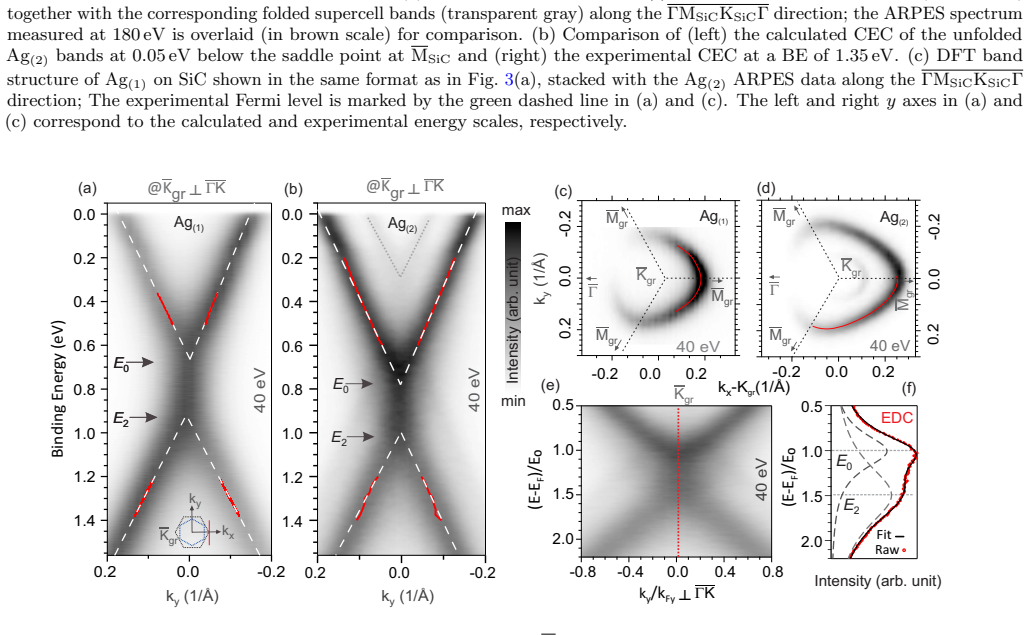

Figure 5. Figure 5: FIG. 5. (a) and (b) [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗
Figure 6

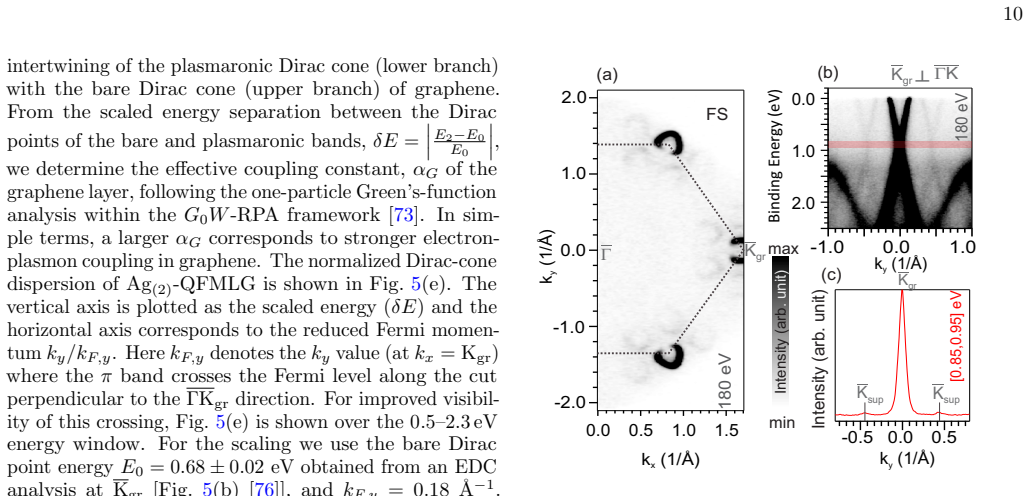

Figure 6. Figure 6: (a) by a wide-range Fermi surface map revealing such replicas surrounding the main graphene π ∗ pocket. This map is measured with 180 eV photon energy. The replica pockets are displaced relative to the main pocket along the graphene reciprocal-lattice directions by a small momentum separation, indicative of Umklapp scattering of the graphene π-bands by the superlattice reciprocal vector, Gsup. To quantify … view at source ↗
Figure 7
Figure 7. Figure 7: FIG. 7. (a) Ag 3 [PITH_FULL_IMAGE:figures/full_fig_p010_7.png] view at source ↗
read the original abstract

Intercalation at the graphene/SiC interface provides a controlled route to stabilize atomically thin layers with properties distinct from their bulk counterparts. In this platform, the structure and stability of the intercalated phase depend sensitively on the defect landscape of the starting substrate. For intercalated two-dimensional silver at the graphene/SiC interface, two phases have been observed: a phase epitaxial to the SiC lattice, Ag$_{(1)}$, readily obtained following the conventional intercalation method under ultra-high-vacuum conditions and extensively characterized, and a more densely packed phase, called Ag$_{(2)}$, which has remained largely unexplored. Here we report an in situ ultra-high-vacuum preparation method of the second phase intercalated at the graphene/SiC interface; this phase previously was prepared via high-pressure confinement heteroepitaxy. Low-energy electron diffraction shows that Ag$_{(2)}$ is rotated by 30 degree relative to the SiC lattice and forms supercells, in contrast to the $(1\times 1)$ epitaxial relation of Ag$_{(1)}$ with SiC. High-resolution angle-resolved photoemission spectroscopy reveals a more rich Ag$_{(2)}$ band dispersion compared to the Ag$_{(1)}$. In density functional theory calculations, by defining the unfolding entropy which, in a quantified way, finds that the band structure of Ag$_{(2)}$ is more suitable to be unfolded to the SiC primitive cell, and the resulting unfolded band dispersion is in great agreement with the experimental data. We further show that the different intercalated Ag phases tune the electronic properties of the overlying quasi-free-standing graphene layer differently: compared with Ag$_{(1)}$, Ag$_{(2)}$ yields an $\sim$1.75 times higher charge carrier density and modifies the charge-plasmon interaction of the graphene layer, indicating a change in effective screening at the interface.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports an in situ UHV preparation of a new densely packed Ag(2) phase (30° rotated supercell) at the graphene/SiC interface, distinct from the known (1×1) Ag(1) phase. LEED confirms the structural difference, ARPES shows richer band dispersion for Ag(2), and DFT calculations introduce a new 'unfolding entropy' metric to select Ag(2) bands as more suitable for unfolding onto the SiC primitive cell, yielding agreement with experiment. This leads to the central claim that Ag(2) produces ∼1.75 times higher graphene charge carrier density and alters the charge-plasmon interaction relative to Ag(1), indicating modified interface screening.

Significance. If the phase assignment and unfolding procedure hold, the result establishes that intercalated Ag phase structure can quantitatively tune graphene carrier density and plasmon screening, providing a platform for interface engineering in 2D heterostructures. The direct experimental distinction via LEED and ARPES is a clear strength supporting the structural and qualitative electronic claims.

major comments (2)
  1. [DFT calculations and unfolding entropy definition] The unfolding entropy metric (introduced to decide that Ag(2) bands unfold more suitably than Ag(1) to match ARPES) lacks validation on benchmark systems, comparison to standard unfolding methods such as spectral-weight or symmetry-based approaches, and explicit demonstration that the threshold is independent of Ag(2)'s denser packing. This is load-bearing for the central claim because the selected unfolded dispersion directly supplies the ∼1.75× carrier-density ratio and the plasmon-modification conclusion.
  2. [Electronic structure and carrier density results] The reported ∼1.75 factor in graphene charge carrier density is extracted from the unfolded bands assigned via the entropy metric; the manuscript should specify the exact procedure (e.g., Fermi-surface integration or band-filling calculation) and test sensitivity to the entropy threshold or supercell choice, as any post-selection would undermine the quantitative distinction from Ag(1).
minor comments (2)
  1. [Abstract] The abstract states that the unfolding entropy 'finds' Ag(2) more suitable but supplies neither its mathematical definition nor any indication of whether parameters were adjusted, reducing clarity for readers.
  2. [Figures and methods] Figure captions and methods should explicitly note the k-space range and resolution used for the ARPES–DFT comparison to allow independent assessment of the reported agreement.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thorough review and constructive comments. We address the major comments point by point below, indicating the revisions planned for the next manuscript version.

read point-by-point responses

  1. Referee: [DFT calculations and unfolding entropy definition] The unfolding entropy metric (introduced to decide that Ag(2) bands unfold more suitably than Ag(1) to match ARPES) lacks validation on benchmark systems, comparison to standard unfolding methods such as spectral-weight or symmetry-based approaches, and explicit demonstration that the threshold is independent of Ag(2)'s denser packing. This is load-bearing for the central claim because the selected unfolded dispersion directly supplies the ∼1.75× carrier-density ratio and the plasmon-modification conclusion.

    Authors: We agree that the unfolding entropy is a new metric introduced here and that its presentation would benefit from additional supporting material. In the revised manuscript we will add a validation subsection applying the metric to benchmark systems with known unfolding behavior, include direct comparisons against spectral-weight and symmetry-based unfolding methods, and test the threshold choice on additional supercells of varying density to confirm independence from the Ag(2) packing. These additions will strengthen the justification for the band selection used in the quantitative claims. revision: yes

  2. Referee: [Electronic structure and carrier density results] The reported ∼1.75 factor in graphene charge carrier density is extracted from the unfolded bands assigned via the entropy metric; the manuscript should specify the exact procedure (e.g., Fermi-surface integration or band-filling calculation) and test sensitivity to the entropy threshold or supercell choice, as any post-selection would undermine the quantitative distinction from Ag(1).

    Authors: We will revise the manuscript to provide an explicit description of the carrier-density extraction procedure from the unfolded bands, including the precise integration or filling method employed. We will also report sensitivity tests with respect to the entropy threshold value and supercell size to demonstrate that the ∼1.75 factor is robust. revision: yes

Circularity Check

0 steps flagged

No significant circularity; claims rest on independent ARPES measurements and standard DFT

full rationale

The paper prepares both Ag phases experimentally, measures graphene ARPES spectra separately for each, extracts carrier density and plasmon features directly from those spectra, and uses a newly defined unfolding entropy only to select which DFT-computed Ag bands to unfold onto the SiC cell for interpretive comparison. The entropy metric is applied to the calculated bands prior to any experimental matching step, and the reported 1.75× carrier-density ratio is obtained from the graphene Dirac-point shift in the measured spectra rather than from any fitted or unfolded quantity. No equation reduces the central observables to quantities defined from the same dataset, and no self-citation chain is invoked as a uniqueness theorem. The derivation chain therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claims rest on experimental LEED/ARPES spectra, standard DFT band calculations, and a newly introduced unfolding entropy metric. No explicit numerical free parameters are mentioned. The unfolding entropy is an invented quantity whose validity is assessed only by agreement with the present data.

axioms (1)
  • domain assumption Standard density-functional approximations suffice to describe the electronic structure of the Ag/graphene/SiC interface for comparison with ARPES.
    Invoked when the paper states that DFT calculations agree with the measured band dispersions after unfolding.
invented entities (1)
  • unfolding entropy no independent evidence
    purpose: To provide a quantified measure of how suitable a calculated band structure is for unfolding onto the SiC primitive cell.
    Defined within the paper to compare Ag(1) and Ag(2) phases; no independent experimental test outside this study is described.
