Alkali Metallicity, Mineral Clouds, and Deep Atmospheric Variability on Jupiter

T0 review · 5 major / 5 minor · reviewed 2026-08-10 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read Jupiter's apparent alkali deficit is likely an illusion created by deep mineral clouds that remove free electrons, not sodium and potassium.

desk verdict A serious hypothesis paper offering two novel 'mineral cloud' rescues for Jupiter's alkali depletion, but the dust-catalyzed scenario rests on a tuned nucleation rate and a globally uniform mixing assumption. read the letter →

arxiv 2608.06600 v1 pith:QEFCI4MQ submitted 2026-08-06 astro-ph.EP physics.ao-ph

Xi Zhang , Jiheng Hu , Cheng Li , Quentin Williams This is my paper · ORCID
classification astro-ph.EPphysics.ao-ph
keywords Jupiterplanetarymineralogyatmosphericcloudscompositiondeepatmospherealkalimetalselectrondensitydustyplasma
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Juno's microwave radiometer had suggested that Jupiter's deep atmosphere holds only a tiny fraction of the solar abundance of sodium and potassium, in tension with the supersolar enrichments measured for other elements. This paper argues that the apparent depletion is an artifact of deep mineral clouds. Vigorous vertical mixing can lift refractory condensates into the 1000–2000 bar region, where they either react with alkali vapors to form feldspar and leucite sequestering Na and K, or act as hot dust grains that emit alkali ions and accelerate the recombination of free electrons. Both mechanisms match the observed 0.6 GHz brightness temperature and limb darkening while allowing the bulk alkali inventory to be solar or even supersolar. The paper also reports spatial variability in the deep atmosphere across 61 Juno perijoves, which it interprets as evidence of patchy mineral-cloud modulation of the electron density.

What carries the argument

The central machinery is the deep mineral cloud layer in the 1000–2000 bar region acting in one of two ways: as a chemical trap for alkali vapors, through the formation of the feldspar-group minerals albite (NaAlSi$_3$O$_8$) and leucite (KAlSi$_2$O$_6$), or as a source of positive ions, since hot grains emit adsorbed alkali ions that drive electron recombination. In both cases the load-bearing quantity is the free electron density, the dominant source of microwave opacity near 1000 bar. The models track cloud mass, particle size, and surface area through the microphysical code ExoLyn and couple them to a dusty-plasma charge balance that includes electron and ion capture, thermionic emission, and alkali ion desorption.

What would settle it

A measurement of the deep cloud particle size distribution and mass loading in the 1000–2000 bar region (for instance, from MWR polarimetry or a future radio occultation) that showed particles larger than tens of microns and mass mixing ratios far below $10^{-3}$ would falsify the common premise of both mechanisms: insufficient cloud surface area to remove the electrons.

Watch

Extended reading notes

Core claim

The central claim is that the electron-depleted deep atmosphere of Jupiter inferred from the Juno MWR 0.6 GHz channel does not require subsolar sodium and potassium abundances. In the chemical sequestration scenario, mixing with $K_{zz}\sim10^7$–$10^8$ cm$^2$ s$^{-1}$ lofts deep refractory condensates such as spinel into the 1000–2000 bar window, where a solution-mediated reaction on transient alkali-silicate melts converts them to albite feldspar and leucite, stripping Na and K out of the gas. In the dust-catalyzed recombination scenario, the alkali metals remain gaseous, but micron-sized iron, silicate, and oxide grains thermally emit adsorbed potassium ions, and the extra cations force the equilibrium electron density down by about an order of magnitude through gas-phase recombination. The paper shows with the GGchem thermochemical code and the ExoLyn microphysical cloud code that either mechanism can match the observed nadir brightness temperature and limb darkening with solar alkali abundances, and it interprets the residual latitudinal variability in 61 perijoves as the signature of spatially heterogeneous mineral clouds controlling the electron density.

Load-bearing premise

The argument stands on the assumption that Jupiter's deep atmosphere is turbulent enough to keep substantial mineral clouds suspended and chemically active in the 1000–2000 bar region, and that those clouds either form feldspar and leucite or emit alkali ions fast enough to strip free electrons before the particles sink.

Editorial extensions

If this is right

  • Juno MWR observations no longer require subsolar sodium and potassium on Jupiter; the bulk alkali inventory can be solar or even supersolar, consistent with formation by icy planetesimal accretion.
  • The deep atmosphere between $10^2$ and $10^5$ bar is chemically active and vertically connected, so the traditional rainout assumption of isolated condensate layers is called into question.
  • Spatially variable electron density in the kilobar region, inferred from the 61-perijove dataset, implies that deep mineral clouds are heterogeneously distributed and modulated by atmospheric dynamics.
  • Alkali salt clouds in brown dwarfs are not a unique signature of rainout, because the equilibrium chemistry leaves residual alkali vapor that condenses as salts regardless.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A natural extension: if dust-catalyzed recombination operates on Jupiter, similar electron suppression should appear in other gas giants and in brown dwarfs with deep mineral clouds, so their microwave spectra may look transparent without any true alkali depletion.
  • The fluxing-agent hypothesis is directly testable; lab measurements of alkali feldspar growth rates on spinel seeds in high-pressure hydrogen would determine whether chemical sequestration can beat gravitational settling.
  • The channel-1-minus-channel-2 differential method could be applied to Saturn, where Cassini radio occultation data might reveal analogous latitudinal variability from deep mineral clouds.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

5 major / 5 minor

Summary. This manuscript proposes that Juno MWR 0.6 GHz observations indicating deep electron depletion on Jupiter can be reconciled with solar or supersolar alkali abundances by two deep-mineral-cloud mechanisms: chemical sequestration of Na and K into feldspar and leucite under an equilibrium (no-rainout) chemistry, and dust-catalyzed recombination in which thermally emitted alkali ions from suspended iron/silicate grains enhance cation densities and suppress free electrons. The authors use the GGchem thermochemical equilibrium code, the ExoLyn microphysical cloud model with a parameterized nucleation rate, and the HARP radiative transfer package, obtaining fits to the MWR nadir brightness temperature and limb darkening. They also present a differential channel-1/channel-2 analysis of 61 perijoves as evidence for persistent latitudinal variability in the deep atmosphere, which they attribute to heterogeneous, cloud-modulated electron densities. The paper is explicit that the feldspar formation pathways are speculative and that the nucleation rate is poorly constrained, and it frames the modeling as a proof of concept.

Significance. If the proposed mechanisms were validated, they would resolve a major tension in Jupiter science: the MWR electron depletion could be a cloud/transport signature rather than a bulk subsolar refractory inventory, preserving consistency with the supersolar volatile enrichments measured by Galileo and with planetesimal-accretion formation scenarios. Strengths of the paper include the use of established thermochemical and microphysical codes, explicit sensitivity tests on elemental abundances and nucleation rate, and use of an extended MWR dataset beyond previous work. The paper also offers a falsifiable distinction: patchy deep variability is expected for cloud-driven depletion but not for a uniform subsolar alkali abundance. However, the conclusions are currently proof-of-concept: both mechanisms rest on kinetic and microphysical assumptions that are admitted to be unconstrained, and the deep-variability claim is a lower-bound residual rather than a full retrieval result. The manuscript is well suited to a journal that values hypothesis-generating work, but it needs substantial additional analysis before the quantitative claims can be regarded as established.

major comments (5)
  1. [Sec. 4.1, Figs. 7-8] The dust-catalyzed scenario is calibrated to the observations by the column-integrated nucleation rate Sigma_n: the nominal 10^-4 g cm^-2 s^-1 case matches the limb darkening, the high 10^-2 case matches L_d with a slightly high T_b, and the low 10^-6 case fails (Fig. 8). No independent calculation of Sigma_n is provided; the density-scaling argument in Sec. 4.1 states only that deep-atmosphere nucleation rates could exceed hot-Jupiter rates by many orders of magnitude, and the TiO2 flux limit only excludes pure-TiO2 seeds. Because the abstract's 'both mechanisms' claim falls back on dust catalysis if feldspar kinetics are slow, this unconstrained parameter is load-bearing. I request a classical-nucleation-theory-based estimate (or a heterogeneous-nucleation model) and a demonstration that plausible variations in supersaturation, seed abundance, and mixing do not push the electron suppression below the required threshold.
  2. [Sec. 3.4, Eqs. (6)-(7)] The chemical sequestration scenario assumes that spinel seeds lofted from >3000 bar are converted to albite and leucite fast enough to deplete gas-phase Na and K before settling out of the 1000-2000 bar window. The proposed solution-mediated pathway is explicitly labeled speculative, and no kinetic rate law, reaction timescale, or comparison to the sedimentation timescale of Eq. (5) is given. Without such a comparison, the equilibrium end-member is an assumed boundary condition rather than a demonstrated mechanism; the paper should either incorporate a parameterized kinetic conversion efficiency or present the scenario as a hypothesis with concrete laboratory tests and observational discriminants.
  3. [Sec. 3.3 and Sec. 4.1] The ExoLyn runs use K_zz = 10^8 cm^2 s^-1 at all latitudes, but Eqs. (3)-(4) of Sec. 3.3 give K_zz ~10^7 cm^2 s^-1 at mid-to-high latitudes. The MWR limb darkening is a global observable, so using the equatorial value everywhere overestimates the suspended surface area and the lofted seed supply at midlatitudes. The paper should show how the electron depletion and the L_d fit degrade when a latitude-dependent K_zz (or a globally reduced value of 10^7 cm^2 s^-1) is used, or justify why the equatorial value is representative for the limb-darkening constraint.
  4. [Sec. 5.1-5.2, Eqs. (40)-(42)] The inferred 'deep atmospheric variability' is the residual of a linear subtraction delta_Tb,0.6 - f12 delta_Tb,1.25, with f12 uncertain by roughly a factor of three (0.4 to 1.4) and chosen as 1.2 to minimize residual variance. This procedure assumes vertically coherent upper-level perturbations and does not propagate the f12 uncertainty or retrieval covariances; the residual could contain contributions from the 80-bar secondary peak of channel 1, from differing beam patterns, or from ammonia variations that do not scale linearly with channel 2. Hence the statement in Sec. 5.2 that the residual 'predominantly originates from the kilobar region' and the subsequent attribution to electron-density variations is not unique. A forward-model test of the difference method on synthetic atmospheres with known deep and shallow perturbations would be needed to support the deep-variability claim.
  5. [Sec. 2.2] The NH3 opacity at 0.6 GHz is reduced by 10% to improve the T_b fit, while the L_d constraint is said to be insensitive to this adjustment. Because the electron opacity and the NH3 opacity are partially degenerate in the 0.6 GHz weighting function, the paper should quantify the degree of degeneracy and justify the 10% scaling with laboratory or line-shape evidence; otherwise the reported T_b match includes an ad hoc tuning parameter.
minor comments (5)
  1. [Sec. 5.2] The text contains the typo 'banded pattens' and should read 'banded patterns'; the same paragraph also uses 'sub-micron particles' twice in a redundant phrase.
  2. [Table 1] The table groups KAlSi3O8 under 'F eldspar (Plagioclase)' with a leading space in the header, and potassium feldspar is not a plagioclase mineral; the grouping should be corrected to 'Feldspar' or split into alkali feldspar and plagioclase subgroups.
  3. [Sec. 6] There is an unmatched opening quotation mark in 'rainout scenario' in the caveats paragraph; it should be a closing quotation mark after 'scenario'.
  4. [Throughout] Code and model names are used inconsistently: 'GGchem' and 'GGChem', and 'ExoLyn' and 'Exolyn', should be standardized to single spellings.
  5. [Fig. 9 caption] The caption contains the fragment 'dashed ;ome' which appears to be a typo for 'dashed orange'; the figure also uses 'Exolyn' while the text uses 'ExoLyn'.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity; both proposed mechanisms rest on explicitly stated physical assumptions rather than on the MWR observables they are designed to match.

full rationale

The paper's central claim is that solar or supersolar Na/K abundances can be reconciled with Juno MWR electron depletion through one of two independent mechanisms. The chemical sequestration scenario is a direct GGchem equilibrium calculation under an explicitly stated no-rainout assumption; the feldspar/leucite sequestration and resulting electron-density reduction follow from the assumed elemental inventory and equilibrium thermodynamics, not from the MWR data. The dust-catalyzed recombination scenario couples ExoLyn microphysics to a Desch & Turner-style dust-charging model; the electron suppression scales with grain surface area, and the nominal/high/low nucleation rates are presented as a sensitivity study, with the low case shown to fail. The authors explicitly acknowledge in Section 6 that 'the primary uncertainty lies in the nucleation rate,' so the rate is an openly stated modeling uncertainty rather than a parameter inverted from the target data. No step fits a parameter to the Juno MWR observables and then re-predicts the same observables by construction. The MWR data, the Bhattacharya et al. (2023) opacity framework, and the Juno NH3/water retrievals are external benchmarks; self-citations (C. Li et al.) provide data and modeling tools, not the conclusion. The acknowledged limitations—speculative feldspar kinetics, unconstrained nucleation rate, and use of equatorial K_zz in a global limb-darkening comparison—are robustness concerns, not definitional circularity.

Assumptions & free parameters 3 free parameters · 5 assumptions · 0 invented entities

The central claim rests on several adopted physical assumptions and on at least two hand-chosen parameters (nucleation rate and NH3 opacity scaling). No new particles, forces, or conserved quantities are introduced; the 'mineralogical zone' is a descriptive term, not an entity.

free parameters (3)
  • Column-integrated nucleation rate Sigma_n = nominal 10^-4 g cm-2 s-1; high 10^-2; low 10^-6
    Critical free parameter controlling dust surface area; chosen to produce electron depletion matching MWR limb darkening. The paper states it remains poorly constrained (Section 4.1).
  • NH3 opacity scaling factor at 0.6 GHz = 0.9 (10% reduction)
    Reduced to achieve a better fit to T_b within assumed uncertainty (Section 2.2).
  • Nucleation peak pressure p_n and width sigma_n = p_n = 2000 bar, sigma_n = 0.5
    Chosen based on the expected refractory nucleation temperature range, not directly constrained by Jovian observations (Section 4.1).
assumptions (5)
  • ad hoc to paper Equilibrium (no-rainout) end-member assumption
    Chemical sequestration assumes all condensates remain in the system and are mixed upward, enabling feldspar/leucite formation; this is an end-member not directly observed (Section 3.2).
  • domain assumption Adiabatic T-P profile and vertically constant NH3/H2O below 200 bar
    Baseline deep atmosphere assumed horizontally homogeneous and adiabatic, following prior work (Section 2.2).
  • domain assumption Dust-plasma charging framework of Desch and Turner (2015) applies at these densities
    Adopts OML and diffusion-matching charging with species-dependent Knudsen factors, with a fixed anion-to-electron ratio beta anchored to GGChem (Section 4.2).
  • domain assumption Vertical mixing K_zz ~10^7-10^8 cm2/s
    Mixing-length estimates underpin both scenarios; if the actual diffusivity is much lower, the required lofting or dust surface area may not be sustained (Section 3.3).
  • domain assumption Elemental enrichments: 2.7x solar for refractories, solar for Na and K
    Adopted from observed C, N, S, P enrichments and assumed for refractory elements (Section 3.1); the chemical sequestration result is sensitive to Si and Al abundances.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Alkali Metallicity, Mineral Clouds, and Deep Atmospheric Variability on Jupiter." pith.science (2026). https://pith.science/paper/QEFCI4MQ

@misc{pith2026260806600,
  author       = {Pith},
  title        = {Pith review of: Alkali Metallicity, Mineral Clouds, and Deep Atmospheric Variability on Jupiter},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/QEFCI4MQ}},
  note         = {Machine review of arXiv:2608.06600}
}
read the original abstract

The bulk elemental abundances of Jupiter provide critical insights into its formation history and interior structure. Recent observations by the Juno Microwave Radiometer (MWR) reveal a deep Jovian atmosphere significantly depleted in electrons, implying an alkali metal (Na, K) abundance of 10^-1 - 10^-5 times solar. This depletion stands in sharp contrast to the supersolar volatile enrichments measured by the Galileo probe. We propose that this apparent depletion arises from mineral cloud-induced processes deep in the atmosphere. We explore two physical mechanisms using thermochemical and microphysical modeling. In the "chemical sequestration" scenario, vigorous vertical mixing lofts deep refractory condensates (e.g., spinel) into the 1000-2000 bar region, where they react to form alkali feldspars (albite) and feldspathoids (leucite), efficiently sequestering gaseous Na and K. In the "dust-catalyzed recombination" scenario, the bulk alkali inventory remains gaseous, but the free electron density is suppressed by dust-plasma interactions. Thermally emitted alkali ions from the surfaces of micron-sized iron and silicate grains significantly increase the cation density, driving rapid recombination of free electrons. Both mechanisms allow for a bulk solar or even supersolar alkali inventory while suppressing the electron density to match Juno observations. Analyzing an extended dataset of MWR observations with 61 perijoves, we detect spatial variability in the deep atmosphere that suggests modulation by mineral clouds. Our findings challenge the traditional rainout framework, unveiling a deep "mineralogical zone" in Jupiter shaped by dynamics and heterogeneous chemistry, resembling the photospheres of hot exoplanets and brown dwarfs.

Figures

Figures reproduced from arXiv: 2608.06600 by the authors.

Figure 1

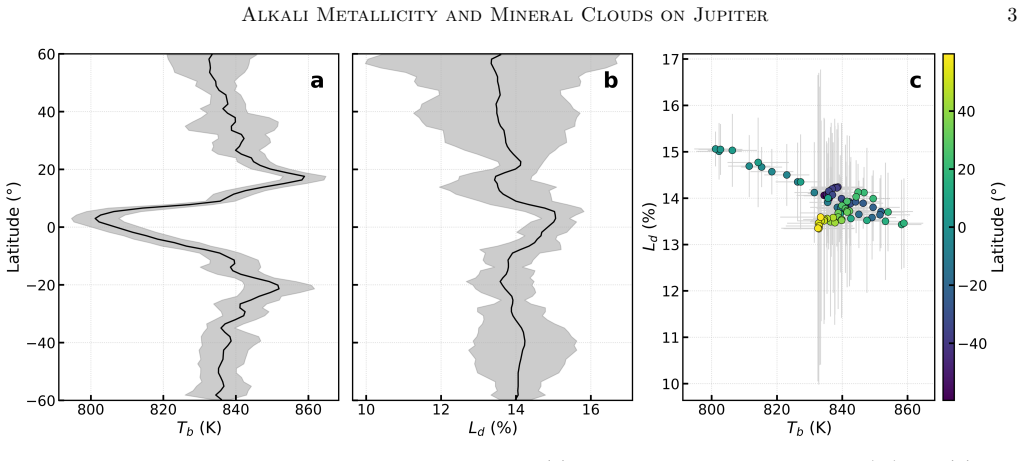

Figure 1. The MWR 0.6 GHz channel observations of Jupiter: (a) nadir-view brightness temperature (Tb) and (b) limb darkening (Ld) as a function of planetocentric latitude. The data were averaged over the first 12 perijoves; uncertainties are shaded in gray. (c) The correlation between nadir-view Tb and Ld, color coded by latitude. correlation plot of nadir-view Tb versus Ld. Strong lat￾itudinal variations are evident from the… view at source ↗
Figure 2
Figure 2. Atmospheric structure of Jupiter from 1 to 105 bar and the Juno MWR sensitivity. (a) Temperature profiles at different latitudes (solid lines, overlapping with each other) and the normalized weighting functions of the six MWR channels (red dashed lines). The 0.6 GHz channel probes the deepest levels, peaking between 1000 and 2000 bar. The uncertainty in the deep temperature profile is estimated to be about 10 K at 2… view at source ↗
Figure 3
Figure 3. Schematic view of cloud distributions in the deep atmosphere of Jupiter under different physical assumptions. (a) The rainout scenario: clouds precipitate out of the system immediately upon formation. This permanently restricts refractory elements (Al, Fe, Ca, Mg) at depths P > 2000 bar, leaving the upper atmosphere depleted. (b) The equilibrium scenario: vigorous vertical mixing transports deep condensates upward, … view at source ↗
Figures from the paper (10 more)
Figure 4
Figure 4. Figure 4: Vertical profiles of cloud mass, alkali metal speciation, and charge carriers in Jupiter’s deep atmosphere under two different transport regimes. Left column (rainout): condensates precipitate immediately upon formation. In this scenario, refractory elements (Si, Mg, A…
Figure 5
Figure 5. Figure 5: Comparison of modeled deep atmospheric composition and MWR observables against Juno data. (a) Vertical profiles of simulated gas-phase sodium (solid lines), potassium (dashed lines), and free electrons (dotted lines) in different cases. The blue lines represent the Rai…
Figure 6
Figure 6. Figure 6: Schematic representation of the dust-catalyzed recombination scenario in the deep atmosphere (1000–3000 bar). It relies on the physical presence of a dense, ex￾tended cloud deck composed of iron (Fe), silicates (MgSiO3, Mg2SiO4), and refractory oxides (Al2O3, TiO2). Ve…
Figure 7
Figure 7. Figure 7: Vertical structure of the deep Jovian cloud layers simulated using the ExoLyn microphysical model assuming a column-integrated nuclei production rate of 10−4 g cm−2 s −1 . Left Panel: Vertical profiles of mass mixing ratios (bottom axis) for condensable gases (thin das…
Figure 8
Figure 8. Figure 8: Impact of cloud microphysics on electron depletion and MWR observables in the dust-catalyzed recombination scenario. (a) Vertical profiles of mean particle radius and (b) cloud mass mixing ratio simulated by ExoLyn for three different nucleation rates, corresponding to…
Figure 9
Figure 9. Figure 9: Vertical profiles of the equilibrium dusty plasma state in the deep Jovian atmosphere, based on the dust cloud properties simulated using Exolyn with Σ˙ n = 10−4 g cm−2 s −1 (the nominal case presented in [PITH_FULL_IMAGE:figures/full_fig_p017_9.png]
Figure 10
Figure 10. Figure 10: Latitudinal profiles of brightness temperature anomalies for selected perijoves. (a) Channel 1 (0.6 GHz) anomalies. (b) Channel 2 (1.25 GHz) anomalies. (c) The minimum deep-layer anomalies (δTb,deep), obtained by subtracting the scaled channel 2 signal from channel 1 …
Figure 11
Figure 11. Figure 11: Latitude–time map of MWR brightness temperature anomalies, δTb, across 61 perijoves. (a) channel 1 (0.6 GHz) anomalies. (b) channel 2 (1.25 GHz) anomalies. (c) The minimum deep-layer anomalies. The color scale denotes deviations in kelvin. Guillot et al. 2018; Y. Kasp…
Figure 12
Figure 12. Figure 12: Elemental abundance ratios in Jupiter, Saturn, Uranus, and Neptune compared to protosolar values. This figure is adapted from [PITH_FULL_IMAGE:figures/full_fig_p023_12.png]
Figure 13
Figure 13. Figure 13: Vertical distribution of refractory species (Si, Mg, Al, Ca, Fe) that serve as the “building blocks” for deep clouds. Left column (rainout): refractory species condense in distinct, separated layers. aluminum (Al) condenses primarily as spinel (MgAl2O4) and calcium (C…
