A dual-field structure-preserving mixed finite element discretization for incompressible Hall MHD equations

Yi Zhang This is my paper

Pith reviewed 2026-05-20 04:30 UTC · model grok-4.3

classification 🧮 math.NA cs.NAmath-phmath.MP
keywords Hall MHDmixed finite elementsstructure preservationincompressible flowenergy lawdivergence freecurrent conservation
0
0 comments X

The pith

A dual-field mixed finite element discretization for incompressible Hall MHD equations preserves mass, magnetic divergence, and current density pointwise while satisfying a discrete energy law.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a new mixed finite element method using dual fields for solving the incompressible Hall magnetohydrodynamics equations. This discretization is designed to satisfy pointwise conservation of mass and current density along with exact adherence to the magnetic Gauss's law. It also follows a discrete energy law that accounts for dissipation when physical resistivity and viscosity are included, or conserves energy exactly in the ideal limit. Numerical experiments are used to verify both the accuracy and the structure-preserving features of the scheme.

Core claim

The discretization satisfies pointwise conservation of mass, magnetic Gauss's law, and conservation of current density. It also obeys a discrete energy law that exactly captures the energy dissipation in the dissipative case and reduces to conservation of energy in the ideal case.

What carries the argument

Dual-field structure-preserving mixed finite element spaces that enforce the pointwise conservation laws for mass, magnetic divergence-free condition, and current density in the presence of the Hall term.

If this is right

  • The method ensures no numerical violation of the divergence-free magnetic field constraint at the discrete level.
  • It maintains exact energy balance, either conserving energy or dissipating it according to the physical parameters.
  • The scheme supports accurate long-time simulations without artificial accumulation of errors in conserved quantities.
  • Numerical results confirm both optimal convergence rates and the structure-preservation properties.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This structure-preserving approach could be adapted to other non-ideal MHD models with additional terms like resistivity or viscosity.
  • Similar dual-field techniques might help in discretizing other systems with multiple pointwise constraints, such as incompressible Navier-Stokes coupled with electromagnetism.
  • Implementing this in existing MHD codes could reduce the need for projection steps or divergence cleaning methods.

Load-bearing premise

Suitable dual-field finite element spaces exist that can enforce pointwise conservation of mass, magnetic divergence, and current density simultaneously while handling the Hall term stably.

What would settle it

A numerical test where the computed magnetic divergence or mass flux deviates from zero at levels larger than machine precision, or where the discrete energy does not match the expected dissipation or conservation.

Figures

Figures reproduced from arXiv: 2605.19920 by Yi Zhang.

Figure 1
Figure 1. Figure 1: An illustration of the proposed time-advancing scheme. First, using initial conditions, we comptue [PITH_FULL_IMAGE:figures/full_fig_p009_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Results of the temporal accuracy test for [PITH_FULL_IMAGE:figures/full_fig_p013_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Results of the spatial accuracy test for [PITH_FULL_IMAGE:figures/full_fig_p014_3.png] view at source ↗
Figure 4

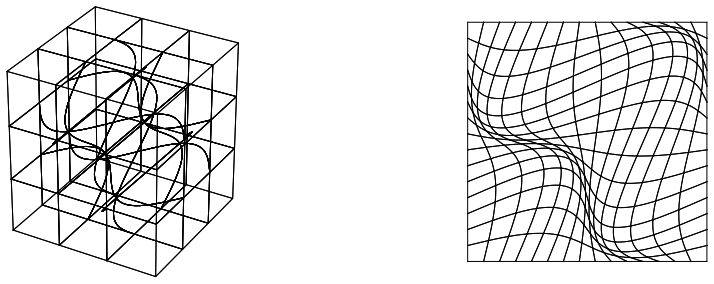

Figure 4. Figure 4: Left: An illustration of the mesh used in the structure-preservation test for [PITH_FULL_IMAGE:figures/full_fig_p015_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Some results of the structure-preservation test for [PITH_FULL_IMAGE:figures/full_fig_p015_5.png] view at source ↗
read the original abstract

In this paper, a novel dual-field structure-preserving mixed finite element discretization for incompressible Hall MHD equations is introduced. The discretization satisfies pointwise conservation of mass, magnetic Gauss's law, and conservation of current density. It also obeys a discrete energy law that exactly captures the energy dissipation in the dissipative case and reduces to conservation of energy in the ideal case. Numerical experiments demonstrate the temporal and spatial accuracy, as well as the properties of structure-preservation, are provided.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript introduces a dual-field structure-preserving mixed finite element discretization for the incompressible Hall MHD equations. It claims that the scheme satisfies pointwise conservation of mass, magnetic Gauss's law (div B_h = 0), and conservation of current density (div J_h = 0). It also obeys a discrete energy law that exactly captures the energy dissipation in the dissipative case and reduces to conservation of energy in the ideal case. Numerical experiments are provided to demonstrate temporal and spatial accuracy as well as the structure-preservation properties.

Significance. If the central claims hold, the work would advance structure-preserving discretizations for Hall MHD systems, which are relevant to plasma physics applications. The use of compatible dual-field spaces (H(div) and H(curl) elements) to enforce pointwise constraints by construction, combined with preservation of skew-symmetry for the Hall nonlinearity via commuting diagrams, offers a potentially robust approach for long-time stable simulations without artificial numerical dissipation.

major comments (1)
  1. [§3.2] §3.2, discrete energy law derivation: the proof that the Hall term preserves skew-symmetry at the discrete level relies on the commuting diagram property of the chosen spaces, but the manuscript does not explicitly verify this for the cross-product nonlinearity in the induction equation when tested against the magnetic field; a short calculation showing cancellation would confirm the claim.
minor comments (2)
  1. [Abstract and §1] The abstract and §1 should include a brief comparison to existing structure-preserving schemes for standard MHD (without Hall term) to better highlight the novelty of the dual-field extension.
  2. [Numerical experiments] In the numerical experiments section, the tables reporting convergence rates lack error norms for the current density J_h; adding these would directly support the conservation claim.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful reading of the manuscript and the constructive comment on the discrete energy law. We address the point below.

read point-by-point responses

  1. Referee: [§3.2] §3.2, discrete energy law derivation: the proof that the Hall term preserves skew-symmetry at the discrete level relies on the commuting diagram property of the chosen spaces, but the manuscript does not explicitly verify this for the cross-product nonlinearity in the induction equation when tested against the magnetic field; a short calculation showing cancellation would confirm the claim.

    Authors: We agree that an explicit short calculation would strengthen the presentation of the skew-symmetry preservation for the Hall term. In the revised manuscript we will insert, immediately after the statement of the commuting diagram property in §3.2, a brief verification showing that the discrete Hall term tested against the magnetic field vanishes identically by the commuting diagram and the fact that the test function lies in the image of the discrete curl operator. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected in derivation chain

full rationale

The discretization is constructed using standard compatible dual-field mixed finite element spaces (H(div) and H(curl) elements) chosen specifically to enforce pointwise div u_h = 0, div B_h = 0, and div J_h = 0 via the commuting diagram properties. The discrete energy law follows directly from testing the momentum and induction equations with the velocity and magnetic fields, preserving skew-symmetry of convective and Hall terms at the discrete level. These steps rely on the intrinsic properties of the chosen function spaces and operators rather than any fitted parameters, self-referential definitions, or load-bearing self-citations that reduce the claims to their inputs. The structure-preservation results are proven consequences of the method's design and are self-contained without circular reduction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The paper relies on established finite element theory for vector calculus identities and mixed methods; no new free parameters, ad-hoc entities, or non-standard axioms are introduced in the abstract description.

axioms (1)
  • standard math Standard assumptions on the regularity and compatibility of finite element function spaces that permit exact satisfaction of vector calculus identities such as pointwise divergence-free constraints.
    These assumptions are required to achieve the claimed pointwise conservation of mass, magnetic Gauss's law, and current density.
