Improved Structural Methods for Nonlinear Differential-Algebraic Equations via Combinatorial Relaxation

Taihei Oki This is my paper

Pith reviewed 2026-05-24 23:35 UTC · model grok-4.3

classification 💻 cs.SC cs.NAmath.NAmath.OC
keywords differential-algebraic equationscombinatorial relaxationindex reductionconsistent initializationnonlinear DAEsstructural methodssymbolic computationDAE preprocessing
0
0 comments X

The pith

Substitution and augmentation methods based on combinatorial relaxation modify nonlinear DAEs so structural index reduction works even with cancellations.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops two techniques to preprocess nonlinear differential-algebraic equations that defeat standard structural solvers because of hidden cancellations. The substitution method uses the implicit function theorem to solve selected equations for derivatives and inserts the results back into the system. The augmentation method instead adds fresh variables and equations to achieve the same structural adjustment without any symbolic solving. Both approaches rest on combinatorial relaxation and are shown in experiments to convert high-index nonlinear DAEs into forms that existing solvers can handle correctly while leaving the solution set unchanged.

Core claim

The substitution method symbolically solves equations for some derivatives based on the implicit function theorem and substitutes the solution back into the system. Instead of solving equations, the augmentation method modifies DAEs by appending new variables and equations. Both methods are based on the combinatorial relaxation approach and are applicable to a large class of nonlinear DAEs. Numerical experiments confirm that both, especially augmentation, successfully modify high-index DAEs that the DAE solver in MATLAB cannot handle.

What carries the argument

Combinatorial relaxation applied via substitution (implicit-function solving and back-substitution) or augmentation (addition of variables and equations) to restore applicability of structural index detection.

If this is right

  • Existing structural DAE preprocessors become usable on a wider class of nonlinear models once the new modifications are applied.
  • The augmentation method keeps the sparsity pattern of the original equations intact.
  • No symbolic equation solving step is required when the augmentation route is chosen.
  • Consistent initialization and index reduction become feasible for high-index nonlinear systems that current MATLAB solvers reject.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The augmentation route could be the default choice inside general DAE software when memory or fill-in during factorization matters.
  • The same relaxation idea might be tested on DAEs arising from discretized partial differential equations or from multibody mechanics.
  • An automated selector between substitution and augmentation could be built by estimating the cost of symbolic solving versus added matrix size.
  • The methods open the possibility of treating cancellations that appear only after numerical values are substituted for parameters.

Load-bearing premise

The modifications produced by substitution or augmentation preserve the original solution set and allow the combinatorial relaxation technique to correctly identify the index and consistent initialization for the resulting system.

What would settle it

A nonlinear DAE on which either method produces a modified system whose solutions differ from the original or on which the structural solver still returns an incorrect index after modification.

Figures

Figures reproduced from arXiv: 1907.04511 by Taihei Oki.

Figure 1
Figure 1. Figure 1: The zero/nonzero pattern of the system Jacobian [PITH_FULL_IMAGE:figures/full_fig_p019_1.png] view at source ↗
Figure 2

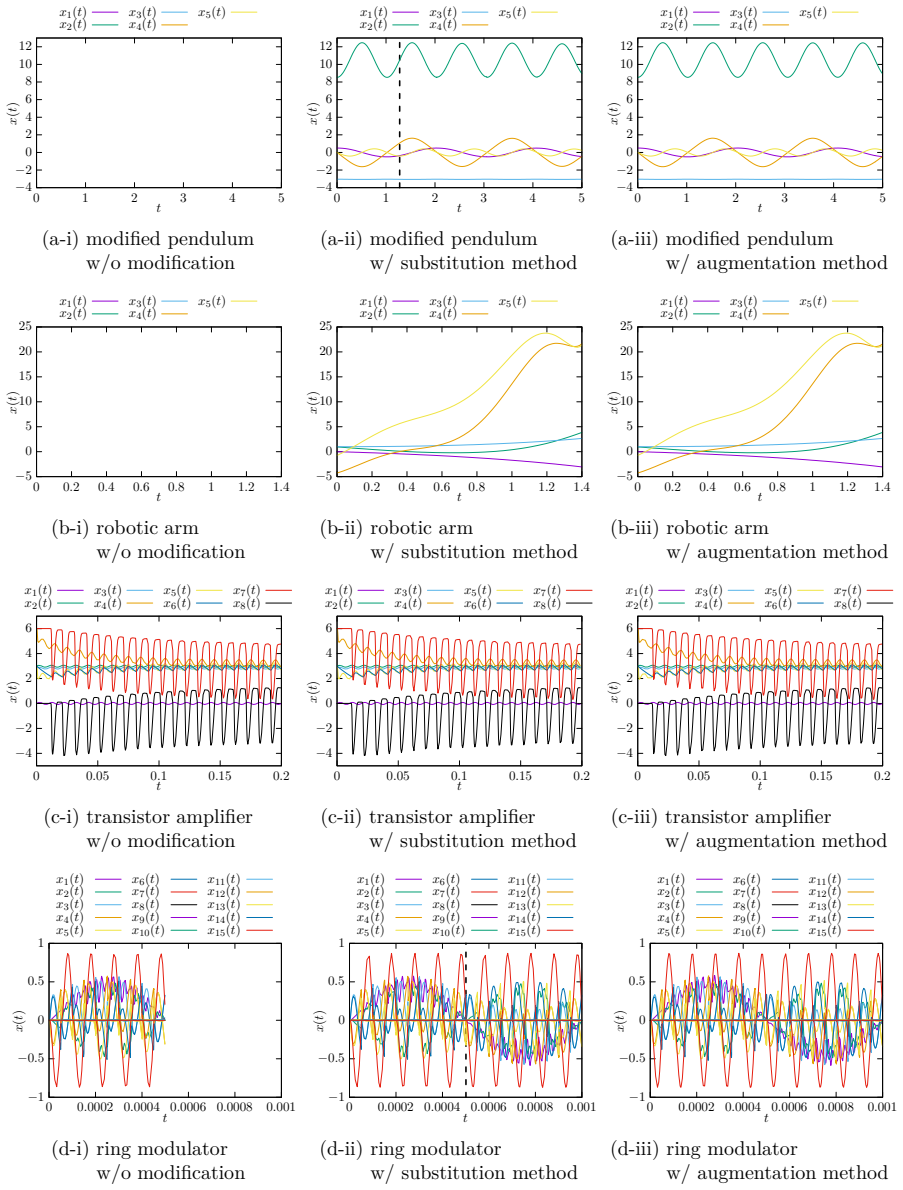

Figure 2. Figure 2: Numerical solutions of the experiments. In the 4 [PITH_FULL_IMAGE:figures/full_fig_p025_2.png] view at source ↗
read the original abstract

Differential-algebraic equations (DAEs) are widely used for modeling of dynamical systems. In numerical analysis of DAEs, consistent initialization and index reduction are important preprocessing prior to numerical integration. Existing DAE solvers commonly adopt structural preprocessing methods based on combinatorial optimization. Unfortunately, the structural methods fail if the DAE has numerical or symbolic cancellations. For such DAEs, methods have been proposed to modify them to other DAEs to which the structural methods are applicable, based on the combinatorial relaxation technique. Existing modification methods, however, work only for a class of DAEs that are linear or close to linear. This paper presents two new modification methods for nonlinear DAEs: the substitution method and the augmentation method. Both methods are based on the combinatorial relaxation approach and are applicable to a large class of nonlinear DAEs. The substitution method symbolically solves equations for some derivatives based on the implicit function theorem and substitutes the solution back into the system. Instead of solving equations, the augmentation method modifies DAEs by appending new variables and equations. The augmentation method has advantages that the equation solving is not needed and the sparsity of DAEs is retained. It is shown in numerical experiments that both methods, especially the augmentation method, successfully modify high-index DAEs that the DAE solver in MATLAB cannot handle.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The paper claims to introduce two new modification methods for nonlinear high-index DAEs—the substitution method (symbolically solving equations via the implicit function theorem and substituting) and the augmentation method (appending new variables and equations)—both based on the combinatorial relaxation technique. These are asserted to extend structural methods to cases with numerical/symbolic cancellations where prior approaches were limited to linear or near-linear DAEs. The augmentation method is noted for avoiding explicit solving and retaining sparsity. Numerical experiments are presented as evidence that both methods, especially augmentation, successfully modify high-index DAEs that MATLAB's DAE solver cannot handle.

Significance. If the methods rigorously preserve the original solution set while enabling correct index identification and consistent initialization, the work would meaningfully extend combinatorial structural preprocessing to a wider class of nonlinear DAEs, addressing a practical limitation in DAE solvers. The direct algorithmic constructions without reliance on fitted parameters or self-referential definitions, along with the sparsity-preserving augmentation approach, represent strengths. The inclusion of numerical experiments provides some practical grounding, though their limited description reduces the strength of the validation.

major comments (2)
  1. [Abstract and numerical experiments section] Abstract and numerical experiments section: The central claim of successful modification for high-index DAEs rests on numerical experiments, yet no information is supplied on the specific test cases, number of examples, verification procedures for solution correctness, or edge-case handling. This leaves the applicability assertion weakly supported and is load-bearing for the headline result.
  2. [Methods description (substitution and augmentation)] Methods description (substitution and augmentation): While the abstract asserts that the modifications preserve the original solution set and enable correct combinatorial relaxation, the provided material does not detail a proof or explicit verification that the transformed systems maintain equivalence for the nonlinear case; this assumption is central to the claim that the methods correctly identify index and consistent initialization.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments, which help clarify the presentation of our experimental validation and the justification for solution equivalence. We address each major comment below.

read point-by-point responses

  1. Referee: [Abstract and numerical experiments section] Abstract and numerical experiments section: The central claim of successful modification for high-index DAEs rests on numerical experiments, yet no information is supplied on the specific test cases, number of examples, verification procedures for solution correctness, or edge-case handling. This leaves the applicability assertion weakly supported and is load-bearing for the headline result.

    Authors: We agree that additional details on the numerical experiments would strengthen the support for the claims. In the revised manuscript, we will expand the experiments section to specify the test cases (including the DAE equations, their structural indices, and sources), the total number of examples considered, verification procedures (e.g., comparing solutions of original and modified systems via consistent initialization and numerical integration in MATLAB), and handling of edge cases such as multiple cancellations or degenerate Jacobians. revision: yes

  2. Referee: [Methods description (substitution and augmentation)] Methods description (substitution and augmentation): While the abstract asserts that the modifications preserve the original solution set and enable correct combinatorial relaxation, the provided material does not detail a proof or explicit verification that the transformed systems maintain equivalence for the nonlinear case; this assumption is central to the claim that the methods correctly identify index and consistent initialization.

    Authors: The substitution method invokes the implicit function theorem under the nonsingularity condition identified by combinatorial relaxation, ensuring local equivalence. The augmentation method constructs appended equations to be algebraically redundant with the original system, preserving the solution set by design without explicit solving. The current manuscript supports these claims via the method constructions and numerical evidence rather than a standalone formal theorem. We will add an explicit subsection in the revision detailing the equivalence arguments and conditions for both methods. revision: yes

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper presents two explicit algorithmic constructions (substitution via the implicit function theorem and augmentation by appending variables/equations) that modify nonlinear DAEs while preserving the solution set, enabling subsequent application of combinatorial relaxation. These steps rely on standard mathematical operations and are validated by direct numerical experiments on high-index cases where MATLAB fails. No load-bearing claim reduces by definition to its own inputs, no fitted parameters are renamed as predictions, and any self-citations (if present) are not required to justify the core preservation or applicability assertions. The derivation chain remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work relies on the prior combinatorial relaxation framework and assumes the new modifications can be applied while retaining key structural properties for a large class of nonlinear DAEs.

axioms (1)
  • domain assumption Nonlinear DAEs admit modifications via substitution (using implicit function theorem) or augmentation that preserve solvability and allow subsequent structural index reduction.
    This premise is required for the methods to be useful as described in the abstract.

pith-pipeline@v0.9.0 · 5763 in / 1117 out tokens · 23788 ms · 2026-05-24T23:35:11.147740+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

24 extracted references · 24 canonical work pages · 1 internal anchor

  1. [1]

    K. E. Brenan, S. L. Campbell, and L. R. Petzold. Numerical Solution of Initial-Value Problems in Differential-Algebraic Equations . SIAM, Philadelphia, 1996

    work page 1996

  2. [2]

    S. L. Campbell and C. W. Gear. The index of general nonline ar DAEs. Numerische Mathematik, 72(2):173–196, 1995

    work page 1995

  3. [3]

    S. L. Campbell and E. Griepentrog. Solvability of genera l differential algebraic equations. SIAM Journal on Scientific Computing , 16(2):257–270, 1995

    work page 1995

  4. [4]

    C. W. Gear. Differential-algebraic equation index trans formations. SIAM Journal on Scientific and Statistical Computing , 9(1):39–47, 1988

    work page 1988

  5. [5]

    Griewank

    A. Griewank. On automatic differentiation. In M. Iri and K . Tanabe, editors, Mathemati- cal Programming: Recent Developments and Applications , pages 83–108, Dordrecht, 1989. Kluwer Academic Publishers

    work page 1989

  6. [6]

    Hairer and G

    E. Hairer and G. Wanner. Solving Ordinary Differential Equations II: Stiff and Differe ntial- Algebraic Problems . Springer Series in Computational Mathematics. Springer- Verlag, Berlin, Heidelberg, 1996

    work page 1996

  7. [7]

    S. Iwata. Computing the maximum degree of minors in matri x pencils via combinatorial relaxation. Algorithmica, 36(4):331–341, 2003

    work page 2003

  8. [8]

    Iwata, T

    S. Iwata, T. Oki, and M. Takamatsu. Index reduction for di fferential-algebraic equations with mixed matrices. In Proceedings of the 8th SIAM Workshop on Combinatorial Scien tific Computing (CSC’18) , pages 45–55, Bergen, Norway, 2018

    work page 2018

  9. [9]

    Iwata and M

    S. Iwata and M. Takamatsu. Index reduction via unimodula r transformations. SIAM Journal on Matrix Analysis and Applications , 39(3):1135–1151, 2018

    work page 2018

  10. [10]

    H. W. Kuhn. The Hungarian method for the assignment prob lem. Naval Research Logistics Quarterly, 2:83–97, 1955

    work page 1955

  11. [11]

    Overview of the Rif Command Set Version 1.1 - Maple Programming Help

    Maplesoft, a division of Waterloo Maple, Inc. Overview of the Rif Command Set Version 1.1 - Maple Programming Help. URL: https://www.maplesoft.com/support/help/maple/view.aspx?path=DEtools/Rif. (accessed April 11, 2019)

    work page 2019

  12. [12]

    S. E. Mattsson and G. Söderlind. Index reduction in diffe rential-algebraic equations using dummy derivatives. SIAM Journal on Scientific Computing , 14(3):677–692, 1993

    work page 1993

  13. [13]

    Mazzia and C

    F. Mazzia and C. Magherini. Test set for initial value pr oblem solvers. Tech- nical report, Department of Mathematics, University of Bar i, 2008. URL: https://archimede.dm.uniba.it/~testset/

    work page 2008

  14. [14]

    K. Murota. Computing the degree of determinants via com binatorial relaxation. SIAM Journal on Computing , 24(4):765–796, 1995. 27

    work page 1995

  15. [15]

    C. C. Pantelides. The consistent initialization of diff erential-algebraic systems. SIAM Journal on Scientific and Statistical Computing , 9(2):213–231, 1988

    work page 1988

  16. [16]

    J. D. Pryce. A simple structural analysis method for DAE s. BIT Numerical Mathematics , 41(2):364–394, 2001

    work page 2001

  17. [17]

    X. Qin, L. Yang, Y. Feng, B. Bachmann, and P. Fritzson. In dex reduction of differential algebraic equations by differential Dixon resultant. Applied Mathematics and Computation , 328:189–202, 2018

    work page 2018

  18. [18]

    G. J. Reid, P. Lin, and A. D. Wittkopf. Differential elimi nation - Completion algorithms for DAE and PDAE. Studies in Applied Mathematics , 106(1):1–45, 2001

    work page 2001

  19. [19]

    Sasaki and H

    T. Sasaki and H. Murao. Efficient Gaussian elimination me thod for symbolic determinants and linear systems. ACM Transactions on Mathematical Software , 8(3):277–289, 1982

    work page 1982

  20. [20]

    L. Scholz. The signature method for DAEs arising in the m odeling of electrical circuits. Journal of Computational and Applied Mathematics , 332:107–139, 2018

    work page 2018

  21. [21]

    L. F. Shampine. Solving 0 = F (t,y (t),y ′(t)) in Matlab. Journal of Numerical Mathematics , 10(4):291–310, 2002

    work page 2002

  22. [22]

    Takamatsu and S

    M. Takamatsu and S. Iwata. Index reduction for different ial-algebraic equations by substi- tution method. Linear Algebra and Its Applications , 429(8-9):2268–2277, 2008

    work page 2008

  23. [23]

    G. Tan, N. S. Nedialkov, and J. D. Pryce. Conversion meth ods for improving structural analysis of differential-algebraic equation systems. BIT Numerical Mathematics, 57(3):845– 865, 2017. arXiv: 1505.03445

    work page internal anchor Pith review Pith/arXiv arXiv 2017

  24. [24]

    X. Wu, Y. Zeng, and J. Cao. The application of the combina torial relaxation theory on the structural index reduction of DAE. In Proceedings of the 12th International Symposium on Distributed Computing and Applications to Business, Eng ineering & Science , pages 162–166, London, UK, 2013. IEEE. A Appendix A.1 Relation between Substitution Method and LC-me...

    work page 2013
