Structural and electronic properties of the incommensurate host-guest Bi-III phase

Daniela Kartoon , Guy Makov This is my paper

Pith reviewed 2026-05-25 15:51 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords bismuthhigh pressureincommensurate structurehost-guest phasedensity functional theoryequation of statephase stabilityrelativistic effects
0
0 comments X

The pith

Large commensurate approximants reproduce the equation of state and stability range of bismuth's incommensurate Bi-III phase in agreement with experiment.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Bismuth forms an incommensurate host-guest structure called Bi-III at high pressure that cannot be modeled directly with periodic boundary conditions. The paper constructs large commensurate supercells that approximate the true structure and includes the small atomic displacements from ideal host and guest positions. These displacements alter the electronic bands and determine the pressure interval where the phase remains stable. When a fully relativistic density-functional treatment is used, the computed volume-pressure relation and the boundaries of the stability window match experimental data closely. The overall equation of state turns out to depend mainly on the pseudopotential and exchange-correlation choice, whereas the structural and electronic details require the large cells.

Core claim

Atomic modulations away from the ideal host-guest positions inside large commensurate approximants strongly reshape the electronic structure of Bi-III, and only when these modulations are retained together with a fully relativistic model does the calculated equation of state and pressure range of stability agree quantitatively with experiment.

What carries the argument

Large commensurate approximants that embed the incommensurate host-guest modulations of the Bi-III lattice.

If this is right

  • The pressure range of stability for Bi-III can be predicted accurately once the atomic displacements are included.
  • Electronic properties of the phase are controlled by the geometric modulations rather than by the average lattice parameters alone.
  • Cell size has a larger effect on the description of the modulations and electronic structure than on the overall equation of state.
  • A fully relativistic treatment is required for quantitative agreement with measured stability boundaries.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same large-cell approximant strategy could be tested on other high-pressure incommensurate phases whose stability windows are narrow.
  • If the modulations prove essential, smaller models may systematically misplace phase boundaries in elements that adopt host-guest structures.
  • The separation between geometric sensitivity and pseudopotential sensitivity suggests that hybrid approaches could be efficient for screening additional incommensurate candidates.

Load-bearing premise

Large commensurate approximants capture the geometric and electronic effects of the true incommensurate modulations without introducing artifacts that change the predicted stability range.

What would settle it

A calculation performed on a substantially larger approximant or by a method that directly treats the incommensurate modulation that produces a stability window differing by more than a few GPa from the values obtained here.

Figures

Figures reproduced from arXiv: 1906.10898 by Daniela Kartoon, Guy Makov.

Figure 1

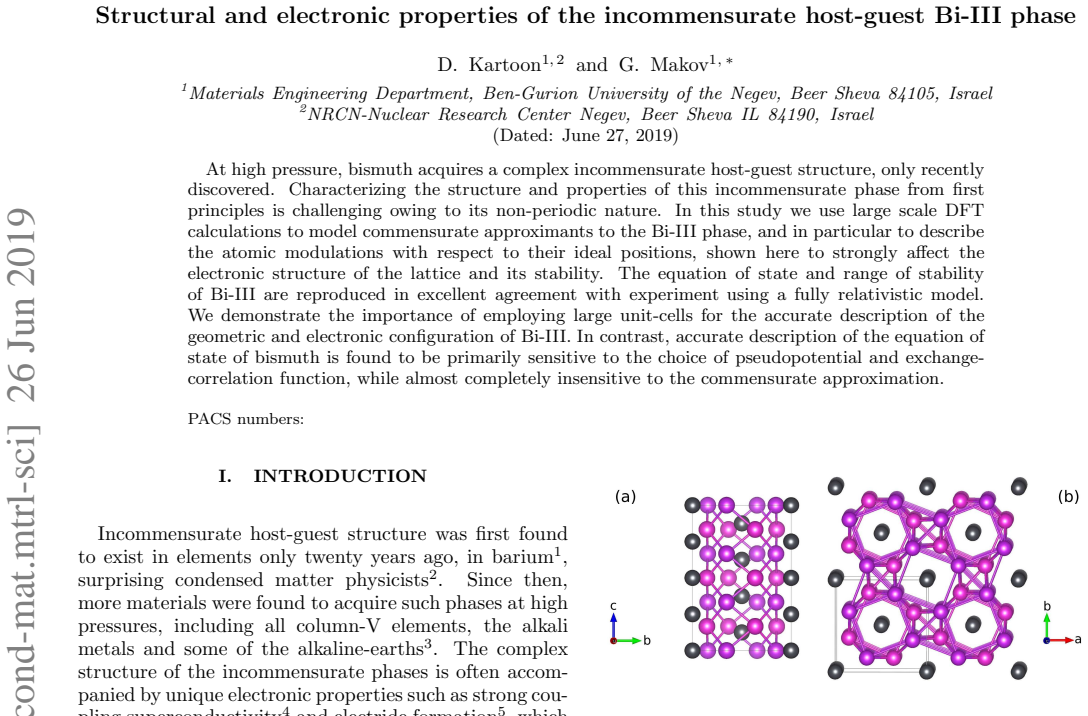

Figure 1. Figure 1: FIG. 1: Self-hosting Bi-III structure, shown in projection [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

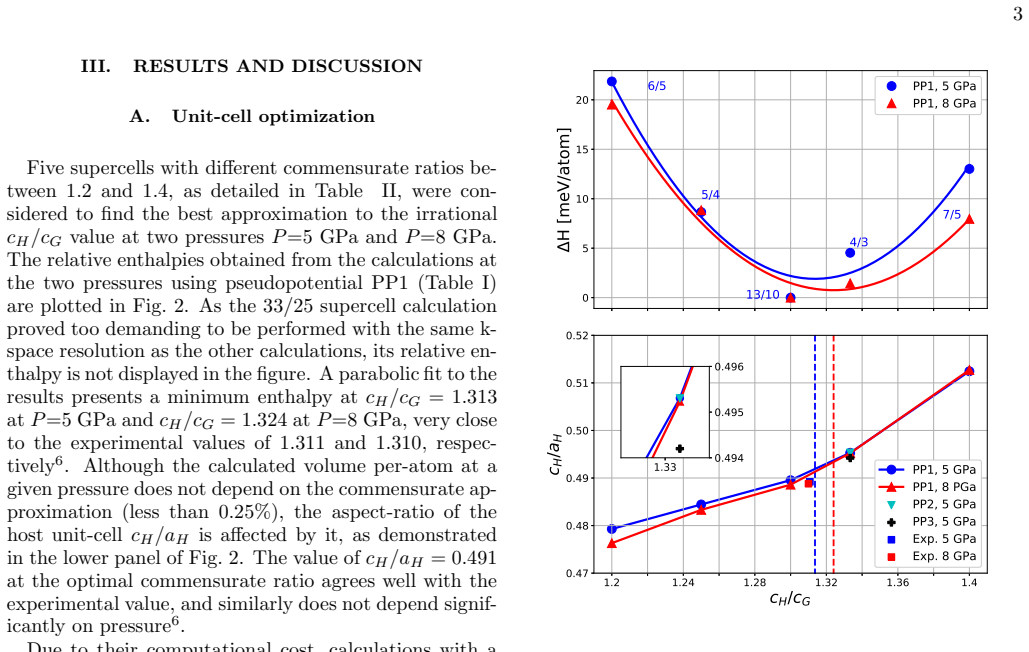

Figure 2. Figure 2: FIG. 2: Upper panel: relative enthalpies calculated for Bi- [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 4

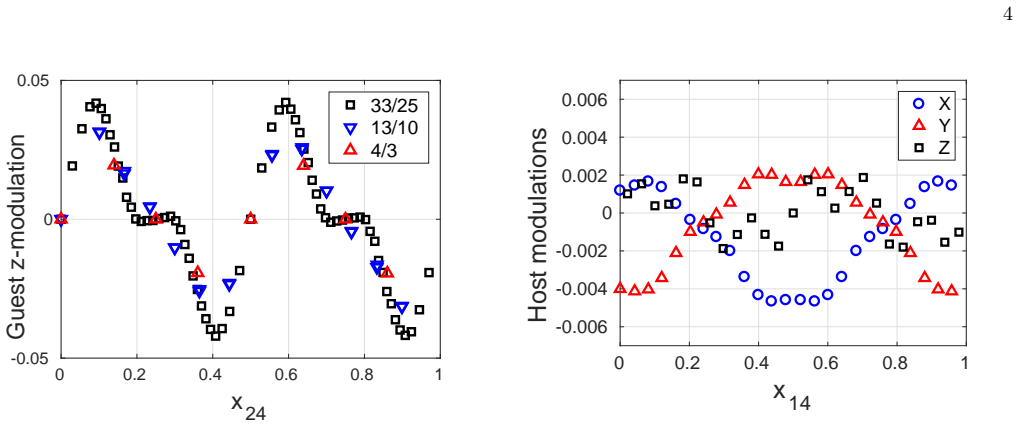

Figure 4. Figure 4: FIG. 4: Modulations of the host atoms along the x (blue),y [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5

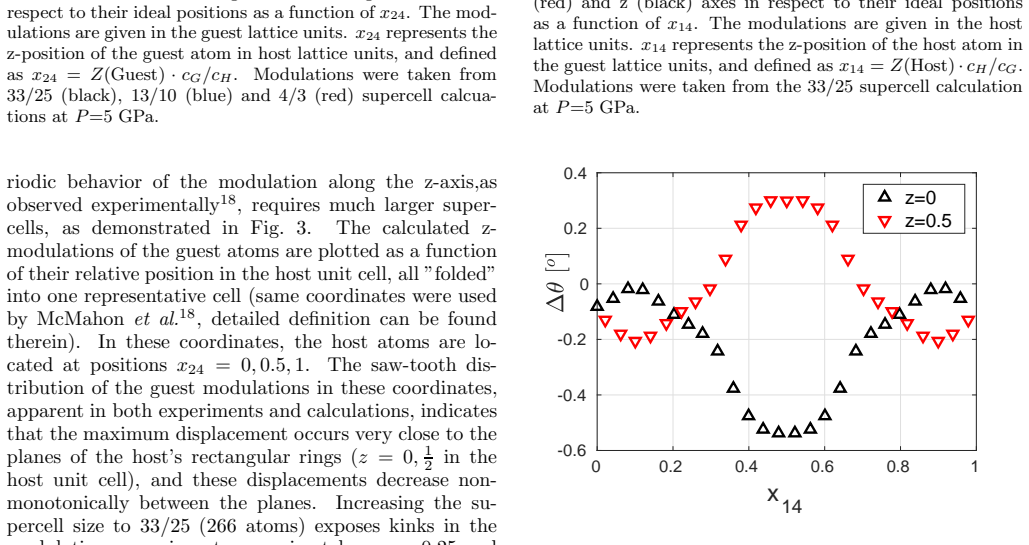

Figure 5. Figure 5: FIG. 5 [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
Figure 6

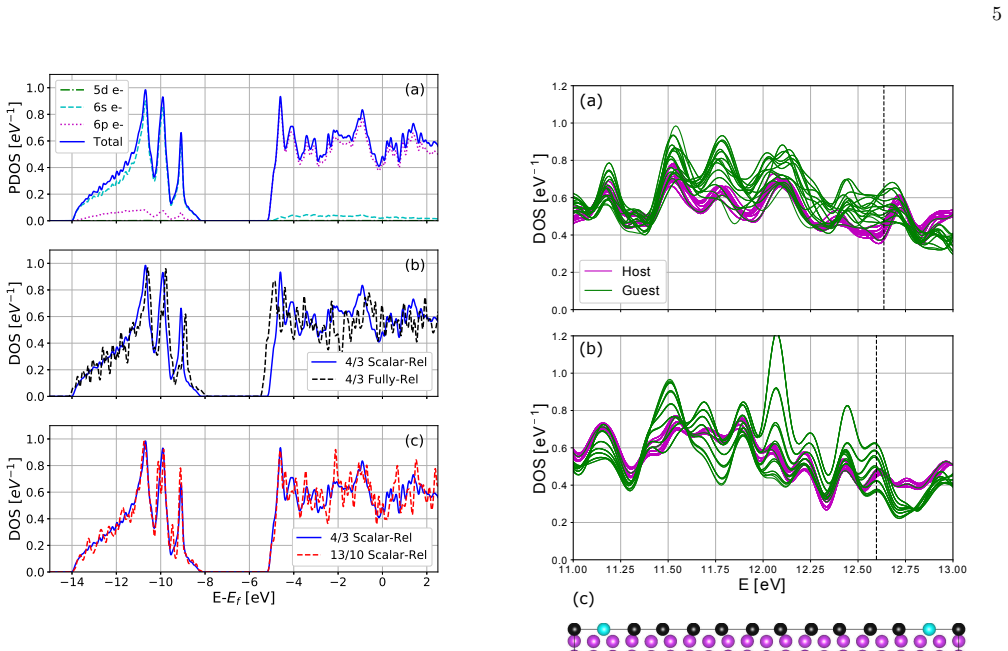

Figure 6. Figure 6: FIG. 6: Bi-III density of states (DOS) and its orbital pro [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗
Figure 9

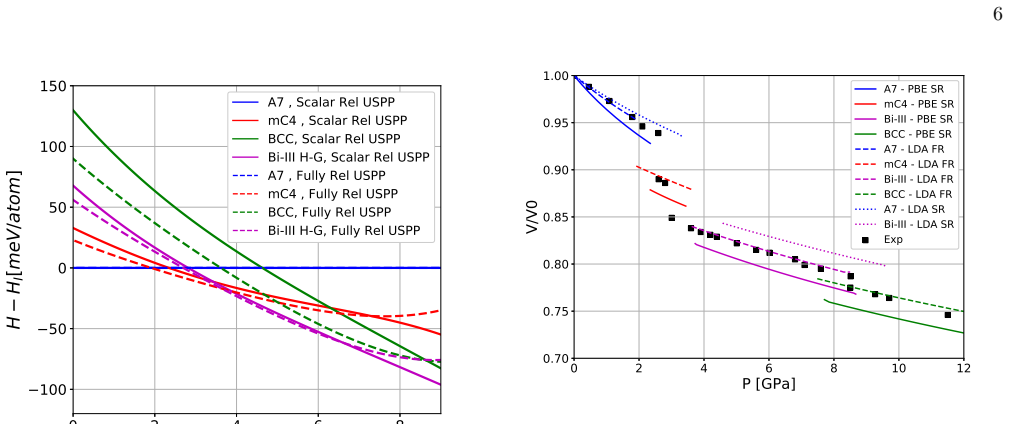

Figure 9. Figure 9: FIG. 9: Compressibility of bismuth at pressures up to 12 GPa. [PITH_FULL_IMAGE:figures/full_fig_p006_9.png] view at source ↗
Figure 10

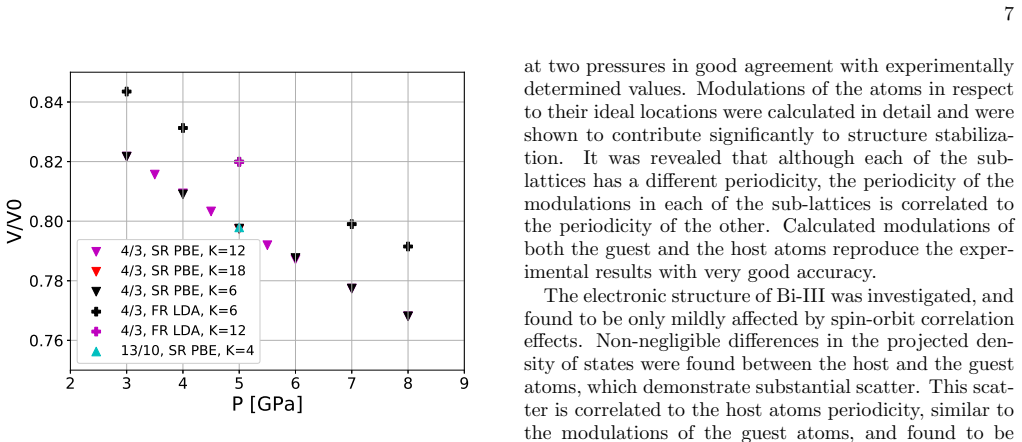

Figure 10. Figure 10: FIG. 10: Compressibility of Bi-III at various pressures, ca [PITH_FULL_IMAGE:figures/full_fig_p007_10.png] view at source ↗
read the original abstract

At high pressure, bismuth acquires a complex incommensurate host-guest structure, only recently discovered. Characterizing the structure and properties of this incommensurate phase from first principles is challenging owing to its non-periodic nature. In this study we use large scale DFT calculations to model commensurate approximants to the Bi-III phase, and in particular to describe the atomic modulations with respect to their ideal positions, shown here to strongly affect the electronic structure of the lattice and its stability. The equation of state and range of stability of Bi-III are reproduced in excellent agreement with experiment using a fully relativistic model. We demonstrate the importance of employing large unit-cells for the accurate description of the geometric and electronic configuration of Bi-III. In contrast, accurate description of the equation of state of bismuth is found to be primarily sensitive to the choice of pseudopotential and exchange-correlation function, while almost completely insensitive to the commensurate approximation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript uses large-scale DFT calculations on commensurate approximants to model the incommensurate host-guest Bi-III phase of bismuth. It reports that atomic modulations strongly influence the electronic structure and stability, and that the equation of state and pressure range of stability are reproduced in excellent agreement with experiment using a fully relativistic model. The EOS is found to be insensitive to the choice of commensurate approximant but sensitive to pseudopotential and exchange-correlation functional, while accurate description of stability requires large unit cells.

Significance. If the central results hold, the work establishes a practical first-principles route to incommensurate host-guest phases that are otherwise inaccessible to periodic DFT, with the reported experimental agreement for both EOS and stability range providing a useful benchmark for high-pressure materials. The distinction drawn between the sensitivities of EOS versus stability to cell size is a concrete methodological insight.

major comments (2)
  1. [Abstract] Abstract: The headline claim that 'the equation of state and range of stability of Bi-III are reproduced in excellent agreement with experiment' is load-bearing, yet the text explicitly states that stability is sensitive to cell size and modulations while providing no explicit convergence test (different rational approximations to the incommensurability ratio or alternative supercell choices) to demonstrate that the reported stability window is free of periodic artifacts from the chosen approximants.
  2. [Abstract] Abstract: The claim of 'excellent agreement' for the stability range lacks any reported error bars or quantitative measure of deviation from experiment, which is required to assess whether the agreement is robust given the noted sensitivity to the commensurate approximation.
minor comments (2)
  1. [Abstract] Abstract: The choice of pseudopotential and exchange-correlation functional is described as post-hoc without an a-priori justification or systematic comparison table.
  2. The manuscript would benefit from a dedicated subsection or table quantifying the convergence of enthalpy differences with approximant size, as this directly supports the claim that large cells are necessary.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for highlighting these points about the abstract. We address each comment below and propose revisions where appropriate to strengthen the presentation of our results on the Bi-III phase.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The headline claim that 'the equation of state and range of stability of Bi-III are reproduced in excellent agreement with experiment' is load-bearing, yet the text explicitly states that stability is sensitive to cell size and modulations while providing no explicit convergence test (different rational approximations to the incommensurability ratio or alternative supercell choices) to demonstrate that the reported stability window is free of periodic artifacts from the chosen approximants.

    Authors: The manuscript text already emphasizes that stability requires large unit cells while the EOS is largely insensitive to the specific commensurate approximation. The approximants employed are standard large supercells that incorporate the key atomic modulations, and the reported stability range is obtained from those calculations. We acknowledge that an explicit comparison across multiple distinct rational approximations (beyond the sizes already tested for convergence with cell size) is not presented. We will revise the abstract to temper the headline phrasing and add a short clarifying sentence in the main text referencing the specific approximants and the demonstrated cell-size sensitivity. revision: partial

  2. Referee: [Abstract] Abstract: The claim of 'excellent agreement' for the stability range lacks any reported error bars or quantitative measure of deviation from experiment, which is required to assess whether the agreement is robust given the noted sensitivity to the commensurate approximation.

    Authors: The description of 'excellent agreement' is based on the reproduced pressure window and EOS matching the experimental data points within the resolution of the calculations. We agree that a quantitative metric would improve clarity. In revision we will include a brief quantitative comparison (e.g., deviation in transition pressure or volume) both in the abstract and in the results section. revision: yes

Circularity Check

0 steps flagged

No circularity; external experimental benchmarks anchor all claims

full rationale

The paper performs standard DFT on large commensurate approximants, computes EOS and relative enthalpies, and directly compares both to independent experimental data. No parameter is fitted to a target quantity and then relabeled as a prediction. No self-citation supplies a uniqueness theorem or ansatz that the present work then treats as given. The stability-range result is obtained by explicit enthalpy minimization over the chosen cells and is reported as agreeing with (not derived from) measured pressures. The text explicitly notes sensitivity to cell size yet still validates against external EOS data, satisfying the self-contained criterion.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The modeling rests on standard DFT assumptions plus choices of pseudopotential and exchange-correlation functional whose effects are shown to dominate the EOS; no new entities are postulated.

free parameters (2)
  • exchange-correlation functional
    Choice strongly affects the equation of state as stated in the abstract.
  • pseudopotential
    Choice strongly affects the equation of state as stated in the abstract.
axioms (2)
  • domain assumption Density functional theory with chosen functional and pseudopotential yields accurate structural and electronic properties for bismuth under pressure.
    Invoked throughout the computational modeling described in the abstract.
  • domain assumption Commensurate approximants with sufficiently large cells reproduce the essential physics of the incommensurate Bi-III structure.
    Central modeling choice stated in the abstract.
