MARS: Defending Unmanned Aerial Vehicles From Attacks on Inertial Sensors with Model-based Anomaly Detection and Recovery

T0 review · 4 major / 4 minor · reviewed 2026-08-16 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Physical attacks on a drone's inertial sensors can be survived by estimating attitude from rotor speeds, detecting the attack, and recovering to hover before resuming flight.

desk verdict A genuinely novel tachometer-based IMU-free attitude estimator, evaluated broadly in simulation and with honest (but partial) real-world tests; the near-hovering model and software-injected attacks weaken the strongest claims, but the core idea is solid and worth refereeing. read the letter →

arxiv 2505.00924 v1 pith:QTOXU223 submitted 2025-05-02 eess.SY cs.ROcs.SY

Haocheng Meng , Shaocheng Luo , Zhenyuan Liang , Qing Huang , Amir Khazraei , Miroslav Pajic This is my paper · ORCID
classification eess.SYcs.ROcs.SY
keywords UAVsecurityinertialsensorattacksanomalydetectionresilientstateestimationextendedKalmanfilterrotorspeedsensorsflightrecoveryelectromagneticinterferenceattack
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Physical attacks on a drone's inertial measurement unit (IMU)—acoustic resonance or electromagnetic interference—can crash the aircraft within seconds because the flight controller loses its only direct source of attitude and angular velocity. This paper claims that a quadrotor can survive such attacks by treating the IMU as untrustworthy: MARS (Model-based Anomaly detection and Recovery System) estimates the net thrust and torque from propeller rotor speeds plus position, velocity, and heading data, then feeds these into an extended Kalman filter that reconstructs body-frame attitude without any IMU input. A statistical detector watches the mismatch between IMU readings and these model-based estimates, raises a system alarm within tens of milliseconds, and triggers a three-stage recovery that brakes the drone, restores near-hovering flight, and resumes the mission. If correct, this turns cheap tachometers into a practical IMU-independent attitude source, removing the need for redundant IMUs or heavy shielding.

What carries the argument

The load-bearing object is the near-hovering thrust-and-torque estimate of Sec. 3.1.1: when body-frame angular velocity is neglected and all four rotors share the vehicle's earth-frame velocity, Eq. (2) expresses each propeller's force and torque through squared rotor speed and earth-frame velocity, and Eq. (3) sums them to net thrust $f_B$ and torque $\tau_B$ at the center of mass. That $u=[f_B,\tau_B]^T$ replaces IMU acceleration and angular velocity as the driving input to an extended Kalman filter (EKF) that estimates position, velocity, orientation, and body-frame angular velocity. The same estimator yields the residual $r_k = Y_{s,k} - h_r(\hat{x}_{r,k})$ between IMU readings and resilient estimates; a cumulative-sum (CUSUM) statistic with a sliding-window detection rate converts this residual into a system-level alarm that triggers emergency braking, near-hover restoration, and recovered flight.

What would settle it

Run an IMU attack during a fast, banked maneuver with pitch or roll exceeding about 30 degrees and compare the resilient estimator's attitude error to the hover-level errors claimed in Sec. 4.2; if the drone crashes or the attitude estimate diverges before the braking stage restores near-hover, the near-hovering model is falsified as a general recovery mechanism.

Watch

Extended reading notes

Core claim

On the paper's own terms, the central result is that a quadrotor's orientation and body-frame angular velocity can be reconstructed without any IMU data under near-hovering conditions. Using the rotor model of Eqs. (1)-(2), each propeller's force and torque depend only on squared rotor speed and the vehicle's earth-frame velocity, so summing over four rotors yields estimates of net thrust and torque at the center of mass; these act as control inputs to an extended Kalman filter that estimates position, velocity, orientation, and angular velocity. The resilient estimator runs continuously beside the standard IMU-based one, and the mismatch between observed IMU readings and the resilient estimate becomes the attack alarm. The paper claims this detector catches acoustic DoS, side-swing, switch, and EMI-saturation attacks in roughly 0.02-0.065 seconds, and that the three-stage recovery—brake, restore near-hover, then resume—lets the drone finish tracked missions with about 0.5 m tracking error and completion time within roughly 30% of nominal.

Load-bearing premise

The load-bearing premise is the near-hovering model: body-frame angular velocity can be neglected and all four rotors share the vehicle's earth-frame velocity, so thrust and torque follow from rotor speeds alone—and, equally, the tachometers and position and heading sensors are themselves immune to the attack.

Editorial extensions

If this is right

  • A drone with tachometers can survive all four analyzed attack profiles during hover, whereas low-pass filtering, deep-autoencoder denoising, and geometric attitude reconstruction all crash within roughly 1-3 seconds.
  • An attack that begins during a moving mission does not have to be fatal: the emergency-braking stage restores near-hover, and the mission resumes with lateral tracking error below about 0.64 m and completion time no more than about 30% above nominal in the tested tracking task.
  • Detection is fast enough for online recovery: average detection times of 0.024-0.039 seconds in simulation and 0.024-0.065 seconds in real flights across the four attack profiles.
  • Because the resilient estimator is attack-signature-independent, the same MARS modules handle both patterned acoustic resonance variants and un-patterned EMI saturation, and the anomaly detector also detects weaker step- and ramp-amplitude modulated attacks.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Beyond the paper's quadrotor tests, the same near-hovering rotor-speed-to-thrust reconstruction should transfer to other multirotor geometries such as hexacopters or octocopters, as long as each rotor's speed and the vehicle's body velocity remain measurable; this extension is not demonstrated in the paper.
  • The design implicitly assumes the tachometers and the position and heading sensors are outside the attacker's reach; an attacker who could spoof rotor speeds would feed false thrust and torque into the EKF and corrupt the very residual used for detection, so hardening the tachometer and GPS or compass interfaces is a first-order security requirement implied by the architecture.
  • Recovery quality during aggressive maneuvers depends on the experimentally tuned torque compensation of Eq. (4); replacing that fixed compensation with an adaptive or learned braking controller could widen the flight envelope in which the near-hovering assumption holds.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 4 minor

Summary. This manuscript introduces MARS, a defense framework intended to keep quadrotors airborne when IMU readings are maliciously corrupted. The core component is a 'resilient' Extended Kalman Filter that, without using IMU data, estimates attitude and body-frame angular velocity from position, velocity, heading, and rotor-speed (tachometer) measurements. The tachometer measurements are converted into net thrust and torque through a near-hovering propeller model, and a CUSUM statistic on the residual between IMU readings and the resilient estimate, combined with a sliding window, triggers attack detection. A multi-stage recovery strategy brakes the vehicle, restores near-hovering, and then resumes the mission under resilient control. The system is implemented in PX4 and evaluated in software-in-the-loop simulations (160 hovering trials, ROC curves, dynamic tracking missions) and on an X500 quadrotor in an indoor arena, where VICON MOCAP emulates GPS/compass and attack vectors are injected into PX4 firmware.

Significance. If fully validated, MARS would be a useful alternative to filtering-based IMU defenses and to geometric attitude reconstruction: it provides attitude estimates at controller rate without IMU data, detects several attack profiles within tens of milliseconds, and keeps the vehicle flying in the reported comparisons while LPF, DAE, and CAF crash. The paper's open-source code, datasets, demo videos, and measured computation overhead (0.261 ms, about 1% CPU, about 12 KB memory) are notable strengths for reproducibility. The significance is conditional, however, on clarifying the attitude dependence of the near-hovering model and on the fact that the real-world experiments use software-injected faults and MOCAP-emulated GPS/compass rather than physical acoustic or EMI attacks.

major comments (4)
  1. [Sec. 3.1.1, Eqs. (1)-(3)] The statement that the net thrust and torque 'rely only on rotor speed and earth-frame velocity measurements' is not supported by the equations as written. The rotor-plane normal k_b and the projections V_Ai_perp and V_Ai in Eq. (2) are attitude-dependent quantities; computing f_B and tau_B in the body frame requires the rotation R(q), which contains the unknown roll and pitch. The paper explicitly applies a yaw-only projection for the braking term in Eq. (4) because 'roll and pitch angles are not directly accessible,' but no analogous clarification is given for the nominal thrust/torque computation used as the EKF input u. If the implementation assumes k_b is approximately vertical and uses only the measured yaw, that is a small-angle approximation that should be stated and whose error should be quantified; if instead the previous EKF attitude estimate is used to compute u, the estimator is not independent of the state it is meant to recover. Please clarify which construction is used and bound the resulting bias outside hover.
  2. [Sec. 5 and Sec. 5.1, Table 5] The real-world experiments do not exercise physical acoustic or EMI attacks. Sec. 5.1 states that 'we used realistic attack vectors discussed in Section 4.3 into PX4 firmware,' meaning the IMU outputs are corrupted in software, and VICON MOCAP provides the GPS and compass data at 10 Hz. This validates the estimator and detector on simulated sensor faults but not on the physical attack channels (acoustic resonance with sampling-drift aliasing, EMI-induced bit flips or communication loss) and not on realistic GPS/compass noise and outages. To support the abstract's claim of defending against physical attacks, please either add physical attack experiments or explicitly limit the real-world claim to attacks whose effect is equivalent to injecting corrupted IMU readings, and discuss how MOCAP accuracy affects transferability to outdoor GPS.
  3. [Sec. 1 contribution bullet; Sec. 3.3; Sec. 6] The contribution bullet claiming universal applicability 'regardless of the UAV's state' is contradicted by the near-hovering assumption and by the paper's own Sec. 6 'intrinsic limitation' statement. The multi-stage recovery relies on the braking stage returning the vehicle to near-hover before the degraded model is used; the paper does not report experiments in which the attack starts during a genuinely aggressive maneuver (e.g., high speed with sustained pitch or roll above about 0.4 rad or with high angular rates). Since Eq. (2) omits angular-velocity terms and uses the near-hover simplification, the estimation error before braking can be large exactly when the drone is most dynamic. Please state the valid operating envelope (velocity and attitude ranges) and temper the universality claim accordingly.
  4. [Sec. 4.3.2, Fig. 8; Sec. 4.5] The ROC analysis in Fig. 8 appears to be based on hovering no-attack windows; the manuscript does not report the false-alarm rate of MARS-AD during attack-free dynamic flight, where the near-hovering thrust/torque model is least accurate. Since a false alarm causes a switch to resilient mode and mission suspension, the practical detection threshold p should be validated in the dynamic regime, not only in hover. Please provide attack-free dynamic tests with the chosen thresholds, or quantify how model error affects the detection statistic.
minor comments (4)
  1. [Abstract and throughout] There are several typographical errors, including 'UA Vs' with an extra space, 'aModel-based' in the abstract, and 'indentity matrix' in App. 7.3.
  2. [Alg. 1, Sec. 3.2.1] The definitions of Y_s,k and Y_r,k could be made clearer: it should be stated explicitly whether Y_s,k includes the IMU readings that are later excluded from Y_r,k, and how the residual r_k is aligned in time when the two estimate modes run at different update rates.
  3. [Tables 2-6] The reported averages for survival time, tracking error, and Euler-angle fluctuations are given without standard deviations or confidence intervals; given the 160-trial hovering evaluation, adding variance information would materially strengthen the comparison.
  4. [Sec. 4.4] The DAE baseline is evaluated at 5x slower than real time; this is acknowledged in the text, but Table 2 could still be misread as a real-time comparison, so the caption should repeat that caveat.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: MARS's IMU-free estimator rests on independent tachometer, GPS, and compass measurements, and the near-hovering model is an explicit approximation rather than a hidden attitude feedback loop.

full rationale

The central derivation is self-contained and not circular. MARS's resilient estimator uses tachometer rotor speeds, GPS position/velocity, and compass heading as independent measurements, and the target outcome (surviving IMU attacks and completing missions) never appears as an input to the estimation or detection equations. The near-hovering thrust/torque model in Sec. 3.1.1 (Eqs. (1)-(3)) is an explicit approximation that neglects body-frame angular velocity terms and assumes all rotors share the vehicle's earth-frame velocity; Eq. (4) further states that only the yaw rotation is used in the velocity projection 'as roll and pitch angles are not directly accessible,' so the model does not secretly feed the estimated roll/pitch attitude back into its own input. The EKF in Sec. 3.1.3 then uses the resulting thrust/torque vector, together with position and heading measurements, to infer attitude through the translational dynamics—this is a legitimate estimation chain. The paper itself flags in Sec. 6 that estimates degrade away from near-hovering conditions, which is a validity limitation on the contribution bullet's 'regardless of the UAV's state' claim, not a circularity. The anomaly detector uses the residual between IMU readings and the IMU-independent resilient estimate, so detection is not defined in terms of the recovery outcome it is meant to enable. Experimentally tuned parameters (Kcp, torque bias, CUSUM thresholds) are controller/detector tuning, not fitted to the attack-recovery result. The only self-citation, [32] (Jovanov and Pajic), is a non-load-bearing example in a list of statistical anomaly detection methods and does not support any uniqueness or forcing claim. No equation in the paper reduces to its own input by construction.

Assumptions & free parameters 4 free parameters · 4 assumptions · 0 invented entities

The central claim rests on a physics model and trusted auxiliary sensors, plus several tunable gains. The free parameters mainly affect controller and detector tuning rather than the core idea, but their values are not reported.

free parameters (4)
  • Torque compensation gains Kcp = not reported (tuned experimentally)
    Sec. 3.1.2, Eq. (4): Kcp is added to the torque estimate for braking; values are experimentally tuned and not given.
  • Torque bias tau_B_b = not reported (tuned experimentally)
    Sec. 3.1.2: used to tune net torques for optimal hovering stability.
  • CUSUM drift b, threshold lambda, sliding window length l = not reported (only p=0.005 is given)
    Sec. 3.2.1-3.2.2: these parameters are required to implement the detector but are not specified.
  • EKF noise covariances Q and R = not reported
    App. 7.3 uses Q_k and R_k; values are not given and are presumably tuned for the platform.
assumptions (4)
  • domain assumption Near-hovering simplification: angular-velocity coupling terms in the propeller force and torque model are neglected, and all rotors have the same earth-frame velocity as the center of mass (Eqs. (1)-(2)).
    Sec. 3.1.1; load-bearing because outside near-hovering conditions the thrust and torque estimates degrade.
  • domain assumption Tachometers cannot be compromised by acoustic or EMI attacks.
    Intro states 'both cannot be compromised with acoustic and electromagnetic interference'; the entire backup path depends on this.
  • domain assumption GPS and compass (position, velocity, heading) remain trustworthy during IMU attacks.
    Sec. 3.1.3 observation vector y includes these; the threat model only attacks IMUs.
  • domain assumption Standard nonlinear quadrotor dynamics (Eqs. (8)-(9)) accurately model the vehicle.
    Sec. 7.1; used in the EKF prediction step and in thrust and torque estimation.

how reviews work

0 comments
Cite this review

Pith. "Pith review of MARS: Defending Unmanned Aerial Vehicles From Attacks on Inertial Sensors with Model-based Anomaly Detection and Recovery." pith.science (2026). https://pith.science/paper/QTOXU223

@misc{pith2026250500924,
  author       = {Pith},
  title        = {Pith review of: MARS: Defending Unmanned Aerial Vehicles From Attacks on Inertial Sensors with Model-based Anomaly Detection and Recovery},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/QTOXU223}},
  note         = {Machine review of arXiv:2505.00924}
}
read the original abstract

Unmanned Aerial Vehicles (UAVs) rely on measurements from Inertial Measurement Units (IMUs) to maintain stable flight. However, IMUs are susceptible to physical attacks, including acoustic resonant and electromagnetic interference attacks, resulting in immediate UAV crashes. Consequently, we introduce a Model-based Anomaly detection and Recovery System (MARS) that enables UAVs to quickly detect adversarial attacks on inertial sensors and achieve dynamic flight recovery. MARS features an attack-resilient state estimator based on the Extended Kalman Filter, which incorporates position, velocity, heading, and rotor speed measurements to reconstruct accurate attitude and angular velocity information for UAV control. Moreover, a statistical anomaly detection system monitors IMU sensor data, raising a system-level alert if an attack is detected. Upon receiving the alert, a multi-stage dynamic flight recovery strategy suspends the ongoing mission, stabilizes the drone in a hovering condition, and then resumes tasks under the resilient control. Experimental results in PX4 software-in-the-loop environments as well as real-world MARS-PX4 autopilot-equipped drones demonstrate the superiority of our approach over existing IMU-defense frameworks, showcasing the ability of the UAVs to survive attacks and complete the missions.

Figures

Figures reproduced from arXiv: 2505.00924 by the authors.

Figure 1
Figure 1. UAV onboard sensing and control architecture high [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. MARS architecture with resilient sensor hubs (i.e., all sensors except the IMU), AD, and multi-stage flight recovery, [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Model-based resilient state estimator architecture. [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figures from the paper (14 more)
Figure 4
Figure 4. Figure 4: Multi-stage dynamical recovery for arbitrary au [PITH_FULL_IMAGE:figures/full_fig_p007_4.png]
Figure 5
Figure 5. Figure 5: MARS-PX4 autopilot architecture. Gray blocks: PX4 default modules; blue blocks: our customized or specially tailored [PITH_FULL_IMAGE:figures/full_fig_p008_5.png]
Figure 6
Figure 6. Figure 6: FRD frame thrust and torque estimation errors. [PITH_FULL_IMAGE:figures/full_fig_p008_6.png]
Figure 8
Figure 8. Figure 8: illustrates the detection accuracy of the three detec￾tors using Receiver Operating Characteristic (ROC) curves; e.g., when the false alarm rate is set at 0.01, for AR-DoS attacks the true detection rates of χ 2 , Standard CUSUM and MARS CUSUM are 0.792, 0.937, and 0.9…
Figure 9
Figure 9. Figure 9: The UAV altitude in hovering missions under four [PITH_FULL_IMAGE:figures/full_fig_p010_9.png]
Figure 10
Figure 10. Figure 10: Average rotor speed fluctuation while hovering. [PITH_FULL_IMAGE:figures/full_fig_p010_10.png]
Figure 11
Figure 11. Figure 11: 3D drone position in a dynamic tracking mission [PITH_FULL_IMAGE:figures/full_fig_p011_11.png]
Figure 12
Figure 12. Figure 12: Average rotor speed fluctuation in RMS in the [PITH_FULL_IMAGE:figures/full_fig_p011_12.png]
Figure 13

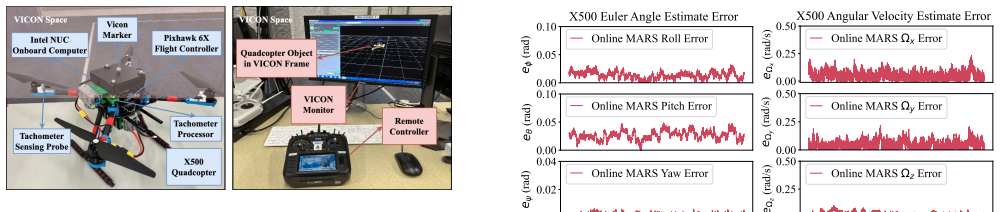

Figure 13. Figure 13: MARS-PX4 X500 physical platform setup. roles in our experiments: it was used to simulate GPS measure￾ments and compass for indoor environments at a frequency of 10 Hz, and to provide ground-truth data for analysis at 200 Hz. For MARS-based resilient control, only MOCA…
Figure 15
Figure 15. Figure 15: Real-time MARS signal recovery and anomaly [PITH_FULL_IMAGE:figures/full_fig_p012_15.png]
Figure 16
Figure 16. Figure 16: MARS real flight tests. Left to right: Hovering; Way-point visiting; Square tracking; Hovering under disturbance. [PITH_FULL_IMAGE:figures/full_fig_p013_16.png]
Figure 17
Figure 17. Figure 17: AD offline ROC curves with Step attacks. [PITH_FULL_IMAGE:figures/full_fig_p018_17.png]
Figure 19

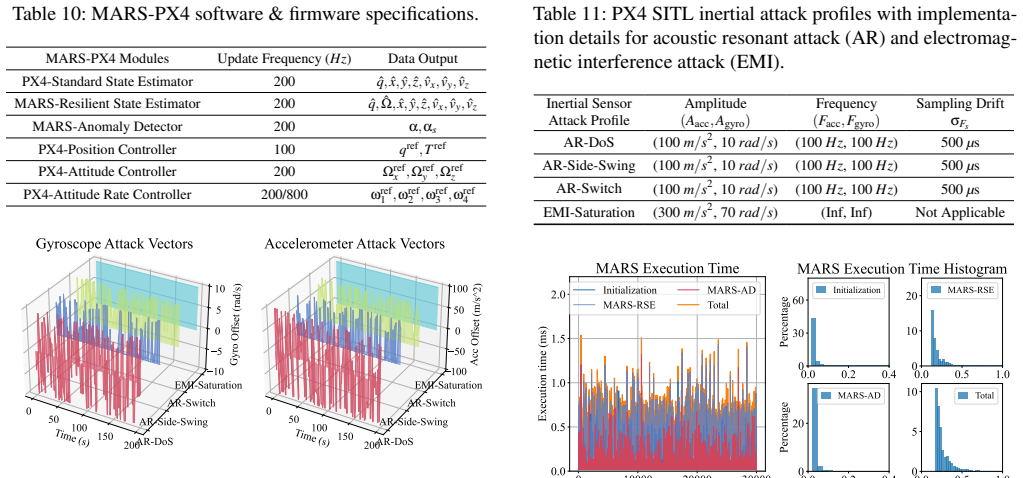

Figure 19. Figure 19: Illustration of the four considered inertial sensor [PITH_FULL_IMAGE:figures/full_fig_p019_19.png]
Figure 21
Figure 21. Figure 21: Online torque and thrust estimates. 7.5.4 Tachometer-based Estimation To meet the requirement of MARS state estimator and con￾trollers, we chose the tachometers sampling frequency at 200 Hz and recorded the measurements of all four rotors in real-time. As discussed in…
