Causal models on probability spaces

Irineo Cabreros , John D. Storey This is my paper

Pith reviewed 2026-05-25 10:07 UTC · model grok-4.3

classification 🧮 math.ST stat.TH
keywords causal inferencepotential outcomesmeasure theoryprobability spacescausal modelsrandomizationmatching
0
0 comments X

The pith

Causal models built on probability spaces clarify effects, interactions, matching and randomization.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper constructs causal models in the potential outcomes framework directly on probability spaces using the tools of measure theory. This construction is meant to demonstrate that measure theory supplies a precise language for expressing and reasoning about causality. A sympathetic reader would care because the approach is shown to yield concrete insights into familiar causal concepts through simple examples. The authors also introduce a visualization method and take initial steps toward an axiomatic theory of general causal models.

Core claim

By constructing causal models on probability spaces within the potential outcomes framework, measure theory provides a precise and instructive language for causality, and consideration of the probability spaces underlying causal models offers clarity into central concepts of causal inference. Simple examples demonstrate insights into causal effects, causal interactions, matching procedures, and randomization. A visualization technique is introduced that aids both example generation and causal intuition, and an axiomatic framework is supplied as initial steps toward a formal theory of general causal models.

What carries the argument

The construction of causal models on probability spaces, in which potential outcomes are represented as random variables on a measure space so that causal quantities become measurable functions and expectations.

If this is right

  • Causal effects are expressed as expectations of the difference between potential-outcome random variables over the probability space.
  • Causal interactions appear as properties of the joint distribution of multiple potential-outcome variables.
  • Matching procedures correspond to measurable partitions or conditioning operations on the sample space.
  • Randomization corresponds to independence between the treatment-assignment variable and the potential-outcome variables.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same construction might let researchers import limit theorems or concentration inequalities directly into causal bounds.
  • Extending the representation to infinite or non-separable spaces could handle continuous or uncountably many interventions without new machinery.
  • The axiomatic sketch could serve as a common language for comparing potential-outcomes models with structural causal models.

Load-bearing premise

Every causal model of interest in the potential outcomes framework can be faithfully represented as a standard probability space without requiring additional structure or losing essential causal features.

What would settle it

A specific causal model in the potential outcomes framework whose counterfactual relations or inference properties cannot be preserved when embedded into any probability space.

Figures

Figures reproduced from arXiv: 1907.01672 by Irineo Cabreros, John D. Storey.

Figure 1

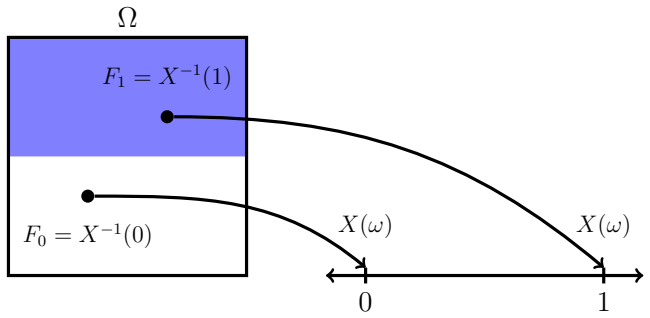

Figure 1. Figure 1: A binary random variable X on the square sample. Shaded regions denote the pre-image of 1. Black points correspond to individual elements of the sample space. Ω x y R2 0 1 0 1 (X, Y )(ω) [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2

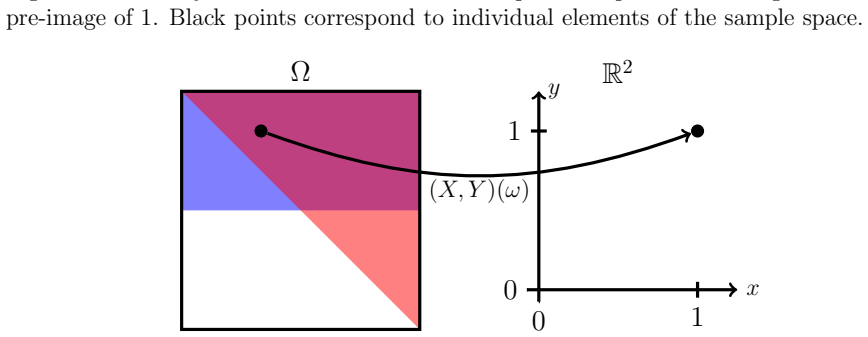

Figure 2. Figure 2: A system of two binary random variables X and Y defined on the square space. The pre-image of 1 for the random variable X is the upper half of Ω. The pre-image of 1 for the random variable Y is the upper right triangle. then X and Y are called independent. Otherwise, X and Y are dependent. In [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

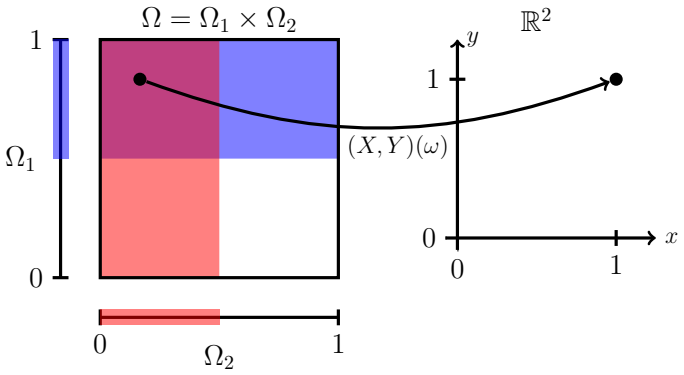

Figure 3. Figure 3: The probability space (Ω, F, P) is formed by the product of spaces the spaces (Ω1, F1, P1) and (Ω2, F2, P2). The two binary random variables X and Y defined separately on the original probability spaces are independent on the product space. are independent random variables when defined jointly on the product space (Ω1 × Ω2, F1 × F2, P1 × P2) [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4

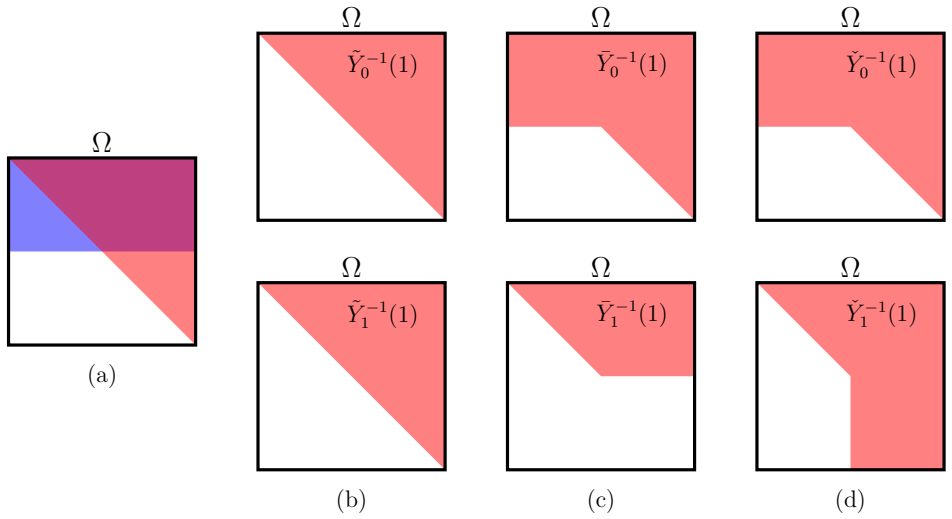

Figure 4. Figure 4: (a) The system of random variables X and Y from [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figure 5

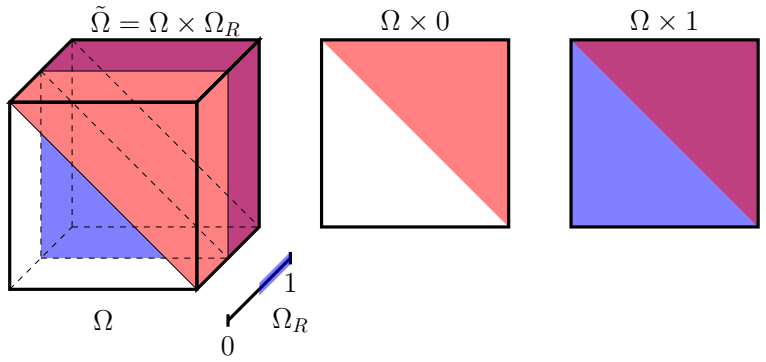

Figure 5. Figure 5: Experimental randomization of X induces a product space structure. 4 Causal inference on three variables Several new concepts in causality arise in systems of three observable variables. As such, in this section we study the simplest three-variable system: three binary random variables. We add to our running example of smoking (X) and lung cancer (Y ) a third binary random variable Z representing exercise … view at source ↗
Figure 6

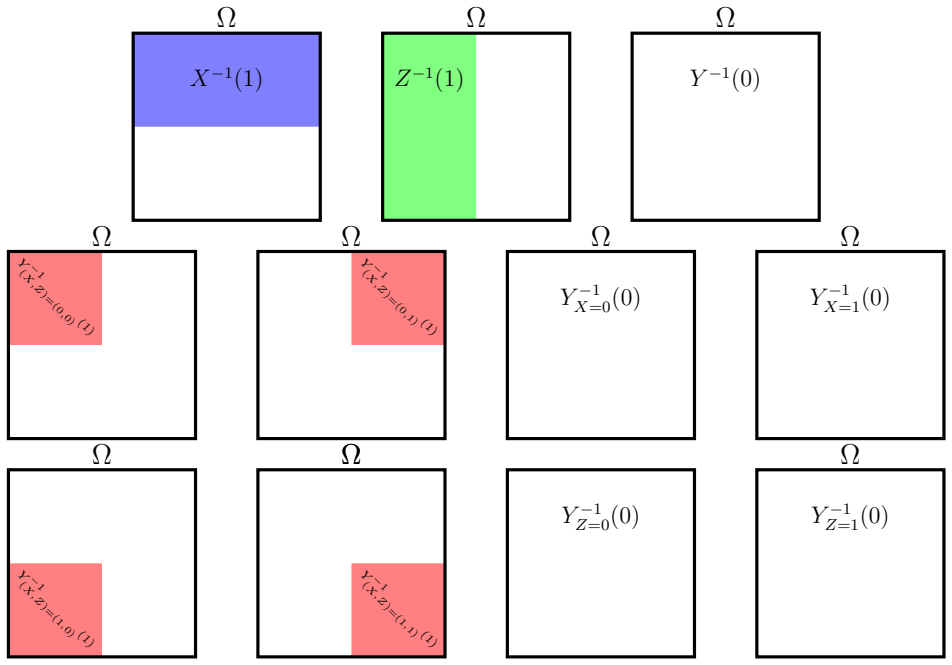

Figure 6. Figure 6: A system of three random variables X, Y , and Z for which X and Z are jointly causal for Y , but neither is individually causal for Y . However, the double-subscripted potential outcomes {Y(X,Z)=(x,z)} differ from each other on a subset of Ω of measure one. This is because for all ω ∈ Ω (excluding the measure zero subset along the vertical and horizontal mid-line of Ω), exactly one double-subscripted poten… view at source ↗
Figure 7
Figure 7. Figure 7: A set of potential outcomes {Y(X,Z)=(x,z)}(x,z) for which Z is causal for YX=0 and YX=1, however X and Z are not jointly causal for Y . follows: Definition 4 (Joint causality). Two binary random variables X and Z are said to be jointly causal for a third random variable Y if both of the following hold: (i) Z is causal for YX=x for some x. (ii) X is causal for YZ=z for some z. According to Definition 4, X a… view at source ↗
Figure 8
Figure 8. Figure 8: (left) The observable random variables X and Y as in [PITH_FULL_IMAGE:figures/full_fig_p020_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Visual representation of Axioms 1 and 2. The complete pot [PITH_FULL_IMAGE:figures/full_fig_p024_9.png] view at source ↗
Figure 10

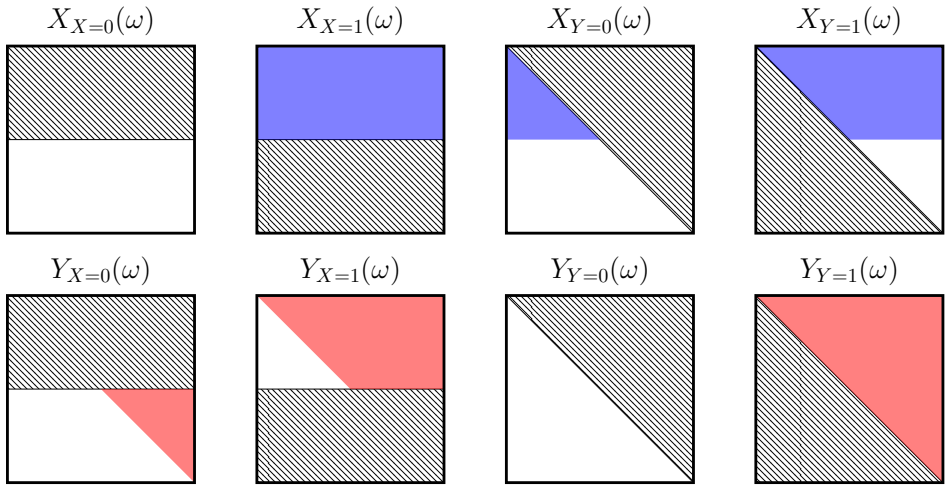

Figure 10. Figure 10: Visual representation of Axiom 3. The partial potential [PITH_FULL_IMAGE:figures/full_fig_p025_10.png] view at source ↗
read the original abstract

We describe the interface between measure theoretic probability and causal inference by constructing causal models on probability spaces within the potential outcomes framework. We find that measure theory provides a precise and instructive language for causality and that consideration of the probability spaces underlying causal models offers clarity into central concepts of causal inference. By closely studying simple, instructive examples, we demonstrate insights into causal effects, causal interactions, matching procedures, and randomization. Additionally, we introduce a simple technique for visualizing causal models on probability spaces that is useful both for generating examples and developing causal intuition. Finally, we provide an axiomatic framework for causality and make initial steps towards a formal theory of general causal models.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The paper constructs causal models on probability spaces within the potential outcomes framework, arguing that measure theory supplies a precise and instructive language for causality while examination of the underlying probability spaces clarifies central concepts such as causal effects, interactions, matching procedures, and randomization. It supports this through simple examples, a visualization technique for generating examples and developing intuition, and an axiomatic framework that takes initial steps toward a formal theory of general causal models.

Significance. If the constructions faithfully embed counterfactuals, interventions, and identifiability without loss of essential features, the work could strengthen foundational understanding in causal inference by grounding it more explicitly in measure theory. Credit is due for the concrete examples illustrating insights into matching and randomization, the visualization technique as a practical tool, and the explicit axiomatic framework as a step toward formalization; these elements provide pedagogical and conceptual value even if the framework remains preliminary.

minor comments (3)
  1. [Abstract] The abstract states that the constructions 'offer clarity into central concepts' but does not indicate the specific section or proposition where this clarity is demonstrated beyond the examples; adding a forward reference would improve readability.
  2. Notation for the probability spaces (e.g., the definition of the sample space, sigma-algebra, and measure in the causal model constructions) should be cross-referenced to standard measure-theory texts to aid readers unfamiliar with the interface.
  3. The visualization technique is described as useful for generating examples, but the manuscript would benefit from an explicit algorithm or pseudocode in the relevant section to make the method reproducible.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive assessment of our manuscript, the recognition of its pedagogical value through examples and visualization, and the recommendation for minor revision. No specific major comments were provided in the report.

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained

full rationale

The paper constructs causal models directly on probability spaces by embedding the potential outcomes framework into measure-theoretic language, supplying explicit examples of causal effects, interactions, matching, and randomization along with a visualization technique and axiomatic framework. None of these steps reduces a claimed result to a fitted parameter, a self-definitional loop, or a load-bearing self-citation whose content is itself unverified; the constructions are presented as independent applications of standard measure theory to existing causal concepts. The central claim that measure theory supplies a precise language for causality therefore rests on the supplied constructions rather than on any internal reduction to the paper's own inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The work rests on the standard axioms of measure-theoretic probability and the potential outcomes framework as background; no free parameters, invented entities, or ad-hoc axioms are introduced in the abstract.

axioms (2)
  • standard math Standard axioms of measure-theoretic probability spaces
    The paper builds causal models inside probability spaces, invoking the usual sigma-algebra and measure properties.
  • domain assumption Potential outcomes framework as given
    The construction is performed within the existing potential outcomes framework without re-deriving it.
