Rigel: Reverse-Engineering the Metal 4.1 Tensor Compute Path on the Apple M4 Max GPU

Ramchand Kumaresan This is my paper

Pith reviewed 2026-06-27 07:13 UTC · model grok-4.3

classification 💻 cs.CL cs.DC
keywords Metal 4.1Apple M4 GPUfp8 matmulreverse engineeringtensor computeemulated computationGPU shader coresmicrobenchmark
0
0 comments X

The pith

Apple's Metal 4.1 fp8 matmul2d on the M4 Max GPU runs at 0.94 times fp16 throughput despite using half the data.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper reverse-engineers the undocumented hardware behavior of the Metal 4.1 tensor compute path on a pre-neural-accelerator M4 Max GPU. It establishes that the fp8 E4M3 matmul2d operation is emulated on the regular shader cores rather than accelerated by any dedicated matrix unit. This matters because the lower-precision format delivers no meaningful speed gain over fp16 while still cutting memory use in half, so developers cannot rely on it for faster AI computation on this hardware. The work also shows accumulation happens in at least fp32 precision and recovers the hidden 8x8 cooperative_tensor fragment layout. These facts let programmers build fused kernels that outperform the standard decomposed path.

Core claim

The Metal 4.1 fp8 (E4M3) matmul2d is emulated on the GPU shader cores rather than using dedicated hardware, sustaining 0.94x the throughput of fp16 while reading half the operand bytes, indicating it is a memory-footprint optimization rather than a performance one. It executes entirely on shader cores with no evidence of Neural Engine involvement, accumulates in fp32 or wider, and uses an 8x8 cooperative_tensor fragment layout.

What carries the argument

Checksum-gated, provenance-tracked microbenchmark harness combined with three-signal triangulation of throughput ceiling, simdgroup_matrix comparison, and per-rail power attribution.

If this is right

  • matmul2d executes entirely on shader cores with no dedicated matrix datapath
  • accumulation occurs in at least fp32 precision
  • the cooperative_tensor fragment layout is an undocumented 8x8 structure
  • hand-fused GEMM plus bias plus GELU kernels outperform the decomposed path by 6.5 to 12.9 percent in the cache-resident regime
  • all findings are reproducible from the released MIT-licensed code and per-cell CSVs

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar emulation behavior may hold on other current-generation Apple GPUs without dedicated neural accelerators.
  • Memory-footprint benefits of fp8 remain usable even when speed gains are absent for large models.
  • The microbenchmark method could be extended to other hidden paths in future Metal releases.
  • Fused kernels could be tested on additional operations to quantify further gains in the same regime.

Load-bearing premise

The microbenchmark harness isolates the matmul2d execution path without measurable interference from concurrent workloads, software layers, or other GPU components.

What would settle it

A measurement showing fp8 matmul2d throughput substantially exceeding fp16 on the same hardware or power rails indicating a dedicated datapath would disprove the emulation claim.

Figures

Figures reproduced from arXiv: 2606.12765 by Ramchand Kumaresan.

Figure 1

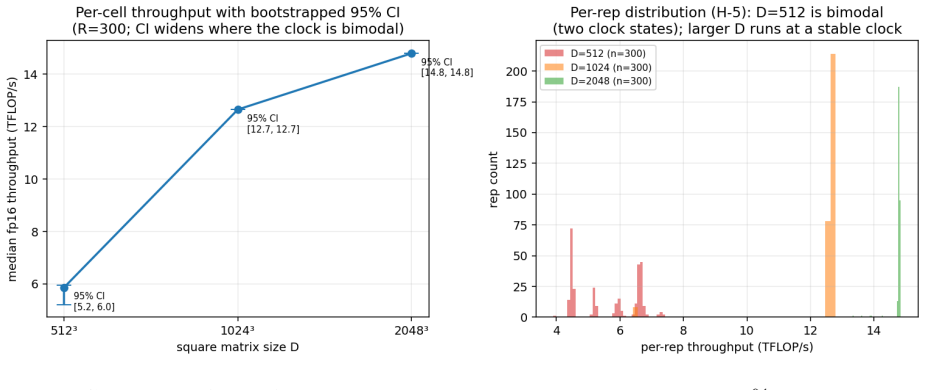

Figure 1. Figure 1: Clock-state bimodality. (a) Median fp16 throughput with bootstrapped 95% CI: the interval is wide at 5123 and razor-thin once the clock is stable. (b) Per-rep distributions (R=300): 5123 is bimodal (two clock states), larger sizes are unimodal. datapath beating the ALU ceiling. Signal 2, comparison: A four-way GEMM shootout ( [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2

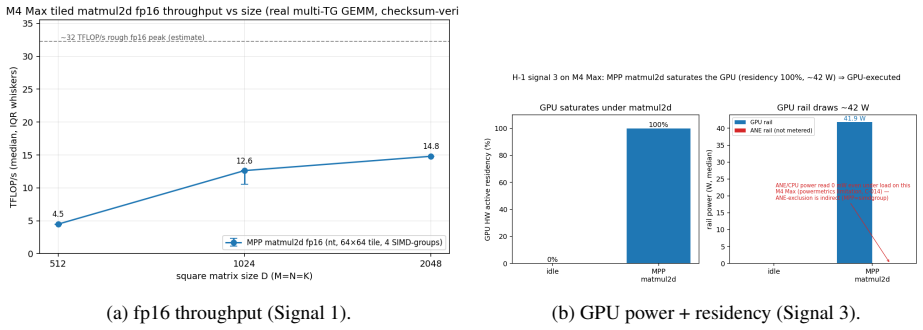

Figure 2. Figure 2: Dispatch-target signals. (a) Tiled fp16 matmul2d peaks at 14.8 TFLOP/s, ≈46% of the scalar-ALU roofline; nothing beats the ALU ceiling. Plotted points are medians; the 5123 value is clock￾state-dependent (see [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3

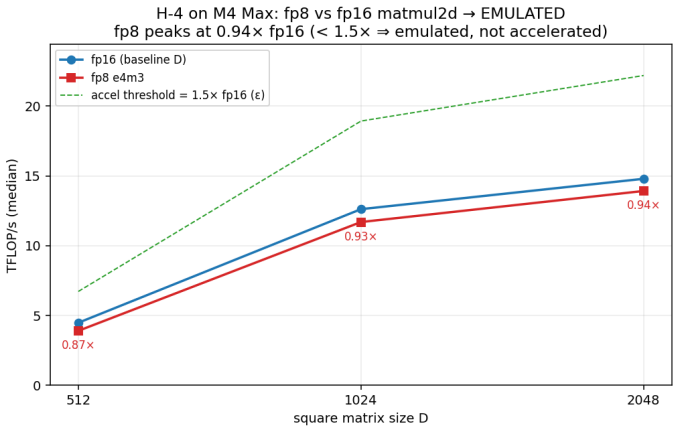

Figure 3. Figure 3: The headline: fp8 is emulated. fp8 (E4M3) matmul2d tracks below fp16 at every size (peaks at 0.94×), far under the 1.5× acceleration threshold: it is emulated. 7 The opaque fragment layout The specification declares the cooperative tensor partition “device specific” and documents no layout, unlike NVIDIA’s, whose WMMA fragment layout has been recovered by microbenchmarking [12]. We recover Apple’s by a pur… view at source ↗
Figure 4

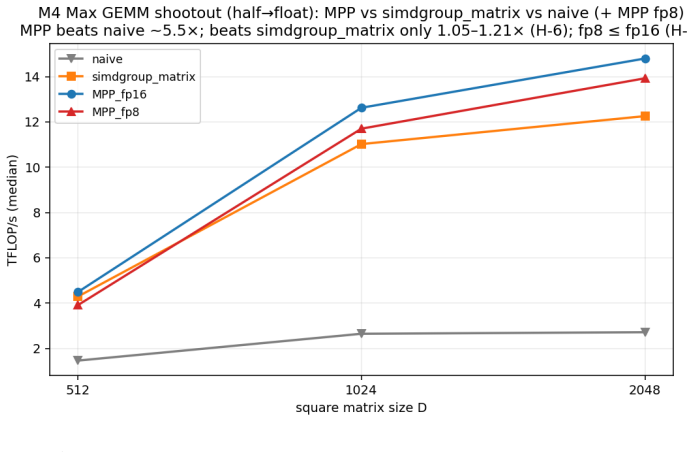

Figure 4. Figure 4: Four-way GEMM shootout. Against the deprecated simdgroup matrix path, MPP wins by only 1.05 to 1.21×; against a naive tiled GEMM, by 2.9 to 5.5×. +12.9% at 10243 and +6.5% at 20483 ( [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figure 5

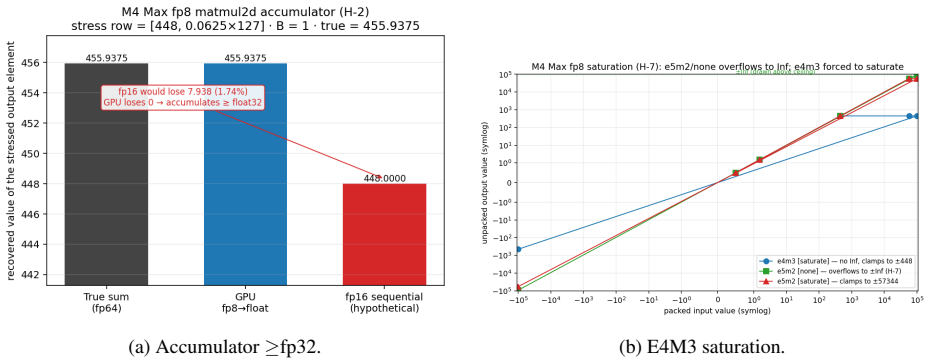

Figure 5. Figure 5: Numeric semantics. (a) The fp8 matmul2d recovers a sum a sequential fp16 accumulator collapses, so it accumulates in ≥fp32. (b) E4M3 clamps to ±448 (no infinity), even saturating an +∞ input. Apple Silicon characterization: Recent work benchmarks Apple Silicon at the workload level: Feng et al. [4] profile end-to-end ML training and attribute the NVIDIA gap to system factors; Hubner ¨ et al. [5] evaluate M… view at source ↗
Figure 6

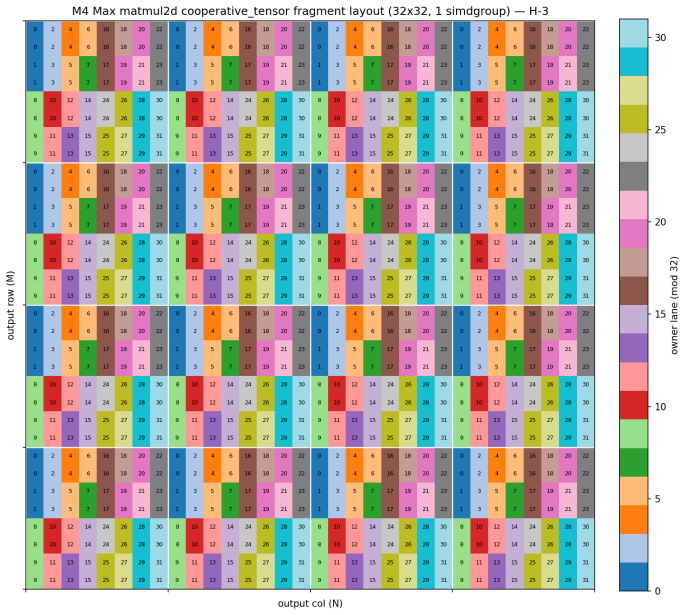

Figure 6. Figure 6: The reconstructed fragment layout. The opaque cooperative tensor partition is an 8×8 base fragment tiled across the output; each lane owns the same cell in every 8×8 block. Inputs and output share this swizzle. References [1] Apple Inc. Metal shading language specification, version 4.1, 2026. Apple Developer Documentation; archived copy dated 2026-06-04. [2] Tri Dao. FlashAttention-2: Faster attention with… view at source ↗
Figure 7

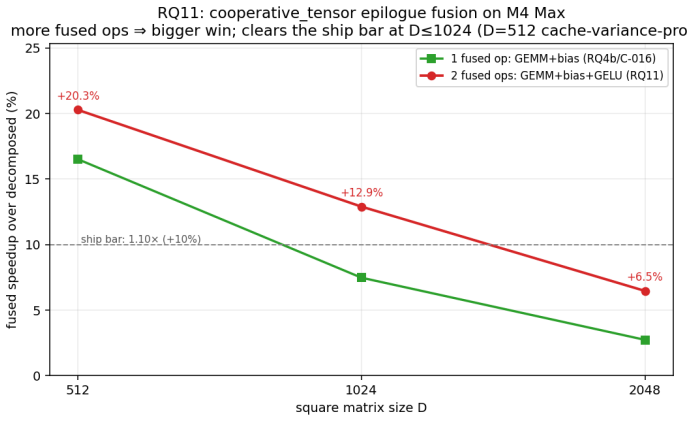

Figure 7. Figure 7: Epilogue fusion. Fusing bias+GELU via a cooperative tensor destination beats the decomposed path; two fused ops beat one and clear the 1.10× ship bar at D ≤ 1024. [7] Zhe Jia, Marco Maggioni, Jeffrey Smith, and Daniele Paolo Scarpazza. Dissecting the NVidia Turing T4 GPU via microbenchmarking. arXiv preprint arXiv:1903.07486, 2019. [8] Stefano Markidis, Steven Wei Der Chien, Erwin Laure, Ivy Bo Peng, and J… view at source ↗
Figure 8

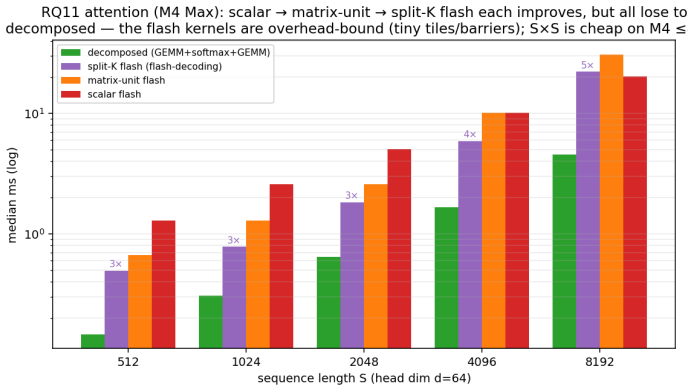

Figure 8. Figure 8: Attention: a negative result. Scalar, matrix-unit, and split-K flash each improve, but all lose to a decomposed path on M4 at S ≤ 8192: the S×S round trip is cheap on unified memory and our flash kernels are overhead-bound. 12 [PITH_FULL_IMAGE:figures/full_fig_p012_8.png] view at source ↗

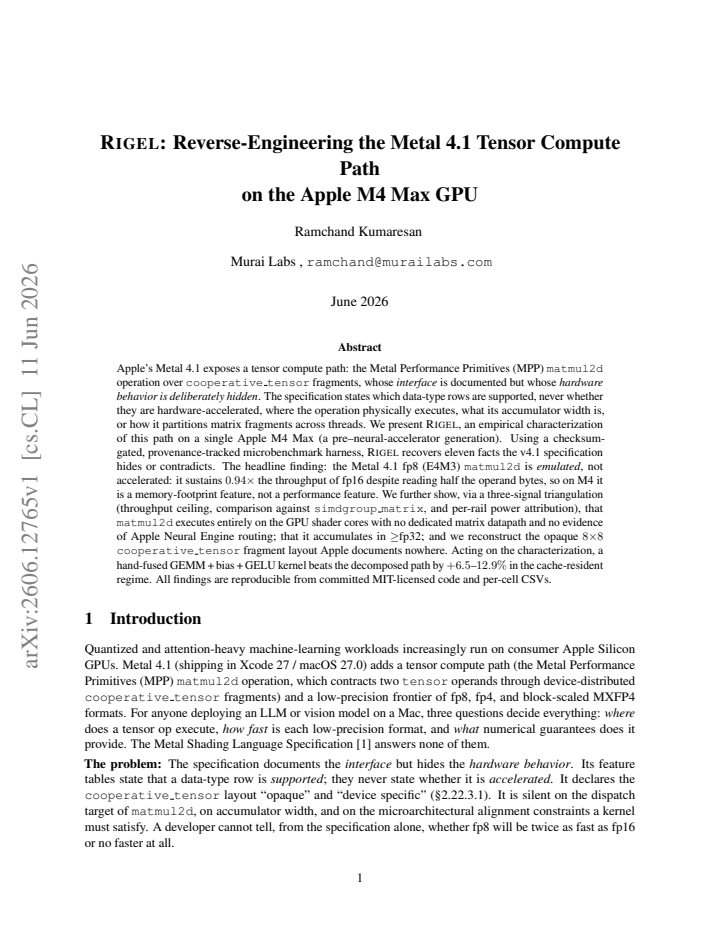

read the original abstract

Apple's Metal 4.1 exposes a tensor compute path: the Metal Performance Primitives (MPP) matmul2d operation over cooperative_tensor fragments, whose interface is documented but whose hardware behavior is deliberately hidden. The specification states which data-type rows are supported, never whether they are hardware-accelerated, where the operation physically executes, what its accumulator width is, or how it partitions matrix fragments across threads. We present Rigel, an empirical characterization of this path on a single Apple M4 Max (a pre-neural-accelerator generation). Using a checksum-gated, provenance-tracked microbenchmark harness, Rigel recovers eleven facts the v4.1 specification hides or contradicts. The headline finding: the Metal 4.1 fp8 (E4M3) matmul2d is emulated, not accelerated: it sustains 0.94x the throughput of fp16 despite reading half the operand bytes, so on M4 it is a memory-footprint feature, not a performance feature. We further show, via a three-signal triangulation (throughput ceiling, comparison against simdgroup_matrix, and per-rail power attribution), that matmul2d executes entirely on the GPU shader cores with no dedicated matrix datapath and no evidence of Apple Neural Engine routing; that it accumulates in >=fp32; and we reconstruct the opaque 8x8 cooperative_tensor fragment layout Apple documents nowhere. Acting on the characterization, a hand-fused GEMM + bias + GELU kernel beats the decomposed path by +6.5-12.9% in the cache-resident regime. All findings are reproducible from committed MIT-licensed code and per-cell CSVs.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The paper presents Rigel, an empirical reverse-engineering effort using a checksum-gated, provenance-tracked microbenchmark harness on a single Apple M4 Max GPU. It claims to recover eleven hidden or contradicted facts about the Metal 4.1 MPP matmul2d operation over cooperative_tensor fragments, with the central finding that fp8 (E4M3) matmul2d is emulated on shader cores (0.94x fp16 throughput despite half the operand bytes) rather than hardware-accelerated. Additional claims include execution entirely on GPU shader cores (via throughput ceiling, simdgroup_matrix comparison, and per-rail power triangulation), accumulation in >=fp32, reconstruction of the undocumented 8x8 fragment layout, and a hand-fused GEMM kernel outperforming the decomposed path by 6.5-12.9% in cache-resident regimes. All results are supported by MIT-licensed code and per-cell CSVs.

Significance. If the measurements correctly isolate matmul2d execution, the work provides a concrete, falsifiable characterization of undocumented tensor compute behavior on a pre-neural-accelerator Apple GPU, showing fp8 as a memory-footprint feature rather than a performance one. The open release of code, CSVs, and the three-signal attribution method (throughput, simdgroup_matrix, power) enables direct reproducibility and extends the empirical toolkit for reverse-engineering proprietary GPU paths.

minor comments (2)
  1. [Abstract] The abstract states that Rigel recovers 'eleven facts' but the main text would benefit from an explicit enumerated list or table cross-referencing each fact to its supporting measurement (e.g., §4 or §5).
  2. [Figures] Figure captions for the throughput and power plots should include the exact matrix dimensions, threadgroup sizes, and number of repetitions used in the checksum-gated runs to aid direct replication from the released CSVs.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive assessment and recommendation to accept. The report correctly captures the scope and methodology of the work.

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper's central claims rest on direct empirical measurements obtained from a checksum-gated microbenchmark harness, throughput ceilings, simdgroup_matrix comparisons, and per-rail power attribution. No equations, fitted parameters, or self-referential definitions appear; the fp8 emulation inference follows from observed 0.94x fp16 throughput parity despite halved operand size, and the execution-location attribution follows from the three-signal triangulation. The reproducibility commitment (MIT code + CSVs) supplies an external verification path. No self-citation chains, ansatzes, or renamings of known results are load-bearing. The derivation is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The work relies on standard domain assumptions about benchmark isolation and measurement fidelity. No free parameters are fitted to produce the headline claims, and no new entities are postulated.

axioms (2)
  • domain assumption The microbenchmark environment experiences no significant interference from concurrent processes or other GPU workloads during throughput and power measurements.
    Required for the checksum-gated harness to isolate matmul2d behavior.
  • domain assumption The three-signal triangulation (throughput ceiling, simdgroup_matrix comparison, per-rail power) accurately attributes execution to shader cores without false attribution.
    Central to the claim that matmul2d executes entirely on GPU shader cores with no ANE routing.
