arxiv: 2606.18658 · v2 · pith:RECELNBCnew · submitted 2026-06-17 · 💻 cs.CV · eess.IV

On-Manifold Variational Learning with Heat-Kernel Priors

Jiarui Xing , Tal Zeevi , Nian Wu , Jian Wang This is my paper

Pith reviewed 2026-06-26 21:47 UTC · model grok-4.3

classification 💻 cs.CV eess.IV
keywords variational learningheat kernelmanifold learningmedical imagingunsupervised prototypesEM algorithmdiffusion centralitylatent variable models
0
0 comments X

The pith

A geometry-aware EM algorithm selects on-manifold prototypes via heat-kernel diffusion centrality in variational medical image models.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Existing deep latent-variable models estimate Gaussian mixture priors through Euclidean averaging, so their prototypes drift off the curved data manifold and collapse once the number of sub-populations grows. The paper replaces that step with a manifold-anchored variational framework whose M-step builds a heat-kernel-weighted latent graph and picks each prototype as the graph medoid of highest diffusion centrality. A Dirichlet energy term keeps the latent space geometrically smooth, and a per-sub-population uncertainty score supplies label-free quality checks. On cardiac scar and brain MRI data the resulting prototypes are the sharpest reported and the method alone remains stable at large sub-population counts.

Core claim

The manifold-anchored variational framework built on a geometry-aware Expectation-Maximization algorithm selects each sub-population prototype as the graph medoid with the highest diffusion centrality on a heat-kernel-weighted latent graph, ensuring that every prototype remains on-manifold; the same manifold-anchored EM extends standard EM and applies to other latent-variable models.

What carries the argument

Manifold-anchored EM algorithm that selects prototypes as highest-diffusion-centrality medoids on a heat-kernel-weighted latent graph.

If this is right

  • Prototypes remain on-manifold even at large sub-population counts where Euclidean mixture models collapse.
  • The same manifold-anchored EM step can be dropped into other latent-variable models without changing their encoders or decoders.
  • Per-sub-population uncertainty scores derived from the heat-kernel graph give a label-free ranking of prototype quality.
  • The Dirichlet energy regularizer enforces geometric smoothness of the latent space as a direct consequence of the heat-kernel construction.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same heat-kernel medoid selection could replace Euclidean averaging inside non-variational clustering pipelines on any manifold-structured data.
  • Because the method needs no expert labels, it could be applied to large unlabeled cohorts in domains outside MRI where manifold drift is also observed.
  • Extending the heat-kernel prior to time-series or graph-valued medical data would test whether the on-manifold guarantee generalizes beyond static images.

Load-bearing premise

Choosing the graph medoid of highest diffusion centrality on a heat-kernel-weighted latent graph keeps every prototype on the data manifold.

What would settle it

On the cardiac scar or brain MRI benchmarks, any run in which the method fails to reach the highest accuracy or degenerates once the sub-population count exceeds the baselines would falsify the central claim.

Figures

Figures reproduced from arXiv: 2606.18658 by Jian Wang, Jiarui Xing, Nian Wu, Tal Zeevi.

Figure 1

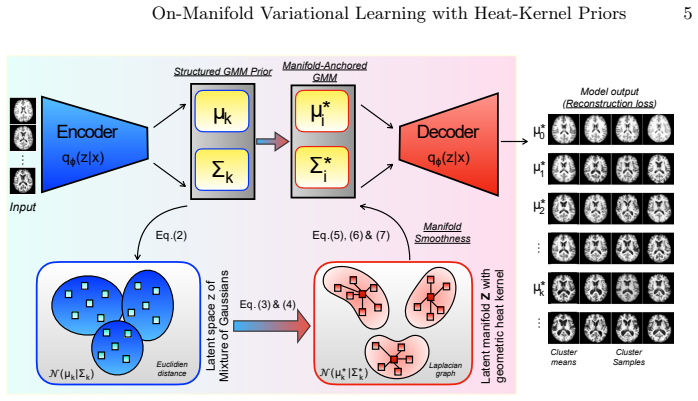

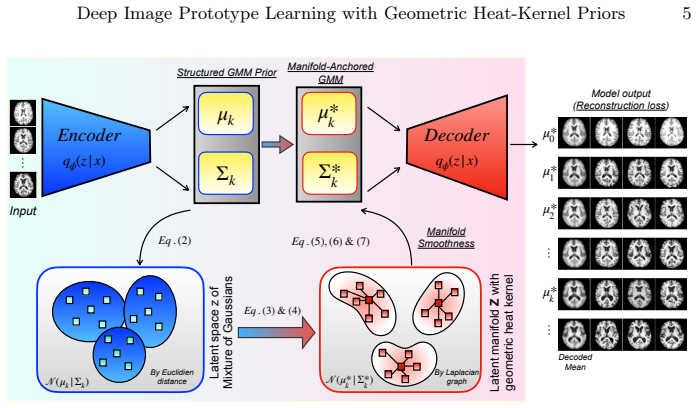

Figure 1. Figure 1: Overview of the proposed variational framework. The encoder maps input im￾ages to a structured latent space governed by manifold-aware Gaussian mixtures, en￾abling end-to-end modeling of sub-populations with distinct topological characteristics; the decoder reconstructs from the cluster-anchored embeddings. where ϵ > 0 ensures Σ∗ k ≻ 0. The prototype uses hard assignments to remain anchored on the manifold… view at source ↗
Figure 2

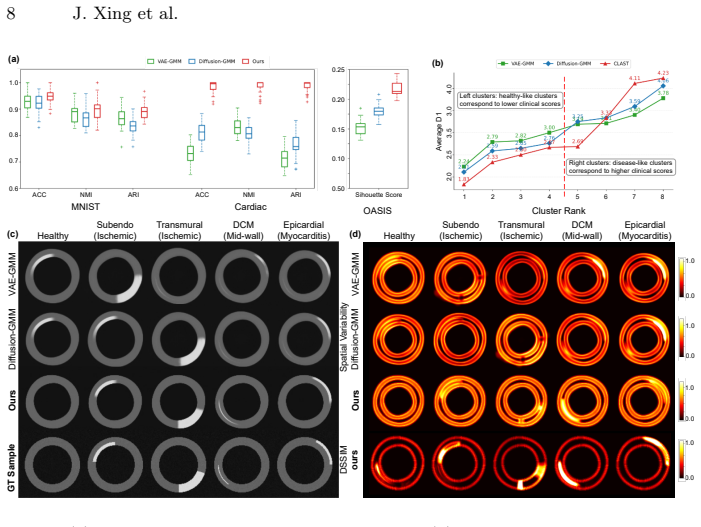

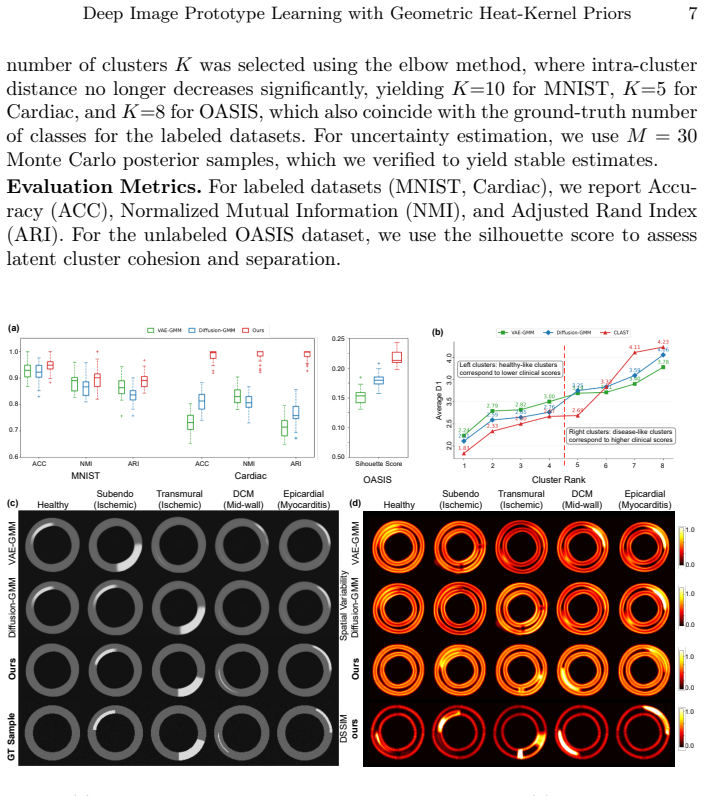

Figure 2. Figure 2: (a) Quantitative performance across models, (b) clinical relevance by diagnosis scores and (c) estimated prototypes with (d) uncertainty maps. whereas both baselines yield visibly blurred and degenerate prototypes with lim￾ited inter-prototype differentiation. The bottom panel compares the estimated uncertainty maps. Baseline methods exhibit diffuse and spatially uniform un￾certainty across sub-populations… view at source ↗
Figure 3

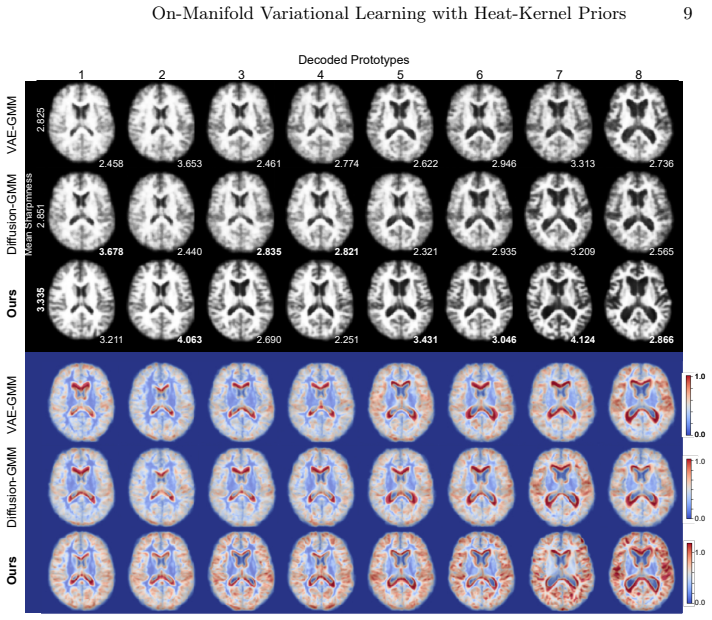

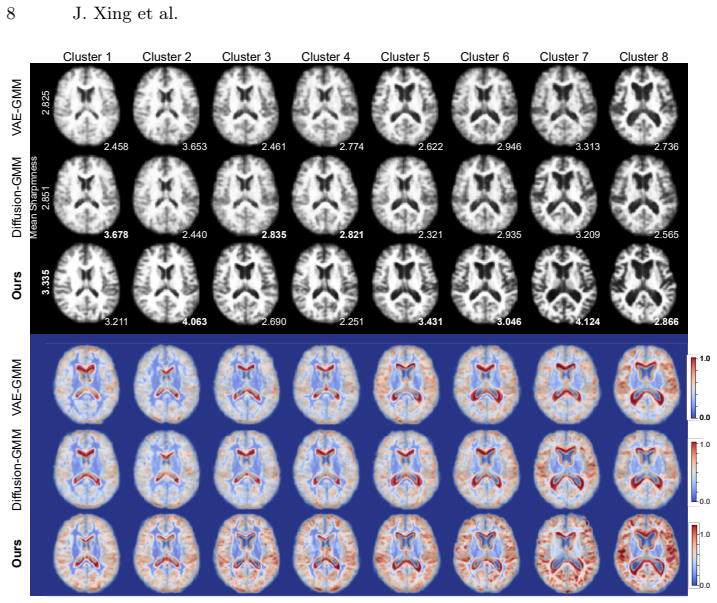

Figure 3. Figure 3: Top: estimated brain prototypes with corresponding sharpness estimates across all models. Bottom: uncertainty maps estimated from all methods. gains in accuracy, sharper prototypical atlases, and well-calibrated uncertainty estimates, with no reliance on diagnostic labels. The per-sub-population uncer￾tainty scores offer a practical tool for flagging ambiguous sub-populations that may warrant clinical re-e… view at source ↗
read the original abstract

Learning unsupervised representations of medical imaging cohorts can reveal clinically meaningful prototypes without expert labels, which are often noisy and fail to capture true pathological heterogeneity. However, existing deep latent-variable models estimate Gaussian mixture priors via Euclidean averaging, producing prototypes that drift off the curved data manifold and degenerate as the number of sub-populations grows. We propose a manifold-anchored variational framework built on a geometry-aware Expectation-Maximization (EM) algorithm, whose M-step selects each sub-population prototype as the graph medoid with the highest diffusion centrality on a heat-kernel-weighted latent graph, ensuring that every prototype remains on-manifold. A Dirichlet energy regularizer enforces geometric smoothness of the latent space, and a per-sub-population uncertainty score enables label-free quality assessment. The manifold-anchored EM is a general-purpose geometric tool that extends standard EM and applies readily to other latent-variable models beyond this setting. On cardiac scar and brain MRI benchmarks, our framework attains the highest accuracy among all compared methods, produces the sharpest prototypes reported to date, and remains stable at large sub-population counts where all baselines degenerate. The Code and implementation details are available at https://github.com/jr-xing/On-Manifold-Variational-Learning-with-Heat-Kernel-Priors.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The paper proposes a manifold-anchored variational framework for unsupervised representation learning on medical imaging cohorts. It replaces Euclidean averaging in standard EM with a geometry-aware M-step that selects each sub-population prototype as the graph medoid of highest diffusion centrality on a heat-kernel-weighted latent graph, augmented by a Dirichlet energy regularizer and per-sub-population uncertainty scores. The central claims are that prototypes remain on-manifold, the method is stable at large sub-population counts where baselines degenerate, and it attains highest accuracy plus sharpest prototypes on cardiac scar and brain MRI benchmarks. The manifold-anchored EM is presented as a general-purpose extension applicable to other latent-variable models. Code is released at the cited GitHub repository.

Significance. If the geometric construction and empirical results hold, the work supplies a concrete, internally consistent mechanism for avoiding off-manifold drift in mixture-based latent models, a recurring issue in unsupervised medical imaging analysis. The open release of code and implementation details is a clear strength that supports reproducibility and potential adoption as a modular tool beyond the reported setting.

minor comments (2)
  1. [Abstract] Abstract, final paragraph: the statement that the framework 'attains the highest accuracy among all compared methods' and 'produces the sharpest prototypes reported to date' should be accompanied by the precise quantitative metrics (e.g., Dice, Hausdorff, or prototype sharpness measure) and the exact list of baselines in the results section so readers can verify the ranking without ambiguity.
  2. [Methods] The description of the M-step (graph medoid selection on the heat-kernel-weighted latent graph) is clear at a high level but would benefit from an explicit algorithmic listing or pseudocode in the methods section to facilitate direct implementation by readers.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the detailed summary of our manuscript and for the positive assessment of its significance and reproducibility. The recommendation of minor revision is noted. No major comments were raised in the report, so we have no specific points requiring point-by-point rebuttal or revision at this stage.

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained

full rationale

The paper defines its core M-step as an explicit construction that selects existing latent points (graph medoids with highest diffusion centrality on a heat-kernel-weighted graph) to enforce on-manifold prototypes by design, avoiding Euclidean averaging. This is presented as an algorithmic choice rather than a derived prediction that reduces to fitted inputs. No self-citations, uniqueness theorems, or ansatzes are invoked in the abstract or described framework to justify load-bearing claims; the Dirichlet regularizer and uncertainty score are additional components without reduction to the target result. Empirical claims on benchmarks are external to the derivation chain. The method is self-contained against the stated assumptions.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Review is based solely on the abstract; no specific free parameters, axioms, or invented entities can be extracted or audited beyond the high-level description of heat-kernel weighting and graph medoids.

pith-pipeline@v0.9.1-grok · 5758 in / 1103 out tokens · 25731 ms · 2026-06-26T21:47:02.759686+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

29 extracted references · 2 linked inside Pith

  1. [1]

    In: Proceedings of the Computer Vision and Pattern Recognition Conference

    Abulnaga, S.M., Hoopes, A., Dey, N., Hoffmann, M., Fischl, B., Guttag, J., Dalca, A.: Multimorph: On-demand atlas construction. In: Proceedings of the Computer Vision and Pattern Recognition Conference. pp. 30906–30917 (2025) 10 J. Xing et al

    2025

  2. [2]

    In: International Conference on Learning Representations (ICLR) (2018)

    Arvanitidis,G.,Hansen,L.K.,Hauberg,S.:Latentspaceoddity:onthecurvatureof deep generative models. In: International Conference on Learning Representations (ICLR) (2018)

    2018

  3. [3]

    In: International Conference on Artificial Intelligence and Statistics (AISTATS)

    Arvanitidis, G., Hauberg, S., Schölkopf, B.: Geometrically enriched latent spaces. In: International Conference on Artificial Intelligence and Statistics (AISTATS). pp. 631–639. PMLR (2021)

    2021

  4. [4]

    Nature Biomedical Engineering7(6), 756–779 (2023)

    Azizi, S., Mustafa, B., Ryan, F., Beaver, Z., Freyberg, J., Deaton, J., Loh, A., Karthikesalingam, A., Kornblith, S., Chen, T., Natarajan, V., Norouzi, M.: Robust and data-efficient generalization of self-supervised machine learning for diagnostic imaging. Nature Biomedical Engineering7(6), 756–779 (2023)

    2023

  5. [5]

    Journal of Neuropathology & Experimental Neurology71(4), 266–273 (2012)

    Beach, T.G., Monsell, S.E., Phillips, L.E., Kukull, W.: Accuracy of the clinical diagnosis of Alzheimer disease at National Institute on Aging Alzheimer Disease Centers, 2005–2010. Journal of Neuropathology & Experimental Neurology71(4), 266–273 (2012)

    2005

  6. [6]

    In: International Conference on Machine Learning (ICML)

    Chen, T., Kornblith, S., Norbert, M., Hinton, G.: A simple framework for con- trastive learning of visual representations. In: International Conference on Machine Learning (ICML). pp. 1597–1607. PMLR (2020)

    2020

  7. [7]

    Advances in Neural Information Processing Systems32(2019)

    Dalca, A.V., Rakic, M., Guttag, J., Sabuncu, M.R.: Learning conditional de- formable templates with convolutional networks. Advances in Neural Information Processing Systems32(2019)

    2019

  8. [8]

    arXiv preprint arXiv:1611.02648 (2016)

    Dilokthanakul, N., Mediano, P.A.M., Garnelo, M., Lee, M.C.H., Salimbeni, H., Arulkumaran, K., Shanahan, M.: Deep unsupervised clustering with Gaussian mix- ture variational autoencoders. arXiv preprint arXiv:1611.02648 (2016)

    Pith/arXiv arXiv 2016

  9. [9]

    Nature 542(7639), 115–118 (2017)

    Esteva, A., Kuprel, B., Novoa, R.A., Ko, J., Swetter, S.M., Blau, H.M., Thrun, S.: Dermatologist-level classification of skin cancer with deep neural networks. Nature 542(7639), 115–118 (2017)

    2017

  10. [10]

    JAMA316(22), 2402–2410 (2016)

    Gulshan, V., Peng, L., Coram, M., Stumpe, M.C., Wu, D., Narayanaswamy, A., Venugopalan, S., Widner, K., Madams, T., Cuadros, J., et al.: Development and validation of a deep learning algorithm for detection of diabetic retinopathy in retinal fundus photographs. JAMA316(22), 2402–2410 (2016)

    2016

  11. [11]

    In: Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR)

    He, K., Fan, H., Wu, Y., Xie, S., Girshick, R.: Momentum contrast for unsupervised visual representation learning. In: Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR). pp. 9729–9738 (2020)

    2020

  12. [12]

    In: Advances inNeuralInformationProcessingSystems(NeurIPS).vol.33,pp.6840–6851(2020)

    Ho, J., Jain, A., Abbeel, P.: Denoising diffusion probabilistic models. In: Advances inNeuralInformationProcessingSystems(NeurIPS).vol.33,pp.6840–6851(2020)

    2020

  13. [13]

    Nature (2025)

    Iglesias, J.E., et al.: A probabilistic histological atlas of the human brain for MRI segmentation. Nature (2025)

    2025

  14. [14]

    Journal of Magnetic Res- onance Imaging27(4), 685–691 (2008)

    Jack, C.R., Bernstein, M.A., Fox, N.C., Thompson, P., Alexander, G., Harvey, D., Borowski, B., Britson, P.J., Whitwell, J.L., Ward, C., et al.: The Alzheimer’s Disease Neuroimaging Initiative (ADNI): MRI methods. Journal of Magnetic Res- onance Imaging27(4), 685–691 (2008)

    2008

  15. [15]

    In: International Joint Conference on Artificial Intelligence (IJCAI)

    Jiang, Z., Zheng, Y., Tan, H., Tang, B., Zhou, H.: Variational deep embedding: an unsupervised and generative approach to clustering. In: International Joint Conference on Artificial Intelligence (IJCAI). pp. 1965–1972 (2017)

    1965

  16. [16]

    Medical Image Analysis88, 102846 (2023)

    Kazerouni, A., Aghdam, E.K., Heidari, M., Azad, R., Fayyaz, M., Hacihaliloglu, I., Merhof, D.: Diffusion models in medical imaging: a comprehensive survey. Medical Image Analysis88, 102846 (2023)

    2023

  17. [17]

    In: International Conference on Learning Representations (ICLR) (2014) On-Manifold Variational Learning with Heat-Kernel Priors 11

    Kingma, D.P., Welling, M.: Auto-encoding variational Bayes. In: International Conference on Learning Representations (ICLR) (2014) On-Manifold Variational Learning with Heat-Kernel Priors 11

    2014

  18. [18]

    Frontiers in Physiology12, 709230 (2022)

    Li, L., Wu, F., Yang, G., Xu, L., Wong, T., Mohiaddin, R., Firmin, D., Keegan, J., Zhuang, X.: Recent advances in fibrosis and scar segmentation from cardiac MRI: a state-of-the-art review and future perspectives. Frontiers in Physiology12, 709230 (2022)

    2022

  19. [19]

    Neuro-Oncology 23(8), 1231–1251 (2021)

    Louis, D.N., Perry, A., Wesseling, P., Brat, D.J., Cree, I.A., Figarella-Branger, D., Hawkins, C., Ng, H.K., Pfister, S.M., Reifenberger, G., et al.: The 2021 WHO classification of tumors of the central nervous system: a summary. Neuro-Oncology 23(8), 1231–1251 (2021)

    2021

  20. [20]

    Marcus, D.S., Wang, T.H., Parker, J., Csernansky, J.G., Morris, J.C., Buckner, R.L.: Open access series of imaging studies (OASIS): cross-sectional MRI data in young,middleaged,nondemented,anddementedolderadults.JournalofCognitive Neuroscience19(9), 1498–1507 (2007)

    2007

  21. [21]

    Biological Psychiatry80(7), 552–561 (2016)

    Marquand, A.F., Rezek, I., Buitelaar, J., Beckmann, C.F.: Understanding hetero- geneity in clinical cohorts using normative models: beyond case-control studies. Biological Psychiatry80(7), 552–561 (2016)

    2016

  22. [22]

    IEEE Access6, 39501–39514 (2018)

    Min, E., Guo, X., Liu, Q., Zhang, G., Cui, J., Long, J.: A survey of clustering with deep learning: from the perspective of network architecture. IEEE Access6, 39501–39514 (2018)

    2018

  23. [23]

    In: Advances in Neural Information Processing Systems (NeurIPS)

    Ng, A.Y., Jordan, M.I., Weiss, Y.: On spectral clustering: analysis and an algo- rithm. In: Advances in Neural Information Processing Systems (NeurIPS). vol. 14 (2001)

    2001

  24. [24]

    In: Medical Image Computing and Computer Assisted Intervention (MICCAI)

    Ou, Z., Jiang, C., Liu, Y., Zhang, Y., Cui, Z., Shen, D.: A graph-embedded la- tent space learning and clustering framework for incomplete multimodal multi- class Alzheimer’s disease diagnosis. In: Medical Image Computing and Computer Assisted Intervention (MICCAI). pp. 45–55. Springer (2024)

    2024

  25. [25]

    In: Medical Image Computing and Computer Assisted Intervention (MICCAI)

    Peng, W., Adeli, E., Zhao, Q., Pohl, K.M.: Generating realistic 3D brain MRIs using a conditional diffusion probabilistic model. In: Medical Image Computing and Computer Assisted Intervention (MICCAI). pp. 14–24. Springer (2023)

    2023

  26. [26]

    Neurology74(3), 201–209 (2010)

    Petersen, R.C., Aisen, P.S., Beckett, L.A., Donohue, M.C., Gamst, A.C., Harvey, D.J.,Jack,C.R.,Jagust,W.J.,Shaw,L.M.,Toga,A.W.,Trojanowski,J.Q.,Weiner, M.W.: Alzheimer’s Disease Neuroimaging Initiative (ADNI): clinical characteriza- tion and 12-month follow-up. Neurology74(3), 201–209 (2010)

    2010

  27. [27]

    In: Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR)

    Rombach, R., Blattmann, A., Lorenz, D., Esser, P., Ommer, B.: High-resolution image synthesis with latent diffusion models. In: Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR). pp. 10684– 10695 (2022)

    2022

  28. [28]

    arXiv preprint arXiv:2409.02426 (2024)

    Wang, P., Zhang, H., Zhang, Z., Chen, S., Ma, Y., Qu, Q.: Diffusion mod- els learn low-dimensional distributions via subspace clustering. arXiv preprint arXiv:2409.02426 (2024)

    Pith/arXiv arXiv 2024

  29. [29]

    In: International Conference on Machine Learning (ICML)

    Xie, J., Girshick, R., Farhadi, A.: Unsupervised deep embedding for clustering analysis. In: International Conference on Machine Learning (ICML). pp. 478–487. PMLR (2016)

    2016
