SubdivAR: Autoregressive Next-Scale Prediction for Neural Mesh Subdivision

Huipeng Guo , Zikai Song , Hang Long , Jielei Zhang , Wenbing Li , Junkai Lin , Tianhao Zhao , Jinshen Zhang
show 2 more authors
Tianle Guo Wei Yang
This is my paper

Pith reviewed 2026-06-26 04:59 UTC · model grok-4.3

classification 💻 cs.CV
keywords neural mesh subdivisionautoregressive predictionmesh autoregressive representationtopology-aware transformervertex offset regressionsubdivision datasetgeometric detail synthesis3D surface refinement
0
0 comments X

The pith

SubdivAR reformulates mesh subdivision as autoregressive next-scale prediction to recover fine details while preserving topology.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tries to establish that modeling subdivision levels as an ordered sequence allows an autoregressive neural model to generate higher-resolution surfaces more accurately than local refinement approaches. A sympathetic reader would care because classical and prior neural methods often smooth out details or fail on complex shapes, limiting use in asset creation. The core move is to treat each finer level as the next item to predict from the coarser one, using a transformer that mixes global context with topology rules. This is enabled by a new dataset providing supervision at multiple levels. If the claim holds, subdivision becomes a predictable sequence task rather than a fixed local rule set.

Core claim

SubdivAR introduces Mesh Autoregressive Representation (MAR) that arranges meshes at different subdivision levels into an ordered scale sequence, reformulating the task as autoregressive next-scale prediction. A Hybrid Topology-Aware Transformer combines global semantic attention with topology-constrained local feature aggregation to regress vertex offsets at each refinement stage. This preserves the subdivision topology while recovering fine-grained geometric details. The approach is trained on the FII-40K dataset of nearly 40,000 high-quality meshes with multi-level supervision and is reported to reduce Hausdorff Distance by 18.8% and Chamfer Distance by 14.2% over baselines while showing

What carries the argument

Mesh Autoregressive Representation (MAR), which sequences meshes across subdivision levels to enable next-scale coordinate prediction.

If this is right

  • The subdivision topology remains fixed while vertex offsets add geometric detail at each scale.
  • Global semantic attention and local topology constraints operate together inside the Hybrid Topology-Aware Transformer.
  • Training uses explicit multi-level subdivision supervision from the FII-40K dataset.
  • Reported error reductions reach 18.8% on Hausdorff Distance and 14.2% on Chamfer Distance relative to prior methods.
  • Performance remains stable on complex open-surface geometries.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The sequencing idea could transfer to related tasks such as point-cloud densification or hierarchical surface reconstruction.
  • Coarse editable meshes could serve as controllable starting points inside larger text-to-3D pipelines.
  • Performance may depend on whether new meshes follow subdivision rules similar to those used when curating FII-40K.
  • Autoregressive next-scale prediction might extend to time-varying or animated mesh sequences.

Load-bearing premise

The FII-40K dataset of nearly 40,000 meshes supplies training signals diverse enough for the autoregressive model to generalize to unseen meshes and hierarchies.

What would settle it

Run SubdivAR on a fresh collection of meshes drawn from sources or topologies absent from FII-40K and measure whether the reported reductions in Hausdorff and Chamfer distances still hold.

Figures

Figures reproduced from arXiv: 2606.27088 by Hang Long, Huipeng Guo, Jielei Zhang, Jinshen Zhang, Junkai Lin, Tianhao Zhao, Tianle Guo, Wei Yang, Wenbing Li, Zikai Song.

Figure 1

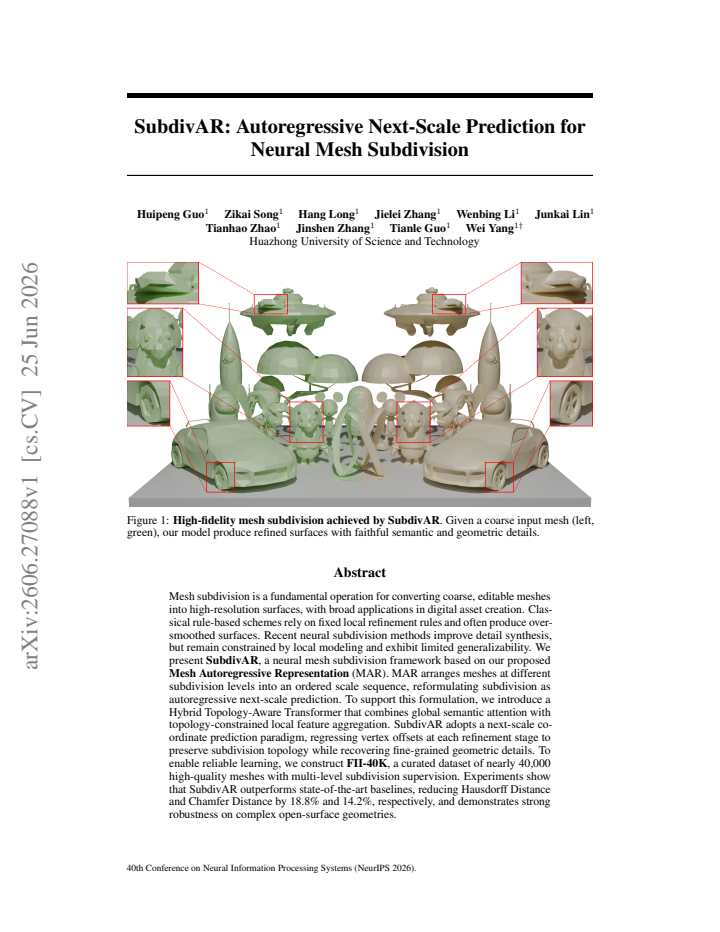

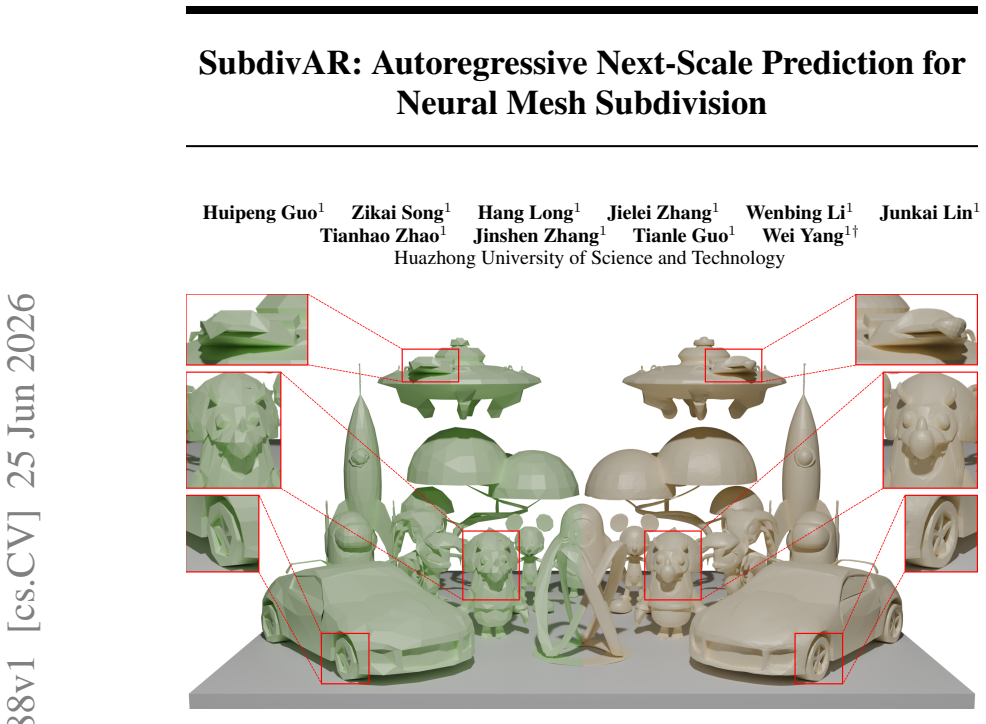

Figure 1. Figure 1: High-fidelity mesh subdivision achieved by SubdivAR. Given a coarse input mesh (left, green), our model produce refined surfaces with faithful semantic and geometric details. Abstract Mesh subdivision is a fundamental operation for converting coarse, editable meshes into high-resolution surfaces, with broad applications in digital asset creation. Clas￾sical rule-based schemes rely on fixed local refinement… view at source ↗
Figure 2

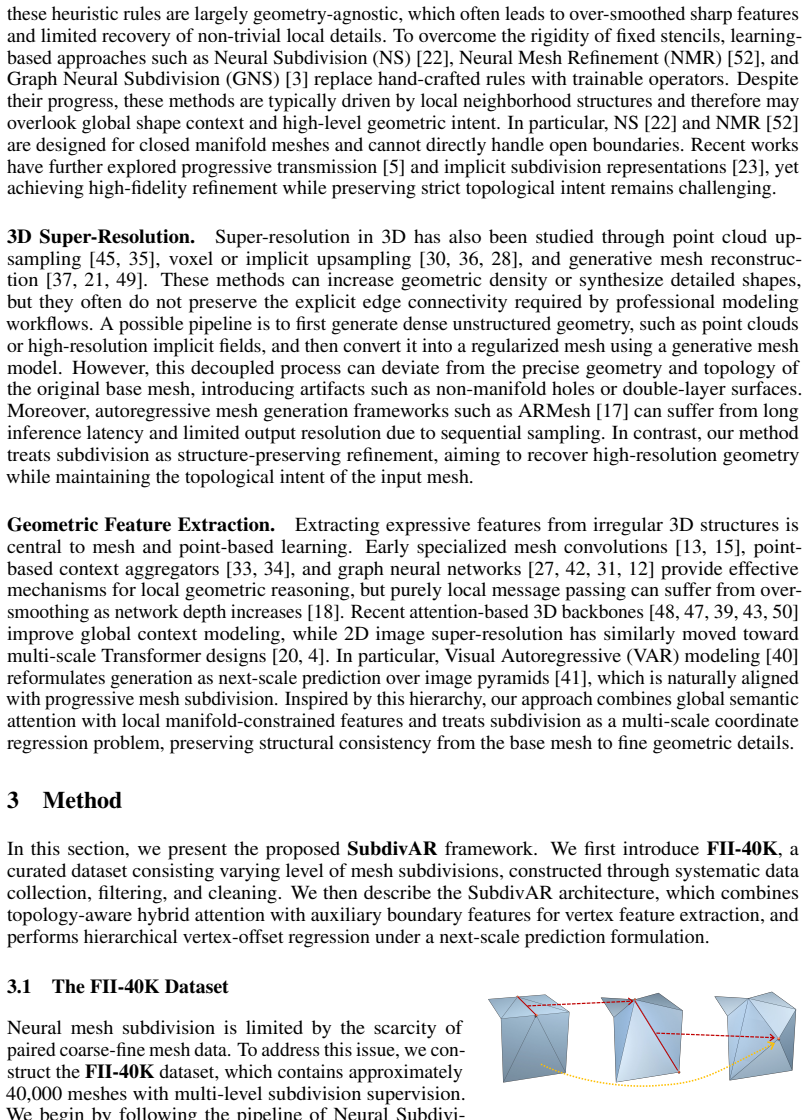

Figure 2. Figure 2: Sharp Feature Collapse. The shape distortion is attributed to the fail￾ure in preserving sharp features during reparameterization. Neural mesh subdivision is limited by the scarcity of paired coarse-fine mesh data. To address this issue, we con￾struct the FII-40K dataset, which contains approximately 40,000 meshes with multi-level subdivision supervision. We begin by following the pipeline of Neural Subdiv… view at source ↗
Figure 3
Figure 3. Figure 3: Failure Modes. Comparing the raw mesh (left) with the reparameterized result (right), we identify two primary failure modes: significant shape distortion with a loss of sharp features( [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

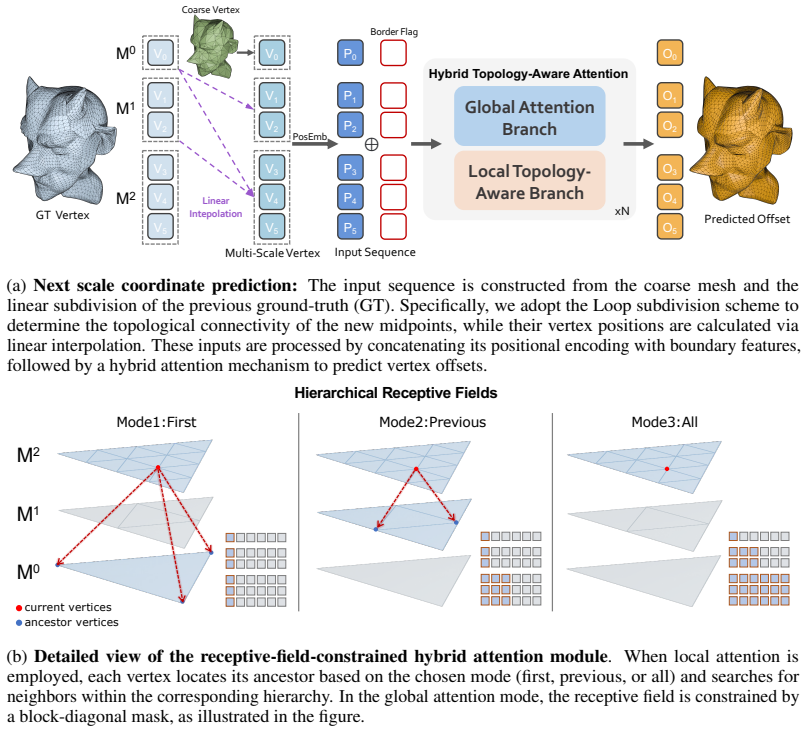

Figure 4. Figure 4: The pipeline of our SubdivAR framework. After careful filtering and validation, we construct FII-40K, a curated dataset of high-quality coarse￾fine mesh pairs that provides reliable supervision for training neural mesh subdivision models. 3.2 Mesh Subdivision through Next Scale Prediction Given a datapoint from FII-40K, we construct a unified sequence X by concatenating vertices across all subdivision leve… view at source ↗
Figure 5

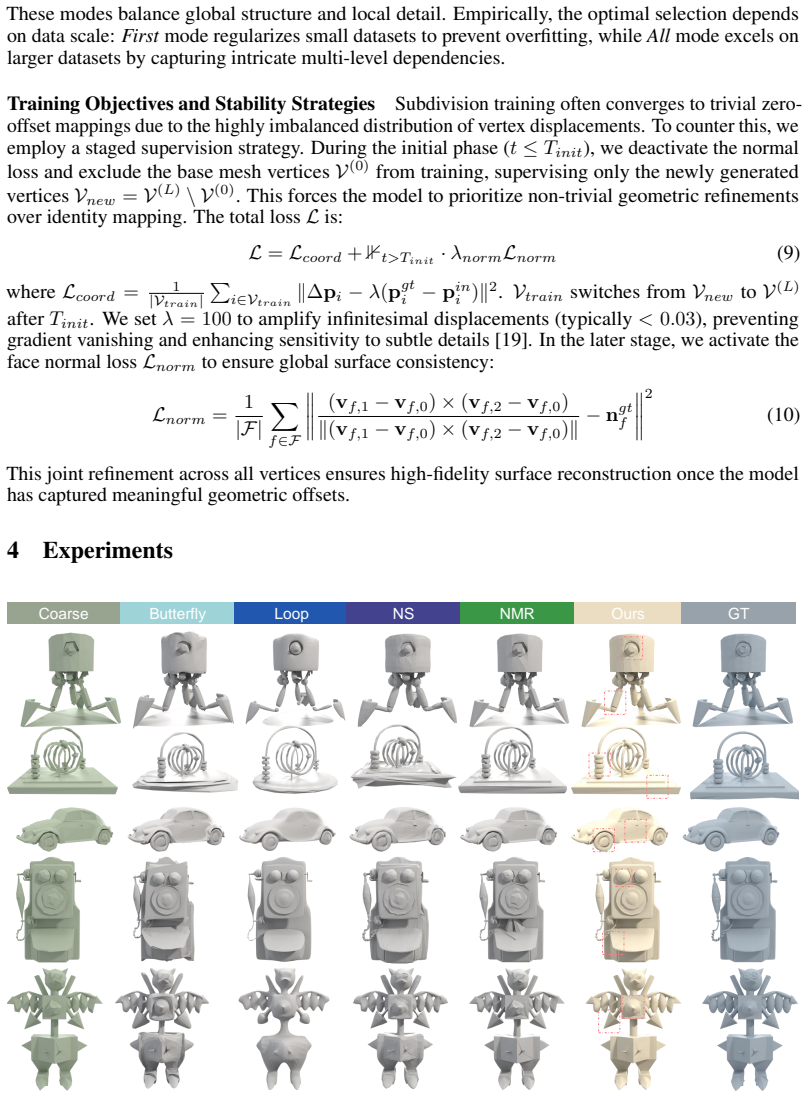

Figure 5. Figure 5: Qualitative comparison We demonstrate the subdivision performance of different models on the same coarse meshes. Our model leverages global information to successfully recover fine details(highlighted in the boxes). While previous methods often misinterpret the subdivision structure, leading to over-smoothing or mesh artifacts, our approach effectively overcomes these issues. 4.1 Experimental Setup Dataset… view at source ↗
Figure 6
Figure 6. Figure 6: Ablation studies on different components. (a) Normal loss: The additional normal loss [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 7

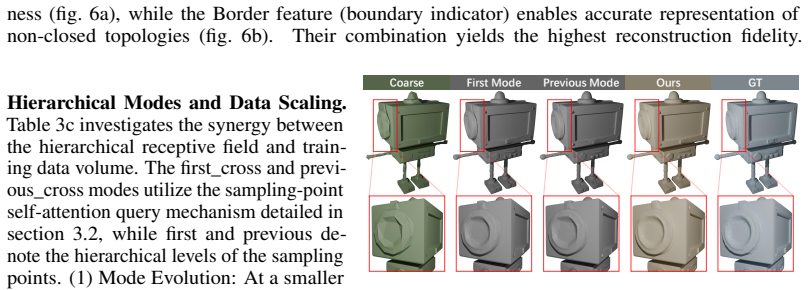

Figure 7. Figure 7: Ablation on Mode. All mode achieves su￾perior reconstruction quality, effectively recovering the complex structure of the robot’s lateral auricle com￾pared to other configurations on 80k scale. Hierarchical Modes and Data Scaling. Table 3c investigates the synergy between the hierarchical receptive field and train￾ing data volume. The first_cross and previ￾ous_cross modes utilize the sampling-point self-at… view at source ↗
Figure 8

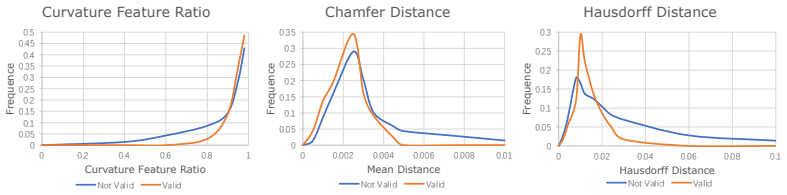

Figure 8. Figure 8: Metric Distribution We visualize the metric distributions for both successful and failed samples. Because failed samples are selected based on subpar performance in specific dimensions, their distributions inevitably overlap with those of the successful ones. Furthermore, the failed samples demonstrate a broader distribution with prominent long-tail effects. A.3 Filtering To further guarantee geometric fid… view at source ↗
Figure 9
Figure 9. Figure 9: Test on coarse mesh on generated by Tripop1.0 The primary failure mode for several baseline models, such as NS [22] and NMR [52], stems from their inherent inability to process meshes with open boundaries. To facilitate a visual comparison on such geometries, we manually pre￾processed these meshes by stitching all boundary vertices to a singular auxiliary point. Furthermore, our model yields encouraging pr… view at source ↗
Figure 10

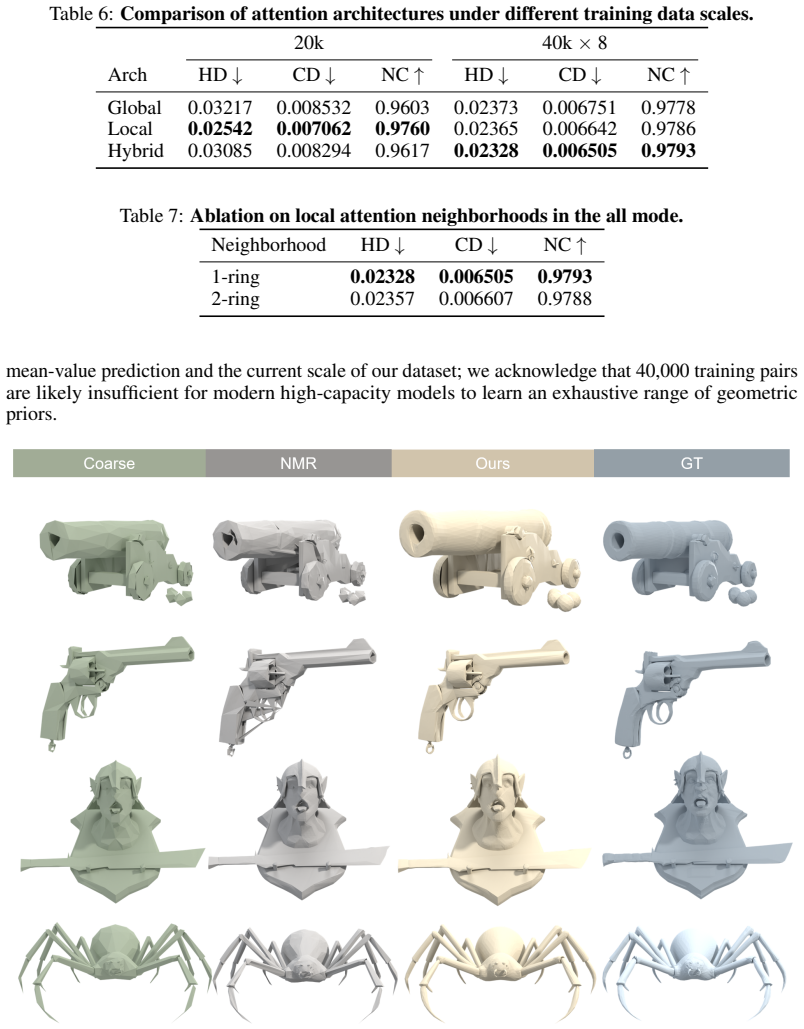

Figure 10. Figure 10: More Qualitative comparison We demonstrate the subdivision performance of different models on the same coarse meshes. 17 [PITH_FULL_IMAGE:figures/full_fig_p017_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Failure cases Our method fails to recover sufficient geometric details in these examples. The missing details are highlighted with red boxes [PITH_FULL_IMAGE:figures/full_fig_p018_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: More results 18 [PITH_FULL_IMAGE:figures/full_fig_p018_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: More results [PITH_FULL_IMAGE:figures/full_fig_p019_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: More results 19 [PITH_FULL_IMAGE:figures/full_fig_p019_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: More results [PITH_FULL_IMAGE:figures/full_fig_p020_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: More results 20 [PITH_FULL_IMAGE:figures/full_fig_p020_16.png] view at source ↗
Figure 17

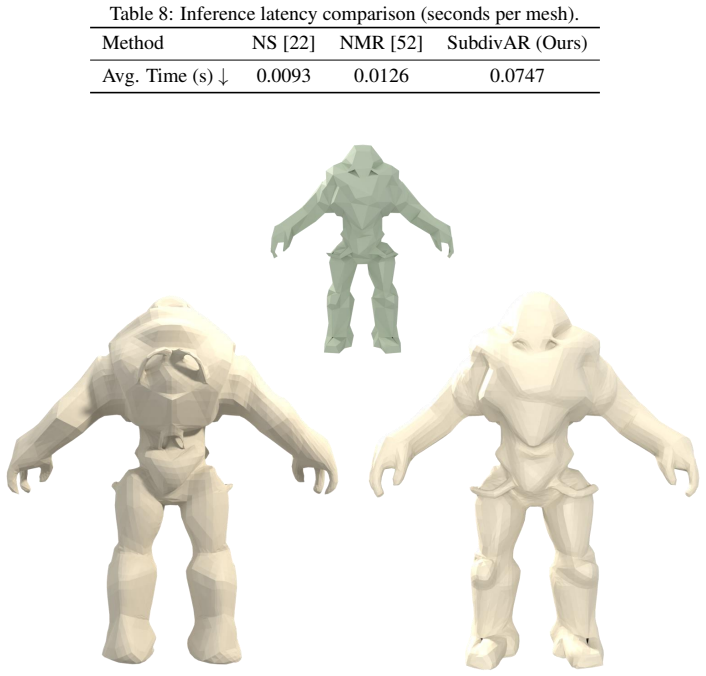

Figure 17. Figure 17: More results NeurIPS Paper Checklist 1. Claims Question: Do the main claims made in the abstract and introduction accurately reflect the paper’s contributions and scope? Answer: [Yes] Justification: The main claims in the abstract and introduction are well aligned with the contributions of the paper. Specifically, the abstract clearly states that the paper introduces SubdivAR, a topology-aware mesh refine… view at source ↗
read the original abstract

Mesh subdivision is a fundamental operation for converting coarse, editable meshes into high-resolution surfaces, with broad applications in digital asset creation. Classical rule-based schemes rely on fixed local refinement rules and often produce over-smoothed surfaces. Recent neural subdivision methods improve detail synthesis, but remain constrained by local modeling and exhibit limited generalizability. We present SubdivAR, a neural mesh subdivision framework based on our proposed Mesh Autoregressive Representation (MAR). MAR arranges meshes at different subdivision levels into an ordered scale sequence, reformulating subdivision as autoregressive next-scale prediction. To support this formulation, we introduce a Hybrid Topology-Aware Transformer that combines global semantic attention with topology-constrained local feature aggregation. SubdivAR adopts a next-scale coordinate prediction paradigm, regressing vertex offsets at each refinement stage to preserve subdivision topology while recovering fine-grained geometric details. To enable reliable learning, we construct FII-40K, a curated dataset of nearly 40,000 high-quality meshes with multi-level subdivision supervision. Experiments show that SubdivAR outperforms state-of-the-art baselines, reducing Hausdorff Distance and Chamfer Distance by 18.8% and 14.2%, respectively, and demonstrates strong robustness on complex open-surface geometries.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The manuscript introduces SubdivAR, a neural mesh subdivision method based on Mesh Autoregressive Representation (MAR) that reformulates subdivision as autoregressive next-scale prediction. It employs a Hybrid Topology-Aware Transformer combining global semantic attention with topology-constrained local aggregation, adopts next-scale coordinate prediction for vertex offsets, and constructs the FII-40K dataset of nearly 40,000 meshes with multi-level subdivision supervision. Experiments claim SubdivAR outperforms state-of-the-art baselines by reducing Hausdorff Distance by 18.8% and Chamfer Distance by 14.2%, with robustness on complex open-surface geometries.

Significance. If the empirical results are validated with transparent dataset protocols and retrained baselines, the autoregressive next-scale formulation could meaningfully advance neural subdivision beyond local modeling constraints, offering improved detail recovery and generalizability. The large-scale FII-40K dataset with explicit multi-level supervision would also constitute a reusable resource for the community.

major comments (1)
  1. [Abstract] Abstract: The headline performance claims (18.8% Hausdorff Distance and 14.2% Chamfer Distance reductions) are obtained exclusively on the newly constructed FII-40K dataset. No information is supplied on curation criteria, category balance, train/test split construction, or confirmation that baselines were retrained on identical data and subdivision levels; without these details the attribution of gains to the MAR + Hybrid Transformer architecture cannot be verified and the central empirical claim remains load-bearing.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive feedback highlighting the need for greater transparency on the FII-40K dataset and experimental protocol. We address this point directly below and will incorporate the requested details in the revision.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The headline performance claims (18.8% Hausdorff Distance and 14.2% Chamfer Distance reductions) are obtained exclusively on the newly constructed FII-40K dataset. No information is supplied on curation criteria, category balance, train/test split construction, or confirmation that baselines were retrained on identical data and subdivision levels; without these details the attribution of gains to the MAR + Hybrid Transformer architecture cannot be verified and the central empirical claim remains load-bearing.

    Authors: We agree that the current manuscript does not provide sufficient detail on FII-40K construction and baseline retraining within the abstract (and, upon re-examination, the Experiments section also lacks explicit statements on these points). In the revised version we will add a dedicated subsection under Experiments that specifies: (i) curation criteria used to assemble the ~40K meshes, (ii) category distribution and balance, (iii) exact train/test split methodology, and (iv) confirmation that every baseline was retrained from scratch on the identical FII-40K data and multi-level subdivision targets. These additions will allow readers to directly attribute performance differences to the MAR formulation and Hybrid Topology-Aware Transformer. revision: yes

Circularity Check

0 steps flagged

No circularity; empirical results on new dataset

full rationale

The paper's central claims consist of an architectural reformulation (MAR as autoregressive next-scale prediction) and reported empirical gains (18.8% Hausdorff, 14.2% Chamfer reduction) on the newly constructed FII-40K dataset. No equations, fitted parameters presented as predictions, or load-bearing self-citations appear in the provided text. The performance numbers are external benchmarks against baselines rather than quantities forced by construction from the inputs. This is a standard empirical ML contribution with no detectable reduction of the claimed results to the method's own definitions.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The abstract supplies no explicit free parameters, axioms, or invented entities beyond the high-level claim that the new representation and transformer enable the reported gains; all modeling choices remain opaque.

pith-pipeline@v0.9.1-grok · 5776 in / 1153 out tokens · 22323 ms · 2026-06-26T04:59:45.032148+00:00 · methodology
