Laser-Liquid Interaction in Laser-Induced Forward Transfer (LIFT) Printing: A Multiscale Perspective on Bubble Dynamics and Material Ejection

T0 review · 0 major / 2 minor · reviewed 2026-06-27 · grok-4.3

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read The cavitation bubble provides the transient mechanical bridge between optical energy deposition and the hydrodynamic ejection process in LIFT printing.

desk verdict This is a review chapter on LIFT that organizes existing bubble-dynamics literature into a multiscale frame but introduces no new data, derivations, or validation. read the letter →

arxiv 2606.12308 v1 pith:RH5EXVPO submitted 2026-06-10 physics.flu-dyn physics.app-ph

Shuqi Zhou , Abdol Hadi Mokarizadeh , Ben Xu This is my paper · ORCID
classification physics.flu-dynphysics.app-ph
keywords LIFTprintingcavitationbubbledynamicslaser-inducedtransferjetformationmaterialejectiondonorlayermultiscalemodeling
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This review frames laser-induced forward transfer as a nozzle-free printing method where laser energy absorbed in a donor layer produces a cavitation bubble that drives the ejection of functional inks, polymers, and biological materials. The central argument is that bubble dynamics across multiple scales explain how donor architecture, laser settings, and material properties control jet formation, droplet breakup, and deposition. By comparing modeling frameworks for bubble inception and growth, the work shows routes to connect optical absorption to final print outcomes. A reader would care because this perspective offers ways to improve reliability when printing difficult-to-nozzle formulations.

What carries the argument

The cavitation bubble formed in the confined donor layer, acting as the mechanical intermediary that converts absorbed laser energy into hydrodynamic motion and material ejection.

What would settle it

A time-resolved measurement of early bubble pressure or radius evolution that quantitatively matches one inception framework while showing clear mismatch to the others.

Watch

Extended reading notes

Core claim

The cavitation bubble provides the transient mechanical bridge between optical energy deposition and the hydrodynamic ejection process. This chapter presents LIFT from a multiscale perspective centered on bubble dynamics and material ejection. It first reviews major LIFT donor architectures. Then, it examines how donor ribbon design, absorbing-layer properties, laser parameters, material rheology, control bubble inception/growth, jet formation, droplet breakup, and final deposition. Modeling approaches are discussed as tools for connecting experimental observations across time and length scales.

Load-bearing premise

Comparisons of thermal-only, plasma-mediated, and coupled plasma-thermal-thermoelastic frameworks for early-stage bubble inception can usefully supply initial conditions for downstream jetting models without new quantitative validation data.

Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

0 major / 2 minor

Summary. The manuscript is a multiscale review of laser-induced forward transfer (LIFT) printing. It positions the cavitation bubble as the transient mechanical bridge between optical energy deposition in a confined donor and the subsequent hydrodynamic ejection process. The text reviews major donor architectures, examines how ribbon design, absorbing-layer properties, laser parameters, and material rheology control bubble inception/growth, jet formation, droplet breakup, and deposition, discusses modeling approaches ranging from reduced-order estimates to interface-resolving simulations, and provides an illustrative comparison of thermal-only, plasma-mediated, and coupled plasma-thermal-thermoelastic frameworks for early-stage bubble inception as example initial conditions for downstream models. It concludes by identifying opportunities for bubble-aware donor design, time-resolved diagnostics, benchmark datasets, and predictive process maps.

Significance. If the synthesis of existing literature holds, the review supplies a coherent organizing framework that connects optical, thermal, plasma, and hydrodynamic scales in LIFT. By centering bubble dynamics, it can help researchers select appropriate inception models for jetting simulations and highlights concrete next steps (benchmark datasets, intermediate observables) that would improve reproducibility across experimental and computational studies in laser-assisted printing and related fluid-dynamics applications.

minor comments (2)
  1. [Abstract] The abstract and introduction refer to the work as both a 'chapter' and a manuscript submitted to a journal; clarify the intended publication format and whether any sections are adapted from prior book-chapter material.
  2. Figure captions and axis labels for any schematic diagrams of donor architectures or bubble-evolution timelines should explicitly state the time and length scales represented so that readers can immediately map them to the multiscale discussion.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their detailed summary of the manuscript, positive assessment of its significance, and recommendation for minor revision. No specific major comments were raised in the report.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity

full rationale

The manuscript is a review/perspective chapter that surveys existing LIFT donor architectures, rheology effects, and modeling frameworks drawn from external literature. It presents no original derivations, fitted parameters, or predictive equations of its own; the sole illustrative comparison of thermal/plasma/thermoelastic inception models is explicitly framed as a brief example supplying initial conditions for downstream models rather than a new quantitative claim. No self-citation load-bearing steps, self-definitional loops, or renamed empirical patterns appear in the provided text.

Assumptions & free parameters 0 free parameters · 0 assumptions · 0 invented entities

This is a review paper. No new free parameters, axioms, or invented entities are introduced by the authors.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Laser-Liquid Interaction in Laser-Induced Forward Transfer (LIFT) Printing: A Multiscale Perspective on Bubble Dynamics and Material Ejection." pith.science (2026). https://pith.science/paper/RH5EXVPO

@misc{pith2026260612308,
  author       = {Pith},
  title        = {Pith review of: Laser-Liquid Interaction in Laser-Induced Forward Transfer (LIFT) Printing: A Multiscale Perspective on Bubble Dynamics and Material Ejection},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/RH5EXVPO}},
  note         = {Machine review of arXiv:2606.12308}
}
read the original abstract

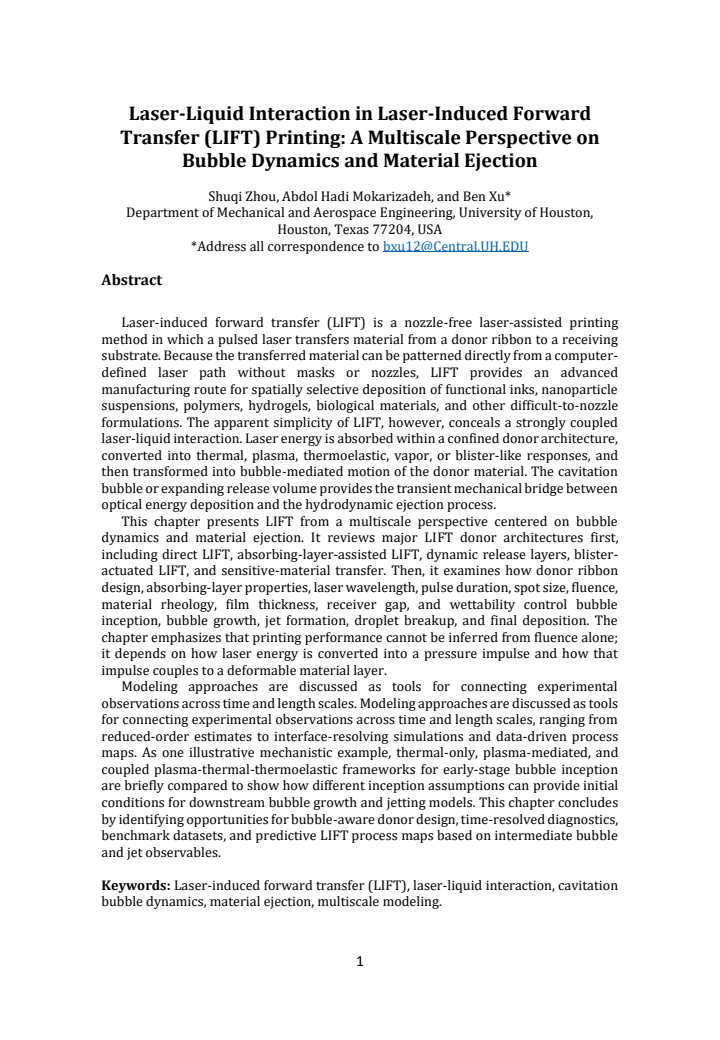

Laser-induced forward transfer (LIFT) is a nozzle-free laser-assisted printing method that provides an advanced manufacturing route for spatially selective deposition of functional inks, nanoparticle suspensions, polymers, hydrogels, biological materials, and other difficult-to-nozzle formulations. The apparent simplicity of LIFT, however, conceals a strongly coupled laser-liquid interaction. Laser energy is absorbed within a confined donor architecture, converted into thermal and plasma responses, and then transformed into bubble-mediated motion of the donor material. The cavitation bubble provides the transient mechanical bridge between optical energy deposition and the hydrodynamic ejection process. This chapter presents LIFT from a multiscale perspective centered on bubble dynamics and material ejection. It first reviews major LIFT donor architectures. Then, it examines how donor ribbon design, absorbing-layer properties, laser parameters, material rheology, control bubble inception/growth, jet formation, droplet breakup, and final deposition. Modeling approaches are discussed as tools for connecting experimental observations across time and length scales, ranging from reduced-order estimates to interface-resolving simulations and data-driven process maps. As one illustrative mechanistic example, thermal-only, plasma-mediated, and coupled plasma-thermal-thermoelastic frameworks for early-stage bubble inception are briefly compared to show how different inception assumptions can provide initial conditions for downstream bubble growth and jetting models. This chapter concludes by identifying opportunities for bubble-aware donor design, time-resolved diagnostics, benchmark datasets, and predictive LIFT process maps based on intermediate bubble and jet observables.

Figures

Figures reproduced from arXiv: 2606.12308 by the authors.

Figure 1

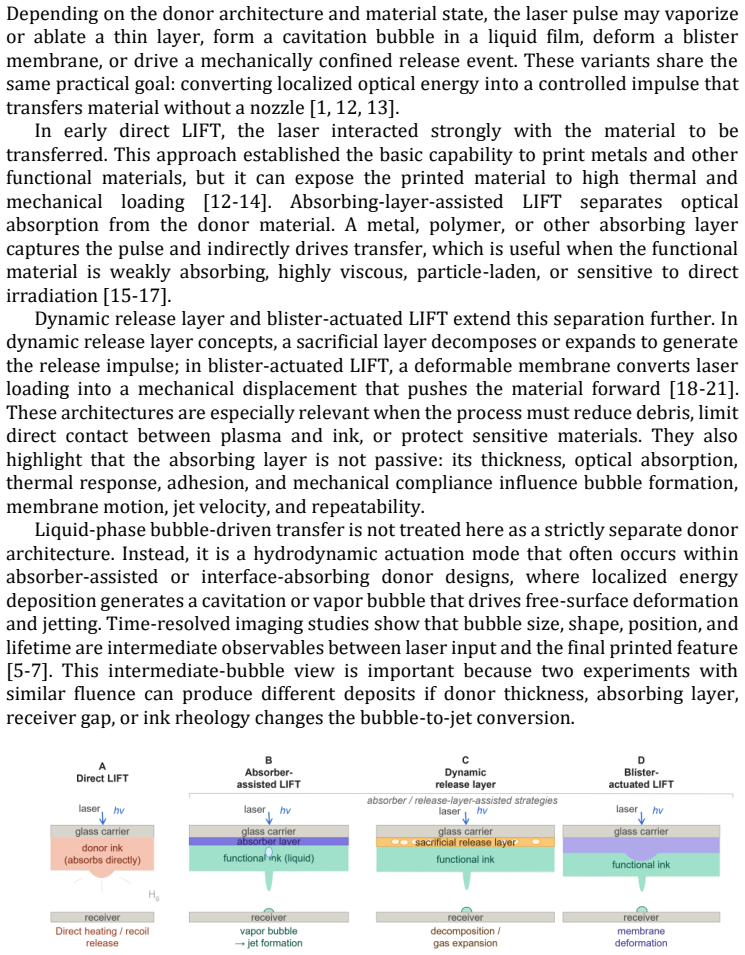

Figure 1. Representative LIFT donor architectures and actuation pathways. Direct LIFT relies on direct [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

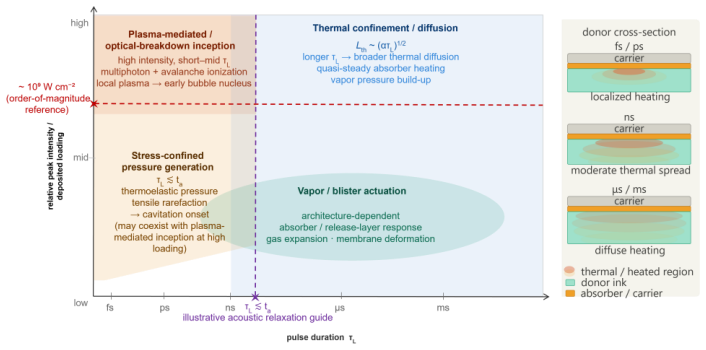

Figure 2. Schematic donor energy-coupling and confinement map for LIFT. The horizontal axis represents laser pulse duration, and the vertical axis represents relative peak intensity or deposited loading. Short-pulse loading can generate stress-confined pressure transients when 𝜏𝐿 ≲ 𝑡𝑎 , where 𝑡𝑎 = 𝐿/𝑐 is the acoustic relaxation time, 𝐿 is the characteristic heated or absorbing length scale, and 𝑐 is the speed of sound. Stress… view at source ↗
Figure 3

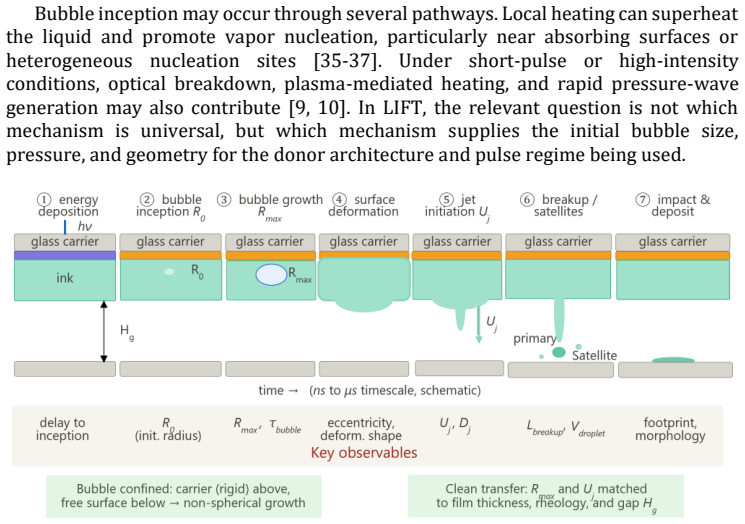

Figure 3. Bubble-mediated jet formation in a forward-transfer geometry. After localized energy deposition, a bubble, vapor pocket, or blister-like expansion forms near the donor interface, grows under geometric confinement, deforms the free surface, initiates a jet, and drives stretching, breakup, impact, and deposition. Key intermediate observables include the initial bubble size 𝑅0 , maximum bubble response 𝑅𝑚𝑎𝑥, bubble lif… view at source ↗
Figures from the paper (3 more)
Figure 4

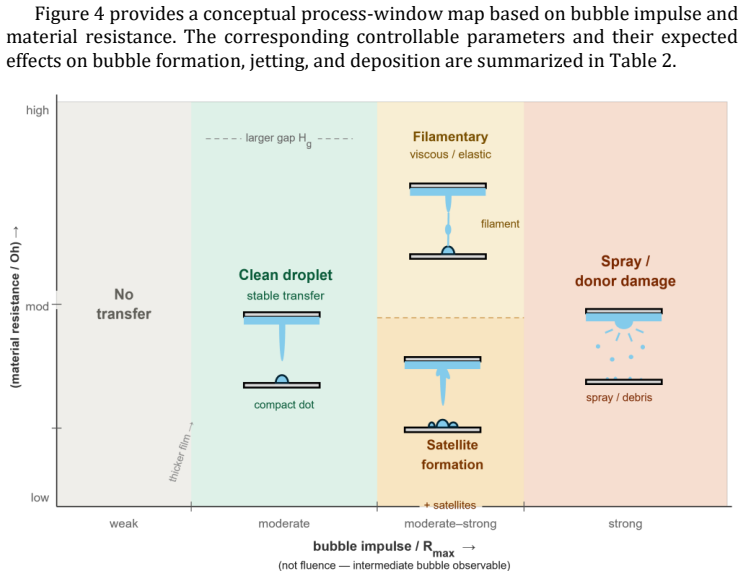

Figure 4. Figure 4: provides a conceptual process-window map based on bubble impulse and material resistance. The corresponding controllable parameters and their expected effects on bubble formation, jetting, and deposition are summarized in [PITH_FULL_IMAGE:figures/full_fig_p011_4.png]
Figure 5

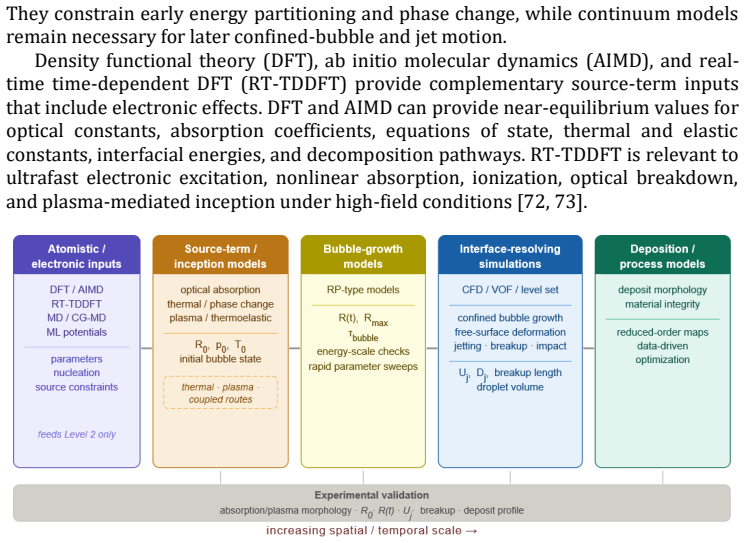

Figure 5. Figure 5: Multiscale modeling hierarchy for bubble [PITH_FULL_IMAGE:figures/full_fig_p014_5.png]
Figure 6

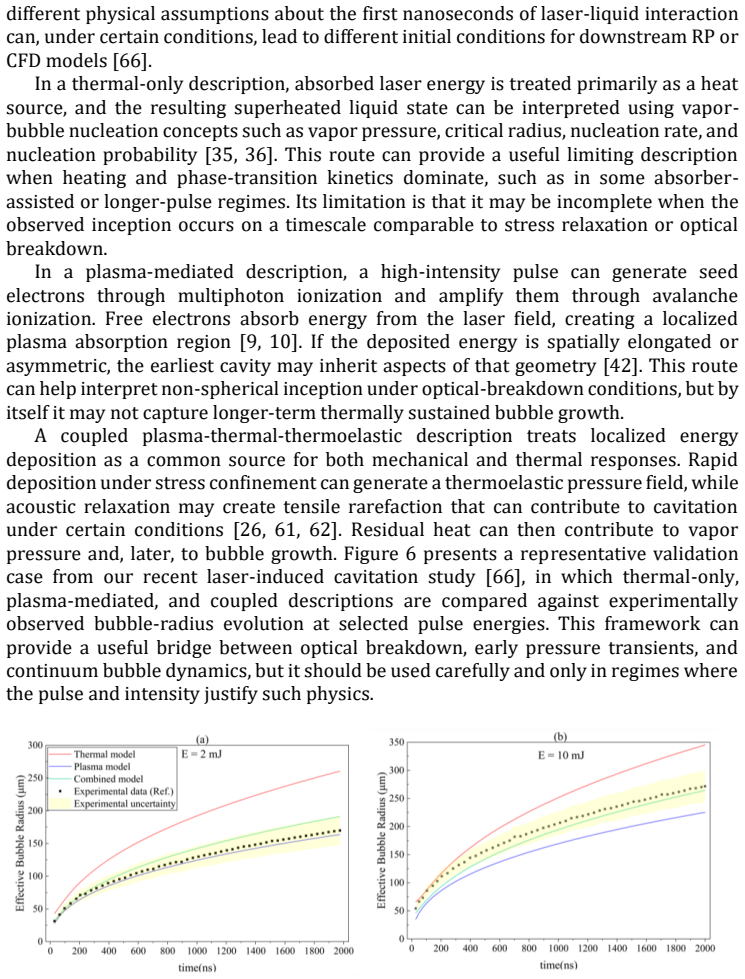

Figure 6. Figure 6: Representative validation case for early-stage bubble-inception modeling. Effective bubble￾radius evolution is compared among thermal-only, plasma-mediated, and coupled plasma-thermal models at selected pulse energies of (a) 2 mJ and (b) 10 mJ. Experimental data and co…
