ROOT: VLM based System for Indoor Scene Understanding and Beyond

T0 review · 4 major / 5 minor · reviewed 2026-08-12 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read This paper claims that a vision-language model fine-tuned on over 610,000 indoor images can output structured scene graphs and metric distances from a single RGB image, with relation precision and recall near 90 percent.

desk verdict Useful system paper with a large new dataset, but the metric-distance claim rests on an uncalibrated monocular depth pipeline. read the letter →

arxiv 2411.15714 v1 pith:RL3YDK4V submitted 2024-11-24 cs.CV

Yonghui Wang , Shi-Yong Chen , Zhenxing Zhou , Siyi Li , Haoran Li , Wengang Zhou , Houqiang Li This is my paper · ORCID
classification cs.CV
keywords indoorsceneunderstandingvisionlanguagemodelgraphgenerationspatialreasoningdistanceestimationRGBimagesemi-automateddata
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper claims that a vision-language model fine-tuned on a large synthetic indoor-scene QA dataset can read a single RGB image of a room and output a structured scene graph, a JSON tree of support, contain, hang, and attach relations rooted at the floor, wall, and ceiling, together with metric distances between objects. The authors argue that current VLMs fail at this spatial hierarchical reasoning, and that their ROOT pipeline, which uses GPT-4V for object discovery and existing foundation models for depth and masks, supplies the data needed to train SceneVLM. If correct, a generic 7B-parameter VLM could provide the spatial understanding that downstream applications such as 3D scene generation and embodied robots currently lack. The paper reports relationship precision and recall around 90 percent and 74.3 percent distance accuracy within the strict 80-120 percent error band on its 740-image test set, compared with single-digit accuracy for most general-purpose VLMs.

What carries the argument

The load-bearing object is the SceneVQA dataset and the semi-automated pipeline that builds it. GraphVQA relations are first manually annotated in JSON, then re-expressed by GPT-4 as chain-of-thought natural language before being paired with the JSON for training; DistanceVQA uses monocular depth from DepthAnything plus SAM masks and centroid distances in the unprojected 3D point cloud as distance labels. SceneVLM is a fine-tuned 7B VLM trained with a JSON-tree output format and chain-of-thought reasoning, learning to bridge directly from RGB appearance to a fixed four-relation hierarchical layout with distances given in meters.

What would settle it

Measure actual distances with a physical rangefinder for a set of indoor scenes, feed the same images to SceneVLM, and compare its meter predictions against the measured values; systematic error correlated with depth would show the model learned the labeling pipeline's bias. A second check is to run the model on images with deliberately unusual spatial layouts, such as objects hanging mid-air, and observe whether graph accuracy collapses.

Watch

Extended reading notes

Core claim

The central claim is that SceneVLM, an InternVL2 or Qwen2-VL fine-tuned on the authors' SceneVQA dataset of over 610,000 images, can generate hierarchical indoor scene graphs and estimate inter-object distances from RGB images alone, without depth sensors or explicit geometry at test time. The paper defines four spatial relationships (support, contain, hang, attach) and reports that the trained model reproduces the full JSON tree with pairwise relation precision of 91.4 percent and recall of 90.4 percent, object-wise precision of 87.7 percent with IoU around 80 percent, and node detection accuracy near 100 percent. For distances, SceneVLM achieves 74.3 percent accuracy within the strict 80-120 percent band and 97.4 percent within the looser 50-200 percent band, in both cases far ahead of general-purpose VLMs. These results are presented as evidence that VLMs can learn implicit spatial layout from RGB-only input once supplied with sufficient semi-automatically generated scene-relationship training data.

Load-bearing premise

The load-bearing premise is that distances computed by unprojecting monocular depth and taking centroid differences, together with masks and bounding boxes from the same foundation-model family, are accurate enough to serve as ground truth for both training and the 740-image test set; if that pipeline is metrically biased, the reported accuracies measure agreement with the pipeline rather than true spatial understanding.

Editorial extensions

If this is right

  • A robot or agent can go from one RGB photo to a JSON scene graph listing which objects support, contain, hang from, or attach to others, without any depth input at test time.
  • The same VLM can answer distance questions in meters, which supports embodied tasks like moving an object to a reasonable location when combined with a general-purpose VLM such as GPT-4V.
  • The retrained SceneLLM requires only an object list, not an image, so users can specify desired furniture and receive a hierarchy that drives 3D scene generation through the Holodeck pipeline.
  • The SceneVQA dataset itself, with over 610,000 images and 320,000 object categories, is a publicly released resource for future spatial-reasoning training and evaluation.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A natural extension not tested in the paper is to compare SceneVLM against physically measured ground truth, for example with a laser rangefinder, to separate true metric understanding from agreement with the DepthAnything-based labeling pipeline.
  • Because the relation set is closed and anchored to the floor, wall, and ceiling, the model's success may reflect learning a constrained grammar; testing with unusual scenes such as floating or oddly stacked objects would show whether the hierarchy generalizes beyond typical room layouts.
  • The semi-automated recipe of manual JSON plus GPT-4 paraphrase into chain-of-thought before fine-tuning could transfer to other structured-output tasks, suggesting the reusable trick is the chain-of-thought-as-formatting step rather than the specific scene graph task.
  • If metric calibration is the main obstacle, combining a small amount of true-depth supervision with the large pipeline-labeled corpus could yield a model with both coverage and metric accuracy.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. The paper introduces ROOT, a pipeline for indoor scene understanding from RGB images. The pipeline combines iterative GPT-4V-based object perception, GroundingDINO/SAM/DepthAnything for object boxes, masks and depth, and a fine-tuned 7B VLM (SceneVLM) that generates hierarchical scene graphs (support/contain/hang/attach) and metric distances between objects. To train SceneVLM the authors construct a large dataset, SceneVQA, with over 610k images from public indoor datasets, using semi-automated graph annotation and automated distance labels. Experiments on a 740-image test set report relationship precision/recall around 90% and distance accuracy of 74.32% within [80,120]% of ground truth, outperforming several open VLMs and GPT-4V. The paper also shows applications to embodied AI and Holodeck-based 3D scene generation.

Significance. If the reported results are sound, the paper demonstrates a practical route for a 7B VLM to produce structured, hierarchical scene descriptions with distance estimates, which would be valuable for embodied AI, scene synthesis, and indoor scene understanding. The authors contribute a large-scale scene graph/distance dataset, a modular pipeline, and extensive comparison with existing VLMs, and the supplementary material is unusually detailed, including prompts, algorithms, and error analyses. However, the central quantitative claim of metric distance estimation depends on an unvalidated, self-referential evaluation: distance ground truth is derived from an uncalibrated monocular depth model, and the test set is generated by the same pipeline family used for training. The significance of the distance results therefore rests on whether the model learns true metric depth or only reproduces the bias of the labeling pipeline.

major comments (4)
  1. [Section 3.2 and Supplementary D] The distance ground truth is not metric-calibrated. The paper states that DepthAnything is used to extract depth and generate a 3D point cloud, and object distances are computed as centroid distances of the corresponding point clouds. As released, DepthAnything predicts depth up to an unknown per-image scale and shift; the paper gives no calibration procedure using camera intrinsics, known object sizes, or RGB-D sensors. Consequently the 'ground truth' distances in DistanceVQA and in the 740-image test set (Supplementary C.3) are defined only up to an unknown scale factor. The [80,120]% accuracy reported in Table 3 and the absolute error analysis in Supplementary D therefore largely measure agreement with the same uncalibrated pipeline that generated the training labels, rather than true metric understanding. The authors should either provide a calibration step, compare against datasets with real metric ground truth, or clearly reframe the task as relative-depth-based distance estimation.
  2. [Supplementary C.3 and Section 3.3] The evaluation is self-referential. The test set of 740 images is drawn from the same five public datasets and labeled by the same automated/semi-automated pipeline (GPT-4V object detection, GroundingDINO boxes, SAM masks, DepthAnything distances) that produced the SceneVQA training data. The graph evaluation also uses the exact closed-vocabulary prompt and JSON format seen during training. High SceneVLM accuracy may thus reflect fitting to the label-generating process rather than generalizable scene understanding. The paper should add an independent test set with human-verified graph labels and externally validated metric distances, or at minimum report how much of the test data was manually corrected.
  3. [Table 1 and Section 4.2] The near-perfect Node Detection Accuracy (99.97 precision) is partly explained by the evaluation protocol itself: the object list is provided in the prompt, and the authors acknowledge that 'given that the list of objects is provided, generating object outputs is relatively straightforward.' This makes NDA a measure of output formatting obedience rather than object discovery. The pairwise and object-wise relation metrics inherit this advantage because the candidate object set is fixed. The comparison with baselines is still useful, but the claim in Section 4.2 that SceneVLM 'outperforms existing VLMs across all metrics' should be qualified, since the baselines may have no such list or may face a harder 'detect and relate' task.
  4. [Table 5] Several ablation conclusions are based on very small differences without error bars or repeated runs. For example, unfreezing the ViT is reported as a 1.2-point drop in Pairwise Relation Precision and a 3.5-point gain in distance [80,120], and w/o JSON is a 0.5-point drop; at this magnitude, run-to-run variance or test-set composition could change the conclusion. Reporting standard deviations across at least three seeds, or a significance test, would make the ablation claims and the 'Larger VLM' improvements (1.7-8.0 points) interpretable.
minor comments (5)
  1. [Table 5] The table header contains the typo "Unforzen ViT" and the label "Unforzen ViT" in the first row; it should read "Unfrozen ViT".
  2. [Table 1 caption] The caption writes "The best and the second results are highlighted in blod and underlined" — "blod" should be "bold".
  3. [Section 5.2] The model "SceneLLM" is introduced abruptly: the text says it is "retrained" from SceneVLM and used with Holodeck, but the paper does not describe how SceneLLM differs from SceneVLM, what data it is trained on, or why this separate model is needed. A short paragraph with training details would make the application reproducible.
  4. [Algorithm 1] The notation in Algorithm 1 is clear overall, but the variable name "unforzen" (appearing in the supplementary) should be corrected to "unfrozen", and the pseudo-code would benefit from a sentence explaining the meaning of the "max p" threshold when multiple bounding boxes are present.
  5. [Section 4.3] The paper states that the [80,120] range mirrors "the typical use of approximate descriptions in daily life", but no citation or user study is given for this claim. A brief justification or removal of the unsupported statement would be appropriate.

Circularity Check

1 steps flagged · score 6.0 of 10

Distance ground truth is generated by the same uncalibrated DepthAnything centroid pipeline used for training labels, so the reported [80,120]% distance accuracy partly measures self-consistency with the labeling pipeline rather than independent metric understanding.

  1. self definitional [Section 3.2 (Indoor Scene Parsing); Table 2; Table 3; Supplementary C.3]
    "the spatial distance between objects is determined by calculating the centroid distances of their respective point clouds. ... In this study, the test dataset consists of 740 images. ... over 20,000 instances of distances in the form [object1, object2]."

    Distance 'ground truth' is defined by the paper's own pipeline: DepthAnything produces a 3D point cloud and object distances are centroid distances of these point clouds. DepthAnything supplies affine-invariant relative depth rather than metric depth, and the paper does not describe any metric-scale calibration for the mixed public datasets. Table 2 shows the 740-image test set is a subset of the same SceneVQA dataset, so its distance labels are generated by the same DepthAnything-centroid function used to create the DistanceVQA training labels. SceneVLM is trained to output those quantities and then evaluated against those same quantities; the Table 3 [80,120]% accuracy therefore largely measures agreement with the labeling pipeline, not independently calibrated metric distance.

full rationale

The paper contains no theorem derivation and no load-bearing self-citation chain: SpatialVLM is cited only for evaluation conventions and data-filtering prompts, and GPT-4V, GroundingDINO, SAM, and DepthAnything are external tools. The scene-graph claim rests on semi-automated human annotation and is compared against strong baselines, so it has substantial independent content. The main circularity is confined to the distance-estimation claim: both training labels and test labels are defined by the same uncalibrated DepthAnything centroid-distance pipeline, so the reported metric-distance accuracy reduces, by construction, to fitting and reproducing the authors' own labeling convention. This warrants a partial-circularity score of 6 rather than a lower score; the relationship and downstream-application results keep the paper from being fully self-referential.

Assumptions & free parameters 3 free parameters · 4 assumptions · 1 invented entities

The system is an empirical pipeline, not a derivation. It depends on hand-chosen thresholds, monocular depth reliability, GPT-4V list quality, SAM mask quality, and the exhaustiveness of four relation types. Because the test set is built by the same pipeline, the reported numbers inherit these assumptions.

free parameters (3)
  • pm = 0.3
    GroundingDINO bounding box probability threshold selected by hand in Algorithm 1; determines which detections survive and affects the final object list.
  • pn = 0.15
    Score difference threshold for choosing between the top two bounding boxes in Algorithm 1; chosen by hand.
  • S = 1.5
    Scaling factor for cropping container regions during iterative object perception in Algorithm 1; chosen by hand.
assumptions (4)
  • domain assumption Monocular DepthAnything depth estimates yield metrically correct 3D point clouds, so centroid distances are true physical distances.
    Used to generate all DistanceVQA targets and test labels in Section 3.2. If the depth scale is wrong, reported distance accuracy is agreement with the pipeline's proxy, not reality.
  • domain assumption The four relations support, contain, hang, and attach exhaustively describe indoor object hierarchy.
    Prompts and the JSON schema restrict outputs to these relations in Section 3.3 and the supplementary prompts. Other spatial relations are ignored, so accuracy is bounded by this closed set.
  • domain assumption GPT-4V object lists and container flags are accurate and complete.
    All downstream detection, masking, graph, and distance computations depend on the initial GPT-4V object list from Section 3.1; missed objects are absent from evaluation.
  • domain assumption Human annotation of GraphVQA relationships is unbiased ground truth.
    Section 3.3 describes manual annotation and review, but reports no inter-annotator agreement or quality study.
invented entities (1)
  • SceneLLM
    purpose: Generates hierarchical room layouts for 3D scene generation in Holodeck by converting a user-specified object list into relationship constraints.
    Mentioned only in Section 5.2 as a retrained variant of SceneVLM; no architecture, training data, or quantitative evaluation is provided, so it is a placeholder concept rather than a demonstrated model.

how reviews work

0 comments
Cite this review

Pith. "Pith review of ROOT: VLM based System for Indoor Scene Understanding and Beyond." pith.science (2026). https://pith.science/paper/RL3YDK4V

@misc{pith2026241115714,
  author       = {Pith},
  title        = {Pith review of: ROOT: VLM based System for Indoor Scene Understanding and Beyond},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/RL3YDK4V}},
  note         = {Machine review of arXiv:2411.15714}
}
read the original abstract

Recently, Vision Language Models (VLMs) have experienced significant advancements, yet these models still face challenges in spatial hierarchical reasoning within indoor scenes. In this study, we introduce ROOT, a VLM-based system designed to enhance the analysis of indoor scenes. Specifically, we first develop an iterative object perception algorithm using GPT-4V to detect object entities within indoor scenes. This is followed by employing vision foundation models to acquire additional meta-information about the scene, such as bounding boxes. Building on this foundational data, we propose a specialized VLM, SceneVLM, which is capable of generating spatial hierarchical scene graphs and providing distance information for objects within indoor environments. This information enhances our understanding of the spatial arrangement of indoor scenes. To train our SceneVLM, we collect over 610,000 images from various public indoor datasets and implement a scene data generation pipeline with a semi-automated technique to establish relationships and estimate distances among indoor objects. By utilizing this enriched data, we conduct various training recipes and finish SceneVLM. Our experiments demonstrate that \rootname facilitates indoor scene understanding and proves effective in diverse downstream applications, such as 3D scene generation and embodied AI. The code will be released at \url{https://github.com/harrytea/ROOT}.

Figures

Figures reproduced from arXiv: 2411.15714 by the authors.

Figure 1
Figure 1. ROOT is a system designed to interpret indoor scene images and extract various types of meta-information about the scenes. Utilizing this information, ROOT can generate hierarchical relationships and spatial distances among indoor objects. This enriched data serves to support various downstream tasks. encompasses a myriad of information, such as the entities within a room, their positions, and their interrelationshi… view at source ↗
Figure 2
Figure 2. We introduce ROOT, a system designed for understanding indoor scenes. Initially, the system utilizes an iterative object perception module based on GPT-4V to identify entities within a given image. Subsequently, the indoor scene and objects are parsed using existing vision foundation models to gather meta-information about the scene. Finally, the object information is processed by SceneVLM, resulting in a scene grap… view at source ↗
Figure 3
Figure 3. Four types of hierarchical relationships as defined. In [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (10 more)
Figure 4
Figure 4. Figure 4: SceneVQA data generation pipeline. This diagram de [PITH_FULL_IMAGE:figures/full_fig_p004_4.png]
Figure 5
Figure 5. Figure 5: Hierarchical scene graph visualization of our method. Each object is assigned a serial number, with the corresponding visual JSON [PITH_FULL_IMAGE:figures/full_fig_p006_5.png]
Figure 6
Figure 6. Figure 6: ROOT and GPT-4V integration demonstrate a promising application in indoor environments. In an office setting, this system can assist a robot in accurately identifying and manipulating objects. By leveraging ROOT’s analysis, GPT-4V identifies potential incon￾sistencies,…
Figure 7
Figure 7. Figure 7: ROOT’s newly developed SceneLLM model, integrated with Holodeck [53], effectively constructs indoor scenes from spec￾ified object lists. We show several toy examples. For example, SceneLLM can define a structured relationship such as [cabinet, support, sink], allowing …
Figure 8

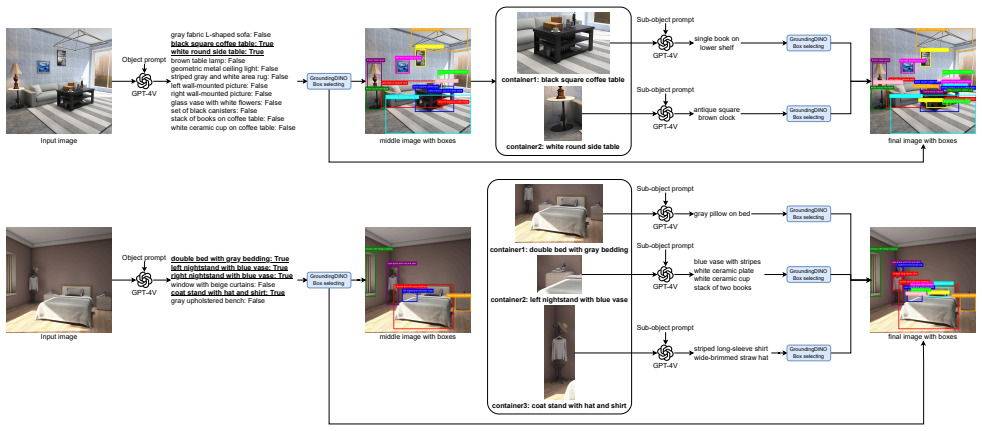

Figure 8. Figure 8: The workflow for visualizing the iterative perception of objects. [PITH_FULL_IMAGE:figures/full_fig_p013_8.png]
Figure 9

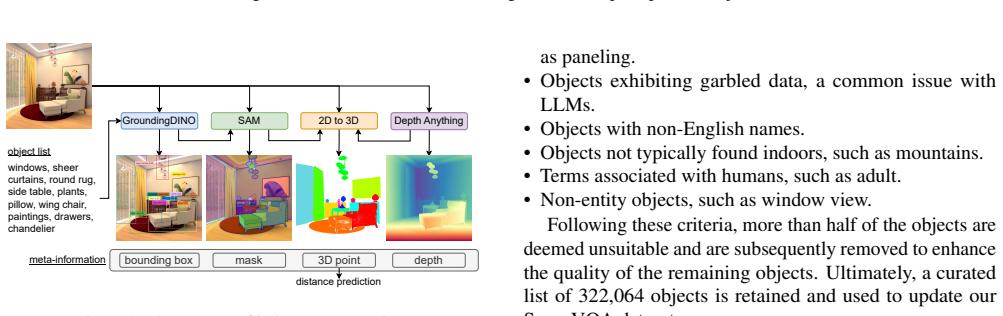

Figure 9. Figure 9: The process of indoor scene parsing. • A screenshot of graphics user interface. • A piece of text. • A sketch. • A cartoon. This approach ensures that the data used in our study is highly relevant and closely aligned with the specific require￾ments of our research on i…
Figure 10
Figure 10. Figure 10: Statistical distribution of room types in our SceneVQA dataset. [PITH_FULL_IMAGE:figures/full_fig_p014_10.png]
Figure 11
Figure 11. Figure 11: An example of the JSON file representing hierarchical [PITH_FULL_IMAGE:figures/full_fig_p014_11.png]
Figure 12
Figure 12. Figure 12: Analysis of distance estimation errors: both absolute [PITH_FULL_IMAGE:figures/full_fig_p015_12.png]
Figure 13
Figure 13. Figure 13: More results on Holodeck [53]. The integration of ROOT and Holodeck [53] enhances functionality, enabling users to specify desired objects. Consequently, this integration facilitates the automation of indoor layout and arrangement processes. 5 [PITH_FULL_IMAGE:figure…
