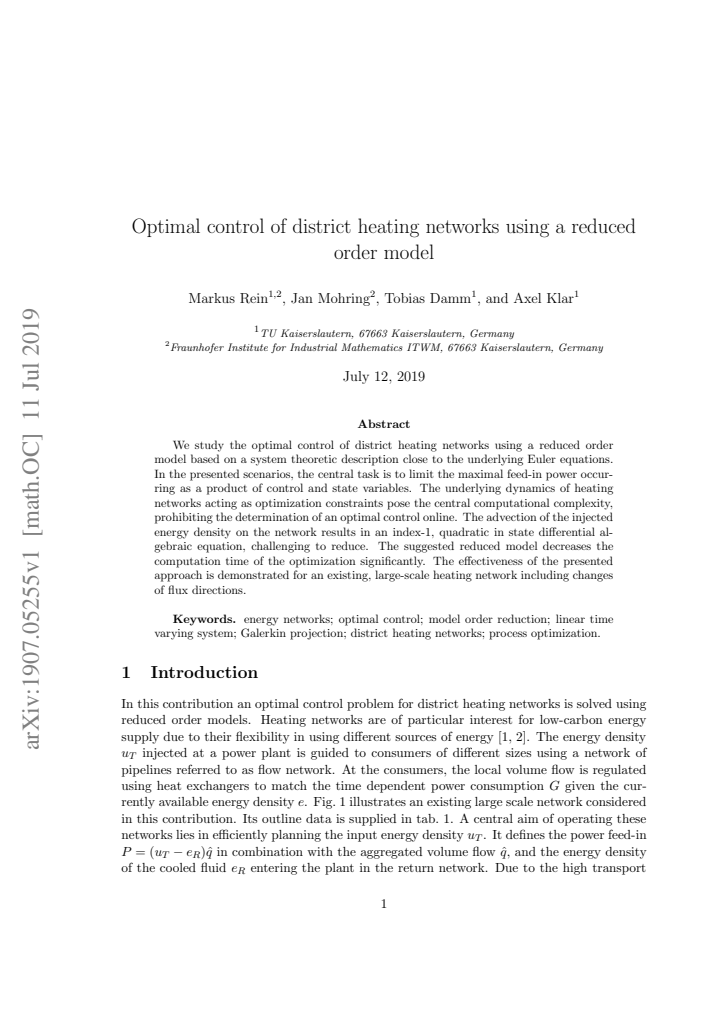

Optimal control of district heating networks using a reduced order model

Markus Rein , Jan Mohring , Tobias Damm , Axel Klar This is my paper

Pith reviewed 2026-05-24 23:00 UTC · model grok-4.3

classification 🧮 math.OC
keywords optimal controldistrict heating networksreduced order modelsdifferential algebraic equationsenergy advectionflow direction changesfeed-in power
0
0 comments X

The pith

A reduced-order model based on system theory enables fast optimal control of district heating networks with changing flows.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper shows how to use a reduced-order model to solve optimal control problems for district heating networks much more quickly than with the full dynamics. The networks are governed by index-1 quadratic differential algebraic equations that describe how injected energy advects through the pipes. The optimization goal is to limit the maximum feed-in power without solving the full model online. The authors demonstrate that their system-theoretic reduction works on a real large-scale network where flow directions can reverse. Readers would care because faster optimization could let operators run heating systems closer to their efficiency limits in practice.

Core claim

The central claim is that the suggested reduced model decreases the computation time of the optimization significantly. The effectiveness of the presented approach is demonstrated for an existing, large-scale heating network including changes of flux directions. The model is based on a system theoretic description close to the underlying Euler equations and addresses the challenge of an index-1 quadratic in state differential algebraic equation.

What carries the argument

Reduced order model derived from a system-theoretic description of the index-1 quadratic differential-algebraic equation for energy advection.

If this is right

  • Computation time for finding optimal controls is reduced substantially.
  • The approach remains effective on large-scale networks.
  • Optimal controls can be determined even when flux directions change.
  • The method allows limiting maximal feed-in power as a product of control and state variables.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar reduced models could be developed for other types of energy distribution networks.
  • The technique may support real-time adjustments based on current network states.
  • Further work could test the reduced model on networks with different topologies or scales.

Load-bearing premise

The reduced-order model approximates the full dynamics closely enough to produce useful optimal controls when flow directions change.

What would settle it

Apply the controls found by the reduced model to a simulation of the original full-order model and check if the feed-in power stays below the limit.

Figures

Figures reproduced from arXiv: 1907.05255 by Axel Klar, Jan Mohring, Markus Rein, Tobias Damm.

Figure 1

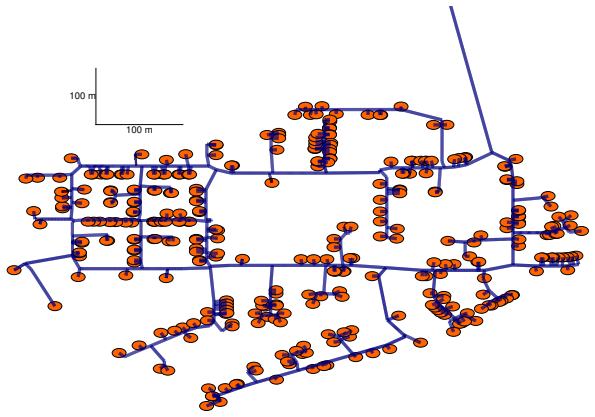

Figure 1. Figure 1: Topology of an existing heating network supplying a district. The flow part of the [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

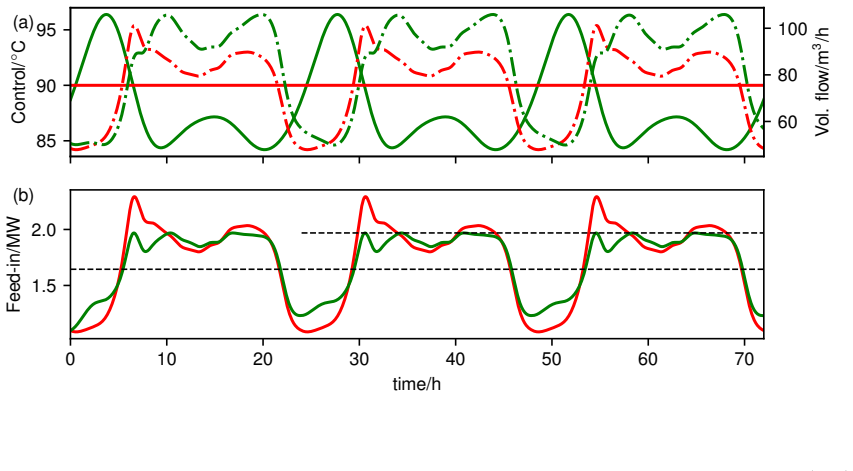

Figure 2. Figure 2: Optimal control problem for TC1 at −3 ◦C comparing the initial control (red) to the optimized control (green), obtained by the reduced model ROM1. Part (a) shows controls(solid lines) and the total volume flow injected at the power plant(dashed lines). Part (b) presents the feed-in power for both controls together with the mean consumption (lower dashed line) and the feed-in constraint P¯ (upper dashed lin… view at source ↗
Figure 3

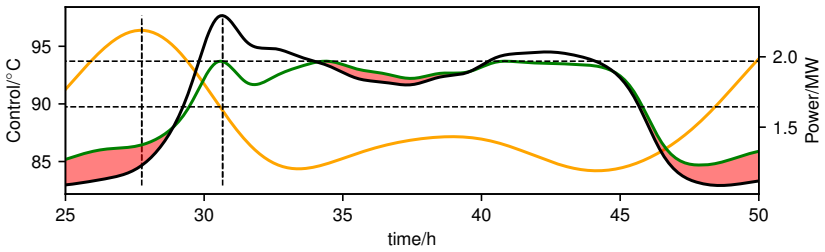

Figure 3. Figure 3: Result of the optimal control problem for TC1 at [PITH_FULL_IMAGE:figures/full_fig_p015_3.png] view at source ↗
Figure 4

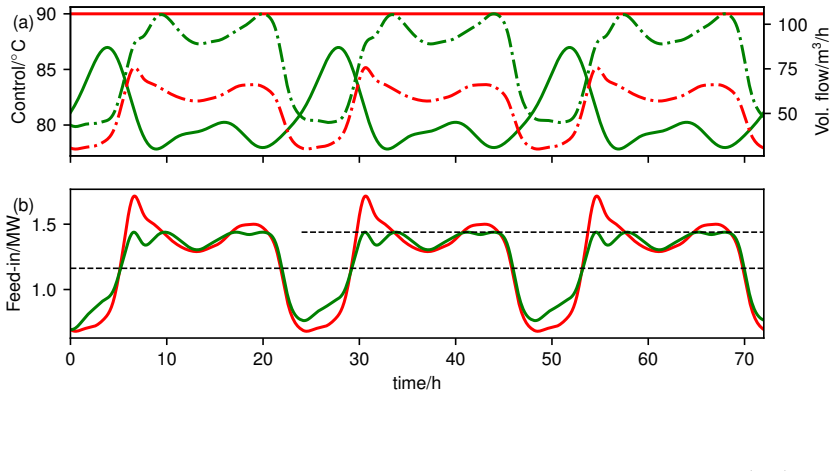

Figure 4. Figure 4: Optimal control problem for TC2 at 3 ◦C comparing the initial control (red) to the optimized control (green), obtained by the reduced model ROM1. For a detailed explanation we refer to fig. 2. be zero as well. Hence, the absolute error in the power approximation remains small. FOM 0 FOM 1 ROM 1 FOMR runtime opt./s 2525.0 3210.0 596.2 18300.0 runtime sim./s 2455.0 3146.7 546.2 18100.0 # solves DAE 15 11 11 … view at source ↗
Figure 5

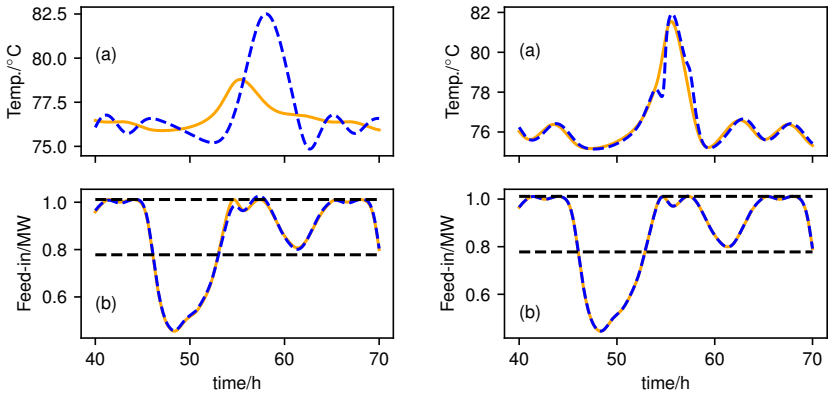

Figure 5. Figure 5: Temperature signal for TC3 at the consumer exhibiting the largest relative [PITH_FULL_IMAGE:figures/full_fig_p019_5.png] view at source ↗
Figure 6

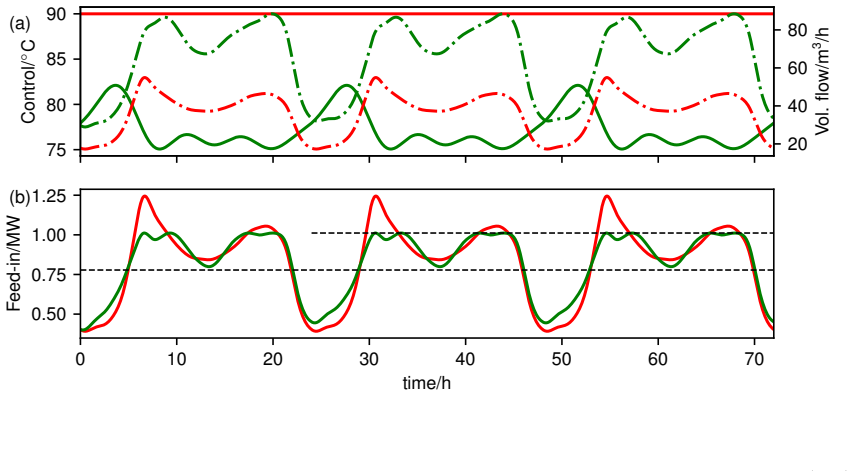

Figure 6. Figure 6: Optimal control problem for TC3 at 7.5 ◦C comparing the initial control (red) to the optimized control (green), obtained by the reduced model ROM1. For a detailed explanation we refer to fig. 2. of the DAE with respect to energy densities. Since only the thermal transport is reduced, ch is identical for both full and reduced order models. The cost for the evaluation of the ODE scales with the number of ent… view at source ↗
read the original abstract

We study the optimal control of district heating networks using a reduced order model based on a system theoretic description close to the underlying Euler equations. In the presented scenarios, the central task is to limit the maximal feed-in power occurring as a product of control and state variables. The underlying dynamics of heating networks acting as optimization constraints pose the central computational complexity, prohibiting the determination of an optimal control online. The advection of the injected energy density on the network results in an index-1, quadratic in state differential algebraic equation, challenging to reduce. The suggested reduced model decreases the computation time of the optimization significantly. The effectiveness of the presented approach is demonstrated for an existing, large-scale heating network including changes of flux directions.
