Basis- and Channel-Selective Quantum Photodetection

Mohamed Hatifi , Brian Stout This is my paper

Pith reviewed 2026-05-19 21:02 UTC · model grok-4.3

classification 🪐 quant-ph
keywords quantum photodetectionelectric-magnetic fieldsbasis-selective readoutchannel-selective absorptionengineered detectorsresonant detectorssingle-photon visibilitycritical coupling
0
0 comments X

The pith

Engineered quantum photodetectors allow electric and magnetic fields to contribute coherently to the detection operator.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a generalized quantum photodetection framework in which electric and magnetic field amplitudes contribute coherently to the detection operator, moving beyond the standard electric-field-only model. This framework is analyzed in a far-field two-source geometry, a two-mode single-photon setting, and a lossy resonant detector model. In the far-field case, detector-amplitude cancellation occurs completely, unlike in the electric-only Glauber response. The single-photon model yields an exact closed-form law for continuous rotation of the measurement basis and control of first-order visibility. The resonant model shows a monitored radiative output channel that can be dark while the detector remains internally excited and absorptive, with unit absorption of the matched input mode at critical coupling.

Core claim

Electric and magnetic field amplitudes contribute coherently to the detection operator. In the far-field reference case this produces complete detector-amplitude cancellation absent from the electric-only response. In the single-photon model the detector rotates the effective measurement basis continuously and controls visibility through an exact closed-form law. In the resonant realization a monitored output channel can remain dark while the detector stays internally excited, achieving unit absorption of the matched input mode at critical coupling.

What carries the argument

The generalized detection operator incorporating coherent contributions from both electric and magnetic field amplitudes.

Load-bearing premise

The detector response can be engineered via cavity, superconducting, or metamaterial structures so that electric and magnetic field amplitudes contribute coherently to the detection operator rather than being restricted to the electric field alone.

What would settle it

In a two-mode single-photon experiment with a tunable engineered detector, measure first-order visibility while varying detector parameters and check whether the data follow the exact closed-form visibility law; systematic deviation would falsify the coherent electric-magnetic contribution.

Figures

Figures reproduced from arXiv: 2605.16886 by Brian Stout, Mohamed Hatifi.

Figure 1
Figure 1. Figure 1: Two-dipole far-field reference geometry for generalized electric–magnetic photodetection. (a) Two in-phase Hertzian dipoles with moments oriented along zˆ are placed at positions ±d/2 and observed by a far-field detector D. The local detector frame resolves the radiated electric and magnetic components through the generalized detection amplitude O ∝ b ue ·Eb(+) + ζ um ·Fb(+), with Fb(+) = cBb(+) . (b,c) No… view at source ↗
Figure 2
Figure 2. Figure 2: Detector-defined single-photon interference in the two-mode geometry. (a) Normalized detection probability Pζ (x)/⟨Pζ ⟩x for representative real values of the electric–magnetic response parameter ζ. As ζ approaches the balanced value ζ = 1, the detector becomes sensitive to a single propagation direction and the fringe visibility is suppressed, even though the single-photon state remains coherent. (b) Visi… view at source ↗
Figure 3

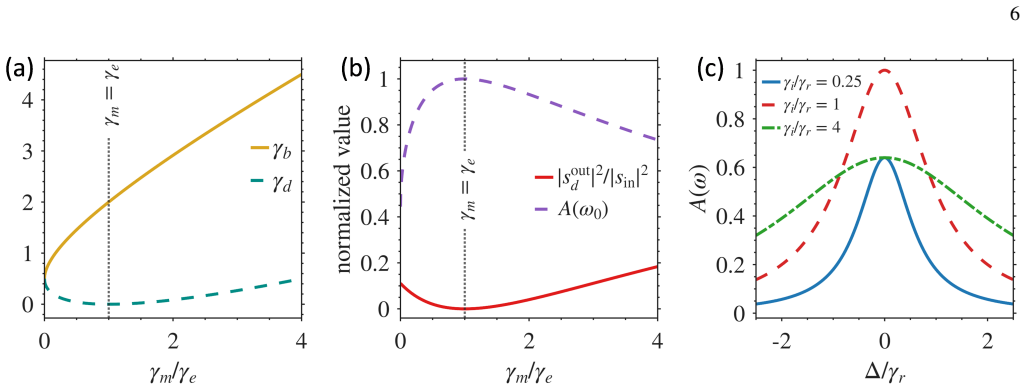

Figure 3. Figure 3: Scattering-dark yet absorptive response of a lossy electric–magnetic detector resonance. (a) Bright and dark radiative rates γb and γd as functions of the magnetic-to-electric coupling ratio γm/γe. At the balanced point γm = γe, the dark-channel rate vanishes, γd = 0, while the bright channel remains coupled. (b) Normalized dark-channel output |s out d | 2 /|sin| 2 and resonant absorption A(ω0) for a match… view at source ↗
read the original abstract

Photodetection converts optical quantum states into measurement events, but the usual electric-field response model becomes restrictive when the detector response is shaped by cavity, superconducting, or metamaterial engineering. We develop a generalized quantum photodetection framework in which electric and magnetic field amplitudes contribute coherently to the detection operator, and analyze it in a far-field two-source geometry, a two-mode single-photon setting, and a lossy resonant detector model. The far-field reference case exhibits complete detector-amplitude cancellation, absent in the electric-only Glauber response, while the single-photon model shows that the detector continuously rotates the effective measurement basis and controls the first-order visibility via an exact closed-form law. In the resonant realization, a monitored radiative output channel can be dark while the detector remains internally excited and absorptive, with unit absorption of the matched input mode at critical coupling. These results identify basis-selective readout and channel-selective absorption as experimentally relevant signatures of engineered electric-magnetic photodetection.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript develops a generalized quantum photodetection framework in which electric and magnetic field amplitudes contribute coherently to the detection operator, enabled by cavity, superconducting, or metamaterial engineering. It analyzes the framework in three settings: a far-field two-source geometry that exhibits complete detector-amplitude cancellation (absent in the standard Glauber electric-only response), a two-mode single-photon model in which the detector rotates the effective measurement basis and controls first-order visibility via an exact closed-form law, and a lossy resonant detector model in which a monitored radiative output channel can remain dark while the detector absorbs the matched input mode with unit efficiency at critical coupling. These phenomena are presented as experimentally relevant signatures of engineered electric-magnetic photodetection.

Significance. If the central results hold, the work is significant for extending photodetection theory beyond the electric-field-only model to include coherent magnetic contributions in engineered structures. The exact closed-form visibility law and the critical-coupling absorption analysis with channel selectivity provide concrete, falsifiable predictions that could inform experiments in cavity QED, superconducting detectors, and metamaterial-based quantum optics. The identification of basis-selective readout as a measurable signature adds a new diagnostic tool for characterizing detector response in structured environments.

major comments (2)
  1. [Generalized framework (theory section introducing the detection operator)] The generalized detection operator is introduced as allowing coherent E+M contributions without deriving the required cross terms from an explicit interaction Hamiltonian or mode expansion of a concrete structure (e.g., a superconducting loop or metamaterial unit cell). This postulate is load-bearing for the far-field cancellation result and the resonant absorption claims, as all subsequent analyses presuppose the operator form rather than showing that the cross terms arise at leading order and survive relevant decoherence channels.
  2. [Lossy resonant detector model] In the resonant detector model, the demonstration of unit absorption at critical coupling with a dark monitored channel relies on the engineered operator without a supporting calculation of the underlying cavity or metamaterial parameters that would realize the required E+M coherence in a physical device. A concrete example Hamiltonian or scattering-matrix derivation would be needed to establish that the channel-selective absorption is achievable rather than assumed.
minor comments (2)
  1. [Single-photon model] Notation for the generalized detection operator and the visibility law could be clarified with an explicit comparison table to the standard Glauber case to aid readability.
  2. [Abstract and introduction] The abstract and introduction would benefit from a brief statement of the specific sections corresponding to each of the three analyses (far-field, single-photon, resonant) for easier navigation.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments on our manuscript. We address each major comment below and indicate the changes made in the revised version.

read point-by-point responses

  1. Referee: [Generalized framework (theory section introducing the detection operator)] The generalized detection operator is introduced as allowing coherent E+M contributions without deriving the required cross terms from an explicit interaction Hamiltonian or mode expansion of a concrete structure (e.g., a superconducting loop or metamaterial unit cell). This postulate is load-bearing for the far-field cancellation result and the resonant absorption claims, as all subsequent analyses presuppose the operator form rather than showing that the cross terms arise at leading order and survive relevant decoherence channels.

    Authors: The generalized detection operator is introduced as a phenomenological effective model motivated by the possibility of coherent electric-magnetic contributions in engineered detectors such as metamaterials, cavities, or superconducting structures. The manuscript focuses on the observable consequences of this operator form rather than on a microscopic derivation, which would require a separate analysis of a specific device. The far-field cancellation and other results follow directly from the assumed coherence and are independent of further microscopic details provided the coherence persists. We have revised the theory section to add a paragraph discussing the physical motivation from structured media and the regimes in which cross terms are expected to survive decoherence. revision: partial

  2. Referee: [Lossy resonant detector model] In the resonant detector model, the demonstration of unit absorption at critical coupling with a dark monitored channel relies on the engineered operator without a supporting calculation of the underlying cavity or metamaterial parameters that would realize the required E+M coherence in a physical device. A concrete example Hamiltonian or scattering-matrix derivation would be needed to establish that the channel-selective absorption is achievable rather than assumed.

    Authors: We agree that an explicit example strengthens the link to experiment. In the revised manuscript we have added a short appendix containing a simple scattering-matrix model of a metamaterial unit cell that realizes the required E+M coherence through its geometry. The model shows that the critical-coupling condition for unit absorption into the internal mode while keeping the monitored radiative channel dark can be satisfied by appropriate tuning of the coupling rates. A full microscopic Hamiltonian derivation for a specific device lies beyond the present scope but is now noted as a natural extension. revision: yes

Circularity Check

0 steps flagged

No circularity: generalized operator yields independent analyses of geometries and models

full rationale

The paper introduces a generalized detection framework allowing coherent E+M contributions, then derives specific consequences in far-field cancellation, single-photon visibility, and critical-coupling absorption. These follow directly from the stated operator without reduction to fitted parameters, self-citations, or definitional tautologies. No load-bearing step equates a claimed result to its input by construction; the framework is posited and its implications computed, which is standard non-circular theoretical development. External benchmarks or concrete Hamiltonians are not required for internal consistency of the derivation chain.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only the abstract is available, so no explicit free parameters, axioms, or invented entities can be extracted; the framework appears to rest on the standard quantum optics operator formalism plus the new coherent electric-magnetic assumption.

pith-pipeline@v0.9.0 · 5685 in / 1051 out tokens · 47905 ms · 2026-05-19T21:02:44.194508+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

45 extracted references · 45 canonical work pages

  1. [1]

    R. J. Glauber, The Quantum Theory of Optical Coherence, Physical Review130, 2529 (1963)

    work page 1963

  2. [2]

    Loudon,The Quantum Theory of Light, 3rd ed

    R. Loudon,The Quantum Theory of Light, 3rd ed. (Oxford Uni- versity Press, Oxford, 2000)

    work page 2000

  3. [3]

    Mandel and E

    L. Mandel and E. Wolf,Optical Coherence and Quantum Op- tics(Cambridge University Press, Cambridge, 1995)

    work page 1995

  4. [4]

    S. M. Barnett and P. M. Radmore,Methods in Theoreti- cal Quantum Optics, 1st ed. (Oxford University PressOxford, 2002)

    work page 2002

  5. [5]

    N. I. Landy, S. Sajuyigbe, J. J. Mock, D. R. Smith, and W. J. Padilla, Perfect Metamaterial Absorber, Physical Review Let- ters100, 207402 (2008)

    work page 2008

  6. [6]

    R. H. Hadfield, Single-photon detectors for optical quantum in- formation applications, Nature Photonics3, 696 (2009)

    work page 2009

  7. [7]

    M. D. Eisaman, J. Fan, A. Migdall, and S. V . Polyakov, Invited Review Article: Single-photon sources and detectors, Review of Scientific Instruments82, 071101 (2011)

    work page 2011

  8. [8]

    C. M. Natarajan, M. G. Tanner, and R. H. Hadfield, Supercon- ducting nanowire single-photon detectors: Physics and appli- cations, Superconductor Science and Technology25, 063001 (2012)

    work page 2012

  9. [9]

    Esmaeil Zadeh, J

    I. Esmaeil Zadeh, J. Chang, J. W. N. Los, S. Gyger, A. W. Elshaari, S. Steinhauer, S. N. Dorenbos, and V . Zwiller, Su- perconducting nanowire single-photon detectors: A perspective on evolution, state-of-the-art, future developments, and appli- cations, Applied Physics Letters118, 190502 (2021)

    work page 2021

  10. [10]

    Holzman and Y

    I. Holzman and Y . Ivry, Superconducting Nanowires for Single- Photon Detection: Progress, Challenges, and Opportunities, Advanced Quantum Technologies2, 1800058 (2019)

    work page 2019

  11. [11]

    Steinhauer, S

    S. Steinhauer, S. Gyger, and V . Zwiller, Progress on large- scale superconducting nanowire single-photon detectors, Ap- plied Physics Letters118, 100501 (2021)

    work page 2021

  12. [12]

    F. P. Venza and M. Colangelo, Research trends in single-photon detectors based on superconducting wires, APL Photonics10, 040901 (2025)

    work page 2025

  13. [13]

    Hatifi, D

    M. Hatifi, D. Mara, B. Bokic, R. Van Deun, B. Stout, E. Las- salle, B. Kolaric, and T. Durt, Fluorimetry in the Strong- Coupling Regime: From a Fundamental Perspective to Engi- neering New Tools for Tracing and Marking Materials and Ob- jects, Applied Sciences12, 9238 (2022)

    work page 2022

  14. [14]

    A. Kani, M. Hatifi, and J. Twamley, Squeezed microwave and magnonic frequency combs, APL Quantum2, 016112 (2025)

    work page 2025

  15. [15]

    Hatifi, Geometry-controlled freezing and revival of Bell nonlocality through environmental memory, Physical Review A113, 022204 (2026)

    M. Hatifi, Geometry-controlled freezing and revival of Bell nonlocality through environmental memory, Physical Review A113, 022204 (2026)

    work page 2026

  16. [16]

    Hatifi, Autonomous phonon maser in levitated spin mechan- ics, Physical Review A113, L041501 (2026)

    M. Hatifi, Autonomous phonon maser in levitated spin mechan- ics, Physical Review A113, L041501 (2026)

    work page 2026

  17. [17]

    Chen, Interference theory of metamaterial perfect ab- sorbers, Optics Express20, 7165 (2012)

    H.-T. Chen, Interference theory of metamaterial perfect ab- sorbers, Optics Express20, 7165 (2012)

    work page 2012

  18. [18]

    Grigoriev, N

    V . Grigoriev, N. Bonod, J. Wenger, and B. Stout, Optimizing nanoparticle designs for ideal absorption of light, ACS Photon- ics2, 263 (2015), https://doi.org/10.1021/ph500456w

    work page doi:10.1021/ph500456w 2015

  19. [19]

    Colom, A

    R. Colom, A. Devilez, N. Bonod, and B. Stout, Optimal inter- actions of light with magnetic and electric resonant particles, Phys. Rev. B93, 045427 (2016)

    work page 2016

  20. [20]

    Suresh Kumar, K

    N. Suresh Kumar, K. C. B. Naidu, P. Banerjee, T. Anil Babu, and B. Venkata Shiva Reddy, A Review on Metamaterials for Device Applications, Crystals11, 518 (2021)

    work page 2021

  21. [21]

    Kerker, D.-S

    M. Kerker, D.-S. Wang, and C. L. Giles, Electromagnetic scat- tering by magnetic spheres, Journal of the Optical Society of America73, 765 (1983)

    work page 1983

  22. [22]

    Sersic, C

    I. Sersic, C. Tuambilangana, T. Kampfrath, and A. F. Koen- derink, Magnetoelectric point scattering theory for metamate- rial scatterers, Physical Review B83, 245102 (2011)

    work page 2011

  23. [23]

    García-Etxarri, R

    A. García-Etxarri, R. Gómez-Medina, L. S. Froufe-Pérez, C. López, L. Chantada, F. Scheffold, J. Aizpurua, M. Nieto- Vesperinas, and J. J. Sáenz, Strong magnetic response of sub- micron Silicon particles in the infrared, Optics Express19, 4815 (2011)

    work page 2011

  24. [24]

    Geffrin, B

    J. Geffrin, B. García-Cámara, R. Gómez-Medina, P. Albella, L. Froufe-Pérez, C. Eyraud, A. Litman, R. Vaillon, F. González, M. Nieto-Vesperinas, J. Sáenz, and F. Moreno, Magnetic and electric coherence in forward- and back-scattered electromag- netic waves by a single dielectric subwavelength sphere, Nature Communications3, 1171 (2012)

    work page 2012

  25. [25]

    Pfeiffer and A

    C. Pfeiffer and A. Grbic, Metamaterial Huygens’ Surfaces: Tai- loring Wave Fronts with Reflectionless Sheets, Physical Review Letters110, 197401 (2013)

    work page 2013

  26. [26]

    Decker, I

    M. Decker, I. Staude, M. Falkner, J. Dominguez, D. N. Neshev, I. Brener, T. Pertsch, and Y . S. Kivshar, High-Efficiency Di- electric Huygens’ Surfaces, Advanced Optical Materials3, 813 (2015)

    work page 2015

  27. [27]

    Paniagua-Domínguez, Y

    R. Paniagua-Domínguez, Y . F. Yu, A. E. Miroshnichenko, L. A. Krivitsky, Y . H. Fu, V . Valuckas, L. Gonzaga, Y . T. Toh, A. Y . S. Kay, B. Luk’yanchuk, and A. I. Kuznetsov, Generalized Brew- ster effect in dielectric metasurfaces, Nature Communications 7, 10362 (2016)

    work page 2016

  28. [28]

    K. E. Ballantine and J. Ruostekoski, Optical Magnetism and Huygens’ Surfaces in Arrays of Atoms Induced by Cooperative Responses, Physical Review Letters125, 143604 (2020). 9

    work page 2020

  29. [29]

    P. L. Kelley and W. H. Kleiner, Theory of Electromagnetic Field Measurement and Photoelectron Counting, Physical Re- view136, A316 (1964)

    work page 1964

  30. [30]

    Tanimura, The photon detection operator and complementar- ity between an electric detector and a magnetic detector, Phys- ica ScriptaT160, 014039 (2014)

    S. Tanimura, The photon detection operator and complementar- ity between an electric detector and a magnetic detector, Phys- ica ScriptaT160, 014039 (2014)

    work page 2014

  31. [31]

    J. D. Jackson,Classical Electrodynamics, 3rd ed. (Wiley, Hobo- ken, NY , 2009)

    work page 2009

  32. [32]

    Novotny and B

    L. Novotny and B. Hecht,Principles of Nano-Optics(Cam- bridge university press, 2012)

    work page 2012

  33. [33]

    Grangier, G

    P. Grangier, G. Roger, and A. Aspect, Experimental Evidence for a Photon Anticorrelation Effect on a Beam Splitter: A New Light on Single-Photon Interferences, Europhysics Letters (EPL)1, 173 (1986)

    work page 1986

  34. [34]

    W. K. Wootters and W. H. Zurek, Complementarity in the double-slit experiment: Quantum nonseparability and a quan- titative statement of Bohr’s principle, Physical Review D19, 473 (1979)

    work page 1979

  35. [35]

    Jaeger, A

    G. Jaeger, A. Shimony, and L. Vaidman, Two interferometric complementarities, Physical Review A51, 54 (1995)

    work page 1995

  36. [36]

    Englert, Fringe Visibility and Which-Way Information: An Inequality, Physical Review Letters77, 2154 (1996)

    B.-G. Englert, Fringe Visibility and Which-Way Information: An Inequality, Physical Review Letters77, 2154 (1996)

    work page 1996

  37. [37]

    H. A. Haus, Waves and fields in optoelectronics, (1984)

    work page 1984

  38. [38]

    C. W. Gardiner and M. J. Collett, Input and output in damped quantum systems: Quantum stochastic differential equations and the master equation, Physical Review A31, 3761 (1985)

    work page 1985

  39. [39]

    Wonjoo Suh, Zheng Wang, and Shanhui Fan, Temporal coupled-mode theory and the presence of non-orthogonal modes in lossless multimode cavities, IEEE Journal of Quan- tum Electronics40, 1511 (2004)

    work page 2004

  40. [40]

    J. M. Choi, R. K. Lee, and A. Yariv, Control of critical cou- pling in a ring resonator–fiber configuration: Application to wavelength-selective switching, modulation, amplification, and oscillation, Optics Letters26, 1236 (2001)

    work page 2001

  41. [41]

    Y . D. Chong, L. Ge, H. Cao, and A. D. Stone, Coherent Per- fect Absorbers: Time-Reversed Lasers, Physical Review Let- ters105, 053901 (2010)

    work page 2010

  42. [42]

    J. R. Piper, V . Liu, and S. Fan, Total absorption by degenerate critical coupling, Applied Physics Letters104, 251110 (2014)

    work page 2014

  43. [43]

    M. K. Akhlaghi, E. Schelew, and J. F. Young, Waveguide in- tegrated superconducting single-photon detectors implemented as near-perfect absorbers of coherent radiation, Nature Commu- nications6, 8233 (2015)

    work page 2015

  44. [44]

    D. Zhu, M. Colangelo, B. A. Korzh, Q.-Y . Zhao, S. Frasca, A. E. Dane, A. E. Velasco, A. D. Beyer, J. P. Allmaras, E. Ramirez, W. J. Strickland, D. F. Santavicca, M. D. Shaw, and K. K. Berggren, Superconducting nanowire single-photon detector with integrated impedance-matching taper, Applied Physics Letters114, 042601 (2019)

    work page 2019

  45. [45]

    M. Chen, M. Kim, A. M. Wong, and G. V . Eleftheriades, Huygens’ metasurfaces from microwaves to optics: A review, Nanophotonics7, 1207 (2018)

    work page 2018
