Pressure induced electronic band evolution and observation of superconductivity in the Dirac semimetal ZrTe5
Pith reviewed 2026-05-16 05:58 UTC · model grok-4.3
pith:RRPJRNUV Add to your LaTeX paper
What is a Pith Number?\usepackage{pith}
\pithnumber{RRPJRNUV}
Prints a linked pith:RRPJRNUV badge after your title and writes the identifier into PDF metadata. Compiles on arXiv with no extra files. Learn more
The pith
Pressure induces superconductivity in ZrTe5 at 8 GPa following electronic changes at 6 GPa
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Based on magnetotransport measurements, superconductivity in ZrTe5 occurs after a significant electronic structure modulation near 6 GPa that coincides with dramatic enhancement of the magnetoresistance reaching 1400 percent. DFT calculations show that pressure alters the density of states near the Fermi level with multiple hole pockets emerging from 4 GPa and their contributions enhancing with pressure, suggesting a link between Fermi surface reconstruction during the structural transition and the emergence of superconductivity.
What carries the argument

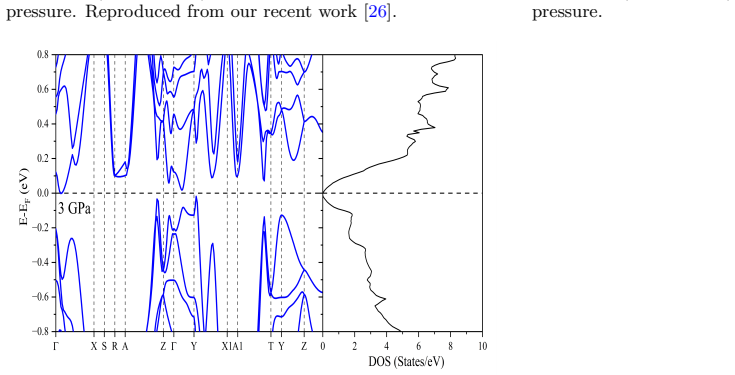

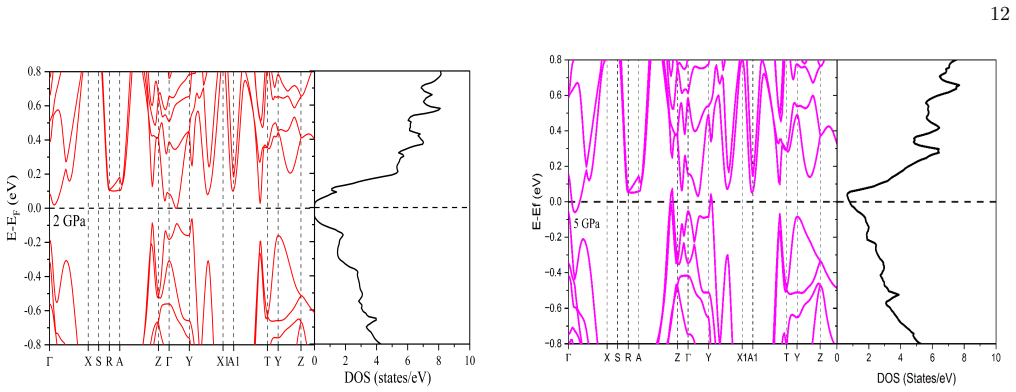

The pressure-induced emergence of multiple hole pockets at the Fermi level in the density of states, as predicted by DFT, which accompanies the experimental observation of resistivity peak disappearance and MR enhancement, proposed to result from structural changes.
If this is right
- The resistivity peak disappears at 6 GPa leading to fully metallic behavior.
- Magnetoresistance enhances up to 1400% near the transition.
- Superconductivity appears below 1.8 K at 8 GPa.
- Multiple hole pockets contribute increasingly to the Fermi surface with pressure.
Where Pith is reading between the lines
- Direct structural characterization under pressure would strengthen the proposed connection to structural changes.
- This mechanism could be tested in other topological semimetals to induce superconductivity via Fermi surface tuning.
- The enhanced magnetoresistance may indicate improved topological transport properties in the high-pressure phase.
Load-bearing premise
That the observed superconductivity is linked to pressure induced structural changes near 6 GPa as inferred from the coincidence with magnetoresistance enhancement and DFT calculations, without direct structural measurements.
What would settle it
If X-ray diffraction measurements under pressure show no structural change around 6 GPa but superconductivity still emerges at 8 GPa, the proposed link would be falsified.
Figures
read the original abstract
We report a comprehensive investigation of the pressure effects on the magnetotransport properties of the topological material ZrTe5 within 1 to 8 GPa pressure range. With increasing pressure, the characteristic peak (Tp) in its electrical resistivity first shifts to higher temperature and then moves quickly towards the lower temperature before disappearing eventually at 6 GPa. Beyond 6 GPa, the system exhibits metallic behavior across the entire temperature range, and superconductivity emerges below Tc = 1.8 K at 8 GPa. Based on the systematic magnetotransport measurement under pressure, we demonstrate that the superconductivity occurs following a significant electronic structure modulation possibly due to pressure induced structural changes near 6 GPa, which coincides with dramatic enhancement of the magnetoresistance (MR) reaching up to 1400 percent. Our experimental results are substantiated by density functional theory calculations as the application of pressure drastically alters the density of states near the Fermi level. Notably, multiple hole pockets emerge at the Fermi level from 4 GPa onward, and their contributions are further enhanced with increasing pressure. The combined experimental and theoretical investigation reveals a comprehensive evolution of electronic structure of Dirac semimetal ZrTe5 under pressure and suggest a possible link between the Fermi surface reconstruction in the pressure range of structural transition and emergence of superconductivity
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript reports magnetotransport measurements on the Dirac semimetal ZrTe5 under pressures of 1–8 GPa. The resistivity peak Tp shifts to higher temperature then disappears at 6 GPa, after which the system shows metallic behavior and superconductivity emerges below Tc = 1.8 K at 8 GPa. The authors attribute the superconductivity to pressure-induced electronic structure modulation, possibly from structural changes near 6 GPa, coinciding with MR enhancement up to 1400% and supported by DFT calculations showing emergence of multiple hole pockets at the Fermi level from 4 GPa onward.
Significance. If the central interpretation holds, the work provides a clear experimental demonstration of pressure-tuned superconductivity in a topological Dirac semimetal linked to Fermi-surface reconstruction, offering a useful dataset for exploring the interplay between band topology, structural transitions, and emergent superconductivity. The combination of systematic transport data with DFT band evolution strengthens the case for pressure as a control knob in such materials.
major comments (2)
- [Abstract] Abstract: the central claim that superconductivity 'occurs following a significant electronic structure modulation possibly due to pressure induced structural changes near 6 GPa' is inferred from the coincidence of Tp disappearance, metallic crossover, and MR rise, together with DFT DOS changes; however, no direct structural probe (high-pressure XRD, Raman, or neutron diffraction) is presented to establish that a structural transition actually occurs at ~6 GPa. This inference is load-bearing for the proposed causal link.
- [Results] Results section (magnetotransport data): quantitative statements such as MR reaching 1400% and Tc = 1.8 K are given without reported uncertainties, error bars, or explicit description of how the superconducting transition temperature was extracted (e.g., 50% resistivity criterion, onset, or fitting), which weakens the ability to assess the robustness of the pressure evolution and its correlation with the claimed electronic reconstruction.
minor comments (2)
- [Abstract] Abstract and methods: the description of pressure calibration, hydrostatic medium, and sample mounting is minimal; adding these details would improve reproducibility.
- [DFT calculations] DFT section: the computational details (functional, k-mesh, pressure implementation via lattice compression or variable-cell relaxation) are not fully specified, making it difficult to judge the quantitative reliability of the reported hole-pocket emergence.
Simulated Author's Rebuttal
We thank the referee for the constructive comments that help improve the clarity and precision of our work. We address each major comment point by point below, with revisions planned where appropriate.
read point-by-point responses
-
Referee: [Abstract] Abstract: the central claim that superconductivity 'occurs following a significant electronic structure modulation possibly due to pressure induced structural changes near 6 GPa' is inferred from the coincidence of Tp disappearance, metallic crossover, and MR rise, together with DFT DOS changes; however, no direct structural probe (high-pressure XRD, Raman, or neutron diffraction) is presented to establish that a structural transition actually occurs at ~6 GPa. This inference is load-bearing for the proposed causal link.
Authors: We acknowledge that the link to possible structural changes near 6 GPa is inferred from the coincidence of the resistivity peak disappearance, metallic crossover, MR enhancement, and DFT results showing DOS changes with emerging hole pockets starting at 4 GPa. The manuscript already uses cautious language ('possibly' and 'near 6 GPa'). We will revise the abstract and discussion to explicitly frame this as an inference from transport and DFT data rather than a direct claim of structural transition, while noting consistency with prior literature on ZrTe5 under pressure. This preserves the central interpretation without overstatement. revision: yes
-
Referee: [Results] Results section (magnetotransport data): quantitative statements such as MR reaching 1400% and Tc = 1.8 K are given without reported uncertainties, error bars, or explicit description of how the superconducting transition temperature was extracted (e.g., 50% resistivity criterion, onset, or fitting), which weakens the ability to assess the robustness of the pressure evolution and its correlation with the claimed electronic reconstruction.
Authors: We agree this information is needed for robustness assessment. Tc = 1.8 K at 8 GPa was determined by the 50% resistivity drop criterion relative to the normal-state value just above the transition. The MR value of 1400% is the maximum observed at 8 GPa and 9 T. In the revised manuscript we will add error bars to MR data (estimated ±100% from sample-to-sample variation), explicitly state the Tc extraction criterion in the results section, and include a brief methods description of the criterion used. These additions will strengthen the quantitative presentation without altering the reported values. revision: yes
Circularity Check
No significant circularity; claims rest on independent experimental transport data and separate DFT calculations
full rationale
The paper's derivation chain consists of direct magnetotransport measurements (Tp shift and disappearance at 6 GPa, metallic behavior beyond, superconductivity at 8 GPa with MR up to 1400%) combined with independent DFT computations showing DOS changes and multiple hole pockets emerging from 4 GPa. The suggested connection to pressure-induced structural changes is presented as a correlative inference from the coincidence of these observations rather than any self-definitional loop, fitted parameter renamed as prediction, or load-bearing self-citation. No equations reduce the output to the input by construction, no uniqueness theorems or ansatzes are smuggled in, and the central result (observed superconductivity following electronic modulation) remains externally falsifiable via the reported data.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Assumptions underlying the interpretation of magnetotransport data under high pressure, including uniform pressure distribution and accurate temperature control.
Reference graph
Works this paper leans on
-
[1]
Magnetoresistance (MR) under pressure We investigated the evolution of longitudinal magne- toresistance (MR) of ZrTe 5 under varying pressure and temperature up to 8 GPa. The MR % was derived from the longitudinal resistance (R xx) using the conventional formula as- MR% = Rxx(B)−R xx(0) Rxx(0) ×100% (1) where,R xx(B) andR xx(0) represent the longitudinal ...
-
[2]
Hall Resistivity(ρ xy)under pressure To obtain the carrier information involved in pressure- dependent transport phenomenon, we measured the Hall resistivity (ρxy) as functions of magnetic field at various temperatures and pressures [Figure 4]. Up to 5 GPa, whereT p exists, the observed negative slope atT < T p ofρ xy reflects the dominance of electrons a...
-
[3]
Y. Li and Z.-A. Xu, Exploring topological superconduc- tivity in topological materials, Advanced Quantum Tech- nologies2, 1800112 (2019)
work page 2019
- [4]
-
[5]
K. Kirshenbaum, P. S. Syers, A. P. Hope, N. P. Butch, J. R. Jeffries, S. T. Weir, J. J. Hamlin, M. B. Maple, Y. K. Vohra, and J. Paglione, Pressure-induced uncon- ventional superconducting phase in the topological insu- lator Bi2Se3, Phys. Rev. Lett.111, 087001 (2013)
work page 2013
-
[6]
J. Zhu, J. L. Zhang, P. P. Kong, S. J. Zhang, X. H. Yu, J. L. Zhu, Q. Q. Liu, X. Li, R. C. Yu, R. Ahuja, W. G. Yang, G. Y. Shen, H. K. Mao, H. M. Weng, X. Dai, Z. Fang, Y. S. Zhao, and C. Q. Jin, Superconductivity in topological insulator Sb 2Te3 induced by pressure, Scien- tific Reports3, 2016 (2013)
work page 2016
-
[7]
J. L. Zhang, S. J. Zhang, H. M. Weng, W. Zhang, L. X. Yang, Q. Q. Liu, S. M. Feng, X. C. Wang, R. C. Yu, L. Z. Cao, L. Wang, W. G. Yang, H. Z. Liu, W. Y. Zhao, S. C. Zhang, X. Dai, Z. Fang, and C. Q. Jin, Pressure-induced superconductivity in topological parent compound Bi2Te3, Proceedings of the National Academy of Sciences108, 24 (2011)
work page 2011
-
[8]
L. He, Y. Jia, S. Zhang, X. Hong, C. Jin, and S. Li, Pressure-induced superconductivity in the three- dimensional topological Dirac semimetal Cd 3As2, npj Quantum Materials1, 16014 (2016)
work page 2016
-
[9]
D. Kang, Y. Zhou, W. Yi, C. Yang, J. Guo, Y. Shi, S. Zhang, Z. Wang, C. Zhang, S. Jiang, A. Li, K. Yang, Q. Wu, G. Zhang, L. Sun, and Z. Zhao, Superconductiv- ity emerging from a suppressed large magnetoresistant state in tungsten ditelluride, Nature Communications6, 7804 (2015)
work page 2015
-
[10]
Y. Qi, P. G. Naumov, M. N. Ali, C. R. Rajamathi, W. Schnelle, O. Barkalov, M. Hanfland, S.-C. Wu, 13 C. Shekhar, Y. Sun, V. S¨ uß, M. Schmidt, U. Schwarz, E. Pippel, P. Werner, R. Hillebrand, T. F¨ orster, E. Kam- pert, S. Parkin, R. J. Cava, C. Felser, B. Yan, and S. A. Medvedev, Superconductivity in Weyl semimetal candi- date MoTe2, Nature Communication...
work page 2016
-
[11]
S. Kobayashi and M. Sato, Topological superconductiv- ity in Dirac Semimetals, Phys. Rev. Lett.115, 187001 (2015)
work page 2015
-
[12]
Y. Li, C. An, C. Hua, X. Chen, Y. Zhou, Y. Zhou, R. Zhang, C. Park, Z. Wang, Y. Lu, Y. Zheng, Z. Yang, and Z.-A. Xu, Pressure-induced superconductivity in topological semimetal NbAs2, npj Quantum Materials3, 58 (2018)
work page 2018
-
[13]
J. Nayak, S.-C. Wu, N. Kumar, C. Shekhar, S. Singh, J. Fink, E. E. D. Rienks, G. H. Fecher, S. S. P. Parkin, B. Yan, and C. Felser, Multiple Dirac cones at the surface of the topological metal LaBi, Nature Communications 8, 13942 (2017)
work page 2017
-
[14]
B. Q. Lv, Z.-L. Feng, Q.-N. Xu, X. Gao, J.-Z. Ma, L.-Y. Kong, P. Richard, Y.-B. Huang, V. N. Strocov, C. Fang, H.-M. Weng, Y.-G. Shi, T. Qian, and H. Ding, Observation of three-component fermions in the topolog- ical semimetal molybdenum phosphide, Nature546, 627 (2017)
work page 2017
-
[15]
Z. Chi, X. Chen, C. An, L. Yang, J. Zhao, Z. Feng, Y. Zhou, Y. Zhou, C. Gu, B. Zhang, Y. Yuan, C. Kenney- Benson, W. Yang, G. Wu, X. Wan, Y. Shi, X. Yang, and Z. Yang, Pressure-induced superconductivity in MoP, npj Quantum Materials3, 28 (2018)
work page 2018
-
[16]
H. Weng, X. Dai, and Z. Fang, Transition-metal pen- tatelluride ZrTe5 and HfTe5: A paradigm for large-gap quantum spin hall insulators, Phys. Rev. X4, 011002 (2014)
work page 2014
- [17]
- [18]
-
[19]
Q. Li, D. E. Kharzeev, C. Zhang, Y. Huang, I. Pletikosi´ c, A. V. Fedorov, R. D. Zhong, J. A. Schneeloch, G. D. Gu, and T. Valla, Chiral magnetic effect in ZrTe 5, Nature Physics12, 550 (2016)
work page 2016
- [20]
-
[21]
J. L. Zhang, C. M. Wang, C. Y. Guo, X. D. Zhu, Y. Zhang, J. Y. Yang, Y. Q. Wang, Z. Qu, L. Pi, H.- Z. Lu, and M. L. Tian, Anomalous thermoelectric effects of ZrTe5 in and beyond the quantum limit, Phys. Rev. Lett.123, 196602 (2019)
work page 2019
- [22]
-
[23]
Y. Wang, H. F. Legg, T. B¨ omerich, J. Park, S. Biesenkamp, A. A. Taskin, M. Braden, A. Rosch, and Y. Ando, Gigantic magnetochiral anisotropy in the topo- logical semimetal ZrTe 5, Phys. Rev. Lett.128, 176602 (2022)
work page 2022
- [24]
-
[25]
Y. Liu, Y. J. Long, L. X. Zhao, S. M. Nie, S. J. Zhang, Y. X. Weng, M. L. Jin, W. M. Li, Q. Q. Liu, Y. W. Long, R. C. Yu, C. Z. Gu, F. Sun, W. G. Yang, H. K. Mao, X. L. Feng, Q. Li, W. T. Zheng, H. M. Weng, X. Dai, Z. Fang, G. F. Chen, and C. Q. Jin, Superconductivity in HfTe 5 across weak to strong topological insulator transition in- duced via pressures...
work page 2017
-
[26]
Z. Kov´ acs-Krausz, D. Nagy, A. M´ arffy, B. Karpiak, Z. Tajkov, L. Oroszl´ any, J. Koltai, P. Nemes-Incze, S. P. Dash, P. Makk, S. Csonka, and E. T´ ov´ ari, Signature of pressure-induced topological phase transition in ZrTe 5, npj Quantum Materials9, 76 (2024)
work page 2024
-
[27]
Y. Zhou, J. Wu, W. Ning, N. Li, Y. Du, X. Chen, R. Zhang, Z. Chi, X. Wang, X. Zhu, P. Lu, C. Ji, X. Wan, Z. Yang, J. Sun, W. Yang, M. Tian, Y. Zhang, and H. Mao, Pressure-induced superconductivity in a three- dimensional topological material ZrTe 5, Proceedings of the National Academy of Sciences of the United States of America113, 2904 (2016)
work page 2016
-
[28]
S. Mishra, N. Singh, V. K. Gangwar, R. Walia, M. Ku- mar, U. B. Singh, D. S. Saini, J. Sun, G. Chen, D. Bhoi, S. Chatterjee, Y. Uwatoko, J. Cheng, and P. Shahi, Effect of pressure on the transport properties and thermoelec- tric performance of Dirac semimetal ZrTe5, Phys. Rev. B 112, 165140 (2025)
work page 2025
-
[29]
J. L. Zhang, C. Y. Guo, X. D. Zhu, L. Ma, G. L. Zheng, Y. Q. Wang, L. Pi, Y. Chen, H. Q. Yuan, and M. L. Tian, Disruption of the accidental Dirac semimetal state in ZrTe 5 under hydrostatic pressure, Phys. Rev. Lett. 118, 206601 (2017)
work page 2017
-
[30]
Y. Qi, W. Shi, P. G. Naumov, N. Kumar, W. Schnelle, O. Barkalov, C. Shekhar, H. Borrmann, C. Felser, B. Yan, and S. A. Medvedev, Pressure-driven superconductivity in the transition-metal pentatelluride HfTe 5, Phys. Rev. B94, 054517 (2016)
work page 2016
-
[31]
D. Santos-Cottin, M. Padlewski, E. Martino, S. B. David, F. Le Mardel´ e, F. Capitani, F. Borondics, M. D. Bach- mann, C. Putzke, P. J. W. Moll, R. D. Zhong, G. D. Gu, H. Berger, M. Orlita, C. C. Homes, Z. Rukelj, and A. Akrap, Probing intraband excitations in ZrTe 5: A high-pressure infrared and transport study, Phys. Rev. B 101, 125205 (2020)
work page 2020
-
[32]
J.-G. Cheng, B.-S. Wang, J.-P. Sun, and Y. Uwatoko, Cubic anvil cell apparatus for high-pressure and low- temperature physical property measurements*, Chinese Physics B27, 077403 (2018)
work page 2018
-
[33]
Y. Uwatoko, K. Matsubayashi, T. Matsumoto, N. Aso, M. Nishi, T. Fujiwara, M. Hondo, S. Tabata, K. Tak- agi, M. Tawata, and H. Kagi, Development of an ultra- compact cubic-anvil pressure apparatus for ultralow tem- peratures, High Pressure Research18, 230 (2008)
work page 2008
-
[34]
P. Shahi, D. J. Singh, J. P. Sun, L. X. Zhao, G. F. Chen, Y. Y. Lv, J. Li, J.-Q. Yan, D. G. Mandrus, and J.-G. Cheng, Bipolar conduction as the possible origin of the electronic transition in pentatellurides: Metallic vs semi- conducting behavior, Phys. Rev. X8, 021055 (2018)
work page 2018
-
[35]
T. Osakabe and K. Kakurai, Feasibility tests on pressure- transmitting media for single-crystal magnetic neutron diffraction under high pressure, Japanese Journal of Ap- plied Physics47, 6544 (2008). 14
work page 2008
-
[36]
P. Giannozzi, O. Andreussi, T. Brumme, O. Bunau, M. Buongiorno Nardelli, M. Calandra, R. Car, C. Cavaz- zoni, D. Ceresoli, M. Cococcioni, N. Colonna, I. Carn- imeo, A. Dal Corso, S. de Gironcoli, P. Delugas, R. A. DiStasio, A. Ferretti, A. Floris, G. Fratesi, G. Fugallo, R. Gebauer, U. Gerstmann, F. Giustino, T. Gorni, J. Jia, M. Kawamura, H.-Y. Ko, A. Ko...
work page 2017
-
[37]
J. P. Perdew, K. Burke, and M. Ernzerhof, Generalized gradient approximation made simple, Phys. Rev. Lett. 77, 3865 (1996)
work page 1996
- [38]
-
[39]
Y. Zhang, C. Wang, L. Yu, G. Liu, A. Liang, J. Huang, S. Nie, X. Sun, Y. Zhang, B. Shen, J. Liu, H. Weng, L. Zhao, G. Chen, X. Jia, C. Hu, Y. Ding, W. Zhao, Q. Gao, C. Li, S. He, L. Zhao, F. Zhang, S. Zhang, F. Yang, Z. Wang, Q. Peng, X. Dai, Z. Fang, Z. Xu, C. Chen, and X. J. Zhou, Electronic evidence of temperature-induced lifshitz transition and topolo...
work page 2017
-
[40]
M. M. Piva, R. Wawrzy´ nczak, N. Kumar, L. O. Kutelak, G. A. Lombardi, R. D. dos Reis, C. Felser, and M. Nick- las, Importance of the semimetallic state for the quantum hall effect in HfTe5, Phys. Rev. Mater.8, L041202 (2024)
work page 2024
-
[41]
J. Gao, M. Zhong, Q.-J. Liu, B. Tang, F.-S. Liu, and X.-J. Ma, Effects of pressure on structural, electronic, optical, and mechanical properties of zrte5: A density functional theory study, Physica B: Condensed Matter620, 413286 (2021)
work page 2021
-
[42]
Y. Zhang, C. Wang, G. Liu, A. Liang, L. Zhao, J. Huang, Q. Gao, B. Shen, J. Liu, C. Hu, W. Zhao, G. Chen, X. Jia, L. Yu, L. Zhao, S. He, F. Zhang, S. Zhang, F. Yang, Z. Wang, Q. Peng, Z. Xu, C. Chen, and X. Zhou, Temperature-induced lifshitz transition in topological in- sulator candidate HfTe5, Science Bulletin62, 950 (2017)
work page 2017
-
[43]
G. Eguchi and S. Paschen, Robust scheme for magneto- transport analysis in topological insulators, Phys. Rev. B 99, 165128 (2019)
work page 2019
-
[44]
G. Manzoni, L. Gragnaniello, G. Aut` es, T. Kuhn, A. Sterzi, F. Cilento, M. Zacchigna, V. Enenkel, I. Vobornik, L. Barba, F. Bisti, P. Bugnon, A. Ma- grez, V. N. Strocov, H. Berger, O. V. Yazyev, M. Fonin, F. Parmigiani, and A. Crepaldi, Evidence for a strong topological insulator phase in ZrTe 5, Phys. Rev. Lett. 117, 237601 (2016)
work page 2016
