Temperature-programmed reduction and dispersive X-ray absorption spectroscopy studies of CeO2-based nanopowders for intermediate-temperature Solid-Oxide Fuel Cell anodes

T0 review · 2 major / 2 minor · reviewed 2026-05-24 · grok-4.3

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read Lower calcination temperatures yield CeO2 nanopowders with smaller crystallites and higher reducibility, with Gd2O3 doping outperforming Sm2O3 and Y2O3.

desk verdict Smaller crystallites from lower calcination improve reducibility with Gd ahead of Sm and Y, but commercial powder sourcing risks confounding the attribution to size and dopant. read the letter →

arxiv 1910.01715 v1 pith:RXJNPYGM submitted 2019-10-03 cond-mat.mtrl-sci

Marina S. Bellora , Joaquín Sacanell , Cristián Huck-Iriart , Analía L. Soldati , Susana A. Larrondo , Diego G. Lamas This is my paper
classification cond-mat.mtrl-sci
keywords CeO2reducibilitySOFCanodesnanopowdersTPRdispersiveXAScrystallitesizedopants
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper investigates how average crystallite size and dopant oxide influence the reducibility of CeO2-based nanomaterials for intermediate-temperature solid-oxide fuel cell anodes. Commercial powders doped with Gd2O3, Sm2O3 or Y2O3 were calcined between 400 and 900 °C, then examined by X-ray diffraction, electron microscopy and surface-area measurements. Reducibility was quantified with temperature-programmed reduction and in-situ dispersive X-ray absorption spectroscopy. The work establishes that lower-temperature treatments produce the smallest crystallites and largest surface areas, which deliver the strongest reduction behavior, and that gadolinium-doped samples reduce more readily than the samarium- or yttrium-doped counterparts.

What carries the argument

The measured dependence of reducibility on crystallite size, specific surface area and dopant identity, obtained through temperature-programmed reduction combined with dispersive X-ray absorption spectroscopy.

What would settle it

A set of samples in which crystallite size is held constant while dopant is varied, or vice versa, should show whether the reported ranking of reducibility persists independently of those variables.

Watch

Extended reading notes

Core claim

Samples treated at lower temperatures, of smallest average crystallite size and highest specific surface areas, exhibit the best performance, while Gd2O3-doped ceria materials display higher reducibility than Sm2O3- and Y2O3-doped CeO2.

Load-bearing premise

That observed differences in reducibility arise chiefly from crystallite size and dopant choice rather than from uncontrolled differences in the commercial starting powders or calcination procedures.

Editorial extensions

If this is right

  • Materials processed at 400 °C rather than 900 °C are expected to give higher anode performance in intermediate-temperature fuel cells.
  • Gd2O3 should be preferred over Sm2O3 or Y2O3 when maximum reducibility is required.
  • High-surface-area nanopowders are indicated as the route to lower operating temperatures for ceria-based anodes.
  • In-situ dispersive XAS can track reduction kinetics under conditions closer to actual cell operation.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Synthesis protocols that limit crystallite growth during calcination could be prioritized over post-synthesis milling.
  • Surface-dominated reduction may allow ceria anodes to function efficiently at temperatures below those currently standard.
  • The same size and dopant trends might appear in other oxygen-storage or redox-active oxides used in catalysis.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

2 major / 2 minor

Summary. The manuscript examines the effects of calcination temperature (400–900 °C) on crystallite size and specific surface area of commercial Gd2O3-, Sm2O3-, and Y2O3-doped CeO2 nanopowders, and correlates these with reducibility measured by temperature-programmed reduction (TPR) and in-situ dispersive X-ray absorption spectroscopy (XAS). The central claim is that lower calcination temperatures produce smaller crystallites with higher surface areas that exhibit superior reducibility, and that Gd2O3-doped ceria outperforms the Sm2O3- and Y2O3-doped variants for potential use in intermediate-temperature solid-oxide fuel cell anodes.

Significance. If the attribution of reducibility trends to crystallite size and dopant identity holds after controlling for sample provenance, the results would supply practical guidance on processing conditions for ceria-based anode materials. The combination of ex-situ structural characterization with in-situ XAS provides direct observation of reduction behavior, which is a strength for an experimental materials study in the cond-mat.mtrl-sci domain.

major comments (2)
  1. [Materials and Methods] Materials and Methods / Sample preparation: the manuscript relies on commercial powders whose as-received defect density, impurity levels, and surface termination are not reported or standardized across suppliers or batches. Post-calcination XRD/TEM/BET data quantify size and area but do not isolate whether observed TPR and XAS differences arise from these controlled variables or from uncontrolled initial differences in the source powders, directly undermining the central claim that size and dopant identity are the primary drivers.
  2. [Results] Results, TPR and XAS sections: no error bars, replicate measurements, or statistical comparison of reduction temperatures or extents are described, making it impossible to assess whether the reported superiority of low-temperature/Gd-doped samples is significant or reproducible.
minor comments (2)
  1. [Abstract] Abstract and throughout: the term 'best performance' is used without defining the metric (e.g., onset temperature, total H2 uptake, or XAS edge shift); replace with quantitative descriptors.
  2. [Figures] Figure captions and text: ensure all TPR profiles and XAS spectra include temperature scales, heating rates, and gas compositions for reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We address each major comment below.

read point-by-point responses

  1. Referee: [Materials and Methods] Materials and Methods / Sample preparation: the manuscript relies on commercial powders whose as-received defect density, impurity levels, and surface termination are not reported or standardized across suppliers or batches. Post-calcination XRD/TEM/BET data quantify size and area but do not isolate whether observed TPR and XAS differences arise from these controlled variables or from uncontrolled initial differences in the source powders, directly undermining the central claim that size and dopant identity are the primary drivers.

    Authors: We agree that commercial starting powders carry the risk of batch-to-batch or supplier-to-supplier variations in initial defect density and impurities that are not quantified here. Within each dopant series, however, a single commercial batch was calcined at different temperatures, so the size/surface-area dependence is measured on otherwise identical material. The post-calcination XRD, TEM and BET data show systematic correlations between crystallite size, surface area and reducibility that are consistent across all three dopants. We will add an explicit limitations paragraph in the revised manuscript acknowledging the provenance issue and stating that the reported trends are attributed to the controlled post-calcination variables. revision: partial

  2. Referee: [Results] Results, TPR and XAS sections: no error bars, replicate measurements, or statistical comparison of reduction temperatures or extents are described, making it impossible to assess whether the reported superiority of low-temperature/Gd-doped samples is significant or reproducible.

    Authors: The TPR and dispersive XAS runs were performed once per condition, which is common for these resource-intensive in-situ experiments. The observed shifts in reduction onset (typically 80–150 °C between low- and high-temperature calcined samples) exceed the usual instrumental precision of the techniques. We will insert a short statement in the revised Results/Discussion section noting the absence of replicate measurements and the reliance on the magnitude of the observed differences. revision: partial

Circularity Check

0 steps flagged · score 0.0 of 10

Purely experimental report with no derivations or models

full rationale

The manuscript is an experimental study: commercial powders are calcined at 400-900 °C, then characterized by XRD/TEM/BET and tested for reducibility via TPR and dispersive XAS. No equations, fitted models, ansatzes, or theoretical derivations appear in the provided text or abstract. Claims about size/dopant effects on performance are direct empirical observations, not reductions of any input by construction. Self-citation load-bearing, uniqueness theorems, or renaming of known results are absent. This matches the default non-circular case for measurement-only papers.

Assumptions & free parameters 0 free parameters · 0 assumptions · 0 invented entities

No mathematical model is present; the study relies on standard experimental characterization without introducing free parameters, axioms, or new postulated entities.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Temperature-programmed reduction and dispersive X-ray absorption spectroscopy studies of CeO2-based nanopowders for intermediate-temperature Solid-Oxide Fuel Cell anodes." pith.science (2026). https://pith.science/paper/RXJNPYGM

@misc{pith2026191001715,
  author       = {Pith},
  title        = {Pith review of: Temperature-programmed reduction and dispersive X-ray absorption spectroscopy studies of CeO2-based nanopowders for intermediate-temperature Solid-Oxide Fuel Cell anodes},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/RXJNPYGM}},
  note         = {Machine review of arXiv:1910.01715}
}

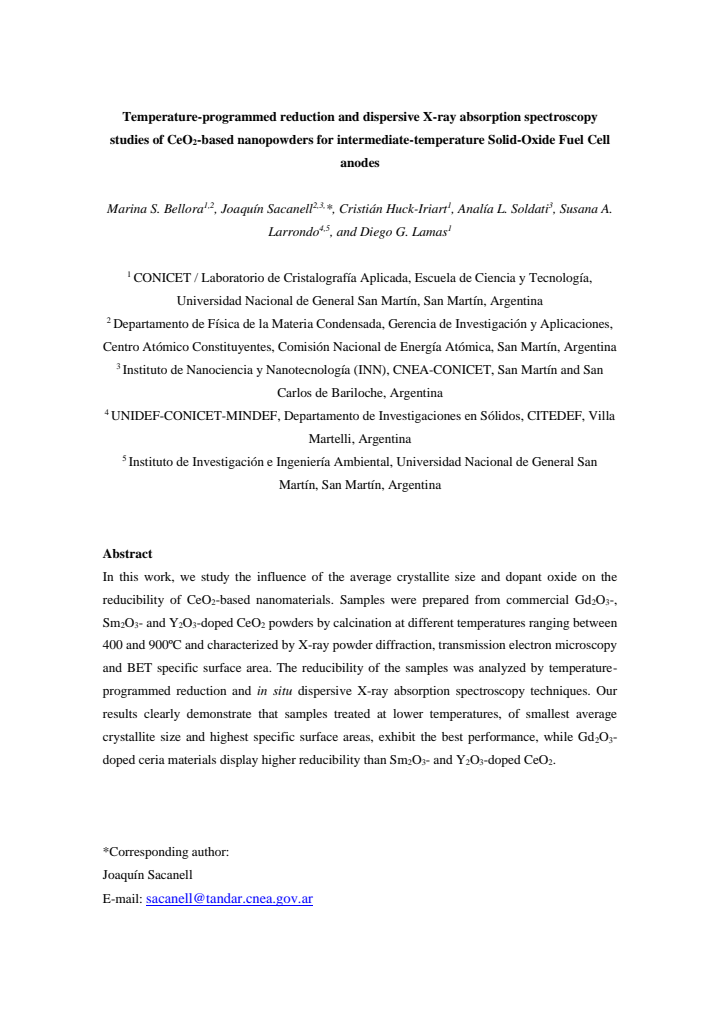

read the original abstract

In this work, we study the influence of the average crystallite size and dopant oxide on the reducibility of CeO2-based nanomaterials. Samples were prepared from commercial Gd2O3-, Sm2O3- and Y2O3-doped CeO2 powders by calcination at different temperatures ranging between 400 and 900C and characterized by X-ray powder diffraction, transmission electron microscopy and BET specific surface area. The reducibility of the samples was analyzed by temperature-programmed reduction and in situ dispersive X-ray absorption spectroscopy techniques. Our results clearly demonstrate that samples treated at lower temperatures, of smallest average crystallite size and highest specific surface areas, exhibit the best performance, while Gd2O3-doped ceria materials display higher reducibility than Sm2O3- and Y2O3-doped CeO2.

Figures

Figures reproduced from arXiv: 1910.01715 by the authors.

Figure 1
Figure 1. X-ray diffraction patterns for all compounds treated at 400ºC. 20 30 40 50 60 70 80 90 100 0 5000 10000 15000 20000 25000 30000 400°C 650°C 900°C Intensity (a.u.) 2 (°) YDC [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2

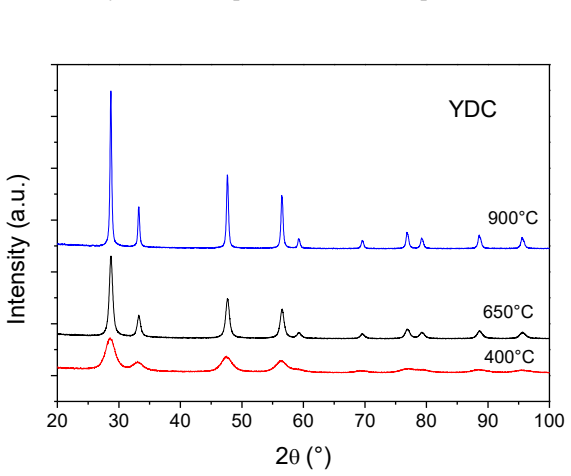

Figure 2. X-ray diffraction patterns for YDC powders compounds treated at 400ºC, 650ºC and 900ºC [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 4
Figure 4. TEM images for the SDC samples treated at (a) 400°C, b) 650°C, c) 900ºC. The dependence of the average crystallite size as a function of calcination temperature is presented in [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figures from the paper (4 more)
Figure 5

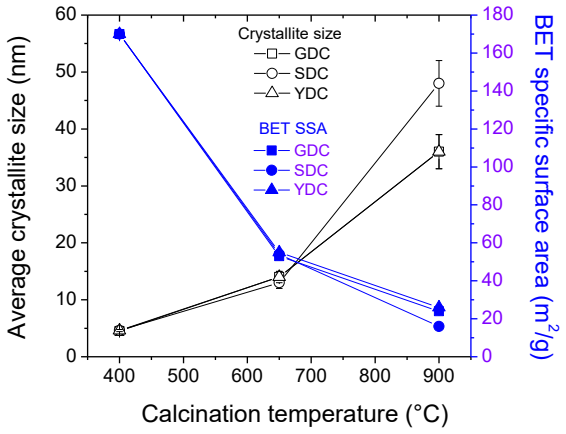

Figure 5. Figure 5: Average crystallite size and BET specific surface area as functions of calcination temperature. The values of BET specific surface area of the samples are summarized in Table II. As it can be observed in [PITH_FULL_IMAGE:figures/full_fig_p007_5.png]
Figure 6

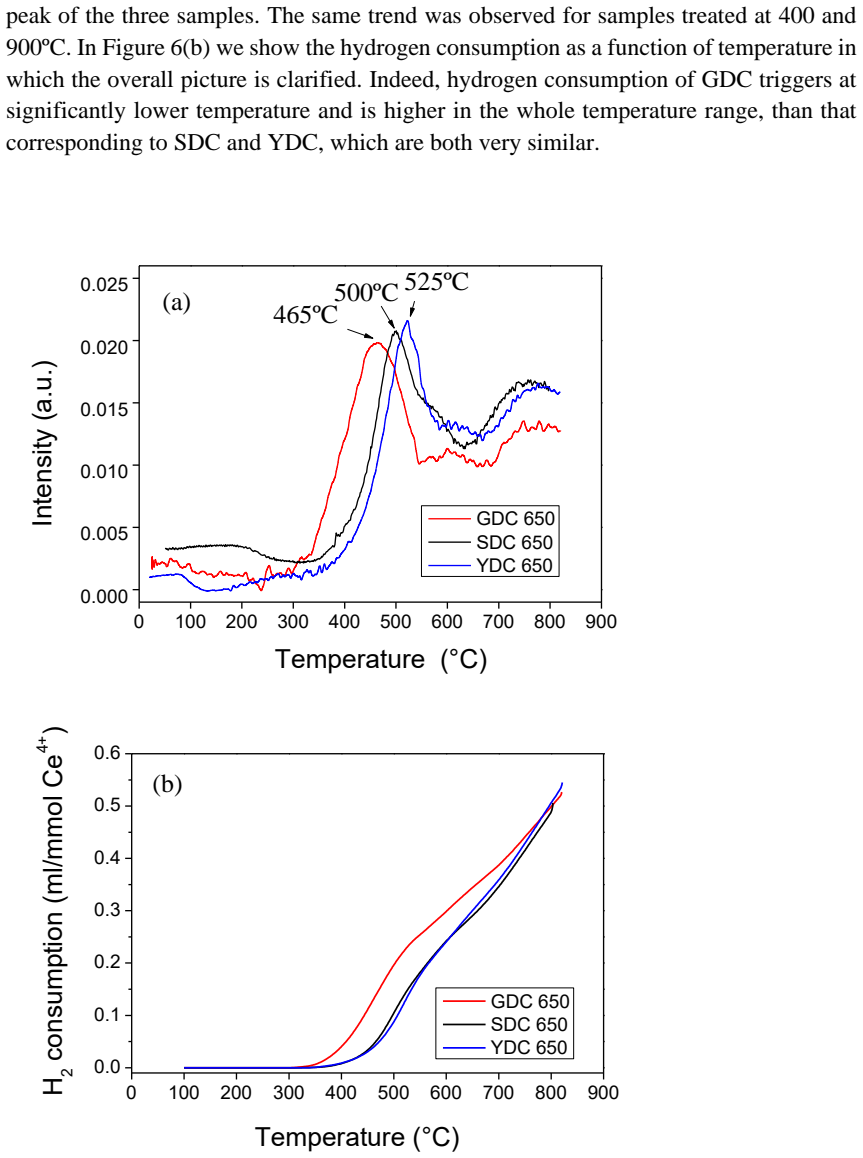

Figure 6. Figure 6: (a) TPR profile and (b) hydrogen consumption, for samples calcined at 650°C [PITH_FULL_IMAGE:figures/full_fig_p008_6.png]
Figure 7

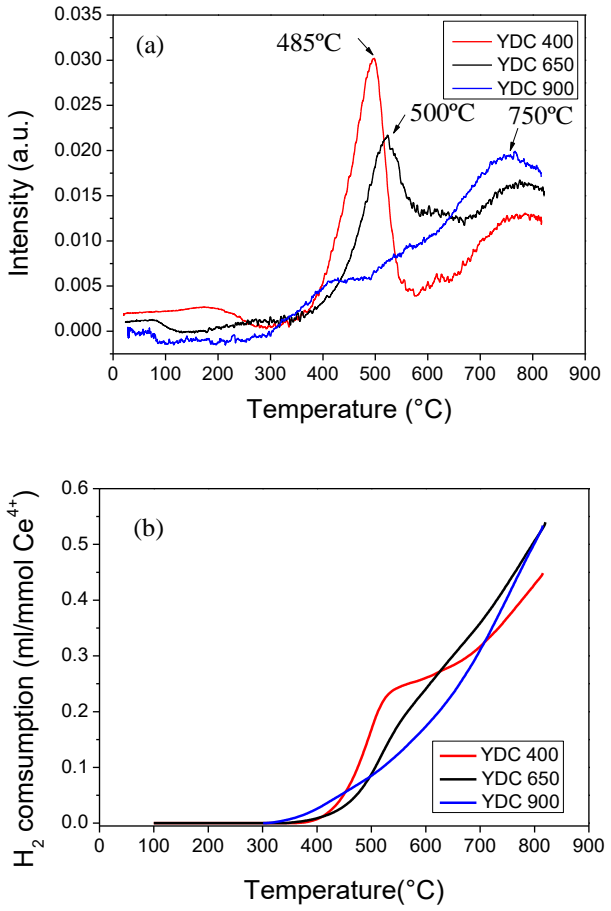

Figure 7. Figure 7: (a) TPR profiles and (b) hydrogen consumption for YDC samples. We also studied the influence of the average crystallite size on the reducibility of the samples [PITH_FULL_IMAGE:figures/full_fig_p009_7.png]
Figure 8

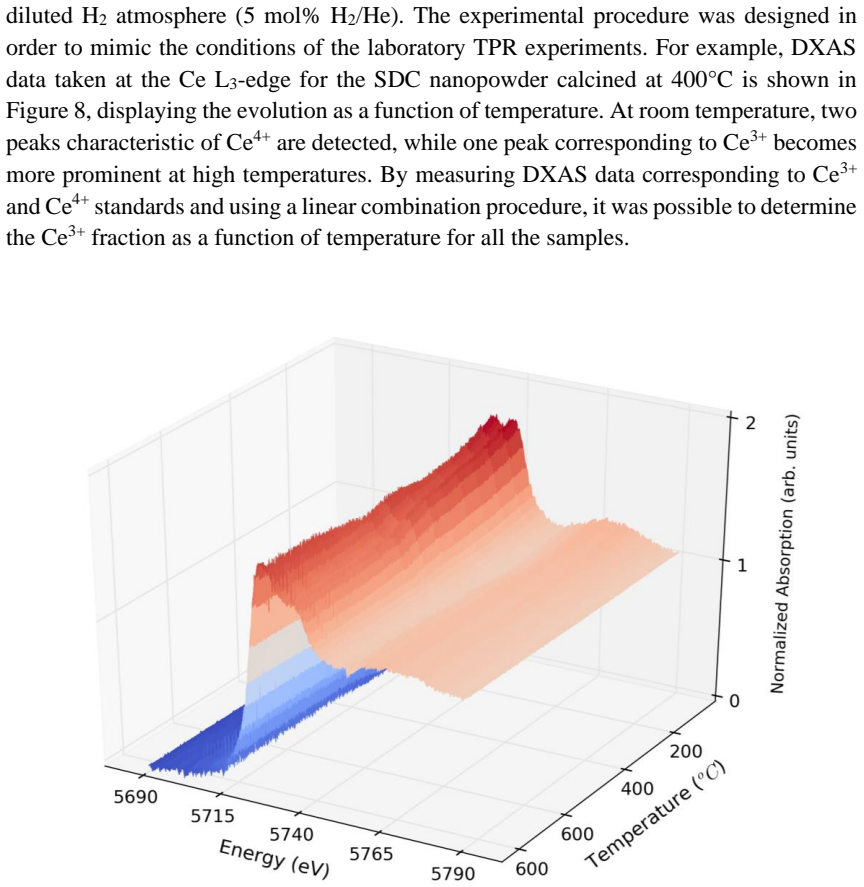

Figure 8. Figure 8: , displaying the evolution as a function of temperature. At room temperature, two peaks characteristic of Ce4+ are detected, while one peak corresponding to Ce3+ becomes more prominent at high temperatures. By measuring DXAS data corresponding to Ce3+ and Ce4+ standard…

Discussion (0). Sign in to comment.

Reference graph

Works this paper leans on

2 extracted references · 2 canonical work pages

  1. [1]

    Trovarelli, Catalytic properties of ceria and CeO2-containingmaterials, Catal

    1 A. Trovarelli, Catalytic properties of ceria and CeO2-containingmaterials, Catal. Rev. Sci. Eng., 1996, 38, 439–520. 2 J. Kaspar, P. Fornasiero and M. Graziani, Use of CeO2-based oxides in the three-way catalysis, Catal. Today, 1999, 2, 285–298. 3 Q. Fu, A. Weber and M. Flytzani-Stephanopoulo, Nanostructured Au–CeO2 catalysts for low- temperature water–...

    work page 1996

  2. [2]

    107-113. 15M. G. Zimicz, S. A. Larrondo, R. J. Prado, D. G. Lamas. Int. Journal of Hydrogen Energy 37(19), 14881- 14886 (2012) 16María G. Zimicz, Fernando D. Prado, Analía L. Soldati, Diego G. Lamas, Susana A. Larrondo. J. Phys. Chem. C 119, 19210-19217 (2015) 17 M. G. Zimicz, F. D. Prado, D. G. Lamas, S. A. Larrondo. Applied Catalysis A: General 542, 296...

    work page 2012
