arxiv: 2606.05849 · v1 · pith:SF5NNFVNnew · submitted 2026-06-04 · ⚛️ physics.optics · cs.CV

Inverse Design of Realizable Metasurface based Absorbers using Improved Conditioning and Diversity Enhanced Progressively Growing GANs

Vineetha Joy , Mohammad Abdullah , Pramit Pal , Anshuman Kumar , Amit Sethi , Hema Singh This is my paper

Pith reviewed 2026-06-28 00:08 UTC · model grok-4.3

classification ⚛️ physics.optics cs.CV
keywords inverse designmetasurface absorbersgenerative adversarial networkselectromagnetic consistencydiversity regularizationprogressive GANspectral constraintsfabrication realizability
0
0 comments X

The pith

A GAN with spectral conditioning and diversity regularization generates accurate and realizable metasurface absorber designs.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper presents a generative framework for the inverse design of metasurface absorbers using an enhanced progressively growing GAN. The method embeds electromagnetic consistency through a surrogate loss and promotes geometric diversity for the same target response. It aims to overcome the computational cost of traditional optimization by directly generating valid designs from spectral targets. If the approach holds, it allows rapid production of multiple fabricable configurations for applications in stealth and sensing within 2 to 18 GHz.

Core claim

The paper claims that the proposed framework, which integrates feature-wise linear modulation conditioning into a progressively growing Wasserstein GAN with gradient penalty, along with a surrogate-assisted spectral alignment loss and determinantal point process diversity regularization, generates metasurface absorber designs that are highly accurate, diverse, electromagnetically consistent, and fabrication realizable, as shown by average mean squared error of 0.0052, diversity score of 0.8730, band alignment accuracy of 0.8533, and 89.57 percent valid designs validated by EM simulations.

What carries the argument

Progressively growing WGAN-GP with FiLM conditioning, surrogate spectral alignment loss, and DPP-based diversity regularization that enforces physical consistency and variety during generation.

If this is right

  • The designs match target spectra with high accuracy as measured by low mean squared error.
  • Multiple diverse geometries are produced for identical spectral targets.
  • The generated structures are electromagnetically consistent and fabrication realizable.
  • Band alignment accuracy reaches 0.8533 for the absorber responses in 2-18 GHz.
  • Valid electromagnetic design generation rate is 89.57 percent.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This method could shorten design times for metasurfaces by avoiding repeated full-wave optimizations.
  • Similar conditioning and loss strategies might apply to inverse design of other wave-manipulating structures.
  • Selecting from the diverse outputs based on additional criteria like material cost could enhance practicality.
  • Extending the frequency range or adding more fabrication constraints in training would test broader applicability.

Load-bearing premise

The surrogate model used in the spectral alignment loss correctly approximates the electromagnetic behavior of the generated metasurfaces.

What would settle it

Full-wave simulations revealing that many generated designs have reflection spectra far from the targets or geometries that cannot be fabricated would disprove the framework's effectiveness.

Figures

Figures reproduced from arXiv: 2606.05849 by Amit Sethi, Anshuman Kumar, Hema Singh, Mohammad Abdullah, Pramit Pal, Vineetha Joy.

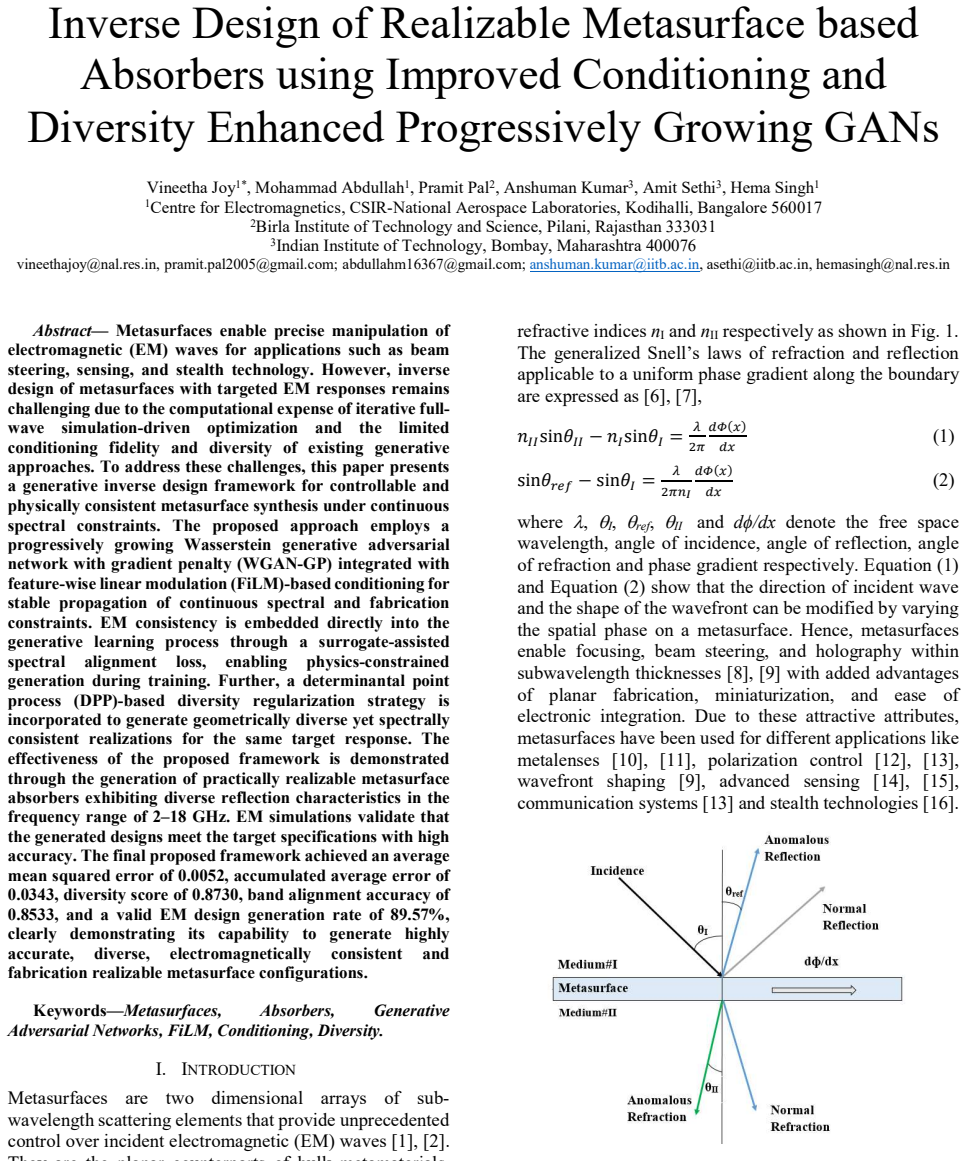

Figure 1
Figure 1. Figure 1: EM wave incident on a metasurface [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗

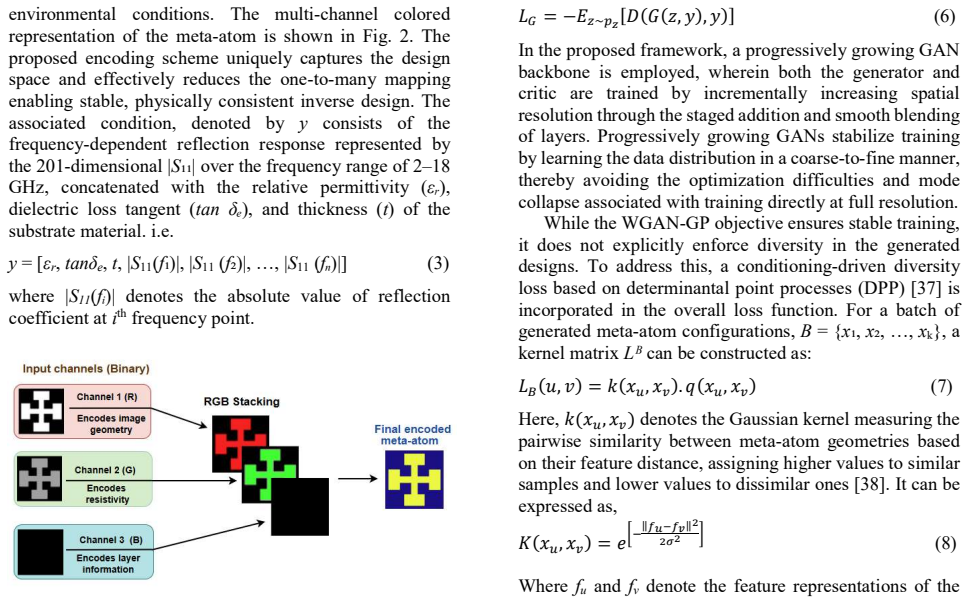

Figure 2
Figure 2. Figure 2: Encoding scheme used to represent meta-atoms [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

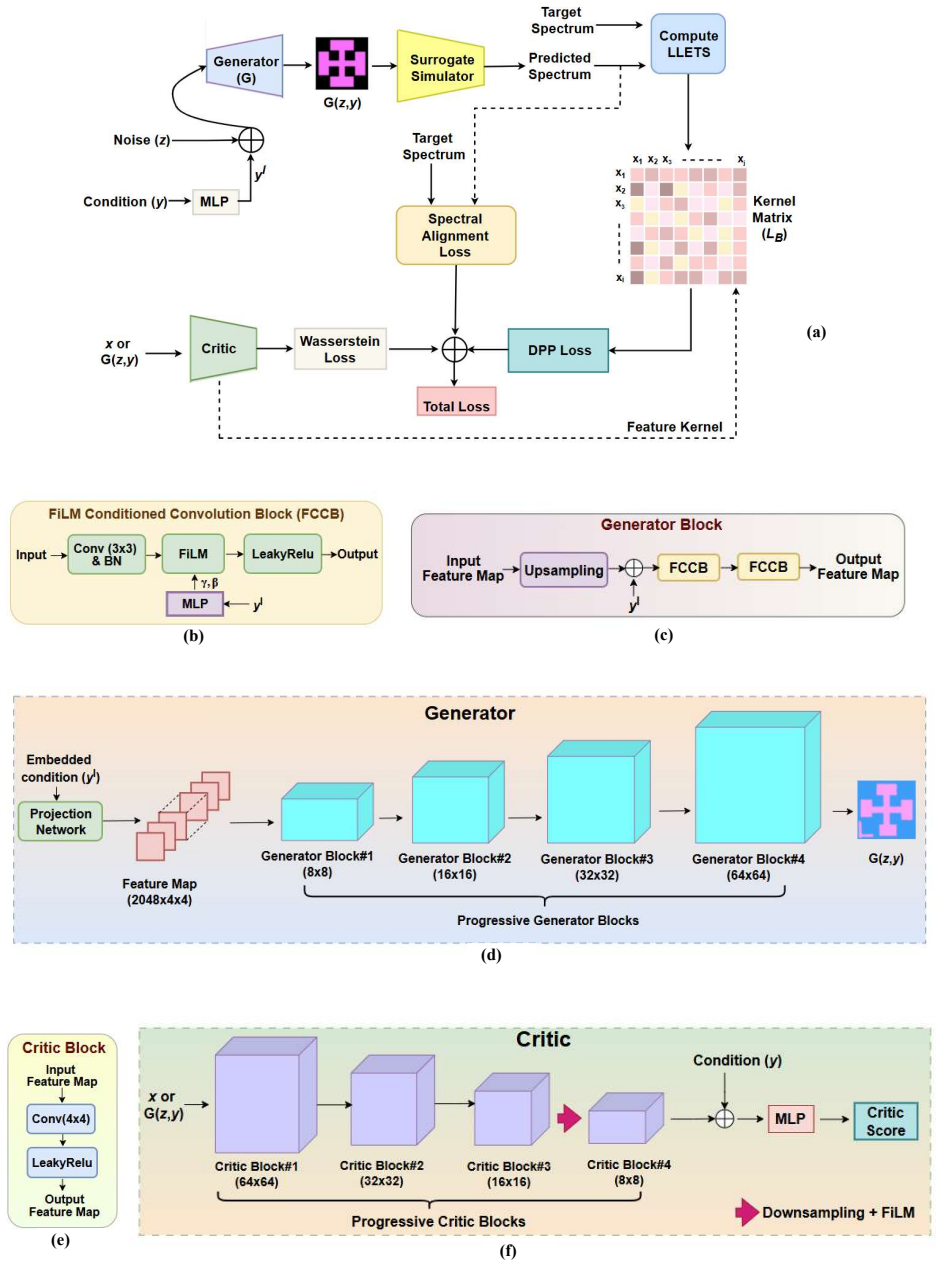

Figure 3
Figure 3. Figure 3: Architecture of the proposed model (a) Overall block diagram (b) FiLM conditioned convolution block (c) Generator block (d) Generator (e) [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

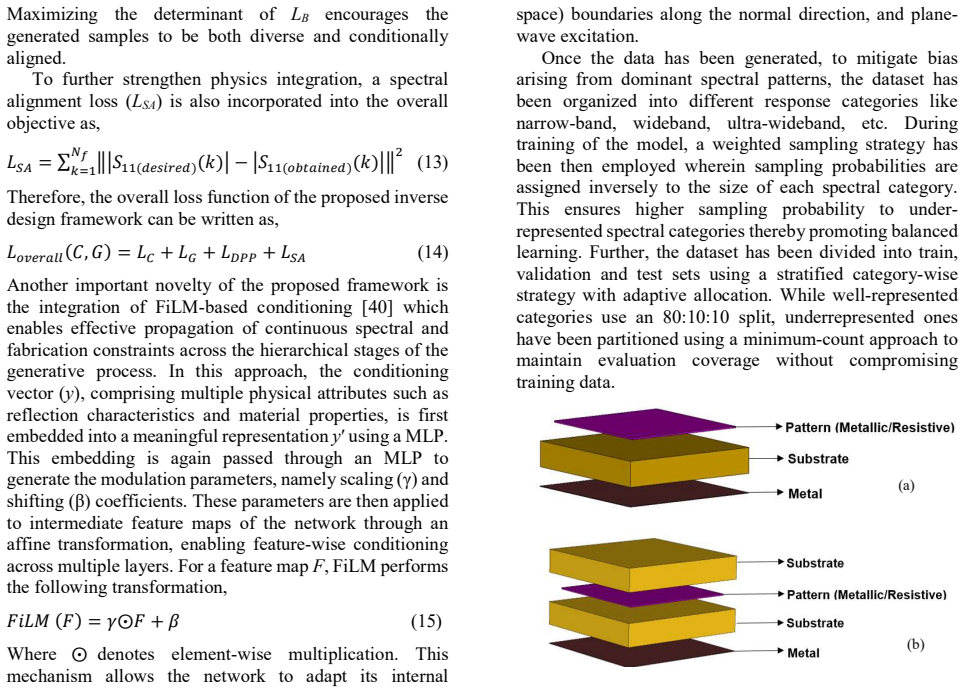

Figure 4
Figure 4. Figure 4: Configuration of metasurface based RAS models included [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

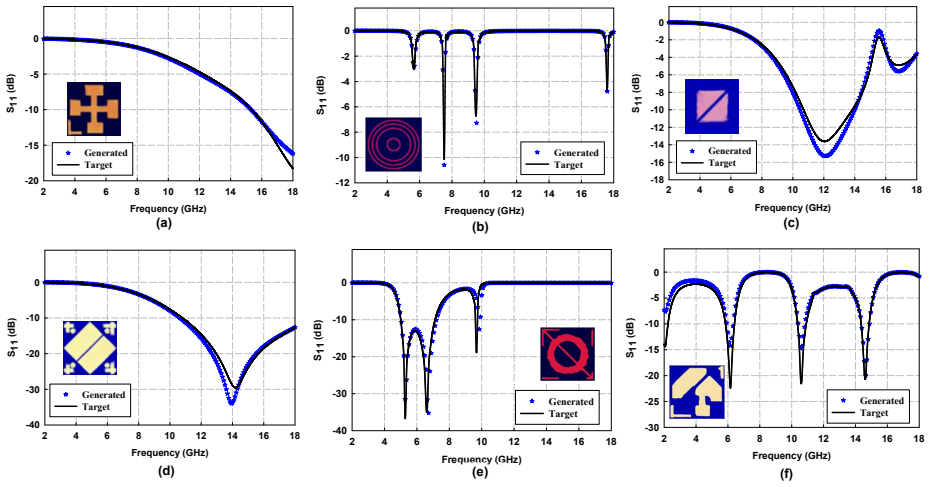

Figure 5
Figure 5. Figure 5: Comparison between input spectrum and spectra obtained on simulation of generated design. (a) Case-1 (Material: AD1000 ( [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗

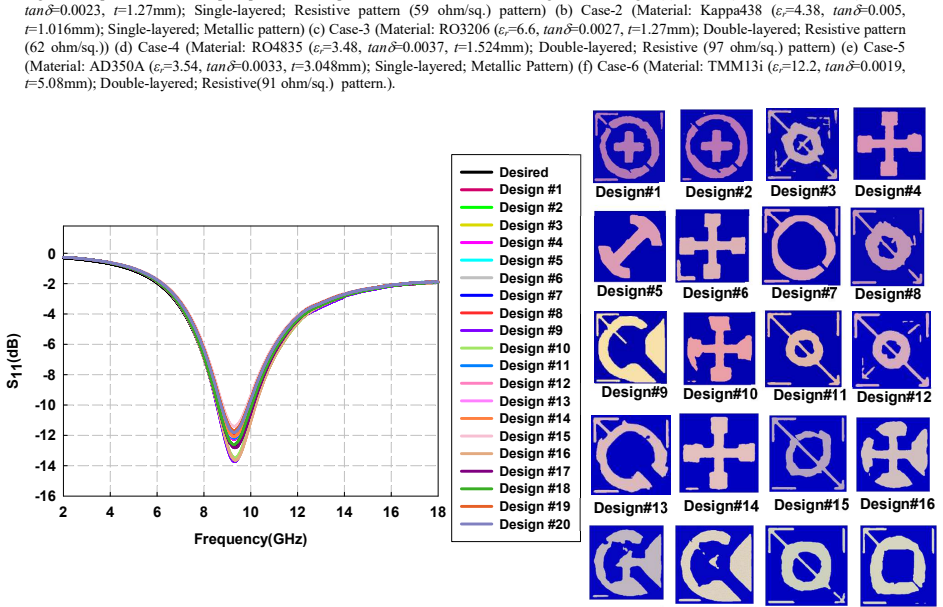

Figure 6
Figure 6. Figure 6: Geometrically diverse metasurface designs generated by the proposed model for [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
read the original abstract

Metasurfaces enable precise manipulation of electromagnetic waves for applications such as beam steering, sensing, and stealth technology. However, inverse design of metasurfaces with targeted EM responses remains challenging due to the computational expense of iterative full wave simulation driven optimization and the limited conditioning fidelity and diversity of existing generative approaches. To address these challenges, this paper presents a generative inverse design framework for controllable and physically consistent metasurface synthesis under continuous spectral constraints. The proposed approach employs a progressively growing Wasserstein generative adversarial network with gradient penalty integrated with feature wise linear modulation based conditioning for stable propagation of continuous spectral and fabrication constraints. EM consistency is embedded directly into the generative learning process through a surrogate assisted spectral alignment loss, enabling physics constrained generation during training. Further, a determinantal point process based diversity regularization strategy is incorporated to generate geometrically diverse yet spectrally consistent realizations for the same target response. The effectiveness of the proposed framework is demonstrated through the generation of practically realizable metasurface absorbers exhibiting diverse reflection characteristics in the frequency range of 2 to 18 GHz. EM simulations validate that the generated designs meet the target specifications with high accuracy. The final proposed framework achieved an average mean squared error of 0.0052, diversity score of 0.8730, band alignment accuracy of 0.8533, and a valid EM design generation percentage of 89.57, clearly demonstrating its capability to generate highly accurate, diverse, electromagnetically consistent and fabrication realizable metasurface configurations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 0 minor

Summary. The paper proposes a progressively growing Wasserstein GAN with gradient penalty, FiLM-based conditioning for continuous spectral and fabrication constraints, a surrogate-assisted spectral alignment loss to embed EM consistency during training, and DPP-based diversity regularization. It claims generation of realizable metasurface absorbers (2-18 GHz) with average MSE 0.0052, diversity score 0.8730, band alignment accuracy 0.8533, and 89.57% valid designs, with EM simulations validating that generated designs meet target specifications.

Significance. If the surrogate generalizes accurately to generated geometries, the framework could advance inverse metasurface design by enabling physics-constrained generation without full-wave simulation in the training loop while promoting diversity. The integration of progressive growing, conditioning, surrogate loss, and diversity regularization addresses multiple known challenges in the area.

major comments (3)
  1. [Abstract] Abstract: The reported aggregate metrics (MSE of 0.0052, 89.57% valid EM designs) supply no details on the number of designs evaluated, the exact validation protocol (including how many full-wave simulations were run post-generation), error bars, baseline comparisons, or post-hoc selection criteria, rendering the central performance claims difficult to evaluate.
  2. [Abstract] Abstract (surrogate-assisted spectral alignment loss): The claim that the surrogate loss produces electromagnetically consistent designs (MSE 0.0052, 89.57% valid) without full-wave simulation during training rests on the unverified assumption that the surrogate generalizes to novel geometries produced by the GAN. No quantitative surrogate-vs-full-wave spectral comparison on held-out generated samples, no information on whether the surrogate was trained on the same distribution as the generated designs, and no ablation removing the surrogate loss are provided.
  3. [Abstract] Abstract / framework description: No ablation studies are reported to quantify the individual contributions of the surrogate loss versus the diversity regularization (or the progressive growing and FiLM conditioning) to the final metrics, leaving the load-bearing role of each component untested.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their constructive comments on our manuscript. We address each major comment point-by-point below, indicating where revisions will be made to improve clarity and completeness.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The reported aggregate metrics (MSE of 0.0052, 89.57% valid EM designs) supply no details on the number of designs evaluated, the exact validation protocol (including how many full-wave simulations were run post-generation), error bars, baseline comparisons, or post-hoc selection criteria, rendering the central performance claims difficult to evaluate.

    Authors: We agree that the abstract would benefit from greater specificity on the evaluation setup. In the revised manuscript we will expand the abstract to report the number of designs evaluated, the validation protocol including the number of post-generation full-wave simulations performed, error bars from repeated runs, baseline comparisons, and confirmation that no post-hoc selection was applied beyond the validity criteria defined in the methods. revision: yes

  2. Referee: [Abstract] Abstract (surrogate-assisted spectral alignment loss): The claim that the surrogate loss produces electromagnetically consistent designs (MSE 0.0052, 89.57% valid) without full-wave simulation during training rests on the unverified assumption that the surrogate generalizes to novel geometries produced by the GAN. No quantitative surrogate-vs-full-wave spectral comparison on held-out generated samples, no information on whether the surrogate was trained on the same distribution as the generated designs, and no ablation removing the surrogate loss are provided.

    Authors: The surrogate was trained on geometries drawn from the same parameter ranges used for GAN training and generation. We will revise the manuscript to include a quantitative surrogate-versus-full-wave comparison on held-out generated samples and an ablation that removes the surrogate-assisted loss, thereby directly addressing the generalization concern. revision: yes

  3. Referee: [Abstract] Abstract / framework description: No ablation studies are reported to quantify the individual contributions of the surrogate loss versus the diversity regularization (or the progressive growing and FiLM conditioning) to the final metrics, leaving the load-bearing role of each component untested.

    Authors: We acknowledge that explicit ablation studies would strengthen the claims. The revised manuscript will add ablation experiments that isolate the surrogate loss, DPP diversity regularization, progressive growing, and FiLM conditioning to quantify their individual effects on the reported metrics. revision: yes

Circularity Check

0 steps flagged

No circularity: framework uses independent surrogate training and external EM validation

full rationale

The paper trains a progressively growing WGAN with a surrogate-assisted spectral alignment loss to enforce EM consistency during generation, then reports final performance metrics (MSE 0.0052, 89.57% valid) after explicit full-wave EM simulations on the generated designs. No equation or step reduces a claimed prediction to a fitted parameter by construction, nor does any load-bearing claim rest solely on self-citation of an unverified uniqueness result. The surrogate is presented as a separate model whose outputs are cross-checked by independent EM simulation; the diversity regularization and conditioning are standard architectural choices whose effectiveness is measured against held-out targets. This keeps the central claims externally falsifiable and self-contained against the reported validation protocol.

Axiom & Free-Parameter Ledger

2 free parameters · 1 axioms · 0 invented entities

The framework rests on standard deep-learning assumptions plus one domain-specific surrogate model; no new physical entities are postulated. Hyperparameters for the GAN, loss weights, and surrogate training are free parameters whose values are not reported.

free parameters (2)
  • GAN training hyperparameters and loss weights
    Learning rates, progressive growth schedule, surrogate loss coefficient, and DPP regularization strength are chosen or fitted to achieve the reported metrics.
  • Surrogate model architecture and training data
    The surrogate that supplies the spectral alignment loss is itself a learned model whose capacity and data are not specified.
axioms (1)
  • domain assumption The surrogate model provides sufficiently accurate electromagnetic response predictions to guide generation
    Invoked to embed physics constraints directly into the generative training loop.
