arxiv: 2606.26303 · v1 · pith:SJWF6JE7new · submitted 2026-06-24 · 🪐 quant-ph · physics.optics

Mechanisms governing photon-pair generation and emission directionality in quantum metasurfaces

Alberto Paniate , Ivano Ruo-Berchera , Francesco Monticone This is my paper

Pith reviewed 2026-06-26 01:30 UTC · model grok-4.3

classification 🪐 quant-ph physics.optics
keywords quantum metasurfacesspontaneous parametric down-conversionphoton pair generationemission directionalitysubstrate thicknessmultilayergeneration efficiencycollection efficiency
0
0 comments X

The pith

Substrate thickness and multilayer configurations enhance photon-pair generation efficiency and control emission directionality in quantum metasurfaces.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper investigates the physical mechanisms that determine how efficiently photon pairs are generated through spontaneous parametric down-conversion in metasurfaces and in which directions they are emitted. It does this by analyzing the effects of different pump beam configurations and how the pairs are collected in experiments. The analysis provides a way to understand past experiments and gives design rules for better metasurfaces. A central result is that the thickness of the supporting substrate and the use of multiple layers act as extra controls that can be adjusted to make more pairs and direct them as needed. This approach replaces trial-and-error methods with more deliberate engineering for compact quantum light sources.

Core claim

The main mechanisms that control photon-pair generation and detection are revealed by studying how different pump configurations and measurement geometries affect the generation efficiency, emission directionality, and collection efficiency. Substrate thickness and multilayer configurations represent additional degrees of freedom for quantum metasurface design and can be engineered to enhance the generation efficiency and control the emission directionality, providing a new route for the optimization of photon-pair sources based on metasurfaces.

What carries the argument

Analysis of varying pump configurations and measurement geometries to model generation efficiency and emission directionality.

If this is right

  • Existing experimental results can be interpreted through the proposed framework.
  • General guidelines can be provided for the design of metasurfaces and choice of experimental configurations.
  • Substrate thickness can be engineered to enhance generation efficiency.
  • Multilayer configurations can be used to control emission directionality.
  • These provide a new optimization route for metasurface-based photon-pair sources.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the model holds, it implies that metasurface designs can be systematically optimized rather than relying on empirical tuning.
  • This framework may extend to predicting performance in integrated quantum photonic circuits.
  • Experimental tests with varied substrate thicknesses could validate the directionality control predictions.

Load-bearing premise

The theoretical model based on varying pump configurations and measurement geometries fully captures the dominant physical mechanisms without significant unaccounted effects from material properties or fabrication imperfections.

What would settle it

Measuring the photon-pair generation rate and angular distribution for metasurfaces with different substrate thicknesses and comparing to the model's predictions; significant mismatch would indicate the model misses key effects.

Figures

Figures reproduced from arXiv: 2606.26303 by Alberto Paniate, Francesco Monticone, Ivano Ruo-Berchera.

Figure 1

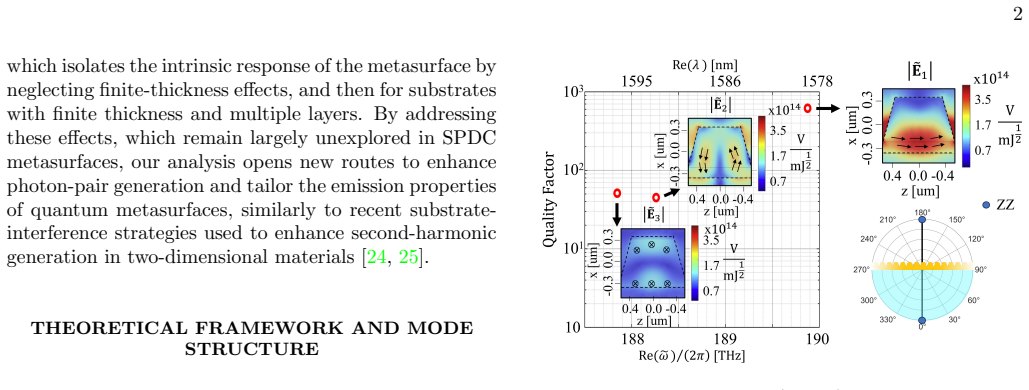

Figure 1. Figure 1: FIG. 1 [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

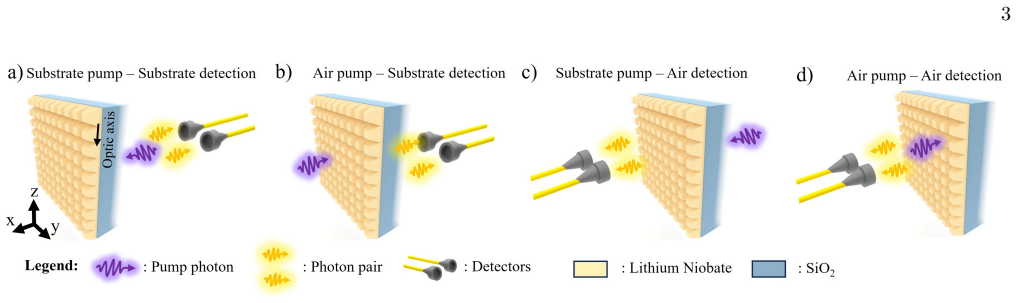

Figure 2. Figure 2: FIG. 2 [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

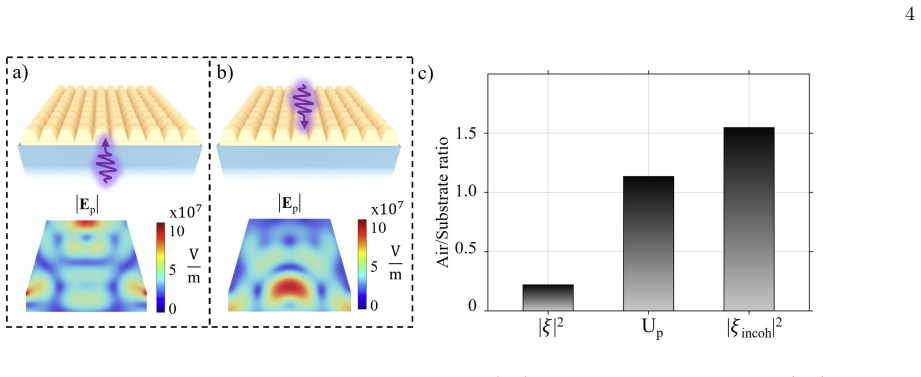

Figure 3. Figure 3: (c), which reports the air-side/substrate-side ratios of three relevant quantities. The first bar shows the ratio of the modal overlap contribution |ξ| 2 . Air-side pumping yields a value of only ∼ 0.2 relative to substrate-side pumping, indicating that substrate-side excitation en￾hances the SPDC generation efficiency by approximately a factor of five, in qualitative agreement with the exper￾imental obser… view at source ↗
Figure 4

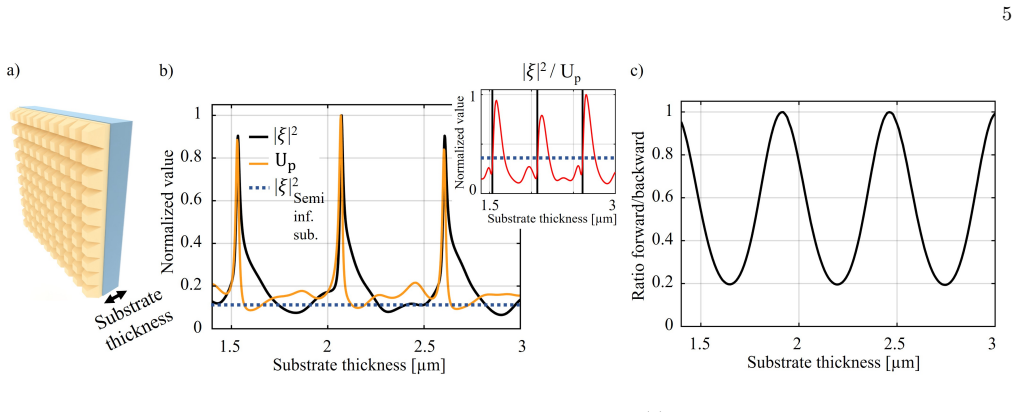

Figure 4. Figure 4: (b) shows the nonlinear-overlap contribution |ξ| 2 as a function of the substrate thickness. The response exhibits a sequence of pronounced and narrow maxima, with variations approaching one order of magnitude. In particular, the main efficiency peaks closely follow the behavior of the integrated pump-field intensity inside the nonlinear material, Up, shown by the orange curve. This modulation originates f… view at source ↗
read the original abstract

Metasurfaces are emerging as a promising platform for photon-pair generation through spontaneous parametric down-conversion, thanks to their compactness, integrability, and intrinsic multifunctionality, which enables the engineering of complex quantum states. However, their full potential remains only partially exploited because the physical mechanisms governing key properties of the generated photon pairs, such as generation efficiency and emission directionality, are not yet fully understood. As a result, metasurface designs and experimental configurations are often optimized through trial-and-error procedures. Here, we theoretically investigate the main mechanisms that control photon-pair generation and detection by studying how different pump configurations and measurement geometries affect the generation efficiency, emission directionality, and collection efficiency of the emitted photon pairs. This framework allows us to interpret existing experimental results and to provide general guidelines for the design of metasurfaces and the choice of experimental configurations in future experiments. Finally, we show that substrate thickness and multilayer configurations represent additional degrees of freedom for quantum metasurface design and can be engineered to enhance the generation efficiency and control the emission directionality, providing a new route for the optimization of photon-pair sources based on metasurfaces.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The paper theoretically investigates the mechanisms controlling photon-pair generation via spontaneous parametric down-conversion in quantum metasurfaces. It examines how pump configurations and measurement geometries influence generation efficiency, emission directionality, and collection efficiency; interprets existing experimental results; derives general design guidelines; and concludes that substrate thickness and multilayer configurations constitute additional tunable degrees of freedom that can be engineered to improve efficiency and control directionality.

Significance. If the model is validated, the work supplies a systematic framework for metasurface-based photon-pair sources that moves beyond trial-and-error optimization, offering concrete routes to higher-efficiency, directionally controlled quantum light sources relevant to integrated quantum optics.

minor comments (2)
  1. The abstract states that the framework 'allows us to interpret existing experimental results' but does not name the specific experiments or datasets used for validation; adding these references in the main text would strengthen the interpretive claims.
  2. Notation for efficiency and directionality metrics should be defined explicitly at first use (e.g., in the theory section) to avoid ambiguity when comparing different pump and collection geometries.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive evaluation of our manuscript and the recommendation for minor revision. The referee's summary accurately reflects the content and contributions of the work. No specific major comments were provided in the report.

Circularity Check

0 steps flagged

No significant circularity; derivation self-contained

full rationale

The paper presents a theoretical investigation using standard models of spontaneous parametric down-conversion to analyze how pump configurations, measurement geometries, substrate thickness, and multilayer stacks affect photon-pair generation efficiency and directionality. The central claim—that these parameters constitute additional design degrees of freedom—is framed as a direct consequence of applying the model to different configurations, without any reduction of predictions to fitted inputs by construction, self-definitional loops, or load-bearing self-citations. No equations or steps are shown to equate outputs to inputs tautologically; the framework interprets experiments and derives guidelines from first-principles physics rather than renaming or smuggling in prior results.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Based solely on the abstract, the work operates within standard quantum optics; no free parameters, ad-hoc axioms, or new entities are introduced or fitted.

axioms (1)
  • domain assumption Standard electromagnetic and quantum-optical description of spontaneous parametric down-conversion in nonlinear media
    The investigation of generation efficiency and directionality implicitly relies on established SPDC phase-matching and nonlinear optics principles.
