arxiv: 2606.25596 · v1 · pith:SKCK2UZWnew · submitted 2026-06-24 · 🌌 astro-ph.CO · astro-ph.IM

Slay the Shear: A Unified Statistical Framework for Weak Gravitational Lensing Shear Estimation

Shurui Lin , Xiangchong Li , Xin Liu This is my paper

Pith reviewed 2026-06-25 20:37 UTC · model grok-4.3

classification 🌌 astro-ph.CO astro-ph.IM
keywords weak gravitational lensingshear estimationscore functionshape noiseresponse weightingmachine learning estimatorsgalaxy morphology
0
0 comments X

The pith

The score function of the image likelihood is the minimum-variance unbiased estimator for weak lensing shear.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a unified statistical framework that links classical response-based shear calibration, shape noise, and machine-learning estimators through the score function. For any spin-2 ellipticity definition, the ensemble shear response equals the inner product of the estimator with the score, and the score itself is the minimum-variance unbiased estimator. Incorporating the response into inverse-variance weighting produces a shape-noise-minimizing weight that holds regardless of the intrinsic galaxy shape distribution. The authors introduce Response-weighted Denoising Score Matching to exploit this structure, reporting a 17.5 percent shape-noise reduction relative to moment methods at LSST depth with multiplicative bias kept below 2 times 10 to the minus 3. This matters because next-generation surveys require statistically optimal use of high-dimensional image data to overcome the fundamental limit set by galaxy morphology diversity.

Core claim

For a general spin-2 ellipticity definition, the ensemble shear response corresponds to an inner product between the estimator and the score function, and the score provides the minimum-variance unbiased shear estimator. By incorporating response into the classical inverse-variance weight, the response-weighted inverse-variance weight is a general shape-noise-minimizing weight, independent of the intrinsic shape distribution.

What carries the argument

The score function, the gradient of the image likelihood with respect to shear, which establishes the inner-product relation that makes response-based methods optimal and enables construction of improved estimators.

If this is right

  • Existing response-based calibration techniques recover the inner-product relation with the score and are therefore statistically optimal within the framework.
  • Response-weighted inverse-variance weighting minimizes shape noise for arbitrary intrinsic shape distributions.
  • Nonlinear shape transformations and learned representations can be inserted into the RDSM procedure to further reduce noise while preserving the bias bound.
  • The framework unifies classical moment methods with modern machine-learning shear estimators under a single statistical relation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the differentiability condition holds after realistic selection cuts, pipelines could substitute score-based estimators for moment-based ones to obtain the reported noise reduction.
  • The same inner-product relation supplies a route to combine multiple shear estimators in an optimal way without additional calibration steps.
  • Taking higher derivatives of the likelihood could extend the framework to flexion or other higher-order lensing effects.
  • Direct tests on end-to-end image simulations with injected shear would confirm whether the 17.5 percent improvement survives realistic PSF and selection systematics.

Load-bearing premise

The image likelihood must be differentiable with respect to shear and ensemble averages over galaxy morphologies must remain free of selection effects or systematics that would break the inner-product relation.

What would settle it

A calculation on simulated galaxy images in which the measured response fails to equal the inner product between the estimator and the score function, or in which the proposed RDSM estimator does not deliver the claimed noise reduction at the stated bias level.

Figures

Figures reproduced from arXiv: 2606.25596 by Shurui Lin, Xiangchong Li, Xin Liu.

Figure 1

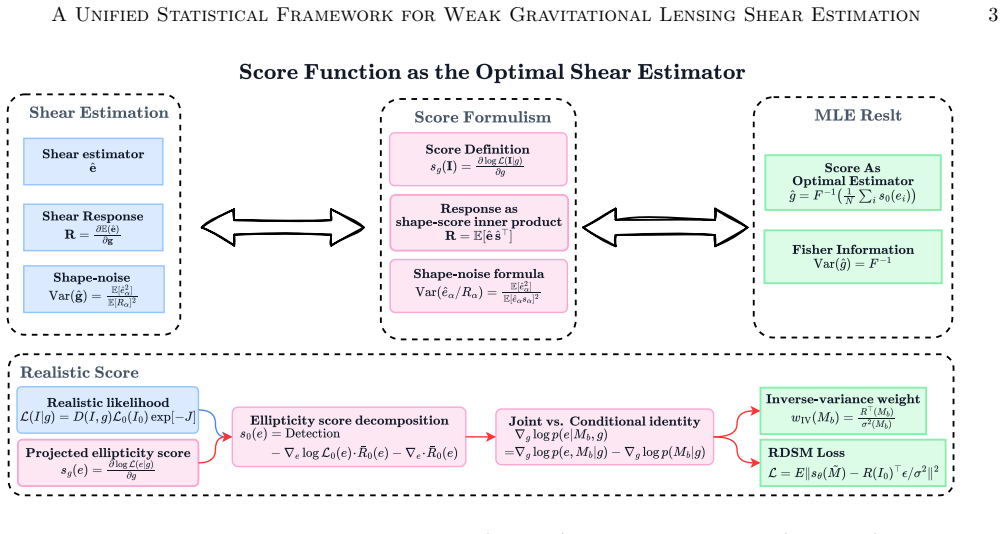

Figure 1. Figure 1: Schematic overview of the score-function framework (Section 2) and the RDSM estimator (Section 3.1). Top row: the Fisher-score formulation (Section 2.1) connects to response calibration (Section 2.2) and to the interpretation of shape noise as misalignment with the score (Section 2.3). Bottom row: Score function decomposition (Section B.5), the joint/conditional score identity that links inverse-variance w… view at source ↗
Figure 2

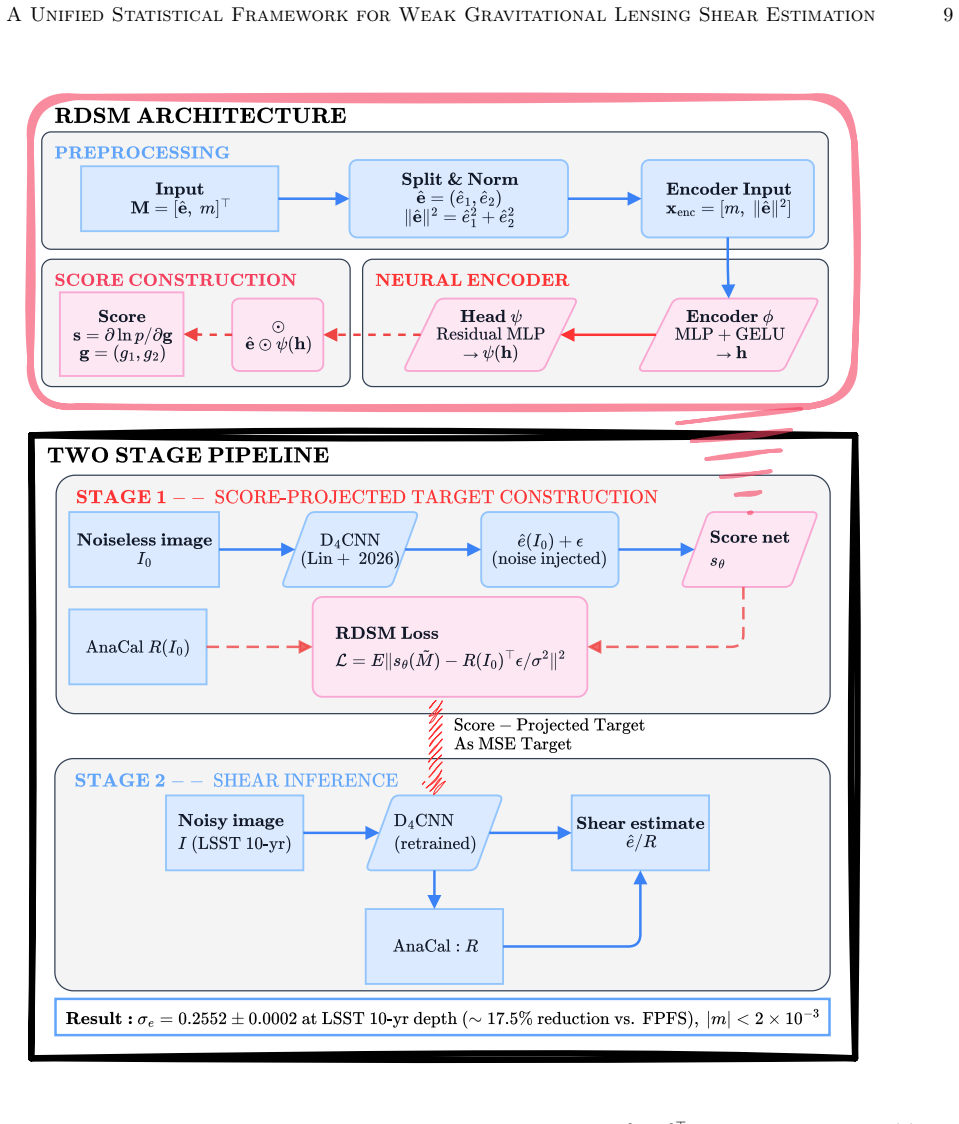

Figure 2. Figure 2: Upper Panel: Architecture for RDSM model. The measurement M = [eˆ, m] ⊤ is separated into spin-2 (eˆ) and spin-0 (m) channels. A neural encoder ϕ (MLP+GELU) processes the rotation-invariant combination xenc = [m, ∥eˆ∥ 2 ] into a hidden code h, which a residual MLP head ψ decodes into spin-2 weights. The shear score s = eˆ ⊙ ψ(h) (with ⊙ the Hadamard product) is consequently parallel to eˆ on the spin-2 pla… view at source ↗
Figure 3

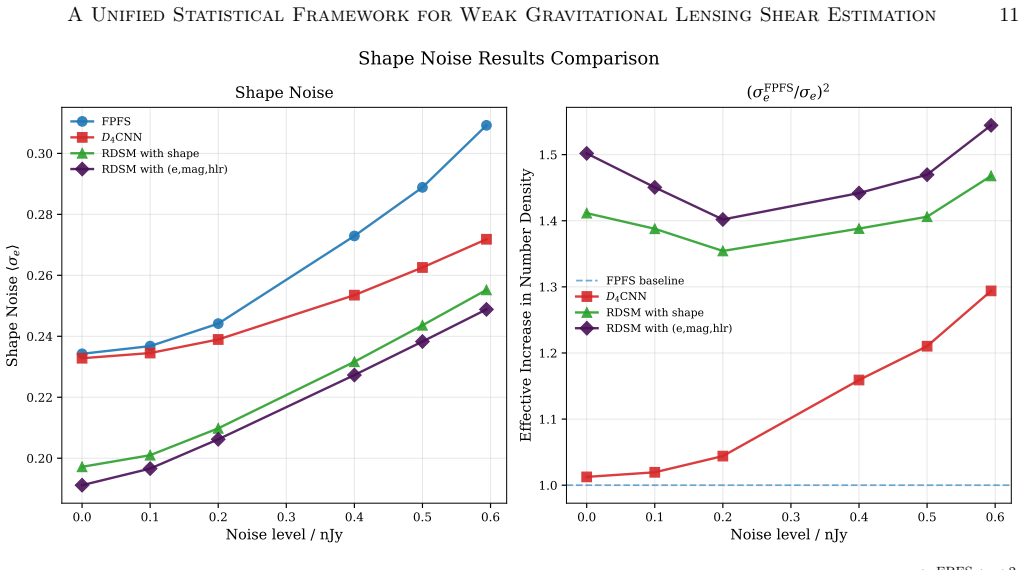

Figure 3. Figure 3: Left: Shape noise σe as a function of image noise level. Right: Effective increase in number density, (σ FPFS e /σe) 2 , relative to the FPFS baseline (dashed gray line at unity). The four D4CNN-based estimators are compared against the FPFS+AnaCal baseline (blue circles). The D4CNN trained with the standard FPFS ellipticity target (S. Lin et al. 2026) (red squares) already reduces shape noise below FPFS. … view at source ↗
Figure 4

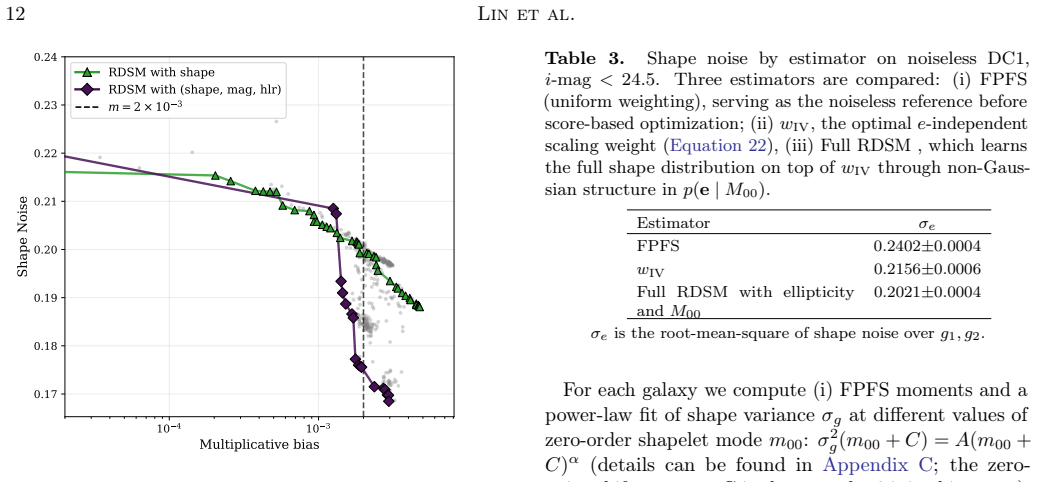

Figure 4. Figure 4: Bias–shape-noise Pareto front from Optuna mul￾ti-objective optimization of the RDSM hyperparameters (200 trials, search space defined in Section 3.2), under the mono￾tonicity constraint ρSpearman(sθ, |e|) > 0.7 and shape-fit slope satisfying slope − 1 > −0.01. Markers distinguish the two RDSM results: green triangles for shape-only results with σ = 0.5 and purple pentagons for (shape, i-mag, r1/2) result w… view at source ↗
read the original abstract

Weak gravitational lensing shear measurements are fundamentally limited by shape noise arising from the intrinsic diversity of galaxy morphologies. Upcoming surveys such as Rubin/LSST, Euclid, and Roman demand more flexible, statistically optimal approaches that can fully exploit high-dimensional image information. In this work, we develop a unified theoretical framework for shear estimation that connects classical response-based methods, shape noise, and modern machine-learning estimators through the concept of the score function -- the gradient of the image likelihood with respect to shear. We show that, for a general spin-2 ellipticity definition, the ensemble shear response corresponds to an inner product between the estimator and the score function, and that the score provides the minimum-variance unbiased shear estimator. By incorporating response into the classical inverse-variance weight, we prove that the response-weighted inverse-variance weight is a general shape-noise-minimizing weight, independent of the intrinsic shape distribution. Furthermore, we propose Response-weighted Denoising Score Matching (RDSM) that exploits the remaining structure to reduce shape noise by ${\sim}17.5\%$ relative to moment-based methods at LSST 10-year depth while maintaining a multiplicative shear estimation bias below $2\times 10^{-3}$. Our result clarifies the optimality of existing calibration techniques while revealing a principled pathway for constructing improved estimators via nonlinear shape transformations and learned representations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The paper develops a unified theoretical framework for weak gravitational lensing shear estimation using the score function of the image likelihood with respect to shear. It shows that the ensemble shear response is an inner product between the estimator and the score function for a general spin-2 ellipticity definition, that the score is the minimum-variance unbiased shear estimator, and that the response-weighted inverse-variance weight minimizes shape noise independently of the intrinsic shape distribution. The paper also proposes Response-weighted Denoising Score Matching (RDSM) that achieves approximately 17.5% shape noise reduction relative to moment-based methods at LSST 10-year depth with multiplicative bias below 2×10^{-3}.

Significance. If the derivations hold, this work supplies a principled statistical foundation that unifies classical response-based methods with modern machine-learning estimators for shear estimation. The demonstration that the optimal weighting is independent of the intrinsic shape distribution addresses a longstanding limitation and could simplify estimator design for surveys such as LSST, Euclid, and Roman. The explicit derivations from the likelihood score (without fitted parameters) constitute a clear strength. The proposed RDSM method supplies a concrete, quantifiable improvement pathway.

minor comments (2)
  1. [Abstract] The abstract states a specific 17.5% noise reduction; the main text should include the precise simulation setup, galaxy sample, and baseline moment-based estimator used to obtain this figure so that the result can be reproduced.
  2. The assumptions of likelihood differentiability with respect to shear and uncontaminated ensemble averages are stated; a brief dedicated paragraph early in the manuscript should summarize where these assumptions are used in the derivations and where they might be violated by real data.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their supportive review, accurate summary of our contributions, and recommendation for minor revision. We are pleased that the statistical framework and the independence of optimal weighting from the intrinsic shape distribution are recognized as strengths. No specific major comments were raised in the report.

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The derivation chain begins from the definition of the score as the gradient of the log-likelihood with respect to shear and shows that the ensemble response equals the inner product of any estimator with this score; this is a direct consequence of interchanging differentiation and expectation under the differentiability assumption stated in the paper. The minimum-variance property of the score estimator and the optimality of response-weighted inverse-variance weights then follow from the same identity without any fitted parameters, self-referential definitions, or load-bearing self-citations. The framework therefore remains self-contained and does not reduce any claimed prediction to its own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The framework rests on standard statistical assumptions about likelihood differentiability and ensemble averaging in weak lensing; no free parameters or new entities are introduced in the abstract.

axioms (2)
  • domain assumption The image likelihood is differentiable with respect to shear parameters.
    Required to define the score function as the gradient.
  • domain assumption Ensemble averages over galaxy populations yield an inner product between response and score without selection or observational biases.
    Needed for the minimum-variance and shape-noise-minimizing claims to hold.
