Swarm Engineering Through Quantitative Measurement of Swarm Robotic Principles in a 10,000 Robot Swarm

John Harwell , Maria Gini This is my paper

Pith reviewed 2026-05-25 00:52 UTC · model grok-4.3

classification 💻 cs.RO
keywords swarm roboticsscalability metricsflexibilityemergencemulti-robot systemsobject gatheringsimulationquantitative metrics
0
0 comments X

The pith

Quantitative metrics for scalability, flexibility and emergence guide the design of swarm robotic systems at scales of 10,000 robots.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper aims to give swarm designers tools to compare algorithms from different domains and select those that will work at large scales under changing conditions. It defines quantitative metrics that measure how well a swarm scales with robot numbers, adapts to new tasks or environments, and produces emergent group behaviors. These metrics are applied as a design tool through repeated hypothesis testing to solve an object-gathering task. The demonstration uses simulation experiments with swarms larger than 10,000 robots in conditions that vary over time. A sympathetic reader would care because the metrics turn swarm engineering from ad-hoc trial into a measurable, iterative process.

Core claim

The paper claims that a set of quantitative metrics for scalability, flexibility, and emergence can address the need for systematic algorithm comparison during swarm system design. By using these metrics to perform iterative hypothesis evaluation, the authors solve a large object gathering problem in temporally varying operating conditions, with all results obtained in simulation for swarms of over 10,000 robots.

What carries the argument

The set of quantitative metrics for scalability, flexibility, and emergence that function as an iterative design tool for comparing swarm algorithms.

If this is right

  • Algorithms from different domains can be compared directly to determine which scale to target problem sizes.
  • Swarm design can proceed systematically under temporally varying operating conditions rather than fixed ones.
  • Iterative hypothesis evaluation guided by the metrics produces working solutions for large object gathering tasks.
  • Swarm systems with more than 10,000 robots become feasible to engineer and evaluate in simulation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The metrics could be applied to tasks outside object gathering to check whether their task independence holds.
  • Results from simulation could be compared against equivalent physical robot experiments to test whether the metrics remain useful when hardware noise is present.
  • If the metrics prove reliable, they might serve as a common evaluation language across separate swarm research groups.

Load-bearing premise

The metrics capture the intended properties of scalability, flexibility, and emergence independently of the specific object-gathering task and the chosen simulation environment.

What would settle it

Applying the same metrics to a different swarm task such as formation control or foraging and finding that they fail to rank algorithms in line with actual performance outcomes would show the metrics do not generalize.

Figures

Figures reproduced from arXiv: 1907.03880 by John Harwell, Maria Gini.

Figure 1

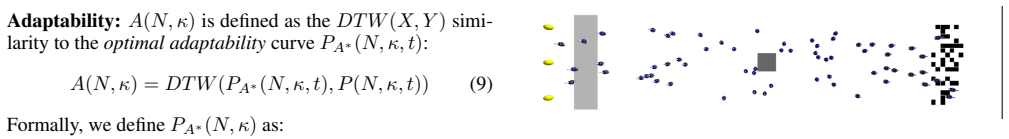

Figure 1. Figure 1: A screen shot of a simulation with multiple robots, objects [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2

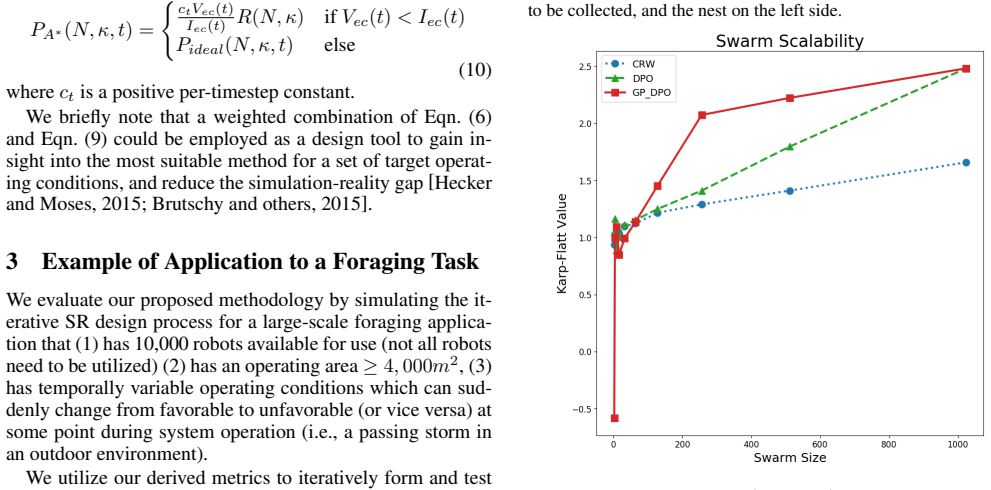

Figure 2. Figure 2: Swarm scalability e(N1, N2, κ) for the 32×16 scenario. CRW swarms are the most parallelizable (i.e., proportional perfor￾mance increases are likely at higher values of N). 3.1 Ideal Conditions We begin with a 32 × 16 = 368 m2 arena, and define P(N, κ, T) for ideal operating conditions as the cumulative number of objects gathered within a simulation up to time t = T. We first evaluate our scalability measur… view at source ↗
Figure 5

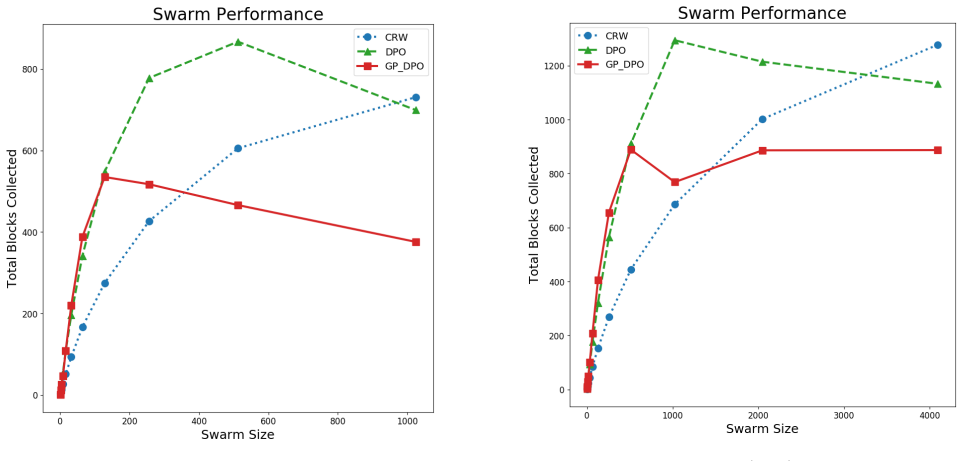

Figure 5. Figure 5: Swarm performance P(N, κ) for the 64 × 32 scenario [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 4
Figure 4. Figure 4: Swarm self-organization Z(N, κ)for the 64×32 scenario. Asymptotic trendlines suggest the hypothesis that DPO swarms have the greatest potential for self-organization with N > 4, 096. need to continue to scale up a method once you observe a neg￾ative Z(N, κ) value). Finally, in CRW swarms we observe that the consistently low levels of self-organization never￾theless correlate with performance trendlines sug… view at source ↗
Figure 8

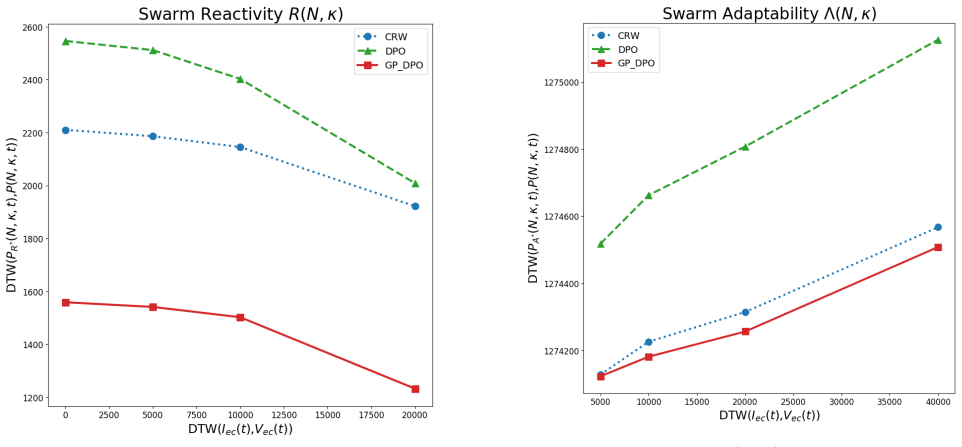

Figure 8. Figure 8: Swarm adaptability A(N, κ) with an applied variance of V2(t, α). Lower Y-values indicate less distance to PA∗ (N, κ, t) and hence greater adaptability. robots as the CRW method does with 8,192, but it is the least reactive and the least adaptive of the chosen methods. Both of these are important factors in determining method suit￾ability in our target application, and we therefore select the CRW method wit… view at source ↗
read the original abstract

When designing swarm-robotic systems, systematic comparison of algorithms from different domains is necessary to determine which is capable of scaling up to handle the target problem size and target operating conditions. We propose a set of quantitative metrics for scalability, flexibility, and emergence which are capable of addressing these needs during the system design process. We demonstrate the applicability of our proposed metrics as a design tool by solving a large object gathering problem in temporally varying operating conditions using iterative hypothesis evaluation. We provide experimental results obtained in simulation for swarms of over 10,000 robots.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The paper proposes quantitative metrics for scalability, flexibility, and emergence to support systematic comparison and design of swarm-robotic systems. It demonstrates their use as a design tool via iterative hypothesis evaluation on a large object-gathering task in temporally varying conditions, with experimental results from simulations of swarms exceeding 10,000 robots.

Significance. If the metrics can be shown to apply beyond the demonstrated task, the work would supply a useful quantitative framework for swarm engineering at large scales. The reported simulation scale (over 10,000 robots) is a concrete strength that exceeds typical swarm studies.

major comments (1)
  1. [Demonstration and results sections] The central claim that the metrics constitute general design tools independent of any one task is load-bearing for the contribution, yet the validation consists solely of iterative application to the object-gathering problem (see the demonstration and results sections). No cross-task experiments, alternative environments, or first-principles derivation are provided to rule out task-specific embedding (e.g., in how temporal variation or object density enters the metric definitions).
minor comments (1)
  1. [Abstract] The abstract asserts that 'experimental results support the metrics' without defining the metrics, reporting statistical details, or naming baselines; this should be expanded for clarity even if the body supplies the definitions.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their review and the opportunity to clarify the scope of our contribution. We respond to the major comment below.

read point-by-point responses

  1. Referee: [Demonstration and results sections] The central claim that the metrics constitute general design tools independent of any one task is load-bearing for the contribution, yet the validation consists solely of iterative application to the object-gathering problem (see the demonstration and results sections). No cross-task experiments, alternative environments, or first-principles derivation are provided to rule out task-specific embedding (e.g., in how temporal variation or object density enters the metric definitions).

    Authors: The metrics are defined from first principles using task-independent quantities: scalability as the scaling of performance metrics with swarm size, flexibility as the change in performance under variation in environmental parameters, and emergence as the difference between collective and individual-level performance. None of the definitions embed task-specific features such as object density, particular temporal schedules, or the details of the gathering behavior; these quantities are measured after the fact from any swarm execution trace. The object-gathering scenario was selected as a single, demanding test case (large scale, temporal variation, >10,000 robots) to illustrate iterative hypothesis-driven design, not to exhaustively validate generality. We therefore maintain that the metrics can be applied to other tasks without modification, while acknowledging that additional demonstrations on different problems would strengthen the claim. revision: no

Circularity Check

0 steps flagged

No circularity: metrics proposed then applied sequentially

full rationale

The paper proposes quantitative metrics for scalability, flexibility, and emergence, then demonstrates their use as a design tool via iterative hypothesis evaluation on an object-gathering task. No equations, definitions, or self-citations in the provided text reduce any claimed prediction or result to its own inputs by construction; the proposal and demonstration steps remain distinct with no self-definitional, fitted-input, or uniqueness-imported patterns exhibited.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review supplies no explicit free parameters, axioms, or invented entities; the metrics are asserted to exist but their mathematical form is not given.
