By time-multiplexing optical circuits across parallelism phases, photonic rails can cut ML network power over 23× and cost 4× while adding under 7% to training time.

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

T0 review · deepseek-v4-flash

2026-08-02 23:45 UTC pith:TE3CXUCK

load-bearing objection A genuinely novel phase-multiplexed rail idea, but the headline overhead numbers rest on an unproven non-overlap assumption and a NIC firmware fix that the hardware doesn't deliver yet. the 3 major comments →

arxiv 2602.12521 v3 pith:TE3CXUCK submitted 2026-02-13 cs.NI

Opus: Photonic Rail-Optimized Fabric in ML Datacenters

Eric Ding , Barry Lyu , Bhaskar Kataria , Rachee Singh This is my paper
classification cs.NI
keywords photonic circuit switchrail-optimized fabricparallelism-driven reconfigurationhybrid parallelismoptical datacenter networkin-job reconfigurationML trainingnetwork power efficiency
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Rail-optimized fabrics are the standard scale-out network for large-scale ML training, but their high-radix electrical switches consume significant power and cost. This paper argues that the rail abstraction can be preserved with optical circuit switches, which consume a fraction of the power, by reconfiguring the optics within each training step. The key is that the communication phases of different parallelism dimensions—data, pipeline, tensor, context, expert—do not overlap in time, leaving idle windows between phases. Opus, a control plane layered between the training framework and the collective communication library, reprograms the optical switch during these windows so each phase gets full-bandwidth, tailored connectivity without extra NICs. The paper reports that this design achieves over 23× network power reduction and 4× cost savings while adding less than 6.7% to iteration time at production-relevant reconfiguration latencies.

Core claim

Opus's central claim is that the all-to-all connectivity invariant of rail-optimized fabrics need not be physically provisioned at all times: it can be presented as an illusion by an application-aware control plane that reconfigures a single optical circuit switch between the communication phases of different parallelism dimensions. Because collectives from different parallelisms (e.g., data-parallel ReduceScatter and pipeline-parallel Send/Recv) are separated by data dependencies in the model's compute graph, there are idle windows—often milliseconds long—between phases. If the optical switch can be reprogrammed within such a window, a GPU's few physical NIC ports can be time-multiplexed ac

What carries the argument

The central mechanism is parallelism-driven rail reconfiguration: within a single training iteration, the optical circuit switch is reprogrammed at parallelism phase boundaries to present a circuit topology tailored to the upcoming collective, using the same physical ports for every phase. The load-bearing object is the communication window—the idle interval between the end of one phase's collectives and the start of the next phase's—which is formalized as the minimum over next-phase collectives of the slowest-rank start time minus the maximum end time of the previous phase. Opus exploits this window in two ways: on-demand reconfiguration at phase transitions, and speculative provisioning wh

Load-bearing premise

The load-bearing premise is that the communication phases of different parallelism dimensions never overlap in time, so a single optical switch can be reprogrammed between them without stalling traffic—if DP and PP (or other) collectives overlap, the time-multiplexing mechanism collapses.

What would settle it

Record collective traces of a hybrid-parallel LLM training step and check whether any idle window between a pipeline-parallel Send/Recv and the following data-parallel ReduceScatter is ever shorter than the OCS reconfiguration time; a single such overlap, or a window below the switching latency, would invalidate the reported overhead.

Watch this falsifier. Get emailed when new claim-graph text bears on it.

If this is right

  • The number of parallelisms a job can use is no longer bounded by the number of NIC ports per GPU; Opus's topology encoding supports up to 10 parallelism dimensions with only 2-degree ring connectivity.
  • At production-relevant OCS reconfiguration latencies (up to 100 ms), the training overhead stays below 7%—around 5% on current GPU clusters with provisioning, and lower at 10 ms.
  • Network power and cost scale with cluster size; at 2,048 GPUs the photonic rail shows 15–24× lower power and 3–4× lower cost than electrical rail fabrics, with the absolute savings growing as clusters grow.
  • The datapath becomes GPU→NIC→optical fiber→NIC→GPU, removing OEO conversions and switch ASIC processing, so bandwidth scaling is no longer limited by ASIC speed.
  • Opus works with existing training frameworks through a single backend flag, requiring no changes to model code or parallelism constructs, and its locking protocol ensures circuits are never torn down with traffic in flight.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • An extension the paper leaves implicit: the same phase-window mechanism could serve inference pipelines and RL post-training, whose prefill/decode and rollout/optimize phases also have structured idle windows.
  • The headline 23× power savings is measured against a fully electrical rail baseline; compared to hybrid fabrics that already use co-packaged optics, the relative gain would be smaller, so the figure is best read as the opportunity against today's standard deployment.
  • A testable consequence of the central assumption: the paper's window measurements come from three LLM configurations; workloads that aggressively overlap communication with compute (e.g., zero-bubble pipeline schedules) may shrink inter-phase windows below the OCS reconfiguration time, and measuring window distributions across a broader workload space would bound Opus's applicability.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. Opus proposes replacing electrical rail switches in ML datacenter fabrics with optical circuit switches (OCSes), while retaining the rail abstraction through 'parallelism-driven rail reconfiguration.' The key idea is to time-multiplex a single set of physical ports across circuit configurations that are optimized for each parallelism phase (DP, PP, FSDP, etc.), reconfiguring the OCS during the idle windows between communication phases of different parallelism dimensions. The paper describes a control plane (shim, controller, network orchestrator), implements it as a PyTorch backend, and evaluates it on a small physical OCS testbed, on the Perlmutter supercomputer via emulation (up to 64 GPUs), and in simulation at up to 2,048 GPUs. The headline results are >23× network power reduction and >4× cost savings, with less than 6.7% training iteration-time overhead at OCS reconfiguration latencies up to 100 ms.

Significance. If the central claims hold, this would be a significant contribution: it is one of the first systems to make a concrete case for replacing electrical packet switches with OCSes inside a widely deployed rail-optimized topology, without changing the number of NICs per GPU or the job's parallelism strategy. The paper includes a real hardware testbed, a working control-plane implementation, open-source code, and a three-scale evaluation, which are strengths for reproducibility. The power and cost numbers, if substantiated with a transparent methodology, would be important for datacenter designers. However, the headline performance claims rest on two assumptions that are not fully validated: that communication phases of different parallelism dimensions are strictly non-overlapping, and that NIC firmware can be made to support fast link-up after circuit reconfiguration. The physical testbed only demonstrates ~3 s end-to-end reconfiguration, and the simulator enforces the non-overlap assumption rather than testing it.

major comments (3)
  1. [§3.2, Eq. (1)–(2), Fig. 3, and §5.3 (AstraSim backend)] The central time-multiplexing mechanism assumes that communication phases of different parallelism dimensions never overlap. The window definition in Eq. (1) presupposes a gap between the end of all comm_i in P1 and the start of all comm_j in P2. The empirical support is limited to three TorchTitan workloads with PP=2/FSDP=2 and PP=3/FSDP=2; zero-bubble pipeline schedules, MoE AllToAll/AllGather, and aggressive compute-communication overlap are not covered. Critically, the simulation backend in §5.3 'rejects reconfiguration requests while collectives are in flight,' so the simulator enforces the non-overlap assumption rather than testing it. If a collective from the next phase arrives before reconfiguration completes, Opus's lock stalls that collective for the full reconfiguration latency. Please add evidence for schedules with overlap (e.g., zero-bubble, MoE, interleaved microbatches),
  2. [§5.1, Fig. 9(c)–(d)] The hardware testbed does not demonstrate the production-relevant reconfiguration latencies (≤100 ms) used in the paper's headline. The measured end-to-end reconfiguration is dominated by the NIC firmware: the Polatis switch returns optical power within ~200 ms, but the Mellanox firmware takes ~3 s (or ~6 s with auto-negotiation) to report link-up. The paper attributes this to firmware assumptions and says fast link-up is available with firmware support, but no such firmware is demonstrated or simulated at the hardware layer. Consequently, the physical system validates the control plane only at ~3 s reconfiguration time, while the 100 ms results come from emulation/simulation. Please temper the claim that the physical testbed validates production-relevant performance, or add a concrete path (e.g., modified/emulated firmware behavior) to bring the NIC link-up time into the OCS switching r
  3. [§5.3, Figure 14, 'Cost and power'] The cost and power savings—4.27× cost and 23.86× power for H200, 3.17× and 15.44× for GB200—are central to the paper's contribution, but the methodology is not described. The text only cites [16–18,44,52,63] and states that fiber cables are excluded. There is no bill of materials, no unit power/cost table, no switch/transceiver counts, and no sensitivity analysis. As written, the savings factors are not reproducible. Please provide a component-level cost/power model, including OCS, transceivers, NICs, and switch ASICs, and show how the savings vary with the assumed OCS port count, link rate, and pricing source.
minor comments (5)
  1. [Abstract and §1] The abstract states 'less than 6% training overhead,' while §1 and §5.3 report 'less than 6.7%' and specific values such as 5.31% and 11.22%. Please reconcile the abstract with the empirical numbers.
  2. [Eq. (5) / Fig. 5] The formula for the number of windows is presented as an equation with symbols (n_layer, n_microbatch, PP) but the terms in the right-hand side are not individually derived or defined in the text. Please define all terms and give a brief derivation of each additive component.
  3. [§5.1 / Fig. 9] The RDMA RETRY_CNT=7 setting is mentioned in the text but not discussed as a potential limitation. Since the paper claims no transport modifications, please clarify whether this setting affects fault tolerance or timeout behavior during reconfiguration.
  4. [Figure 3 and 4] The axis labels and legends in Figures 3 and 4 are hard to read in the provided text; e.g., repeated '0481204812' tick labels and 'Rail 0 window break-down' should be 'breakdown.' Please improve figure clarity.
  5. [§5.3 / Table 2] The simulation baseline 'EPS' is described as having all links active that Opus could form, but the paper does not specify the exact EPS topology (e.g., rail-optimized vs. fat-tree). Since the power/cost comparison uses 'EPS Rail-Opt' in Figure 14, please clarify whether the performance baseline is the same rail-optimized EPS or a generic electrical fabric.

Circularity Check

0 steps flagged

No significant circularity: the claimed power/cost and overhead results are derived from component models, measurements, and simulations whose inputs are not fitted to the claimed outputs; the self-citations are not load-bearing.

full rationale

I walked the paper's derivation chain and found no step in which a claimed prediction reduces by construction to its inputs. The headline quantitative results—over 23× power reduction, ~4× cost savings, and <6.7% iteration-time overhead—are produced by two independent mechanisms. The cost/power comparison is based on component counts and unit costs (e.g., "Cost and power exclude fiber cables. [16–18, 44, 52, 63]"), not on fitted values derived from the claimed savings. The iteration-time overhead is measured on a physical testbed, emulated on Perlmutter with injected reconfiguration delays, and simulated in AstraSim with Chakra traces; in all cases the reconfiguration latency is swept as an independent input (0–1000 ms) rather than tuned to reproduce the <6.7% number. The window measurements in §3.2 motivate the choice of reconfiguration latency target, but the simulation derives communication and compute times from model/workload configurations, so the overhead result is not an artifact of the window definition. The paper's central mechanism does rely on the empirical assumption that parallelism phases are non-overlapping, and the evidence for this is limited to three measured workloads; however, that is a generalizability/correctness concern, not circularity, because the assumption is stated as an observation and is not used to define the measured overhead. The citations to the authors' own prior work ([32] and [33]) appear in related-work and survey contexts (e.g., "A wide range of general datacenter fabric designs... [29, 30, 32, 33, 83, 85, 91]"), and are not invoked as proof of Opus's mechanism, uniqueness, or optimality. Accordingly, no load-bearing self-citation chain exists. The paper is a systems design with components, measurements, and simulations whose inputs are independent of the final claims, so the honest finding is no significant circularity.

Axiom & Free-Parameter Ledger

3 free parameters · 4 axioms · 0 invented entities

The paper introduces no new physical entities. Its central claim rests on empirical assumptions about ML communication phase non-overlap and on hardware assumptions about OCS reconfiguration latency and NIC link-up speed. The free parameters are mostly swept or hand-chosen configuration values, not fitted to data. The most load-bearing assumption is the non-overlap of parallelism phases, which is measured for specific workloads but not guaranteed in general.

free parameters (3)
  • profiling_steps = 5
    The phase table is populated during the first 5 training iterations. This is a hand-chosen constant; different values could affect the accuracy of phase-boundary detection and the resulting reconfiguration overhead.
  • OCS reconfiguration latency in simulations = swept: 0–1000 ms
    The central overhead claims are produced by sweeping this parameter. It is not fitted, but the claim that 'production-relevant' latencies are ≤100 ms is a chosen target, not a measured hardware capability.
  • RDMA RETRY_CNT = 7
    Set to avoid QP error state during reconfiguration. A design choice; the paper does not study sensitivity to this value.
axioms (4)
  • domain assumption Communication phases of different parallelisms do not overlap in time (there is a non-empty window between the end of one parallelism's last collective and the start of the next's first collective).
    This is the basis for time-multiplexing. It is empirically supported by Figure 3 for three workloads on Perlmutter, but is not guaranteed for all pipeline schedules, model sizes, or overlap strategies. The window-size equation in Section 3.2 assumes this ordering.
  • domain assumption OCS reconfiguration latency can be hidden within phase-transition windows (i.e., the windows are larger than the reconfiguration delay).
    The paper measures window sizes of at least ~1ms for 75% of transitions, but production-relevant latencies are taken as 100ms in the headline results. The hardware testbed shows 3s NIC firmware delay, so the hiding assumption depends on future firmware improvements.
  • domain assumption The parallelism phase structure is stable across training iterations (the phase table learned in the first 5 steps remains valid).
    Profiling assumes a deterministic communication schedule. Dynamic graphs, varying batch sizes, or failover reconfigurations could invalidate this. The paper acknowledges fault handling but not schedule variability.
  • domain assumption OCS radix is sufficient to connect all GPUs of a rail (e.g., 384-512 ports for large scale-up domains).
    Section 7 states up to 18K GPUs per rail with 512-port liquid-crystal OCSes, but this requires one port per GPU NIC and assumes the NIC has sufficient ports. The paper's own C1–C3 challenges are resolved by reconfiguration, but port count remains a hard limit that the paper does not deeply analyze.

pith-pipeline@v1.3.0-alltime-deepseek · 25346 in / 8567 out tokens · 75898 ms · 2026-08-02T23:45:39.205117+00:00 · methodology

0 comments
read the original abstract

Rail-optimized network fabrics have become the de facto datacenter scale-out fabric for large-scale ML training. However, the use of high-radix electrical switches to provide all-to-all connectivity in rails imposes substantial power and cost. We propose a rethinking of the rail abstraction by retaining its communication semantics, but realizing it using optical circuit switches. The key challenge is that optical switches support one-to-one connectivity at a time, limiting the fan-out of traffic in ML workloads using hybrid parallelisms. We overcome this through \emph{parallelism-driven rail reconfiguration}, which exploits the non-overlapping communication phases of different parallelism dimensions. This time-multiplexes a single set of physical ports across circuit configurations tailored to each phase within a training iteration. We design and implement Opus, a control plane that orchestrates this in-job reconfiguration of photonic rails at parallelism phase boundaries, and evaluate it on a physical OCS testbed, the Perlmutter supercomputer, and in simulation at up to 2,048 GPUs. Our results show that photonic rails can achieve over $23\times$ network power reduction and $4\times$ cost savings while incurring only modest training overhead at production-relevant OCS reconfiguration latencies.

Figures

Figures reproduced from arXiv: 2602.12521 by Barry Lyu, Bhaskar Kataria, Eric Ding, Rachee Singh.

Figure 1

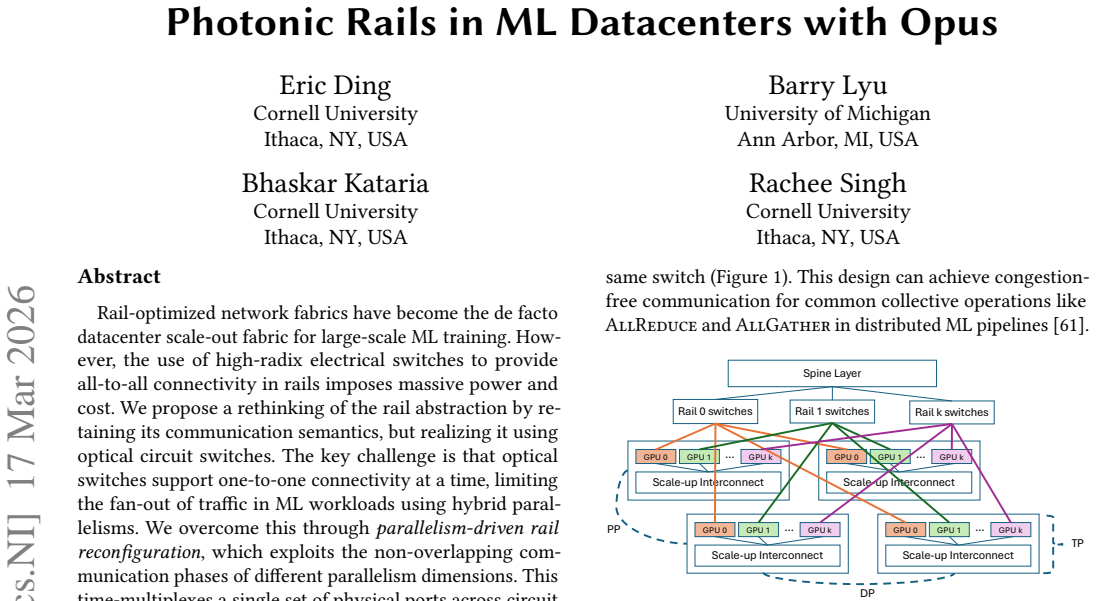

Figure 1. Figure 1: Rail-optimized fabrics.We propose to replace packet [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

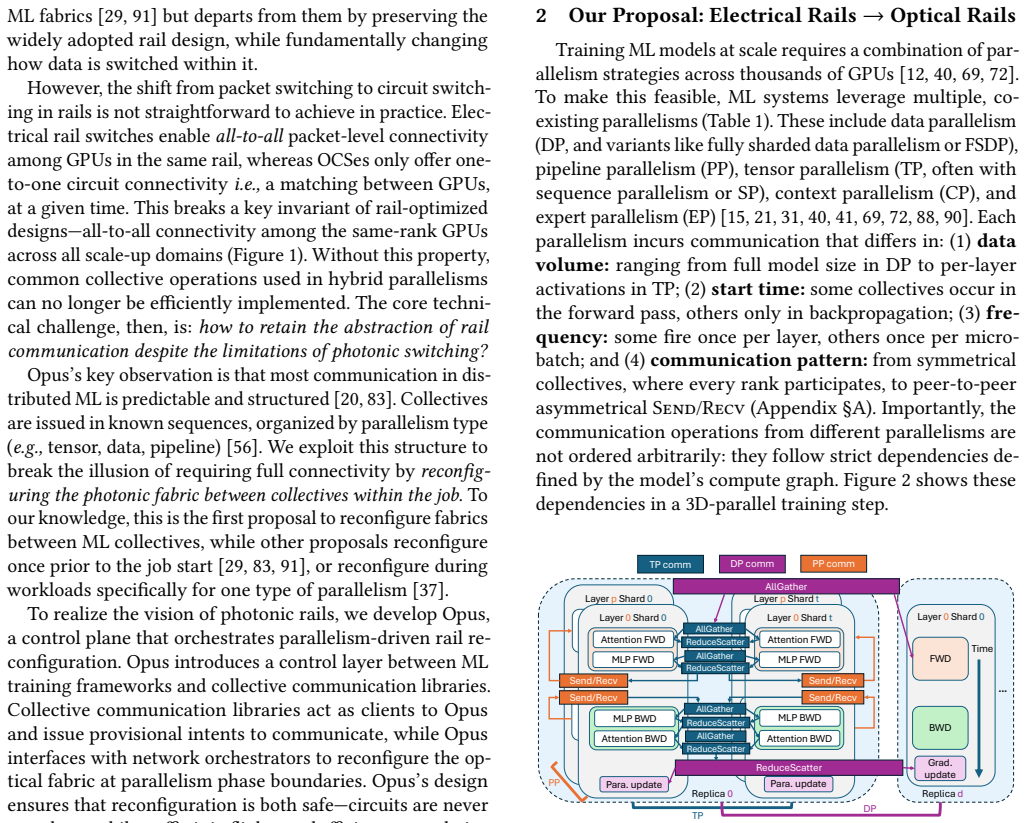

Figure 2. Figure 2: Traffic in a training iteration with 3D parallelism. [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Communication pattern for PP and FSDP in one [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

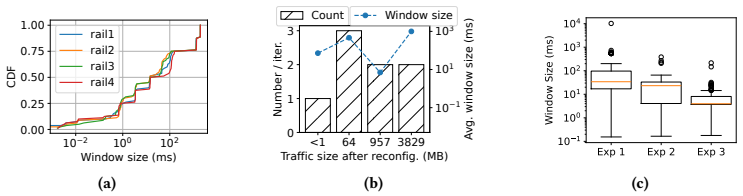

Figure 4. Figure 4: (a) CDF of window size from 10 iters in Exp 1. (b) Rail 0 window break-down based on traffic volume after the window [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Number of windows in one training iteration with different parallelisms. [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Reconfiguration during the warm-up stage of rank [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Opus system architecture. topology identifier, topo_id𝑖 , which encodes the current con￾nectivity requirement of the job on rail 𝑖. Topology ID encoding. The topo_id is a decimal integer whose digit positions correspond to the ways (stages) of the job’s asymmetrical parallelism (e.g., the 𝑃asym stages of PP). Each digit value encodes which parallelism dimension cur￾rently “owns” the connectivity for that s… view at source ↗
Figure 8
Figure 8. Figure 8: Translating parallelism shifts to topology recon [PITH_FULL_IMAGE:figures/full_fig_p007_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Hardware testbed evaluation. (a) Physical testbed: 4 L40 GPU servers connected via a Polatis Series 6000 OCS forming [PITH_FULL_IMAGE:figures/full_fig_p010_9.png] view at source ↗
Figure 10

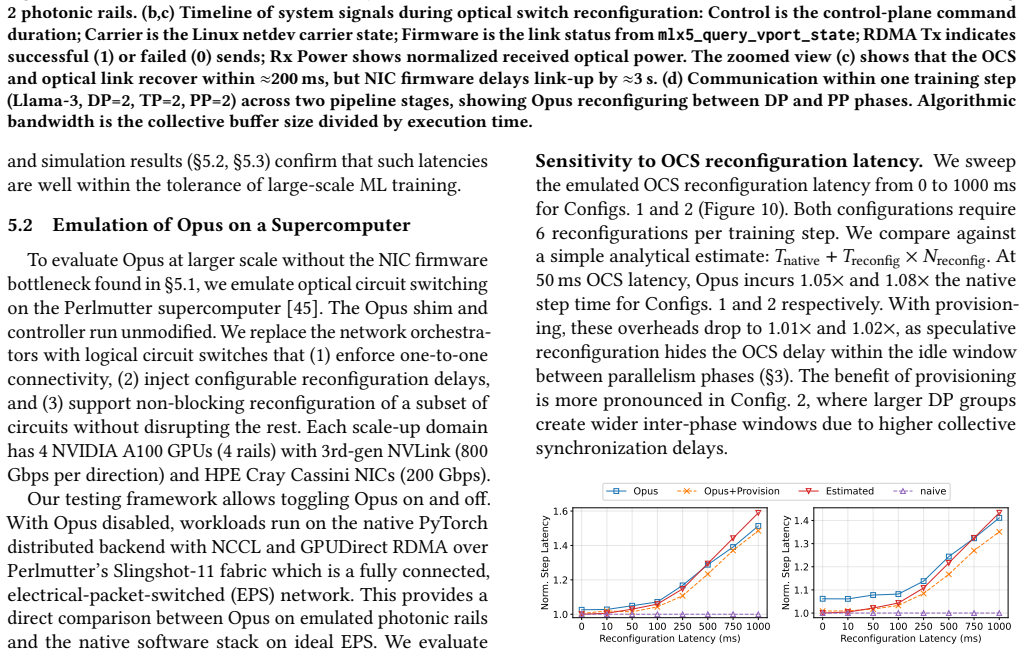

Figure 10. Figure 10: Step latency vs. emulated OCS reconfiguration [PITH_FULL_IMAGE:figures/full_fig_p010_10.png] view at source ↗
Figure 11

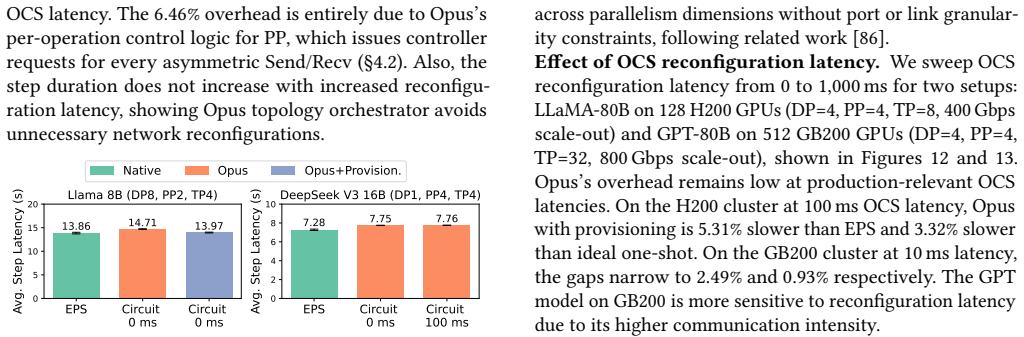

Figure 11. Figure 11: Control-plane overhead. (left) Config. 2 (64 GPUs): [PITH_FULL_IMAGE:figures/full_fig_p011_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: LLaMA-80B on 128 H200 GPUs (DP=4, PP=4, TP=8). [PITH_FULL_IMAGE:figures/full_fig_p011_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: GPT-80B on 512 GB200 GPUs (DP=4, PP=4, TP=32). [PITH_FULL_IMAGE:figures/full_fig_p011_13.png] view at source ↗
Figure 14

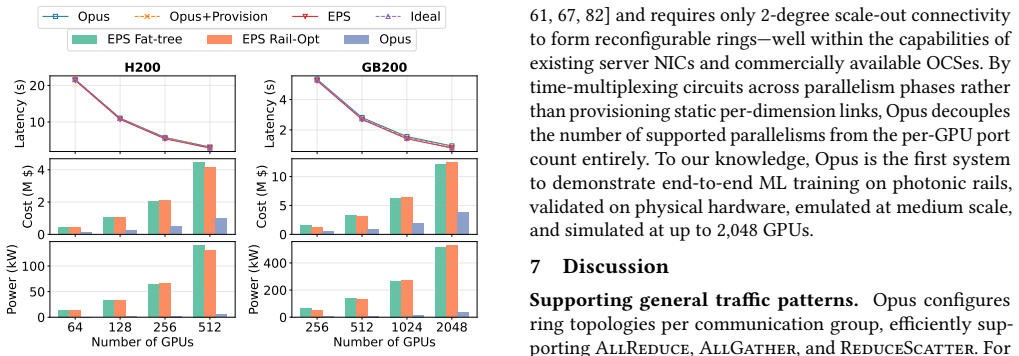

Figure 14. Figure 14: Performance, cost, and power scaling. DGX H200 [PITH_FULL_IMAGE:figures/full_fig_p012_14.png] view at source ↗
