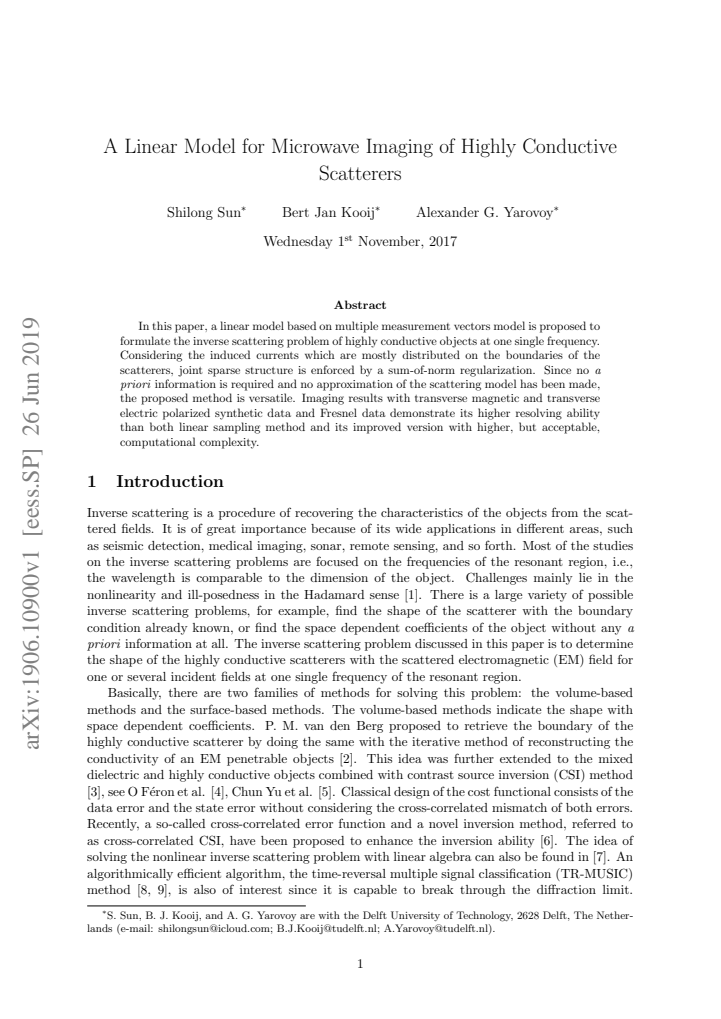

A Linear Model for Microwave Imaging of Highly Conductive Scatterers
Pith reviewed 2026-05-25 15:40 UTC · model grok-4.3
The pith
A single-frequency linear model with sum-of-norm regularization resolves highly conductive scatterers more sharply than linear sampling methods.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The central claim is that formulating the inverse scattering problem as a multiple measurement vectors model and solving it with sum-of-norm regularization yields a linear method capable of imaging highly conductive scatterers at a single frequency with superior resolving power compared to existing linear sampling techniques.
What carries the argument
The multiple measurement vectors model with sum-of-norm regularization, which captures the joint sparse distribution of induced currents on object boundaries.
Load-bearing premise
Induced currents are mostly distributed on the boundaries of the scatterers.
What would settle it
An experiment on Fresnel data showing that the proposed method does not achieve higher resolving ability than the linear sampling method for closely spaced conductive objects.
Figures
read the original abstract
In this paper, a linear model based on multiple measurement vectors model is proposed to formulate the inverse scattering problem of highly conductive objects at one single frequency. Considering the induced currents which are mostly distributed on the boundaries of the scatterers, joint sparse structure is enforced by a sum-of-norm regularization. Since no \textit{a priori} information is required and no approximation of the scattering model has been made, the proposed method is versatile. Imaging results with transverse magnetic and transverse electric polarized synthetic data and Fresnel data demonstrate its higher resolving ability than both linear sampling method and its improved version with higher, but acceptable, computational complexity.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript proposes a linear multiple-measurement-vector (MMV) model for the single-frequency inverse scattering problem of highly conductive objects. It enforces joint sparsity on the induced currents via sum-of-norm regularization, motivated by the premise that currents are mostly distributed on scatterer boundaries. The method is presented as versatile because it requires no a priori information and introduces no approximation to the scattering integral equation. Imaging results on TM/TE synthetic data and Fresnel experimental data are claimed to demonstrate higher resolving power than the linear sampling method (LSM) and an improved LSM variant, at the expense of higher but acceptable computational cost.
Significance. If the boundary-current premise is shown to hold for the reported data sets and the resolution gains are supported by quantitative metrics, the MMV-plus-sum-of-norms formulation could supply a practical linear route to imaging highly conductive targets without multi-frequency data or strong priors.
major comments (3)
- [Abstract] Abstract: the central claim of 'higher resolving ability' is asserted without any quantitative metrics (e.g., resolution measures, RMSE, or visual error maps), error analysis, or tabulated comparisons; this prevents assessment of whether the reported improvement is statistically meaningful or merely visual.
- [Abstract / §2] Abstract / §2 (model derivation): the sum-of-norm regularization is justified solely by the statement that 'induced currents which are mostly distributed on the boundaries of the scatterers,' yet the manuscript contains no verification that the reconstructed currents in the synthetic TM/TE or Fresnel experiments actually exhibit this distribution (e.g., by plotting |J| inside versus on the boundary or comparing to full-wave reference currents); without this check the regularization choice is an untested modeling assumption whose validity directly determines whether the observed resolution gain can be attributed to the proposed structure.
- [Abstract] Abstract: the assertion that 'no approximation of the scattering model has been made' is in tension with the introduction of the joint-sparsity penalty, which is an additional modeling choice not present in the exact integral equation; the claim of versatility therefore rests on the unverified boundary-current premise rather than on an exact forward model alone.
minor comments (1)
- [Abstract] Abstract: the qualifier 'with higher, but acceptable, computational complexity' is imprecise; concrete runtime or flop-count comparisons versus LSM should be supplied in the results section.
Simulated Author's Rebuttal
We thank the referee for the constructive comments. We address each major point below and will revise the manuscript accordingly to improve clarity and support for the claims.
read point-by-point responses
-
Referee: [Abstract] Abstract: the central claim of 'higher resolving ability' is asserted without any quantitative metrics (e.g., resolution measures, RMSE, or visual error maps), error analysis, or tabulated comparisons; this prevents assessment of whether the reported improvement is statistically meaningful or merely visual.
Authors: We agree that the abstract would benefit from quantitative support. In the revised manuscript we will add RMSE values computed on the synthetic TM/TE data sets, a table comparing resolution metrics (e.g., FWHM of reconstructed features) against LSM, and brief error-map discussion in the results section. revision: yes
-
Referee: [Abstract / §2] Abstract / §2 (model derivation): the sum-of-norm regularization is justified solely by the statement that 'induced currents which are mostly distributed on the boundaries of the scatterers,' yet the manuscript contains no verification that the reconstructed currents in the synthetic TM/TE or Fresnel experiments actually exhibit this distribution (e.g., by plotting |J| inside versus on the boundary or comparing to full-wave reference currents); without this check the regularization choice is an untested modeling assumption whose validity directly determines whether the observed resolution gain can be attributed to the proposed structure.
Authors: The boundary-concentration premise follows from standard electromagnetic theory for highly conductive scatterers. While the original submission did not include explicit verification plots, we will add figures of the reconstructed |J| magnitude for representative synthetic cases to illustrate boundary localization. Direct comparison to full-wave reference currents is not feasible within the scope of the present linear model and data sets, as the paper does not compute or store such references. revision: partial
-
Referee: [Abstract] Abstract: the assertion that 'no approximation of the scattering model has been made' is in tension with the introduction of the joint-sparsity penalty, which is an additional modeling choice not present in the exact integral equation; the claim of versatility therefore rests on the unverified boundary-current premise rather than on an exact forward model alone.
Authors: We will revise the wording to clarify that the forward scattering integral equation is retained exactly (no Born or other approximation), while the joint-sparsity term is a regularization choice in the inverse solver. The versatility statement refers to the absence of a priori scatterer geometry or multi-frequency data; we will rephrase the abstract to separate the exact forward model from the regularization strategy. revision: yes
Circularity Check
No significant circularity in the derivation chain
full rationale
The paper proposes a linear MMV forward model for the inverse scattering problem and motivates the sum-of-norm regularization directly from the stated physical premise that induced currents are mostly on scatterer boundaries. This is an explicit modeling assumption, not a quantity derived from or fitted to the target imaging results. No equations reduce a claimed prediction to its inputs by construction, no self-citations are load-bearing for the central claim, and the reported resolution gains are obtained by applying the regularized solver to independent synthetic and Fresnel data sets. The derivation is therefore self-contained.
Axiom & Free-Parameter Ledger
Reference graph
Works this paper leans on
-
[1]
Hadamard, Lectures on Cauchy’s problem in linear partial differential equations
J. Hadamard, Lectures on Cauchy’s problem in linear partial differential equations . Mi- neola, New York: Dover Publications, Inc., 2014
work page 2014
-
[2]
Two-dimensional location and shape reconstruction,
R. Kleinman and P. den Berg, “Two-dimensional location and shape reconstruction,” Radio Science, vol. 29, no. 4, pp. 1157–1169, 1994
work page 1994
-
[3]
A contrast source inversion method,
P. M. Van Den Berg and R. E. Kleinman, “A contrast source inversion method,” Inverse problems, vol. 13, no. 6, pp. 1607–1620, 1997
work page 1997
-
[4]
O. F´ eron, B. Duchˆ ene, and A. Mohammad-Djafari, “Microwave imaging of inhomogeneous objects made of a finite number of dielectric and conductive materials from experimental data,” Inverse Problems, vol. 21, no. 6, pp. S95–S115, 2005
work page 2005
-
[5]
Inversion of multi-frequency experimental data for imaging complex objects by a DTA–CSI method,
C. Yu, L.-P. Song, and Q. H. Liu, “Inversion of multi-frequency experimental data for imaging complex objects by a DTA–CSI method,” Inverse Problems, vol. 21, no. 6, pp. S165–S178, 2005
work page 2005
-
[6]
Cross-correlated contrast source inversion,
S. Sun, B. J. Kooij, T. Jin, and A. G. Yarovoy, “Cross-correlated contrast source inversion,” IEEE Transactions on Antennas and Propagation , vol. 65, no. 5, pp. 2592–2603, 2017
work page 2017
-
[7]
Numerical linear algebra for nonlinear microwave imaging,
F. Di Benedetto, C. Estatico, J. G. Nagy, and M. Pastorino, “Numerical linear algebra for nonlinear microwave imaging,” Electronic Transactions on Numerical Analysis, vol. 33, pp. 105–125, Oct. 2009. 26 0 2 04 06 08 0 Iteration number 10-1 100 Normalized residual Reconstruction residual CV residual 20 40 60 0.04 0.05 0.06 0.07 (a) 0 2 04 06 08 0 1 0 0 1 2...
work page 2009
-
[8]
Time reversal imaging of obscured targets from multistatic data,
A. Devaney, “Time reversal imaging of obscured targets from multistatic data,” IEEE Transactions on Antennas and Propagation , vol. 53, no. 5, pp. 1600–1610, 2005
work page 2005
-
[9]
Compressive diffuse optical tomography: non- iterative exact reconstruction using joint sparsity,
O. Lee, J. M. Kim, Y. Bresler, and J. C. Ye, “Compressive diffuse optical tomography: non- iterative exact reconstruction using joint sparsity,” IEEE transactions on medical imaging, vol. 30, no. 5, pp. 1129–1142, 2011
work page 2011
-
[10]
A simple method for solving inverse scattering problems in the resonance region,
D. Colton and A. Kirsch, “A simple method for solving inverse scattering problems in the resonance region,” Inverse problems, vol. 12, no. 4, pp. 383–393, 1996
work page 1996
-
[11]
A simple method using Morozov’s discrepancy principle for solving inverse scattering problems,
D. Colton, M. Piana, and R. Potthast, “A simple method using Morozov’s discrepancy principle for solving inverse scattering problems,” Inverse Problems , vol. 13, no. 6, pp. 1477–1493, 1997
work page 1997
-
[12]
An improved simple method for imaging the shape of complex targets,
L. Crocco, L. Di Donato, I. Catapano, and T. Isernia, “An improved simple method for imaging the shape of complex targets,” IEEE Transactions on Antennas and Propagation , vol. 61, no. 2, pp. 843–851, 2013
work page 2013
-
[13]
A linear sampling method for near-field inverse problems in elastodynamics,
S. N. Fata and B. B. Guzina, “A linear sampling method for near-field inverse problems in elastodynamics,” Inverse problems, vol. 20, no. 3, pp. 713–736, 2004. 27
work page 2004
-
[14]
T. Arens, “Why linear sampling works,” Inverse Problems , vol. 20, no. 1, pp. 163–173, 2003
work page 2003
-
[15]
D. Colton and R. Kress, Inverse acoustic and electromagnetic scattering theory , 3rd ed. New York: Springer, 2013, vol. 93
work page 2013
-
[16]
M. R. Eskandari, R. Safian, and M. Dehmollaian, “Three-dimensional near-field microwave imaging using hybrid linear sampling and level set methods in a medium with compact support,” IEEE Transactions on Antennas and Propagation , vol. 62, no. 10, pp. 5117– 5125, 2014
work page 2014
-
[17]
D. J. Daniels, Ground penetrating radar. Wiley Online Library, 2005
work page 2005
-
[18]
Newton-Kantorovitch algorithm applied to an electromagnetic inverse problem,
A. Roger, “Newton-Kantorovitch algorithm applied to an electromagnetic inverse problem,” IEEE Transactions on Antennas and Propagation , vol. 29, no. 2, pp. 232–238, 1981
work page 1981
-
[19]
A. Qing, “Electromagnetic inverse scattering of multiple two-dimensional perfectly con- ducting objects by the differential evolution strategy,” IEEE Transactions on Antennas and Propagation, vol. 51, no. 6, pp. 1251–1262, 2003
work page 2003
-
[20]
A. Qing, “Electromagnetic inverse scattering of multiple perfectly conducting cylinders by differential evolution strategy with individuals in groups (GDES),” IEEE Transactions on Antennas and Propagation, vol. 52, no. 5, pp. 1223–1229, 2004
work page 2004
-
[21]
A crack identification microwave procedure based on a genetic algorithm for nondestructive testing,
S. Caorsi, A. Massa, and M. Pastorino, “A crack identification microwave procedure based on a genetic algorithm for nondestructive testing,” IEEE Transactions on Antennas and Propagation, vol. 49, no. 12, pp. 1812–1820, 2001
work page 2001
-
[22]
Evolutionary opti- mization as applied to inverse scattering problems,
P. Rocca, M. Benedetti, M. Donelli, D. Franceschini, and A. Massa, “Evolutionary opti- mization as applied to inverse scattering problems,” Inverse Problems, vol. 25, no. 12, p. 123003 (41pp), 2009
work page 2009
-
[23]
Multifrequency particle swarm optimiza- tion for enhanced multiresolution GPR microwave imaging,
M. Salucci, L. Poli, N. Anselmi, and A. Massa, “Multifrequency particle swarm optimiza- tion for enhanced multiresolution GPR microwave imaging,” IEEE Transactions on Geo- science and Remote Sensing , vol. 55, no. 3, pp. 1305–1317, 2017
work page 2017
-
[24]
Mt–bcs-based microwave imaging approach through minimum-norm current expansion,
L. Poli, G. Oliveri, F. Viani, and A. Massa, “Mt–bcs-based microwave imaging approach through minimum-norm current expansion,” IEEE Transactions on Antennas and Propa- gation, vol. 61, no. 9, pp. 4722–4732, 2013
work page 2013
-
[25]
Solving the PEC inverse scattering problem with a linear model,
S. Sun, B. J. Kooij, and A. G. Yarovoy, “Solving the PEC inverse scattering problem with a linear model,” in URSI International Symposium on Electromagnetic Theory (EMTS) , Aug. 2016, pp. 144–147
work page 2016
-
[26]
Theoretical and empirical results for recovery from multiple measurements,
E. Van Den Berg and M. P. Friedlander, “Theoretical and empirical results for recovery from multiple measurements,” IEEE Transactions on Information Theory , vol. 56, no. 5, pp. 2516–2527, 2010
work page 2010
-
[27]
S. Sun, B. J. Kooij, and A. Yarovoy, “Linearized three-dimensional electromagnetic contrast source inversion and its applications to half-space configurations,” IEEE Transactions on Geoscience and Remote Sensing , vol. 55, no. 6, pp. 3475–3487, June 2017
work page 2017
-
[28]
Probing the Pareto frontier for basis pursuit solutions,
E. van den Berg and M. P. Friedlander, “Probing the Pareto frontier for basis pursuit solutions,” SIAM Journal on Scientific Computing , vol. 31, no. 2, pp. 890–912, 2008
work page 2008
-
[29]
Sparse optimization with least-squares con- straints,
E. Van den Berg and M. P. Friedlander, “Sparse optimization with least-squares con- straints,” SIAM Journal on Optimization , vol. 21, no. 4, pp. 1201–1229, 2011. 28
work page 2011
-
[30]
Compressed sensing with cross validation,
R. Ward, “Compressed sensing with cross validation,” IEEE Transactions on Information Theory, vol. 55, no. 12, pp. 5773–5782, 2009
work page 2009
-
[31]
Cross Validation in Compressive Sensing and its Application of OMP-CV Algorithm
J. Zhang, L. Chen, P. T. Boufounos, and Y. Gu, “Cross validation in compressive sensing and its application of OMP-CV algorithm,” arXiv preprint arXiv:1602.06373 , 2016
work page internal anchor Pith review Pith/arXiv arXiv 2016
-
[32]
3D finite-difference frequency-domain method for plasmonics and nanophoton- ics,
W. Shin, “3D finite-difference frequency-domain method for plasmonics and nanophoton- ics,” Ph.D. dissertation, Stanford University, The Department of Electrical Engineering, USA, 2013
work page 2013
-
[33]
Special section: Testing inversion algorithms against exper- imental data,
K. Belkebir and M. Saillard, “Special section: Testing inversion algorithms against exper- imental data,” Inverse Problems, vol. 17, no. 6, pp. 1565–1571, 2001
work page 2001
-
[34]
The field equivalence principle: Illustration of the establishment of the non-intuitive null fields,
S. R. Rengarajan and Y. Rahmat-Samii, “The field equivalence principle: Illustration of the establishment of the non-intuitive null fields,” IEEE Antennas and Propagation Magazine , vol. 42, no. 4, pp. 122–128, 2000
work page 2000
-
[35]
Novel methods to accelerate CS radar imaging by NUFFT,
S. Sun, G. Zhu, and T. Jin, “Novel methods to accelerate CS radar imaging by NUFFT,” IEEE Transactions on Geoscience and Remote Sensing , vol. 53, no. 1, pp. 557–566, Jan 2015
work page 2015
-
[36]
Regression shrinkage and selection via the lasso,
R. Tibshirani, “Regression shrinkage and selection via the lasso,” Journal of the Royal Statistical Society. Series B (Methodological) , vol. 58, no. 1, pp. 267–288, 1996
work page 1996
-
[37]
Nonmonotone spectral projected gradient methods on convex sets,
E. G. Birgin, J. M. Mart´ ınez, and M. Raydan, “Nonmonotone spectral projected gradient methods on convex sets,” SIAM Journal on Optimization , vol. 10, no. 4, pp. 1196–1211, 2000
work page 2000
-
[38]
Inexact spectral projected gradient methods on convex sets,
E. G. Birgin, J. M. Mart´ ınez, and M. Raydan, “Inexact spectral projected gradient methods on convex sets,” IMA Journal of Numerical Analysis , vol. 23, no. 4, pp. 539–559, 2003
work page 2003
-
[39]
Projected Barzilai-Borwein methods for large-scale box- constrained quadratic programming,
Y.-H. Dai and R. Fletcher, “Projected Barzilai-Borwein methods for large-scale box- constrained quadratic programming,” Numerische Mathematik, vol. 100, no. 1, pp. 21–47, 2005
work page 2005
-
[40]
Convex optimization for generalized sparse recovery,
E. van den Berg, “Convex optimization for generalized sparse recovery,” Ph.D. dissertation, University of British Columbia, 2009
work page 2009
- [41]
-
[42]
S. Boyd and L. Vandenberghe, Convex optimization . New York: Cambridge university press, 2004
work page 2004
-
[43]
S. Caorsi and G. L. Gragnani, “Inverse-scattering method for dielectric objects based on the reconstruction of the nonmeasurable equivalent current density,”Radio Science, vol. 34, no. 1, pp. 1–8, 1999
work page 1999
-
[44]
On simple methods for shape reconstruction of unknown scatterers,
I. Catapano, L. Crocco, and T. Isernia, “On simple methods for shape reconstruction of unknown scatterers,” IEEE transactions on antennas and propagation , vol. 55, no. 5, pp. 1431–1436, 2007
work page 2007
-
[45]
The linear sampling method as a way to quantitative inverse scattering,
L. Crocco, I. Catapano, L. Di Donato, and T. Isernia, “The linear sampling method as a way to quantitative inverse scattering,” IEEE Transactions on Antennas and Propagation, vol. 60, no. 4, pp. 1844–1853, 2012. 29
work page 2012
