LAP: An Agent-to-Instrument Protocol for Autonomous Science

Linwu Zhu , Liqiang Gao , Yan Chen , Dan Zhu , Jian Huang This is my paper

Pith reviewed 2026-06-28 09:48 UTC · model grok-4.3

classification 💻 cs.AI
keywords autonomous scienceagent-to-instrument protocolphysical primitivessafety handshakemeasurement schemaself-driving laboratoriesinstrument reservation
0
0 comments X

The pith

The Lab Agent Protocol adds four physical-world primitives to connect reasoning agents with lab instruments.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes LAP to address the missing agent-to-instrument link in autonomous science systems. Current setups rebuild connections from scratch against fragmented vendor tools that assume deterministic clients rather than goal-directed agents. LAP preserves the peer-to-peer and task-lifecycle features of recent agent protocols while introducing four primitives for capability descriptions, exclusive locking, safety gating, and physically typed results. A sympathetic reader would care because this structure would allow closed-loop experiments to run across instruments without repeated custom engineering.

Core claim

LAP retains the peer-to-peer, discovery-first, task-lifecycle structure of recent agent protocols and adds four physical-world primitives: the InstrumentCard as a signed capability and physical-limit description, first-class reservation for exclusive instrument and sample locking, a safety-fence handshake with operator-confirmation tokens cryptographically bound to a specific task, and a MeasurementResult schema that makes every result physically typed with units, calibration, uncertainty, and reproducibility by construction. The protocol specifies roles, a six-layer architecture, the method set, state machines, error model, cross-laboratory federation, and demonstrates an end-to-end autonom

What carries the argument

The four physical-world primitives: InstrumentCard for capabilities and limits, first-class reservation for locking, safety-fence handshake for hazardous operations, and MeasurementResult schema for typed outcomes.

If this is right

  • Agents discover instruments and their physical limits through signed capability cards.
  • Exclusive access to instruments and samples is enforced via first-class reservations.
  • Hazardous or irreversible operations are gated by task-bound safety tokens requiring operator confirmation.
  • All measurement results carry units, calibration anchors, uncertainty values, and reproducibility metadata.
  • Closed-loop autonomous campaigns can execute end-to-end across instruments using the shared protocol.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Widespread use would reduce duplication of integration code across different self-driving laboratory setups.
  • The same primitives could apply to other domains involving physical ownership and safety-critical devices.
  • Real-world deployment would test whether the state machines correctly manage concurrent physical access conflicts.

Load-bearing premise

That the design can be implemented on top of existing agent protocols without breaking their peer-to-peer or task-lifecycle structures and that instrument vendors will expose the new primitives.

What would settle it

An implementation attempt that either disrupts the peer-to-peer structure of existing agent protocols or cannot be supported by current instrument vendor standards.

Figures

Figures reproduced from arXiv: 2606.03755 by Dan Zhu, Jian Huang, Linwu Zhu, Liqiang Gao, Yan Chen.

Figure 1

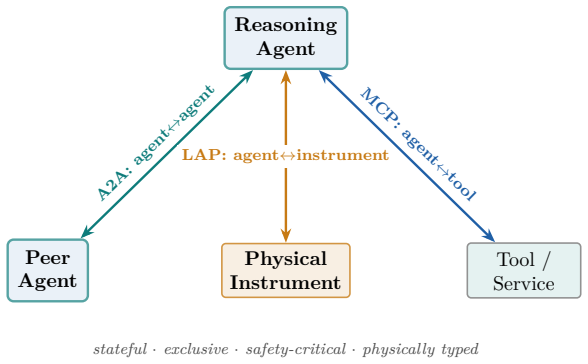

Figure 1. Figure 1: The three edges of an agentic scientific ecosystem. MCP standardizes the agent-to-tool [PITH_FULL_IMAGE:figures/full_fig_p010_1.png] view at source ↗
Figure 2

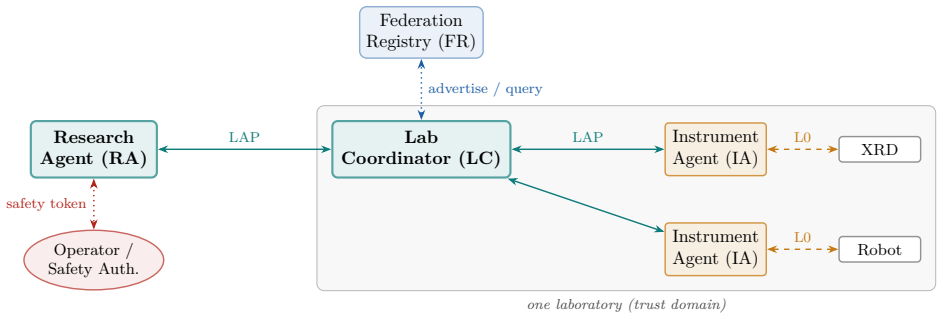

Figure 2. Figure 2: LAP role topology. A Research Agent reaches Instrument Agents directly or through [PITH_FULL_IMAGE:figures/full_fig_p012_2.png] view at source ↗
Figure 3

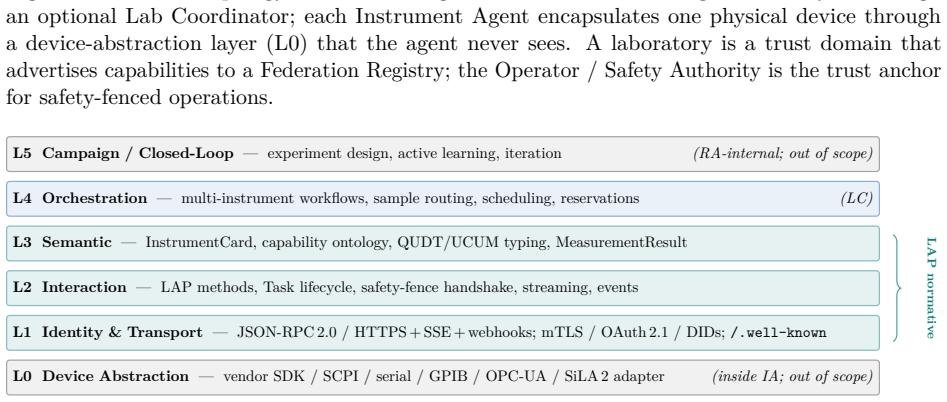

Figure 3. Figure 3: The LAP six-layer architecture. LAP normatively specifies L1–L3 and the L4 orchestration [PITH_FULL_IMAGE:figures/full_fig_p012_3.png] view at source ↗
Figure 4

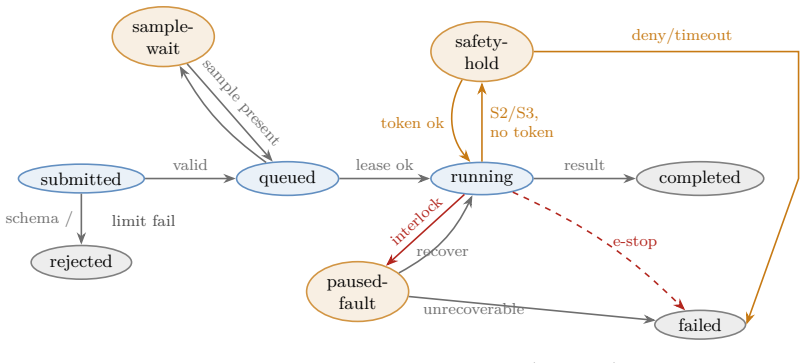

Figure 4. Figure 4: The LAP task lifecycle. Blue states and completed/failed/rejected follow A2A; the amber/red physical states (safety-hold, paused-fault, sample-wait) are LAP additions that capture safety negotiation, interlock faults, and physical-sample dependencies. Emergency stop drives any running task to failed. instrument can always stop it even if its time-boxed credential was issued for a single capability. A Lab C… view at source ↗
Figure 5

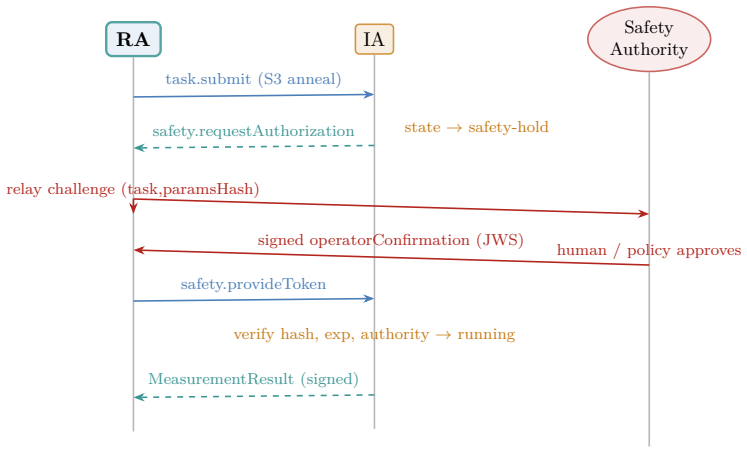

Figure 5. Figure 5: The safety-fence handshake for a hazardous (S3) operation. The Instrument Agent refuses [PITH_FULL_IMAGE:figures/full_fig_p019_5.png] view at source ↗
Figure 6

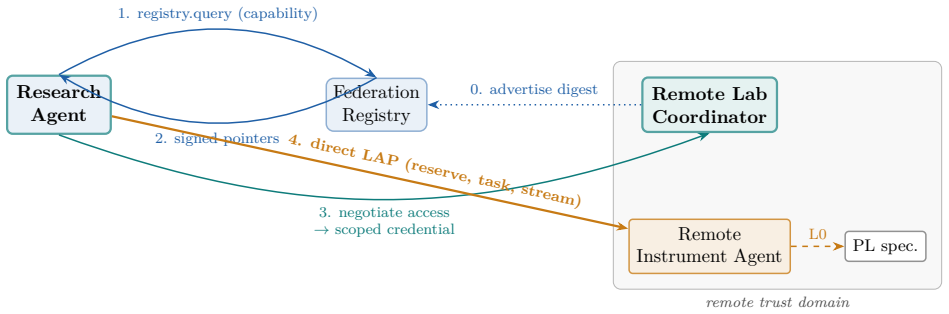

Figure 6. Figure 6: Federated discovery and access. The registry indexes capability digests and returns [PITH_FULL_IMAGE:figures/full_fig_p023_6.png] view at source ↗
Figure 7

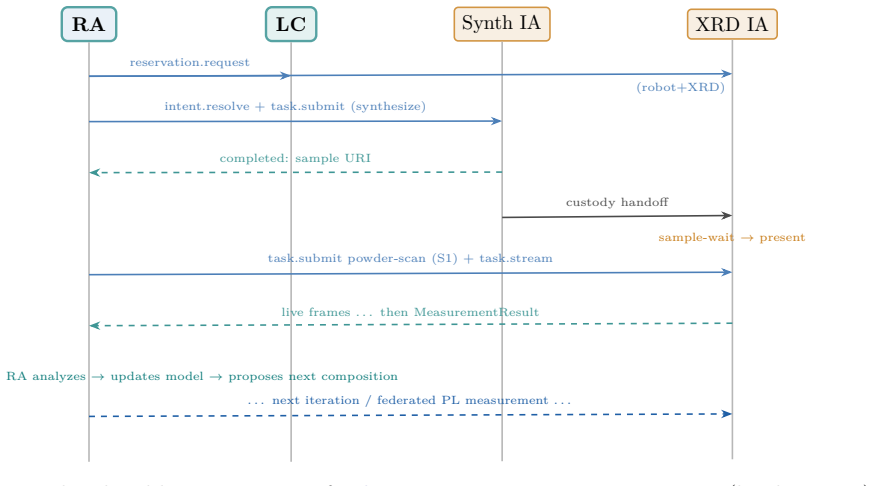

Figure 7. Figure 7: The closed-loop campaign of subsection 5.3 as a message sequence (local portion). Reservation, intent resolution and confirmation, custody handoff, streamed measurement, and a typed signed result compose into one iteration of an autonomous optimization loop; the loop then repeats, optionally reaching across the federation. 8. The RA updates its surrogate model and proposes the next composition. Every step … view at source ↗
read the original abstract

Autonomous science is moving from demonstration to infrastructure. Large language model agents now plan experiments, and self-driving laboratories execute them. Yet every such system rebuilds the link between the reasoning agent and the physical instrument from scratch, against fragmented vendor SDKs and standards built for deterministic software clients rather than probabilistic, goal-directed agents. Recent agent-interoperability protocols clarify two of the three edges of an agentic ecosystem (Anthropic's Model Context Protocol (MCP) standardizes the agent-to-tool edge, and Google's Agent2Agent (A2A) the agent-to-agent edge), but neither models the agent-to-instrument edge, where operations are stateful, safety-critical, exclusively owned, physically embodied, and produce measurements with units, calibration, and uncertainty. We present the Lab Agent Protocol (LAP), a protocol design that fills this gap. LAP retains A2A's peer-to-peer, discovery-first, task-lifecycle structure and adds four physical-world primitives: (i) the InstrumentCard, a signed capability and physical-limit description; (ii) first-class reservation for exclusive instrument and sample locking; (iii) a safety-fence handshake with operator-confirmation tokens cryptographically bound to a specific task and its parameters, gating hazardous and irreversible operations; and (iv) a MeasurementResult schema that makes every result physically typed (QUDT/UCUM), calibration-anchored, uncertainty-bearing, and reproducible by construction. We specify roles, a six-layer architecture, the JSON-RPC method set, the task and safety state machines, the error model, and cross-laboratory federation, and walk a closed-loop autonomous campaign through the protocol end-to-end. LAP is transport-compatible with the A2A/MCP ecosystem and encapsulates rather than replaces existing device standards such as SiLA 2 and OPC-UA.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript proposes the Lab Agent Protocol (LAP) to address the missing agent-to-instrument interface in autonomous science systems. It claims to extend A2A and MCP by retaining their peer-to-peer discovery and task-lifecycle structures while adding four physical-world primitives: the InstrumentCard (signed capability description), first-class reservation for exclusive locking, a safety-fence handshake using operator-confirmation tokens, and a MeasurementResult schema enforcing physical typing (QUDT/UCUM), calibration, and uncertainty. The paper specifies roles, a six-layer architecture, JSON-RPC methods, task and safety state machines, an error model, cross-laboratory federation, and demonstrates the protocol via an end-to-end autonomous campaign example.

Significance. If the preservation of A2A semantics holds and the primitives prove implementable, LAP could reduce the repeated custom engineering of agent-instrument links in self-driving laboratories, improve safety for hazardous operations, and enforce reproducible, uncertainty-aware measurements. The explicit state-machine specifications and closed-loop campaign walkthrough are constructive elements of the design proposal.

major comments (2)
  1. [sections describing the task and safety state machines and the six-layer architecture] The central claim (abstract and introduction) that LAP retains A2A's peer-to-peer, discovery-first, task-lifecycle structure while adding the four primitives is asserted without an explicit mapping, side-by-side state-transition comparison, or formal argument that new safety states are strictly additive. This is load-bearing for the claim because the design's compatibility with existing A2A/MCP task lifecycles is the weakest assumption, yet the specification of the task and safety state machines provides no demonstration that non-instrument or non-hazardous tasks execute identically to pure A2A.
  2. [specification of JSON-RPC methods, state machines, and end-to-end campaign] The paper supplies no implementation, test cases, or validation data to confirm that InstrumentCard, reservation, safety-fence handshake, and MeasurementResult can be introduced on top of A2A/MCP without altering peer-to-peer discovery or task-lifecycle semantics, or that vendors can expose the primitives. This directly affects assessment of whether the protocol works in practice.
minor comments (1)
  1. [MeasurementResult schema definition] The description of the MeasurementResult schema references QUDT/UCUM but does not include an explicit example JSON instance or comparison to existing schemas in the methods section.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our protocol design paper. We address the two major comments point by point below, indicating planned revisions where appropriate to strengthen the compatibility claims and practical demonstration.

read point-by-point responses

  1. Referee: [sections describing the task and safety state machines and the six-layer architecture] The central claim (abstract and introduction) that LAP retains A2A's peer-to-peer, discovery-first, task-lifecycle structure while adding the four primitives is asserted without an explicit mapping, side-by-side state-transition comparison, or formal argument that new safety states are strictly additive. This is load-bearing for the claim because the design's compatibility with existing A2A/MCP task lifecycles is the weakest assumption, yet the specification of the task and safety state machines provides no demonstration that non-instrument or non-hazardous tasks execute identically to pure A2A.

    Authors: We agree that the compatibility claim requires stronger substantiation through explicit comparison. In the revised manuscript we will insert a new subsection (in the state-machine specification) containing a side-by-side state-transition table for the core A2A task lifecycle versus the LAP-extended version. The table will show that the four new primitives are strictly additive: non-hazardous and non-instrument tasks traverse exactly the same states and transitions as pure A2A, while the safety-fence handshake is invoked only for operations that declare hazardous or irreversible parameters. A short formal argument will accompany the table, demonstrating that the safety states do not alter the peer-to-peer discovery or task-lifecycle semantics for the base case. revision: yes

  2. Referee: [specification of JSON-RPC methods, state machines, and end-to-end campaign] The paper supplies no implementation, test cases, or validation data to confirm that InstrumentCard, reservation, safety-fence handshake, and MeasurementResult can be introduced on top of A2A/MCP without altering peer-to-peer discovery or task-lifecycle semantics, or that vendors can expose the primitives. This directly affects assessment of whether the protocol works in practice.

    Authors: The manuscript is a protocol specification whose primary contribution is the design and the closed-loop campaign walkthrough. We acknowledge that concrete implementation artifacts and test suites would further support practical assessment. In revision we will augment the end-to-end example with pseudocode for the four new primitives and the JSON-RPC method signatures, and we will add an explicit statement that the layering is intended to preserve A2A discovery and lifecycle semantics by construction. Full reference implementations and vendor exposure demonstrations remain future work and are outside the scope of the current design paper. revision: partial

Circularity Check

0 steps flagged

No circularity: protocol design proposal with no derivations or self-referential reductions

full rationale

The paper is a design specification for the LAP protocol that adds four primitives (InstrumentCard, reservation, safety-fence handshake, MeasurementResult) while asserting compatibility with A2A/MCP structures. It contains no equations, fitted parameters, predictions, or mathematical derivations. Claims rest on explicit specification of roles, JSON-RPC methods, state machines, and an end-to-end example rather than reduction to prior results. No self-citations are load-bearing; references to A2A/MCP are external standards. The central claim is the protocol definition itself, which is self-contained as a constructive proposal without circular reduction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 2 invented entities

The central claim rests on the assumption that a protocol extension can safely add physical constraints and safety mechanisms to existing agent standards without introducing new free parameters or unstated domain assumptions beyond standard protocol design.

axioms (1)
  • domain assumption A2A and MCP structures can be extended for stateful, safety-critical, physically embodied operations without structural conflict.
    Invoked when the paper states LAP retains A2A's peer-to-peer and task-lifecycle structure while adding physical primitives.
invented entities (2)
  • InstrumentCard no independent evidence
    purpose: Signed capability and physical-limit description for instruments
    New data structure introduced to model physical instruments.
  • safety-fence handshake with operator-confirmation tokens no independent evidence
    purpose: Cryptographically bound gating for hazardous operations
    New mechanism for safety-critical control.
