Realization Variance of Gravitational Wave Background Anisotropies from Shot Noise for Pulsar Timing Arrays
T0 review · 0 major / 5 minor · reviewed 2026-08-11 · deepseek-v4-flash
Pith's one-line read The shot-noise anisotropy of the nHz gravitational wave background has a broad, skewed probability distribution that the ensemble average misrepresents.
desk verdict A transparent Monte Carlo study showing that PTA shot-noise anisotropy is realization-dependent, with medians well below ensemble means, and that moment-based estimates fail badly; the central result is robust and deserves peer review. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The central object is the shot-noise anisotropy estimator $\hat{C}_{\rm shot}/(4\pi) = \left(\sum_i N_i h_i^4\right)/\left(\sum_i N_i h_i^2\right)^2$, where $N_i$ are Poisson-random integer counts of SMBHB mergers in cells of black hole mass, mass ratio, and redshift, and $h_i^2$ is the inclination- and polarization-averaged strain per source. Writing the estimator as $\sum_i N_i w_i^2$ with weights $w_i = h_i^2/\sum_j N_j h_j^2$ yields the exact bounds $1/N_{\rm eff} \le \hat{C}_{\rm shot}/(4\pi) \le 1$, making explicit that shot-noise is the inverse effective source count. The Monte Carlo machinery samples these Poisson counts from factorized merger models (LM24 and SZQ) with GW-driven residence times, then evaluates the full probability distributions of the shot-noise, the characteristic strain $h_c^2$, and the fourth moment $h_c^4$, along with their conditional distributions given a noisy measurement of $h_c^2$.
What would settle it
A direct test would be a PTA measurement of the shot-noise anisotropy at multiple frequencies with the full PDF forward-modeled: if the observed shot-noise at $f \approx 1\,\mathrm{yr}^{-1}$ consistently landed near the moment-based prediction (which exceeds the Monte Carlo mean by a factor of ~130) rather than near the median, or if the realization-to-realization scatter were measured to be far narrower than a factor of ~50, the proposed distribution would be ruled out.
Extended reading notes
Core claim
The central discovery is that the shot-noise anisotropy level in a single sky realization, $\hat{C}_{\rm shot}/(4\pi)$, is bounded between $1/N_{\rm eff}$ and 1, where $N_{\rm eff}$ is the effective number of sources, and that its ensemble average is systematically below the naive moment-based estimate. Since the shot-noise is defined as the ratio of the fourth moment of the strain field to the square of the second moment, the ensemble average of this ratio is not equal to the ratio of the ensemble averages; the paper quantifies this difference using $7\times10^5$ Monte Carlo realizations of the LM24 and SZQ merger models. In the fiducial model the mean shot-noise exceeds the median by a factor of 2.9 at $f = 0.1\,\mathrm{yr}^{-1}$ and by 2.0 at $f = 1\,\mathrm{yr}^{-1}$, while the moment-based prediction exceeds the Monte Carlo mean by factors of 2.8 and 130 at those same frequencies. The shot-noise PDF remains broad across the PTA band, with a 95% interval of about 1.7 dex, and the median scales as $f^{1.1\text{–}1.2}$ rather than the $f^{8/3}$ scaling of the moment-based estimate. The authors also show that conditioning on a measurement of the characteristic strain $h_c^2$ narrows the shot-noise and $h_c^4$ distributions, and that the median shot-noise is insensitive to the low-redshift cutoff $z_{\rm min}$.
Load-bearing premise
The result depends on the assumed SMBHB merger model being representative of the real universe, especially the sharp low-redshift cutoff $z_{\rm min}=0.05$ and the high-mass cutoff $M_{\rm BH,max}=10^{10.5}M_\odot$; rare nearby or very massive sources control the tails of the shot-noise distribution, so if those cutoffs are wrong the claimed PDF width and mean-to-median ratios would shift.
Editorial extensions
If this is right
- PTA anisotropy analyses must either measure many independent sky realizations or forward-model the full shot-noise PDF, since the ensemble mean is not a typical value.
- The median shot-noise, reaching $\hat{C}_{\rm shot}/(4\pi) \approx 0.05$ at $f \approx 30\,\mathrm{nHz}$, is close to the current NANOGrav 95% upper limit of 0.20, so upcoming data could plausibly detect it.
- Conditioning on a precise measurement of the characteristic strain $h_c^2$ can narrow the shot-noise distribution by up to an order of magnitude, making combined $h_c^2$ plus anisotropy measurements more informative.
- The moment-based estimate $\langle h^4 \rangle/\langle h^2 \rangle^2$ is unreliable in the sparse-source regime and should not be used for high-frequency predictions in GW-driven models.
Reading between the lines
- A similar ratio-of-moments bias may affect other stochastic background searches, such as spectral index estimation at high frequencies where source counts are low.
- Because the median shot-noise is insensitive to $z_{\rm min}$ while the mean is not, the low-redshift cutoff uncertainty, though real, should have a smaller impact on detection forecasts than on ensemble-averaged amplitude predictions.
- The exact bounds $1/N_{\rm eff} \le \hat{C}_{\rm shot}/(4\pi) \le 1$ provide a built-in consistency check: an anisotropy measurement exceeding unity would indicate a calibration error, a modeling error, or a contribution beyond the shot-noise assumption.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. This paper uses Monte Carlo realizations of Poisson-sampled supermassive black hole binary (SMBHB) merger populations, drawn from the empirically calibrated LM24 and SZQ models, to characterize the probability distribution of the shot-noise anisotropy amplitude C_hat/(4π) together with the strain moments h^2_c and h^4_c across sky realizations. The authors show that the ensemble mean of the shot-noise is not equal to the moment ratio <h^4_c>/<h^2_c>^2, that the shot-noise PDF is broad and positively skewed with median below the mean, and that conditioning on a measurement of h^2_c narrows the distribution. They test sensitivity to the merger model, to the low-redshift cutoff z_min, and to an alternative stellar-hardening residence-time model.
Significance. If correct, the result is important for interpreting pulsar timing array anisotropy measurements: it demonstrates that moment-based estimates can overpredict the shot-noise by orders of magnitude at high frequency and that full PDFs are needed for parameter inference. The Monte Carlo implementation is transparent and directly samples Poisson source counts, and the simulated means of h^2_c and h^4_c agree with the analytic integrals, providing a useful validation. The qualitative conclusion that the shot-noise distribution is broad, skewed, and with median below the mean appears robust to the tested model variations. The main caveats, acknowledged in the text, are the inclination/polarization-averaged strain and the ad hoc cutoffs z_min and M_BH,max; these affect quantitative amplitudes but do not appear to threaten the central qualitative claim.
minor comments (5)

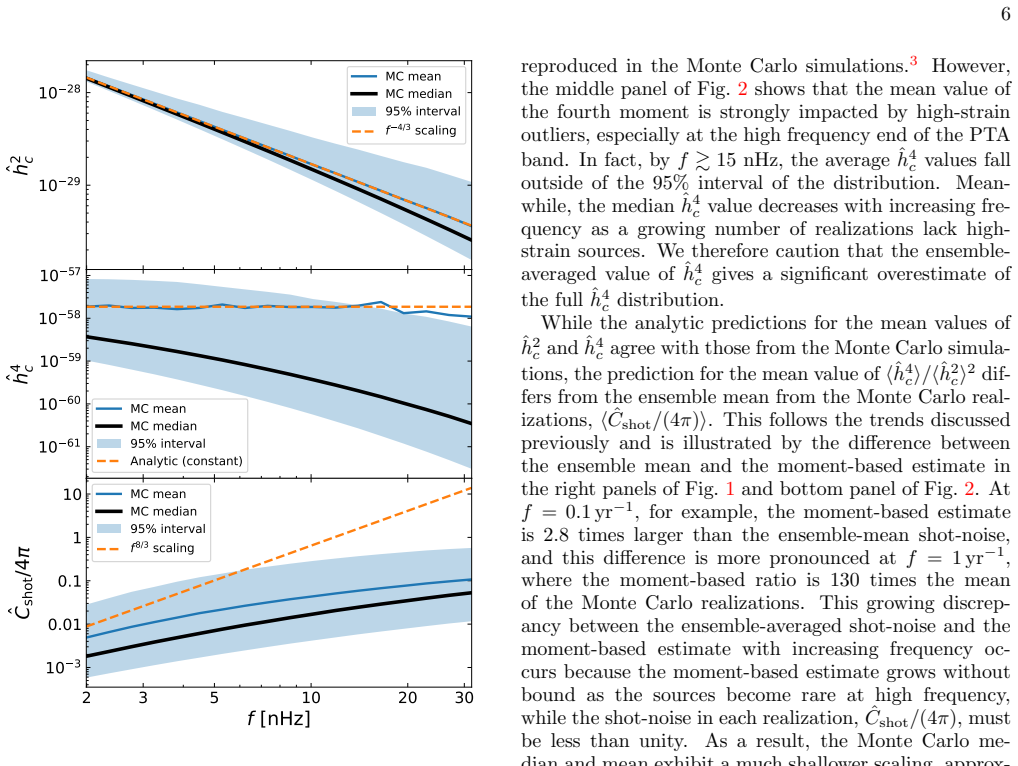

- [Fig. 1 caption and Sec. III A] The orange dot-dashed curve in the shot-noise panels is labeled as an 'analytic prediction for the ensemble average value,' but it is actually the moment ratio <h^4_c>/<h^2_c>^2, which the text correctly argues is not the ensemble mean of C_hat/(4π). Please relabel this curve as 'moment-based estimate' in the caption and in the text of Sec. III A to avoid implying that the Monte Carlo mean should match it.
- [Sec. IV A, near Fig. 4] The statement that the median h^4_c and C_shot/(4π) signals are insensitive to M_BH,max in SZQ is plausible but is not demonstrated with a numerical test; since the mean is known to be sensitive to this cutoff, a brief test varying M_BH,max would strengthen the robustness claim.
- [Sec. II.A, after Eq. (6)] The paper acknowledges that inclination-angle and polarization averaging omits a source of variance, but the abstract and conclusions quote specific widths and median-to-mean ratios without this caveat. Please add a prominent qualifier that the quoted numbers are computed for averaged source orientations and will broaden when orientation scatter is included.
- [Sec. III A] The text refers to the 'current NANOGrav 95% upper-bound of 0.20' with reference [17] from 2023; please verify whether this is still the latest published limit at the time of submission and update the wording or reference accordingly.
- [Reference [33]] Reference [33] lists the DOI as '10.1103/ql8b-7q8v', which looks like a placeholder rather than a standard DOI; please verify and correct.
Circularity Check
No significant circularity: the shot-noise PDFs are computed from external empirical merger models and verified by Monte Carlo, not fitted to the target.
full rationale
The derivation is self-contained: the shot-noise PDFs are obtained by sampling Poisson realizations from adopted SMBHB merger models via Eqs. (8)-(11), and the ensemble-averaged moments reproduce the analytic integrals of Eqs. (3) and (7). The central claim that <Cshot/(4pi)> differs from <h_c^4>/<h_c^2>^2 because the average of a ratio is not the ratio of the averages is a mathematical consequence of the definition in Eq. (11) and is verified by Monte Carlo, not assumed. The fiducial LM24 model is an external, empirically calibrated input (ref. [30]) and the authors test the SZQ model, z_min variations, and an alternative residence-time model, with qualitative conclusions unchanged. Although the authors cite their own prior work [19] for mean shot-noise and for the h4 divergence, these are used as consistency checks and are independently reproduced by the simulations; no parameter is fitted to the shot-noise target and no prediction reduces by construction to an input. Hence no significant circularity.
Assumptions & free parameters
free parameters (6)
- z_min (low-redshift cutoff) =
0.05
- M_BH,max (upper mass cutoff) =
10^10.5 M_sun
- LM24 redshift distribution parameters (gamma, z*) =
gamma=1.0, z*=0.5
- LM24 mass-ratio distribution exponent =
q^2
- SZQ redshift/mass-ratio parameters (gamma, z*, q exponent) =
gamma=0.5, z*=0.3, p_q∝q^-1 with q_min=0.1
- bend frequency f_b in stellar-hardening model =
5 nHz
assumptions (5)
- domain assumption Merger counts in each cell follow Poisson statistics with mean ΔN_i (Eq. 10).
- domain assumption Strain per source is averaged over inclination and polarization angles (Eq. 6); no orientation distribution is sampled.
- domain assumption Fiducial residence time assumes purely GW-driven circular inspiral (Eq. 5).
- domain assumption SMBHB merger rate factorizes as p_z(z)p_q(q) dn/dM_BH dVc/dz dz/dtr dtr/dlnf (Eq. 4).
- ad hoc to paper Sharp cutoffs z_min and M_BH,max regulate the divergent h4_c integral, and the adopted model is representative of the real SMBHB population.
Cite this review
Pith. "Pith review of Realization Variance of Gravitational Wave Background Anisotropies from Shot Noise for Pulsar Timing Arrays." pith.science (2026). https://pith.science/paper/TPLNCNAJ
@misc{pith2026260809929,
author = {Pith},
title = {Pith review of: Realization Variance of Gravitational Wave Background Anisotropies from Shot Noise for Pulsar Timing Arrays},
year = {2026},
howpublished = {\url{https://pith.science/paper/TPLNCNAJ}},
note = {Machine review of arXiv:2608.09929}
}
abstract

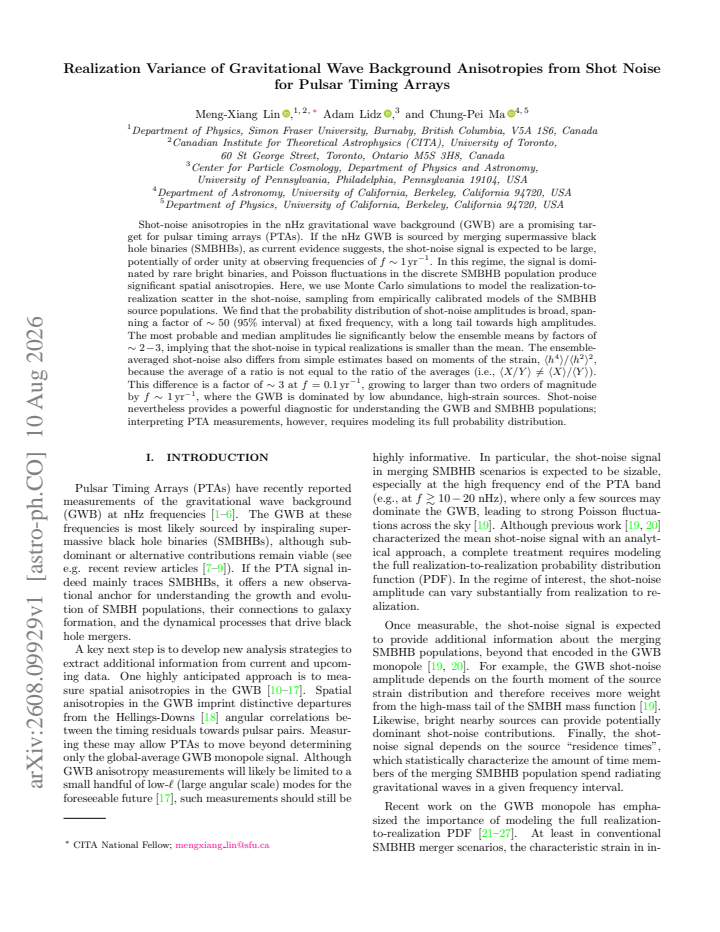

Shot-noise anisotropies in the nHz gravitational wave background (GWB) are a promising target for pulsar timing arrays (PTAs). If the nHz GWB is sourced by merging supermassive black hole binaries (SMBHBs), as current evidence suggests, the shot-noise signal is expected to be large, potentially of order unity at observing frequencies of $f \sim 1 \, \mathrm{yr}^{-1}$. In this regime, the signal is dominated by rare bright binaries, and Poisson fluctuations in the discrete SMBHB population produce significant spatial anisotropies. Here, we use Monte Carlo simulations to model the realization-to-realization scatter in the shot-noise, sampling from empirically calibrated models of the SMBHB source populations. We find that the probability distribution of shot-noise amplitudes is broad, spanning a factor of $\sim 50$ (95\% interval) at fixed frequency, with a long tail towards high amplitudes. The most probable and median amplitudes lie significantly below the ensemble means by factors of $\sim 2-3$, implying that the shot-noise in typical realizations is smaller than the mean. The ensemble-averaged shot-noise also differs from simple estimates based on moments of the strain, $\langle h^4 \rangle/\langle h^2 \rangle^2$, because the average of a ratio is not equal to the ratio of the averages (i.e., $\langle X/Y \rangle \ne \langle X \rangle/\langle Y \rangle$). This difference is a factor of $\sim 3$ at $f = 0.1 \, \rm{yr}^{-1}$, growing to larger than two orders of magnitude by $f \sim 1 \, \rm{yr}^{-1}$, where the GWB is dominated by low abundance, high-strain sources. Shot-noise nevertheless provides a powerful diagnostic for understanding the GWB and SMBHB populations; interpreting PTA measurements, however, requires modeling its full probability distribution.
