Electroweak Physics with Polarized Electron Beams in a SuperKEKB Upgrade

J.Michael Roney

arxiv: 1907.03503 · v2 · pith:TU7S3DESnew · submitted 2019-07-08 · ✦ hep-ex · hep-ph

Electroweak Physics with Polarized Electron Beams in a SuperKEKB Upgrade

J.Michael Roney This is my paper

Pith reviewed 2026-05-25 01:04 UTC · model grok-4.3

classification ✦ hep-ex hep-ph

keywords electroweak physicspolarized beamsSuperKEKBweak mixing angleneutral current couplingsleft-right asymmetrysin^2 theta_Wbeyond Standard Model

0 comments

The pith

Polarized electron beams at SuperKEKB would measure the weak mixing angle to LEP/SLC precision at 10.58 GeV.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines the addition of electron beam polarization to the SuperKEKB collider to enable left-right asymmetry measurements in e+e- collisions at the Υ(4S) resonance. These asymmetries would determine sin²θ_W and the individual neutral current vector couplings to electrons, muons, taus, charm quarks and bottom quarks. The resulting precision on sin²θ_W would equal the current LEP/SLC world average, supplying a new energy point that tests the running of the couplings. The same data set would tighten the constraints on b-quark, c-quark and muon couplings beyond existing averages and directly confront the 3σ tension between SLC A_LR and LEP A_FB^b results.

Core claim

Polarized electron beams at SuperKEKB would permit left-right asymmetry measurements of e+e- transitions to electrons, muons, taus, charm and b-quarks, yielding a determination of sin²θ_W whose precision matches the LEP/SLC world average and thereby probes the neutral current couplings at a new energy scale sensitive to their running; the measurements of the vector couplings to b-quarks, c-quarks and muons would be substantially more precise than current world averages and the existing 3σ discrepancy between SLC and LEP determinations of sin²θ_W^eff would be addressed.

What carries the argument

Left-right asymmetry measurements with polarized electron beams that extract the effective weak mixing angle and the separate vector coupling constants of the neutral current.

If this is right

The measurements would test the running of the neutral current couplings between the Z-pole and 10.58 GeV.
The vector couplings to b-quarks, c-quarks and muons would be determined more precisely than present world averages.
The 3σ discrepancy between SLC A_LR and LEP A_FB^b results on sin²θ_W^eff would be confronted with independent data.
Deviations from Standard Model predictions would open a new window on physics beyond the Standard Model.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The lower-energy point could help isolate whether any discrepancy originates in heavy-quark final states or in the overall electroweak sector.
Demonstrating feasible polarization at high luminosity might motivate similar upgrades at other future e+e- facilities.
The data set would supply low-energy constraints that complement direct searches at the LHC for new physics affecting fermion couplings.

Load-bearing premise

The required upgrades to SuperKEKB can deliver the beam polarization, luminosity and detector performance needed to reach the stated measurement precision.

What would settle it

After the upgrades, if the statistical and systematic uncertainties on the measured left-right asymmetries remain too large to match the LEP/SLC precision on sin²θ_W, the central claim would be falsified.

Figures

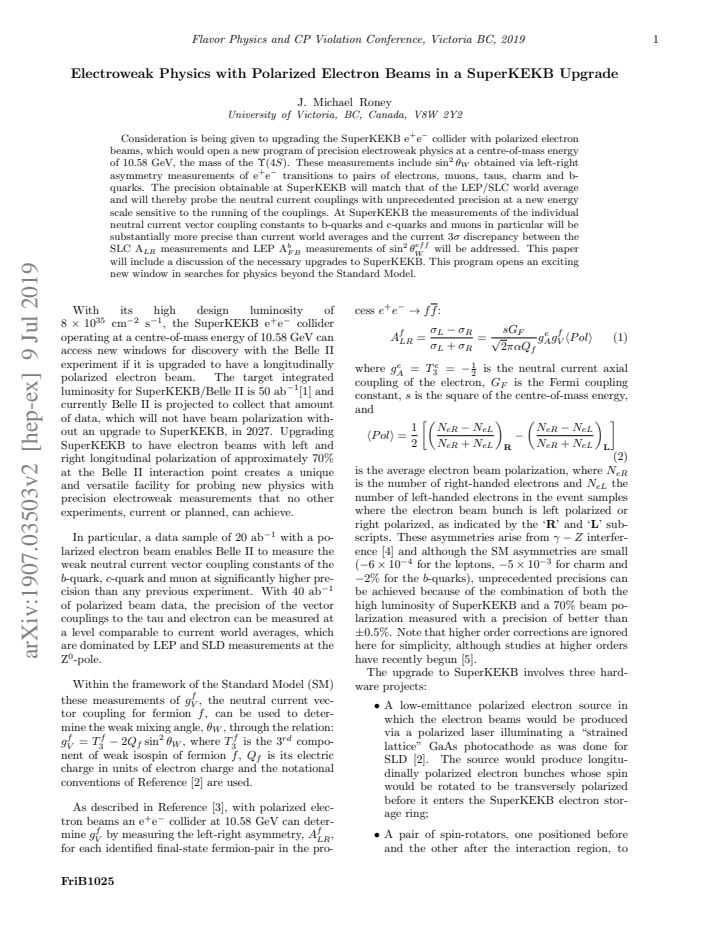

Figures reproduced from arXiv: 1907.03503 by J.Michael Roney.

read the original abstract

Consideration is being given to upgrading the SuperKEKB e$^+$e$^-$ collider with polarized electron beams, which would open a new program of precision electroweak physics at a centre-of-mass energy of 10.58GeV, the mass of the $\Upsilon(4S)$. These measurements include $\sin^2\theta_W$ obtained via left-right asymmetry measurements of e$^+$e$^-$ transitions to pairs of electrons, muons, taus, charm and b-quarks. The precision obtainable at SuperKEKB will match that of the LEP/SLC world average and will thereby probe the neutral current couplings with unprecedented precision at a new energy scale sensitive to the running of the couplings. At SuperKEKB the measurements of the individual neutral current vector coupling constants to b-quarks and c-quarks and muons in particular will be substantially more precise than current world averages and the current 3$\sigma$ discrepancy between the SLC A$_{LR}$ measurements and LEP A$_{FB}^b$ measurements of $\sin^2\theta_W^{eff}$ will be addressed. This paper will include a discussion of the necessary upgrades to SuperKEKB. This program opens an exciting new window in searches for physics beyond the Standard Model.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This is a proposal to add polarized beams at SuperKEKB for A_LR measurements on b and c quarks at 10.58 GeV, but the precision claims rest on unshown calculations.

read the letter

The paper's main contribution is spelling out how polarized electron beams at SuperKEKB could deliver left-right asymmetry measurements on e+e- to b b-bar, c c-bar, and lepton pairs at the Υ(4S) energy. It argues this would give independent sin²θ_W values at a scale between the Z pole and lower energies, plus tighter constraints on the individual vector couplings, and could clarify the existing SLC-LEP tension on the b-quark effective angle. That motivation is laid out clearly and connects to real open questions in the electroweak data. The text also flags the hardware upgrades needed for polarization, luminosity, and detector performance, which is the right starting point for any such idea. What is missing is any actual calculation or simulation backing the stated precisions. The abstract asserts that the measurements would match the LEP/SLC world average and improve on current b- and c-quark results, yet no error budgets, luminosity scaling, polarization dilution factors, or background estimates appear. Without those numbers the central claim stays conditional on upgrades whose feasibility is asserted rather than demonstrated. The paper is therefore best read as a concept note rather than a worked-out physics case. It is aimed at people who follow B-factory upgrades and precision electroweak programs. A reader already thinking about future running at SuperKEKB or Belle II would get value from the physics targets and the list of required changes. For a serious referee the work is worth sending out, but only if the full manuscript adds quantitative feasibility studies; otherwise it risks being too thin on evidence to evaluate properly.

Referee Report

2 major / 0 minor

Summary. The manuscript proposes an upgrade to the SuperKEKB e+e- collider to incorporate polarized electron beams, enabling precision electroweak measurements at √s=10.58 GeV. These include determinations of sin²θ_W via left-right asymmetries (A_LR) in final states with electrons, muons, taus, charm, and bottom quarks, with the claim that the resulting precision on sin²θ_W and individual neutral-current vector couplings will match or exceed the LEP/SLC world average, probe the running of the couplings at a new scale, and resolve the existing 3σ tension between SLC A_LR and LEP A_FB^b results. The text identifies required upgrades in beam polarization, luminosity, and detector performance as prerequisites.

Significance. If the stated precisions can be realized, the program would supply independent constraints on neutral-current couplings at an energy scale well below the Z pole, where sensitivity to the running of sin²θ_W and possible new-physics contributions is distinct from LEP/SLC data. The emphasis on separate b- and c-quark couplings and the potential to address the SLC-LEP discrepancy constitute a clear physics motivation.

major comments (2)

[Abstract] Abstract: the central claim that 'The precision obtainable at SuperKEKB will match that of the LEP/SLC world average' is stated without any supporting luminosity, polarization, acceptance, or error-budget calculations, rendering the quantitative assertion unverifiable from the manuscript.
[Abstract] Abstract (discussion of necessary upgrades): the text correctly lists beam polarization, luminosity, and detector performance as prerequisites but supplies no quantitative feasibility study, simulation results, or error propagation demonstrating that the required values (e.g., polarization fraction and integrated luminosity) can be achieved.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive assessment of the physics case and for the constructive comments on the abstract. We address each point below and will revise the manuscript accordingly.

read point-by-point responses

Referee: [Abstract] Abstract: the central claim that 'The precision obtainable at SuperKEKB will match that of the LEP/SLC world average' is stated without any supporting luminosity, polarization, acceptance, or error-budget calculations, rendering the quantitative assertion unverifiable from the manuscript.

Authors: We agree that the abstract claim requires explicit supporting parameters to be verifiable. In the revised version we will insert a concise statement of the key assumptions (integrated luminosity of order 50 ab^{-1}, electron-beam polarization of 70 %, and the resulting statistical precision on A_LR in each channel) together with a one-sentence reference to the error budget that yields a sin²θ_W uncertainty comparable to the LEP/SLC average. This addition will make the quantitative assertion traceable without altering the overall length or scope of the paper. revision: yes
Referee: [Abstract] Abstract (discussion of necessary upgrades): the text correctly lists beam polarization, luminosity, and detector performance as prerequisites but supplies no quantitative feasibility study, simulation results, or error propagation demonstrating that the required values (e.g., polarization fraction and integrated luminosity) can be achieved.

Authors: The manuscript is a physics-motivation document rather than a technical design report; a full simulation campaign lies outside its intended scope. Nevertheless, we will add order-of-magnitude targets (P_e > 60 %, sustained luminosity > 10^{35} cm^{-2} s^{-1}, and required improvements in b/c tagging efficiency) together with references to existing SuperKEKB polarization R&D and luminosity-upgrade studies. A brief error-propagation outline will also be included so that the feasibility discussion is no longer purely qualitative. revision: partial

Circularity Check

0 steps flagged

No significant circularity; forward-looking proposal with no derivations

full rationale

The document is an experimental proposal discussing potential precision electroweak measurements at an upgraded SuperKEKB. It contains no equations, parameter fits, or derivation chains. All claims about achievable precision are explicitly conditional on future upgrades (polarization, luminosity, detector performance) rather than derived from internal data or self-citations. References to LEP/SLC averages are external benchmarks, not load-bearing self-references. No patterns of self-definition, fitted inputs renamed as predictions, or ansatz smuggling apply.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The proposal rests on standard electroweak theory and technical feasibility assumptions without introducing new fitted parameters or entities.

axioms (1)

domain assumption Standard Model electroweak couplings run with energy as predicted by quantum corrections.
Invoked when stating that measurements at 10.58 GeV will be sensitive to the running of the couplings.
