Ultra-High-Resolution Astronomy with the Solar Gravitational Lens

Slava G. Turyshev This is my paper

Pith reviewed 2026-06-26 23:14 UTC · model grok-4.3

classification 🌌 astro-ph.IM
keywords solar gravitational lensultra-high-resolution astronomyobservability frameworkimage reconstructionSSIMwhite dwarf mappingprotoplanetary subfieldAGN ring source
0
0 comments X

The pith

Spacecraft at the solar gravitational lens focal line can reconstruct images of compact sources like white dwarfs and AGN rings with SSIM values above 0.9 under stated assumptions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops an observability framework for non-exoplanet astronomy that uses the Sun as the wave-optical element and spacecraft for sampling, metrology, and inverse reconstruction. It separates the vector Poisson measurement operator from scalar convolution benchmarks to assess viability set by image-plane scale, raster pitch, finite-source gain, source-to-background ratio, temporal coherence, PSF knowledge, calibration, metrology, and focal-line access. Four analytic scenes—a solar analog and magnetic white dwarf at 10 pc, an M87*-scale ring/jet source, and a 0.1 AU protoplanetary subfield at 140 pc—are propagated and reconstructed. Under kernel-mismatch, background, calibration-floor, support-mask, sampling, regularization, and information-floor assumptions, the scalar reconstructions achieve SSIM values of 0.993, 0.918, 0.973, and 0.923. This demonstrates that many self-luminous compact targets are not photon-starved relative to reflected-light exo-Earth cases, shifting dominant requirements to ring extraction, coronal subtraction, detector dynamic range, PSF knowledge, cadence, spectroscopy, metrology, scan overhead, and access, with the priority being SGL transfer-function characterization.

Core claim

The central claim is that the solar gravitational lens supplies a target-specific observatory whose viability for non-exoplanet targets is governed by image-plane scale, raster pitch, finite-source gain, source-to-background ratio, temporal coherence, PSF knowledge, calibration, metrology, and focal-line access; separating the vector Poisson measurement operator from the scalar convolution used for benchmarks allows four analytic scenes to be reconstructed with SSIM values of 0.993, 0.918, 0.973, and 0.923 under the listed kernel-mismatch, background, calibration-floor, support-mask, sampling, regularization, and information-floor assumptions.

What carries the argument

The observability framework that separates the vector Poisson measurement operator from the scalar convolution benchmark to quantify inverse conditioning for SGL scenes.

If this is right

  • The strongest bounded cases are white-dwarf surface and magnetic mapping, nearby stellar surfaces, compact AGN/black-hole structure with long-wavelength instrumentation, velocity-resolved broad-line-region mapping, and planet-forming subfields.
  • Many self-luminous compact targets are not photon-starved relative to a reflected-light exo-Earth reference.
  • Dominant requirements shift from photon collection to ring extraction, coronal subtraction, detector dynamic range, PSF knowledge, cadence, spectroscopy, metrology, scan overhead, and access.
  • The priority enabling program is SGL transfer-function characterization measuring solar-multipole, plasma, extended-Sun, and instrumental response.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the separation of operators holds in flight data, the same framework could be adapted to test whether extended solar corona effects limit reconstruction at longer wavelengths.
  • The reported SSIM values quantify conditioning under synthetic kernels; actual metrology errors on focal-line position would provide a direct test of whether the information floor can be maintained.
  • The emphasis on compact self-luminous sources suggests the method could complement, rather than compete with, interferometric arrays for velocity-resolved mapping of broad-line regions.

Load-bearing premise

Viability holds only if the vector Poisson operator can be cleanly separated from scalar convolution and if image-plane scale, raster pitch, PSF knowledge, calibration, and metrology remain within the stated bounds.

What would settle it

A real focal-line observation of one of the four scenes that yields an SSIM below 0.85 after applying the actual solar multipole and plasma response would falsify the claimed reconstruction performance.

Figures

Figures reproduced from arXiv: 2606.18300 by Slava G. Turyshev.

Figure 1

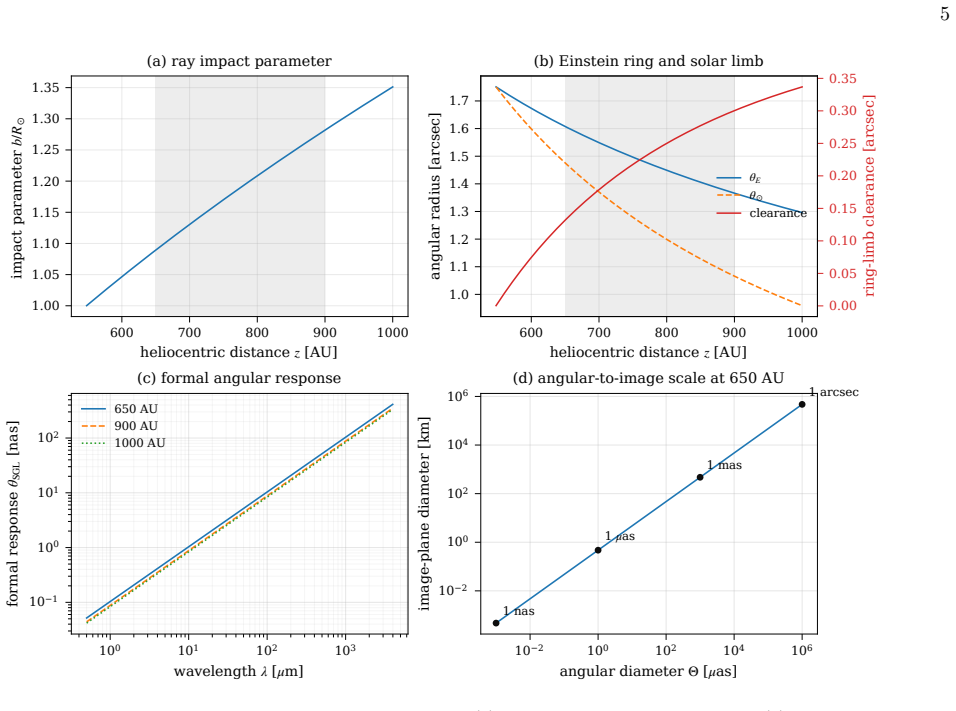

Figure 1. Figure 1: FIG. 1. SGL observatory scalings restricted to 548–1000 [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2

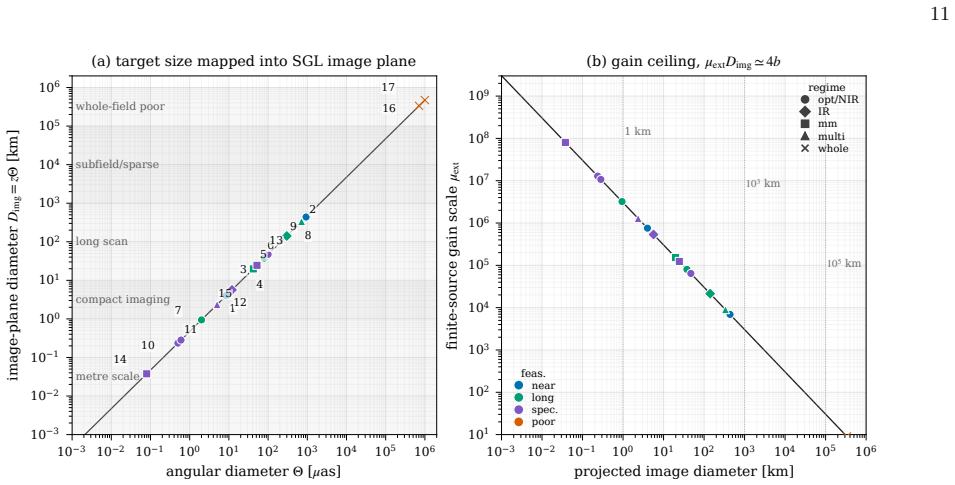

Figure 2. Figure 2: FIG. 2. Target phase space and finite-source gain for representative SGL applications. Panel (a) maps angular diameter into [PITH_FULL_IMAGE:figures/full_fig_p011_2.png] view at source ↗

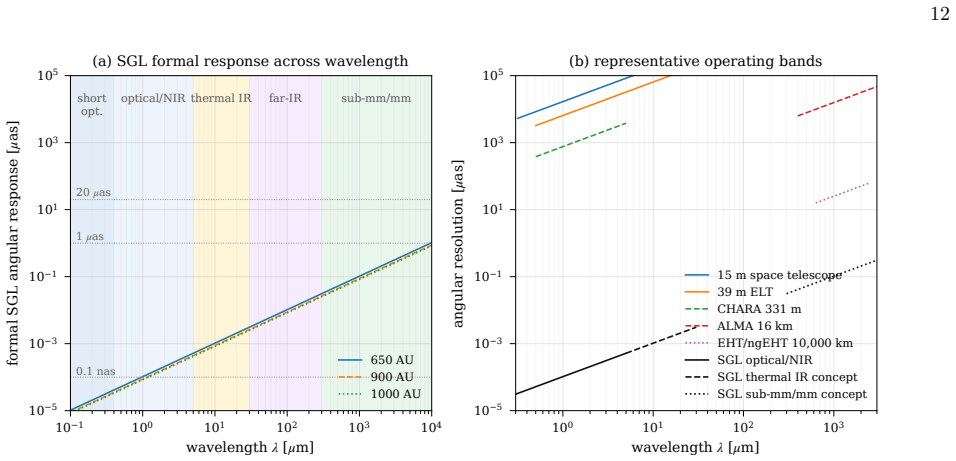

Figure 3
Figure 3. Figure 3: FIG. 3. SGL angular-response and facility-comparison scalings over wavelength. Panel (a) shows the formal SGL response from [PITH_FULL_IMAGE:figures/full_fig_p012_3.png] view at source ↗
Figure 4

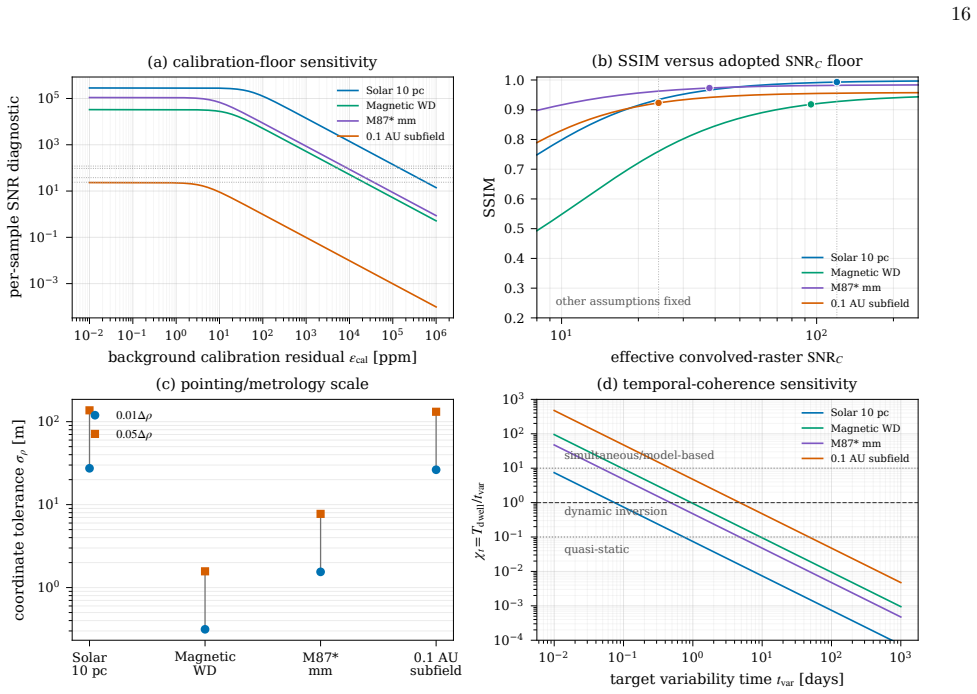

Figure 4. Figure 4: FIG. 4. First-order sensitivity diagnostics for the four scalar benchmarks. Panel (a) uses Eq. ( [PITH_FULL_IMAGE:figures/full_fig_p016_4.png] view at source ↗

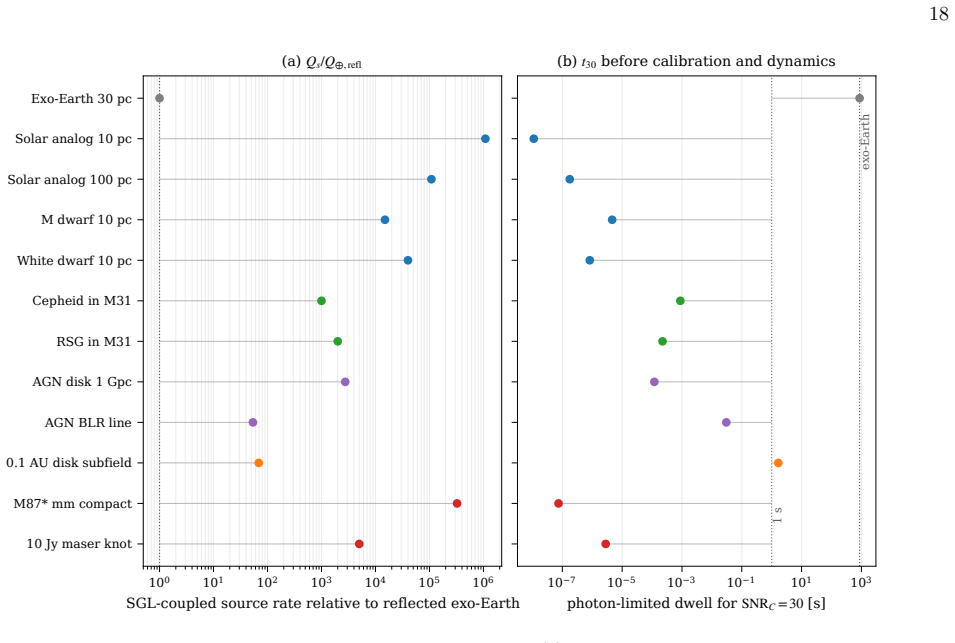

Figure 5
Figure 5. Figure 5: FIG. 5. Photon-rate comparison for the target classes in Table [PITH_FULL_IMAGE:figures/full_fig_p018_5.png] view at source ↗

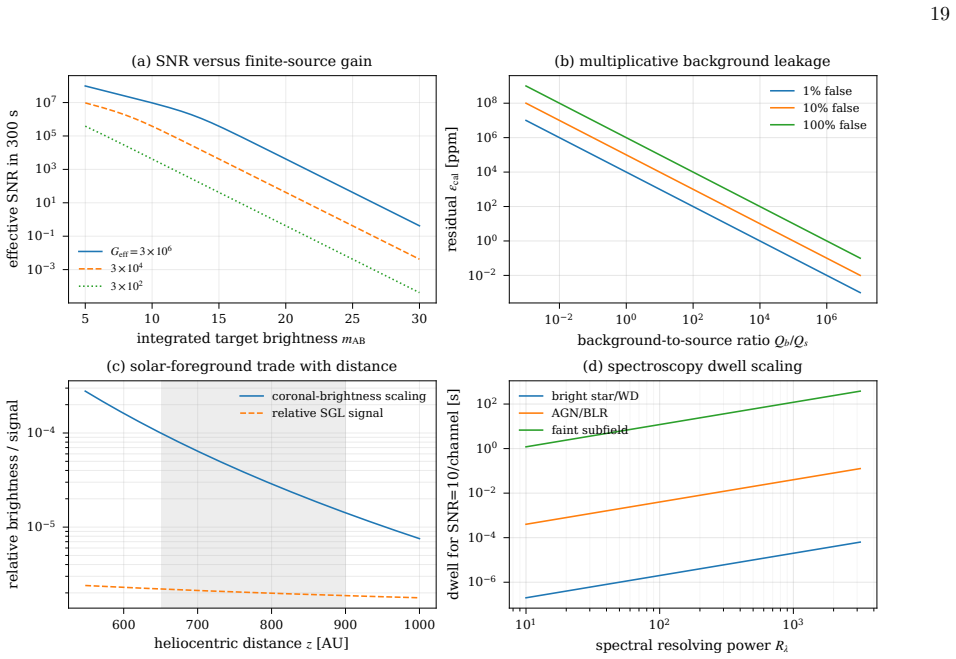

Figure 6
Figure 6. Figure 6: FIG. 6. Radiometric, foreground, and spectral scaling diagnostics. Panel (a) shows effective SNR in a 300 s dwell as a function of [PITH_FULL_IMAGE:figures/full_fig_p019_6.png] view at source ↗

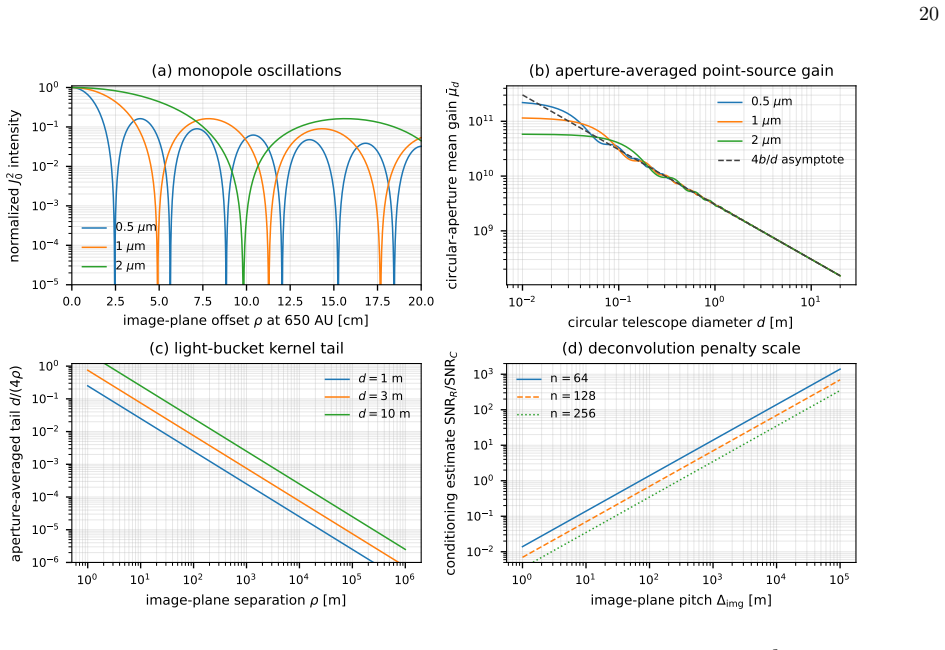

Figure 7
Figure 7. Figure 7: FIG. 7. Monopole physical-optics and scalar-conditioning diagnostics. Panel (a) shows the normalized [PITH_FULL_IMAGE:figures/full_fig_p020_7.png] view at source ↗

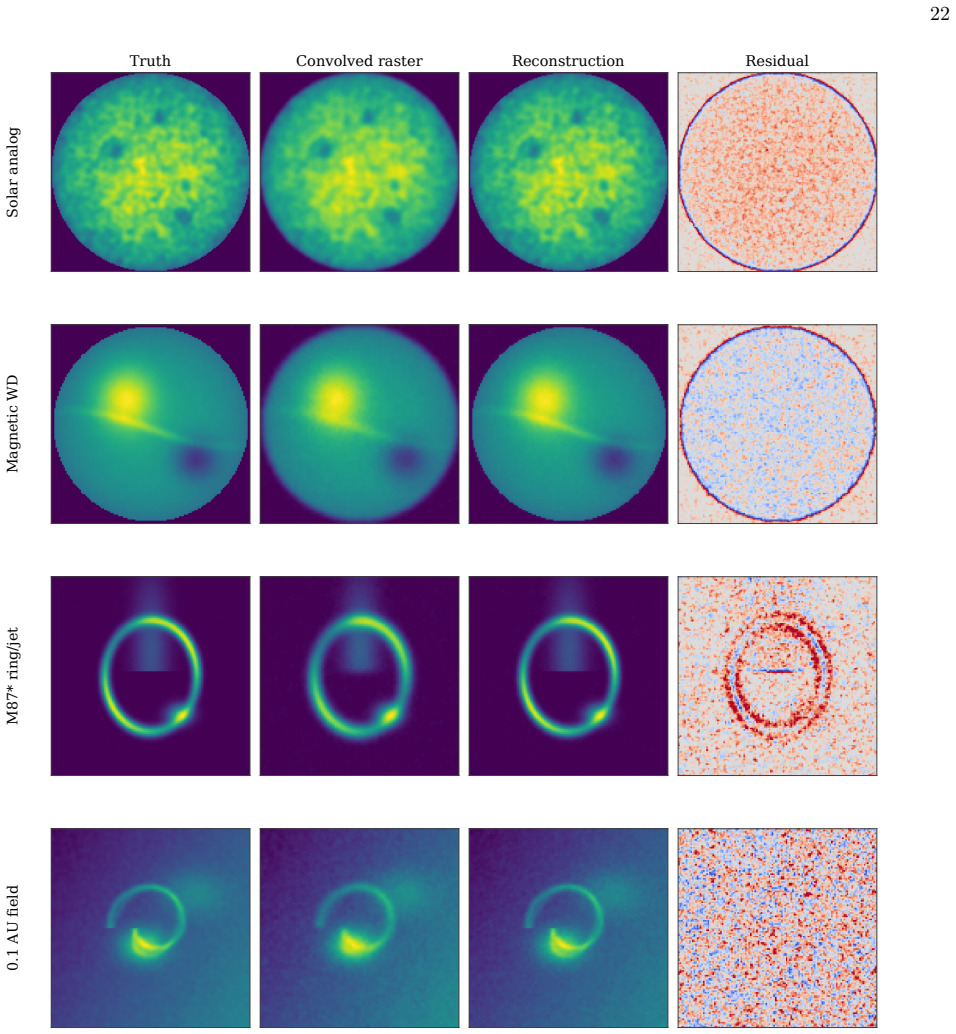

Figure 8
Figure 8. Figure 8: FIG. 8. Representative scalar SGL benchmark simulations. Each row shows the input truth, SGL-convolved raster with noise [PITH_FULL_IMAGE:figures/full_fig_p022_8.png] view at source ↗
Figure 9

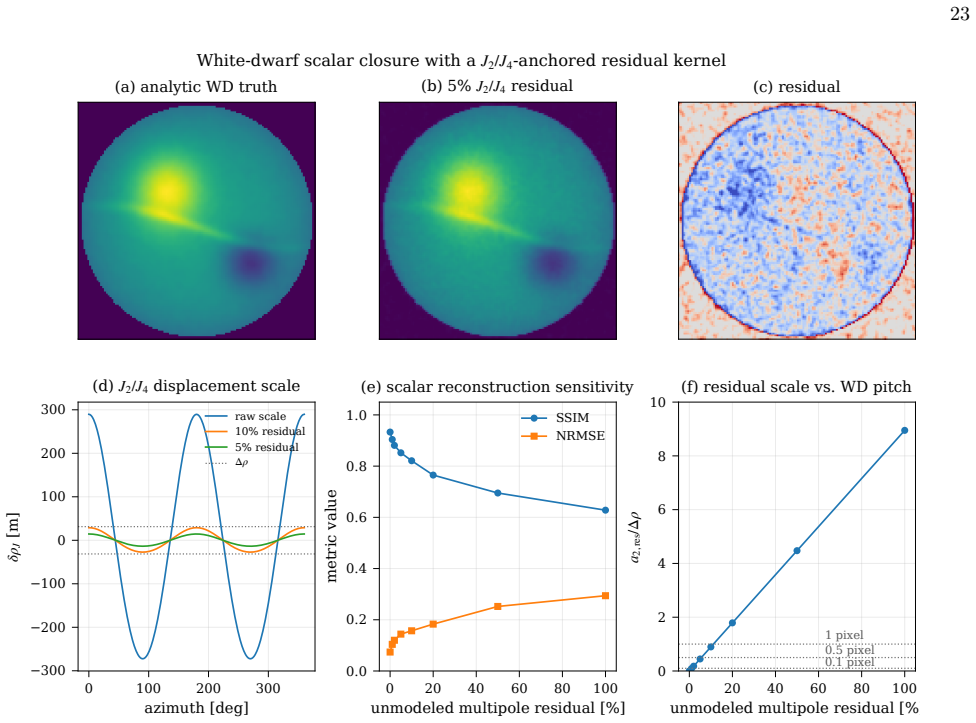

Figure 9. Figure 9: FIG. 9. White-dwarf scalar closure test with a low-order solar-multipole residual surrogate. Panels (a)–(c) show an analytic [PITH_FULL_IMAGE:figures/full_fig_p023_9.png] view at source ↗

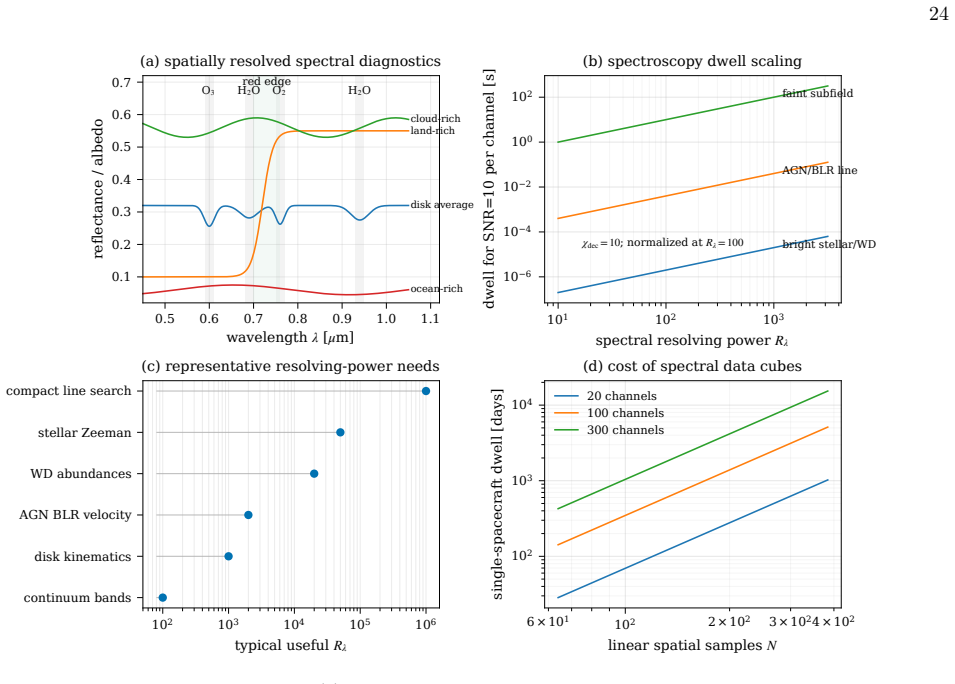

Figure 10
Figure 10. Figure 10: FIG. 10. SGL spectroscopy diagnostics. Panel (a) shows representative spatially resolved reflected-light spectra and molecu [PITH_FULL_IMAGE:figures/full_fig_p024_10.png] view at source ↗

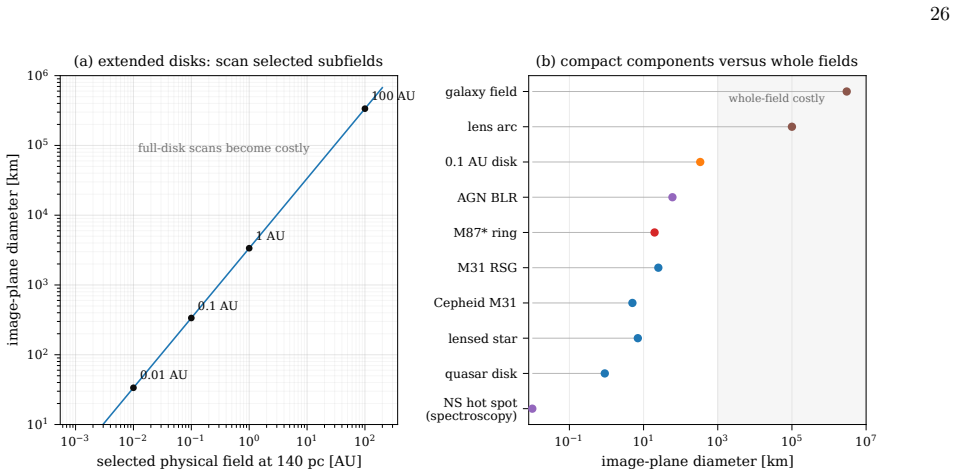

Figure 11
Figure 11. Figure 11: FIG. 11. Subfield and compact-component constraints. Panel (a) shows image-plane diameter for selected physical fields in a [PITH_FULL_IMAGE:figures/full_fig_p026_11.png] view at source ↗
Figure 12

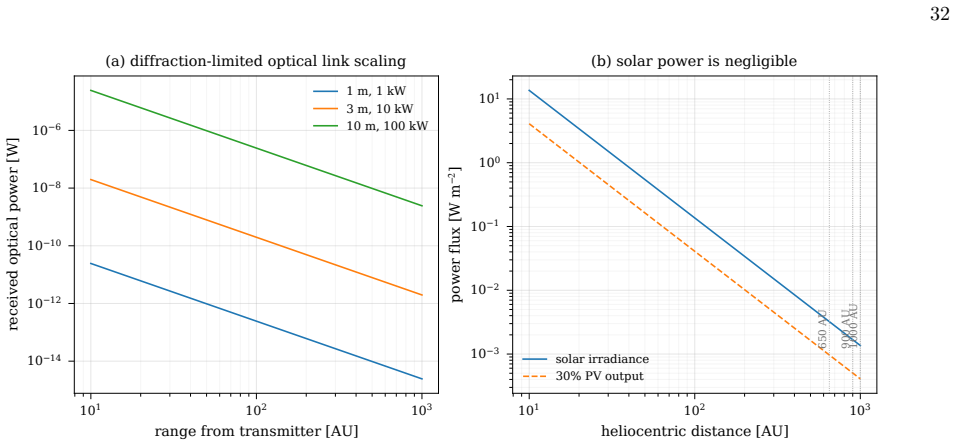

Figure 12. Figure 12: FIG. 12. Power and communication constraints for SGL observatory architectures. Panel (a) gives an approximate diffraction [PITH_FULL_IMAGE:figures/full_fig_p032_12.png] view at source ↗

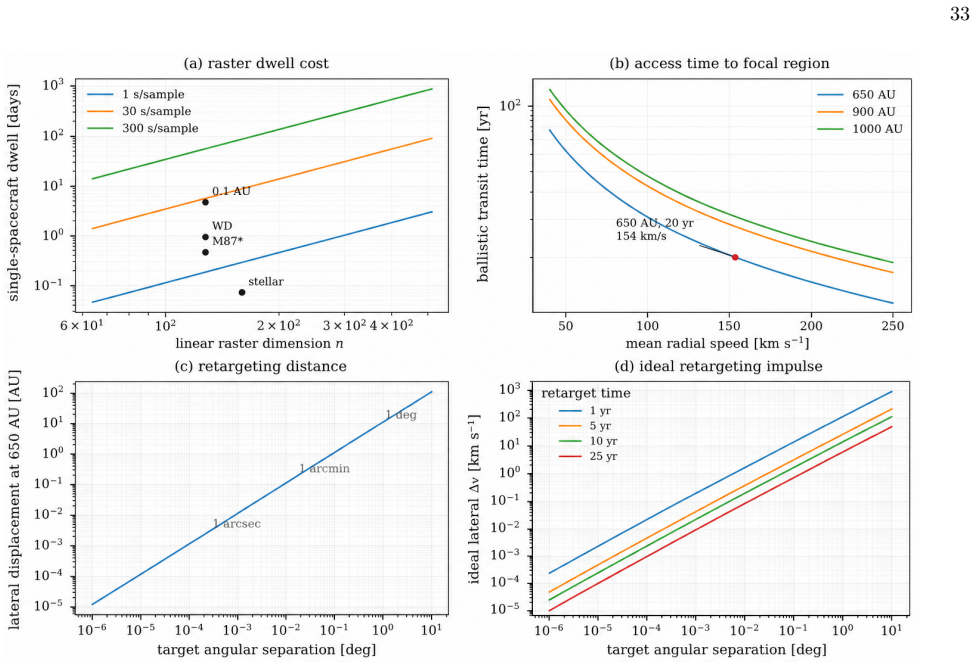

Figure 13
Figure 13. Figure 13: FIG. 13. Mission implementation scalings. Panel (a) shows cumulative dwell time versus linear raster dimension [PITH_FULL_IMAGE:figures/full_fig_p033_13.png] view at source ↗
read the original abstract

The solar gravitational lens (SGL) is a target-specific observatory: the Sun supplies the wave-optical element, while spacecraft provide occultation, annular photometry, sampling, metrology, and inverse reconstruction. We develop an observability framework for non-exoplanet SGL astronomy. Viability is set by image-plane scale, raster pitch, finite-source gain, source-to-background ratio, temporal coherence, PSF knowledge, calibration, metrology, and focal-line access. We separate the vector Poisson measurement operator from the scalar convolution used for benchmarks. Four analytic scenes are propagated and reconstructed: a solar analog and magnetic white dwarf at 10 pc, an M87*-scale millimeter ring/jet source, and a bright 0.1 AU protoplanetary subfield at 140 pc. Under stated kernel-mismatch, background, calibration-floor, support-mask, sampling, regularization, and imposed information-floor assumptions, the scalar reconstructions give SSIM values of 0.993, 0.918, 0.973, and 0.923. These metrics quantify scalar inverse conditioning, not delivered flight performance; FRC50, support-leakage, and information-floor sensitivity diagnostics expose the dependence on assumptions. Many self-luminous compact targets are not photon-starved relative to a reflected-light exo-Earth reference, shifting the dominant requirements to ring extraction, coronal subtraction, detector dynamic range, PSF knowledge, cadence, spectroscopy, metrology, scan overhead, and access. The strongest bounded cases are white-dwarf surface and magnetic mapping, nearby stellar surfaces, compact AGN/black-hole structure with long-wavelength instrumentation, velocity-resolved broad-line-region mapping, and planet-forming subfields. The priority enabling program is SGL transfer-function characterization: measuring solar-multipole, plasma, extended-Sun, and instrumental response needed for scientifically interpretable imaging.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The manuscript develops an observability framework for non-exoplanet astronomy with the solar gravitational lens (SGL). The Sun provides the wave-optical element while spacecraft handle occultation, photometry, sampling, metrology, and reconstruction. Viability is governed by image-plane scale, raster pitch, finite-source gain, source-to-background ratio, temporal coherence, PSF knowledge, calibration, metrology, and focal-line access. The vector Poisson measurement operator is separated from the scalar convolution used for benchmarks. Four analytic scenes (solar analog and magnetic white dwarf at 10 pc, M87*-scale mm ring/jet, 0.1 AU protoplanetary subfield at 140 pc) are propagated and reconstructed, yielding SSIM values of 0.993, 0.918, 0.973, and 0.923 under stated assumptions on kernel mismatch, background, calibration floor, support mask, sampling, regularization, and information floor. These metrics are presented as quantifying scalar inverse conditioning rather than flight performance; FRC50, support-leakage, and sensitivity diagnostics are supplied. The paper concludes that many compact self-luminous targets are not photon-starved relative to exo-Earth references and prioritizes SGL transfer-function characterization.

Significance. If the conditional results hold, the framework supplies a quantitative structure for assessing SGL target viability and shifts emphasis from photon collection to ring extraction, coronal subtraction, detector dynamic range, PSF knowledge, cadence, spectroscopy, metrology, and scan overhead. The explicit separation of the vector Poisson operator from scalar benchmarks, together with FRC50, support-leakage, and information-floor sensitivity diagnostics, strengthens the analysis by exposing dependence on modeling choices. The work provides a useful reference for mission-concept studies of ultra-high-resolution imaging of compact sources.

minor comments (3)
  1. Abstract: the four SSIM values are listed without mapping them to the four scenes; adding the correspondence (e.g., “solar analog: 0.993, white dwarf: 0.918 …”) would improve immediate readability.
  2. The manuscript states that the SSIM values quantify scalar inverse conditioning rather than delivered performance, but the transition between the vector Poisson operator and the scalar benchmark convolution is described only at a high level; a short paragraph or equation block clarifying the operator separation would reduce ambiguity for readers.
  3. The priority list in the final paragraph (ring extraction, coronal subtraction, detector dynamic range, etc.) is presented without quantitative thresholds; adding even order-of-magnitude estimates for the dominant requirements would make the conclusions more actionable.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive assessment of the manuscript, detailed summary of its contributions, and recommendation for minor revision. No specific major comments requiring response were provided in the report.

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The paper presents a simulation-based observability framework that separates the vector Poisson measurement operator from the scalar convolution benchmark and reports SSIM values (0.993, 0.918, 0.973, 0.923) explicitly as conditional outputs from propagating four analytic scenes under stated assumptions on kernel mismatch, background, calibration, sampling, regularization, and information floor. These metrics quantify inverse conditioning rather than being fitted to or defined by the target results themselves. Viability factors are listed transparently without any reduction of the central claims to self-referential inputs, self-citation chains, or ansatzes smuggled via prior work. The derivation chain is self-contained as a modeling exercise with explicit diagnostics (FRC50, support-leakage, sensitivity) and does not exhibit any of the enumerated circular patterns.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The abstract relies on multiple domain assumptions about the SGL transfer function and measurement operators without providing independent evidence for their validity in the non-exoplanet regime.

axioms (2)
  • domain assumption Separation of the vector Poisson measurement operator from the scalar convolution is valid for benchmark reconstructions.
    Explicitly stated as part of the framework development in the abstract.
  • domain assumption The listed viability factors (image-plane scale, PSF knowledge, metrology, etc.) fully determine observability.
    Abstract presents these as the controlling parameters for the framework.

pith-pipeline@v0.9.1-grok · 5862 in / 1375 out tokens · 32076 ms · 2026-06-26T23:14:26.634823+00:00 · methodology
