arxiv: 1907.03938 · v1 · pith:TWP7VQ3Inew · submitted 2019-07-09 · 💻 cs.IT · math.IT

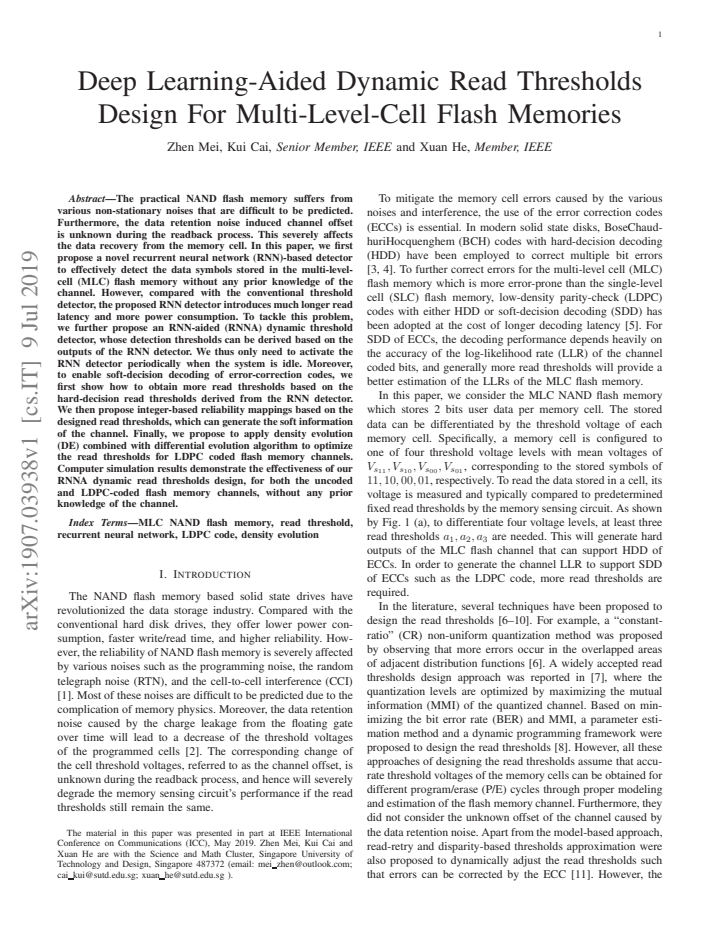

Deep Learning-Aided Dynamic Read Thresholds Design For Multi-Level-Cell Flash Memories

Zhen Mei , Kui Cai , Xuan He This is my paper

Pith reviewed 2026-05-25 00:31 UTC · model grok-4.3

classification 💻 cs.IT math.IT
keywords flash memorydynamic read thresholdsrecurrent neural networkMLCLDPC codesdata retention noisesoft-decision decodingdensity evolution
0
0 comments X

The pith

An RNN detector can derive dynamic read thresholds for MLC flash memory that work without any prior channel knowledge.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

NAND flash cells experience shifting noise and unknown offsets from data retention that fixed thresholds cannot handle. The paper establishes that a recurrent neural network can detect stored symbols in multi-level cells directly from raw reads. To limit the latency and power cost of the RNN, its outputs are used only occasionally to compute thresholds for a standard detector that runs the rest of the time. These thresholds further support soft decoding by generating additional levels and integer reliability values. Density evolution paired with differential evolution then tunes the thresholds for LDPC-coded channels.

Core claim

The paper claims that read thresholds derived from periodic outputs of an RNN detector yield accurate symbol detection in MLC flash memories even when the channel offset remains unknown, and that the same thresholds can be extended to produce soft information suitable for LDPC decoding after optimization by density evolution and differential evolution.

What carries the argument

The RNN-aided (RNNA) dynamic threshold detector, which extracts hard-decision thresholds from the outputs of a recurrent neural network detector activated only when the system is idle.

If this is right

  • The RNNA thresholds improve detection performance over fixed thresholds for both uncoded and LDPC-coded flash channels.
  • Additional read thresholds and integer reliability mappings can be generated from the hard-decision thresholds to supply soft information to the decoder.
  • Density evolution combined with differential evolution produces optimized thresholds for LDPC-coded channels.
  • The RNN detector needs activation only periodically, limiting its latency and power impact during normal operation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The periodic-activation pattern could allow the RNN component to be implemented as a low-duty-cycle coprocessor rather than a continuous pipeline.
  • The same derivation approach might adapt thresholds across different flash generations or operating temperatures without retraining.
  • Integer reliability mappings derived this way could reduce the precision required in the soft decoder hardware.

Load-bearing premise

Outputs from the RNN detector contain enough information to set read thresholds that remain accurate even though the channel offset and noise statistics are unknown.

What would settle it

Apply the derived RNNA thresholds to a sequence of MLC flash reads with increasing retention time and measure whether the resulting bit-error rate stays below that of a conventional fixed-threshold detector.

Figures

Figures reproduced from arXiv: 1907.03938 by Kui Cai, Xuan He, Zhen Mei.

Figure 1
Figure 1. Figure 1: Threshold voltage distributions of MLC flash memory c [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

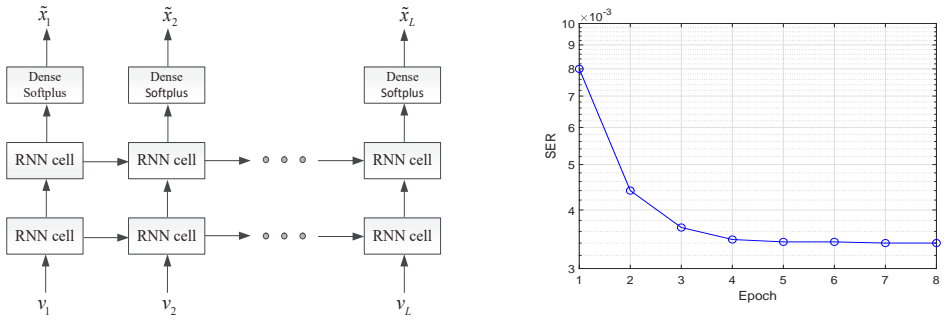

Figure 3
Figure 3. Figure 3: The training SER of the RNN detector for each epoch at P [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

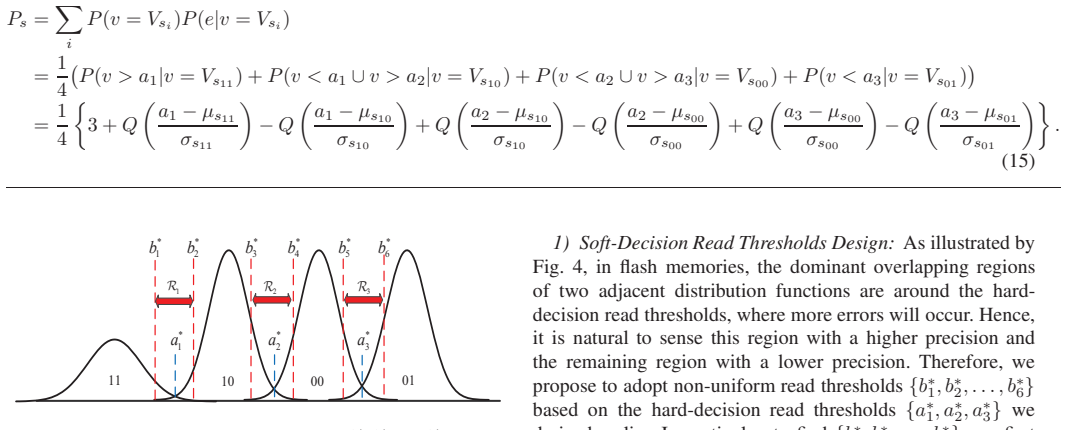

Figure 4
Figure 4. Figure 4: Defining the non-uniform read thresholds [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

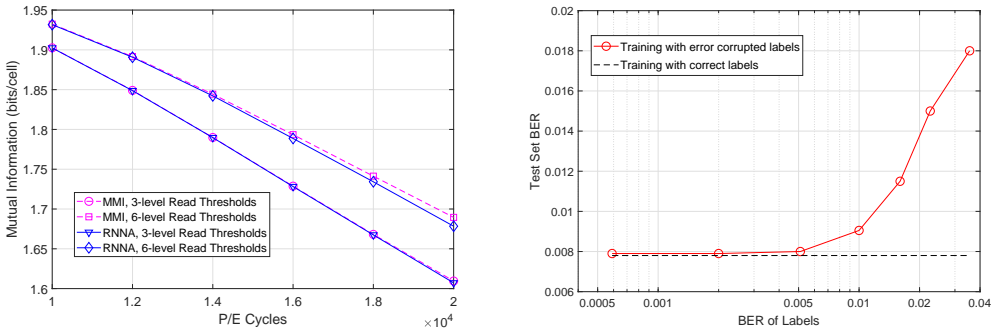

Figure 5
Figure 5. Figure 5: The MI with the MMI quantizer and RNNA quantizer over d [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗

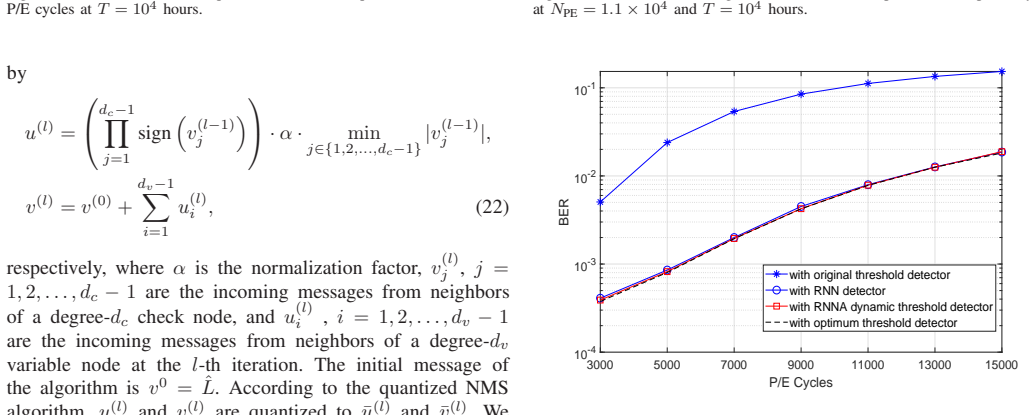

Figure 7
Figure 7. Figure 7: BER of the RNN detector and RNNA dynamic threshold det [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗

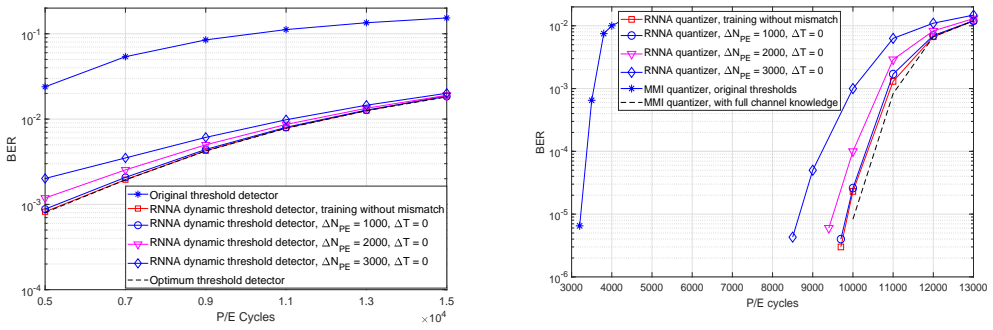

Figure 10
Figure 10. Figure 10: BERs of LDPC codes with the RNNA quantizer, trained w [PITH_FULL_IMAGE:figures/full_fig_p009_10.png] view at source ↗

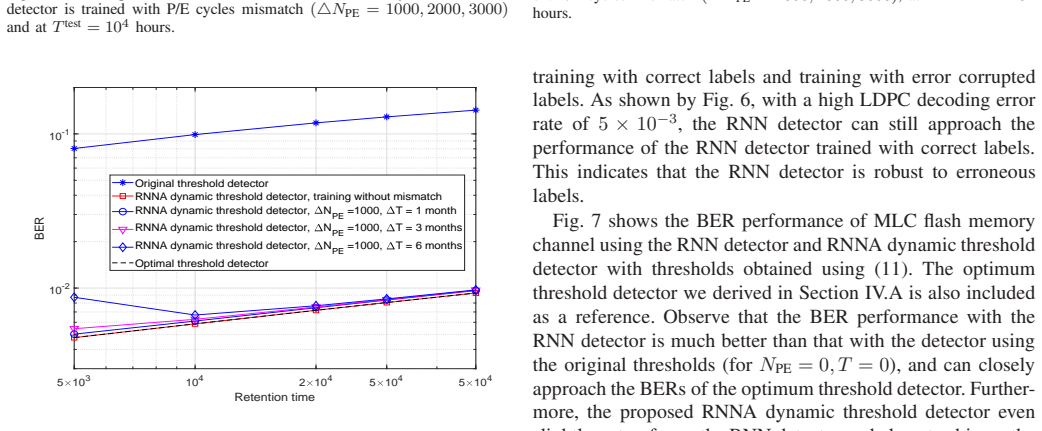

Figure 9
Figure 9. Figure 9: BER comparison of different detectors. The RNNA dyna [PITH_FULL_IMAGE:figures/full_fig_p009_9.png] view at source ↗
Figure 11
Figure 11. Figure 11: BERs of LDPC codes with the RNNA quantizer, trained w [PITH_FULL_IMAGE:figures/full_fig_p010_11.png] view at source ↗
read the original abstract

The practical NAND flash memory suffers from various non-stationary noises that are difficult to be predicted. Furthermore, the data retention noise induced channel offset is unknown during the readback process. This severely affects the data recovery from the memory cell. In this paper, we first propose a novel recurrent neural network (RNN)-based detector to effectively detect the data symbols stored in the multi-level-cell (MLC) flash memory without any prior knowledge of the channel. However, compared with the conventional threshold detector, the proposed RNN detector introduces much longer read latency and more power consumption. To tackle this problem, we further propose an RNN-aided (RNNA) dynamic threshold detector, whose detection thresholds can be derived based on the outputs of the RNN detector. We thus only need to activate the RNN detector periodically when the system is idle. Moreover, to enable soft-decision decoding of error-correction codes, we first show how to obtain more read thresholds based on the hard-decision read thresholds derived from the RNN detector. We then propose integer-based reliability mappings based on the designed read thresholds, which can generate the soft information of the channel. Finally, we propose to apply density evolution (DE) combined with differential evolution algorithm to optimize the read thresholds for LDPC coded flash memory channels. Computer simulation results demonstrate the effectiveness of our RNNA dynamic read thresholds design, for both the uncoded and LDPC-coded flash memory channels, without any prior knowledge of the channel.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes an RNN-based detector for symbol detection in MLC NAND flash that claims to operate without prior channel knowledge, followed by an RNNA dynamic threshold detector that derives read thresholds from periodic RNN activations to reduce latency. It further develops additional thresholds and integer reliability mappings for soft-decision LDPC decoding, optimizes thresholds via density evolution combined with differential evolution, and presents simulations claiming effectiveness for both uncoded and coded channels without prior knowledge.

Significance. If the no-prior-knowledge claim can be substantiated with explicit training details, the work could provide a useful adaptive approach for handling retention-induced offsets and non-stationary noise in flash memories. The periodic activation strategy and extension to soft information are practical ideas, and the use of DE for LDPC threshold optimization is a standard but well-motivated step.

major comments (2)
  1. [Abstract] Abstract: The central claim that the RNN detector (and thus the derived RNNA thresholds) functions 'without any prior knowledge of the channel' is load-bearing for the paper's contribution, yet the manuscript supplies no information on how the RNN is trained (e.g., whether supervised training uses channel-generated labeled pairs, an assumed model, or unsupervised methods). Standard RNN training for detection requires data that encodes the very noise and offset statistics the method claims to handle blindly, creating an unresolved dependency.
  2. [Abstract] Abstract (simulation results paragraph): The effectiveness claims for both uncoded and LDPC-coded cases rest on unspecified computer simulations with no reported details on training data generation, baseline comparators (e.g., conventional threshold detectors or model-based methods), error bars, or exclusion criteria. This prevents verification that the reported gains are attributable to the no-prior-knowledge property rather than implicit channel information in the training set.
minor comments (2)
  1. The abstract and introduction would benefit from a brief statement of the RNN architecture (number of layers, activation functions, input/output dimensions) to allow readers to assess computational overhead.
  2. Notation for the reliability mapping and integer-based soft information should be defined explicitly when first introduced, as the transition from hard-decision thresholds to soft values is central to the LDPC extension.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments highlighting the need for greater clarity on the training procedure and simulation details. We will revise the manuscript to address these points explicitly.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claim that the RNN detector (and thus the derived RNNA thresholds) functions 'without any prior knowledge of the channel' is load-bearing for the paper's contribution, yet the manuscript supplies no information on how the RNN is trained (e.g., whether supervised training uses channel-generated labeled pairs, an assumed model, or unsupervised methods). Standard RNN training for detection requires data that encodes the very noise and offset statistics the method claims to handle blindly, creating an unresolved dependency.

    Authors: We agree that the manuscript does not provide sufficient detail on RNN training, which weakens the substantiation of the no-prior-knowledge claim as presented. In the revision we will add an explicit description of the training process, noting that supervised training uses labeled pairs generated from a simulated MLC channel model that incorporates representative retention and noise statistics. The trained model is then deployed without requiring runtime knowledge of specific channel parameters. We will also clarify that this offline training step is distinct from online channel estimation required by conventional model-based detectors. revision: yes

  2. Referee: [Abstract] Abstract (simulation results paragraph): The effectiveness claims for both uncoded and LDPC-coded cases rest on unspecified computer simulations with no reported details on training data generation, baseline comparators (e.g., conventional threshold detectors or model-based methods), error bars, or exclusion criteria. This prevents verification that the reported gains are attributable to the no-prior-knowledge property rather than implicit channel information in the training set.

    Authors: We concur that the simulation description is incomplete and prevents proper evaluation. The revised manuscript will include details on training-data generation (using the same general channel model employed for RNN training), the specific baseline detectors compared, the number of Monte Carlo trials, and reporting of variability measures such as error bars. These additions will allow readers to assess whether gains arise from the adaptive, knowledge-free operation at inference time. revision: yes

Circularity Check

0 steps flagged

No circularity; RNN training and DE optimization are external to the claimed derivation.

full rationale

The abstract and described method introduce an RNN detector trained on external data, derive thresholds from its outputs, map to soft information, and optimize via standard density evolution plus differential evolution. No equations, self-citations, or steps are quoted that reduce a claimed prediction or result to a fitted parameter or prior self-result by construction. The 'without prior knowledge' assertion is presented as validated by simulation rather than derived tautologically from the inputs. This is the normal case of a self-contained proposal relying on data-driven training and established algorithms.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract supplies no equations, fitted constants, or explicit axioms; the approach implicitly assumes standard RNN training converges to useful detectors and that DE accurately models the coded channel, but none are stated or quantified.
