Topology of Plasma Wakefields Driven by Two Color Laguerre Gaussian Laser Pulses

Pith reviewed 2026-05-19 23:40 UTC · model grok-4.3

classification ⚛️ physics.plasm-ph physics.comp-phphysics.flu-dyn
keywords plasma wakefieldsLaguerre-Gaussian laser pulsesorbital angular momentumlaser-plasma accelerationtwo-color driverstransverse wakefieldsunderdense plasmaquasistatic approximation
0
0 comments X

The pith

Two-color Laguerre-Gaussian laser pulses generate hollow and ring-shaped plasma wakefields

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper examines plasma wakefield excitation driven by two-color Laguerre-Gaussian laser pulses carrying orbital angular momentum. Analytical work and quasi-cylindrical particle-in-cell simulations show that finite azimuthal index reduces and irregularizes on-axis longitudinal wakefields. The reduction stems from energy redistribution to finite radii rather than overall loss of excitation, producing hollow and ring-shaped wake structures with altered transverse fields and wider density perturbations. Readers would care because the results point to a laser-based method for shaping wake topology and directing transverse dynamics in plasma accelerators.

Core claim

In the weakly relativistic regime of underdense plasma, two-color Laguerre-Gaussian drivers with finite azimuthal index yield reduced and less regular on-axis longitudinal wakefields, with the reduction due to redistribution of wakefield energy toward finite radii rather than diminished excitation, leading to hollow and ring-shaped wake structures, strongly modified transverse electric fields, and broader plasma density perturbations.

What carries the argument

Perturbative framework combined with the quasistatic approximation, used to compute longitudinal and transverse wakefields from the transverse mode structure of the Laguerre-Gaussian pulses.

If this is right

  • On-axis longitudinal wakefields become reduced and less regular.
  • Wakefield energy redistributes toward finite radii instead of vanishing.
  • Hollow and ring-shaped wake structures appear along with modified transverse electric fields.
  • Plasma density perturbations broaden and mixed Gaussian-Laguerre-Gaussian drivers show intermediate off-axis excitation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The ring-shaped wakes open the possibility of off-axis particle injection schemes that avoid on-axis fields.
  • Orbital angular momentum in the driver may transfer to plasma electrons or the accelerated beam, producing twisted particle trajectories.
  • This topology control could be tested as a way to manage transverse beam instabilities in longer plasma accelerator stages.

Load-bearing premise

The perturbative framework together with the quasistatic approximation remains valid for examining the influence of transverse laser mode structure on wakefields in the weakly relativistic regime of underdense plasma.

What would settle it

A direct comparison of the radial profile of longitudinal wakefield energy between Laguerre-Gaussian and Gaussian drivers at equal total power, either in simulation or experiment, would show whether energy redistributes off-axis as described.

Figures

Figures reproduced from arXiv: 2605.18336 by Bhupesh Kumar, Dinkar Mishra, Pallavi Jha, Saumya Singh, Shivani Aggarwal.

Figure 1
Figure 1. Figure 1: Analytical variation of the longitudinal wakefield [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: On-axis longitudinal wakefield Ez(z) for nine combinations of Laguerre–Gaussian laser modes characterized by the radial index p and azimuthal index l. 4 Results and Discussion The simulations were performed using the quasi-cylindrical particle-in-cell code FBPIC, which employs an azimuthal Fourier decomposition of the electromagnetic fields. The computational domain was defined in cylindrical coordinates (… view at source ↗
Figure 3

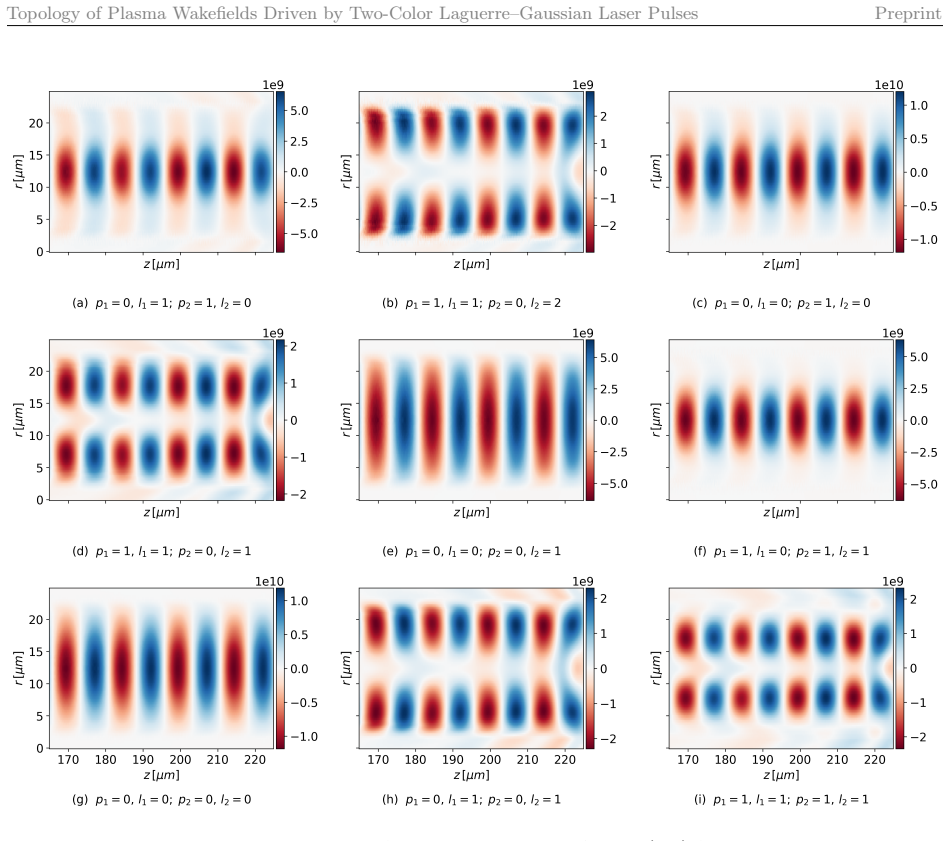

Figure 3. Figure 3: Radial–longitudinal distribution of the longitudinal wakefield [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 4

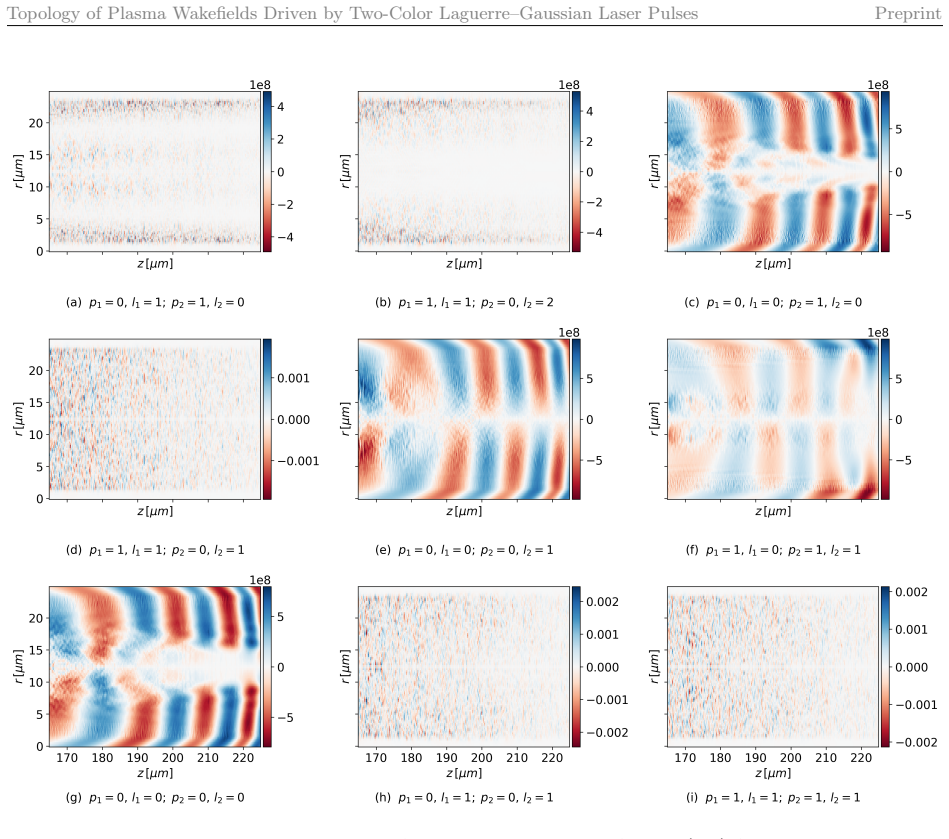

Figure 4. Figure 4: Radial–longitudinal distribution of the transverse electric field [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗
Figure 5

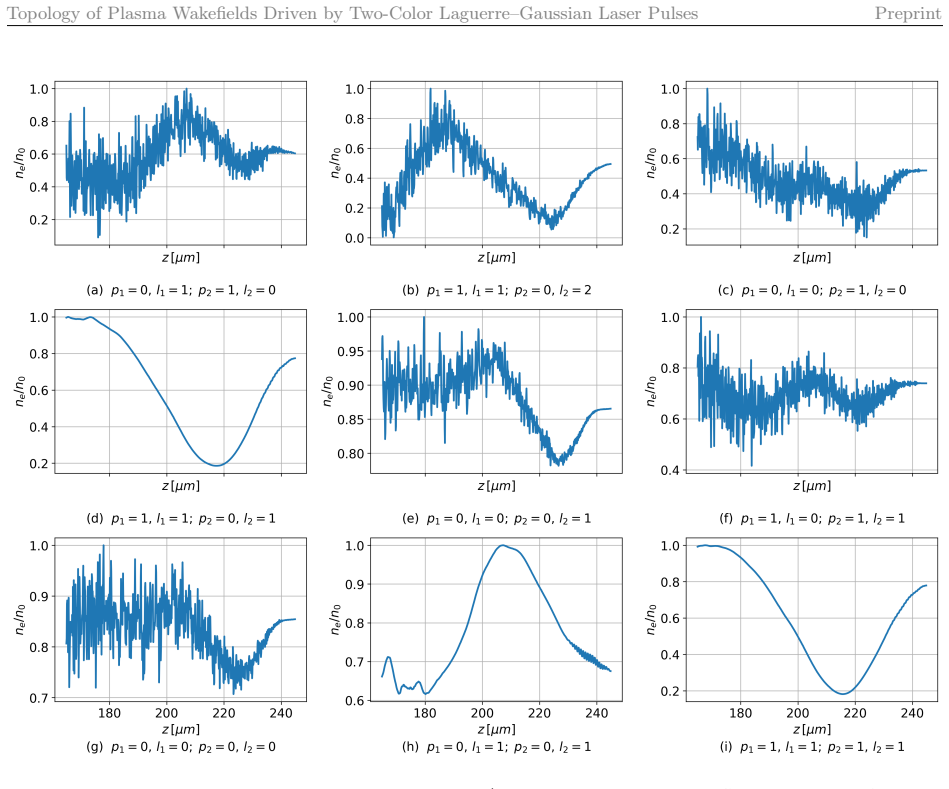

Figure 5. Figure 5: Longitudinal plasma density perturbation [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗
read the original abstract

Plasma wakefield excitation driven by two color Laguerre Gaussian laser pulses carrying orbital angular momentum is investigated analytically and through quasi-cylindrical particle in cell simulations. Using a perturbative framework together with the quasistatic approximation, the influence of the transverse laser mode structure on the longitudinal and transverse wakefields in an underdense plasma is examined in the weakly relativistic regime. The results show that drivers with finite azimuthal index produce reduced and less regular on-axis longitudinal wakefields compared to conventional Gaussian drivers. However, radial longitudinal field distributions reveal that this reduction originates from a redistribution of the wakefield energy toward finite radii rather than a simple loss of wake excitation. Orbital angular momentum carrying modes generate hollow and ring shaped wake structures accompanied by strongly modified transverse electric fields and broader plasma density perturbations. Mixed Gaussian Laguerre Gaussian configurations exhibit intermediate behavior, combining weak on-axis acceleration with pronounced off axis wake excitation. The study demonstrates that structured two-color laser drivers fundamentally modify the topology of plasma wakefields and provide an additional mechanism for controlling transverse plasma dynamics, off-axis acceleration, and angular momentum mediated wakefield structures in plasma based accelerator schemes.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 4 minor

Summary. The manuscript investigates plasma wakefield excitation driven by two-color Laguerre-Gaussian laser pulses carrying orbital angular momentum. Using a perturbative analytical framework combined with the quasistatic approximation, supported by quasi-cylindrical particle-in-cell simulations, the authors examine the influence of transverse laser mode structure on longitudinal and transverse wakefields in underdense plasma in the weakly relativistic regime. The results indicate that finite azimuthal index modes produce reduced and less regular on-axis longitudinal wakefields due to redistribution of wakefield energy toward finite radii, generating hollow and ring-shaped wake structures with modified transverse electric fields and broader plasma density perturbations. Mixed Gaussian-LG configurations exhibit intermediate behavior, positioning structured drivers as a mechanism for controlling transverse plasma dynamics, off-axis acceleration, and angular momentum-mediated wakefield structures in plasma-based accelerator schemes.

Significance. If the central claims hold, this work would be significant for plasma-based accelerator research by identifying structured two-color LG drivers as a means to modify wakefield topology and enable off-axis control. The combination of perturbative analysis and quasi-cylindrical PIC simulations provides a balanced approach, and the focus on the weakly relativistic underdense regime aligns with practical laser-plasma accelerator parameters. Explicit credit is due for grounding results in both analytical approximations and numerical validation rather than relying solely on one method.

major comments (1)
  1. [Perturbative framework and quasistatic approximation] The validity of the quasistatic approximation for LG modes with finite azimuthal index l is load-bearing for the topology modification claim. The helical phase exp(ilθ) introduces azimuthal E and B components whose time dependence is not obviously slow-varying along the propagation direction; this can source non-quasistatic transverse currents neglected in the model. The abstract reports reduced on-axis Ez and ring-shaped wakes, but these features require explicit justification that the neglected azimuthal terms remain small at the radii where wake energy concentrates (see the perturbative framework and quasistatic approximation sections).
minor comments (4)
  1. [Abstract] The abstract is information-dense; splitting the description of results into shorter sentences would improve clarity for readers.
  2. Simulation parameters such as laser amplitude a0, pulse durations, frequency ratio for the two-color driver, and plasma density should be stated explicitly in the main text (not only in figure captions) to support reproducibility.
  3. A brief discussion of the range of validity for the perturbative expansion (e.g., upper bound on a0) and any observed discrepancies between analytical predictions and PIC results at larger radii would strengthen the presentation.
  4. Notation for the LG mode indices (radial p and azimuthal l) and the definition of the two-color superposition should be introduced at the first use rather than assumed from prior literature.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their thorough review and valuable comments on our work. We have addressed the major comment regarding the validity of the quasistatic approximation by providing additional justification and clarifications in the revised manuscript.

read point-by-point responses
  1. Referee: The validity of the quasistatic approximation for LG modes with finite azimuthal index l is load-bearing for the topology modification claim. The helical phase exp(ilθ) introduces azimuthal E and B components whose time dependence is not obviously slow-varying along the propagation direction; this can source non-quasistatic transverse currents neglected in the model. The abstract reports reduced on-axis Ez and ring-shaped wakes, but these features require explicit justification that the neglected azimuthal terms remain small at the radii where wake energy concentrates (see the perturbative framework and quasistatic approximation sections).

    Authors: We thank the referee for this important observation on the applicability of the quasistatic approximation to Laguerre-Gaussian drivers with finite azimuthal index. Our perturbative analytical model employs the quasistatic approximation for the plasma wake response, which is justified in the underdense, weakly relativistic regime where the laser pulse propagates much faster than the plasma waves. The helical phase structure does generate azimuthal field components; however, within the paraxial beam approximation used for the two-color LG pulses, these azimuthal contributions to the wake excitation are higher-order effects and do not significantly alter the radial redistribution of the longitudinal wakefield energy. To explicitly address this, we have added a paragraph in the revised manuscript (in the section describing the perturbative framework) that estimates the relative magnitude of the neglected azimuthal currents, showing they are suppressed by factors of order (ω_p / ω_0)^2 or the beam divergence parameter at the relevant off-axis radii. This supports that the ring-shaped wakes and reduced on-axis Ez remain valid predictions of the model. Additionally, our quasi-cylindrical particle-in-cell simulations, which solve the full Maxwell equations without invoking the quasistatic approximation, confirm the same wake topology modifications, including the hollow structures and modified transverse fields. We have updated the manuscript to highlight this numerical validation more prominently in support of the analytical results. These changes constitute a major revision as recommended. revision: yes

Circularity Check

0 steps flagged

No circularity: derivation remains independent of reported wakefield outcomes

full rationale

The paper applies a perturbative expansion to first order in a0 together with the quasistatic approximation to obtain longitudinal and transverse wakefields for two-color Laguerre-Gaussian drivers. The abstract and described results follow directly from these stated approximations and from quasi-cylindrical PIC simulations; no equation is shown to be equivalent to its own input by construction, no parameter is fitted to a subset and then relabeled as a prediction of a related quantity, and no uniqueness theorem or ansatz is imported via self-citation. The reported reduction of on-axis Ez, ring-shaped wakes, and off-axis energy redistribution are presented as consequences of the mode structure under the given framework rather than as definitions or tautologies. The derivation chain is therefore self-contained against the external benchmarks of the perturbative model and the simulations.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The analysis rests on standard plasma-physics approximations without introducing new free parameters, invented entities, or ad-hoc axioms beyond the perturbative and quasistatic framework stated in the abstract.

axioms (2)
  • domain assumption Quasistatic approximation holds for wakefield evolution in underdense plasma
    Invoked to examine longitudinal and transverse wakefields driven by the laser pulses
  • domain assumption Weakly relativistic regime applies to the laser-plasma interaction
    Limits the validity of the perturbative framework used for mode-structure effects

pith-pipeline@v0.9.0 · 5746 in / 1325 out tokens · 40616 ms · 2026-05-19T23:40:08.694242+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

30 extracted references · 30 canonical work pages

  1. [1]

    Hamster H, Sullivan A, Gordon S, White W and Falcone R W 1993 Subpicosecond electromagnetic pulses from intense laser–plasma interactionPhys. Rev. Lett.712725

  2. [2]

    Fluids30890

    Meyer J and Zhu Y 1987 Second harmonic emission from an underdense laser-produced plasma and filamentationPhys. Fluids30890

  3. [3]

    Kiselev S, Pukhov A and Kostyukov I 2004 X-ray generation in strongly nonlinear plasma wavesPhys. Rev. Lett.93135004

  4. [4]

    Plasmas 11744

    Eder D C, Amendt P, DaSilva L B, London R A, MacGowan D J, Mathews D L, Penetrante V M, Rosen M B, Wilks S C, Donnelly T D, Falcone R W and Strobel G L 1994 Tabletop x-ray lasersPhys. Plasmas 11744

  5. [5]

    Controlled Fusion43A267

    Borghesi M, Schiavi A, Campbell D H, Haines M G, Willi O, MacKinnon A J, Gizzi L A, Galimberti M, Clarke R J and Ruhl H 2001 Proton imaging: a diagnostic for inertial confinement fusion/fast ignitor studiesPlasma Phys. Controlled Fusion43A267

  6. [6]

    Tajima T and Dawson J M 1979 Laser electron acceleratorPhys. Rev. Lett.43267

  7. [7]

    Plasmas22123109 10 Topology of Plasma Wakefields Driven by Two-Color Laguerre–Gaussian Laser Pulses Preprint

    Zhang R, Cheng L H and Xue J K 2015 Laser-driven electron acceleration in an inhomogeneous plasma channelPhys. Plasmas22123109 10 Topology of Plasma Wakefields Driven by Two-Color Laguerre–Gaussian Laser Pulses Preprint

  8. [8]

    Gorbunov L M and Kirsanov V I 1987 Excitation of plasma waves by an electromagnetic wave packet Sov. Phys. JETP66290

  9. [9]

    Dewa H, Ahn H, Harano H, Kando M, Kinoshita K, Kondoh S, Kotaki H, Nakajima K, Nakanishi H, Ogata A, Sakai H, Uesaka M, Ueda T, Watanabe T and Yoshii K 1998 Experiments of high energy gain laser wakefield accelerationNucl. Instrum. Methods Phys. Res. A410357

  10. [10]

    Bulanov S V, Kirsanov V I and Sakharov A S 1989 Excitation of ultrarelativistic plasma waves by a pulse of electromagnetic radiationJETP Lett.50198

  11. [11]

    Sprangle P, Esarey E and Ting A 1990 Nonlinear theory of intense laser–plasma interactionsPhys. Rev. Lett.642011

  12. [12]

    Plasmas12033101

    Gorbunov L M, Kalmykov S Y and Mora P 2005 Laser wakefield acceleration by petawatt ultrashort laser pulsesPhys. Plasmas12033101

  13. [13]

    Sprangle P, Hafizi B, Penano J R, Hubbard R F, Ting A, Moore C I, Gordon D F, Zigler A, Kaganovich D and Antonsen T M Jr 2001 Wakefield generation and GeV acceleration in tapered plasma channels Phys. Rev. E63056405

  14. [14]

    Rep.83165

    Lemos N, Cardoso L, Geada J, Figueiredo G, Albert F and Dias J M 2018 Guiding of laser pulses in plasma waveguides created by linearly polarized femtosecond laser pulsesSci. Rep.83165

  15. [15]

    Gordon D F, Hafizi B, Hubbard R F, Penano J R, Sprangle P and Ting A 2003 Asymmetric self-phase modulation and compression of short laser pulses in plasma channelsPhys. Rev. Lett.90215001

  16. [16]

    Esarey E and Leemans W P 1999 Nonparaxial propagation of ultrashort laser pulses in plasma channels Phys. Rev. E591082

  17. [17]

    Esarey E, Ting A and Sprangle P 1990 Nonlinear analysis of intense two-frequency laser–plasma interactionsPhys. Rev. A423526

  18. [18]

    Phys.14023057

    Pathak V B, Vieira J, Fonseca R A and Silva L O 2012 Effect of the frequency chirp on laser wakefield accelerationNew J. Phys.14023057

  19. [19]

    Plasmas19053103

    Zhang X, Shen B, Ji L, Wang W, Xu J, Yu Y, Yi L, Wang X, Hafz N A M and Kulagin V 2012 Effect of pulse profile and chirp on a laser wakefield generationPhys. Plasmas19053103

  20. [20]

    Commun.710371

    Vieira J, Mendonça J T and Silva L O 2016 Plasma wakefield acceleration driven by intense laser beams with orbital angular momentumNat. Commun.710371

  21. [21]

    Mendonça J T 2009 Plasma vortices and fields driven by intense laser beams with orbital angular momentumPhys. Rev. Lett.103033001

  22. [22]

    Shi Y, Vieira J, Trines R M G M, Bingham R, Mendonça J T and Norreys P A 2014 Laser wakefield acceleration using structured lightPhys. Rev. Lett.112235001

  23. [23]

    Vieira J and Mendonça J T 2014 Nonlinear laser–plasma interactions with orbital angular momentum Phys. Rev. Lett.112215001

  24. [24]

    Eng.12e86

    Tang X, Hao J and Shi Y 2025 Electron injection and acceleration in a twisted laser driven by the light fanHigh Power Laser Sci. Eng.12e86

  25. [25]

    Phys.10995379

    Mendonça J T, Vieira J, Willim C and Fedele R 2022 Particle acceleration by twisted laser beamsFront. Phys.10995379

  26. [26]

    Shi Y, Zhang X, Arefiev A and Shen B 2024 Advances in laser–plasma interactions using intense vortex laser beamsarXiv:2405.17852

  27. [27]

    Rep.910292 11 Topology of Plasma Wakefields Driven by Two-Color Laguerre–Gaussian Laser Pulses Preprint

    Martins J L, Godinho J P, Fonseca R A and others 2019 Radiation emission in laser-wakefields driven by structured lightSci. Rep.910292 11 Topology of Plasma Wakefields Driven by Two-Color Laguerre–Gaussian Laser Pulses Preprint

  28. [28]

    Vieira J, De Moura D A G and Mendonça J T 2018 Optical control of the topology of laser–plasma acceleratorsPhys. Rev. Lett.121054801

  29. [29]

    Lett.17046001

    Punia S and Gupta A K 2020 Generation and regulation of electron vortices in an underdense plasma by Laguerre–Gaussian laser beamsLaser Phys. Lett.17046001

  30. [30]

    Plasmasin press 12

    Bhaskar S 2024 Propagation of twisted laser carrying orbital angular momentum in plasma and applica- tions to particle accelerationPhys. Plasmasin press 12
