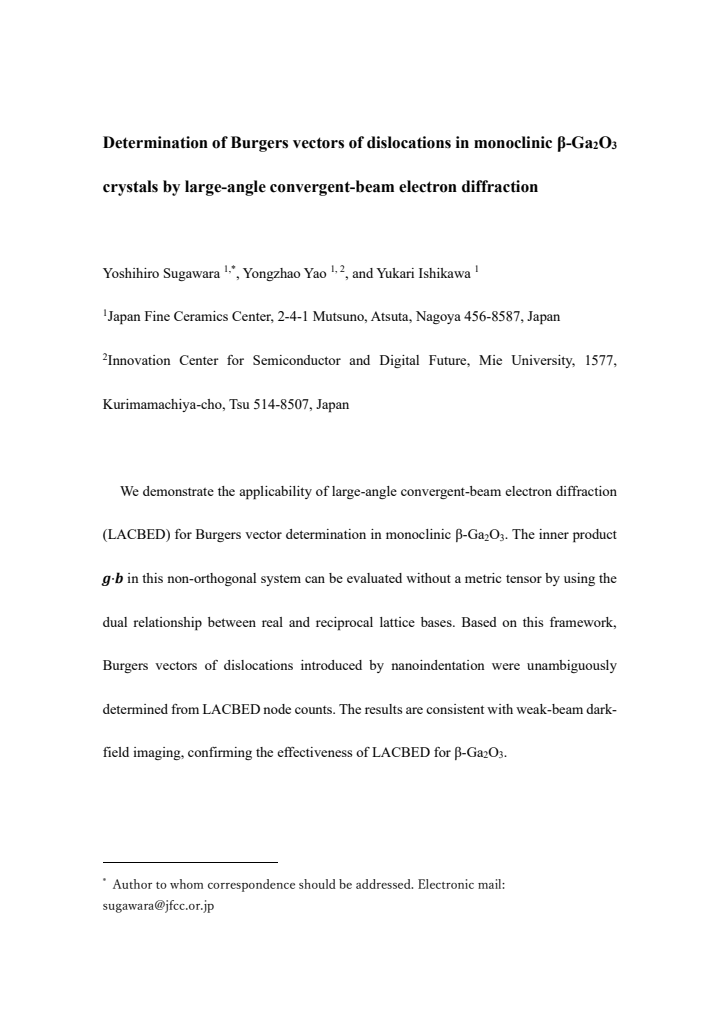

Determination of Burgers vectors of dislocations in monoclinic β-Ga₂O₃ crystals by large-angle convergent-beam electron diffraction
Pith reviewed 2026-05-07 15:54 UTC · model grok-4.3
The pith
LACBED determines Burgers vectors of dislocations in monoclinic β-Ga₂O₃ by node counts after computing g · b via dual lattice bases.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Burgers vectors of dislocations introduced by nanoindentation were unambiguously determined from LACBED node counts in monoclinic β-Ga₂O₃. The inner product g · b is evaluated using the dual relationship between real and reciprocal lattice bases, without requiring a metric tensor. The results are consistent with weak-beam dark-field imaging.
What carries the argument
The dual relationship between real and reciprocal lattice bases, which allows evaluation of g · b in the non-orthogonal monoclinic system.
If this is right
- Burgers vectors are determined unambiguously from the number of nodes in LACBED patterns.
- The method applies specifically to the monoclinic symmetry of β-Ga₂O₃.
- Consistency with weak-beam dark-field imaging validates the LACBED approach for this material.
Where Pith is reading between the lines
- This framework might apply to Burgers vector analysis in other monoclinic or low-symmetry materials.
- It could simplify dislocation studies in gallium oxide for semiconductor applications.
- Further tests could involve different indentation conditions or other defect types.
Load-bearing premise
The inner product g · b in this non-orthogonal system can be evaluated without a metric tensor by using the dual relationship between real and reciprocal lattice bases.
What would settle it
A discrepancy between the Burgers vectors predicted by LACBED node counts and those observed through weak-beam dark-field imaging or other independent methods would falsify the determination method.
read the original abstract
We demonstrate the applicability of large-angle convergent-beam electron diffraction (LACBED) for Burgers vector determination in monoclinic $\beta$-Ga$_2$O$_3$. The inner product $g \cdot b$ in this non-orthogonal system can be evaluated without a metric tensor by using the dual relationship between real and reciprocal lattice bases. Based on this framework, Burgers vectors of dislocations introduced by nanoindentation were unambiguously determined from LACBED node counts. The results are consistent with weak-beam dark-field imaging, confirming the effectiveness of LACBED for $\beta$-Ga$_2$O$_3$.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper claims to demonstrate the applicability of large-angle convergent-beam electron diffraction (LACBED) for determining Burgers vectors of dislocations in monoclinic β-Ga₂O₃. It shows that g · b can be evaluated without a metric tensor by using the dual relationship between real and reciprocal lattice bases, allowing unambiguous assignment from node counts in LACBED patterns for nanoindentation-induced dislocations; results are reported as consistent with independent weak-beam dark-field imaging.
Significance. If the central claim holds, the work is significant for defect characterization in β-Ga₂O₃, a key wide-bandgap semiconductor for power electronics. The dual-basis approach provides a parameter-free route to g · b in low-symmetry lattices, and the cross-validation with weak-beam imaging strengthens reliability. This could facilitate better understanding of how dislocations affect device performance in monoclinic crystals.
minor comments (3)
- The abstract reports consistency with weak-beam imaging but omits details on node interpretation rules, potential pattern ambiguities, or error handling; the main text should expand on how node counts are mapped to specific g · b integers in the monoclinic system.
- Include example LACBED patterns with labeled nodes and a summary table of observed dislocations, their g vectors, node counts, and assigned Burgers vectors to improve verifiability.
- Clarify the experimental conditions (e.g., sample thickness, exact zone axes) under which the LACBED node counting remains unambiguous, as these are critical for reproducibility in non-orthogonal lattices.
Simulated Author's Rebuttal
We thank the referee for the positive evaluation of our manuscript and the recommendation for minor revision. The referee's summary correctly captures the central claim that LACBED can be used to determine Burgers vectors in monoclinic β-Ga₂O₃ by evaluating g · b via the dual relationship between real and reciprocal lattice bases without requiring a metric tensor, with results cross-validated against weak-beam dark-field imaging.
Circularity Check
No significant circularity detected
full rationale
The paper's central claim is an experimental determination of Burgers vectors via LACBED node counts in β-Ga₂O₃, cross-checked against weak-beam dark-field imaging. The evaluation of g · b uses the standard dual-basis definition of the reciprocal lattice (g_i · a_j = δ_ij), which is a general property of any Bravais lattice and does not reduce to the paper's own inputs or fitted parameters. No self-definitional steps, fitted inputs renamed as predictions, or load-bearing self-citations appear in the derivation chain. The method is self-contained against external experimental benchmarks.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption The dual relationship between real and reciprocal lattice bases allows evaluation of g · b without a metric tensor in non-orthogonal monoclinic systems.
