Optomechanical tension and crumpling of resonant membranes

I.D. Avdeev , A.N. Poddubny , A.V. Poshakinskiy This is my paper

Pith reviewed 2026-05-25 09:41 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall physics.optics
keywords optomechanical tensionresonant membranescrumpled phasegraphenetransition metal dichalcogenidesflexural vibrationsbending rigidityoptical detuning
0
0 comments X

The pith

Illumination induces anisotropic optomechanical tension in resonant membranes that can turn negative and trigger crumpling.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that a plane electromagnetic wave incident on optically resonant membranes, such as graphene or transition-metal dichalcogenide monolayers, generates mechanical tension whose magnitude and sign depend on the frequency detuning from the membrane's optical resonance. This tension is anisotropic in the membrane plane. When negative, it can exceed the bending rigidity and drive a transition from flat to crumpled morphology. A reader would care because the effect supplies an all-optical route to alter the equilibrium shape and stability of atomically thin sheets without mechanical contact or electrodes.

Core claim

Illumination by a plane electromagnetic wave of optically resonant membranes directly affects their mechanical tension. The induced optomechanical tension is anisotropic and, depending on the spectral detuning from the resonance, can be both positive and negative. In the latter case, it can overcome the bending rigidity of the membrane leading to transition to the crumpled phase. The instability caused by optomechanical heating of flexural vibrations is also considered.

What carries the argument

Optomechanical tension generated by the resonant interaction of the incident plane wave with the membrane's optical modes.

If this is right

  • Membranes undergo a transition to the crumpled phase under illumination at frequencies that produce negative tension.
  • Tension is anisotropic, producing direction-dependent stretching or compression.
  • Optomechanical heating of flexural vibrations can produce an additional instability.
  • The effect is predicted for graphene and monolayers of transition metal dichalcogenides.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same tension mechanism could be used to optically tune the shape of suspended 2D membranes in devices.
  • Frequency-dependent sign reversal might allow switching between flat and crumpled states by changing laser wavelength.
  • Related compressive effects could appear in other resonant 2D structures such as photonic-crystal membranes.

Load-bearing premise

The optomechanical coupling strength must be large enough relative to bending rigidity that the sign-dependent tension term dominates other mechanical and thermal contributions.

What would settle it

Direct measurement showing membrane crumpling or reduced effective stiffness only when the illumination frequency is red-detuned from the optical resonance, with the opposite behavior for blue detuning.

Figures

Figures reproduced from arXiv: 1907.02010 by A.N. Poddubny, A.V. Poshakinskiy, I.D. Avdeev.

Figure 1

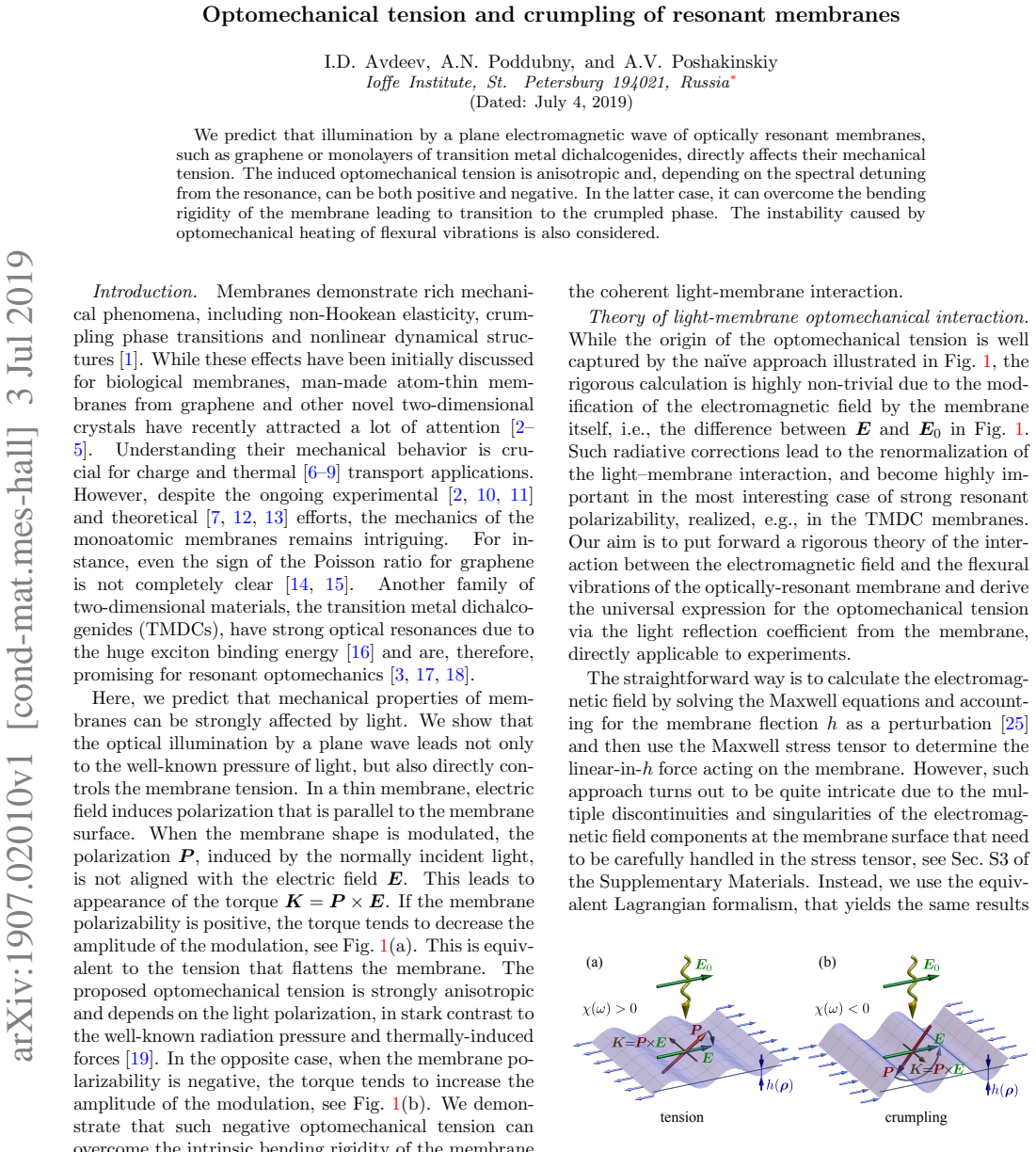

Figure 1. Figure 1: FIG. 1. The mechanism of the optomechanical tension. [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

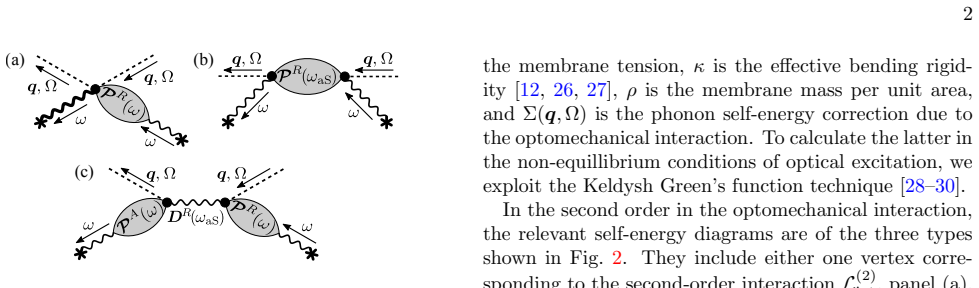

Figure 2. Figure 2: FIG. 2. The diagrams describing the self-energy of the flexural [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3

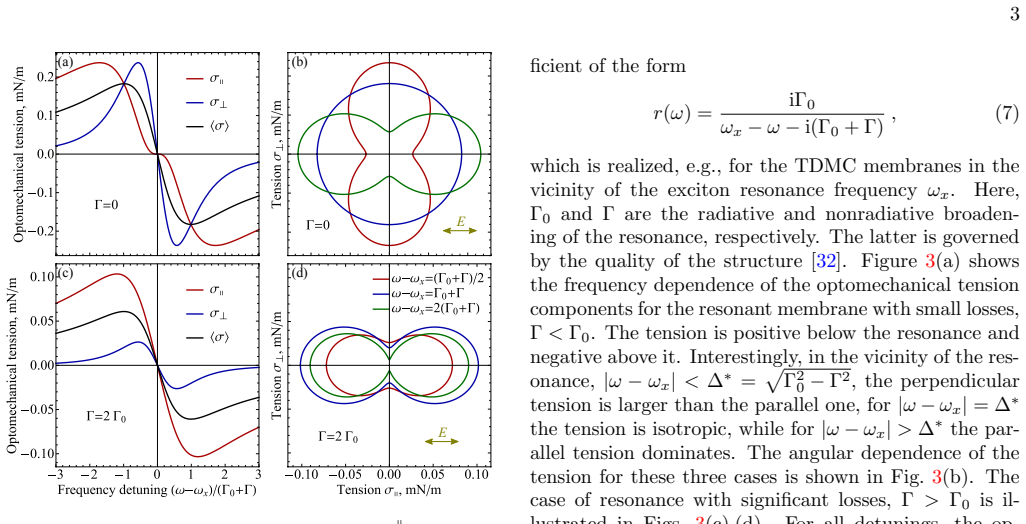

Figure 3. Figure 3: FIG. 3. (a),(c) Optomechanical tension along ( [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4

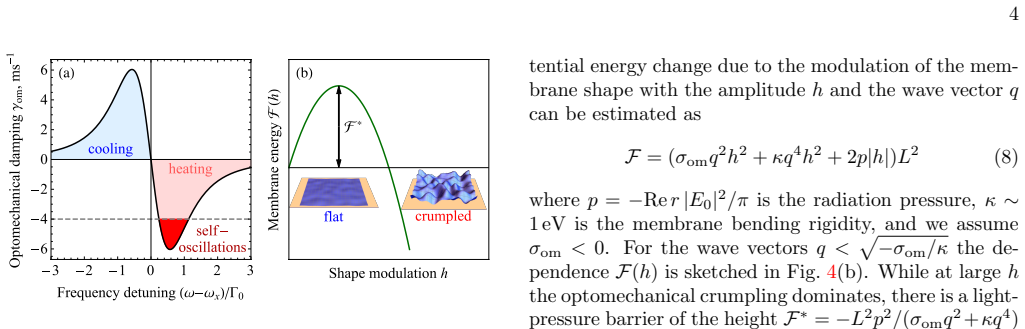

Figure 4. Figure 4: FIG. 4. Optomechanical instabilities. (a) Optomechanical [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
read the original abstract

We predict that illumination by a plane electromagnetic wave of optically resonant membranes, such as graphene or monolayers of transition metal dichalcogenides, directly affects their mechanical tension. The induced optomechanical tension is anisotropic and, depending on the spectral detuning from the resonance, can be both positive and negative. In the latter case, it can overcome the bending rigidity of the membrane leading to transition to the crumpled phase. The instability caused by optomechanical heating of flexural vibrations is also considered.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The manuscript predicts that illumination of optically resonant membranes (graphene or TMD monolayers) by a plane electromagnetic wave induces an anisotropic optomechanical tension whose sign depends on detuning from the optical resonance. Negative tension can overcome bending rigidity and drive a transition to the crumpled phase; the work also analyzes an instability arising from optomechanical heating of flexural modes.

Significance. If the central prediction holds, the result supplies a purely optical route to sign-tunable, anisotropic tension in 2D membranes, offering a new handle on mechanical instabilities and the crumpled phase without external mechanical loading. The derivation links electromagnetic resonance directly to the mechanical stress tensor, which is a conceptually clean advance in mesoscopic optomechanics.

major comments (1)
  1. [Derivation of optomechanical tension and discussion of crumpled phase] The central claim that negative optomechanical tension can drive the crumpled phase requires a quantitative demonstration that |T_opt| exceeds the bending-rigidity scale κ/L² (or equivalent) for realistic parameters. No such estimate—using concrete values for membrane size L, resonance linewidth, incident intensity, and material constants (Young’s modulus, bending rigidity) of graphene or TMDs—appears in the derivation of the tension or in the discussion of the phase transition. This comparison is load-bearing for physical accessibility of the predicted instability.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for highlighting the need for a quantitative assessment of the optomechanical tension relative to the bending rigidity. We address the single major comment below.

read point-by-point responses

  1. Referee: The central claim that negative optomechanical tension can drive the crumpled phase requires a quantitative demonstration that |T_opt| exceeds the bending-rigidity scale κ/L² (or equivalent) for realistic parameters. No such estimate—using concrete values for membrane size L, resonance linewidth, incident intensity, and material constants (Young’s modulus, bending rigidity) of graphene or TMDs—appears in the derivation of the tension or in the discussion of the phase transition. This comparison is load-bearing for physical accessibility of the predicted instability.

    Authors: We agree that the manuscript as submitted lacks an explicit numerical comparison demonstrating that the predicted |T_opt| can exceed the bending-rigidity scale for laboratory-accessible parameters. In the revised version we will insert a dedicated paragraph (or short subsection) immediately following the derivation of T_opt. This paragraph will supply order-of-magnitude estimates using standard values for suspended graphene (Y ≈ 1 TPa, κ ≈ 1 eV, Γ ≈ 10–50 meV, L = 1–10 μm) and monolayer MoS₂, together with incident intensities of 10–100 W cm⁻² that are routinely employed in optical-tweezers or cavity-optomechanics experiments. The estimates will show that, for red detuning, |T_opt| can reach several nN m⁻¹, comfortably above κ/L² ≈ 10^{-3}–10^{-1} nN m⁻¹, thereby placing the crumpling instability within experimental reach. Analogous numbers will be given for TMDs. revision: yes

Circularity Check

0 steps flagged

No circularity: forward derivation from EM response to tension remains independent

full rationale

The provided abstract and context frame the result as a direct prediction from plane-wave illumination of an optically resonant membrane to induced anisotropic tension (positive or negative depending on detuning), with possible dominance over bending rigidity. No equations, fitted parameters, or self-citations are exhibited that would make the tension term equivalent to its own inputs by construction. The derivation chain is therefore self-contained against standard Maxwell-equation response and membrane elasticity, consistent with the default expectation that most papers contain no circularity.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Abstract-only review prevents exhaustive enumeration; the central claim implicitly rests on an unstated model of how resonant absorption couples to in-plane strain and on the assumption that bending rigidity is the dominant restoring force against compression.

axioms (1)
  • domain assumption Resonant absorption produces a detuning-dependent mechanical tension whose magnitude exceeds bending rigidity for accessible illumination intensities.
    Required for the crumpling transition to occur; location: abstract statement on overcoming bending rigidity.
