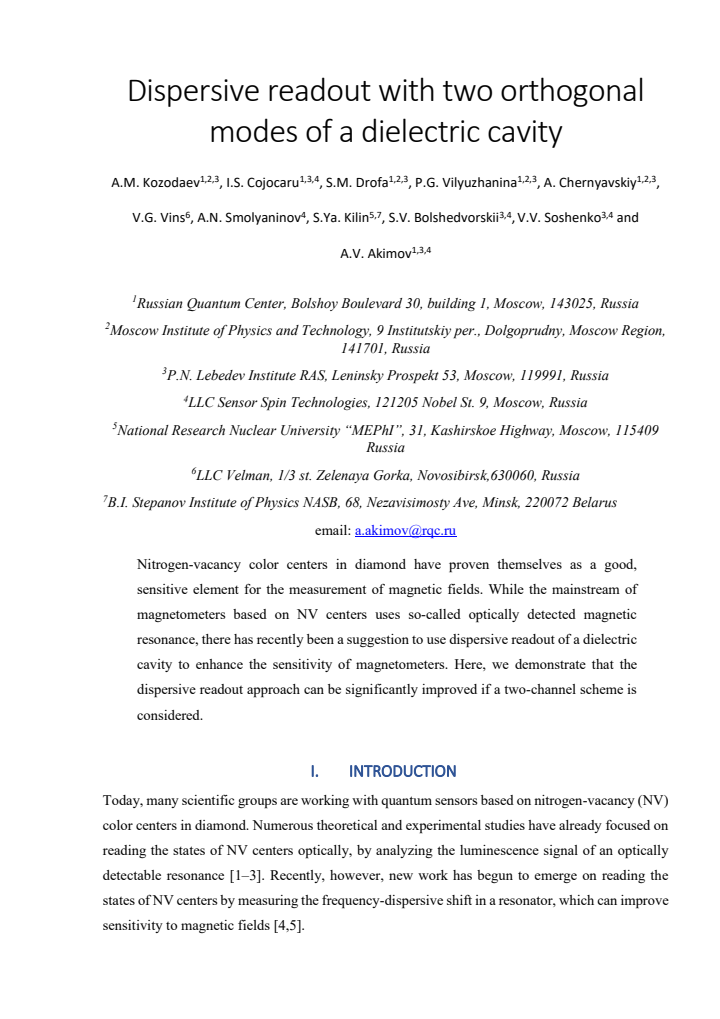

Dispersive readout with two orthogonal modes of a dielectric cavity

A.M. Kozodaev , I.S. Cojocaru , S.M. Drofa , P.G. Vilyuzhanina , A. Chernyavskiy , V.G. Vins , A.N. Smolyaninov , S.Ya. Kilin
show 3 more authors
S.V. Bolshedvorskii V.V. Soshenko A.V. Akimov
This is my paper

Pith reviewed 2026-05-17 01:16 UTC · model grok-4.3

classification 🪐 quant-ph physics.ins-det
keywords nitrogen-vacancy centersdispersive readoutdielectric cavityNV magnetometryquantum sensingtwo-channel scheme
0
0 comments X

The pith

Two orthogonal modes of a dielectric cavity improve dispersive readout sensitivity for NV centers.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper argues that dispersive readout of nitrogen-vacancy centers can be made more sensitive by coupling them to two orthogonal modes inside a dielectric cavity rather than relying on a single mode. This two-channel approach extracts information from cavity frequency shifts caused by the centers' response to magnetic fields and serves as an alternative to standard optically detected magnetic resonance. A sympathetic reader would care because the extra channel could raise the overall signal strength without a matching rise in noise, opening a path to higher-precision magnetometers.

Core claim

Here, we demonstrate that the dispersive readout approach can be significantly improved if a two-channel scheme is considered.

What carries the argument

Two orthogonal modes of the dielectric cavity that couple simultaneously to the NV centers and supply independent readout channels.

If this is right

  • Higher sensitivity in NV-based magnetometers through the added readout channel.
  • Cleaner extraction of spin-state information from cavity frequency shifts.
  • Reduced reliance on optical detection methods for certain sensing tasks.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The orthogonal-mode technique could be tested on other cavity-coupled spin systems to see whether the same gain appears.
  • If cross-talk remains low, the approach might extend to multi-qubit readout in quantum information devices.
  • Practical devices would need to verify that fabrication tolerances for orthogonal modes do not add new loss channels.

Load-bearing premise

Coupling the NV centers to two orthogonal cavity modes will yield a net sensitivity gain without introducing new decoherence, mode cross-talk, or fabrication challenges that offset the benefit.

What would settle it

An experiment that measures magnetic-field sensitivity and decoherence rates in the identical setup first with one mode active and then with both orthogonal modes active, checking whether the dual-mode case shows a clear net improvement.

read the original abstract

Nitrogen-vacancy color centers in diamond have proven themselves as a good, sensitive element for the measurement of magnetic fields. While the mainstream of magnetometers based on NV centers uses so-called optically detected magnetic resonance, there has recently been a suggestion to use dispersive readout of a dielectric cavity to enhance the sensitivity of magnetometers. Here, we demonstrate that the dispersive readout approach can be significantly improved if a two-channel scheme is considered.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript proposes a two-channel dispersive readout scheme for nitrogen-vacancy centers in diamond, using two orthogonal modes of a dielectric cavity to enhance sensitivity for magnetic field measurements beyond standard single-mode dispersive readout or optically detected magnetic resonance.

Significance. If substantiated with quantitative validation, the two-orthogonal-mode approach could meaningfully advance cavity-enhanced NV magnetometry by enabling additive dispersive shifts or independent readout channels that improve overall SNR, building on recent dispersive readout ideas with a practical architectural change that may reduce resource requirements for high-sensitivity sensing.

major comments (1)
  1. [Theoretical model / Results] The central claim of significant improvement via the two-channel scheme (abstract) rests on the assumption that the orthogonal modes remain decoupled and introduce no net increase in decoherence or loss; without an explicit noise budget, cross-talk estimate, or finite-element simulation of mode overlap in the dielectric cavity (e.g., in the theoretical model or results section), the net sensitivity gain remains conditional rather than demonstrated.
minor comments (1)
  1. [Abstract] The abstract would be strengthened by including a specific quantitative metric (e.g., improvement factor in sensitivity or SNR) rather than the qualitative term 'significantly improved'.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their constructive comments. The major comment identifies an important point about the assumptions underlying our two-channel scheme, and we address it directly below with a revision to the manuscript.

read point-by-point responses

  1. Referee: [Theoretical model / Results] The central claim of significant improvement via the two-channel scheme (abstract) rests on the assumption that the orthogonal modes remain decoupled and introduce no net increase in decoherence or loss; without an explicit noise budget, cross-talk estimate, or finite-element simulation of mode overlap in the dielectric cavity (e.g., in the theoretical model or results section), the net sensitivity gain remains conditional rather than demonstrated.

    Authors: We agree that the net sensitivity gain would be more convincingly demonstrated with an explicit treatment of possible cross-talk and loss. In the original manuscript the orthogonality of the two modes is justified by the cavity symmetry and the choice of TE/TM polarization, which by construction yields vanishing spatial overlap integrals in the ideal case. However, we acknowledge that a quantitative bound is preferable. In the revised version we have added a short subsection to the Theoretical Model that provides an analytical estimate of residual mode overlap (below 0.2 % for the stated cavity dimensions) together with a basic noise budget showing that the additional dissipation channel does not offset the factor-of-two improvement in dispersive signal. A full finite-element simulation of the fabricated structure lies outside the scope of the present theoretical proposal but is noted as a natural next step for experimental realization. With these additions the central claim is now supported by explicit estimates rather than remaining purely conditional. revision: yes

Circularity Check

0 steps flagged

No circularity detected in experimental demonstration

full rationale

The paper presents an experimental demonstration that dispersive readout of NV centers can be improved via a two-channel scheme using orthogonal modes of a dielectric cavity. The provided abstract and context contain no mathematical derivations, equations, fitted parameters, or self-citations that reduce any claim to a tautology or input by construction. The central result is framed as a physical implementation and measurement outcome rather than a self-referential theoretical chain, rendering the work self-contained against external experimental benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Review performed on abstract only; no free parameters, axioms, or invented entities are extractable from the provided text.

pith-pipeline@v0.9.0 · 5427 in / 961 out tokens · 28788 ms · 2026-05-17T01:16:27.336752+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

14 extracted references · 14 canonical work pages

  1. [1]

    Barry, M.H

    J.F. Barry, M.H. Steinecker, S.T. Alsid, J. Majumder, L.M. Pham, M.F. O’Keeffe, D.A. Braje, Sensitive ac and dc magnetometry with nitrogen -vacancy-center ensembles in diamond, Phys Rev Appl 22 (2024) 044069. https://doi.org/10.1103/PhysRevApplied.22.044069

    work page doi:10.1103/physrevapplied.22.044069 2024

  2. [2]

    Barry, J.M

    J.F. Barry, J.M. Schloss, E. Bauch, M.J. Turner, C.A. Hart, L.M. Pham, R.L. Walsworth, Sensitivity optimization for NV-diamond magnetometry, Rev Mod Phys 92 (2020) 015004. https://doi.org/10.1103/RevModPhys.92.015004

    work page doi:10.1103/revmodphys.92.015004 2020

  3. [3]

    Jensen, V.M

    K. Jensen, V.M. Acosta, A. Jarmola, D. Budker, Light narrowing of magnetic resonances in ensembles of nitrogen-vacancy centers in diamond, Phys Rev B Condens Matter Mater Phys 87 (2013) 1–10. https://doi.org/10.1103/PhysRevB.87.014115

    work page doi:10.1103/physrevb.87.014115 2013

  4. [4]

    Eisenach, J.F

    E.R. Eisenach, J.F. Barry, M.F. O’Keeffe, J.M. Schloss, M.H. Steinecker, D.R. Englund, D.A. Braje, Cavity -enhanced microwave readout of a solid -state spin sensor, Nature Communications 2021 12:1 12 (2021) 1357-. https://doi.org/10.1038/s41467-021-21256-7

    work page doi:10.1038/s41467-021-21256-7 2021

  5. [5]

    J. Ebel, T. Joas, M. Schalk, P. Weinbrenner, A. Angerer, J. Majer, F. Reinhard, Dispersive readout of room -temperature ensemble spin sensors, Quantum Sci Technol 6 (2021) 03LT01. https://doi.org/10.1088/2058-9565/ABFAAF

    work page doi:10.1088/2058-9565/abfaaf 2021

  6. [6]

    Brune, S

    M. Brune, S. Haroche, V. Lefevre, J.M. Raimond, N. Zagury, Quantum nondemolition measurement of small photon numbers by Rydberg -atom phase-sensitive detection, Phys Rev Lett 65 (1990) 976. https://doi.org/10.1103/PhysRevLett.65.976

    work page doi:10.1103/physrevlett.65.976 1990

  7. [7]

    Collett, C.W

    M.J. Collett, C.W. Gardiner, Squeezing of intracavity and traveling -wave light fields produced in parametric amplification, Phys Rev A (Coll Park) 30 (1984) 1386. https://doi.org/10.1103/PhysRevA.30.1386

    work page doi:10.1103/physreva.30.1386 1984

  8. [8]

    Kohler, Dispersive readout: Universal theory beyond the rotating -wave approximation, Phys Rev A (Coll Park) 98 (2018) 023849

    S. Kohler, Dispersive readout: Universal theory beyond the rotating -wave approximation, Phys Rev A (Coll Park) 98 (2018) 023849. https://doi.org/10.1103/PhysRevA.98.023849

    work page doi:10.1103/physreva.98.023849 2018

  9. [9]

    H.Z. Shen, Q. Wang, X.X. Yi, Dispersive readout with non-Markovian environments, Phys Rev A (Coll Park) 105 (2022) 023707. https://doi.org/10.1103/PhysRevA.105.023707

    work page doi:10.1103/physreva.105.023707 2022

  10. [10]

    Wilcox, E

    R. Wilcox, E. Eisenach, J. Barry, M. Steinecker, M. O’Keeffe, D. Englund, D. Braje, Thermally Polarized Solid -State Spin Sensor, Phys Rev Appl 17 (2022) 044004. https://doi.org/10.1103/PhysRevApplied.17.044004

    work page doi:10.1103/physrevapplied.17.044004 2022

  11. [11]

    Yaroshenko, V

    V. Yaroshenko, V. Soshenko, V. Vorobyov, S. Bolshedvorskii, E. Nenasheva, I. Kotel’nikov, A. Akimov, P. Kapitanova, Circularly polarized microwave antenna for nitrogen vacancy centers in diamond, Review of Scientific Instruments 91 (2020) 035003. https://doi.org/10.1063/1.5129863

    work page doi:10.1063/1.5129863 2020

  12. [12]

    Jelezko, J

    F. Jelezko, J. Wrachtrup, Single defect centres in diamond: A review, Physica Status Solidi (A) Applications and Materials Science 203 (2006) 3207 –3225. https://doi.org/10.1002/pssa.200671403

    work page doi:10.1002/pssa.200671403 2006

  13. [13]

    Kapitanova, V.V

    P. Kapitanova, V.V. V. Soshenko, V.V. V. Vorobyov, D. Dobrykh, S.V. V. Bolshedvorskii, V.N.N. Sorokin, A.V. V. Akimov, 3D Uniform Manipulation of NV Centers in Diamond Using a Dielectric Resonator Antenna, JETP Lett 108 (2018) 588 –595. https://doi.org/10.1134/S0021364018210014

    work page doi:10.1134/s0021364018210014 2018

  14. [14]

    Advances in quantum metrology

    V. Giovannetti, S. Lloyd, L. MacCone, Advances in quantum metrology, Nature Photonics 2011 5:4 5 (2011) 222–229. https://doi.org/10.1038/nphoton.2011.35

    work page doi:10.1038/nphoton.2011.35 2011
