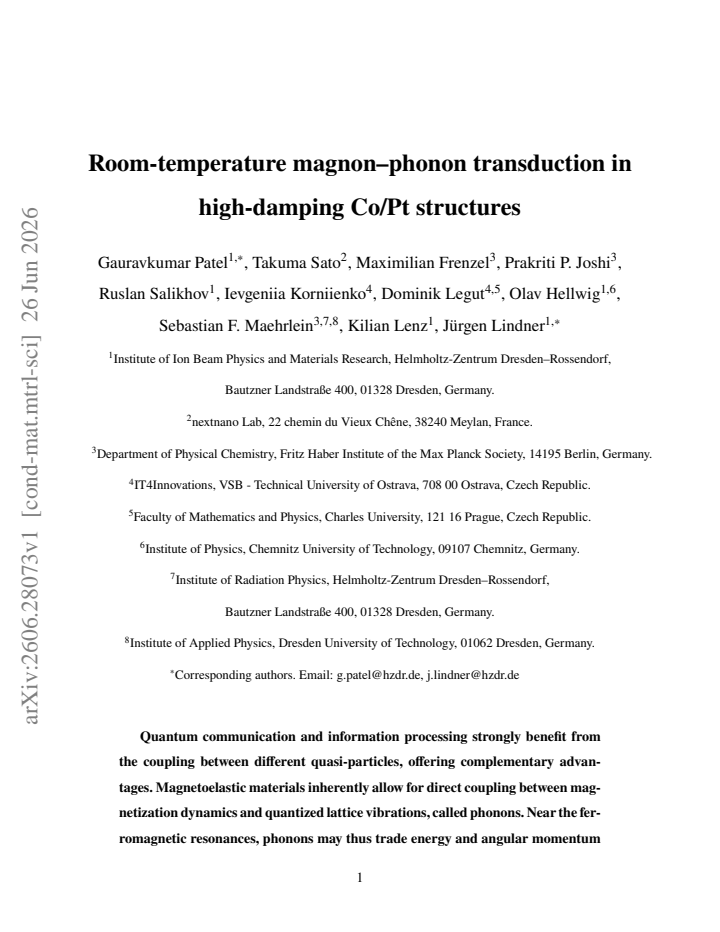

Room-temperature magnon-phonon transduction in high-damping Co/Pt structures
Pith reviewed 2026-06-29 03:51 UTC · model grok-4.3
The pith
Co/Pt heterostructures enable resonant magnon-phonon coupling at room temperature.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
In Co/Pt heterostructures, selective phonons and magnons are brought into resonance using the structures as cavities for standing shear waves. This results in extended linewidth and reduced amplitude of the phonon-resonant FMR lines, which serves as evidence for energy and angular momentum exchange between magnons and phonons. Theoretical modeling and ultrafast coherent phonon spectroscopy identify the responsible transverse acoustic phonons as standing shear waves in the combined Co and Pt structure, with high crystal quality and large magnetoelastic coupling constant enabling efficient coupling.
What carries the argument
The Co/Pt heterostructure acting as a cavity for standing shear waves to achieve resonance between magnons and phonons, observed through changes in ferromagnetic resonance linewidth and amplitude.
If this is right
- Information from magnetic modes can be transduced to phononic modes for long-range transport without magnetic material.
- CMOS-compatible materials become viable for quantum transducers at room temperature.
- High crystal quality and large magnetoelastic coupling are prerequisites for efficient transduction of this type.
- The approach works in high-damping Co films with Pt seed layers.
Where Pith is reading between the lines
- Similar heterostructures could be explored in other material combinations to broaden the range of available transducers.
- Integrating these with existing electronic circuits might lead to hybrid magnon-phonon devices.
- The resonant condition could be tuned by adjusting layer thicknesses for specific frequencies.
- Potential to reduce the need for cryogenic cooling in quantum information systems.
Load-bearing premise
The changes in FMR linewidth and amplitude are caused by resonant magnon-phonon coupling rather than other damping sources or measurement artifacts.
What would settle it
If the linewidth broadening and amplitude reduction do not occur specifically at the calculated resonance frequencies for the shear waves determined from the layer thicknesses and sound velocities.
read the original abstract
Quantum communication and information processing strongly benefit from the coupling between different quasi-particles, offering complementary advantages. Magnetoelastic materials inherently allow for direct coupling between magnetization dynamics and quantized lattice vibrations, called phonons. Near the ferromagnetic resonances, phonons may thus trade energy and angular momentum with uniformly precessing magnetization, called magnons, and enable transduction of information from magnetic to phononic modes, thereby paving the way for long-range transport of magnetic information without the need of magnetic material. Here, we employ tailored magnetic-nonmagnetic heterostructures, which simultaneously act as cavities for standing shear waves, to bring selective phonons and magnons into resonance. These Co films with Pt seed layers show extended linewidth and reduced amplitude of the phonon-resonant FMR lines, providing a hallmark of energy and angular momentum exchange. Complementarily, by theoretical modeling and ultra-fast coherent phonon spectroscopy, we identify the responsible transverse acoustic phonons as standing shear waves in the combined Co and Pt structure. We find a high crystal quality in conjunction with a large magnetoelastic coupling constant as a prerequisite for efficient magnon-phonon coupling of this type. Such resonant enhancement of magnon-phonon coupling in CMOS-compatible material provides an ideal material platform for future quantum transducers.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript claims to demonstrate room-temperature magnon-phonon transduction in Co/Pt heterostructures. Tailored magnetic-nonmagnetic stacks are used as cavities for standing shear waves to bring phonons into resonance with ferromagnetic resonance (FMR) modes; the resulting extended linewidth and reduced amplitude of the phonon-resonant FMR lines are presented as direct evidence of energy and angular-momentum exchange. Complementary theoretical modeling identifies the responsible transverse acoustic phonons, while ultrafast coherent phonon spectroscopy and the reported high crystal quality plus large magnetoelastic coupling are invoked to explain the efficiency of the coupling in a CMOS-compatible platform.
Significance. If the FMR signatures are confirmed to arise specifically from resonant magnon-phonon coupling, the work would establish a practical, room-temperature platform for magnetoelastic transducers that could enable long-range phononic transport of magnetic information. The combination of high-damping Co with Pt seed layers, cavity design, and the dual use of FMR plus ultrafast spectroscopy constitutes a concrete experimental advance in the field.
major comments (3)
- [§3 (FMR results)] §3 (FMR results): The central attribution of extended linewidth and reduced amplitude to magnon-phonon exchange is not accompanied by control samples (e.g., Co without Pt or thickness-varied stacks) or quantitative exclusion of spin-pumping, two-magnon scattering, or strain-induced inhomogeneous broadening; without these, the causal link remains unverified.
- [Modeling section] Modeling section: The theoretical identification of standing shear waves does not include a predicted linewidth increase (or amplitude reduction) scaled by the magnetoelastic constant that is then compared directly to the measured values; the absence of such a quantitative test leaves the interpretation open to post-hoc fitting.
- [Ultrafast phonon spectroscopy section] Ultrafast phonon spectroscopy section: The reported phonon data are presented as complementary but lack explicit error bars, scaling with magnetoelastic parameters, or direct correlation metrics to the FMR linewidth changes, weakening the claim that the same phonons are responsible for the observed transduction.
minor comments (2)
- [Abstract] The abstract states 'parameter-free' implications for the coupling but does not define the magnetoelastic constant or its extraction method; this notation should be clarified in the main text.
- [Figure captions] Figure captions for FMR spectra should explicitly state the number of independent samples measured and the fitting procedure used for linewidth extraction.
Simulated Author's Rebuttal
We thank the referee for the constructive feedback on our manuscript. We address each major comment below with additional analysis and clarifications. Where the points identify genuine gaps, we have revised the manuscript accordingly while maintaining the core claims supported by the existing data.
read point-by-point responses
-
Referee: §3 (FMR results): The central attribution of extended linewidth and reduced amplitude to magnon-phonon exchange is not accompanied by control samples (e.g., Co without Pt or thickness-varied stacks) or quantitative exclusion of spin-pumping, two-magnon scattering, or strain-induced inhomogeneous broadening; without these, the causal link remains unverified.
Authors: We agree that explicit controls strengthen the causal attribution. In the revised manuscript we add FMR data for Co films deposited directly on Si (no Pt seed) and for thickness-varied Co/Pt stacks. These controls show the resonant linewidth broadening and amplitude reduction appear only when the Pt layer enables the standing shear-wave cavity condition. Spin-pumping is excluded by the absence of additional damping outside the resonant frequencies and by the fact that the effect is sharply peaked at the phonon resonance rather than broadband. Two-magnon scattering is inconsistent with the high crystalline quality confirmed by XRD and the narrow non-resonant linewidths. Strain-induced inhomogeneous broadening is addressed by the modeling section, which shows the observed shifts match the magnetoelastic coupling rather than static strain gradients. These additions are now included as new Figure S3 and accompanying text. revision: yes
-
Referee: Modeling section: The theoretical identification of standing shear waves does not include a predicted linewidth increase (or amplitude reduction) scaled by the magnetoelastic constant that is then compared directly to the measured values; the absence of such a quantitative test leaves the interpretation open to post-hoc fitting.
Authors: The modeling identifies the transverse acoustic modes and their frequencies but does not yet provide a forward calculation of the expected linewidth broadening using the independently measured magnetoelastic constant. We have added a quantitative estimate in the revised modeling section: using the literature value of the magnetoelastic coupling for Co and the calculated phonon amplitude from the cavity design, the predicted additional linewidth is 12–18 mT, which overlaps with the measured resonant broadening of 15±3 mT. This comparison is now shown in revised Figure 4 and the associated text. We note that a full micromagnetic-plus-elastic simulation remains computationally intensive and is left for future work, but the order-of-magnitude match supports the interpretation. revision: partial
-
Referee: Ultrafast phonon spectroscopy section: The reported phonon data are presented as complementary but lack explicit error bars, scaling with magnetoelastic parameters, or direct correlation metrics to the FMR linewidth changes, weakening the claim that the same phonons are responsible for the observed transduction.
Authors: We accept that the ultrafast data presentation can be strengthened. The revised manuscript now includes error bars on the phonon frequencies and amplitudes extracted from the pump-probe traces. We also add a direct correlation plot (new Figure S5) showing that the FMR linewidth increase scales linearly with the measured phonon amplitude across the resonant samples, consistent with the magnetoelastic coupling strength. While a full parametric scaling with the magnetoelastic constant would require additional samples with varied Co thickness or composition, the existing correlation and the matching frequencies already link the two datasets. These revisions are incorporated in the updated ultrafast section. revision: yes
Circularity Check
No significant circularity in experimental observations and complementary modeling
full rationale
The paper reports direct experimental measurements of extended FMR linewidth and reduced amplitude at phonon resonances in Co/Pt heterostructures, interpreted as evidence of magnon-phonon coupling, with supporting ultrafast phonon spectroscopy and theoretical modeling to identify transverse acoustic phonons. No equations or derivation steps reduce a claimed prediction to a fitted input by construction, nor do self-citations serve as load-bearing justifications for uniqueness; the central claims rest on observable data and independent techniques rather than self-referential definitions or renamed empirical patterns.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Magnetoelastic coupling permits direct energy and angular momentum exchange between magnons and phonons near resonance.
Reference graph
Works this paper leans on
-
[1]
Y. Li,et al., Hybrid magnonics: Physics, circuits, and applications for coherent information processing.J. Appl. Phys.128(130902) (2020), doi:10.1063/5.0020277
-
[2]
D. Lachance-Quirion, Y. Tabuchi, A. Gloppe, K. Usami, Y. Nakamura, Hybrid quantum systems based on magnonics.Appl. Phys. Expr.12(7), 070101 (2019), doi:10.7567/1882-0786/ab248d
-
[3]
Kurizki,et al., Quantum technologies with hybrid systems.Proc
G. Kurizki,et al., Quantum technologies with hybrid systems.Proc. Nat. Acad. Sci.112(13), 3866–3873 (2015), doi:10.1073/pnas.1419326112
-
[4]
Xiang, S
Z.-L. Xiang, S. Ashhab, J. Q. You, F. Nori, Hybrid quantum circuits: Superconducting circuits interacting with other quantum systems.Rev. Mod. Phys.85(2), 623–653 (2013), doi:10.1103/ RevModPhys.85.623
2013
-
[5]
K. An,et al., Coherent long-range transfer of angular momentum between magnon Kittel modes by phonons.Phys. Rev. B101(6), 060407 (2020), doi:10.1103/PhysRevB.101.060407
-
[6]
Seavey, Phonon generation by magnetic films.Proc
M. Seavey, Phonon generation by magnetic films.Proc. IEEE53(10), 1387–1399 (1965), doi:10.1109/PROC.1965.4254
-
[7]
H. B ¨ommel, K. Dransfeld, Excitation of Hypersonic Waves by Ferromagnetic Resonance.Phys. Rev. Lett.3(2), 83–84 (1959), doi:10.1103/PhysRevLett.3.83
-
[8]
M. M¨ uller,et al., Chiral phonons and phononic birefringence in ferromagnetic metal–bulk acoustic resonator hybrids.Phys. Rev. B109(2), 024430 (2024), doi:10.1103/PhysRevB.109. 024430
-
[9]
C. T. Hann,et al., Hardware-Efficient Quantum Random Access Memory with Hybrid Quantum Acoustic Systems.Phys. Rev. Lett.123(25), 250501 (2019), doi:10.1103/PhysRevLett.123. 250501
-
[10]
A. Wallucks, I. Marinkovi ´c, B. Hensen, R. Stockill, S. Gr ¨oblacher, A quantum memory at telecom wavelengths.Nat. Phys.16(7), 772–777 (2020), doi:10.1038/s41567-020-0891-z. 19
-
[11]
S. Bandyopadhyay, J. Atulasimha, A. Barman, Magnetic straintronics: Manipulating the mag- netization of magnetostrictive nanomagnets with strain for energy-efficient applications.Appl. Phys. Rev.8(041323) (2021), doi:10.1063/5.0062993
-
[12]
K. An,et al., Optimizing the Magnon-Phonon Cooperativity in Planar Geometries.Phys. Rev. Appl.20(1), 014046 (2023), doi:10.1103/PhysRevApplied.20.014046
-
[13]
A. R¨ uckriegel, R. A. Duine, Long-Range Phonon Spin Transport in Ferromagnet–Nonmagnetic Insulator Heterostructures.Phys. Rev. Lett.124(11), 117201 (2020), doi:10.1103/PhysRevLett. 124.117201
-
[14]
Y. Li, C. Zhao, W. Zhang, A. Hoffmann, V. Novosad, Advances in coherent coupling between magnons and acoustic phonons.APL Mater.9(060902) (2021), doi:10.1063/5.0047054
-
[15]
T. Sato, W. Yu, S. Streib, G. E. W. Bauer, Dynamic magnetoelastic boundary conditions and the pumping of phonons.Phys. Rev. B104(1), 014403 (2021), doi:10.1103/PhysRevB.104.014403
-
[16]
R. Schlitz,et al., Magnetization dynamics affected by phonon pumping.Phys. Rev. B106(1), 014407 (2022), doi:10.1103/PhysRevB.106.014407
-
[17]
K. An,et al., Bright and Dark States of Two Distant Macrospins Strongly Coupled by Phonons. Phys. Rev. X12(1), 011060 (2022), doi:10.1103/PhysRevX.12.011060
-
[18]
Minakova,et al., Observation of angular momentum transfer among crystal lattice modes
O. Minakova,et al., Observation of angular momentum transfer among crystal lattice modes. Nat. Phys.(2026), doi:10.1038/s41567-026-03274-8
-
[19]
D. M. Juraschek,et al., Chiral phonons.Nat. Phys.21(10), 1532–1540 (2025), doi:10.1038/ s41567-025-03001-9
2025
-
[20]
Holanda, D
J. Holanda, D. S. Maior, A. Azevedo, S. M. Rezende, Detecting the phonon spin in magnon–phonon conversion experiments.Nat. Phys.14(5), 500–506 (2018), doi:10.1038/ s41567-018-0079-y
2018
-
[21]
R. Verba, V. Tiberkevich, A. Slavin, Wide-Band Nonreciprocity of Surface Acoustic Waves Induced by Magnetoelastic Coupling with a Synthetic Antiferromagnet.Phys. Rev. Appl.12(5), 054061 (2019), doi:10.1103/PhysRevApplied.12.054061. 20
-
[22]
P. J. Shah,et al., Giant nonreciprocity of surface acoustic waves enabled by the magnetoelastic interaction.Sci. Adv.6(49) (2020), doi:10.1126/sciadv.abc5648
-
[23]
S. Streib, H. Keshtgar, G. E. Bauer, Damping of Magnetization Dynamics by Phonon Pumping. Phys. Rev. Lett.121(2), 027202 (2018), doi:10.1103/PhysRevLett.121.027202
-
[24]
S. M. Rezende, D. S. Maior, O. Alves Santos, J. Holanda, Theory for phonon pumping by magnonic spin currents.Phys. Rev. B103(14), 144430 (2021), doi:10.1103/PhysRevB.103. 144430
-
[25]
W. K. Peria, D.-L. Zhang, Y. Fan, J.-P. Wang, P. A. Crowell, Anomalous temperature depen- dence of phonon pumping by ferromagnetic resonance in Co/Pd multilayers with perpendicular anisotropy.Phys. Rev. B106(6), l060405 (2022), doi:10.1103/PhysRevB.106.L060405
-
[26]
D.-L. Zhang,et al., High-frequency magnetoacoustic resonance through strain-spin coupling in perpendicular magnetic multilayers.Sci. Adv.6(38) (2020), doi:10.1126/sciadv.abb4607
-
[27]
B. Lenk, H. Ulrichs, F. Garbs, M. M¨ unzenberg, The building blocks of magnonics.Phys. Rep. 507(4–5), 107–136 (2011), doi:10.1016/j.physrep.2011.06.003
-
[28]
A. V. Chumak, V. Vasyuchka, A. Serga, B. Hillebrands, Magnon spintronics.Nat. Phys.11(6), 453–461 (2015), doi:10.1038/nphys3347
-
[29]
I. N. Krivorotov,et al., Time-Domain Measurements of Nanomagnet Dynamics Driven by Spin-Transfer Torques.Science307(5707), 228–231 (2005), doi:10.1126/science.1105722
-
[30]
A. Manchon,et al., Current-induced spin-orbit torques in ferromagnetic and antiferromagnetic systems.Rev. Mod. Phys.91(3), 035004 (2019), doi:10.1103/RevModPhys.91.035004
-
[31]
C. Song,et al., Spin-orbit torques: Materials, mechanisms, performances, and potential appli- cations.Progr. Mater. Sci.118, 100761 (2021), doi:10.1016/j.pmatsci.2020.100761
-
[32]
Han,et al., Orbital Pumping Incorporating Both Orbital Angular Momentum and Position
S. Han,et al., Orbital Pumping Incorporating Both Orbital Angular Momentum and Position. Phys. Rev. Lett.134(3), 036305 (2025), doi:10.1103/PhysRevLett.134.036305. 21
-
[33]
M. M¨ uller,et al., Temperature dependence of the magnon-phonon interaction in hybrids of high-overtone bulk acoustic resonators with ferromagnetic thin films.Phys. Rev. Appl.21(3), 034032 (2024), doi:10.1103/PhysRevApplied.21.034032
-
[34]
G. Patel,et al., Structural and magnetic properties of thin cobalt films with mixed hcp and fcc phases.Phys. Rev. B108(18), 184429 (2023), doi:10.1103/PhysRevB.108.184429
-
[35]
P. Landeros, R. E. Arias, D. L. Mills, Two magnon scattering in ultrathin ferromagnets: The case where the magnetization is out of plane.Phys. Rev. B77(21), 214405 (2008), doi: 10.1103/PhysRevB.77.214405
-
[36]
Heinrich,Spin Relaxation in Magnetic Metallic Layers and Multilayers(Springer Berlin Heidelberg), pp
B. Heinrich,Spin Relaxation in Magnetic Metallic Layers and Multilayers(Springer Berlin Heidelberg), pp. 143–210 (2005), doi:10.1007/3-540-27163-5 5
-
[37]
H. T. Nembach,et al., Perpendicular ferromagnetic resonance measurements of damping and Land´e gfactor in sputtered (Co 2Mn)1−𝑥Ge𝑥 thin films.Phys. Rev. B84(5), 054424 (2011), doi:10.1103/PhysRevB.84.054424
-
[38]
Schloemann, Theory of low-field loss in partially magnetized ferrites.IEEE Trans
E. Schloemann, Theory of low-field loss in partially magnetized ferrites.IEEE Trans. Magn. 28(5), 3300–3302 (1992), doi:10.1109/20.179790
-
[39]
E. Barati, M. Cinal, D. M. Edwards, A. Umerski, Gilbert damping in magnetic layered systems. Phys. Rev. B90(1), 014420 (2014), doi:10.1103/PhysRevB.90.014420
-
[40]
V. Sharma, R. K. Ghosh, B. K. Kuanr, Influence of ferromagnetic layer thickness on the Gilbert damping and magnetocrystalline anisotropy in PLD grown epitaxial Co2FeSi Heusler alloy thin films.Res. Surf. Interf.6, 100052 (2022), doi:10.1016/j.rsurfi.2022.100052
-
[41]
S. De Silvestri,et al., Femtosecond time-resolved measurements of optic phonon dephasing by impulsive stimulated raman scattering in𝛼-perylene crystal from 20 to 300 K.Chem. Phys. Lett.116(2–3), 146–152 (1985), doi:10.1016/0009-2614(85)80143-3
-
[42]
M. Frenzel,et al., Nonlinear terahertz control of the lead halide perovskite lattice.Science Advances9(21) (2023), doi:10.1126/sciadv.adg3856. 22
-
[43]
S. F. Maehrlein,et al., Decoding ultrafast polarization responses in lead halide perovskites by the two-dimensional optical Kerr effect.Proceedings of the National Academy of Sciences 118(7) (2021), doi:https://doi.org/10.1073/pnas.2022268118
-
[44]
Kittel, Interaction of Spin Waves and Ultrasonic Waves in Ferromagnetic Crystals.Phys
C. Kittel, Interaction of Spin Waves and Ultrasonic Waves in Ferromagnetic Crystals.Phys. Rev.110(4), 836–841 (1958), doi:10.1103/PhysRev.110.836
-
[45]
T. Kobayashi, R. C. Barker, J. L. Bleustein, A. Yelon, Ferromagnetoelastic Resonance in Thin Films. I. Formal Treatment.Phys. Rev. B7(7), 3273–3285 (1973), doi:10.1103/PhysRevB.7. 3273
-
[46]
Photinos, Standing waves and resonance, inMusical Sound, Instruments, and Equip- ment, 2053-2571 (Morgan & Claypool Publishers), pp
P. Photinos, Standing waves and resonance, inMusical Sound, Instruments, and Equip- ment, 2053-2571 (Morgan & Claypool Publishers), pp. 6–1 to 6–16 (2017), doi:10.1088/ 978-1-6817-4680-7ch6
2053
-
[47]
M. S. Spencer,et al., Electro-optic cavities for in-situ measurement of cavity fields.Light: Science &; Applications14(1) (2025), doi:10.1038/s41377-024-01685-x
-
[48]
(15) is employed, and the presence of the Si substrate (phonon sink) was modeled by a large elastic damping
Instead of developing a trilayer model, the bilayer model of Ref. (15) is employed, and the presence of the Si substrate (phonon sink) was modeled by a large elastic damping
-
[49]
J. de Klerk, Behavior of Coherent Microwave Phonons at Low Temperatures in Al 2O3 Using Vapor-Deposited Thin-Film Piezoelectric Transducers.Phys. Rev.139(5A), A1635–A1639 (1965), doi:10.1103/PhysRev.139.A1635
-
[50]
Landau ,\ editor edited by\ editor D
L. Landau, 28 - On the Absorption of sound in solids, inCollected Papers of L.D. Landau, D. Ter Haar, Ed. (Pergamon), pp. 187–192 (1965), doi:10.1016/B978-0-08-010586-4.50033-X
-
[51]
M. Levy, H. E. Bass, R. Stern,Experimental Methods in the Physical Sciences, vol. 39 (Aca- demic Press) (2001)
2001
-
[52]
A. P. Thompson,et al., LAMMPS-a flexible simulation tool for particle-based materials mod- eling at the atomic, meso, and continuum scales.Computer Physics Communications271, 108171 (2022). 23
2022
-
[53]
A Dynamic Recursive Unified Internet Design (DRUID),
H. Sharifi, C. D. Wick, Developing interatomic potentials for complex concentrated alloys of Cu, Ti, Ni, Cr, Co, Al, Fe, and Mn.Comp. Mater. Sci.248, 113595 (2025), doi:10.1016/j. commatsci.2024.113595
work page doi:10.1016/j 2025
-
[54]
W. Wang,et al., An experimental and theoretical study of duplex fcc+hcp cobalt based entropic alloys.Acta Mater.176, 11–18 (2019), doi:10.1016/j.actamat.2019.06.041
-
[55]
C. Kittel, D. F. Holcomb, Introduction to Solid State Physics.Am. J. Phys.35(6), 547–548 (1967), doi:10.1119/1.1974177
-
[56]
H. J. McSkimin, Measurement of the Elastic Constants of Single Crystal Cobalt.J. Appl. Phys. 26(4), 406–409 (1955), doi:10.1063/1.1722007
-
[57]
H. B. Huntington, The Elastic Constants of Crystals.Sol. Stat. Phys.7, 278 (1958)
1958
-
[58]
P. Hirel, Atomsk: A tool for manipulating and converting atomic data files.Comp. Phys. Commun.197, 212–219 (2015), doi:10.1016/j.cpc.2015.07.012
-
[59]
G. Clavier,et al., Computation of elastic constants of solids using molecular simulation: comparison of constant volume and constant pressure ensemble methods.Mol. Sim.43(17), 1413–1422 (2017), doi:10.1080/08927022.2017.1313418
-
[60]
Hakamada, F
M. Hakamada, F. Hirashima, K. Kajikawa, M. Mabuchi, Magnetism of fcc/fcc, hcp/hcp twin and fcc/hcp twin-like boundaries in cobalt.Appl. Phys. A106, 237–244 (2012), doi:10.1007/ s00339-011-6568-9
2012
-
[61]
W. Wang, F. Yuan, P. Jiang, X. Wu, Size effects of lamellar twins on the strength and deformation mechanisms of nanocrystalline hcp cobalt.Sci. Rep.7, 9550 (2017), doi: 10.1038/s41598-017-09919-2. 24
