arxiv: 2606.23207 · v1 · pith:UOVURUB2new · submitted 2026-06-22 · 🌌 astro-ph.CO · astro-ph.IM

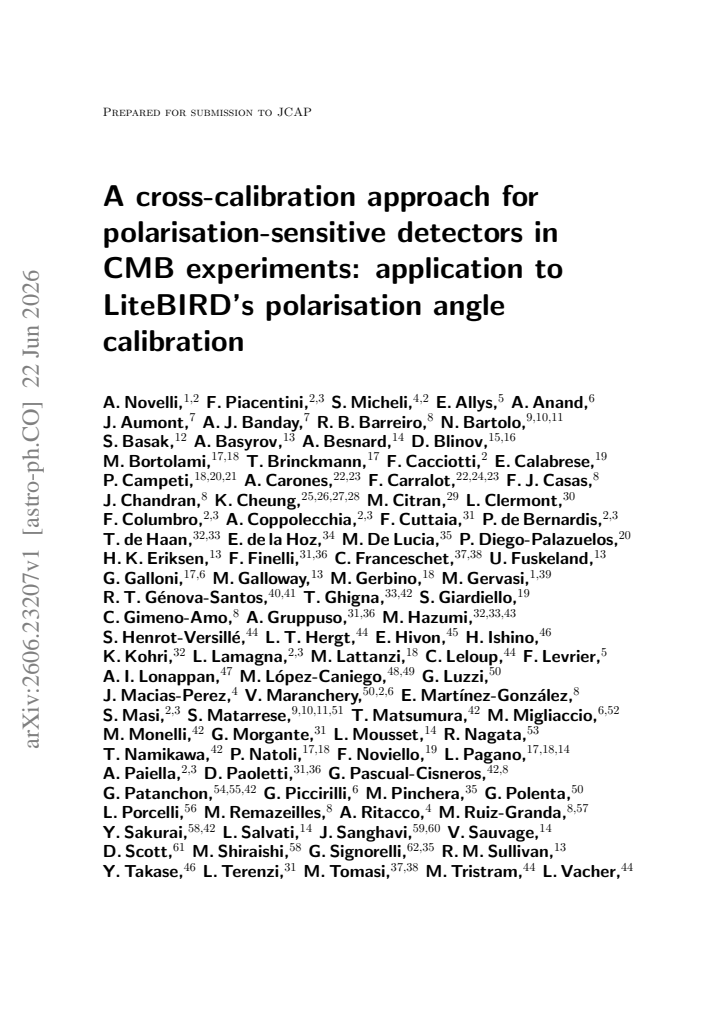

A cross-calibration approach for polarisation-sensitive detectors in CMB experiments: application to LiteBIRD's polarisation angle calibration

A. Novelli , F. Piacentini , S. Micheli , E. Allys , A. Anand , J. Aumont , A. J. Banday , R. B. Barreiro
show 97 more authors
N. Bartolo S. Basak A. Basyrov A. Besnard D. Blinov M. Bortolami T. Brinckmann F. Cacciotti E. Calabrese P. Campeti A. Carones F. Carralot F. J. Casas J. Chandran K. Cheung M. Citran L. Clermont F. Columbro A. Coppolecchia F. Cuttaia P. de Bernardis T. de Haan E. de la Hoz M. De Lucia P. Diego-Palazuelos H. K. Eriksen F. Finelli C. Franceschet U. Fuskeland G. Galloni M. Galloway M. Gerbino M. Gervasi R. T. G\'enova-Santos T. Ghigna S. Giardiello C. Gimeno-Amo A. Gruppuso M. Hazumi S. Henrot-Versill\'e L. T. Hergt E. Hivon H. Ishino K. Kohri L. Lamagna M. Lattanzi C. Leloup F. Levrier A. I. Lonappan M. L\'opez-Caniego G. Luzzi J. Macias-Perez V. Maranchery E. Mart\'inez-Gonz\'alez S. Masi S. Matarrese T. Matsumura M. Migliaccio M. Monelli G. Morgante L. Mousset R. Nagata T. Namikawa P. Natoli F. Noviello L. Pagano A. Paiella D. Paoletti G. Pascual-Cisneros G. Patanchon G. Piccirilli M. Pinchera G. Polenta L. Porcelli M. Remazeilles A. Ritacco M. Ruiz-Granda Y. Sakurai L. Salvati J. Sanghavi V. Sauvage D. Scott M. Shiraishi G. Signorelli R. M. Sullivan Y. Takase L. Terenzi M. Tomasi M. Tristram L. Vacher B. van Tent P. Vielva S. Vinzl I. K. Wehus G. Weymann-Despres E. J. Wollack M. Zannoni (for the LiteBIRD Collaboration)
This is my paper

Pith reviewed 2026-06-26 07:30 UTC · model grok-4.3

classification 🌌 astro-ph.CO astro-ph.IM
keywords CMB polarizationpolarisation angle calibrationcross-calibrationLiteBIRDtensor-to-scalar ratioB-modedetector array
0
0 comments X

The pith

An iterative map comparison calibrates relative polarisation angles of detectors within a CMB frequency band to arcminute precision.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a cross-calibration algorithm that determines relative calibration parameters for detectors in the same frequency band by iteratively comparing single-detector maps to the band-averaged map. The approach corrects parameters observable at the map level, such as polarisation angle, and thereby relaxes pre-flight calibration requirements while allowing post-processing checks. When applied to simulated LiteBIRD observations that include random detector miscalibrations and wafer-level rotations, the algorithm recovers the correct angles to arcminute accuracy. Residual calibration errors are then propagated through component separation and r-estimation pipelines using both parametric and blind methods, producing a bias on the tensor-to-scalar ratio that stays below the LiteBIRD systematic limit of 6.5×10^{-6}.

Core claim

The central claim is that an iterative cross-calibration procedure, which aligns individual detector polarisation maps to the frequency-band average at the map level, recovers input polarisation angles to arcminute precision in LiteBIRD-like simulations and induces a bias on the tensor-to-scalar ratio that remains well below the experiment's allocated systematic budget of δr < 6.5×10^{-6}.

What carries the argument

The iterative cross-calibration algorithm that repeatedly compares single-detector maps against the band-averaged map and applies map-level corrections to observable parameters such as polarisation angle.

If this is right

  • The algorithm applies to any calibration parameter that can be observed and corrected at the map level.
  • It enables post-processing validation of pre-flight calibration.
  • Residual uncertainties after correction remain acceptable for both parametric and blind component-separation methods.
  • The demonstrated precision and bias control make the method suitable for next-generation CMB experiments.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach could lower the required accuracy of pre-flight calibration hardware and procedures for future multi-detector arrays.
  • It may extend to other map-level observables such as relative gains or beam parameters in the same iterative framework.
  • Realistic foreground contamination or scan-strategy effects not fully captured in the current simulations could be tested as a next step to confirm robustness.

Load-bearing premise

The band-averaged map formed from all detectors provides an effectively unbiased reference against which individual detector maps can be compared and corrected.

What would settle it

A simulation or real dataset in which the recovered polarisation angles fail to converge to within a few arcminutes of the true values, or in which the final bias on r exceeds 6.5×10^{-6} after component separation.

read the original abstract

One of the current challenges in observational cosmology is obtaining high-precision polarisation maps of the CMB to measure primordial $B$-modes and constrain the tensor-to-scalar ratio ($r$). The weakness of this signal compared to foregrounds and $E$-to-$B$ leakage makes this task particularly challenging, requiring large detector arrays operating at multiple frequencies and extremely precise calibration. We present a cross-calibration algorithm to determine relative calibration of detectors within the same frequency band of a CMB experiment. The method iteratively compares single-detector maps with band-averaged maps and can be applied to any calibration parameter that can be observed and corrected at the map level, relaxing pre-flight calibration requirements and enabling post-processing validation. We validate the pipeline by calibrating the polarisation angle of simulated LiteBIRD observations, including both random detector miscalibration and wafer-level rotations. The algorithm converges to correct values with arcminute precision. Finally, we propagate residual calibration uncertainties through component separation and tensor-to-scalar ratio estimation pipelines using both parametric (FgBuster) and blind (HILC) methods. The induced bias on $r$ remains well below the LiteBIRD systematics budget of $\delta r < 6.5\times10^{-6}$, demonstrating that the method is suitable for next-generation CMB experiments.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript presents a cross-calibration algorithm for polarization angles (and potentially other map-level parameters) of detectors within the same frequency band. The method iteratively compares single-detector maps against a band-averaged reference map to derive corrections. Validation is performed on simulated LiteBIRD observations that include random per-detector miscalibrations and wafer-level rotations; the algorithm is reported to converge to arcminute-level precision. Residual angle errors are then propagated through both parametric (FgBuster) and blind (HILC) component-separation pipelines, yielding an induced bias on the tensor-to-scalar ratio r that remains below LiteBIRD’s systematics budget of δr < 6.5×10^{-6}.

Significance. If the central claims hold under the tested conditions, the approach provides a practical post-processing route to relax pre-flight polarization-angle requirements and to perform internal consistency checks, which would be valuable for next-generation CMB experiments. The explicit propagation of residuals through two distinct component-separation methods and the direct comparison against the LiteBIRD δr budget are concrete strengths of the validation strategy.

major comments (1)
  1. [Validation simulations] Validation section (simulations described in the abstract and methods): the reported tests inject only random per-detector errors plus wafer-level rotations. No simulation injects a global common-mode polarization-angle offset across the full set of detectors in a band. Because the band-averaged map is constructed from the same data and serves as the reference, a common-mode offset would be inherited by the reference; the iteration could then converge to an internally consistent but absolutely biased solution while still reporting arcminute relative precision. This scenario is load-bearing for the claim that the algorithm recovers “correct values” and for the subsequent δr < 6.5×10^{-6} result.
minor comments (1)
  1. The abstract states convergence “with arcminute precision” but does not define the precise metric (RMS, maximum absolute error, etc.) or report the number of iterations required for convergence.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful and constructive review. The single major comment raises an important point about the scope of the validation simulations, which we address directly below. We agree that clarification is needed and will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: [Validation simulations] Validation section (simulations described in the abstract and methods): the reported tests inject only random per-detector errors plus wafer-level rotations. No simulation injects a global common-mode polarization-angle offset across the full set of detectors in a band. Because the band-averaged map is constructed from the same data and serves as the reference, a common-mode offset would be inherited by the reference; the iteration could then converge to an internally consistent but absolutely biased solution while still reporting arcminute relative precision. This scenario is load-bearing for the claim that the algorithm recovers “correct values” and for the subsequent δr < 6.5×10^{-6} result.

    Authors: We agree that the simulations described in the manuscript do not include a global common-mode polarization-angle offset. The method is a cross-calibration technique that derives relative corrections by comparing individual detector maps to a band-averaged reference constructed from the same data. As the referee notes, any common-mode offset would be preserved in the reference, leaving the solution internally consistent but absolutely biased. This behavior is expected for any purely internal cross-calibration approach and is not a flaw in the algorithm but a fundamental limitation of the reference choice. The manuscript's statement that the algorithm "converges to correct values" refers specifically to the relative angles in the tested cases (random per-detector miscalibrations plus wafer-level rotations), which contain no common-mode component. The subsequent propagation of residuals through component separation and the resulting δr bias likewise pertain to these relative residuals. The method does not claim to recover absolute polarization angles without an external reference. We will revise the manuscript to (i) explicitly state that the approach recovers relative calibration within a band and cannot correct global offsets, (ii) clarify the distinction between relative and absolute calibration in the abstract, methods, and conclusions, and (iii) add a short discussion (or supplementary test) illustrating the algorithm's response to an injected common-mode offset. These changes will make the scope and limitations transparent while preserving the demonstrated utility for relative calibration. The δr < 6.5×10^{-6} result remains valid for the relative-error scenarios that were simulated and that align with the method's intended use. revision: yes

Circularity Check

0 steps flagged

No circularity: iterative map comparison validated on independent simulations

full rationale

The paper presents an iterative cross-calibration algorithm that compares single-detector maps against a band-averaged reference map within the same frequency band. Validation injects known random and wafer-level miscalibrations into simulated LiteBIRD observations and demonstrates recovery to arcminute precision, followed by propagation of residuals through independent component-separation and r-estimation pipelines (FgBuster and HILC). No equations, steps, or self-citations reduce the recovered angles or the final δr bound to quantities fitted from the same data by construction. The derivation chain is self-contained against external simulation benchmarks and does not invoke load-bearing self-citations or ansatzes that presuppose the target result.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review; the central claim rests on the unstated premise that band-averaged maps serve as reliable references and that simulated miscalibrations adequately represent real instrument behavior. No free parameters, axioms, or invented entities are explicitly introduced in the abstract.
