Attention based Convolutional Recurrent Neural Network for Environmental Sound Classification

Zhichao Zhang , Shugong Xu , Tianhao Qiao , Shunqing Zhang , Shan Cao This is my paper

Pith reviewed 2026-05-25 09:16 UTC · model grok-4.3

classification 💻 cs.SD cs.LGeess.AS
keywords environmental sound classificationconvolutional recurrent neural networkframe-level attentionESC-50ESC-10spectro-temporal features
0
0 comments X

The pith

Frame-level attention in a convolutional RNN focuses on relevant sound frames to achieve state-of-the-art environmental sound classification.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes extending a convolutional recurrent neural network with a frame-level attention mechanism to address semantically irrelevant and silent frames in environmental sounds. The model first extracts spectro-temporal features and temporal correlations through convolutional and recurrent layers, then applies attention to weight frames by their relevance for discrimination. Experiments on the ESC-50 and ESC-10 datasets demonstrate improved classification accuracy over prior methods. A reader would care because many audio tasks suffer from variable signal quality where selective focus on key parts could reduce errors.

Core claim

We first propose a convolutional recurrent neural network to learn spectro-temporal features and temporal correlations. Then, we extend our convolutional RNN model with a frame-level attention mechanism to learn discriminative feature representations for ESC. Experiments were conducted on ESC-50 and ESC-10 datasets. Experimental results demonstrated the effectiveness of the proposed method and achieved the state-of-the-art performance in terms of classification accuracy.

What carries the argument

The frame-level attention mechanism, which weights individual frames in the convolutional recurrent network output according to semantic relevance and saliency.

If this is right

  • The attention extension allows the model to ignore silent and irrelevant frames while emphasizing salient content.
  • The combined architecture learns both local spectro-temporal patterns and longer temporal dependencies more effectively for classification.
  • State-of-the-art accuracy is reached on the ESC-50 and ESC-10 benchmarks compared with earlier approaches.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same attention weighting could be tested on related tasks such as urban noise monitoring or bioacoustic event detection to check transfer.
  • Comparing attention weights against human-labeled relevant segments on the same clips would provide direct evidence of what the mechanism selects.

Load-bearing premise

The attention mechanism will reliably identify relevant frames on environmental sound data without overfitting or needing dataset-specific adjustments that fail to transfer.

What would settle it

Training the attention-augmented model and a plain convolutional RNN on a held-out environmental sound dataset and finding no accuracy gain for the attention version would challenge the central claim.

Figures

Figures reproduced from arXiv: 1907.02230 by Shan Cao, Shugong Xu, Shunqing Zhang, Tianhao Qiao, Zhichao Zhang.

Figure 1

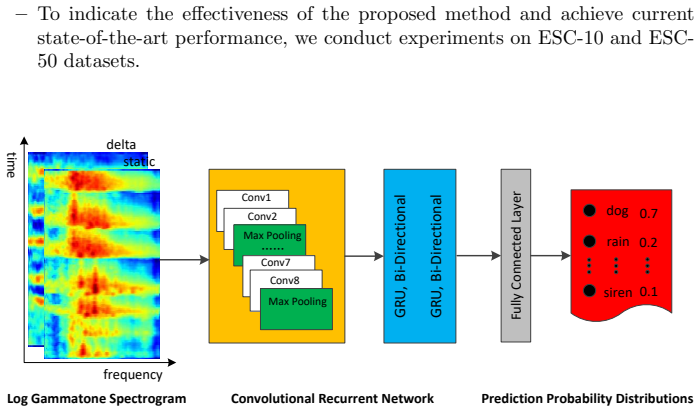

Figure 1. Figure 1: Architecture of convolutional recurrent neural network for environmental [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Visualization of Log-GTs of different classes with semantically relevant [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Frame-level attention for (a) CNN layers and (b) RNN layers. For CNN [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Confusion matrix of ACRNN with an average classification accuracy [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
read the original abstract

Environmental sound classification (ESC) is a challenging problem due to the complexity of sounds. The ESC performance is heavily dependent on the effectiveness of representative features extracted from the environmental sounds. However, ESC often suffers from the semantically irrelevant frames and silent frames. In order to deal with this, we employ a frame-level attention model to focus on the semantically relevant frames and salient frames. Specifically, we first propose an convolutional recurrent neural network to learn spectro-temporal features and temporal correlations. Then, we extend our convolutional RNN model with a frame-level attention mechanism to learn discriminative feature representations for ESC. Experiments were conducted on ESC-50 and ESC-10 datasets. Experimental results demonstrated the effectiveness of the proposed method and achieved the state-of-the-art performance in terms of classification accuracy.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper proposes a convolutional recurrent neural network (CRNN) to learn spectro-temporal features and temporal correlations from environmental sounds, then extends it with a frame-level attention mechanism to focus on semantically relevant and salient frames while ignoring irrelevant or silent ones. Experiments on the ESC-50 and ESC-10 datasets are used to demonstrate the effectiveness of this approach and to claim state-of-the-art classification accuracy.

Significance. If the empirical claims hold after proper controls, the work would show that a lightweight frame-level attention addition to an existing CRNN architecture can improve handling of variable frame relevance in ESC, offering a practical route to more robust audio representations without requiring entirely new backbones.

major comments (2)
  1. [Experiments] Experiments section: the manuscript reports final accuracies for the full CRNN+attention model and asserts SOTA performance, yet contains no ablation that removes only the attention module while keeping the convolutional and recurrent layers, preprocessing, data augmentation, and cross-validation folds identical. Without this comparison the performance gain cannot be attributed to the attention mechanism itself.
  2. [Abstract and results] Abstract and §4 (results): the central claim that the attention-augmented model 'achieved the state-of-the-art performance' is presented without tabulated accuracy numbers, baseline comparisons, standard deviations across folds or runs, or statistical significance tests, preventing verification that the reported figures actually exceed prior work by a meaningful margin.
minor comments (1)
  1. [Abstract] Abstract: 'an convolutional recurrent neural network' is grammatically incorrect and should read 'a convolutional recurrent neural network'.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. Below we address each major point and outline the revisions we will make to strengthen the experimental validation and results presentation.

read point-by-point responses

  1. Referee: [Experiments] Experiments section: the manuscript reports final accuracies for the full CRNN+attention model and asserts SOTA performance, yet contains no ablation that removes only the attention module while keeping the convolutional and recurrent layers, preprocessing, data augmentation, and cross-validation folds identical. Without this comparison the performance gain cannot be attributed to the attention mechanism itself.

    Authors: We agree that an ablation isolating the attention module is required to attribute gains specifically to that component. In the revised manuscript we will add a direct comparison of the base CRNN (identical convolutional and recurrent layers, preprocessing, augmentation, and 5-fold splits) against the attention-augmented version, reporting the resulting accuracy difference. revision: yes

  2. Referee: [Abstract and results] Abstract and §4 (results): the central claim that the attention-augmented model 'achieved the state-of-the-art performance' is presented without tabulated accuracy numbers, baseline comparisons, standard deviations across folds or runs, or statistical significance tests, preventing verification that the reported figures actually exceed prior work by a meaningful margin.

    Authors: We accept that the current presentation does not supply the tabulated numbers, baselines, standard deviations, or significance tests needed for verification. The revised results section will include an explicit comparison table with per-fold or multi-run means and standard deviations, prior-work baselines, and statistical tests supporting the SOTA claim. revision: yes

Circularity Check

0 steps flagged

No circularity; empirical claims rest on reported accuracies without self-referential derivations

full rationale

The paper proposes a CRNN architecture extended with frame-level attention, describes the model components in prose, and reports classification accuracies on ESC-10/ESC-50. No equations, uniqueness theorems, fitted parameters renamed as predictions, or self-citation chains appear in the provided text that reduce any central claim to its own inputs by construction. The SOTA claim is presented as an experimental outcome rather than a derived necessity, making the work self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The paper relies on standard supervised neural-network training assumptions and the representativeness of the ESC-10/ESC-50 datasets. No new mathematical axioms, free parameters in a derivation sense, or invented physical entities are introduced in the abstract.

pith-pipeline@v0.9.0 · 5667 in / 1066 out tokens · 25267 ms · 2026-05-25T09:16:54.810901+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

28 extracted references · 28 canonical work pages · 7 internal anchors

  1. [1]

    In: Proc

    Aytar, Y., Vondrick, C., Torralba, A.: Soundnet: Learning sound representations from unlabeled video. In: Proc. Int. Conf. Neural Inf. Process. Syst. pp. 892–900 (2016)

    work page 2016

  2. [2]

    DCASE2016 Challenge, Tech

    Bae, S.H., Choi, I., Kim, N.S.: Acoustic scene classification using parallel combi- nation of lstm and cnn. DCASE2016 Challenge, Tech. Rep. (2016)

    work page 2016

  3. [3]

    Neural Machine Translation by Jointly Learning to Align and Translate

    Bahdanau, D., Cho, K., Bengio, Y.: Neural machine translation by jointly learning to align and translate. arXiv preprint arXiv:1409.0473 (2014)

    work page internal anchor Pith review Pith/arXiv arXiv 2014

  4. [4]

    IEEE Signal Process

    Barchiesi, D., Giannoulis, D., Stowell, D., Plumbley, M.D.: Acoustic scene clas- sification: Classifying environments from the sounds they produce. IEEE Signal Process. Magazine 32(3), 16–34 (2015)

    work page 2015

  5. [5]

    IEEE/ACM Trans

    Bisot, V., Serizel, R., Essid, S., Richard, G.: Feature learning with matrix factor- ization applied to acoustic scene classification. IEEE/ACM Trans. Audio, Speech, Language Process. 25(6), 1216–1229 (2017)

    work page 2017

  6. [6]

    In: Proc

    Chorowski, J.K., Bahdanau, D., Serdyuk, D., Cho, K., Bengio, Y.: Attention-based models for speech recognition. In: Proc. Int. Conf. Neural Inf. Process. Syst. pp. 577–585 (2015)

    work page 2015

  7. [7]

    IEEE Trans

    Chu, S., Narayanan, S., Kuo, C.C.J.: Environmental sound recognition with time– frequency audio features. IEEE Trans. Audio, Speech, Language Process. 17(6), 1142–1158 (2009)

    work page 2009

  8. [8]

    Applied Soft Computing 11(1), 716–723 (2011)

    Dhanalakshmi, P., Palanivel, S., Ramalingam, V.: Classification of audio signals using aann and gmm. Applied Soft Computing 11(1), 716–723 (2011)

    work page 2011

  9. [9]

    In: Proc

    Guo, J., Xu, N., Li, L.J., Alwan, A.: Attention based cldnns for short-duration acoustic scene classification. In: Proc. Interspeech. pp. 469–473 (2017)

    work page 2017

  10. [10]

    Batch Normalization: Accelerating Deep Network Training by Reducing Internal Covariate Shift

    Ioffe, S., Szegedy, C.: Batch normalization: Accelerating deep network training by reducing internal covariate shift. arXiv preprint arXiv:1502.03167 (2015)

    work page internal anchor Pith review Pith/arXiv arXiv 2015

  11. [11]

    DCASE2018 Challenge, Tech

    Jun, W., Shengchen, L.: Self-attention mechanism based system for dcase2018 chal- lenge task1 and task4. DCASE2018 Challenge, Tech. Rep. (2018)

    work page 2018

  12. [12]

    Multi-stream Network With Temporal Attention For Environmental Sound Classification

    Li, X., Chebiyyam, V., Kirchhoff, K.: Multi-stream network with temporal atten- tion for environmental sound classification. arXiv preprint arXiv:1901.08608 (2019)

    work page internal anchor Pith review Pith/arXiv arXiv 1901

  13. [13]

    IEEE Signal Process

    Lyon, R.F.: Machine hearing: An emerging field [exploratory dsp]. IEEE Signal Process. Magazine 27(5), 131–139 (2010)

    work page 2010

  14. [14]

    IEEE/ACM Trans

    McLoughlin, I., Zhang, H., Xie, Z., Song, Y., Xiao, W.: Robust sound event classi- fication using deep neural networks. IEEE/ACM Trans. Audio, Speech, Language Process. 23(3), 540–552 (2015)

    work page 2015

  15. [15]

    In: Proc

    Piczak, K.J.: Environmental sound classification with convolutional neural net- works. In: Proc. 25th Int. Workshop Mach. Learning Signal Process. pp. 1–6 (2015)

    work page 2015

  16. [16]

    In: Proc

    Piczak, K.J.: Esc: Dataset for environmental sound classification. In: Proc. 23rd ACM Int. Conf. Multimedia. pp. 1015–1018 (2015)

    work page 2015

  17. [17]

    In: Proc

    Radhakrishnan, R., Divakaran, A., Smaragdis, A.: Audio analysis for surveillance applications. In: Proc. IEEE Workshop Appl. Signal Process. Audio Acoust. pp. 158–161 (2005)

    work page 2005

  18. [18]

    al.: Attention-based convolutional neural networks for acoustic scene classification

    Ren, Z., et. al.: Attention-based convolutional neural networks for acoustic scene classification. DCASE2018 Challenge, Tech. Rep. (2018)

    work page 2018

  19. [19]

    IEEE Signal Process

    Salamon, J., Bello, J.P.: Deep convolutional neural networks and data augmenta- tion for environmental sound classification. IEEE Signal Process. Letters 24(3), 279–283 (2017)

    work page 2017

  20. [20]

    Deep Convolutional Neural Networks and Data Augmentation for Acoustic Event Detection

    Takahashi, N., Gygli, M., Pfister, B., Van Gool, L.: Deep convolutional neu- ral networks and data augmentation for acoustic event detection. arXiv preprint arXiv:1604.07160 (2016)

    work page internal anchor Pith review Pith/arXiv arXiv 2016

  21. [21]

    Learning from Between-class Examples for Deep Sound Recognition

    Tokozume, Y., Ushiku, Y., Harada, T.: Learning from between-class examples for deep sound recognition. arXiv preprint arXiv:1711.10282 (2017)

    work page internal anchor Pith review Pith/arXiv arXiv 2017

  22. [22]

    In: Proc

    Vacher, M., Serignat, J.F., Chaillol, S.: Sound classification in a smart room en- vironment: an approach using gmm and hmm methods. In: Proc. 4th IEEE Conf. Speech Technique, Human-Computer Dialogue. vol. 1, pp. 135–146 (2007)

    work page 2007

  23. [23]

    IEEE Trans

    Valero, X., Alias, F.: Gammatone cepstral coefficients: Biologically inspired fea- tures for non-speech audio classification. IEEE Trans. Multimedia 14(6), 1684– 1689 (2012)

    work page 2012

  24. [24]

    DCASE2016 Challenge, Tech

    Vu, T.H., Wang, J.C.: Acoustic scene and event recognition using recurrent neural networks. DCASE2016 Challenge, Tech. Rep. (2016)

    work page 2016

  25. [25]

    In: Proc

    Yang, Z., Yang, D., Dyer, C., He, X., Smola, A., Hovy, E.: Hierarchical attention networks for document classification. In: Proc. NAACL-HLT. pp. 1480–1489 (2016)

    work page 2016

  26. [26]

    mixup: Beyond Empirical Risk Minimization

    Zhang, H., Cisse, M., Dauphin, Y.N., Lopez-Paz, D.: Mixup: Beyond empirical risk minimization. arXiv preprint arXiv:1710.09412 (2017)

    work page internal anchor Pith review Pith/arXiv arXiv 2017

  27. [27]

    In: Proc

    Zhang, Z., Xu, S., Cao, S., Zhang, S.: Deep convolutional neural network with mixup for environmental sound classification. In: Proc. Chinese Conf. Pattern Recognit. Comput. Vision. pp. 356–367 (2018)

    work page 2018

  28. [28]

    Learning Environmental Sounds with Multi-scale Convolutional Neural Network

    Zhu, B., Wang, C., Liu, F., Lei, J., Lu, Z., Peng, Y.: Learning environmental sounds with multi-scale convolutional neural network. arXiv preprint arXiv:1803.10219 (2018)

    work page internal anchor Pith review Pith/arXiv arXiv 2018
