A local SU(2)-symmetric spin Hamiltonian on the checkerboard lattice is shown to have an RVB ground state, and thermal decoherence is argued to convert its exponentially decaying singlet correlations into a 1/r^2 power law, a previously unr

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

A new local spin Hamiltonian on the checkerboard lattice has an RVB ground state with exponentially decaying singlet correlations, while thermal decoherence of that state produces quasi-long-range 1/r^2 correlations, a mechanism called thermal order by disorder.

T0 review reviewed 2026-08-01 challenge →

load-bearing objection A solid parent-Hamiltonian construction for a checkerboard RVB state, but the thermal order-by-disorder mechanism rests on an asserted decohered density matrix that is not derived from any bath model. the 3 major comments →

arxiv 2607.15813 v1 pith:URH3SEGB submitted 2026-07-17 cond-mat.str-el

Thermal Order by Disorder in Resonating-Valence Bond States on the Checkerboard Lattice

classification cond-mat.str-el MSC 82B2082B2382B26
keywords resonating valence bondcheckerboard latticeorder by disorderthermal decoherencequantum dimer modelsix-vertex modelsinglet correlationsspin liquid
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper constructs a local, SU(2)-symmetric spin-1/2 Hamiltonian whose zero-temperature ground state on the checkerboard lattice is an equal-weight superposition of all singlet coverings with one singlet per plaquette. In that ground state, singlet–singlet correlations decay exponentially, as the authors verify with a fermionic variational Monte Carlo simulation. The central discovery is what happens at intermediate temperatures: thermal decoherence destroys the phase coherence between individual valence-bond states, producing a uniform mixed state. In that mixed state, the same singlet correlations inherit the slow 1/r^2 power-law decay of the classical six-vertex model, so heat turns short-range quantum disorder into quasi-long-range order. The authors present this as a new route to thermal order-by-disorder, driven by the removal of destructive quantum interference rather than by entropy selection.

Core claim

The paper's claim is that the equal-weight resonating valence bond state — the coherent sum over all Klein-subspace singlet coverings — is the exact ground state of a local twelve-spin Hamiltonian of the form H = H_K − J Σ [...] P_perp, where H_K enforces one singlet per plaquette and the added term acts as a Rokhsar–Kivelson-type projector on flippable plaquettes, with a basis choice that makes all plaquette-flip parities positive. Numerically, singlet–singlet correlations in this state fall off exponentially. The authors then argue that at K≫T≫J the relevant thermal state is the dephased mixture ρ = (1/N)Σ_i |D_i⟩⟨D_i|, and since VB states are non-orthogonal, the diagonal density matrix yi

What carries the argument

The central object is the Hamiltonian of Eq. (6): the Klein-type projector H_K plus a negative coupling J times a twelve-spin SU(2)-invariant combination of Heisenberg exchanges and quartic spin terms, multiplied by a projector P_perp that keeps the state within the Klein subspace (the set of singlet coverings with exactly one singlet per plaquette). The construction relies on a pinwheel-parity bookkeeping: choosing singlet orientations so every flippable plaquette has parity +1 turns the cyclic permutation of four spins into an exact plaquette flip, so the operator (P̂+P̂³−P̂²−Î) annihilates the equal-weight superposition of flippable configurations, making the parent Hamiltonian exact rath

Load-bearing premise

The 1/r^2 prediction rests on the unproven assumption that at intermediate temperatures the thermal state becomes exactly the uniform diagonal mixture of valence-bond states in the non-orthogonal VB basis, with all off-diagonal coherences killed and the overlap matrix G invertible; the paper asserts this expectation rather than deriving it from a realistic bath or from the exact thermal density matrix.

What would settle it

Compute the exact thermal density matrix restricted to the Klein subspace at intermediate temperature on a small checkerboard lattice by exact diagonalization, expand it in the normalized VB basis, and check whether off-diagonal elements actually vanish; alternatively, evaluate singlet–singlet correlations in the state ρ=(1/N)Σ|D⟩⟨D| via Monte Carlo and test whether the decay is 1/r^2 or something else — if the off-diagonal terms survive or the trace of ρ deviates from 1, the central prediction fails.

Watch this falsifier. Get emailed when new claim-graph text bears on it.

If this is right

  • If correct, there exists a concrete, local, SU(2)-invariant spin Hamiltonian whose ground state is an RVB spin liquid on a non-bipartite lattice, a rare explicit construction.
  • The decoherence mechanism predicts that quasi-long-range singlet–singlet order with exponent 1/r^2 should be observable in the intermediate-temperature regime of any system governed by this Hamiltonian.
  • The result connects RVB correlation physics directly to the exactly solvable six-vertex model, making the power-law exponent and even the full correlator accessible analytically.
  • The mechanism generalizes the order-by-disorder paradigm: the ordered (quasi-long-range) state need not be a region of the zero-temperature phase diagram but can arise purely from loss of quantum coherence.
  • The 1/r^2 tail could serve as a fingerprint in engineered quantum simulators that realize the one-singlet-per-plaquette constraint.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same interference-suppression mechanism might apply to other frustrated RVB states, such as the square-lattice short-range RVB state, where decoherence could strengthen correlations even if the zero-temperature state is already power-law; the checkerboard case would be an extreme version.
  • The proof of linear independence for patches of fixed singlets suggests a path to rigor: if the full Klein manifold's overlap matrix G were proven invertible, the thermal density matrix would be rigorously defined; a numerical check of the rank of G on larger lattices would settle whether the small-lattice deficiency is a finite-size artifact.
  • Because the Hamiltonian is SU(2)-invariant and local, it may be realizable in principle with ultracold molecules or Rydberg atoms; in such an experiment, the predicted contrast between exponential (T=0) and power-law (K≫T≫J) correlations would be a direct test.
  • The dephasing step resembles what happens under weak measurements; one could test whether continuous measurement of bond singlets produces the same 1/r^2 quasi-order dynamically.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

3 major / 3 minor

Summary. The paper constructs a local SU(2)-invariant spin-1/2 Hamiltonian on the checkerboard lattice whose ground state is the equal-weight superposition of all valence-bond coverings in the Klein subspace. It reports exponential decay of singlet-singlet correlations in this RVB state via variational Monte Carlo, and proposes that at intermediate temperatures thermal decoherence makes the density matrix diagonal in the VB basis, turning the quantum-disordered RVB state into a classical six-vertex ensemble with 1/r^2 correlations, a mechanism the authors call thermal order by disorder.

Significance. If established, the parent-Hamiltonian construction is a valuable explicit example of a local SU(2)-invariant Hamiltonian with a short-range RVB ground state on a frustrated non-bipartite lattice. The use of the fermionic RVB representation and VMC to compute correlations is a strength, as is the authors' candid discussion of open issues such as linear independence and boundary-condition effects. The proposed decoherence mechanism is conceptually interesting and could provide a new route to order by disorder. However, the central thermal prediction currently rests on an unproven assumption about the pointer basis; the paper's contribution to the thermal mechanism is therefore more suggestive than established.

major comments (3)
  1. [Sec. 4, Eq. (9)] The density matrix rho_diag = (1/N) sum_i |D_i><D_i| is asserted rather than derived. In the stated regime K >> T >> J, the thermal equilibrium state restricted to the Klein subspace is, to leading order, the maximally mixed state on that subspace; in the non-orthogonal VB basis its matrix elements are (1/d)(G^{-1})_{ij}, generically nonzero off-diagonal. The "intuitive expectation" and the toric-code analogy do not supply a mechanism that selects the VB basis as the pointer basis. Since the 1/r^2 prediction and the claimed mechanism depend entirely on this step, this is a load-bearing gap. A concrete bath model or explicit dephasing dynamics is required; alternatively the claim should be presented as conditional.
  2. [Sec. 4 and Supp. B] The authors' linear-independence caveat is largely a red herring for rho_diag: (1/N) sum_i |D_i><D_i| is a valid density matrix even when G is singular, and expectation values are simply the classical average. However, the text uses G^{-1} in Eq. (9) and then admits that numerical checks find rank(G) smaller than the Klein subspace dimension. The supplementary proof only establishes independence with a finite fixed patch, and the extrapolation to the full Klein subspace relies on the unproven assertion that the fixed singlets' influence decays as 1/r^2. This should be clarified; more importantly, fixing this would not address the missing pointer-basis derivation.
  3. [Supp. A, Eq. (15)] The eigenvalue list {0,0,2,0} is arithmetically incorrect; direct evaluation of H(lambda)=1-lambda+lambda^2-lambda^{-1} gives {0,0,4,0}. The conclusions of positive semidefiniteness and a three-dimensional kernel are unaffected, but the numerical value should be corrected, and the main-text statement that the operator gives positive energy should be checked against the correct spectrum.
minor comments (3)
  1. [Sec. 3, Fig. 5] The numerical evidence for exponential decay is based on one correlation geometry on a 24x24 lattice with few distances and no error bars. Given that the contrast with the power-law tail is central, additional system-size scalings, error bars, and other correlation directions would strengthen the claim.
  2. [Sec. 3] Typo: "The singlet–singlet The correlation function" should read "The singlet–singlet correlation function".
  3. [Sec. 2] The definition of F_p lists nine letters (i,j,k,l,m,n,r,s,t) while the text says 'eight pinwheel corners'. Please reconcile the notation with Fig. 2/Fig. 4 so the parity definition is unambiguous.

Circularity Check

0 steps flagged

No circular derivation: the parent Hamiltonian is constructed, the T=0 decay is measured, and the T>0 power law is a conditional consequence of an explicitly assumed diagonal VB ensemble rather than a reused input.

full rationale

The paper's derivation chain is not circular. Eq. (6) is a parent-Hamiltonian construction: the authors build H' and P_perp so that the equal-weight RVB superposition lies in the common kernel of the local positive-semidefinite terms; the claim is by construction, but the later-claimed correlation decay is not fitted into the Hamiltonian. The zero-temperature exponential decay is obtained independently by a VMC evaluation of Eq. (7) via the P-BCS mapping (Sec. 3, Fig. 5), not imposed by the Hamiltonian. The high-temperature 1/r^2 statement is explicitly conditional: Sec. 4 assumes rho = (1/N) sum_D |D><D| ('one would intuitively expect the vanishing of off-diagonal matrix elements'), and Eq. (9) then shows that with this diagonal density matrix all operator averages reduce to diagonal VB averages, whose correlation is the known six-vertex 1/r^2 power law [12,20]. That reduction is a consequence of the assumption, not a circular reuse of the conclusion. The unsupported part is the physical pointer-basis/decoherence assumption itself, and the paper itself flags related linear-independence caveats (rank(G) < dim Klein on small lattices; no full proof of linear independence). These are unproven premises and inference gaps, i.e. correctness risks, not circularity. There are no author self-citations used as load-bearing evidence and no fitted constants renamed as predictions. I therefore find no circular step.

Axiom & Free-Parameter Ledger

2 free parameters · 8 axioms · 0 invented entities

The construction imports the six-vertex mapping and its correlation properties from prior literature (refs [11,12,20]) and the 9/16 singlet/dimer correspondence from [7]; the genuinely paper-specific inputs are the assumed decohered density matrix, the assumed global linear independence, the asserted orientation consistency, and an incomplete ground-state uniqueness argument. The only fitted numbers are the descriptive correlation fits in Fig. 5. No new particles, forces, or entities are posited; the pinwheel parity and projectors are bookkeeping devices.

free parameters (2)
  • exponential correlation length xi = 1/b = approx 1.41 sites (b=0.707, A=0.088)
    Two-parameter least-squares fit to VMC data at seven distances on one 24x24 lattice (Fig. 5). The central exponential-vs-power-law conclusion rests on comparing this to the alternative m/r^n fit without error bars.
  • power-law fit m/r^n = m=0.101, n=2.233
    Alternative descriptive fit (Fig. 5) used to argue exponential decay is the better description; would be the preferred description if the true decay were algebraic.
axioms (8)
  • domain assumption Klein-subspace singlet coverings are in one-to-one correspondence with six-vertex (ice) configurations; two-singlet plaquettes are impossible on the torus; ground-state count approx (4/3)^{3Np/4}
    Imported from Refs [11-14]; the whole construction and correlation analysis are phrased in this mapping (Sec. 2, Fig. 1; used again in Secs. 3-4).
  • domain assumption The flat topological sector is ergodic under plaquette flips
    Ref [15]; justifies the equal-weight superposition Sum_D|D> as the natural state annihilated by every local flip term.
  • domain assumption Uniform six-vertex ensemble vertex-vertex (dimer-dimer) correlations decay as 1/r^2
    Refs [12,20]; the quantitative target of the thermal prediction (Sec. 4).
  • domain assumption Quantum singlet-singlet correlation in the diagonal VB ensemble equals the QD dimer-dimer correlation up to factor 9/16
    Ref [7] establishes the factor for square-lattice RVB/dimer models; here it is applied to the checkerboard Klein ensemble without a new derivation (Sec. 4).
  • ad hoc to paper Global linear independence of Klein-subspace VB states (invertibility of G)
    Required for Eq. (9)'s trace calculation and the diagonal-ensemble correlation statement; authors prove only independence with a fixed finite patch of singlets and admit small-lattice numerical rank deficiency (Sec. 4, Supp. B).
  • ad hoc to paper At K >> T >> J the density matrix becomes exactly diagonal in the VB basis, rho = (1/N) Sum |D_i><D_i|
    Core premise of the mechanism; asserted via toric-code analogy [19] without a bath model or Gibbs-state derivation. The maximally-mixed state of the degenerate manifold is not this state in general (Sec. 4).
  • ad hoc to paper Uniqueness of |psi_RVB> as ground state of the J-term in Eq. (6)
    Supp. A proves the local single-plaquette annihilation with the Klein constraint; it does not prove that the kernel of the sum of the non-commuting local 12-spin terms is exactly the equal-weight superposition (needs connectivity/positivity argument).
  • ad hoc to paper Existence of a global singlet-orientation convention with F_p = +1 for every pinwheel (Fig. 4)
    Positivity of all flip amplitudes is required for Eq. (4); the paper asserts the orientations exist with an example, without a global (torus-compatible) proof (Sec. 2).

reviewed 2026-08-01 · how reviews work

0 comments
Cite this review

Pith. "Pith review of Thermal Order by Disorder in Resonating-Valence Bond States on the Checkerboard Lattice." pith.science (2026). https://pith.science/paper/URH3SEGB

@misc{pith2026260715813,
  author       = {Pith},
  title        = {Pith review of: Thermal Order by Disorder in Resonating-Valence Bond States on the Checkerboard Lattice},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/URH3SEGB}},
  note         = {Machine review of arXiv:2607.15813}
}
Share X Bluesky LinkedIn Reddit HN
read the original abstract

We derive a local spin-1/2 Hamiltonian with a resonating valence bond ground state on the checkerboard lattice. The state is characterized by the exponential decay of singlet-singlet correlations, whereas dimer-dimer correlations decay with a power law in the corresponding Quantum Dimer model. This observation leads to a novel mechanism for thermal Order by Disorder whereby thermal decoherence suppresses destructive quantum interference between different contributions to the correlations in the ground state and results in a qualitatively different, quasi-long-range ordered mixed state.

Figures

Figures reproduced from arXiv: 2607.15813 by Giorgi Gogaberishvili, Kirill Shtengel, Nika Kurdadze.

Figure 2
Figure 2. Figure 2: FIG. 2 [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3 [PITH_FULL_IMAGE:figures/full_fig_p002_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4 [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5 [PITH_FULL_IMAGE:figures/full_fig_p003_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6 [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: FIG. 7 [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗

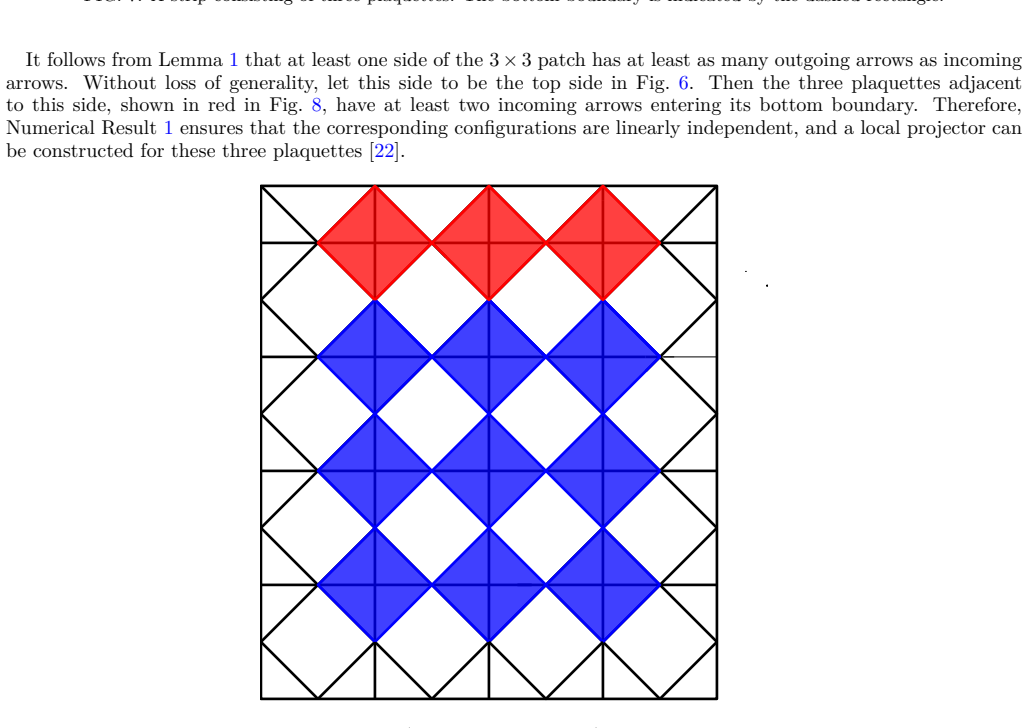

Figure 8
Figure 8. Figure 8: FIG. 8 [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: FIG. 9 [PITH_FULL_IMAGE:figures/full_fig_p009_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: FIG. 10 [PITH_FULL_IMAGE:figures/full_fig_p009_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: FIG. 11 [PITH_FULL_IMAGE:figures/full_fig_p010_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: FIG. 12 [PITH_FULL_IMAGE:figures/full_fig_p010_12.png] view at source ↗
