Universal mechanism of low-frequency brain rhythm formation through nonlinear coupling of high-frequency spiking-like activity

Lawrence R. Frank; Vitaly L. Galinsky

arxiv: 1906.09716 · v1 · pith:URMJDOTAnew · submitted 2019-06-24 · ⚛️ physics.bio-ph · nlin.CD· nlin.PS

Universal mechanism of low-frequency brain rhythm formation through nonlinear coupling of high-frequency spiking-like activity

Vitaly L. Galinsky , Lawrence R. Frank This is my paper

Pith reviewed 2026-05-25 17:19 UTC · model grok-4.3

classification ⚛️ physics.bio-ph nlin.CDnlin.PS

keywords brain rhythmsnonlinear couplingsurface waveslow frequency emergenceneural oscillationswave dispersionevanescent modes

0 comments

The pith

Resonant nonlinear coupling of high-frequency brain modes produces low-frequency rhythms several orders of magnitude slower.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a mechanism in which synchronized low-frequency brain rhythms emerge from nonlinear coupling of flat-frequency high-frequency neuronal forcing. It relies on weakly-evanescent surface modes that propagate in thin inhomogeneous anisotropic tissue layers with a dispersion relation where frequency is inversely proportional to wave number. Resonant and non-resonant terms in the coupling generate both high-frequency spiking-like activity and the slow rhythms. Numerical simulations show a transition from damped to oscillatory regimes as forcing increases, followed by silencing at over-excitation. A sympathetic reader would care because the account derives multi-scale rhythms from the same physical tissue properties without separate circuits for each frequency band.

Core claim

What carries the argument

Weakly-evanescent wave-like surface modes whose dispersion relation gives frequencies inversely proportional to wave numbers; these modes carry the resonant and non-resonant nonlinear coupling terms between high-frequency forcing and low-frequency output.

If this is right

As forcing increases the system transitions from damped to oscillatory regime then silences at over-excitation.
Non-resonant coupling produces a relatively narrow localized frequency response similar to phase coupling in oscillatory systems.
Both synchronous spiking-like high frequency wave activity and low frequency wave rhythms are generated by the same coupling process.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The account implies that observed brain rhythm frequencies are set by tissue layer geometry and inhomogeneity rather than by dedicated neural oscillators at each scale.
The same dispersion-enabled coupling could be tested in other layered physical systems that support evanescent waves.
Numerical or experimental checks could vary layer thickness and anisotropy to predict shifts in the generated low-frequency bands.

Load-bearing premise

The physical brain tissue model supports weakly-evanescent wave-like surface modes whose dispersion relation gives frequencies inversely proportional to wave numbers and that can propagate in thin inhomogeneous anisotropic layers.

What would settle it

Direct measurement of wave propagation in brain tissue showing that frequencies are not inversely proportional to wave numbers, or absence of emergent low-frequency rhythms under high-frequency forcing when the predicted surface modes are suppressed.

Figures

Figures reproduced from arXiv: 1906.09716 by Lawrence R. Frank, Vitaly L. Galinsky.

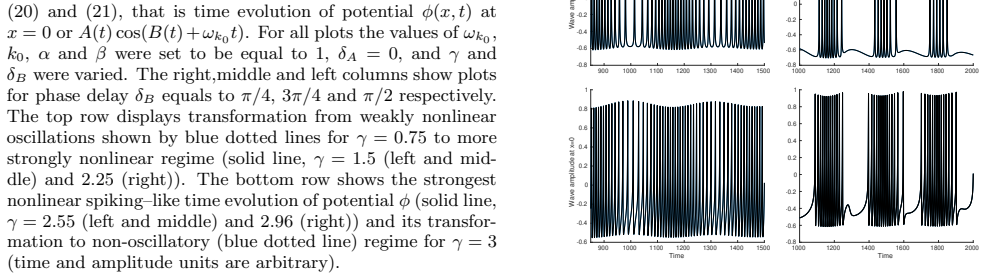

**Figure 2.** Figure 2: FIG. 2. The results of numerical integration of the system [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

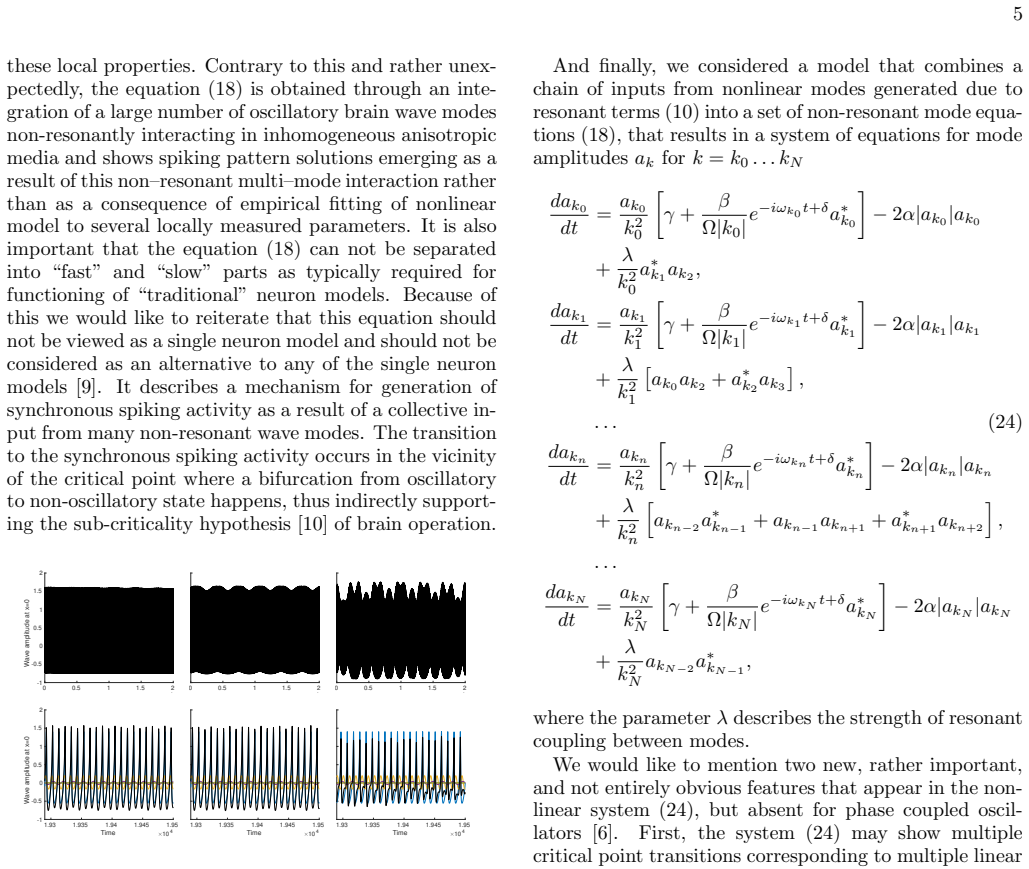

**Figure 3.** Figure 3: FIG. 3. The results of numerical integration of the sys [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗

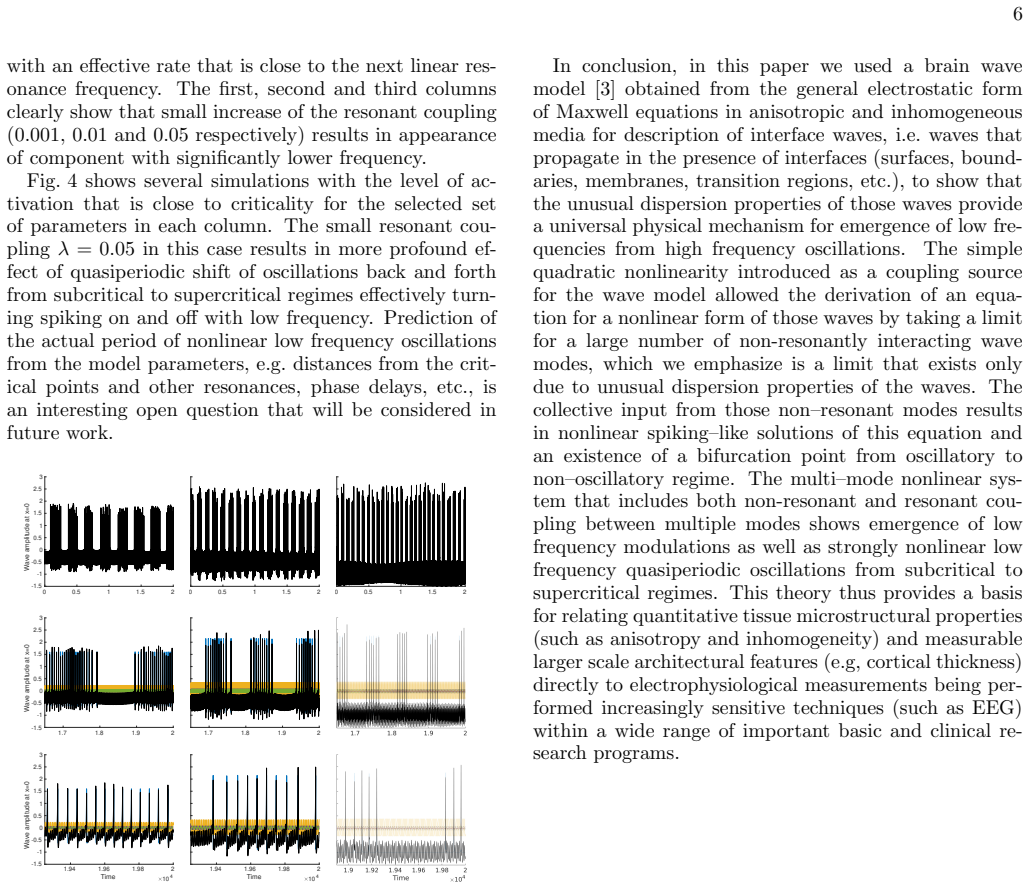

**Figure 4.** Figure 4: FIG. 4. The results of numerical integration of the system [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

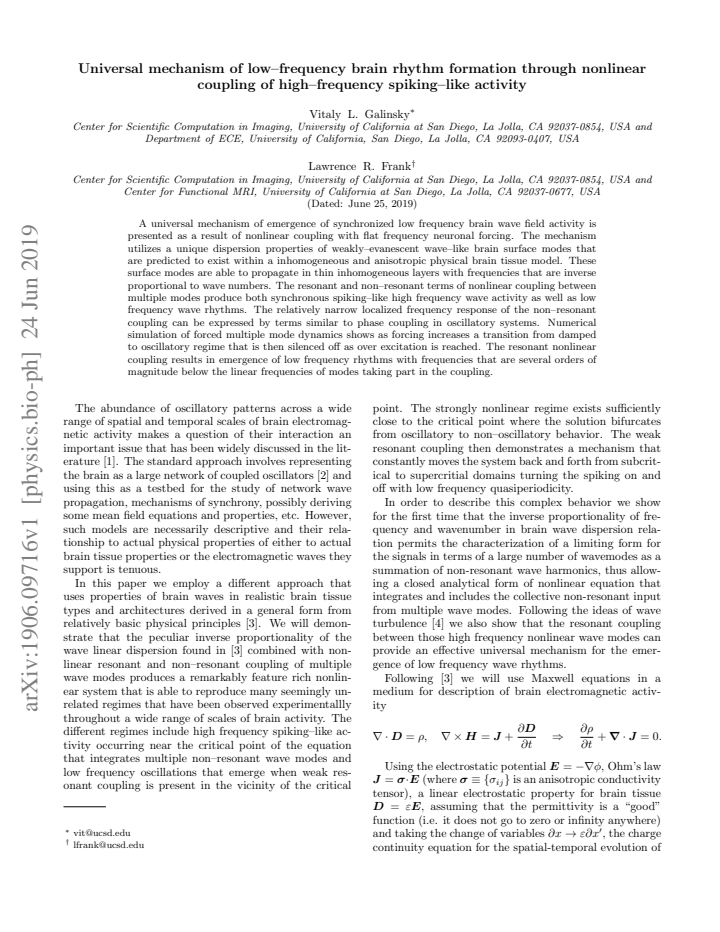

read the original abstract

A universal mechanism of emergence of synchronized low frequency brain wave field activity is presented as a result of nonlinear coupling with flat frequency neuronal forcing. The mechanism utilizes a unique dispersion properties of weakly-evanescent wave--like brain surface modes that are predicted to exist within a inhomogeneous and anisotropic physical brain tissue model. These surface modes are able to propagate in thin inhomogeneous layers with frequencies that are inverse proportional to wave numbers. The resonant and non-resonant terms of nonlinear coupling between multiple modes produce both synchronous spiking-like high frequency wave activity as well as low frequency wave rhythms. The relatively narrow localized frequency response of the non-resonant coupling can be expressed by terms similar to phase coupling in oscillatory systems. Numerical simulation of forced multiple mode dynamics shows as forcing increases a transition from damped to oscillatory regime that is then silenced off as over excitation is reached. The resonant nonlinear coupling results in emergence of low frequency rhythms with frequencies that are several orders of magnitude below the linear frequencies of modes taking part in the coupling.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper offers a mechanism where nonlinear coupling of high-frequency modes with inverse-dispersion surface waves produces low-frequency brain rhythms, but the dispersion relation appears assumed rather than derived from the tissue model.

read the letter

The main claim is that brain tissue supports weakly-evanescent surface modes whose frequencies scale inversely with wave number, and that resonant plus non-resonant nonlinear coupling of these modes with high-frequency forcing can generate synchronized low-frequency rhythms orders of magnitude slower than the driving activity. Numerical simulations show a forcing-dependent transition from damped to oscillatory to over-excited silenced states, with the non-resonant terms behaving like phase coupling. This is new in the specific application of inverse-dispersion modes plus both coupling types to a single inhomogeneous anisotropic tissue model aimed at unifying brain rhythms. The paper does a clear job spelling out how the coupling terms produce the frequency separation and the regime transitions. The central soft spot is the dispersion relation. The abstract presents the inverse scaling as a property the modes are predicted to have in the tissue model, yet supplies neither the governing equations nor the derivation, so it is impossible to judge whether the scaling emerges from the physics or is inserted to enable the result. That makes the circularity burden real: the low-frequency emergence depends on the dispersion being granted. The simulations are described at a high level with no parameter values, sensitivity checks, or direct comparison to measured brain-wave spectra, leaving the evidential support thin. Free parameters in tissue inhomogeneity, anisotropy, and coupling coefficients are present and could allow tuning. This paper is for biophysicists and theorists working on wave-based models of neural activity who want a physical account that starts from tissue properties. A reader already interested in nonlinear wave coupling in anisotropic media would find the framework worth examining, though they would need to verify the derivations themselves. It deserves peer review because the idea is internally coherent and the frequency-separation result is worth checking if the dispersion step can be grounded.

Referee Report

2 major / 2 minor

Summary. The paper presents a theoretical mechanism for the emergence of synchronized low-frequency brain rhythms as a consequence of nonlinear (resonant and non-resonant) coupling among high-frequency spiking-like modes. The mechanism relies on a physical model of inhomogeneous anisotropic brain tissue that is asserted to support weakly-evanescent surface modes whose dispersion relation yields frequencies inversely proportional to wave number; numerical integration of the forced multi-mode system is used to illustrate a transition from damped to oscillatory to over-excited silenced regimes and the generation of low-frequency components orders of magnitude below the linear frequencies of the participating modes.

Significance. If the tissue model and its dispersion relation can be independently justified, the work would supply a candidate physical route by which high-frequency neuronal activity could generate the much slower rhythms observed in EEG, with potential implications for understanding synchronization across scales. The numerical demonstration of regime transitions and the separation of resonant versus non-resonant coupling terms constitute concrete, falsifiable elements. However, the absence of any derivation of the governing tissue equations, any benchmark against measured dispersion or brain-wave spectra, and any parameter-sensitivity or error analysis substantially limits the immediate significance of the result.

major comments (2)

[abstract / model section] The central claim that low-frequency rhythms emerge from nonlinear coupling rests on the asserted inverse dispersion relation (frequency inversely proportional to wave number) for weakly-evanescent surface modes. No governing equations for the inhomogeneous anisotropic tissue model, no derivation of this dispersion relation, and no external benchmark are supplied (abstract; model description). Without these steps it is impossible to determine whether the inverse proportionality is an emergent property of the physics or is introduced by construction, rendering the mechanism circular.
[numerical simulation section] Numerical simulations are invoked to demonstrate the damped-to-oscillatory transition and the generation of low-frequency components, yet the manuscript supplies neither the explicit system of coupled-mode equations, the values or ranges of the free parameters (tissue inhomogeneity, anisotropy, nonlinear coefficients), nor any error bars, convergence tests, or sensitivity analysis. These omissions make it impossible to assess the robustness of the reported regime transitions.

minor comments (2)

[abstract] The abstract states that the non-resonant coupling response 'can be expressed by terms similar to phase coupling in oscillatory systems' but does not provide the explicit reduced equations or the mapping.
[discussion] No direct comparison is made between the simulated low-frequency spectra and any experimental EEG or LFP recordings, which would be required to substantiate the universality claim.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments, which help strengthen the manuscript. We address each major point below and will revise accordingly.

read point-by-point responses

Referee: [abstract / model section] The central claim that low-frequency rhythms emerge from nonlinear coupling rests on the asserted inverse dispersion relation (frequency inversely proportional to wave number) for weakly-evanescent surface modes. No governing equations for the inhomogeneous anisotropic tissue model, no derivation of this dispersion relation, and no external benchmark are supplied (abstract; model description). Without these steps it is impossible to determine whether the inverse proportionality is an emergent property of the physics or is introduced by construction, rendering the mechanism circular.

Authors: The dispersion relation emerges from the boundary-value problem for weakly evanescent modes in the thin inhomogeneous anisotropic layer; it is not imposed by construction. The current manuscript presents the model concisely. In revision we will add the full governing wave equations, the step-by-step derivation of ω ∝ 1/k from the anisotropic Helmholtz equation with evanescent decay, and a short discussion relating the resulting length and time scales to known cortical tissue parameters. This will make the physical origin explicit. A quantitative benchmark against measured dispersion curves lies outside the scope of the present theoretical study and will be noted as a limitation. revision: yes
Referee: [numerical simulation section] Numerical simulations are invoked to demonstrate the damped-to-oscillatory transition and the generation of low-frequency components, yet the manuscript supplies neither the explicit system of coupled-mode equations, the values or ranges of the free parameters (tissue inhomogeneity, anisotropy, nonlinear coefficients), nor any error bars, convergence tests, or sensitivity analysis. These omissions make it impossible to assess the robustness of the reported regime transitions.

Authors: The coupled-mode system is the set of forced nonlinear ODEs for the complex amplitudes of the participating surface modes, obtained by projecting the nonlinear terms onto the linear eigenmodes. In the revised manuscript we will write the explicit system, list the numerical values and ranges used for inhomogeneity, anisotropy, and nonlinear coefficients, and add convergence checks with respect to time step and mode truncation together with a brief parameter-sensitivity study confirming that the damped–oscillatory–silenced transitions and the low-frequency generation persist across the reported regime. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper presents the inverse-proportional dispersion of weakly-evanescent surface modes as a predicted property of its inhomogeneous anisotropic tissue model, then derives the emergence of low-frequency rhythms from resonant and non-resonant nonlinear coupling terms acting on that dispersion. No equation or claim equates the target low-frequency result to the dispersion relation by construction, nor is the dispersion shown to be fitted from the low-frequency data it is used to explain. The numerical simulations of forced multi-mode dynamics supply an independent check on the damped-to-oscillatory transition. The derivation chain therefore remains self-contained against external benchmarks and does not reduce to self-definition or fitted-input renaming.

Axiom & Free-Parameter Ledger

2 free parameters · 1 axioms · 0 invented entities

The central claim depends on the existence and dispersion properties of the surface modes in the brain tissue model plus the form of the nonlinear coupling; these are introduced without derivation from more basic tissue physics or external data.

free parameters (2)

tissue inhomogeneity and anisotropy parameters
Control the existence and propagation of the weakly-evanescent surface modes; their specific values determine the inverse frequency-wave-number relation.
nonlinear coupling coefficients
Determine the strength of resonant and non-resonant terms that produce the low-frequency output.

axioms (1)

domain assumption Brain tissue can be modeled as an inhomogeneous anisotropic medium supporting weakly-evanescent surface modes with frequency inversely proportional to wave number.
Invoked to enable the dispersion relation used for the coupling calculation.
