A ReaxFF-based thermomechanical analysis of N-carbophenes: phase-change, thermal expansion, and high temperature synthesis pathway

Chad E. Junkermeier , Kat Lavarez , R. Martin Adra , Valeria Aparicio Diaz , Heather Osterstock , Pal Casinto , M. Verano , Ricardo Paupitz
show 1 more author
Adri C. T. van Duin
This is my paper

Pith reviewed 2026-05-15 20:58 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords N-carbophenesReaxFFthermal stabilityphase transitionnegative thermal expansion2D covalent organic frameworksantiaromaticitymolecular dynamics
0
0 comments X

The pith

N-carbophenes stay stable above 1000 K, with phase-change temperatures falling as phenylene chain length grows due to antiaromaticity.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper applies ReaxFF reactive molecular dynamics simulations to map the high-temperature response of N-carbophenes, a family of two-dimensional covalent organic frameworks. It finds that the structures hold together past 1000 K and that their phase-change onsets move to lower temperatures as the N-phenylene segments get longer, an effect traced to growing antiaromatic character in the central rings. The work matters for anyone designing these materials for gas storage or electronics because it supplies concrete upper temperature bounds and shows how chain length and added functional groups control whether the sheets expand or contract on heating. The simulations also locate a temperature-driven route that converts graphenylene directly into gamma-graphyne. These results tighten the link between aromaticity patterns and thermal stability in extended carbon networks.

Core claim

Using ReaxFF-based reactive molecular dynamics simulations with temperature-ramp protocols and statistical checks, the authors demonstrate that N-carbophenes remain stable above 1000 K. Phase-change onset temperatures decrease with increasing N-phenylene chain length in the pristine materials because of rising antiaromaticity in the central phenylene segments. Pristine N-carbophenes show negative area thermal expansion while functional groups shift the behavior toward positive or keep it negative; the groups themselves stay bonded well past the transition. A temperature-induced conversion from graphenylene (2-carbophene) to gamma-graphyne is shown to be accessible.

What carries the argument

ReaxFF reactive molecular dynamics simulations that track bonding energetics, structural rearrangements, and area changes during controlled temperature ramps on both pristine and functionalized N-carbophenes.

If this is right

  • Upper temperature limits above 1000 K can be used to set safe operating ranges for N-carbophene-based gas-storage or electronic devices.
  • Phase-change onset can be shifted by selecting different N-phenylene chain lengths in the pristine structures.
  • Thermal expansion sign can be switched from negative to positive by adding suitable functional groups.
  • Functional groups remain attached after the material has passed its phase-change temperature.
  • Graphenylene can be converted to gamma-graphyne by a purely thermal route.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The antiaromaticity explanation for earlier phase changes may apply to other 2D carbon lattices that contain similar ring sequences, suggesting a broader design rule for tuning thermal stability.
  • Laboratory attempts to heat graphenylene films or powders through the simulated transition range could test whether the gamma-graphyne product forms in practice.
  • The ability to flip the sign of thermal expansion with functional groups opens the possibility of engineering N-carbophene composites that show near-zero net expansion over wide temperature intervals.
  • High-temperature stability combined with a built-in conversion pathway positions these frameworks as possible precursors for making other graphyne-like sheets under controlled heating conditions.

Load-bearing premise

The ReaxFF force field parameters reproduce the bonding energies, phase transitions, and thermal expansion of N-carbophenes across the full temperature window examined.

What would settle it

An experiment that records decomposition or a phase change in any N-carbophene below roughly 900 K, or that fails to produce gamma-graphyne when graphenylene is heated through the predicted window, would falsify the stability and transition claims.

Figures

Figures reproduced from arXiv: 2602.18712 by Adri C. T. van Duin, Chad E. Junkermeier, Heather Osterstock, Kat Lavarez, M. Verano, Pal Casinto, Ricardo Paupitz, R. Martin Adra, Valeria Aparicio Diaz.

Figure 1

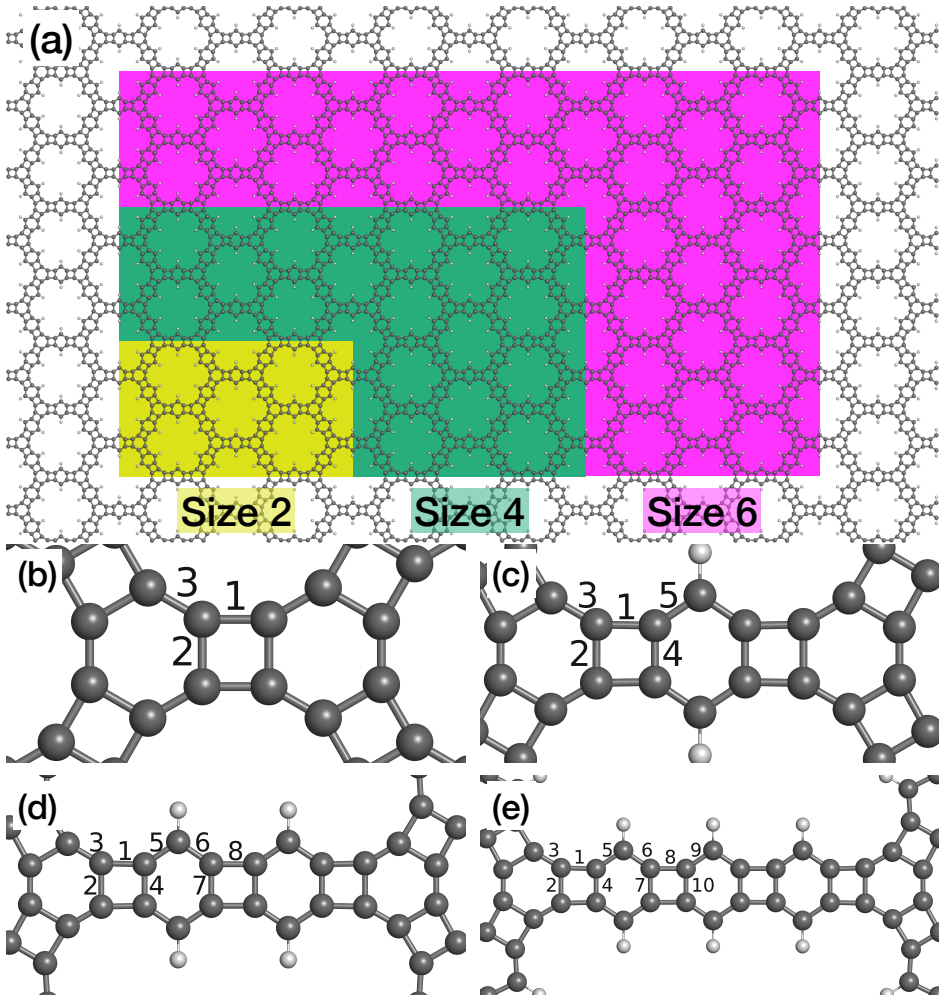

Figure 1. Figure 1: (a) A 3-Carbophene model that showcases di [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

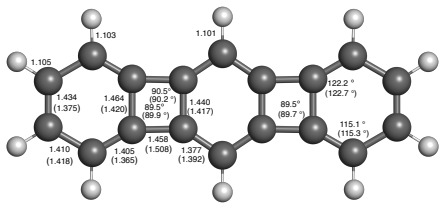

Figure 2. Figure 2: Comparison of the bond lengths in Angstroms and valence bond angles in degrees of 3-phenylene as computed by ReaxFF and experi [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

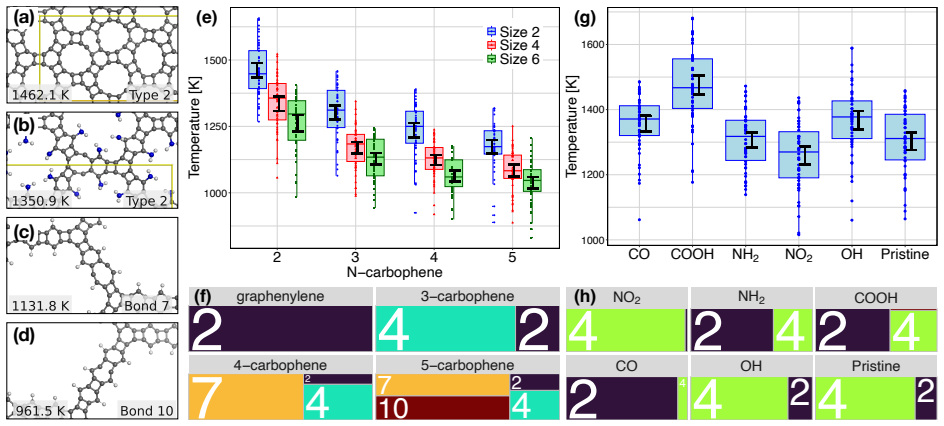

Figure 3. Figure 3: (a) - (d) Examples of the first bond breaking in each type of material in this study [37]. Each frame presents the type of bond that broke [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

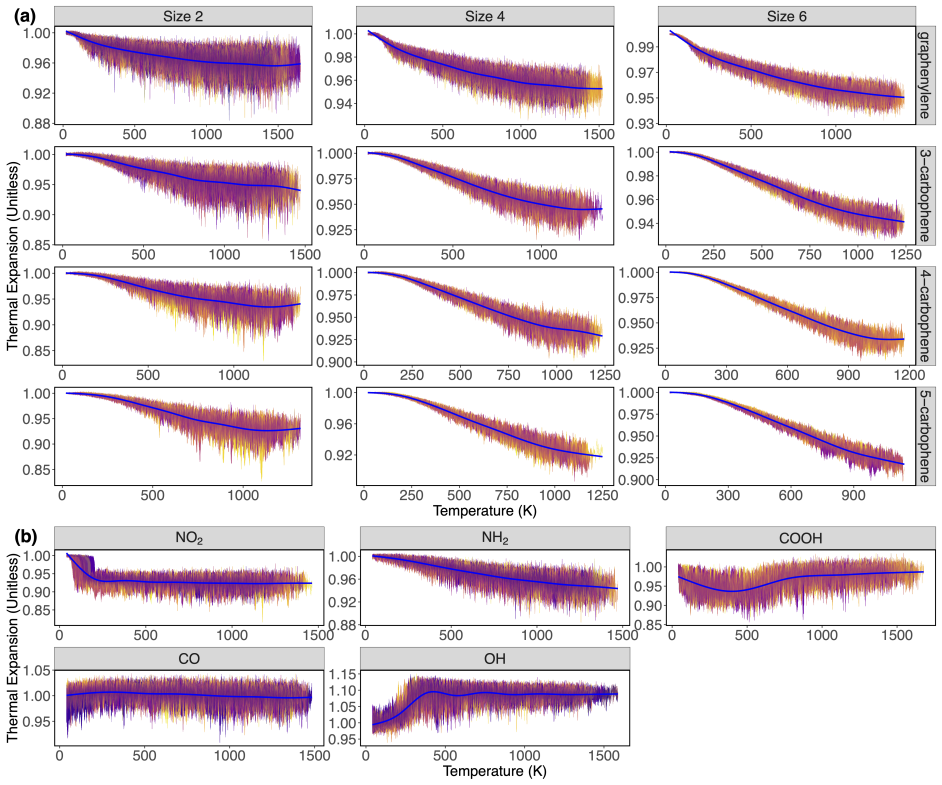

Figure 4. Figure 4: Graphs showing the area thermal expansion versus temperature for each simulation are discussed. The jagged multicolor graph within [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5

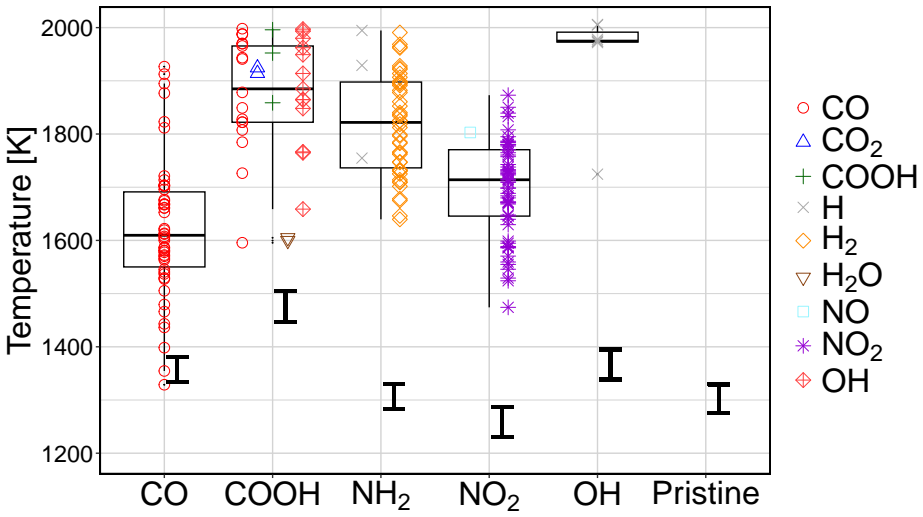

Figure 5. Figure 5: Box-and-whiskers plots of mean desorption temperature of the first atom or molecule to desorb from functionalized 3-carbophenes. Each [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6

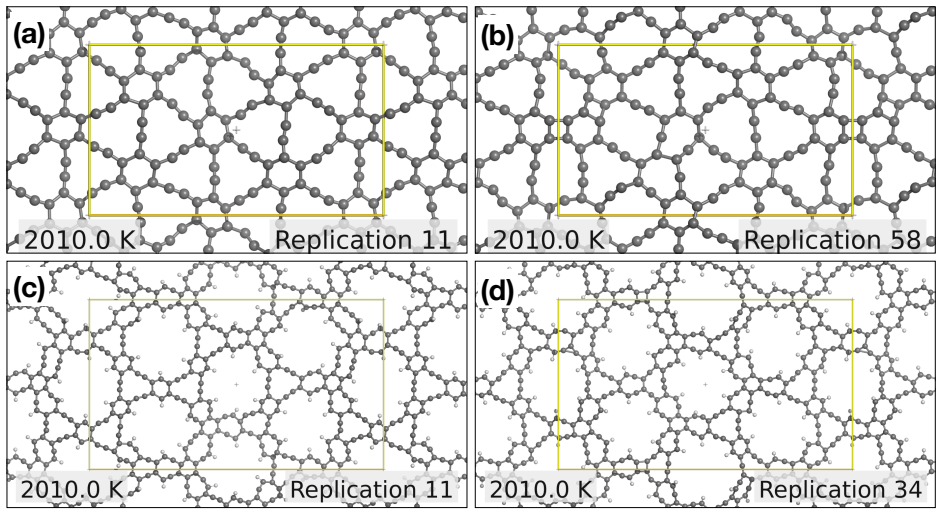

Figure 6. Figure 6: γ-graphyne (a) and γ-graphyne with defects (b) produced by heating graphenylene. Images (c) and (d) are the results of 3-carbophene temperature-ramp MD simulations. Gold lines outline supercell boundaries. however, they remain above 1000 K in all cases. While pristine N-carbophenes exhibit NATE, we can tune the nature of the thermal expansion by selectively functionalizing the N-carbophenes to achieve eith… view at source ↗
read the original abstract

N-carbophenes are a class of two-dimensional covalent organic frameworks with potential for solid-state gas storage and as 2D topological materials. Previous studies have demonstrated that variations in their bonding, topology, and functionalization enable the tuning of their chemical, electrical, and mechanical properties. Yet, the thermal stability and high-temperature behavior of pristine and functionalized N-carbophenes remain unexplored. Using ReaxFF-based reactive molecular dynamics (RMD) simulations with extensive statistical validation, we performed temperature-ramp MD simulations of pristine and functionalized N-carbophenes. We demonstrate that N-carbophenes remain stable up to temperatures above 1000 K. The phase-change onset temperatures decrease as the N-phenylene chain length increases in pristine N-carbophenes, attributed to increasing antiaromaticity in the central phenylene segments, thereby contributing to the foundational understanding of aromatic versus antiaromatic bonding in 2D carbon networks, a topic of considerable interest in theoretical chemistry. Pristine N-carbophenes exhibit negative area thermal expansion (NATE), whereas functional groups modulate this, leading to either negative or positive expansion. Functional groups remain stably bonded well above the transition temperature. We also show that a temperature-induced phase transition from graphenylene (2-carbophene) to {\gamma}-graphyne is possible. Our results provide upper bounds on N-carbophene stability, clarify the relationships between structure and thermal properties, and identify a new transformation pathway. These results will have applications in tunable band gaps, porous architectures, or chemically accessible sites.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The manuscript reports ReaxFF-based reactive molecular dynamics simulations of pristine and functionalized N-carbophenes, claiming thermal stability above 1000 K, decreasing phase-change onset temperatures with increasing N-phenylene chain length due to antiaromaticity, negative area thermal expansion modulated by functional groups, stable bonding of functional groups above transition temperatures, and a temperature-induced transition from graphenylene (2-carbophene) to γ-graphyne.

Significance. If the ReaxFF force field is shown to be transferable to these N-doped 2D frameworks, the work supplies useful upper bounds on thermal stability and structure-property relations for 2D COFs, including a potential high-temperature synthesis route to γ-graphyne. The reactive MD approach for exploring high-T transformations is a methodological strength, but the lack of any reported numerical values, error bars, or cross-validation against DFT or experiment for onset temperatures and expansion coefficients limits the immediate significance.

major comments (3)
  1. [Abstract] Abstract: the assertion of 'extensive statistical validation' is unsupported by any numerical data, error bars, system sizes, or validation metrics against experiment or higher-level theory, which is load-bearing for the central stability and trend claims.
  2. [Results] Results (phase-change section): the attribution of decreasing onset temperatures to increasing antiaromaticity in central phenylene segments is presented without quantitative support such as NICS values, bond-length alternation metrics, or comparative energy decompositions from the trajectories.
  3. [Methods] Methods: no information is given on the specific ReaxFF parameterization for N-carbophenes, training data relevance to antiaromatic segments or high-T reconstructions, or any benchmark comparisons of predicted onset temperatures and thermal expansion coefficients against DFT or experiment.
minor comments (1)
  1. [Abstract] Abstract: the acronym NATE is used without definition on first appearance.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback on our manuscript. We have carefully reviewed each major comment and provide point-by-point responses below, indicating where revisions will be made to strengthen the presentation of our ReaxFF results.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the assertion of 'extensive statistical validation' is unsupported by any numerical data, error bars, system sizes, or validation metrics against experiment or higher-level theory, which is load-bearing for the central stability and trend claims.

    Authors: We agree that the abstract claim requires explicit supporting details. In the revised manuscript we will add concrete information on system sizes (supercells containing 800–2000 atoms), the number of independent temperature-ramp runs (minimum of five per structure for statistical averaging), standard-deviation error bars on onset temperatures and area-expansion coefficients, and internal consistency metrics such as total-energy drift and root-mean-square atomic displacements extracted directly from the trajectories. These additions will be cross-referenced in the Results and Methods sections. revision: yes

  2. Referee: [Results] Results (phase-change section): the attribution of decreasing onset temperatures to increasing antiaromaticity in central phenylene segments is presented without quantitative support such as NICS values, bond-length alternation metrics, or comparative energy decompositions from the trajectories.

    Authors: We acknowledge that the current link to antiaromaticity remains qualitative. The revised Results section will include quantitative bond-length alternation (BLA) values averaged over the central phenylene rings from equilibrated trajectory segments at multiple temperatures. In addition, representative fragments will be extracted and subjected to DFT single-point calculations to obtain NICS(0) and NICS(1) values, together with a ReaxFF energy decomposition isolating the contribution of the central segments. These data will be presented in a new supplementary figure and table. revision: yes

  3. Referee: [Methods] Methods: no information is given on the specific ReaxFF parameterization for N-carbophenes, training data relevance to antiaromatic segments or high-T reconstructions, or any benchmark comparisons of predicted onset temperatures and thermal expansion coefficients against DFT or experiment.

    Authors: We will expand the Methods section to specify the exact ReaxFF parameter set (C/N/H parameters from the 2019 parameterization of Kowalik et al.), its training-set coverage of aromatic/antiaromatic rings and bond-dissociation events, and the simulation protocols (NVT ensemble, 0.25 fs timestep, Nosé-Hoover thermostat). We will also add a short paragraph clarifying that full-scale DFT benchmarks for high-temperature onset temperatures are outside the scope of the present reactive-MD study owing to system size; however, we will include limited DFT geometry optimizations on small model clusters to confirm local bonding motifs and will reference prior ReaxFF validation studies on related 2D carbon frameworks. revision: partial

Circularity Check

0 steps flagged

No significant circularity; results are direct outputs of ReaxFF MD trajectories

full rationale

The paper reports stability limits, phase-change onset temperatures, NATE behavior, and a graphenylene-to-γ-graphyne transition as direct results of temperature-ramp reactive molecular dynamics simulations. No equations, fitted parameters, or self-citations within the study reduce these observables to quantities defined or fitted by the same work. The ReaxFF parameterization is cited from prior literature (including co-author van Duin), but this constitutes standard method application rather than a load-bearing self-citation chain that forces the reported trends. The attribution of onset-temperature dependence to antiaromaticity is an interpretive claim, not a mathematical equivalence. The derivation chain remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

All quantitative claims rest on the transferability of a pre-existing ReaxFF parameterization to nitrogen-containing 2D lattices at high temperature; no new parameters are introduced in the reported work.

axioms (1)
  • domain assumption ReaxFF reactive force field accurately captures bond breaking, formation, and thermomechanical response in N-carbophenes up to and beyond 1000 K.
    Invoked for every temperature-ramp trajectory and phase-change observation.
