arxiv: 2607.00580 · v1 · pith:V6JD55HJnew · submitted 2026-07-01 · 💻 cs.CV

Active Spatial Guidance: Eliminating Injected Positional Mechanisms in Vision Transformers

Cong Liu , Xiaofang Li , Simon X. Yang This is my paper

Pith reviewed 2026-07-02 14:50 UTC · model grok-4.3

classification 💻 cs.CV
keywords vision transformerspositional embeddingsspatial guidanceauxiliary lossimage classificationsemantic segmentationdepth estimation
0
0 comments X

The pith

Vision transformers can learn spatial organization from an auxiliary coordinate loss without any positional embeddings.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper asks whether vision transformers need injected positional mechanisms to capture spatial structure in images, or whether such organization can arise from data supervision alone. It introduces Active Spatial Guidance, a training-only auxiliary loss that regresses 2D coordinates from final-layer patch tokens while disabling all positional injection. Under matched from-scratch training on DINOv3 backbones, the resulting positional-injection-free models outperform strong baselines that use learned absolute or rotary embeddings on ImageNet-100 classification, ADE20K segmentation, and Hypersim depth estimation. The guidance head is removed at inference, leaving a standard ViT encoder plus task head. The results indicate that spatial inductive bias need not be architecturally supplied but can instead be shaped by training-time supervision.

Core claim

Active Spatial Guidance disables positional injection entirely and applies an auxiliary 2D coordinate-regression loss only to the final-layer patch tokens during training. The guidance head is discarded at inference, so the deployed model is a pure positional-injection-free ViT encoder plus task module. On ImageNet-100, ADE20K, and Hypersim, this yields higher accuracy than matched models that use learned absolute positional embeddings or rotary positional embeddings, with further gains in resolution-transfer robustness when multi-resolution training is added.

What carries the argument

Active Spatial Guidance: a training-only auxiliary 2D coordinate-regression loss on final-layer patch tokens that induces spatial organization without any positional injection mechanism.

If this is right

  • Guidance improves ImageNet-100 top-1 accuracy over learned absolute and rotary positional embeddings under identical training.
  • Guidance raises mIoU on ADE20K semantic segmentation and reduces depth error on Hypersim relative to the same injected baselines.
  • Models trained with Guidance exhibit better accuracy when test resolution differs from training resolution.
  • Multi-resolution training further improves Guidance models across a range of input sizes.
  • Spatial inductive bias in ViTs can be supplied by training supervision instead of architectural injection.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the coordinate loss truly organizes tokens, analogous auxiliary supervision might allow removal of positional encodings from other transformer domains such as language modeling.
  • The approach could simplify architecture search by reducing the need to design or tune positional mechanisms.
  • The method suggests that self-attention's permutation invariance can be countered by data-driven supervision rather than by explicit position signals.

Load-bearing premise

The performance gains are caused by genuine spatial organization learned via the auxiliary loss rather than by uncontrolled differences in optimization or regularization.

What would settle it

A controlled re-run in which models trained with Guidance show equal or lower accuracy than matched models that retain absolute or rotary embeddings on the same three tasks would falsify the central claim.

Figures

Figures reproduced from arXiv: 2607.00580 by Cong Liu, Simon X. Yang, Xiaofang Li.

Figure 1

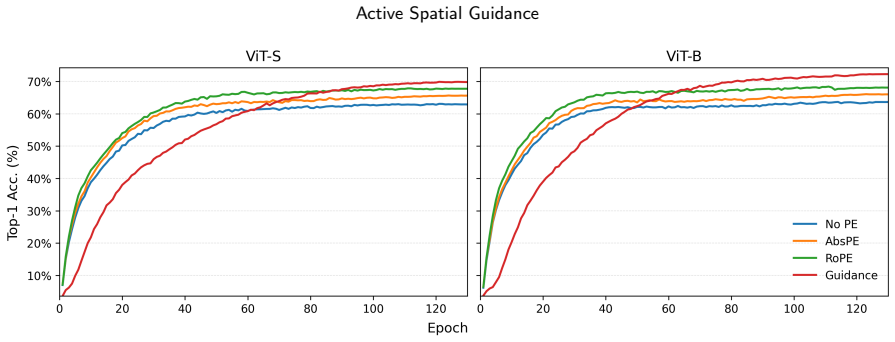

Figure 1. Figure 1: Training dynamics on ImageNet-100 with DINOv3 ViT-S and ViT-B trained from scratch for 130 epochs at 224 × 224. Curves show validation Top-1 accuracy for a PE-free baseline (No-PE), learned absolute positional embeddings (AbsPE), rotary embeddings (RoPE), and Active Spatial Guidance (Guidance). All settings share the same optimization and augmentation protocol; only the positional strategy differs. Related… view at source ↗
Figure 2

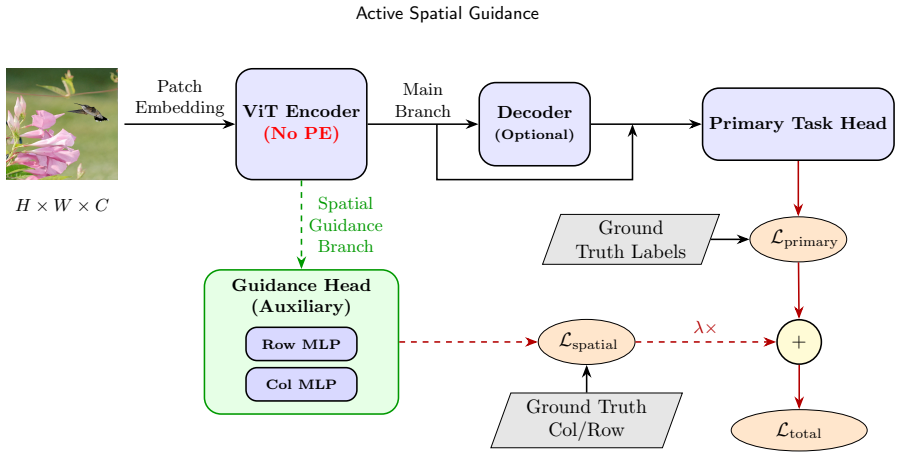

Figure 2. Figure 2: Overview of Active Spatial Guidance. The ViT encoder is trained with positional injection omitted (No-PE). During training, an auxiliary guidance head attached to the final-layer patch tokens regresses normalized 2D patch-grid coordinates and provides additional spatial supervision, which is combined with the primary task loss via a scalar weight 𝜆. The auxiliary branch is discarded after training; inferen… view at source ↗
read the original abstract

Vision Transformers (ViTs) commonly rely on injected positional mechanisms to address self-attention's permutation invariance. Motivated by the spatial regularities of natural images, we ask whether spatial organization can be induced from data rather than explicitly injected. Under controlled, matched from-scratch training, we propose Active Spatial Guidance (Guidance), a training-only objective that disables positional injection and applies an auxiliary 2D coordinate-regression loss to the final-layer patch tokens. The guidance head is used only during training and removed for inference; the deployed model consists of a positional-injection-free ViT encoder and the task-specific prediction module. Using DINOv3 ViT backbones, Guidance consistently improves performance on ImageNet-100 classification, ADE20K semantic segmentation, and Hypersim monocular depth estimation, outperforming strong injected baselines such as learned absolute positional embeddings and rotary positional embeddings under identical training protocols. On ImageNet-100, broader comparisons against representative injected positional designs further support Guidance's effectiveness. Guidance also improves robustness under resolution transfer, and multi-resolution training further strengthens accuracy across input sizes. Overall, our results suggest that spatial inductive bias in ViTs need not be architecturally injected, but can be shaped through training-time supervision. The code used for training and evaluation is publicly available in https://github.com/cloudlc/asg.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes Active Spatial Guidance, a training-only auxiliary 2D coordinate-regression loss on final-layer patch tokens of a positional-injection-free ViT. Under matched from-scratch training with DINOv3 backbones, Guidance outperforms injected baselines (learned absolute and rotary positional embeddings) on ImageNet-100 classification, ADE20K segmentation, and Hypersim depth estimation; the head is removed at inference. Additional results cover resolution transfer and multi-resolution training, with public code released.

Significance. If the central empirical claim holds after controls, the work shows that spatial inductive bias need not be architecturally injected and can instead be shaped by training-time supervision, which would simplify ViT design and potentially improve robustness. Public code is a clear strength for reproducibility.

major comments (2)
  1. [Abstract, §3 (method), §4 (experiments)] The interpretation that gains arise specifically from learned spatial organization (rather than from the mere presence of any auxiliary loss) requires an ablation with a non-spatial auxiliary target (e.g., regression to random coordinates or a mismatched task). No such control is described in the abstract or experimental sections; without it the causal link between the 2D spatial objective and the observed deltas remains unisolated.
  2. [§4.1, Table 1] §4.1 and Table 1: the reported gains are stated to be under identical training protocols, yet no values are given for the auxiliary-loss weight, number of random seeds, or statistical testing; these omissions make it impossible to assess whether the performance deltas are robust or sensitive to hyper-parameter choices.
minor comments (2)
  1. [§3] Notation for the guidance head and its removal at inference could be formalized with a short equation or diagram in §3 to avoid ambiguity.
  2. [Figures 2–4] Figure captions should explicitly list the exact baseline configurations (e.g., “RoPE with same training schedule”) for quick cross-reference.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive comments. We address each major point below and will revise the manuscript to incorporate the suggested improvements for clarity and rigor.

read point-by-point responses

  1. Referee: [Abstract, §3 (method), §4 (experiments)] The interpretation that gains arise specifically from learned spatial organization (rather than from the mere presence of any auxiliary loss) requires an ablation with a non-spatial auxiliary target (e.g., regression to random coordinates or a mismatched task). No such control is described in the abstract or experimental sections; without it the causal link between the 2D spatial objective and the observed deltas remains unisolated.

    Authors: We agree that an ablation with a non-spatial auxiliary target (such as regression to random coordinates) would help isolate whether the performance gains are specifically due to the spatial 2D coordinate objective rather than the presence of any auxiliary loss. While the design of Active Spatial Guidance is motivated by spatial supervision, this control experiment was not included in the original submission. We will add the requested ablation to the revised experimental section to strengthen the causal claim. revision: yes

  2. Referee: [§4.1, Table 1] §4.1 and Table 1: the reported gains are stated to be under identical training protocols, yet no values are given for the auxiliary-loss weight, number of random seeds, or statistical testing; these omissions make it impossible to assess whether the performance deltas are robust or sensitive to hyper-parameter choices.

    Authors: We acknowledge that the auxiliary-loss weight, number of random seeds, and any statistical testing details were not explicitly reported in §4.1 or Table 1, which limits assessment of robustness. These values are fixed across all compared methods and documented in the released code, but we agree they should be stated in the paper. We will add the specific hyper-parameter values, seed counts, and relevant statistics to the revised §4.1 and Table 1. revision: yes

Circularity Check

0 steps flagged

No circularity; empirical comparisons rest on external benchmarks and matched protocols

full rationale

The paper proposes an auxiliary 2D coordinate-regression loss applied only at training time to induce spatial organization in a positional-injection-free ViT, then reports performance gains on ImageNet-100, ADE20K, and Hypersim against learned absolute and rotary embeddings under identical from-scratch training. No equations, parameter fits, or self-citations are invoked to derive the central claim; results are obtained by direct experimental comparison to independent baselines. The method is self-contained against external benchmarks with no reduction of predictions to fitted inputs or author-specific priors.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that natural images contain learnable spatial regularities capturable by coordinate regression, plus an implicit free parameter for the auxiliary loss weight.

free parameters (1)
  • auxiliary loss weight
    Balance between main task loss and guidance loss must be chosen; not specified in abstract.
axioms (1)
  • domain assumption Natural images exhibit spatial regularities that can be captured by regressing 2D coordinates from final-layer tokens.
    Stated motivation in the abstract.

pith-pipeline@v0.9.1-grok · 5770 in / 1191 out tokens · 26553 ms · 2026-07-02T14:50:59.364737+00:00 · methodology
