BoxFusion: Reconstruction-Free Open-Vocabulary 3D Object Detection via Real-Time Multi-View Box Fusion

T0 review · 5 major / 5 minor · reviewed 2026-08-06 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read BoxFusion claims open-vocabulary 3D object detection can run in real time from an RGB-D stream without dense reconstruction, and reports state-of-the-art online results on CA-1M and ScanNetV2.

desk verdict A clever reconstruction-free fusion system with a genuine new task, but the headline CA-1M numbers may be inflated by training-set overlap and need a clean-split re-run. read the letter →

arxiv 2506.15610 v3 pith:VEXXCCUD submitted 2025-06-18 cs.CV

Yuqing Lan , Chenyang Zhu , Zhirui Gao , Jiazhao Zhang , Yihan Cao , Renjiao Yi , Yijie Wang , Kai Xu This is my paper
classification cs.CV
keywords open-vocabulary3Dobjectdetectionreconstruction-freeperceptionmulti-viewboxfusionparticlefilteringoptimizationRGB-DstreamingCubifyAnythingCLIPonline
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper claims that dense 3D reconstruction is unnecessary for accurate open-vocabulary 3D object detection from an RGB-D video stream. Instead, single-view 3D box proposals from a pretrained foundation model are associated across views and fused by an IoU-guided random-optimization step into globally consistent boxes, with semantics supplied by CLIP. The authors report state-of-the-art results among online methods on CA-1M and ScanNetV2, including an AP15 of 31.22 on CA-1M versus 9.17 for the best online baseline, while running above 20 FPS and using 7.0GB of GPU memory. If correct, this means embodied systems can perceive objects in large indoor spaces without paying the cost of building and storing a dense map.

What carries the argument

The load-bearing machinery is the multi-view box fusion module. Given a global box $G_t^i$ with position $p=(x,y,z)$ and shape $s=(l,w,h)$, it maximizes the summed 2D IoU between the convex hull of the global box's projected corners and the hulls of the per-view candidate boxes (Eq. 5). Because this objective is highly nonlinear, the optimization is carried out by particle filtering with a pre-sampled particle swarm template (PST): particles in 6D space are scored by the objective, the best ones are moved and rescaled, and the procedure iterates until convergence. The association module feeds this optimizer with candidate lists: 3D NMS associates spatially overlapping oriented boxes by sampled convex-hull IoU, and a 2D projective-IoU matcher associates small objects whose proposals are adjacent but not overlapping.

What would settle it

Held-out-view test: for each detected object, fuse proposals from a subset of views, then project the fused box into a view that was excluded from fusion and measure its 2D IoU with the visible object; if the fused box is not more accurate than that view's own single-view proposal, the reported gains come from self-consistency, not true 3D accuracy.

Watch

Extended reading notes

Core claim

The central claim is that a sparse, box-only scene representation — the position, scale, and open-vocabulary semantics of each object — is sufficient for online 3D perception, and that multi-view consistency can be enforced by optimizing a 6D box (position and shape) so that its projections align with per-view proposals. On the paper's own terms, BoxFusion establishes that reconstruction-free detection outperforms both offline point-cloud methods and online reconstruction-based methods on CA-1M and ScanNetV2, and that the gap is largest on fine-grained and small objects. The authors attribute the result to two mechanisms: association via 3D NMS plus 2D projective correspondence, which recovers small objects that spatial-overlap strategies miss, and particle-filter random optimization, which fuses boxes without the cost of dense reconstruction.

Load-bearing premise

The fusion objective only maximizes agreement with the system's own per-view proposals, which the paper itself concedes are 3D-biased with scale uncertainty, so the central assumption is that this bias is small or symmetric enough that multi-view consensus is closer to the true object than any single view; if the bias is systematic, the fused boxes inherit it and the AP gains may reflect self-consistency rather than accuracy.

Editorial extensions

If this is right

  • Online 3D detection can run at over 20 FPS with 7.0GB of GPU memory, because no dense reconstruction or point-cloud storage is needed.
  • The box-only representation is enough to support downstream embodied tasks such as scene-graph generation and collision detection, at least in static indoor scenes.
  • Fine-grained and small objects (e.g., wall switches, remotes) that point-cloud pipelines typically miss become detectable because association is driven by 2D correspondence as well as 3D overlap.
  • Deployment scales to large environments exceeding 1000 square meters, but only while the scene remains static; moving people or objects produce redundant and inaccurate boxes, and tightly stacked objects remain ambiguous.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Editorial inference: the reported gains should be tested with held-out views — fusing proposals from one subset of views and checking accuracy against a view not used in fusion — since the optimization maximizes agreement with the system's own proposals, which the paper admits are biased in 3D.
  • Editorial inference: Eq. 6 as printed has a sign error relative to Eq. 5: it exponentiates the negative summed IoU, which would reward smaller overlap, so the published likelihood cannot be what the optimization actually maximizes unless the implementation differs from the text.
  • Editorial inference: extending the framework with dynamic-object tracking or instance-aware motion filtering could address the static-scene limitation, and the object-centric memory produced by box fusion could feed navigation or manipulation policies directly.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

5 major / 5 minor

Summary. The paper proposes BoxFusion, a reconstruction-free online open-vocabulary 3D object detection system. Given a streaming posed RGB-D input, the method uses Cubify Anything to produce single-view 3D box proposals, CLIP to attach open-vocabulary semantics, an association module based on 3D NMS and 2D projective IoU matching, and a particle-filter-based random optimization that fuses multi-view proposals into a single global 3D box by maximizing multi-view 2D IoU. The authors report state-of-the-art results among online methods on CA-1M (class-agnostic AP15 of 31.22 vs. 9.17 for EmbodiedSAM) and ScanNetV2 (AP15 of 37.46 vs. 31.39 for OnlineAnySeg), with an average runtime above 20 FPS and 7.0 GB GPU memory. The central claim is that dense 3D reconstruction is unnecessary for accurate open-vocabulary 3D detection from posed RGB-D streams.

Significance. If the results hold, the paper makes a valuable practical point: a sparse, box-only scene representation can support open-vocabulary 3D detection at real-time rates and low memory footprint, which is relevant for embodied navigation and manipulation. The evaluation is anchored to external ground-truth boxes, and the ablation studies and runtime measurements are useful. The paper also promises code release. The significance is currently tempered by two correctness issues in the published equations and by a potential evaluation-leakage concern on CA-1M, where the frozen proposal generator appears to be trained on the same benchmark that is used for validation. Because the ScanNetV2 result is less exposed to that concern, the central paradigm is still defensible, but the CA-1M headline claim needs clarification or re-evaluation.

major comments (5)
  1. [Sec. 4.1, Sec. 3.2, Table 1] The CA-1M column in Table 1 is the strongest support for the headline claim, but the manuscript never states whether the 107 CA-1M validation scenes are disjoint from the training data of Cubify Anything, which is described in Sec. 3.2 as trained on the large-scale dataset introduced in the same reference [19] that defines CA-1M. If the validation scenes overlap the training distribution, the 31.22 AP15 figure largely measures seen-object bias rather than the reconstruction-free fusion paradigm. Please state the split explicitly, and if overlap exists, re-evaluate on a disjoint held-out set or report CA-1M results with a proposal generator not trained on that benchmark.
  2. [Sec. 3.4, Eq. (6)] The likelihood is written as exp(-(1/xi) * sum_j H(alpha_ij, beta_ij)). Since Eq. (5) maximizes sum_j H, maximizing this likelihood actually minimizes the IoU sum, which is the opposite of the stated objective. The sign preceding the summation should be positive, or the expression should be framed as an energy to be minimized. As published, the equation contradicts the optimization described in the text and in Figure 4.
  3. [Sec. 3.3.1, Eq. (2)] The expression labeled IoU in Eq. (2) is not an IoU. The numerator sums points in the union Gi union Gj, while the denominator sums indicators for Gi and Gj separately, which counts points in the intersection twice. For two identical boxes the formula evaluates to 0.5 rather than 1.0. The correct sampled IoU should use an intersection count in the numerator and a union count in the denominator.
  4. [Sec. 3.3, Sec. 3.4, implementation details] The method depends on at least eight parameters (tau_3d, tau_2d, tau_r, tau_t, xi, N_pst, O_n, tau_box), but none of their values are reported, and the paper defers details to supplementary material that is not part of this submission. This prevents reproduction of the reported AP, FPS, and memory numbers. Please report all parameter values and a brief sensitivity analysis of Table 1 to these parameters.
  5. [Sec. 3.4, Table 2] The fusion objective optimizes agreement with the system's own per-view proposals, and the paper itself notes these proposals are 'biased from the ground truth in 3D with scale uncertainty.' Because the reported AP is computed against external ground-truth boxes, this is not circular, but it does mean the fusion can only remove inconsistency, not correct a systematic per-view bias. To support the claim that multi-view fusion improves accuracy, please add a per-view baseline (e.g., AP of unfused single-view proposals) and an analysis of fused versus single-view box errors.
minor comments (5)
  1. [Sec. 3.4] There is a typo: 'parametes' should be 'parameters'. Also, Eq. (4) writes T^{-1}_t, but since the sum in Eq. (5) runs over views j, the projection should presumably use T^{-1}_j for the j-th view.
  2. [Sec. 4.2, Table 1 caption] The note that OnlineAnySeg 'segments images in an offline manner' means the FPS comparison with that baseline is not an apples-to-apples online comparison; please make this qualification more prominent and define precisely which stages are included in each reported FPS.
  3. [Sec. 4.1] The text says text embeddings are taken for 'over 300' categories from reference [24], but [24] is the COCO paper, which defines 80 categories; please clarify the actual category vocabulary and where the text prompts come from.
  4. [Sec. 4.4, Table 2] The ablation Table 2 reports results on 'six scenes of CA-1M and eight scenes of ScanNetV2' with 'Ours' at 35.49 AP15, which does not match any entry in Table 1; please clarify how the subset scenes are combined and why the full-model AP differs from the main table.
  5. [Figure 7] The phrase 'the while arrows' should be 'the white arrows'.

Circularity Check

0 steps flagged · score 1.0 of 10

No circularity: the fusion objective maximizes agreement with the system's own per-view proposals, but every headline AP number is evaluated against external ground-truth boxes, so the central claim is independently grounded. The main caveats are CA-1M training-provenance overlap and an Eq. 6 sign error, neither of which is a definitional circularity.

full rationale

The paper's derivation chain is not circular. Proposals come from the externally pretrained Cubify Anything and CLIP, and the association and fusion modules are hand-designed geometric operations with no parameters fitted to the evaluation labels. The fusion objective in Eq. 5 maximizes the 2D IoU between the fused global box and the system's own per-view proposals, so it enforces multi-view self-consistency by construction; however, all reported AP numbers in Table 1 are computed against ground-truth boxes on CA-1M and ScanNetV2, so the headline state-of-the-art claim is independently grounded. Self-citations to RoseFusion, RemixFusion, MIPS-Fusion, and OnlineAnySeg are technique-inspiration or baseline references, not load-bearing premises. The ablation tables also compare against external GT, so the claimed contributions do not reduce to fitting their own inputs. Two non-circular caveats should be weighed separately. First, Cubify Anything is described as trained on a large-scale dataset introduced in the same reference [19] that defines CA-1M, and the paper does not disclose whether the 107 CA-1M validation scenes are disjoint from Cubify Anything's training data; if overlapping, the large CA-1M margin could reflect training-distribution familiarity rather than the reconstruction-free fusion paradigm. This is a benchmark-provenance risk, not a circularity. Second, Eq. 6 writes the likelihood as exp(-1/xi * sum H), which is inconsistent with Eq. 5's maximization of sum H; this is a correctness bug in the optimization write-up, but the surrounding text and Eq. 5 consistently describe maximizing agreement, so it does not change the circularity verdict. Overall, no step in the paper's derivation is equivalent to its own input by definition, and the score is accordingly low.

Assumptions & free parameters 6 free parameters · 4 assumptions · 1 invented entities

The method has six unspecified hand-tuned parameters that control association and fusion, and it builds on the untested reliability of Cubify Anything and given camera poses. No new physical entities are introduced; the only invented construct is the pre-sampled particle swarm template, which has no external evidence beyond the paper's own results.

free parameters (6)
  • 3D NMS threshold tau_3d = not reported
    IoU threshold in Eq. 2 for associating overlapping 3D boxes; manually chosen and not specified.
  • 2D projective IoU threshold tau_2d = not reported
    Threshold in Eq. 3 for associating small objects via projected box overlap; not specified.
  • camera direction and translation thresholds tau_r, tau_t = not reported
    Used in spatial association to decide whether a box is added to a candidate list; not specified.
  • likelihood temperature xi = not reported
    Temperature in Eq. 6 controlling particle weighting; not specified.
  • particle count N_pst and sample points O_n = not reported
    Number of pre-sampled particles and number of sample points for convex hull IoU; not specified.
  • box-count threshold tau_box = not reported
    Minimum number of candidate boxes that triggers fusion optimization; not specified.
assumptions (4)
  • domain assumption Cubify Anything produces reliable metric 3D bounding boxes for single RGB-D images
    The full pipeline depends on the quality of these proposals; the paper relies on a third-party VFM without local verification.
  • domain assumption Camera poses are given and accurate
    All fusion and projection use posed RGB-D inputs; pose errors degrade the method, and the paper does not model pose uncertainty.
  • standard math Pinhole camera projection model
    Used in Eq. 3 and Eq. 4 for projecting 3D boxes to 2D hulls.
  • domain assumption Particle filtering with pre-sampled swarm templates converges to a good optimum of Eq. 5
    The optimization is heuristic; no convergence guarantee is provided, and the sign of Eq. 6 is inconsistent with Eq. 5.
invented entities (1)
  • Pre-sampled particle swarm template (PST)
    purpose: Defines the search distribution for the 6D box parameters in the fusion optimization
    An algorithmic construct, not a physical entity; its only evidence is the method's own performance.

how reviews work

0 comments
Cite this review

Pith. "Pith review of BoxFusion: Reconstruction-Free Open-Vocabulary 3D Object Detection via Real-Time Multi-View Box Fusion." pith.science (2026). https://pith.science/paper/VEXXCCUD

@misc{pith2026250615610,
  author       = {Pith},
  title        = {Pith review of: BoxFusion: Reconstruction-Free Open-Vocabulary 3D Object Detection via Real-Time Multi-View Box Fusion},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/VEXXCCUD}},
  note         = {Machine review of arXiv:2506.15610}
}
read the original abstract

Open-vocabulary 3D object detection has gained significant interest due to its critical applications in autonomous driving and embodied AI. Existing detection methods, whether offline or online, typically rely on dense point cloud reconstruction, which imposes substantial computational overhead and memory constraints, hindering real-time deployment in downstream tasks. To address this, we propose a novel reconstruction-free online framework tailored for memory-efficient and real-time 3D detection. Specifically, given streaming posed RGB-D video input, we leverage Cubify Anything as a pre-trained visual foundation model (VFM) for single-view 3D object detection by bounding boxes, coupled with CLIP to capture open-vocabulary semantics of detected objects. To fuse all detected bounding boxes across different views into a unified one, we employ an association module for correspondences of multi-views and an optimization module to fuse the 3D bounding boxes of the same instance predicted in multi-views. The association module utilizes 3D Non-Maximum Suppression (NMS) and a box correspondence matching module, while the optimization module uses an IoU-guided efficient random optimization technique based on particle filtering to enforce multi-view consistency of the 3D bounding boxes while minimizing computational complexity. Extensive experiments on ScanNetV2 and CA-1M datasets demonstrate that our method achieves state-of-the-art performance among online methods. Benefiting from this novel reconstruction-free paradigm for 3D object detection, our method exhibits great generalization abilities in various scenarios, enabling real-time perception even in environments exceeding 1000 square meters.

Figures

Figures reproduced from arXiv: 2506.15610 by the authors.

Figure 1
Figure 1. The state-of-the art methods leverage dense reconstruc [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Method Overview of BoxFusion. (a) Given online RGB-D images with camera poses, we use Cubify Anything to generate [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Visualization of multi-view box fusion using random [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (7 more)
Figure 4
Figure 4. Figure 4: 2D example of particle filtering optimization (PFO) us [PITH_FULL_IMAGE:figures/full_fig_p005_4.png]
Figure 5
Figure 5. Figure 5: Gallery of 3D object detection on CA-1M and ScanNetV2. Our method is reconstruction-free, and the mesh is semi-transparent. [PITH_FULL_IMAGE:figures/full_fig_p007_5.png]
Figure 6
Figure 6. Figure 6: Visualization of online 3D object detections on 42898849 of CA-1M. The first row shows the detected bounding boxes alongside [PITH_FULL_IMAGE:figures/full_fig_p008_6.png]
Figure 7
Figure 7. Figure 7: Detailed qualitative comparison on ScanNetV2 and CA-1M. Our method achieves comprehensive detection of both common [PITH_FULL_IMAGE:figures/full_fig_p009_7.png]
Figure 8

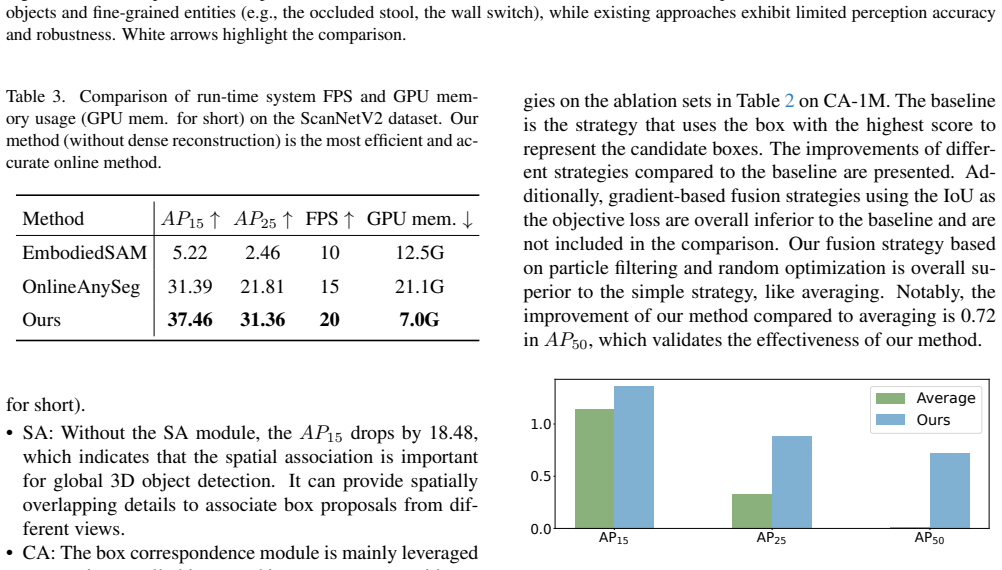

Figure 8. Figure 8: Ablation studies of different fusion strategies. Improve [PITH_FULL_IMAGE:figures/full_fig_p009_8.png]
Figure 9

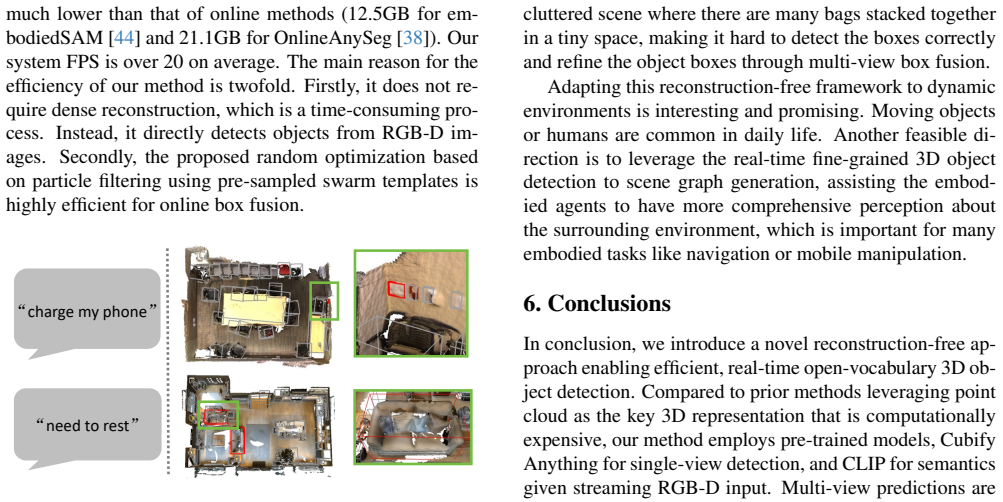

Figure 9. Figure 9: Open-vocabulary object retrieval with user-specific text [PITH_FULL_IMAGE:figures/full_fig_p010_9.png]
Figure 10
Figure 10. Figure 10: Typical failure cases. (a) Two humans are walking, [PITH_FULL_IMAGE:figures/full_fig_p010_10.png]
