arxiv: 1907.04325 · v1 · pith:WF6BZROXnew · submitted 2019-07-09 · 💻 cs.CV

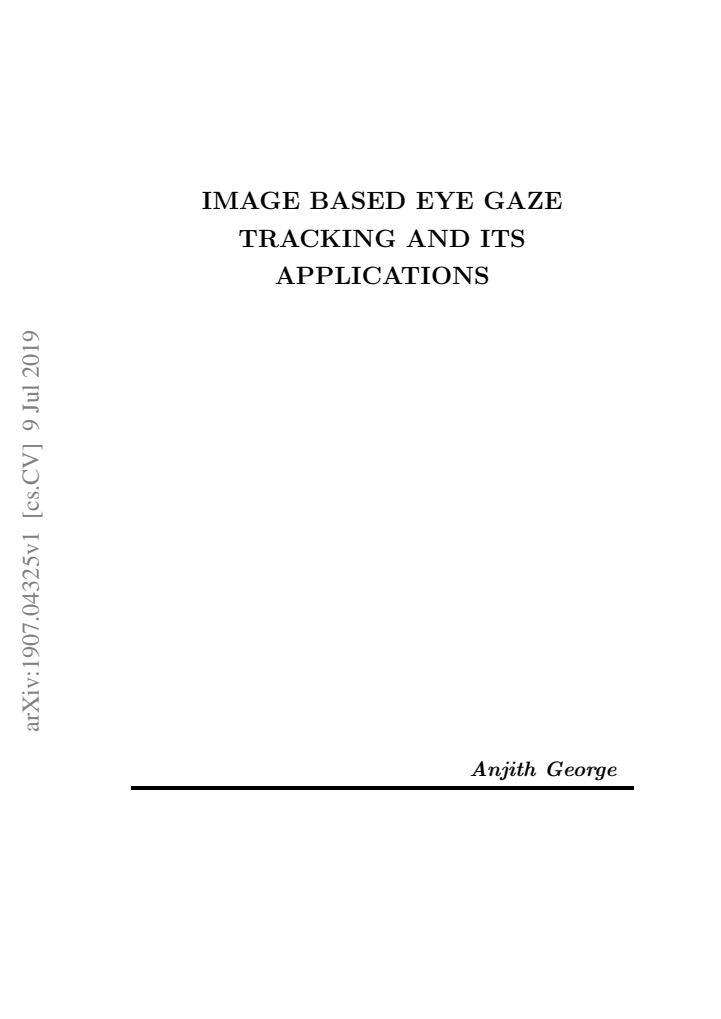

Image based Eye Gaze Tracking and its Applications

Anjith George This is my paper

Pith reviewed 2026-05-25 00:18 UTC · model grok-4.3

classification 💻 cs.CV
keywords eye trackingiris localizationgaze estimationconvolutional neural networksbiometricsactivity recognitionhuman computer interaction
0
0 comments X

The pith

Image-based algorithms track eye gaze without user calibration or special hardware.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents methods to estimate eye gaze from ordinary images to make human-computer interaction more natural and affordable. It introduces a two-stage process to locate the iris center even when images are blurred by motion, contain reflections, or have uneven lighting. A convolutional neural network then classifies the direction of gaze without needing any person-specific training data. These tools are used to create systems for identifying people from their eye movements and for recognizing daily activities by merging gaze information with head motion and scene features.

Core claim

The work establishes a two-stage iris center localization algorithm that operates under motion blur, glint, and varying illumination, along with a person-independent convolutional neural network framework for gaze direction classification that requires no user-specific calibration. These enable biometric identification from eye movement parameters and activity recognition by integrating gaze data, ego-motion, and visual features from head-mounted trackers.

What carries the argument

The two-stage iris center localization algorithm and the person-independent CNN gaze classifier.

Load-bearing premise

The new iris localization and CNN-based classification will maintain high performance in real-world scenarios without requiring any user calibration or specialized equipment.

What would settle it

A test on video sequences containing motion blur, specular reflections, and illumination changes where the iris center localization error and gaze classification accuracy are measured without per-user training data.

Figures

Figures reproduced from arXiv: 1907.04325 by Anjith George.

Figure 1.1
Figure 1.1. Figure 1.1: External anatomy of eye, a) Frontal view, b)Side view. [PITH_FULL_IMAGE:figures/full_fig_p035_1_1.png] view at source ↗
Figure 1.2
Figure 1.2. Figure 1.2: Eye image captured under, a) Visible light, b) NIR lighting. [PITH_FULL_IMAGE:figures/full_fig_p036_1_2.png] view at source ↗
Figure 1.3
Figure 1.3. Figure 1.3: Different types of eye trackers, a) Remote eye tracker, b) Head [PITH_FULL_IMAGE:figures/full_fig_p039_1_3.png] view at source ↗
Figure 2.1
Figure 2.1. Figure 2.1: Stages in ellipse fitting: (a) Cropped eye region, (b) Correlation surface [PITH_FULL_IMAGE:figures/full_fig_p054_2_1.png] view at source ↗

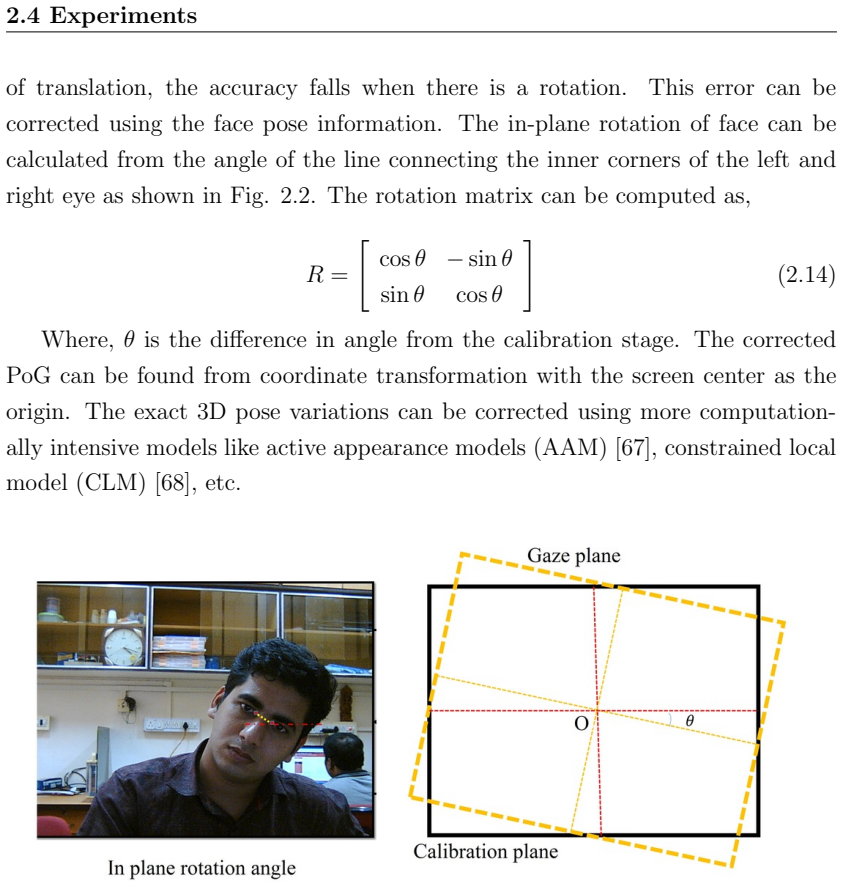

Figure 2.2
Figure 2.2. Figure 2.2: Transformation of estimated gaze point to screen coordinates for com [PITH_FULL_IMAGE:figures/full_fig_p061_2_2.png] view at source ↗
Figure 2.3
Figure 2.3. Figure 2.3: Few samples showing successful detections (first row) and failures [PITH_FULL_IMAGE:figures/full_fig_p063_2_3.png] view at source ↗

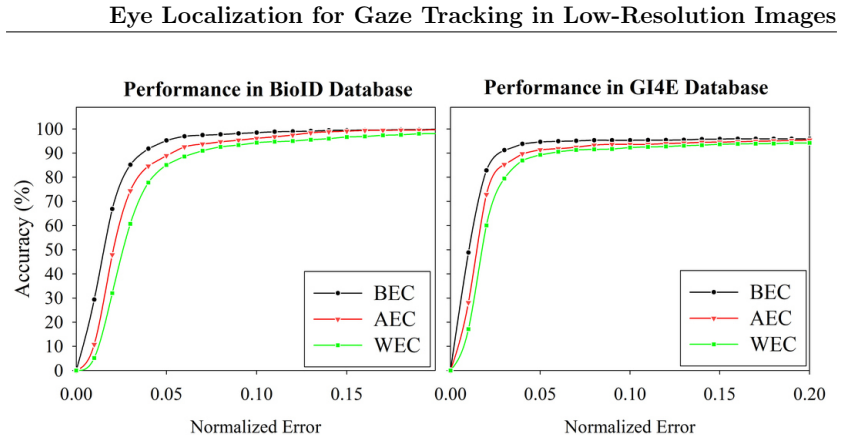

Figure 2.4
Figure 2.4. Figure 2.4: Performance of the proposed algorithm in BioID and Gi4E databases. [PITH_FULL_IMAGE:figures/full_fig_p064_2_4.png] view at source ↗
Figure 2.5
Figure 2.5. Figure 2.5: Some samples showing successful detections (first row) and failures [PITH_FULL_IMAGE:figures/full_fig_p064_2_5.png] view at source ↗

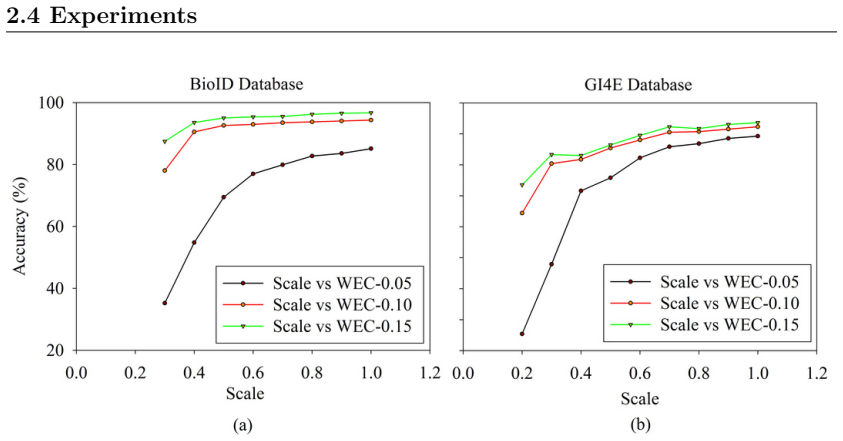

Figure 2.6
Figure 2.6. Figure 2.6: WEC Performance of the proposed algorithm in (a) BioID and (b) [PITH_FULL_IMAGE:figures/full_fig_p065_2_6.png] view at source ↗

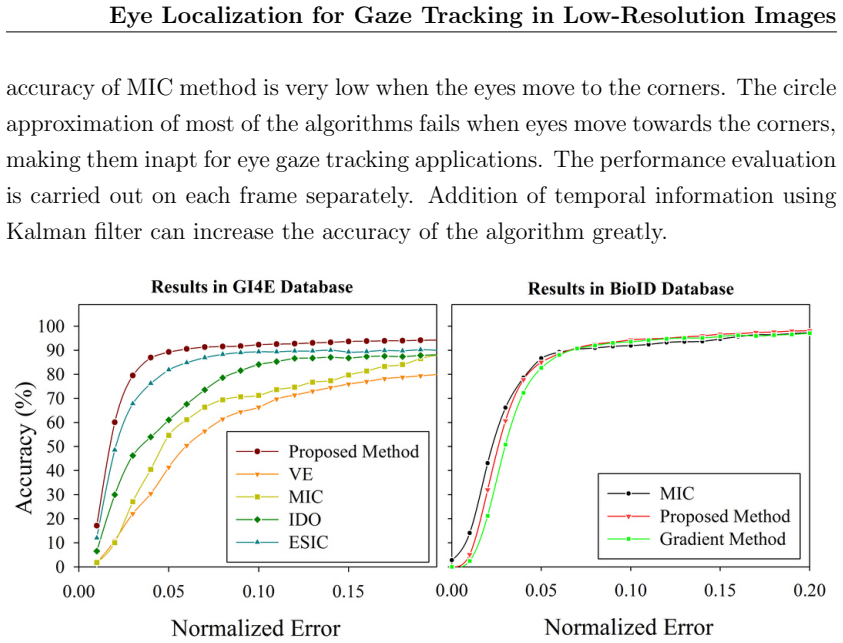

Figure 2.7
Figure 2.7. Figure 2.7: WEC performance comparison of proposed method with state of the [PITH_FULL_IMAGE:figures/full_fig_p066_2_7.png] view at source ↗
Figure 2.8
Figure 2.8. Figure 2.8: WEC performance comparison of the proposed method with gradient [PITH_FULL_IMAGE:figures/full_fig_p067_2_8.png] view at source ↗
Figure 2.9
Figure 2.9. Figure 2.9: Sample images of subjects in the experiment. [PITH_FULL_IMAGE:figures/full_fig_p070_2_9.png] view at source ↗
Figure 2.10
Figure 2.10. Figure 2.10: Sample images of detections in the custom dataset [PITH_FULL_IMAGE:figures/full_fig_p070_2_10.png] view at source ↗
Figure 2.11
Figure 2.11. Figure 2.11: PoG estimates with 16 and 9 point calibration grids (a),(c) poly [PITH_FULL_IMAGE:figures/full_fig_p071_2_11.png] view at source ↗
Figure 3.1
Figure 3.1. Figure 3.1: Sample images from the LPW dataset frared) images. • The proposed approach combines multiple sources of information like inten￾sity and edges for finding the pupil center • A multistage filtering of candidates is proposed which reduces the error in the final estimate using a scale space approach • A simple yet effective pupil tracking scheme is also included for enhanced detection rates and speed. 3.2 Re… view at source ↗

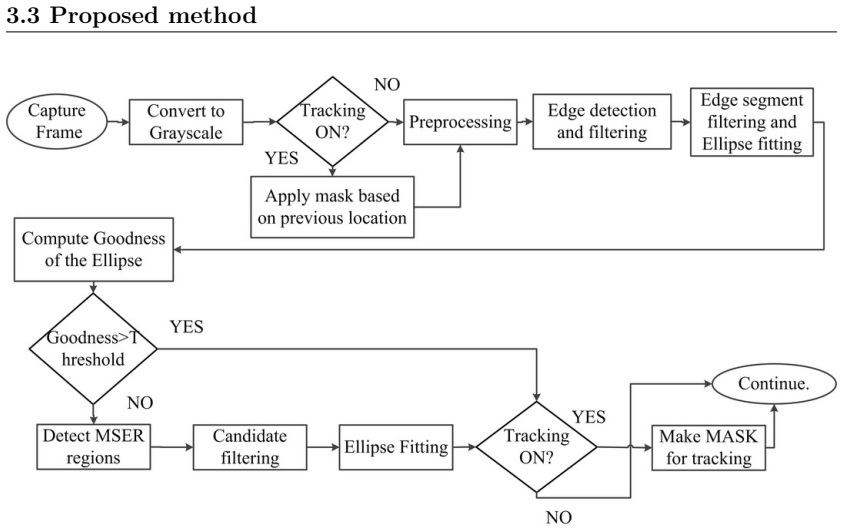

Figure 3.2
Figure 3.2. Figure 3.2: Flowchart of the proposed approach After obtaining the normalized image, Canny edge detection algorithm is em￾ployed for detecting the edges. However, directly applying Canny algorithm over the eye image results in a lot of spurious edges. In our case, the task is to iden￾tify the pupil boundary. Since the region inside pupil is somewhat homogeneous, detection of false edges can be reduced by convolving … view at source ↗

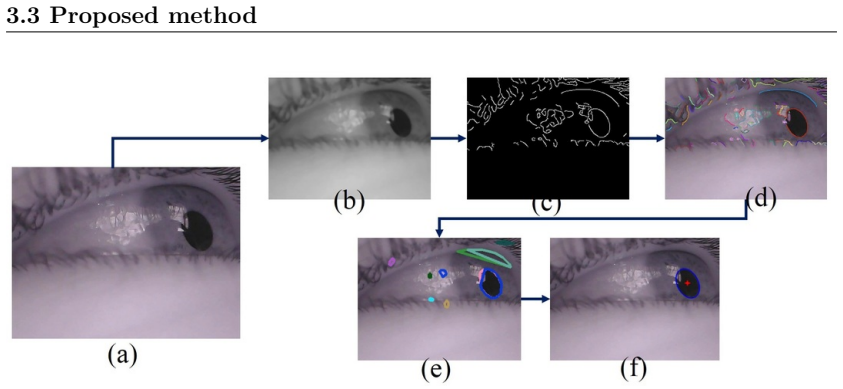

Figure 3.3
Figure 3.3. Figure 3.3: Edge based ellipse fitting, a) The original color image captured, b) [PITH_FULL_IMAGE:figures/full_fig_p083_3_3.png] view at source ↗

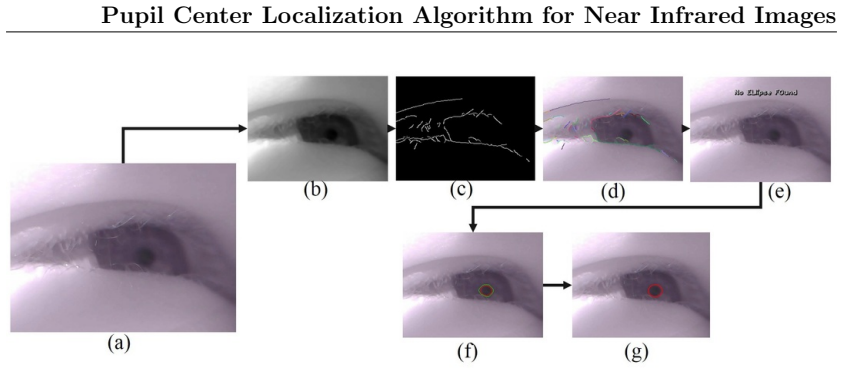

Figure 3.4
Figure 3.4. Figure 3.4: Intensity based ellipse fitting, a) The original color image captured, b) [PITH_FULL_IMAGE:figures/full_fig_p084_3_4.png] view at source ↗

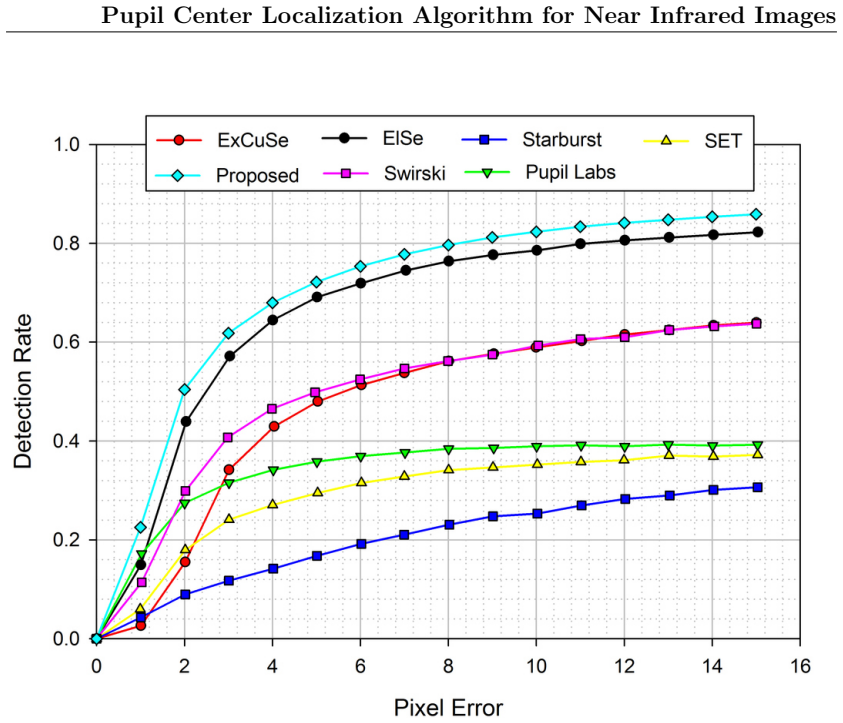

Figure 3.5
Figure 3.5. Figure 3.5: The proposed approach outperforms all the state of the art methods. [PITH_FULL_IMAGE:figures/full_fig_p086_3_5.png] view at source ↗
Figure 3.5
Figure 3.5. Figure 3.5: Detection rates of the algorithms in LPW dataset ( ElSe, ExCuSe, [PITH_FULL_IMAGE:figures/full_fig_p088_3_5.png] view at source ↗

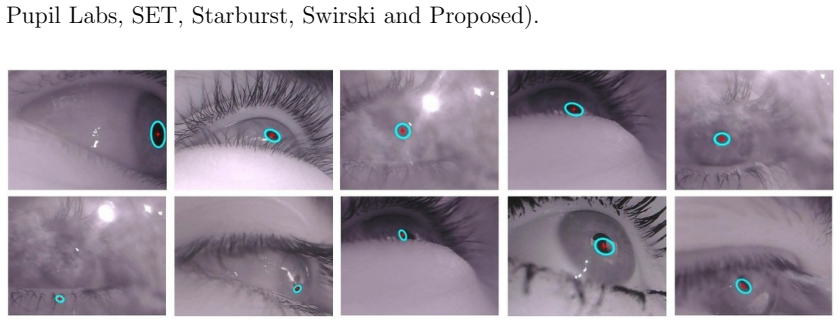

Figure 3.7
Figure 3.7. Figure 3.7: Sample results from the detections, the first row shows the successful [PITH_FULL_IMAGE:figures/full_fig_p088_3_7.png] view at source ↗
Figure 3.6
Figure 3.6. Figure 3.6: Detection rates with and without tracking. [PITH_FULL_IMAGE:figures/full_fig_p089_3_6.png] view at source ↗
Figure 3.8
Figure 3.8. Figure 3.8: Some examples of the challenging images from datasets 4 and 5 [PITH_FULL_IMAGE:figures/full_fig_p089_3_8.png] view at source ↗
Figure 4.1
Figure 4.1. Figure 4.1: Different EACs in NLP theory 4.1.1 Application in finding Eye Accessing Cues The patterns in which the eyes move when humans access their memories is known as eye accessing cues (EAC). The neuro-linguistic programming (NLP) EAC the￾ory suggests [94] that there is a correlation between eye-movements and cognitive processing while accessing experiences. EAC theory suggests that the meaning of non-visual ga… view at source ↗

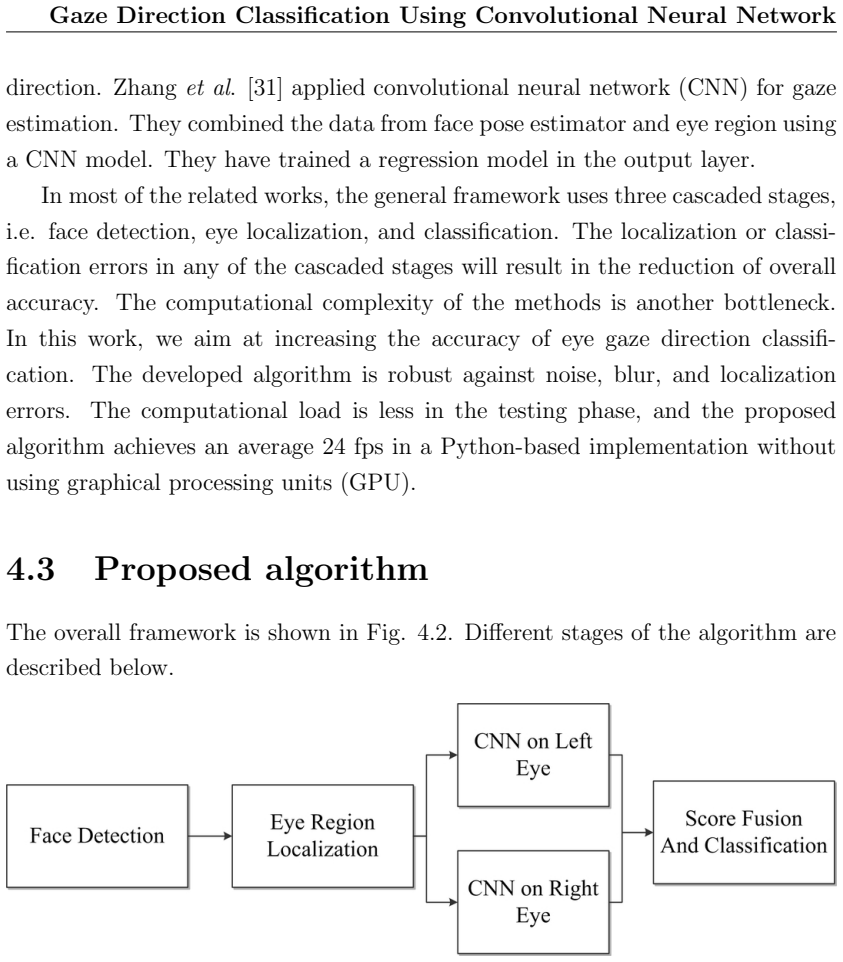

Figure 4.2
Figure 4.2. Figure 4.2: Schematic of the overall framework 4.3.1 Face detection and eye region localization The first stage in the algorithm is face detection. The framework described in Chapter 2 is used for face detection. Once the face region is localized, next stage 64 [PITH_FULL_IMAGE:figures/full_fig_p096_4_2.png] view at source ↗

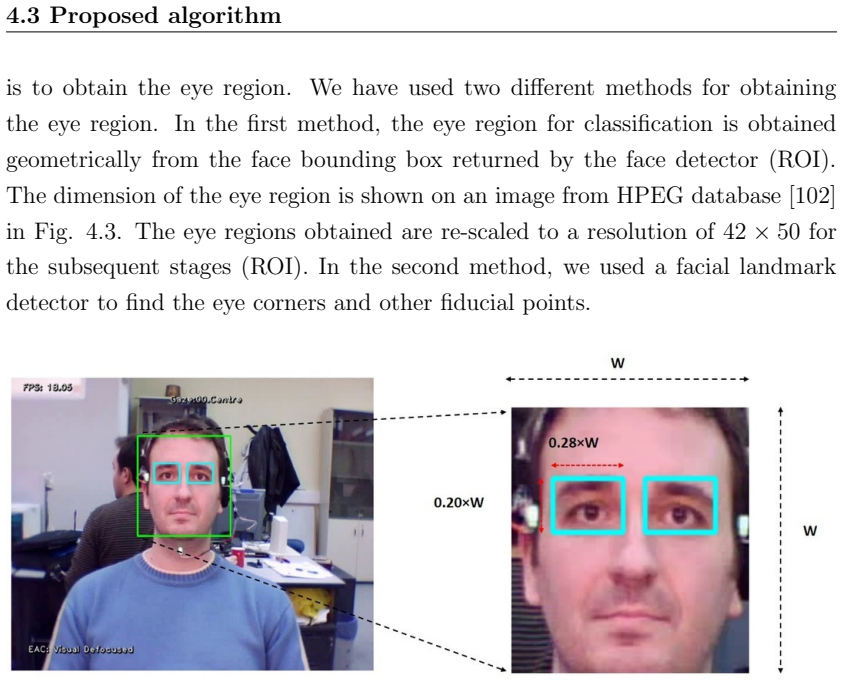

Figure 4.3
Figure 4.3. Figure 4.3: Eye region localization using geometric approach (ROI) [PITH_FULL_IMAGE:figures/full_fig_p097_4_3.png] view at source ↗
Figure 4.4
Figure 4.4. Figure 4.4: Eye region localization using ERT approach [PITH_FULL_IMAGE:figures/full_fig_p097_4_4.png] view at source ↗
Figure 4.5
Figure 4.5. Figure 4.5: Architecture of the CNN used 4.3.2.2 Classification of eye gaze direction Two CNNs are trained independently for left and right eyes. The scores from both the networks are used to obtain the average score. score =  scoreL + scoreR 2  (4.3) where, scoreL and scoreR denote the scores obtained from left and right CNNs respectively. The class can be found out as the label with maximum probability: class = … view at source ↗
Figure 4.6
Figure 4.6. Figure 4.6: Sample results from the framework 4.4.2 Results The results obtained from the experiments in Eye Chimera dataset is described in this section. The classification accuracy was high in 3-class scenario compared to 69 [PITH_FULL_IMAGE:figures/full_fig_p101_4_6.png] view at source ↗
Figure 4
Figure 4. Figure 4: and Fig. 4.8 [PITH_FULL_IMAGE:figures/full_fig_p102_4.png] view at source ↗

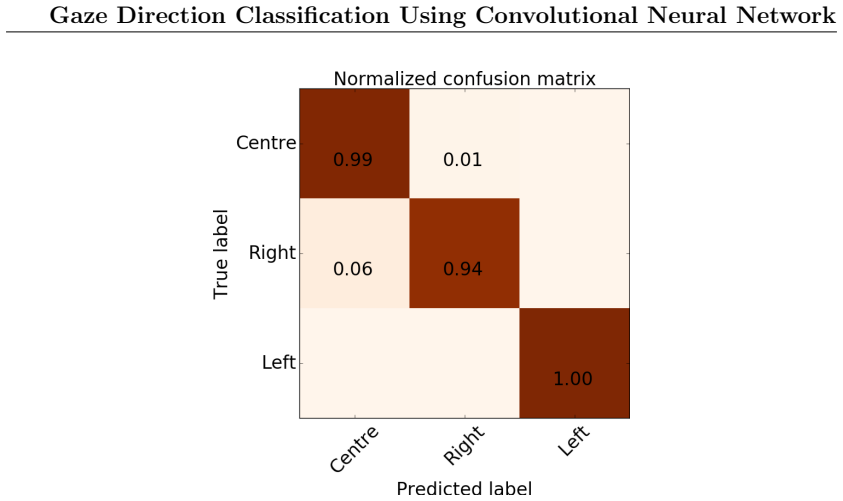

Figure 4.7
Figure 4.7. Figure 4.7: Confusion matrix for 3 classes (ERT+CNN) [PITH_FULL_IMAGE:figures/full_fig_p104_4_7.png] view at source ↗

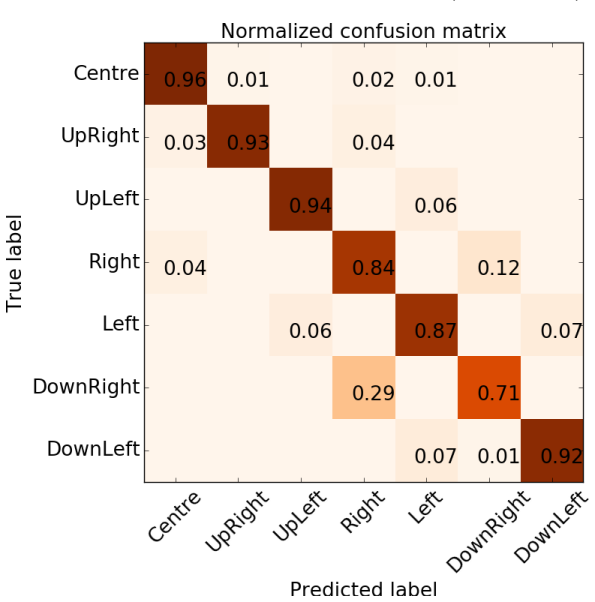

Figure 4.8
Figure 4.8. Figure 4.8: Confusion matrix for 7 classes (ERT+CNN) [PITH_FULL_IMAGE:figures/full_fig_p104_4_8.png] view at source ↗
Figure 5.1
Figure 5.1. Figure 5.1: The arrangement for gaze recording Raw eye gaze positions may contain noise. Most of the features used in this work are extracted from velocity and acceleration profiles. The presence of noise makes it difficult to estimate the velocity and acceleration parameters using dif￾ferentiation operation. Eye movement signals contain high-frequency components, especially during saccades. High-frequency component… view at source ↗

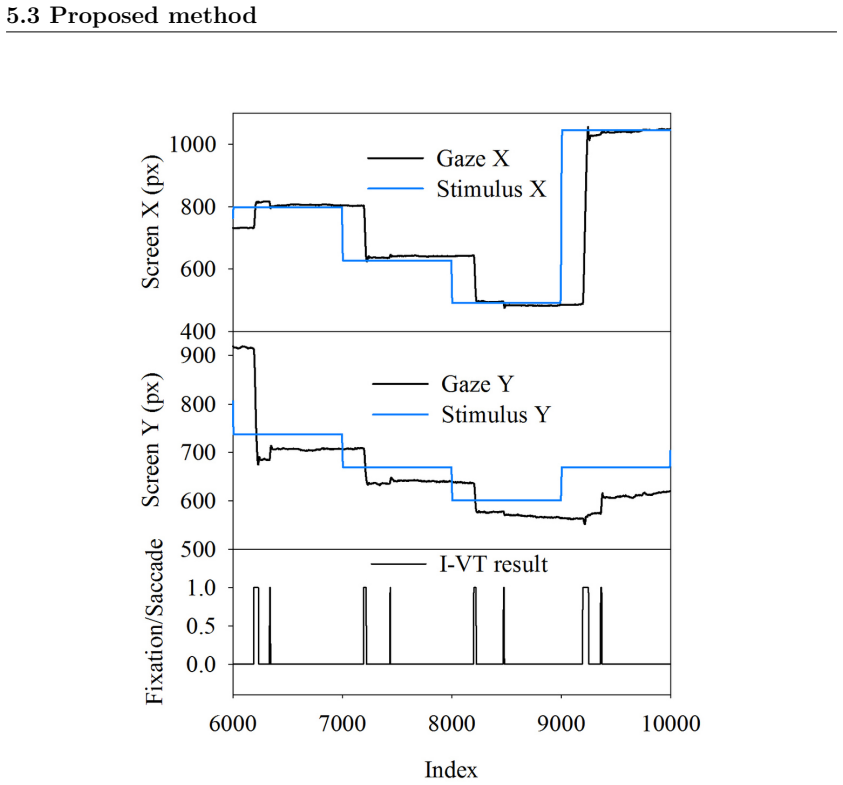

Figure 5.2
Figure 5.2. Figure 5.2: Gaze data and stimulus for RAN 30min sequence A minimum duration threshold of 100 ms has been chosen to reduce the false positives in fixation identification. Algorithm 2 returns the classification results for each data point as either fixation or saccade. Points that are not a part of fixations are considered as saccades in this stage. In the proposed approach, we consider saccades with their durations … view at source ↗
Figure 5.3
Figure 5.3. Figure 5.3: Classification of the raw sequence [PITH_FULL_IMAGE:figures/full_fig_p116_5_3.png] view at source ↗
Figure 5.4
Figure 5.4. Figure 5.4: Schematic of the proposed framework. 91 [PITH_FULL_IMAGE:figures/full_fig_p123_5_4.png] view at source ↗
Figure 5.5
Figure 5.5. Figure 5.5: CMC curve for (a) RAN 30min and (b) TEX 30min [PITH_FULL_IMAGE:figures/full_fig_p128_5_5.png] view at source ↗
Figure 5.6
Figure 5.6. Figure 5.6: CMC curve for (a) RAN 1year and (b) TEX 1year The detection error trade-off (DET) curves for the development datasets are shown in [PITH_FULL_IMAGE:figures/full_fig_p128_5_6.png] view at source ↗

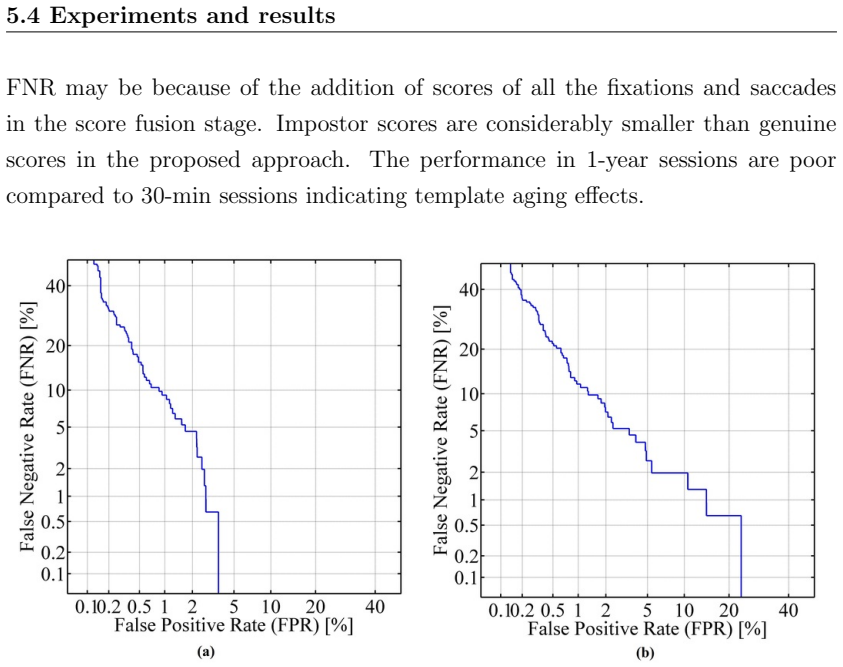

Figure 5.7
Figure 5.7. Figure 5.7: DET curve for (a) RAN 30min and (b) TEX 30min 97 [PITH_FULL_IMAGE:figures/full_fig_p129_5_7.png] view at source ↗
Figure 5.8
Figure 5.8. Figure 5.8: DET curve for (a) RAN 1year and (b) TEX 1year 5.4.3.2 Performance in the evaluation sets The evaluation part of the database is unlabeled. However, the results of the competition are available on the website [132]. The evaluation set of the dataset had only one unlabeled data for every labeled sample. We have used this one to one correspondence assumption in the final stage of the algorithm. Let there be… view at source ↗
Figure 6.1
Figure 6.1. Figure 6.1: The activity classes considered in the work, a) Read, b) Watching [PITH_FULL_IMAGE:figures/full_fig_p136_6_1.png] view at source ↗
Figure 6.2
Figure 6.2. Figure 6.2: The proposed framework, three channels of information are fused to [PITH_FULL_IMAGE:figures/full_fig_p139_6_2.png] view at source ↗
Figure 6.3
Figure 6.3. Figure 6.3: CNN feature extraction scheme, cropped and resized image is fed into [PITH_FULL_IMAGE:figures/full_fig_p140_6_3.png] view at source ↗
Figure 6.4
Figure 6.4. Figure 6.4: The normalized histogram of the string sequence over a sliding temporal win￾dow is used as the feature for classification. 109 [PITH_FULL_IMAGE:figures/full_fig_p141_6_4.png] view at source ↗

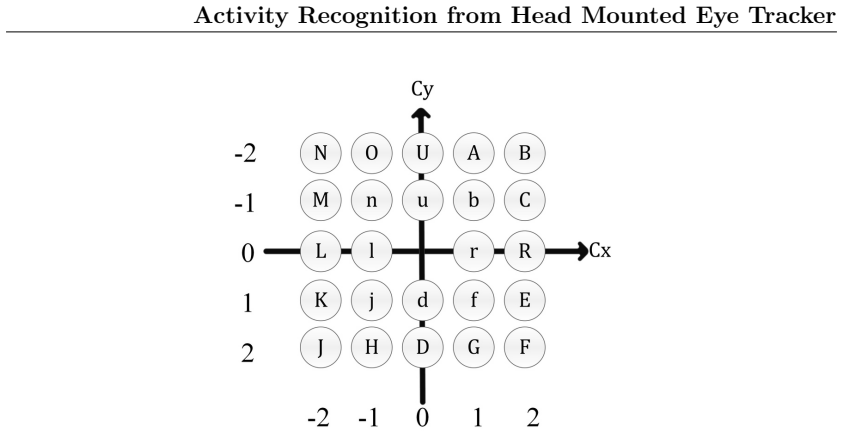

Figure 6.4
Figure 6.4. Figure 6.4: Motion encoding scheme. 6.3.3 Feature extraction from motion Motion features are extracted from the optical flow between subsequent frames. Let the i th frame be denoted as Fi . For each frame, corner detection is performed to obtain the candidate points to track. The points are tracked using Lucas-Kanade optical flow. Successfully tracked points are found out using forward-backward error [164]. The medi… view at source ↗

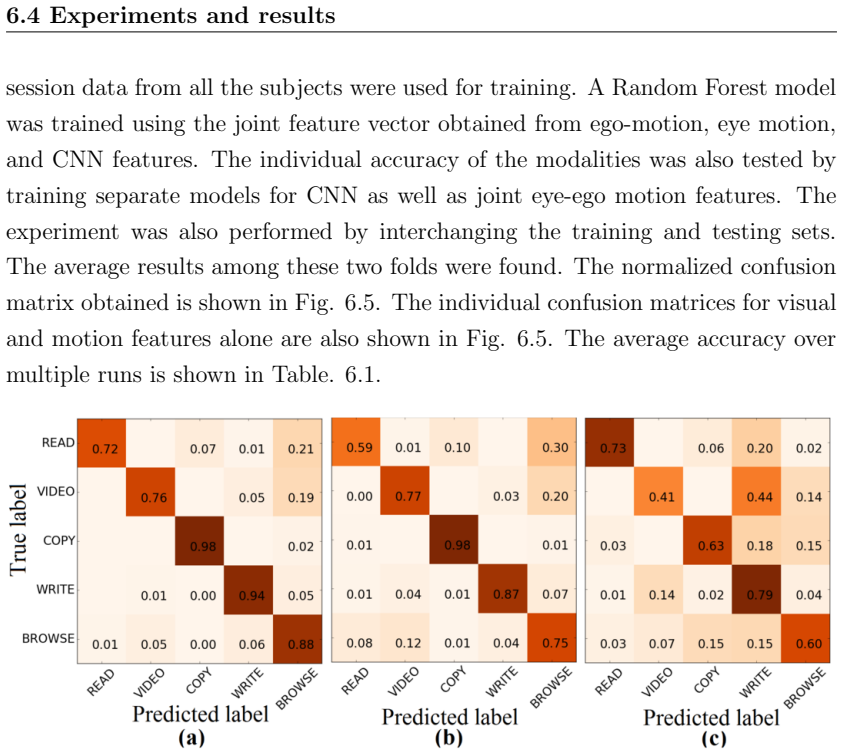

Figure 6.5
Figure 6.5. Figure 6.5: Normalized confusion matrix for five classes, a) Combined features, b) [PITH_FULL_IMAGE:figures/full_fig_p145_6_5.png] view at source ↗
Figure 6.6
Figure 6.6. Figure 6.6: Normalized confusion matrix for six classes, a) Combined features, b) [PITH_FULL_IMAGE:figures/full_fig_p146_6_6.png] view at source ↗

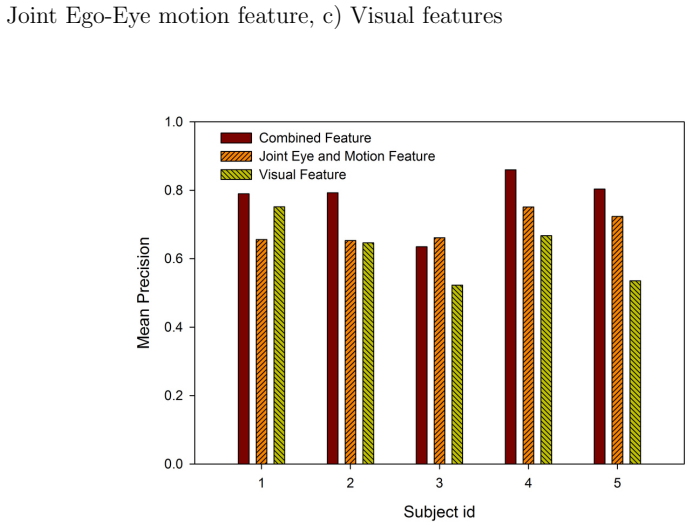

Figure 6.7
Figure 6.7. Figure 6.7: Variation of accuracy across different subjects [PITH_FULL_IMAGE:figures/full_fig_p146_6_7.png] view at source ↗
Figure 6.8
Figure 6.8. Figure 6.8: The joint representation achieves better results as compared to the [PITH_FULL_IMAGE:figures/full_fig_p147_6_8.png] view at source ↗
Figure 6.9
Figure 6.9. Figure 6.9: Comparison with state of the art methods [1], SW+MW (Saccade [PITH_FULL_IMAGE:figures/full_fig_p148_6_9.png] view at source ↗
read the original abstract

Eye movements play a vital role in perceiving the world. Eye gaze can give a direct indication of the users point of attention, which can be useful in improving human-computer interaction. Gaze estimation in a non-intrusive manner can make human-computer interaction more natural. Eye tracking can be used for several applications such as fatigue detection, biometric authentication, disease diagnosis, activity recognition, alertness level estimation, gaze-contingent display, human-computer interaction, etc. Even though eye-tracking technology has been around for many decades, it has not found much use in consumer applications. The main reasons are the high cost of eye tracking hardware and lack of consumer level applications. In this work, we attempt to address these two issues. In the first part of this work, image-based algorithms are developed for gaze tracking which includes a new two-stage iris center localization algorithm. We have developed a new algorithm which works in challenging conditions such as motion blur, glint, and varying illumination levels. A person independent gaze direction classification framework using a convolutional neural network is also developed which eliminates the requirement of user-specific calibration. In the second part of this work, we have developed two applications which can benefit from eye tracking data. A new framework for biometric identification based on eye movement parameters is developed. A framework for activity recognition, using gaze data from a head-mounted eye tracker is also developed. The information from gaze data, ego-motion, and visual features are integrated to classify the activities.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The manuscript claims to develop image-based eye gaze tracking algorithms, including a new two-stage iris center localization method robust to motion blur, glint, and varying illumination, plus a person-independent CNN framework for gaze direction classification that removes the need for user-specific calibration. It further presents two applications: a biometric identification system based on eye movement parameters and an activity recognition framework that integrates gaze data from a head-mounted tracker with ego-motion and visual features.

Significance. If the robustness and calibration-free claims hold with strong validation, the work would be significant for advancing accessible, non-intrusive eye tracking in consumer HCI, biometrics, and activity recognition by lowering hardware and setup barriers. The dual focus on core algorithms and integrated applications is a strength, though the absence of reported metrics makes the practical impact difficult to evaluate.

major comments (1)
  1. [Abstract] Abstract: The central claims of a two-stage iris localization algorithm that 'works in challenging conditions' and a CNN framework that 'eliminates the requirement of user-specific calibration' are presented without any quantitative results, error rates, datasets, or validation details. This directly undermines assessment of the load-bearing assertions about real-world reliability and person-independence.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their review and the opportunity to respond. We address the major comment on the abstract below.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claims of a two-stage iris localization algorithm that 'works in challenging conditions' and a CNN framework that 'eliminates the requirement of user-specific calibration' are presented without any quantitative results, error rates, datasets, or validation details. This directly undermines assessment of the load-bearing assertions about real-world reliability and person-independence.

    Authors: We agree that the abstract would be strengthened by including quantitative results to support the central claims. The full manuscript reports experimental validation of the two-stage iris center localization (including performance under motion blur, glint, and illumination variation) and the person-independent CNN gaze classifier on appropriate datasets with error rates and accuracy metrics. In the revised version we will update the abstract to incorporate key quantitative details such as error rates, datasets used, and validation outcomes. revision: yes

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper presents algorithmic developments for iris localization and CNN-based gaze classification without any equations, derivations, fitted parameters relabeled as predictions, or load-bearing self-citations. Claims rest on new method descriptions and testing under listed conditions rather than any chain that reduces to its own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract contains no mathematical derivations, fitted parameters, axioms, or new postulated entities; work is described at the level of algorithmic development in computer vision.

pith-pipeline@v0.9.0 · 5784 in / 964 out tokens · 26065 ms · 2026-05-25T00:18:30.784422+00:00 · methodology
