Transformer-Based MCS Prediction for 5G Multicast-Broadcast Services (MBS)

Kasidis Arunruangsirilert , Jiro Katto This is my paper

Pith reviewed 2026-05-19 20:00 UTC · model grok-4.3

classification 💻 cs.NI cs.LG
keywords 5GMBSMCS predictionTransformerlink adaptationmulticastbroadcast serviceschannel estimation
0
0 comments X

The pith

Transformer model forecasts safe MCS for 5G video multicast

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper seeks to demonstrate that a transformer model can effectively predict the probability of success for various modulation and coding schemes in 5G multicast-broadcast services over a future time horizon. Such predictions matter because these services operate without retransmission feedback, so any mismatch between chosen parameters and actual channel conditions causes irreversible packet loss and degraded video quality. Conventional methods focus on maximizing data rate and often lead to failures in this setting. By incorporating a loss function designed to penalize overconfident channel estimates, the model learns to favor stable choices that reduce the risk of stalls.

Core claim

The paper establishes that training a lightweight transformer on high-granularity network data with an asymmetric safety loss enables it to output success probabilities for all 28 MCS indices in a way that maintains a conservative bias appropriate for risk-intolerant broadcast transmissions.

What carries the argument

A lightweight Transformer architecture trained using a custom Asymmetric Safety Loss that penalizes overestimation of channel quality.

Load-bearing premise

The collected commercial dataset at 0.5 ms granularity reflects typical conditions in MBS deployments and the safety loss function ensures predictions generalize without overfitting.

What would settle it

A deployment test showing that selected MCS values based on the model predictions frequently result in packet losses exceeding acceptable thresholds for video playback would falsify the reliability of the approach.

Figures

Figures reproduced from arXiv: 2605.16735 by Jiro Katto, Kasidis Arunruangsirilert.

Figure 1
Figure 1. Figure 1: System Architecture Overview (Multicast Part) [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: AIS 4T4R Passive Antenna at Dusit Central Park [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: NSG confirming the 4T4R passive panel antenna [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4

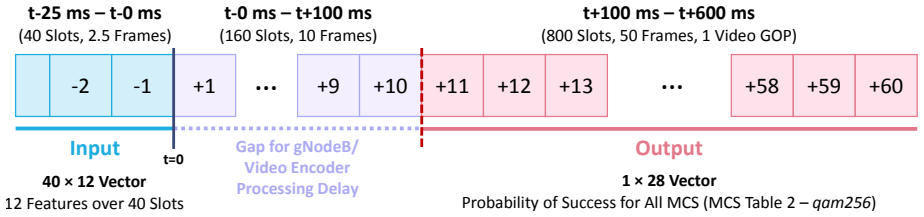

Figure 4. Figure 4: Example temporal configuration of the proposed framework based on evaluated parameters. The model receives a [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5

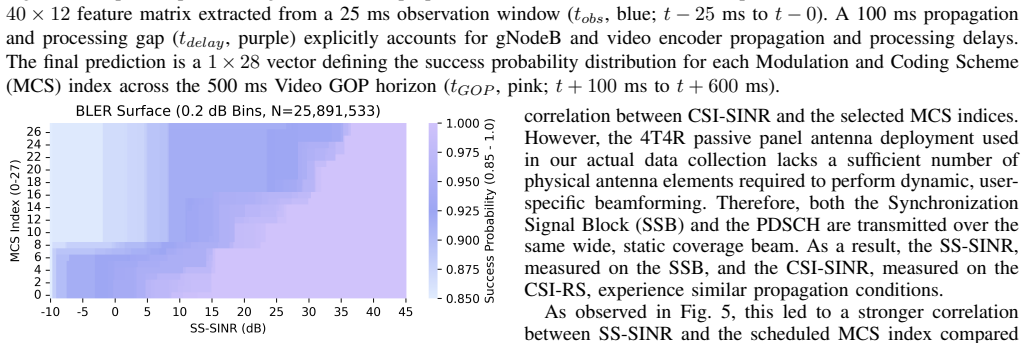

Figure 5. Figure 5: MCS Index vs SS-SINR Heatmap the preliminary experiments, we used the Network Signal Guru (NSG) to execute a high-throughput HTTP GET stress test against the AIS Ookla SpeedTest server, ensuring the downlink channel remained saturated to capture the maximum MCS under varying channel conditions. B. Data Pre-Processing and Feature Engineering The raw logs captured by NSG were converted into Qual￾comm’s Diagn… view at source ↗
Figure 6
Figure 6. Figure 6: Proposed Model Architecture indices (k < m) would also have succeeded. Consequently, we increment both the trial and success counts for m and all k < m. Conversely, if MCS m fails, we do not assume that lower indices would have passed, as the gNodeB may have significantly overestimated the channel quality. In this case, we increment only the trial count for the specific MCS m, without inferring success for… view at source ↗
read the original abstract

The deployment of 5G Multicast-Broadcast Services (MBS) is emerging as a critical technology for spectral-efficient UHD content delivery and serving as a promising solution to modernize CATV deployment. However, unlike unicast networks that rely on RLC-AM with HARQ retransmissions, MBS broadcast operates in RLC Unacknowledged Mode (RLC-UM), where the absence of a feedback loop means packet loss is permanent and immediately impacts user QoE. Conventional link adaptation algorithms, designed for unicast, typically aggressively maximize throughput and fail in this risk-intolerant environment, resulting in severe video stalls and rebuffering. To address this, we propose a lightweight Transformer-based framework that predicts the success probability of all 28 MCS indices over an upcoming video segment horizon. Utilizing a unique commercial network dataset with 0.5 ms slot-level granularity, we train our model using a custom Asymmetric Safety Loss function that penalizes channel overestimation to prioritize link stability. Experimental results show that our approach achieves a reliability score of 86.89%, significantly outperforming standard AI baselines optimized for raw throughput (31.65%) while maintaining a safe conservative bias. Furthermore, the model is optimized for real-time applications, demonstrating an inference time of less than 0.07 ms on COTS 5G-era smartphones.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper proposes a lightweight Transformer-based framework to predict success probabilities for all 28 MCS indices over a video segment horizon in 5G Multicast-Broadcast Services (MBS). Operating in RLC Unacknowledged Mode without feedback, the model is trained on a commercial 0.5 ms slot-level dataset using a custom Asymmetric Safety Loss that penalizes overestimation to enforce conservative predictions. It reports a reliability score of 86.89% versus 31.65% for throughput-optimized AI baselines, with inference latency below 0.07 ms on COTS smartphones.

Significance. If the performance claims are substantiated, the work addresses a practical gap in risk-intolerant MBS deployments by shifting link adaptation from aggressive throughput maximization to reliability-focused prediction. The combination of Transformer architecture with an asymmetric loss and demonstrated real-time inference on mobile hardware could support more stable UHD delivery in broadcast scenarios where packet loss is permanent.

major comments (2)
  1. [Experimental Results] Experimental Results section: the manuscript reports a reliability score of 86.89% but provides no information on dataset size, train-test split ratios, temporal or spatial hold-out strategy, or cross-validation procedure. Without these details the central performance claim cannot be evaluated for robustness or potential overfitting to the specific commercial traces.
  2. [Methodology] Methodology section: no ablation study or quantitative analysis isolates the contribution of the Asymmetric Safety Loss to the reported conservative bias and reliability improvement. It is therefore unclear whether the 86.89% score arises primarily from the Transformer architecture, the loss function, or dataset idiosyncrasies.
minor comments (1)
  1. [Abstract] The exact mathematical definition and computation of the 'reliability score' used for the 86.89% versus 31.65% comparison is not stated in the abstract or early sections, hindering reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive review. The comments highlight important aspects for strengthening the evaluation of our results and methodology. We address each major comment below and outline the revisions we will make to the manuscript.

read point-by-point responses

  1. Referee: [Experimental Results] Experimental Results section: the manuscript reports a reliability score of 86.89% but provides no information on dataset size, train-test split ratios, temporal or spatial hold-out strategy, or cross-validation procedure. Without these details the central performance claim cannot be evaluated for robustness or potential overfitting to the specific commercial traces.

    Authors: We agree that these experimental details are necessary to allow proper assessment of result robustness. The current manuscript provides only high-level information on the commercial 0.5 ms slot-level dataset. In the revised version we will add a dedicated subsection describing the dataset size, the train-test split ratios, the temporal hold-out strategy employed to respect the time-series nature of the traces and avoid leakage, and the cross-validation procedure used. This addition will enable readers to evaluate potential overfitting and the generalizability of the reported 86.89% reliability score. revision: yes

  2. Referee: [Methodology] Methodology section: no ablation study or quantitative analysis isolates the contribution of the Asymmetric Safety Loss to the reported conservative bias and reliability improvement. It is therefore unclear whether the 86.89% score arises primarily from the Transformer architecture, the loss function, or dataset idiosyncrasies.

    Authors: The referee correctly notes the absence of an explicit ablation study isolating the Asymmetric Safety Loss. While the overall performance gains relative to throughput-optimized baselines provide indirect support for the loss design, a direct quantitative comparison would strengthen the claims. In the revised manuscript we will include an ablation analysis that trains the same Transformer architecture with and without the Asymmetric Safety Loss, reporting the resulting changes in conservative bias and reliability score. This will clarify the specific contribution of the loss function. revision: yes

Circularity Check

0 steps flagged

No significant circularity: empirical ML model with independent evaluation

full rationale

The paper describes a standard supervised learning pipeline: a Transformer is trained on a commercial 0.5 ms slot-level dataset using an Asymmetric Safety Loss to predict per-MCS success probabilities, then evaluated on held-out traces for a reliability score. No equations, uniqueness theorems, or self-citations are invoked to derive the reported 86.89 % figure from the training inputs themselves. The performance metric is computed from model outputs on separate data and does not reduce to a fitted parameter or renamed input by construction. The derivation chain is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The central claim rests on the representativeness of the proprietary commercial dataset and on the effectiveness of the custom loss function; no explicit free parameters, axioms, or invented entities are stated in the provided abstract.
