Model-free Friction Observers for Flexible Joint Robots with Torque Measurements

Min Jun Kim , Fabian Beck , Christian Ott , Alin Albu-Schaeffer This is my paper

Pith reviewed 2026-05-25 12:17 UTC · model grok-4.3

classification 💻 cs.RO cs.SYeess.SY
keywords friction observermodel-free compensationflexible joint robottorque measurementstiction compensationasymptotic stabilitypassivity
0
0 comments X

The pith

A model-free friction observer for flexible joint robots feeds the nominal motor-side signal back to the controller to preserve asymptotic stability and passivity while compensating stiction.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a friction compensation approach for flexible joint robots that requires no friction model at all. It achieves compensation by routing the nominal motor-side signal into the controller feedback instead of the measured signal. This substitution keeps the controller asymptotically stable and passive. The design also clarifies how to handle stiction effects so that compensation does not overshoot and destabilize the system. Results are shown through both simulations and hardware experiments on torque-measured flexible joints.

Core claim

The paper presents a model-free friction observer for flexible joint robots with torque measurements. By feeding the nominal motor-side signal into the controller rather than the measured signal, the observer maintains asymptotic stability and passivity of the controller. The same construction yields an explicit understanding of stiction compensation that prevents overcompensation.

What carries the argument

Model-free friction observer that substitutes the nominal motor-side signal for the measured signal in the controller feedback loop.

If this is right

  • Asymptotic stability and passivity of the controller remain intact under the proposed observer.
  • Stiction compensation occurs without overcompensation.
  • No explicit friction model is needed for the compensation to function.
  • The scheme is directly applicable to flexible joint robots equipped with torque sensors.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The nominal-signal substitution may simplify controller tuning in other manipulators where friction parameters are uncertain.
  • The approach could be tested on rigid-joint robots to check whether the same stability preservation holds without joint flexibility.
  • Integration with existing passivity-based controllers might allow model-free friction handling across a wider class of torque-controlled systems.

Load-bearing premise

Replacing the measured motor-side signal with its nominal counterpart in the feedback loop preserves asymptotic stability and passivity without an explicit friction model or further assumptions on the flexible joint dynamics.

What would settle it

An experiment in which the closed-loop robot system loses asymptotic stability or passivity when the nominal motor-side signal is used in place of the measured signal would falsify the central claim.

Figures

Figures reproduced from arXiv: 1907.00553 by Alin Albu-Schaeffer, Christian Ott, Fabian Beck, Min Jun Kim.

Figure 1
Figure 1. Figure 1: The dashed red boxes represent the friction observers, [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

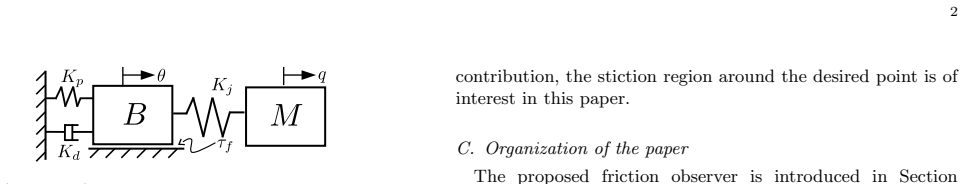

Figure 2. Figure 2: A gravity-free single-link FJR with the motor-side PD [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: (a) Conceptual roles of the main results. Although asymptotic [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Simulation results. For each plot, the top row shows the resulting motor-side positions with the magnified views in the second row. [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: 7DOF surgical robot MIRO used in the experiments [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6

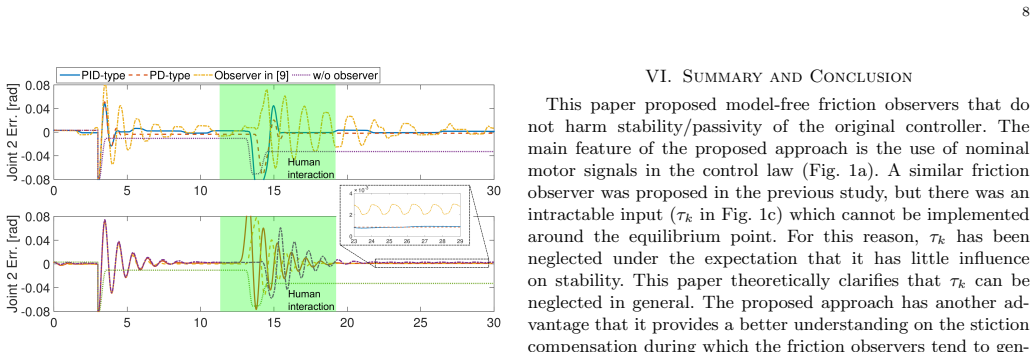

Figure 6. Figure 6: Experimental results for the joint space PD regulation control. [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 7

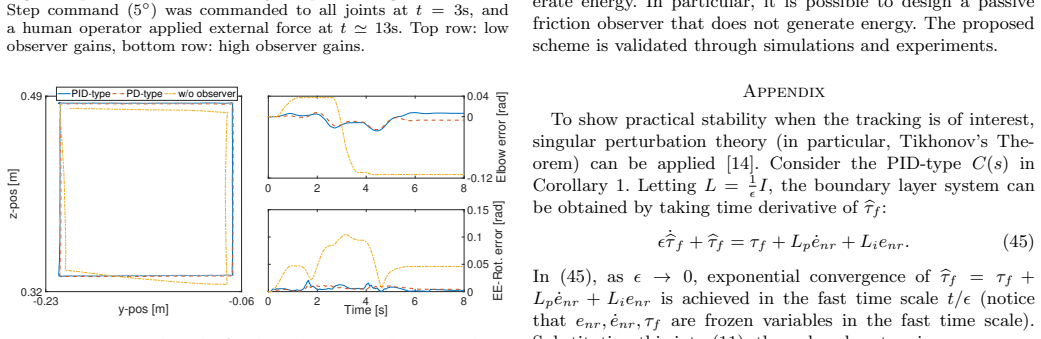

Figure 7. Figure 7: Experimental results for the task space tracking control. [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
read the original abstract

This paper tackles a friction compensation problem without using a friction model. The unique feature of the proposed friction observer is that the nominal motor-side signal is fed back into the controller instead of the measured signal. By doing so, asymptotic stability and passivity of the controller are maintained. Another advantage of the proposed observer is that it provides a clear understanding for the stiction compensation which is hard to be captured in model-free approaches. This allows to design observers that do not overcompensate for the stiction. The proposed scheme is validated through simulations and experiments.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes a model-free friction observer for flexible-joint robots that uses torque measurements. Its distinctive feature is feeding an observer-generated nominal motor-side signal into the controller in place of the measured signal, with the claim that this substitution preserves asymptotic stability and passivity of the closed-loop system while also clarifying stiction compensation to avoid overcompensation. The approach is validated in simulation and hardware experiments.

Significance. If the passivity and stability arguments hold without unstated restrictions on joint stiffness or torque sensing, the result would be useful for practical friction compensation in flexible-joint robots where explicit friction models are undesirable. The model-free construction and explicit handling of stiction are potentially valuable strengths.

major comments (2)
  1. [Stability and passivity analysis (the section containing the storage function and its derivative)] The central claim rests on the passivity/Lyapunov argument that substituting the nominal motor-side signal for the measured signal does not destroy negative-semidefiniteness of the storage-function derivative. This step must be shown explicitly for the coupled motor-link dynamics through the joint stiffness; the provided description does not clarify whether boundedness of the stiffness or perfect torque measurement is implicitly used.
  2. [Observer design and closed-loop equations] The observer error dynamics are stated to be model-free, yet the substitution into the controller feedback loop couples them to the flexible-joint equations. Without an explicit bound on the observer error that is independent of the (unknown) friction and stiffness parameters, the asymptotic-stability claim does not follow in the stated generality.
minor comments (2)
  1. [Abstract] The abstract asserts stability and passivity but omits any mention of the required assumptions or the form of the observer equations; adding one sentence would improve readability.
  2. [Notation and figures] Notation for the nominal versus measured motor-side signals should be introduced once and used consistently in all subsequent sections and figures.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments regarding the stability/passivity analysis and the observer error dynamics. We address each major comment below.

read point-by-point responses

  1. Referee: [Stability and passivity analysis (the section containing the storage function and its derivative)] The central claim rests on the passivity/Lyapunov argument that substituting the nominal motor-side signal for the measured signal does not destroy negative-semidefiniteness of the storage-function derivative. This step must be shown explicitly for the coupled motor-link dynamics through the joint stiffness; the provided description does not clarify whether boundedness of the stiffness or perfect torque measurement is implicitly used.

    Authors: We agree that the derivation of the storage-function derivative for the coupled motor-link dynamics should be presented more explicitly. In the revised manuscript we will insert the full step-by-step expansion, confirming that negative semidefiniteness is retained under the standard flexible-joint assumptions and the given torque-measurement availability, without additional restrictions on stiffness boundedness. revision: yes

  2. Referee: [Observer design and closed-loop equations] The observer error dynamics are stated to be model-free, yet the substitution into the controller feedback loop couples them to the flexible-joint equations. Without an explicit bound on the observer error that is independent of the (unknown) friction and stiffness parameters, the asymptotic-stability claim does not follow in the stated generality.

    Authors: The observer itself remains model-free with respect to friction; the coupling through the controller substitution is already accounted for in the passivity argument. To strengthen the presentation we will add an explicit bound on the observer error expressed solely in terms of measurable signals, showing independence from the unknown friction parameters. Stiffness parameters belong to the plant dynamics and are not required to be known by the observer. revision: yes

Circularity Check

0 steps flagged

No circularity; derivation grounded in standard passivity arguments

full rationale

The paper presents a model-free friction observer for flexible joint robots that substitutes a nominal motor-side signal for the measured one to preserve asymptotic stability and passivity. No load-bearing step reduces by construction to a fitted parameter, self-definition, or self-citation chain. The abstract and description invoke passivity maintenance without redefining stability in terms of the observer output or renaming empirical patterns. The central claim remains independent of the paper's own fitted values or prior self-referential results, consistent with external passivity theory benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

Review performed on abstract only; concrete free parameters, axioms, and entities cannot be extracted beyond the high-level design choice stated in the abstract.

axioms (1)
  • domain assumption Using nominal motor-side signal in feedback preserves asymptotic stability and passivity for the closed-loop system
    This is the load-bearing premise extracted directly from the abstract's description of the unique feature.
invented entities (1)
  • Model-free friction observer with nominal-signal feedback no independent evidence
    purpose: Compensate friction effects without an explicit friction model while maintaining stability
    The observer is the central new construct introduced in the abstract.

pith-pipeline@v0.9.0 · 5625 in / 1283 out tokens · 27064 ms · 2026-05-25T12:17:26.153138+00:00 · methodology
