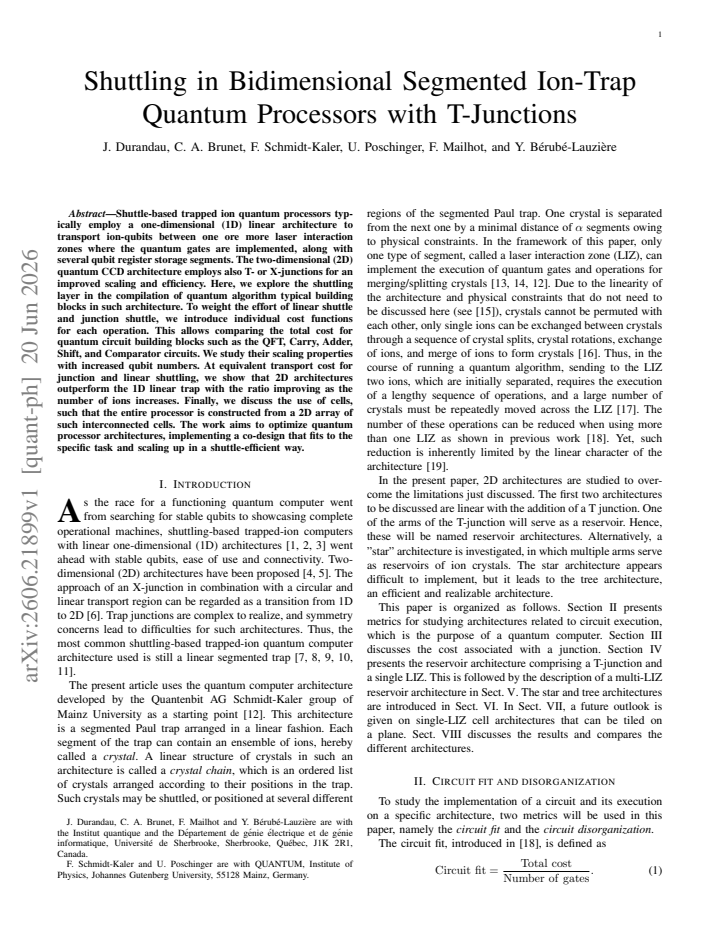

Shuttling in Bidimensional Segmented Ion-Trap Quantum Processors with T-Junctions

J.Durandau , C.A. Brunet , F.Schmidt-Kaler , U.Poschinger , F.Mailhot , Y. B\'erub\'e-Lauzi\`ere This is my paper

Pith reviewed 2026-06-26 12:11 UTC · model grok-4.3

classification 🪐 quant-ph cs.AR
keywords shuttlingT-junctionsion trapsquantum circuits2D architecturecost functionsquantum CCDsegmented traps
0
0 comments X

The pith

Two-dimensional ion-trap processors with T-junctions lower total shuttling costs for quantum circuits compared with one-dimensional linear traps when junction and linear costs are set equal.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper assigns separate numerical costs to linear shuttling moves and to moves that pass through T-junctions. It then sums these costs for standard circuit blocks such as the quantum Fourier transform, adders, comparators, and shifts when the blocks are mapped onto either a 1D chain or a 2D grid of trap segments. The resulting totals show that the 2D layout uses fewer total shuttling operations once the number of ions exceeds a modest threshold, and the savings increase steadily with larger registers. The authors also describe how the entire processor can be assembled from repeated identical cells that each contain a small number of junctions and storage zones.

Core claim

At equivalent transport cost for junction and linear shuttling, 2D architectures outperform the 1D linear trap with the ratio improving as the number of ions increases.

What carries the argument

Separate cost functions for linear shuttling and for T-junction shuttling, summed over the sequence of moves required to implement each circuit primitive.

If this is right

  • For circuits such as QFT, Carry, Adder, Shift and Comparator the total shuttling cost in the 2D layout grows more slowly than in the 1D layout once ion number exceeds a few tens.
  • Tiling the processor from identical cells that each contain junctions and storage segments yields a scalable architecture whose shuttling overhead remains bounded.
  • Co-design of the shuttling layer together with the gate zones can be tuned to the specific set of circuit primitives that dominate a target algorithm.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Hardware teams may gain more by improving junction fidelity than by further shortening linear segments, because junctions become the dominant cost term at scale.
  • The same cost model can be applied to other 2D topologies such as X-junction grids to rank their relative efficiency before fabrication.
  • If shuttling costs are later shown to depend on ion number or trap voltage, the scaling advantage of 2D layouts would need recalculation.

Load-bearing premise

The individual cost functions assigned to linear shuttling and to junction shuttling accurately reflect the relative physical effort and time required in real hardware, allowing direct numerical comparison of total costs across circuits.

What would settle it

A laboratory measurement that records the actual duration and motional heating incurred when shuttling a single ion through a T-junction versus along a straight linear segment, then checks whether the measured ratio matches the cost ratio used in the circuit calculations.

Figures

Figures reproduced from arXiv: 2606.21899 by C.A. Brunet, F.Mailhot, F.Schmidt-Kaler, J.Durandau, U.Poschinger, Y. B\'erub\'e-Lauzi\`ere.

Figure 1

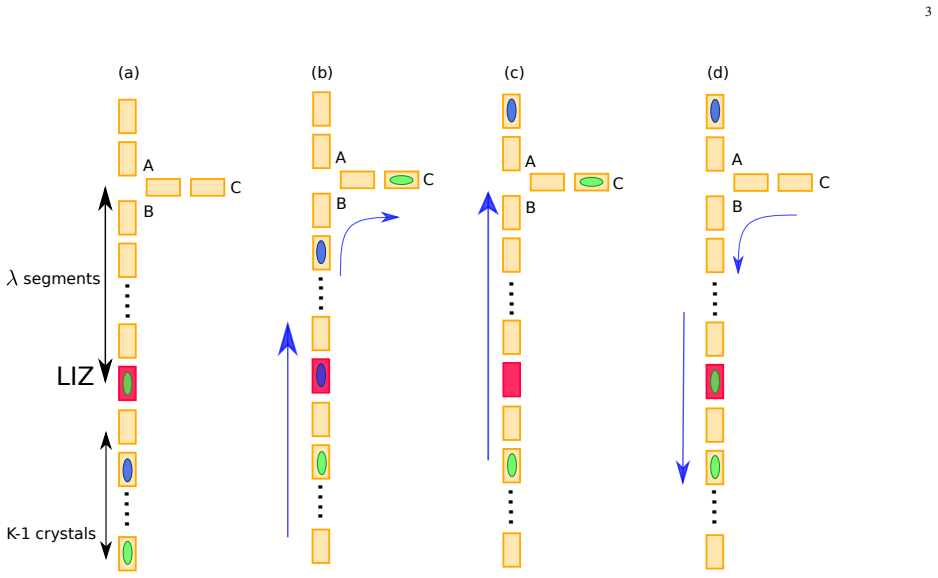

Figure 1. Figure 1: Illustration of the exchange of ions in a reservoir architecture between the two green crystals with [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

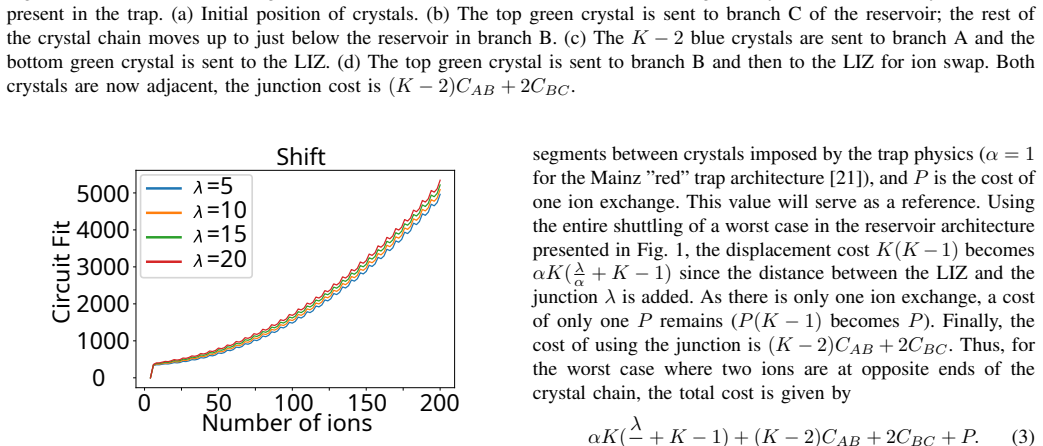

Figure 2. Figure 2: Circuit fit for a Shift circuit as a function of the number [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 5

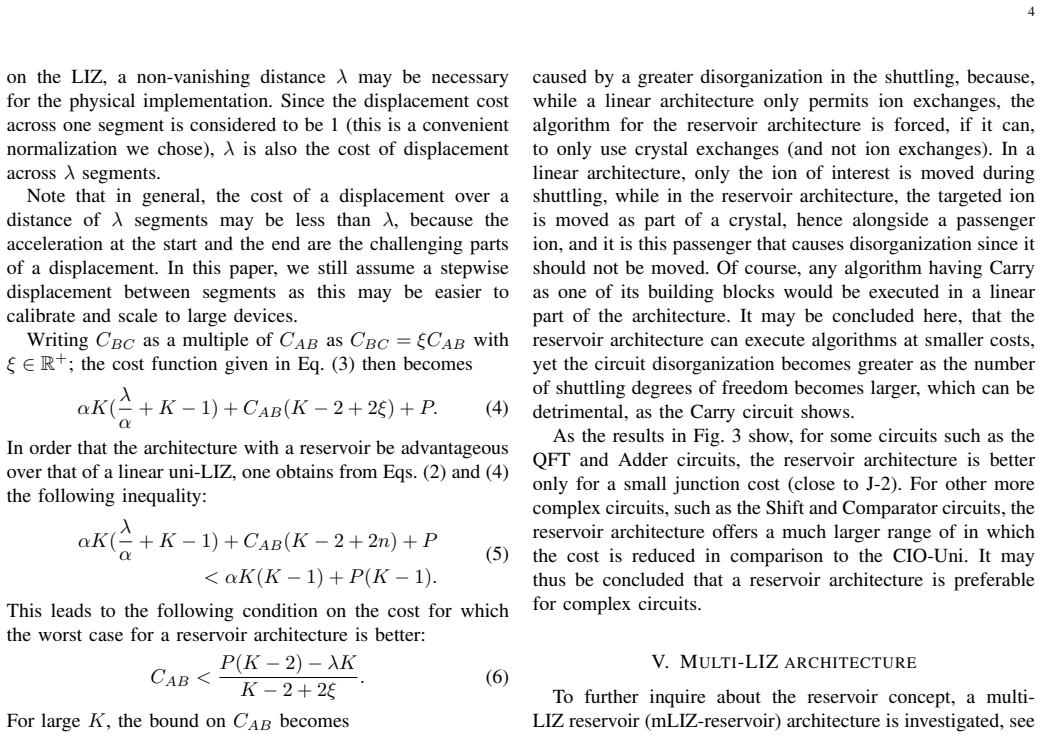

Figure 5. Figure 5: The whole trap is subdivided into a set of partitions, [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
Figure 3

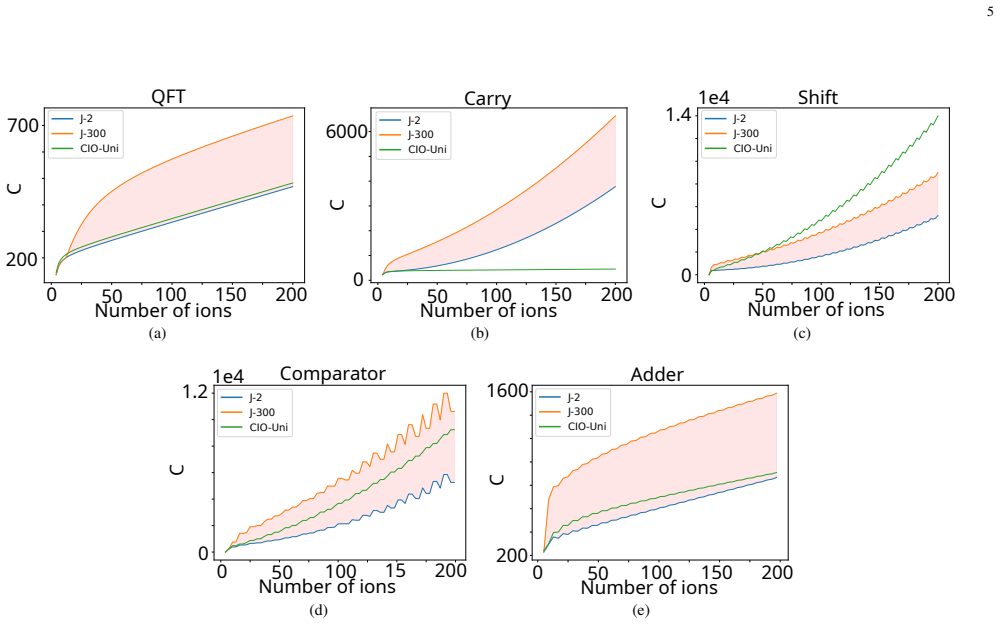

Figure 3. Figure 3: Simulation results for the circuit fit in a reservoir architecture with [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

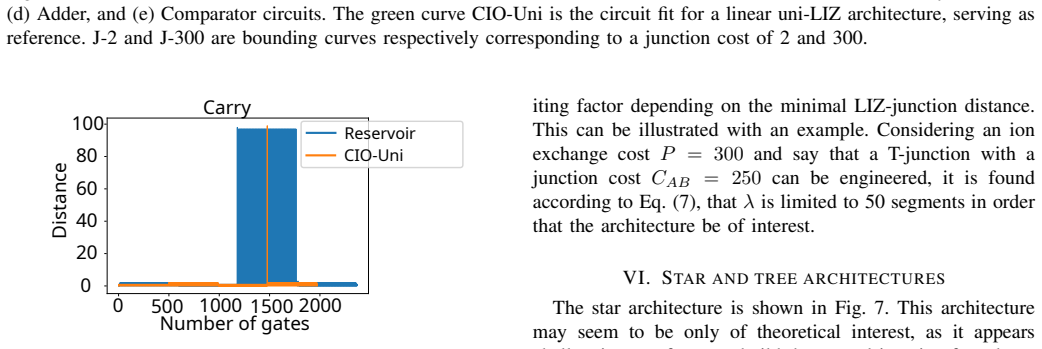

Figure 4. Figure 4: Comparison of the evolution of the circuit disor [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5

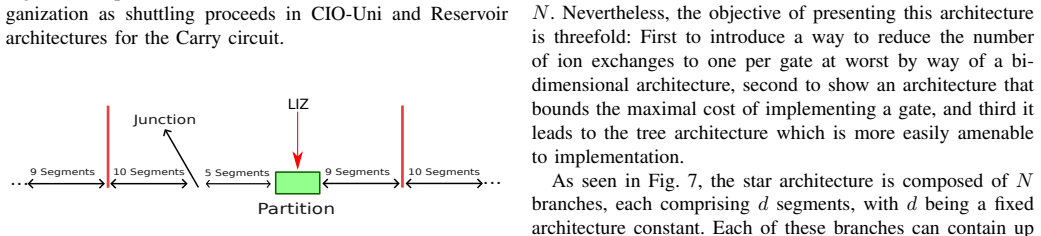

Figure 5. Figure 5: Schematic of part of a multi-LIZ reservoir architecture. [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6

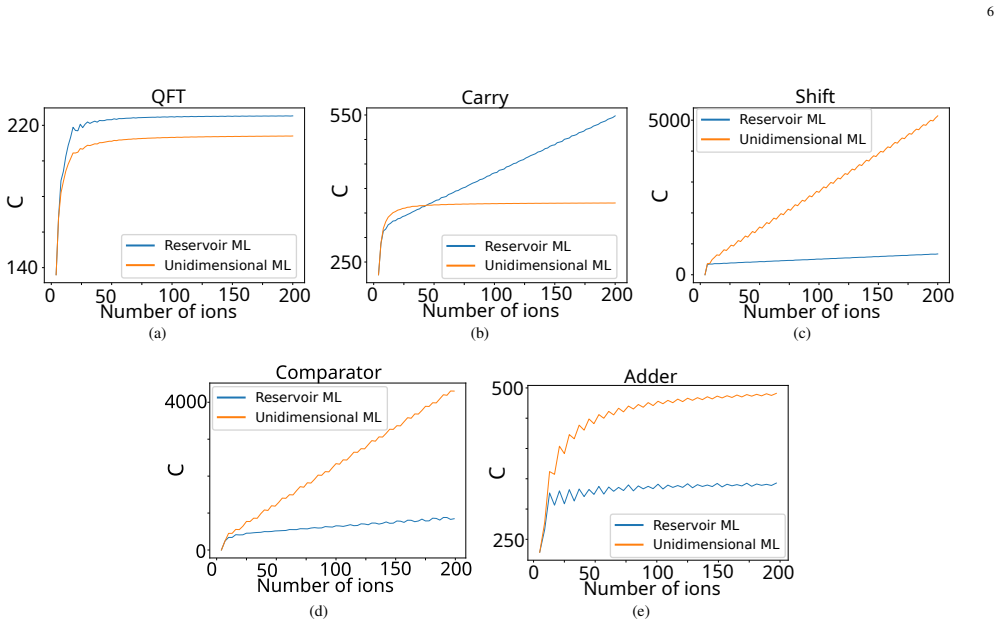

Figure 6. Figure 6: Circuit fit for a multi-LIZ reservoir architecture with [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 7

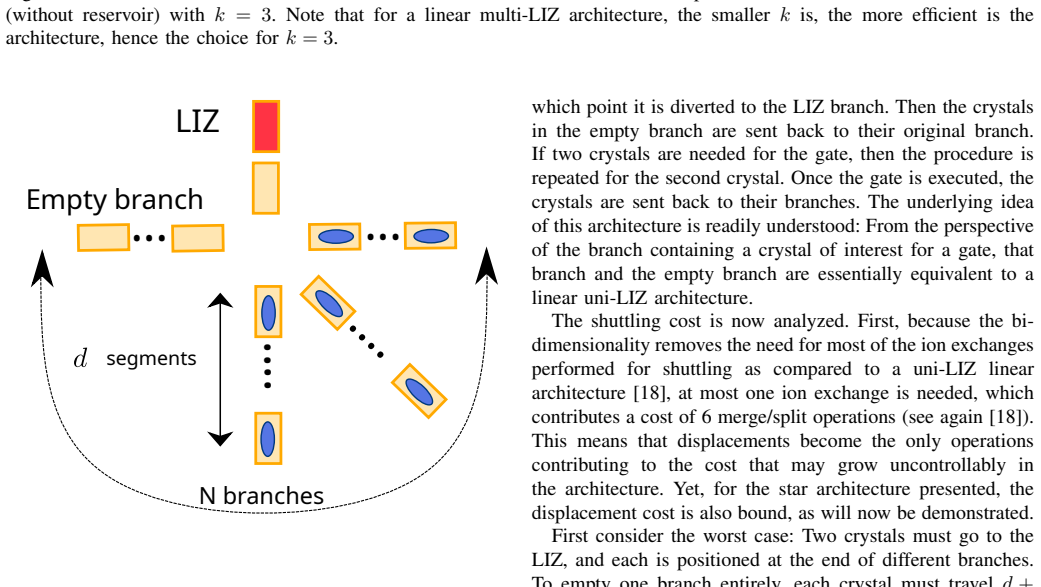

Figure 7. Figure 7: Star architecture with N branches of depth d. be seen shortly. The shuttling algorithm used here for this architecture is simple and proceeds as follows ( [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
Figure 8

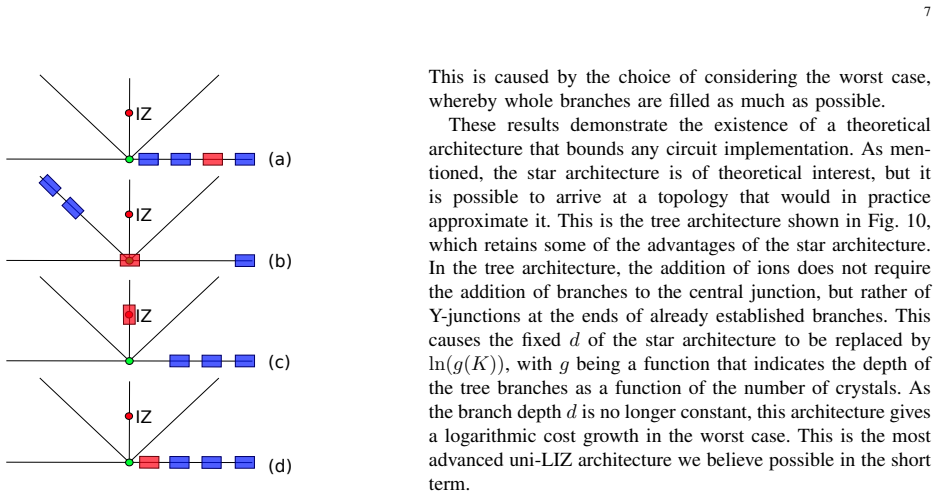

Figure 8. Figure 8: Schematic of the shuttling algorithm to send the [PITH_FULL_IMAGE:figures/full_fig_p007_8.png] view at source ↗
Figure 9

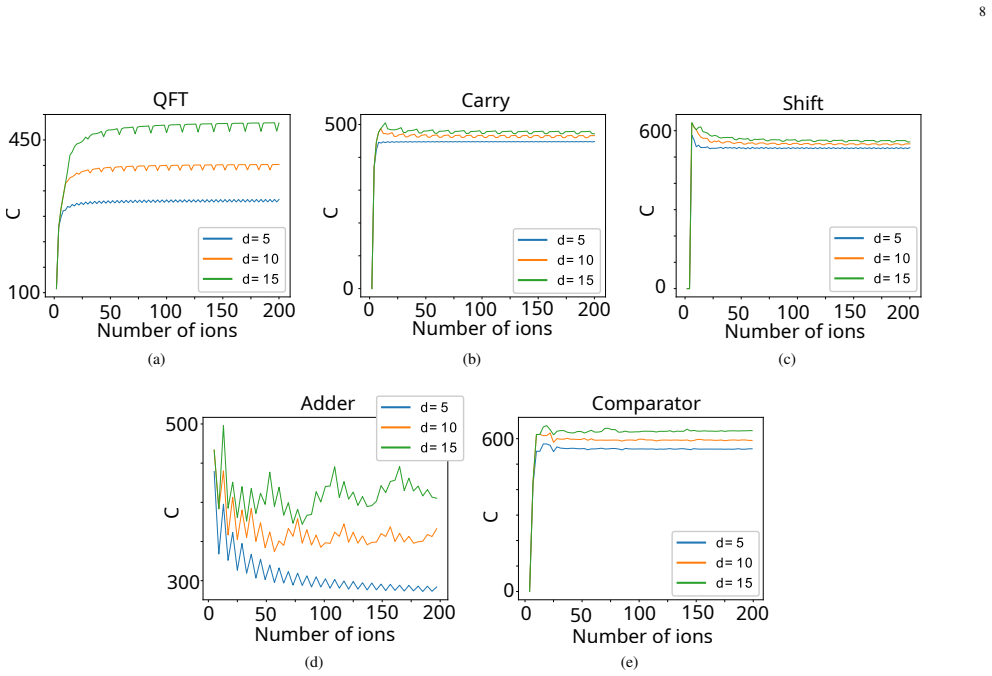

Figure 9. Figure 9: Simulation results for the circuit fit for star architectures with depth [PITH_FULL_IMAGE:figures/full_fig_p008_9.png] view at source ↗
Figure 10

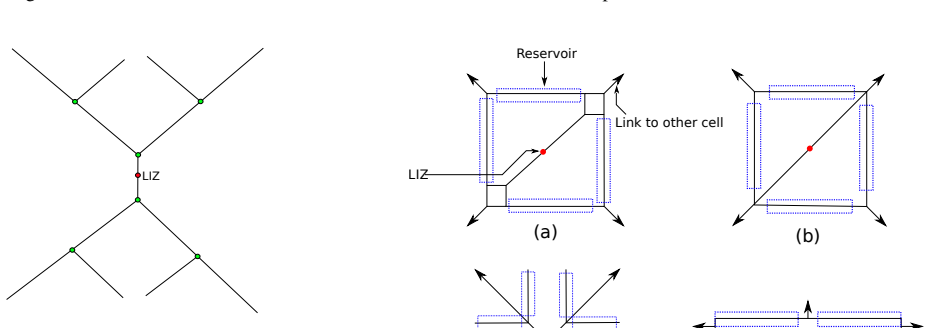

Figure 10. Figure 10: Tree architecture using Y-junctions [PITH_FULL_IMAGE:figures/full_fig_p008_10.png] view at source ↗
Figure 12

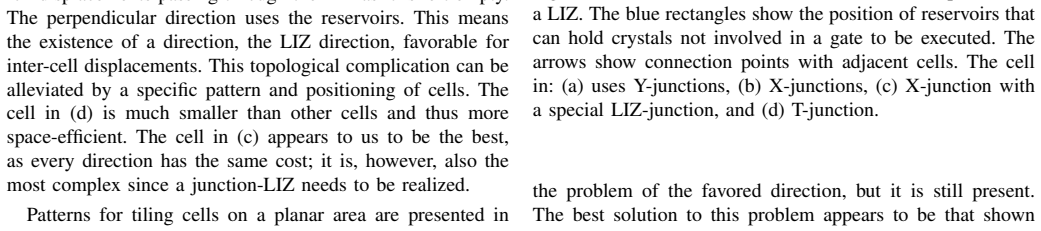

Figure 12. Figure 12: As (a) and (b) show, rotation and mirroring reduce [PITH_FULL_IMAGE:figures/full_fig_p008_12.png] view at source ↗
Figure 12

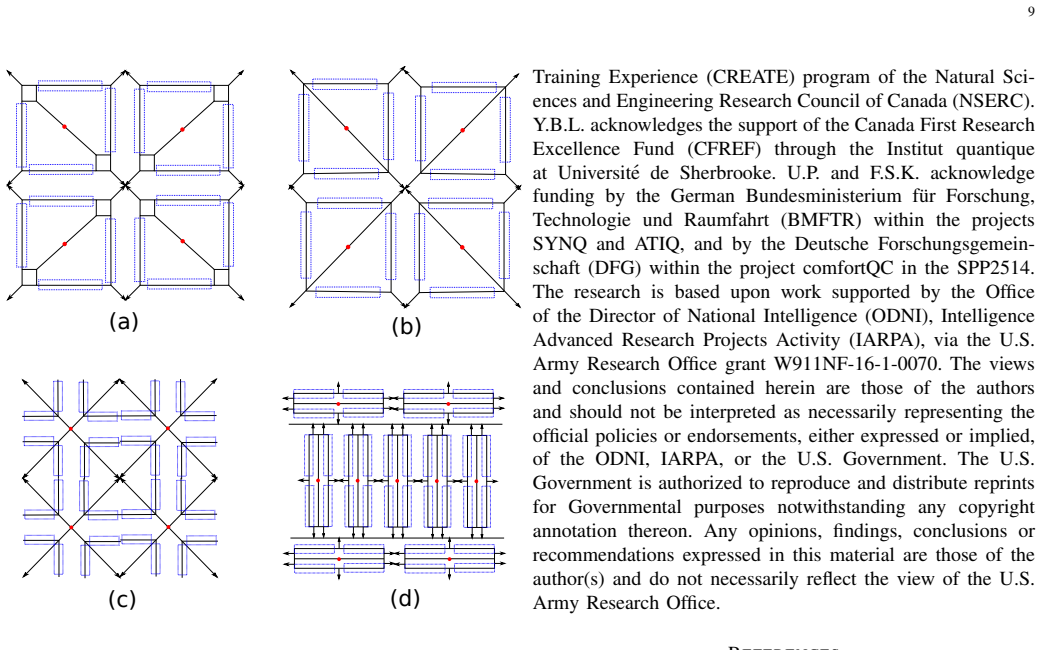

Figure 12. Figure 12: Tiling of the plane with cells. need to efficiently link the cell in two ways; (d) leads to a larger number of cells than the other patterns, but at the cost of more difficult shuttling. Each of the cells presented here has advantages and dis￾advantages. Their ease of fabrication may decide which cell might be used for future shuttled ion trap quantum computers. VIII. CONCLUSION In this paper, multiple ar… view at source ↗
