arxiv: 1907.05126 · v1 · pith:WSYE746Pnew · submitted 2019-07-11 · 📡 eess.SP

Approximate Message Passing for Indoor THz Channel Estimation

Viktoria Schram , Ali Bereyhi , Jan-Nico Zaech , Ralf R. M\"uller , Wolfgang H. Gerstacker This is my paper

Pith reviewed 2026-05-24 22:57 UTC · model grok-4.3

classification 📡 eess.SP
keywords THz channel estimationapproximate message passingcompressed sensingsparse channelsindoor THzhard-thresholding
0
0 comments X

The pith

Hard-thresholding approximate message passing closely approaches oracle performance for indoor THz channel estimation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper applies approximate message passing from compressed sensing to estimate channels in indoor THz communications. The long and approximately sparse character of the THz channel impulse response lets hard-thresholding AMP succeed without diverging, unlike in most other uses. Simulations show the approach outperforms earlier channel estimators and reaches near the performance of an oracle that already knows the sparsity pattern.

Core claim

THz channel estimation via hard-thresholding AMP outperforms all previously proposed methods and approaches the oracle based performance closely.

What carries the argument

Approximate message passing with hard-thresholding, an iterative algorithm that thresholds estimates to recover sparse vectors from underdetermined observations.

If this is right

  • Hard-thresholding AMP succeeds on THz channels thanks to their length and sparsity.
  • The method yields lower estimation error than previously published estimators.
  • Performance comes close to the theoretical limit of an oracle estimator with known support.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same hard-thresholding approach may work for channel estimation in other high-frequency bands whose impulse responses are long and sparse.
  • Better channel estimates could reduce pilot overhead and support higher rates in THz links.

Load-bearing premise

The discrete-time channel impulse response of a typical indoor THz channel is very long and exhibits an approximately sparse characteristic that prevents divergence of hard-thresholding AMP.

What would settle it

Apply hard-thresholding AMP to measured samples from a real indoor THz link and check whether the algorithm diverges or matches oracle error rates.

Figures

Figures reproduced from arXiv: 1907.05126 by Ali Bereyhi, Jan-Nico Zaech, Ralf R. M\"uller, Viktoria Schram, Wolfgang H. Gerstacker.

Figure 1
Figure 1. Figure 1: (a) Soft-thresholding function. (b) Hard-thresholding function. [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 3

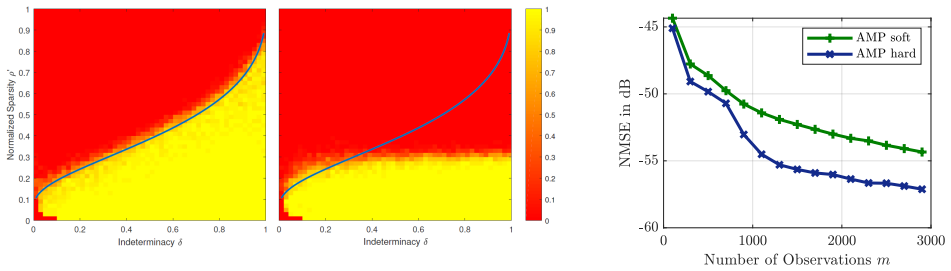

Figure 3. Figure 3: Empirical phase transition diagram for S-AMP (left), H-AMP (right) [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

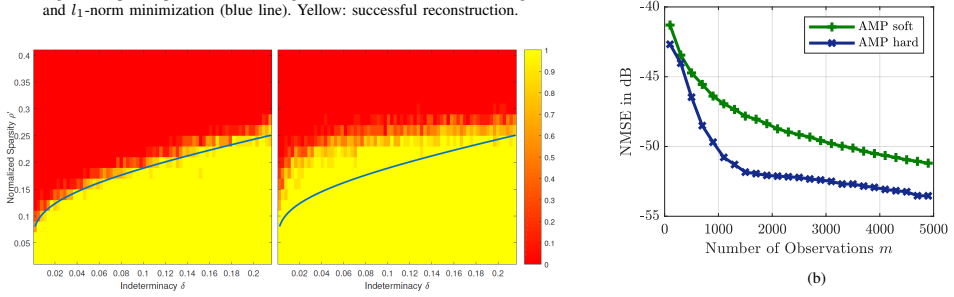

Figure 4. Figure 4: Empirical phase transition diagram for S-AMP (left), H-AMP [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 6
Figure 6. Figure 6: Performance of different schemes for subchannel estimation for the [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Performance of different schemes for subchannel estimation for the [PITH_FULL_IMAGE:figures/full_fig_p005_7.png] view at source ↗
read the original abstract

Compressed sensing (CS) deals with the problem of reconstructing a sparse vector from an under-determined set of observations. Approximate message passing (AMP) is a technique used in CS based on iterative thresholding and inspired by belief propagation in graphical models. Due to the high transmission rate and a high molecular absorption, spreading loss and reflection loss, the discrete-time channel impulse response (CIR) of a typical indoor THz channel is very long and exhibits an approximately sparse characteristic. In this paper, we develop AMP based channel estimation algorithms for indoor THz communications. The performance of these algorithms is compared to the state of the art. We apply AMP with soft- and hard-thresholding. Unlike the common applications in which AMP with hard-thresholding diverges, the properties of the THz channel favor this approach. It is shown that THz channel estimation via hard-thresholding AMP outperforms all previously proposed methods and approaches the oracle based performance closely.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript develops Approximate Message Passing (AMP) algorithms with soft- and hard-thresholding for estimating the discrete-time channel impulse response (CIR) in indoor THz communications. It argues that the long but approximately sparse nature of typical indoor THz CIRs allows hard-thresholding AMP to avoid the divergence seen in other settings, and reports that this approach outperforms previously proposed methods while approaching oracle performance.

Significance. If the empirical results are robust, the work would offer a low-complexity CS-based estimator well-suited to the high-rate, high-loss THz regime where long impulse responses make conventional methods inefficient. The identification of approximate sparsity as enabling hard-thresholding AMP is a useful observation for this application domain.

major comments (3)
  1. [Abstract] Abstract: the central claim that hard-thresholding AMP 'outperforms all previously proposed methods and approaches the oracle based performance closely' rests on the assertion that THz channel properties prevent divergence, yet no state-evolution analysis, RIP bound, or coherence condition on the pilot matrix is supplied to justify stability outside the simulated regimes.
  2. [Abstract] The manuscript states that the discrete-time THz CIR 'exhibits an approximately sparse characteristic' that favors hard-thresholding, but supplies no quantitative characterization of the effective sparsity ratio or its variation across indoor scenarios; without this, the outperformance claim cannot be assessed for generality.
  3. [Algorithm description] No section derives or cites sufficient conditions under which hard-thresholding AMP converges for the THz pilot matrix; this is load-bearing because the performance advantage is presented as following directly from the channel properties rather than from extensive tuning or special-case behavior.
minor comments (2)
  1. [Abstract] The abstract would be clearer if it specified the THz carrier frequency, bandwidth, and number of pilot measurements used in the comparisons.
  2. Notation for the sensing matrix and noise variance should be introduced consistently when first appearing in the system model.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive feedback. Our responses to the major comments are provided below. The work is primarily empirical and application-focused on indoor THz channels; we address the points by clarifying this scope while agreeing to revisions that improve clarity without altering the core contribution.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim that hard-thresholding AMP 'outperforms all previously proposed methods and approaches the oracle based performance closely' rests on the assertion that THz channel properties prevent divergence, yet no state-evolution analysis, RIP bound, or coherence condition on the pilot matrix is supplied to justify stability outside the simulated regimes.

    Authors: The central claims are supported by the simulation results in the manuscript, which use realistic indoor THz channel models. The manuscript does not include state-evolution analysis, RIP bounds, or coherence conditions, as the focus is on practical performance rather than general theoretical guarantees. We will revise the abstract to explicitly note that the observed stability and outperformance hold in the simulated regimes corresponding to typical indoor THz scenarios. revision: partial

  2. Referee: [Abstract] The manuscript states that the discrete-time THz CIR 'exhibits an approximately sparse characteristic' that favors hard-thresholding, but supplies no quantitative characterization of the effective sparsity ratio or its variation across indoor scenarios; without this, the outperformance claim cannot be assessed for generality.

    Authors: We agree that quantitative details on sparsity would strengthen the assessment of generality. The revised manuscript will include a characterization of the effective sparsity ratio (e.g., fraction of significant taps) and its variation, drawn from the indoor THz channel models used in the simulations. revision: yes

  3. Referee: [Algorithm description] No section derives or cites sufficient conditions under which hard-thresholding AMP converges for the THz pilot matrix; this is load-bearing because the performance advantage is presented as following directly from the channel properties rather than from extensive tuning or special-case behavior.

    Authors: The manuscript notes that the approximate sparsity of THz CIRs prevents the divergence typically seen with hard-thresholding AMP and supports this via simulations; it cites general AMP references but does not derive new convergence conditions for the THz pilot matrix. This is because the contribution centers on the application and empirical demonstration rather than new theory. We can add citations to existing literature on AMP behavior with approximately sparse signals. revision: partial

Circularity Check

0 steps flagged

No circularity: standard AMP applied to THz channels with external comparisons

full rationale

The paper applies known approximate message passing algorithms (soft- and hard-thresholding variants) to indoor THz channel estimation. Its claims rest on the channel's stated approximate sparsity favoring hard-thresholding (preventing usual divergence) and on performance comparisons to prior methods plus oracle baselines. No derivation chain reduces a result to its own inputs by construction, no fitted parameters are relabeled as predictions, and no load-bearing self-citations or uniqueness theorems appear. The work is self-contained against external benchmarks and simulations.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract provides no explicit free parameters, axioms, or invented entities beyond the stated approximate sparsity of the THz CIR; full paper would be needed to audit these.

pith-pipeline@v0.9.0 · 5700 in / 985 out tokens · 18482 ms · 2026-05-24T22:57:31.661464+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

26 extracted references · 26 canonical work pages · 1 internal anchor

  1. [1]

    Terahertz communication: The opportunities of wireless technology beyond 5G,

    H. Elayan, O. Amin, R. M. Shubair, and M.-S. Alouini, “Terahertz communication: The opportunities of wireless technology beyond 5G,” in Proceedings of IEEE International Conference on Advanced Commu- nication Technologies and Networking (CommNet) , 2018, pp. 1–5

    work page 2018

  2. [2]

    EC THz research projects,

    Terranova, “EC THz research projects,” https://ict-terranova.eu/project/ ec-thz-research-projects/, Accessed: April 2019, 2019

    work page 2019

  3. [3]

    LOS and NLOS channel modeling for Terahertz wireless communication with scattered rays,

    A. Moldovan, M. Ruder, I. Akyildiz, and W. Gerstacker, “LOS and NLOS channel modeling for Terahertz wireless communication with scattered rays,” in Proceedings of Globecom 2014 Workshop - Mobile Communications in Higher Frequency Bands , 2014, pp. 388 – 392

    work page 2014

  4. [4]

    Data rate maximization for Terahertz communication systems using finite alphabets,

    A. Moldovan, S. Kisseleff, I. F. Akyildiz, and W. H. Gerstacker, “Data rate maximization for Terahertz communication systems using finite alphabets,” in Proceedings of IEEE International Conference on Communications (ICC) , 2016, pp. 1–7

    work page 2016

  5. [5]

    Analysis of THz communications in the finite blocklength regime,

    V . Schram and W. Gerstacker, “Analysis of THz communications in the finite blocklength regime,” in Proceedings of IEEE International Workshop on Signal Processing Advances in Wireless Communications , 2019

    work page 2019

  6. [6]

    Terahertz band: Next frontier for wireless communications,

    I. Akyildiz, J. Jornet, and C. Han, “Terahertz band: Next frontier for wireless communications,” Physical Communication , vol. 12, pp. 16– 32, 2014

    work page 2014

  7. [7]

    Channel modeling and capacity analysis for electromagnetic wireless nanonetworks in the Terahertz band,

    J. Jornet and I. Akyildiz, “Channel modeling and capacity analysis for electromagnetic wireless nanonetworks in the Terahertz band,” IEEE Transactions on Wireless Communications , vol. 10, no. 10, pp. 3211– 3221, 2011

    work page 2011

  8. [8]

    Teranets: Ultra-broadband communication networks in the terahertz band,

    I. F. Akyildiz, J. M. Jornet, and C. Han, “Teranets: Ultra-broadband communication networks in the terahertz band,” Transactions on IEEE Wireless Communications, vol. 21, no. 4, pp. 130–135, 2014

    work page 2014

  9. [9]

    Compressed sensing for indoor THz channel estimation,

    V . Schram, A. Moldovan, and W. Gerstacker, “Compressed sensing for indoor THz channel estimation,” in Proceedings of IEEE 52nd Asilomar Conference on Signals, Systems, and Computers , 2018

    work page 2018

  10. [10]

    Regression shrinkage and selection via the LASSO,

    R. Tibshirani, “Regression shrinkage and selection via the LASSO,” Journal of the Royal Statistical Society: Series B (Methodological) , vol. 58, no. 1, pp. 267–288, 1996

    work page 1996

  11. [11]

    Atomic decomposition by basis pursuit,

    S. S. Chen, D. L. Donoho, and M. A. Saunders, “Atomic decomposition by basis pursuit,” SIAM review, vol. 43, no. 1, pp. 129–159, 2001

    work page 2001

  12. [12]

    Message-passing algo- rithms for compressed sensing,

    D. L. Donoho, A. Maleki, and A. Montanari, “Message-passing algo- rithms for compressed sensing,” Proceedings of the National Academy of Sciences , vol. 106, no. 45, pp. 18 914–18 919, 2009

    work page 2009

  13. [13]

    Hard thresholding pursuit: an algorithm for compressive sensing,

    S. Foucart, “Hard thresholding pursuit: an algorithm for compressive sensing,” Journal on Numerical Analysis , pp. 2543–2563, 2011

    work page 2011

  14. [14]

    Optimally tuned iterative reconstruction algorithms for compressed sensing,

    A. Maleki and D. L. Donoho, “Optimally tuned iterative reconstruction algorithms for compressed sensing,” Journal of Selected Topics in Signal Processing, pp. 330–341, 2010

    work page 2010

  15. [15]

    Generalized approximate message passing for estimation with random linear mixing,

    S. Rangan, “Generalized approximate message passing for estimation with random linear mixing,” in Proceedings of IEEE International Symposium on Information Theory (ISIT) , 2011, pp. 2168–2172

    work page 2011

  16. [16]

    Vector approximate message passing,

    S. Rangan, P. Schniter, and A. K. Fletcher, “Vector approximate message passing,” in Proceedings of IEEE International Symposium on Informa- tion Theory (ISIT) , 2017, pp. 1588–1592

    work page 2017

  17. [17]

    Joint channel-estimation and equaliza- tion of single-carrier systems via bilinear AMP,

    P. Sun, Z. Wang, and P. Schniter, “Joint channel-estimation and equaliza- tion of single-carrier systems via bilinear AMP,” Transactions on Signal Processing, vol. 66, no. 10, pp. 2772–2785, 2018

    work page 2018

  18. [18]

    One-bit quantized massive MIMO detection based on variational approximate message passing,

    Z. Zhang, X. Cai, C. Li, C.and Zhong, and H. Dai, “One-bit quantized massive MIMO detection based on variational approximate message passing,” IEEE Transactions on Signal Processing , vol. 66, no. 9, pp. 2358–2373, 2018

    work page 2018

  19. [19]

    AMP-inspired deep net- works for sparse linear inverse problems,

    M. Borgerding, P. Schniter, and S. Rangan, “AMP-inspired deep net- works for sparse linear inverse problems,” Transactions on Signal Processing, vol. 65, no. 16, pp. 4293–4308, 2017

    work page 2017

  20. [20]

    New information processing theory and methods for exploiting sparsity in wireless systems,

    W. U. Bajwa, “New information processing theory and methods for exploiting sparsity in wireless systems,” Ph.D. dissertation, University of Wisconsin–Madison, 2009

    work page 2009

  21. [21]

    Optimally Tuned Iterative Reconstruction Algorithms for Compressed Sensing

    A. Maleki and D. L. Donoho, “Optimally tuned iterative reconstruction algorithms for compressed sensing,” arXiv preprint arXiv:0909.0777 , 2009

    work page internal anchor Pith review Pith/arXiv arXiv 2009

  22. [22]

    From denoising to compressed sensing,

    C. A. Metzler, A. Maleki, and R. G. Baraniuk, “From denoising to compressed sensing,” in Transactions on IEEE Information Theory , vol. 62, no. 9, 2016, pp. 5117–5144

    work page 2016

  23. [23]

    Iterative hard thresh- olding and l0 regularisation,

    T. Blumensath, M. Yaghoobi, and M. E. Davies, “Iterative hard thresh- olding and l0 regularisation,” in Proceedings of IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP) , vol. 3, 2007, pp. III–877

    work page 2007

  24. [24]

    A mathematical introduction to compressive sensing,

    S. Foucart and H. Rauhut, “A mathematical introduction to compressive sensing,” Bull. Am. Math , vol. 54, pp. 151–165, 2017

    work page 2017

  25. [25]

    An overview of inverse problem regular- ization using sparsity,

    J.-L. Starck and M.-J. Fadili, “An overview of inverse problem regular- ization using sparsity,” in Proceedings of IEEE International Conference on Image Processing (ICIP) , 2009, pp. 1453–1456

    work page 2009

  26. [26]

    Phase transistions of the regular polytopes and cone,

    J. Tanner, “Phase transistions of the regular polytopes and cone,” Oxford University - Mathematics Institute , 2012

    work page 2012
