RaCalNet: Radar Calibration Network for Sparse-Supervised Metric Depth Estimation

T0 review · 3 major / 5 minor · reviewed 2026-08-06 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read A two-module network turns sparse, noisy radar points into metric anchors, letting sparse LiDAR supervision replace dense LiDAR supervision in radar-camera depth estimation.

desk verdict The core idea—sparse-supervised radar recalibration plus monocular metric alignment—is worth taking seriously, but the paper's headline numbers don't survive arithmetic, and the only clean public-benchmark win rests on an undisclosed, unreleased ground-truth correction. read the letter →

arxiv 2506.15560 v2 pith:X2DAA4ZW submitted 2025-06-18 cs.CV cs.RO

Xingrui Qin , Wentao Zhao , Chuan Cao , Yihe Niu , Tianchen Deng , Houcheng Jiang , Rui Guo , Jingchuan Wang This is my paper · ORCID
classification cs.CVcs.RO
keywords 4DradardensedepthestimationsparseLiDARsupervisionradar-camerafusionmetricalignmentcross-modalattentionaffineinverse-depthcalibrationmonocular
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

RaCalNet claims that dense LiDAR supervision—the standard fuel for radar-camera depth estimation—can be replaced by sparse LiDAR at about 1% of the point density, without losing metric accuracy. The paper's route is two-stage: first a cross-modal attention network screens raw radar points for reliability and refines their pixel projections, trained with single-frame sparse LiDAR; then a metric depth optimizer solves for the affine map between a frozen monocular network's inverse depth and the true inverse depth, globally and per cluster, turning the refined radar points into metric anchors. On the ZJU-4DRadarCam benchmark the paper reports state-of-the-art RMSE once the dataset's misaligned ground truth is corrected, and on a proprietary real-world platform it reports RMSE reductions of 40–46% against the dense-supervised Radarcam baseline. If true, this cuts the cost and complexity of radar depth training and avoids the geometric artifacts that come from accumulating and interpolating many LiDAR frames.

What carries the argument

The load-bearing object is the affine relationship in inverse-depth space between the frozen monocular network's prediction $\hat{d}_m$ and the metric depth $d_{\mathrm{radar}}$ of a refined radar anchor: $\frac{1}{d_{\mathrm{radar}}} = \alpha \hat{d}_m + \beta$. The Metric Depth Optimization module solves this globally by regularized least squares, then refits $(\alpha_c, \beta_c)$ independently inside each K-means cluster of pixels (clustered by normalized image coordinates and log depth), and finally applies edge-aware Gaussian smoothing outside depth-discontinuity masks. This alignment machinery does the actual work of converting relative monocular depth into metric depth. The Radar Recalibration module is the other half: it supplies the anchors by learning per-point confidence and pixel displacement with cross-modal self/cross-attention between radar features and image patches, supervised by single-frame sparse LiDAR.

What would settle it

Render or capture a test scene with wide depth variation concentrated in a single K-means cluster (e.g., a long corridor seen at an angle), run the metric depth optimization with and without per-cluster affine fitting, and measure whether the cluster-wise residual error follows the affine model; if residuals are systematically biased by depth, the affine assumption fails.

Watch

Extended reading notes

Core claim

On its own terms, the paper's central discovery is that noise and misprojection in 4D radar points are learnable, and that once learned, the cleaned radar points are sufficient to put metric scale on an otherwise scale-ambiguous monocular depth network. The Radar Recalibration module outputs, for each projected radar point, a confidence score and a 2D displacement, trained against sparse LiDAR via binary cross-entropy and smooth L1 losses; points below a confidence threshold are discarded. The Metric Depth Optimization module then takes the surviving points and solves $1/d_{\mathrm{radar}} = \alpha \hat{d}_m + \beta$ by regularized least squares, filters unreliable monocular predictions by a searched inverse-depth threshold, refits the affine map per K-means cluster, and smooths non-edge regions. With this pipeline the paper reports RMSE reductions of 35.08%, 29.12%, and 27.27% over the strongest baseline on the corrected ZJU-4DRadarCam test split at 50m/70m/80m, and reductions of 46.24%, 43.42%, and 40.06% on its real-world campus dataset, all while using roughly 1% of the LiDAR supervision density of the dense-supervised comparison.

Load-bearing premise

The affine-inverse-depth assumption: the frozen monocular network's inverse depth is assumed to be linearly related to true metric inverse depth, both across the whole image and within each cluster; if the network's errors are not affine, the least-squares alignment will bias the predicted metric depth.

Editorial extensions

If this is right

  • Radar-camera depth estimation can be trained with single-frame sparse LiDAR, cutting supervision density to roughly 1% and removing the need for multi-frame LiDAR accumulation and interpolation.
  • Refined radar anchors convert any frozen monocular inverse-depth network into metric depth through test-time optimization, so metric accuracy can be added to relative-depth models without retraining them.
  • The radar recalibration transfers across different radar and LiDAR hardware, as demonstrated by the move from the ZJU platform to the proprietary ZF FRGen21 platform.
  • Depth maps with accurate scale improve downstream 3D reconstruction quality compared to dense-supervised depth, as shown with the FrozenRecon reconstruction framework.
  • On 3D radar data lacking elevation information the method is not directly applicable, but the paper notes that elevation inference and multi-view consistency could extend it to such sensors.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The global-plus-cluster affine alignment is a generic calibration recipe: any scale-ambiguous depth network could be metrically grounded by the same two-step least-squares routine given sparse metric anchors, not just radar ones (e.g., sparse LiDAR, ToF, or visual-inertial points).
  • The cluster-wise affine refinement effectively fits a piecewise-linear model to the monocular network's error surface; performance could degrade in scenes with very few valid radar points, an edge case the paper does not stress-test.
  • The ZJU ground-truth correction implies that published comparisons on that dataset may have been distorted by extrinsic misalignment; if the correction becomes standard, existing baseline numbers could shift, altering leaderboards on that benchmark.
  • A testable extension is to feed the learned confidence and displacement heads with raw radar from a third sensor type and measure whether recalibration transfers without retraining, which would reveal whether the model learns radar-specific artifacts or generic misprojection patterns.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. RaCalNet proposes a radar-camera depth estimation framework that avoids dense LiDAR supervision. A Radar Recalibration module, trained with sparse single-frame LiDAR, predicts per-point confidence scores and pixel displacements for raw 4D radar projections, producing refined sparse depth anchors. A Metric Depth Optimization module then aligns frozen monocular inverse-depth predictions to these anchors via global affine least squares, K-means cluster-wise affine refinement, and edge-aware smoothing. The paper reports state-of-the-art results on the ZJU-4DRadarCam dataset after correcting its ground-truth extrinsics, and large RMSE reductions on a proprietary real-world dataset, alongside ablations and a downstream 3D reconstruction demonstration.

Significance. If substantiated, the sparse-supervision result would be practically significant: reducing supervision density to roughly 1% of dense LiDAR methods while retaining metric accuracy could lower data collection cost for radar-camera depth estimation. The modular design, with sparse LiDAR supervising radar recalibration rather than depth directly, is a reasonable and interesting idea, and the ablation study in Table IV gives some evidence that both screening and displacement refinement contribute. However, the reported quantitative evidence is internally inconsistent, and the public-dataset superiority depends on an under-specified, unreleased ground-truth correction, which prevents verification of the central claims.

major comments (3)
  1. [Section IV-C, IV-D, Abstract] The reported RMSE reductions are not consistent with the tables. In Section IV-C the text claims reductions of 35.08%, 29.12%, and 27.27% at 50m, 70m, and 80m, but Table II yields (1 - 2137.652/3408.806) = 37.3%, (1 - 2358.958/3719.426) = 36.6%, and (1 - 2479.008/3831.740) = 35.3%. In Section IV-D the text claims 46.24%, 43.42%, and 40.06%, but Table III gives 38.8% (50m), 36.4% (70m), and 34.9% (80m). The abstract's 34.89% figure matches only the 80m row of Table III, not the text. Because these percentages are the headline quantitative contribution, this discrepancy undermines the paper's central claim.
  2. [Section IV-C, Table I, Fig. 4] The claimed state-of-the-art result on ZJU depends entirely on a ground-truth correction that is not adequately specified or released. On the original evaluation (Table I), RaCalNet has lower RMSE and SqRel than Radarcam but worse MAE, AbsRel, and δ1; it is not clearly superior. The corrected evaluation (Table II) appears only after "optimizing the extrinsic parameters and reprojecting the LiDAR data," with no objective function, no initialization, no details of which extrinsics were adjusted, and no release of the corrected ground truth. Since the paper's public-benchmark advantage is not reproducible without this correction, the evidence cannot be independently checked.
  3. [Section III-B, Eqs. (11) and (14)] The Metric Depth Optimization module assumes that the frozen monocular network's inverse depth is related to true metric inverse depth by an affine transformation, both globally in Eq. (11) and per cluster in Eq. (14). This is a load-bearing assumption: if the monocular model has non-affine inverse-depth errors, the least-squares fits will be biased, and the bias will propagate into the final metric depth. The paper does not test this assumption separately, for example by comparing fitted residuals on held-out radar points against a more flexible calibration model, so the robustness of the core optimization step is unverified.
minor comments (5)
  1. [Section IV-C, Fig. 5] The text says "Fig. 5 presents visual comparisons organized in five rows," but the figure caption and displayed content show three rows: input images, depth estimations, and error maps.
  2. [References] Reference [34] contains a typo: "PProceedings of the IEEE Conference" should be "Proceedings of the IEEE Conference."
  3. [Throughout] The baseline name is inconsistently spelled as both "Radarcam" and "RadarCam"; the paper should use one consistent form.
  4. [Algorithm 1] The cluster-count heuristic uses the symbol Nvalid, but Nvalid is not defined in Algorithm 1 or the surrounding text; it should be defined explicitly (the reader can infer it is the number of valid radar points, but this should be stated).
  5. [Section IV-C] The phrase "the strongest-performing baseline" is ambiguous in the corrected-dataset comparison, and the name "DPT+Var+RC-Net" for Radarcam is introduced without definition or reference to a specific configuration.

Circularity Check

0 steps flagged · score 1.0 of 10

No significant circularity: RaCalNet's sparse-supervised pipeline is evaluated against held-out LiDAR ground truth, and the reported reductions do not reduce to fitted parameters by construction.

full rationale

RaCalNet's derivation chain is self-contained with respect to circularity. The Radar Recalibration module is trained on projected sparse LiDAR labels (Eqs. 4-10) and evaluated on held-out frames; the Metric Depth Optimization (Eqs. 11-14, Algorithm 1) fits an affine transform of a frozen monocular inverse-depth map to raw or refined radar measurements at test time, which is a standard sparse-metric-anchor alignment rather than a renamed fit of the evaluation label. The only sense in which the output is forced to the input is that the aligned depth equals radar depth at radar-projected pixels, but the reported RMSE is computed against LiDAR ground truth over all valid pixels, so the central benchmark result is not the fit by construction. The paper's few self-citations ([24]-[26], [32]-[33]) appear only in related-work or motivation contexts and do not carry the load of any theorem or result. The post-hoc correction of the ZJU ground truth and the mismatch between the claimed RMSE reductions (e.g., 35.08%, 29.12%, 27.27% in Section IV-C) and recomputations from Table II are serious reproducibility and correctness concerns, but they are not circularity: the corrected benchmark is external to the method's equations. No load-bearing step reduces to its own input, so no circular step is flagged.

Assumptions & free parameters 7 free parameters · 5 assumptions · 0 invented entities

The central method rests on four domain assumptions (affine monocular depth, accurate LiDAR projection, reliable radar anchors, and a reliable frozen backbone) plus one paper-specific assumption about the corrected ZJU ground truth. These are typical for learned depth estimation but the corrected-GT assumption is uniquely fragile because it was introduced after the initial benchmark did not favor the method.

free parameters (7)
  • confidence threshold τ (Eq. 3) = not reported
    Used in Eq. (3) to discard radar points with low predicted confidence; affects the number of anchors and hence the optimization. No value is given in the paper.
  • depth consistency threshold τ(p) (Eq. 5) = 0.5 m / 0.75 m / 1.0 m by range bands
    Hand-chosen thresholds used to assign confidence and displacement labels during training.
  • minimum LiDAR count η (Eq. 4) = 3
    Hand-chosen count for a radar point to receive a positive confidence label.
  • sliding window sizes h×w and h*×w* = not reported
    Used to compute displacement labels in Section III-A.3; sizes are not specified in the text.
  • regularization weight λ (Eq. 11) = not reported
    Regularizes the global affine alignment; no value given.
  • edge mask threshold τ (Algorithm 1) = not reported
    Threshold on Sobel gradient magnitude to define edge regions; no value given.
  • cluster count heuristic (Algorithm 1) = k = min(8, max(2, floor(Nvalid/500)))
    Hand-chosen rule for the number of K-means clusters; affects the local refinement granularity.
assumptions (5)
  • domain assumption The frozen monocular inverse depth is affine-related to metric inverse depth, globally and per cluster.
    Equation (11) and Algorithm 1 solve for a global affine transform and per-cluster affine transforms; if the monocular model's inverse depth deviates non-affinely, the alignment is biased.
  • domain assumption Sparse single-frame LiDAR projections provide accurate metric ground truth for training the recalibration module.
    The confidence and displacement labels in Eqs. (4)-(8) are derived from projected LiDAR depths; errors in LiDAR projection propagate into the labels.
  • ad hoc to paper The optimized extrinsic parameters and reprojected LiDAR are the true alignment for ZJU-4DRadarCam.
    Introduced in Section IV-C after the initial evaluation was unfavorable; the correction is not fully described and is essential to the claimed ZJU improvements.
  • domain assumption Radar points that pass the confidence threshold and receive displacement correction are reliable metric anchors.
    The Metric Depth Optimization module treats refined radar points as accurate anchors; if screening or displacement fails, the downstream alignment is degraded.
  • domain assumption Video Depth Anything (frozen) provides a structurally reliable scale-ambiguous inverse depth.
    Used in Section III-B as the frozen monocular backbone; its reliability is assumed and not tested on the target datasets.

how reviews work

0 comments
Cite this review

Pith. "Pith review of RaCalNet: Radar Calibration Network for Sparse-Supervised Metric Depth Estimation." pith.science (2026). https://pith.science/paper/X2DAA4ZW

@misc{pith2026250615560,
  author       = {Pith},
  title        = {Pith review of: RaCalNet: Radar Calibration Network for Sparse-Supervised Metric Depth Estimation},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/X2DAA4ZW}},
  note         = {Machine review of arXiv:2506.15560}
}
read the original abstract

Dense depth estimation using millimeter-wave radar typically requires dense LiDAR supervision, generated via multi-frame projection and interpolation, for guiding the learning of accurate depth from sparse radar measurements and RGB images. However, this paradigm is both costly and data-intensive. To address this, we propose RaCalNet, a novel framework that eliminates the need for dense supervision by using sparse LiDAR to supervise the learning of refined radar measurements, resulting in a supervision density of merely around 1\% compared to dense-supervised methods. RaCalNet is composed of two key modules. The Radar Recalibration module performs radar point screening and pixel-wise displacement refinement, producing accurate and reliable depth priors from sparse radar inputs. These priors are then used by the Metric Depth Optimization module, which learns to infer scene-level scale priors and fuses them with monocular depth predictions to achieve metrically accurate outputs. This modular design enhances structural consistency and preserves fine-grained geometric details. Despite relying solely on sparse supervision, RaCalNet produces depth maps with clear object contours and fine-grained textures, demonstrating superior visual quality compared to state-of-the-art dense-supervised methods. Quantitatively, it achieves performance comparable to existing methods on the ZJU-4DRadarCam dataset and yields a 34.89\% RMSE reduction in real-world deployment scenarios. We plan to gradually release the code and models in the future at https://github.com/818slam/RaCalNet.git.

Figures

Figures reproduced from arXiv: 2506.15560 by the authors.

Figure 1
Figure 1. Comparison of depth estimation: (a) Image input; (b) Radar input [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Overview of our proposed RaCalNet framework. The system consists of two main components: (i) a Radar Recalibration module, which performs radar [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 4
Figure 4. Visualization of depth inaccuracies in the ZJU-4DRadarCam dataset. [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figures from the paper (3 more)
Figure 5
Figure 5. Figure 5: Experimental results for ZJU-4DRadarCam (from top to bottom): [PITH_FULL_IMAGE:figures/full_fig_p007_5.png]
Figure 6
Figure 6. Figure 6: Experimental results for proprietary real-world data (from top to bottom): (a) Input image, (b) Radarcam’s and our RaCalNet depth estimations, (c) [PITH_FULL_IMAGE:figures/full_fig_p008_6.png]
Figure 7

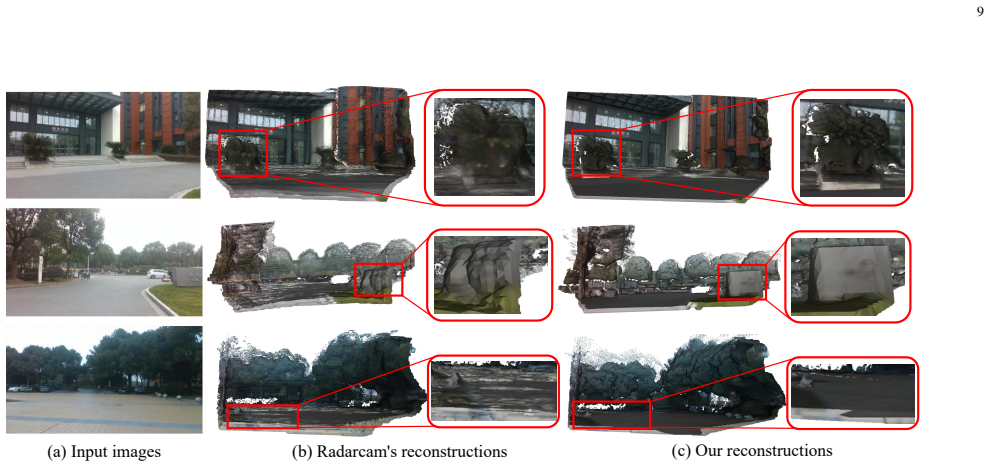

Figure 7. Figure 7: Qualitative comparison of 3D scene reconstruction results. (a) Input monocular RGB images. (b) Reconstructions using depth predicted by Radarcam, [PITH_FULL_IMAGE:figures/full_fig_p009_7.png]
