Si-incorporated amorphous indium oxide thin-film transistors

Shinya Aikawa , Toshihide Nabatame , Kazuhito Tsukagoshi This is my paper

Pith reviewed 2026-05-25 18:40 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords amorphous indium oxidesilicon incorporationthin-film transistorsoxygen vacanciesbias stress stabilityactivation energydensity of statesMeyer-Neldel rule
0
0 comments X

The pith

Incorporating silicon into amorphous indium oxide reduces trap density at high concentrations, enabling stable thin-film transistor operation under bias stress.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This review examines silicon as a dopant in amorphous indium oxide thin-film transistors to control oxygen vacancies. Silicon is selected for its stronger oxygen binding compared to indium, which helps maintain semiconducting behavior by reducing unstable vacancies. At high silicon concentrations, both activation energy and density of states decrease, pointing to lower trap density. This change supports stable transistor performance when bias stresses are applied and produces an inverse Meyer-Neldel rule consistent with good ohmic contacts. The work also shows a bilayer device with a homogeneous stacked channel that achieves high mobility alongside the improved stability.

Core claim

The central claim is that Si incorporation in amorphous InOx suppresses oxygen vacancies due to favorable bond energies, and that high Si concentrations reduce the activation energy and density of states, thereby decreasing trap density and allowing stable TFT operation under bias stresses, as evidenced by the inverse Meyer-Neldel rule indicating suitable ohmic contacts. A high-mobility bilayer TFT with homogeneous stacked channel further demonstrates the approach.

What carries the argument

Si selected as oxygen binder via bond-dissociation energy and Gibbs free energy to suppress unstable oxygen vacancies in the InOx TFT channel.

If this is right

  • Activation energy and density of states decrease at high Si concentrations.
  • Trap density is reduced in the TFT channel.
  • Stable operation is realized under bias stresses.
  • Inverse Meyer-Neldel rule appears, indicating reasonable ohmic contact.
  • High-mobility bilayer TFT with homogeneous stacked channel is achieved.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Selecting dopants by thermodynamic binding strength could apply to vacancy control in other amorphous oxide semiconductors.
  • The homogeneous stacked-channel design may simplify device fabrication compared to etch-stop-layer structures.
  • Varying Si concentration offers a controlled system for testing models of carrier transport in disordered oxides.
  • The vacancy-engineering approach could extend to improving long-term reliability in oxide-based electronics.

Load-bearing premise

That silicon binds oxygen more strongly than indium based on bond-dissociation energy and Gibbs free energy, allowing it to suppress unstable oxygen vacancies.

What would settle it

Measurement showing no reduction in activation energy or density of states at high Si concentrations, or continued bias-stress instability in high-Si InOx TFTs.

Figures

Figures reproduced from arXiv: 1906.09366 by Kazuhito Tsukagoshi, Shinya Aikawa, Toshihide Nabatame.

Figure 2

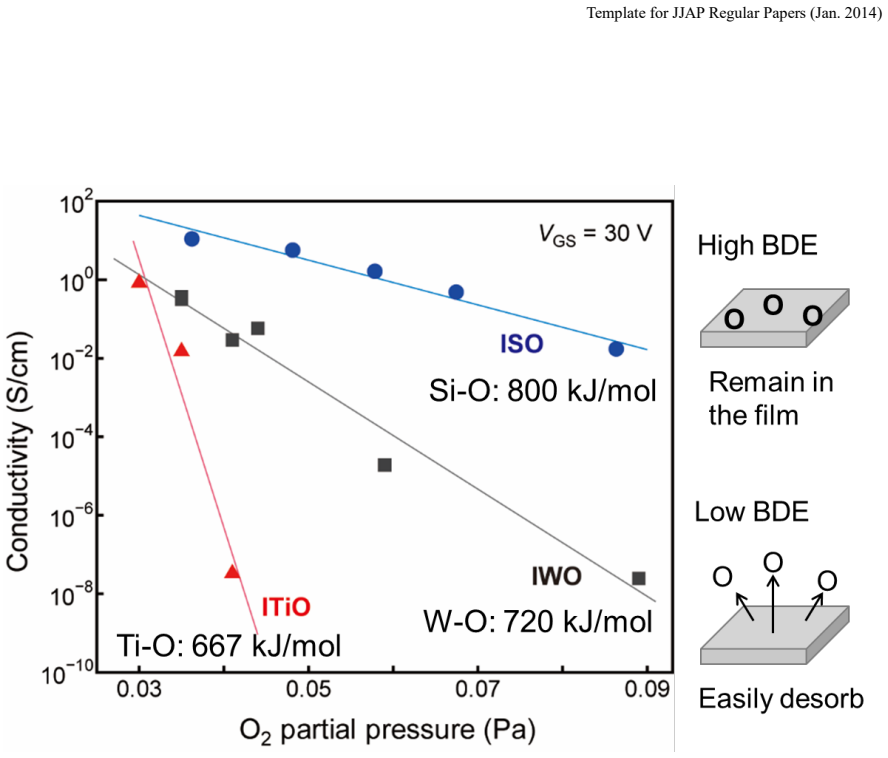

Figure 2. Figure 2: Electrical conductivity of as-deposited films as a function of the oxygen partial pressure used during sputtering. The film conductivity was extracted from the linear region of the output characteristics at VGS = 30 V. The inset shows schematic images of the films doped with high and low BDE, which is related to the change in the conductivity. Adapted with permission from Ref. 18. Copyright 2013. AIP Publi… view at source ↗

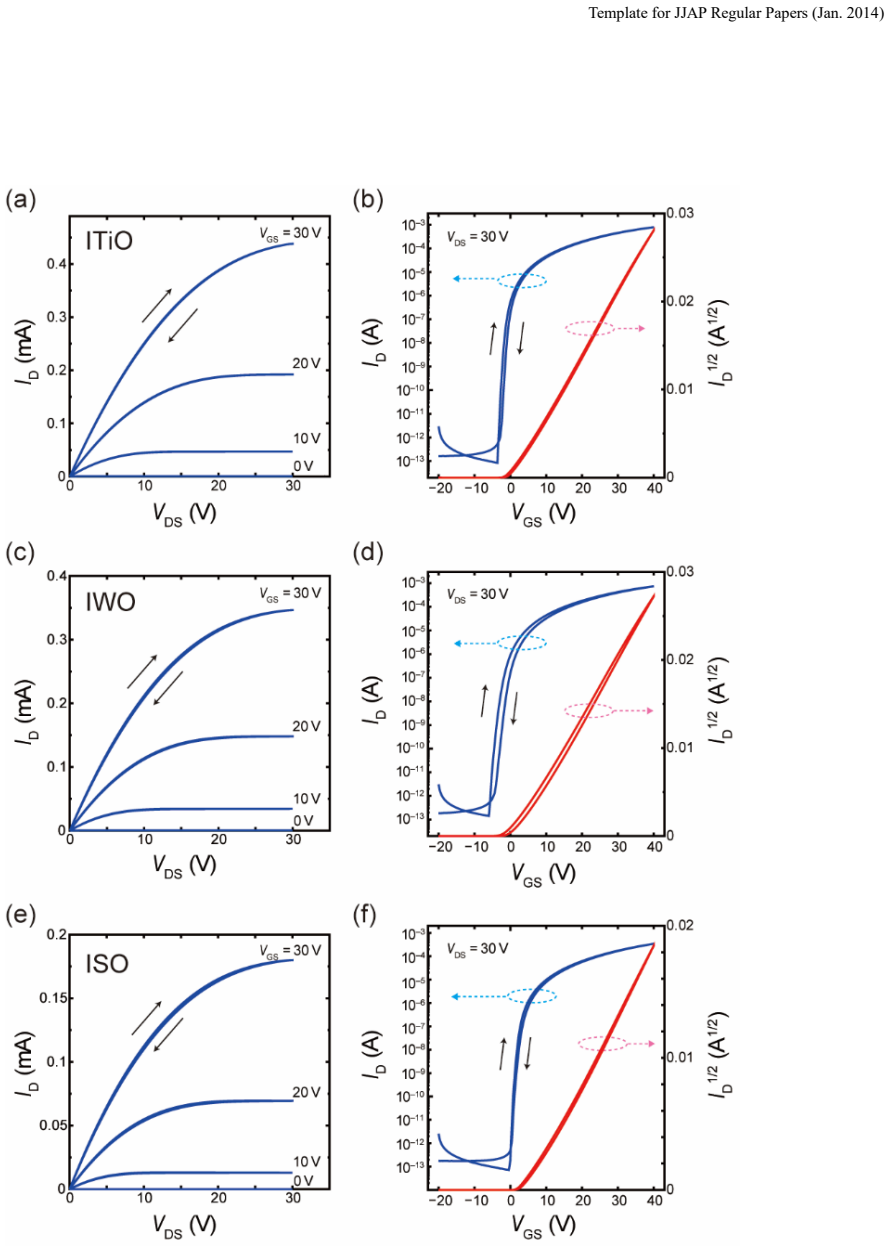

Figure 3
Figure 3. Figure 3: Typical output and transfer characteristics of fabricated TFTs: (a, b) ITiO, (c, d) IWO, and (e, f) ISO. The devices were annealed at 150 °C in air. The TFTs were measured at room temperature in the dark under ambient atmosphere. The TFT dimensions include a channel length L of 350 μm, a channel width W of 1000 μm, and a gate capacitance per unit area Ci of 1.21×10−8 F/cm2 (based on a dielectric constant o… view at source ↗

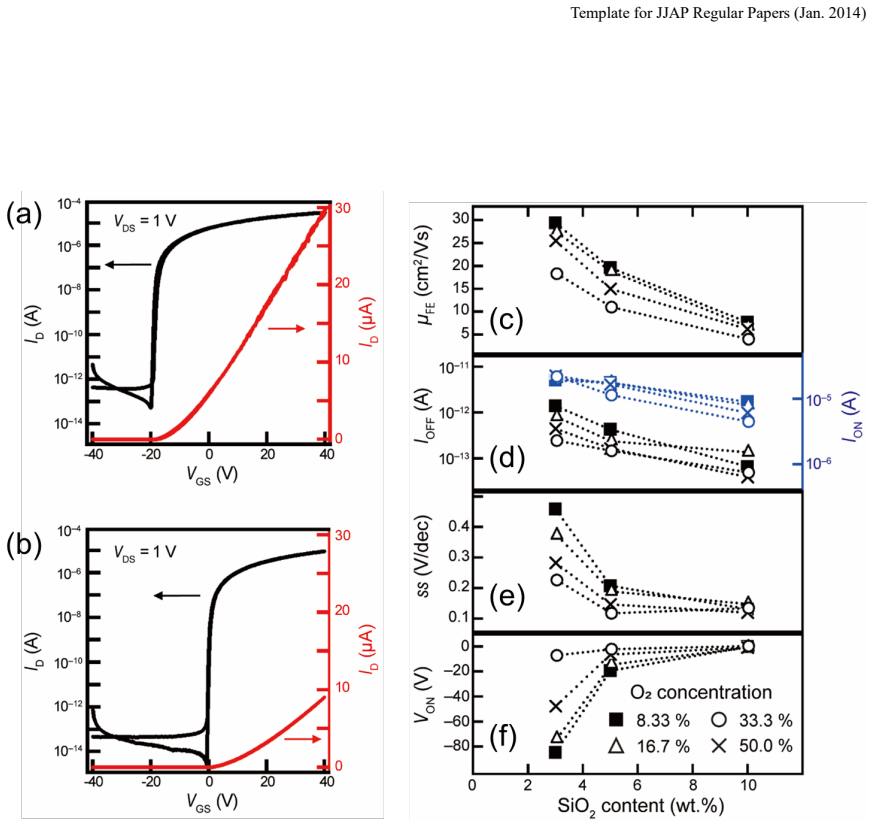

Figure 4
Figure 4. Figure 4: Typical transfer characteristics of the ISO-3 (a) and ISO-10 (b) TFTs. Electrical properties of ISO TFTs over various SiO2 contents and oxygen partial pressures during [PITH_FULL_IMAGE:figures/full_fig_p024_4.png] view at source ↗
Figure 5

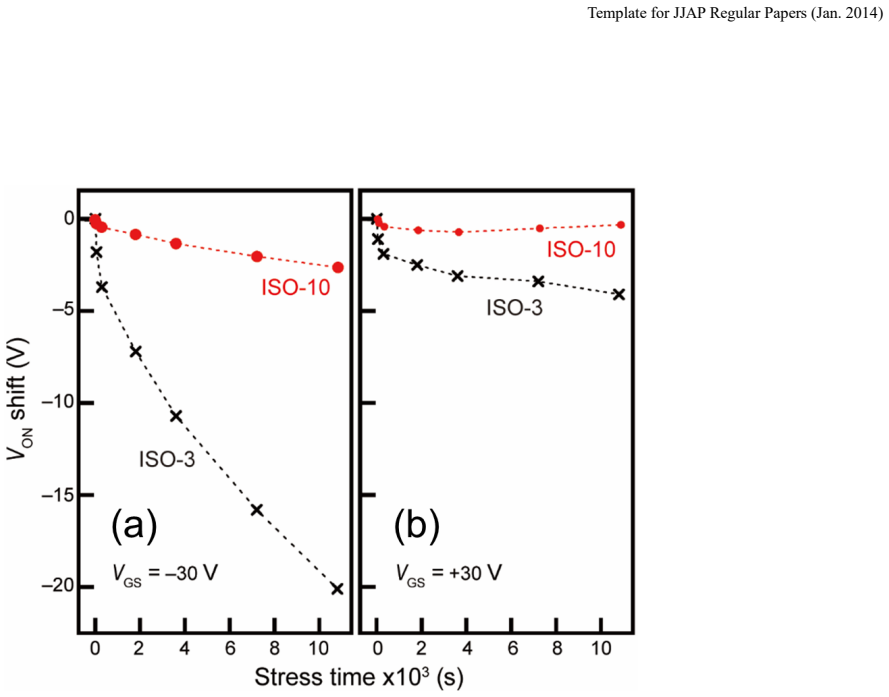

Figure 5. Figure 5: Comparison of VON shift when applying negative (a) and positive (b) gate biases for ISO-3 and ISO-10 TFTs. The dotted lines are guides for the eyes. Adapted with permission from Ref. 19. Copyright 2014. AIP Publishing LLC [PITH_FULL_IMAGE:figures/full_fig_p025_5.png] view at source ↗

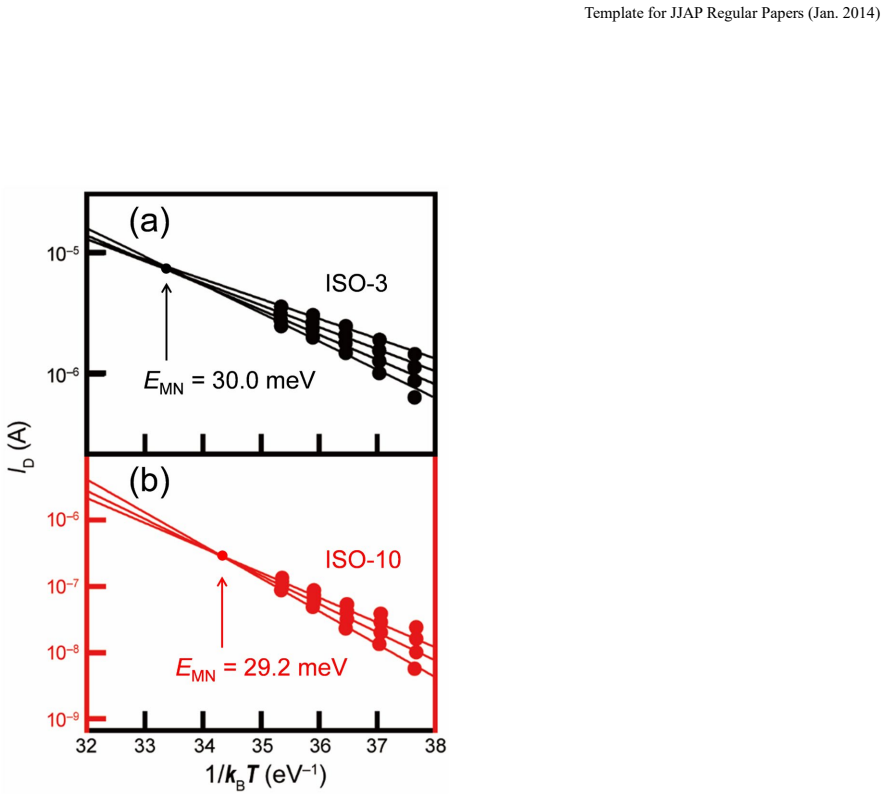

Figure 6
Figure 6. Figure 6: Temperature dependence of ID at various VGS for (a) ISO-3 and (b) ISO-10 at VDS = 1 V. The closed circles denote measurements from the subthreshold region. The solid lines are least-squares fits to the experimental data using an Arrhenius relation. Adapted with permission from Ref. 19. Copyright 2014. AIP Publishing LLC [PITH_FULL_IMAGE:figures/full_fig_p025_6.png] view at source ↗
Figure 7

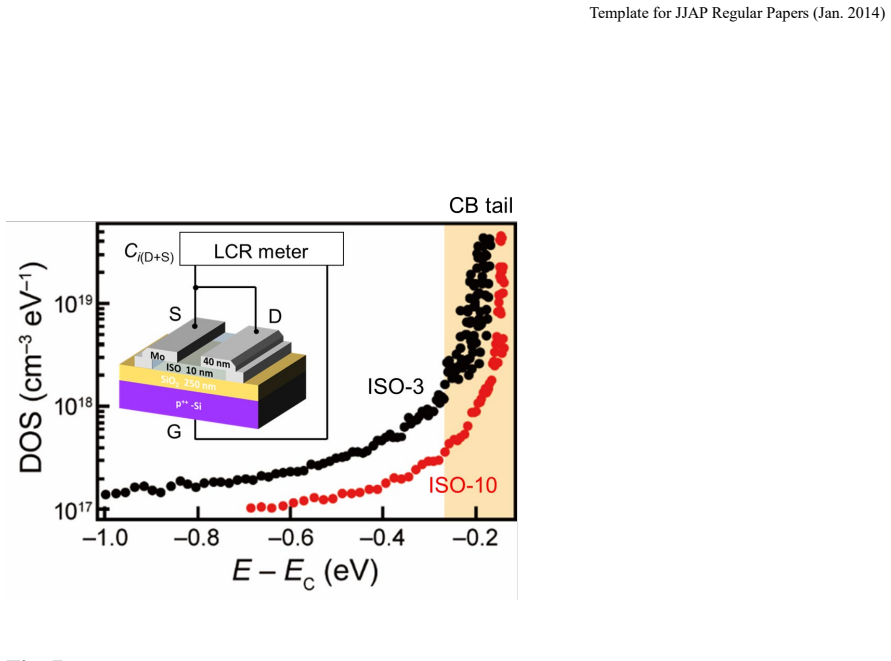

Figure 7. Figure 7: Calculated DOS beneath the conduction band edge. The red and black circles are data extracted from ISO-3 and ISO-10, respectively [PITH_FULL_IMAGE:figures/full_fig_p025_7.png] view at source ↗
Figure 9

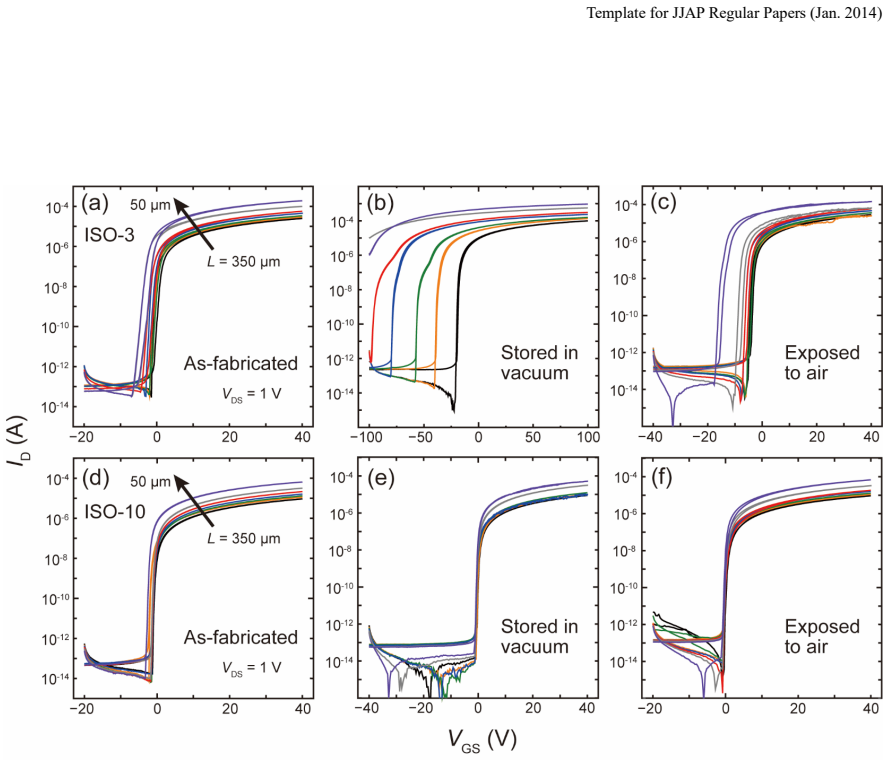

Figure 9. Figure 9: Comparison of transfer characteristics of TFTs using ISO-3 (a, b, c) and ISO-10 (d, e, f) conditions with different channel lengths (50 – 350 μm in steps of 50 μm) for the as- [PITH_FULL_IMAGE:figures/full_fig_p025_9.png] view at source ↗

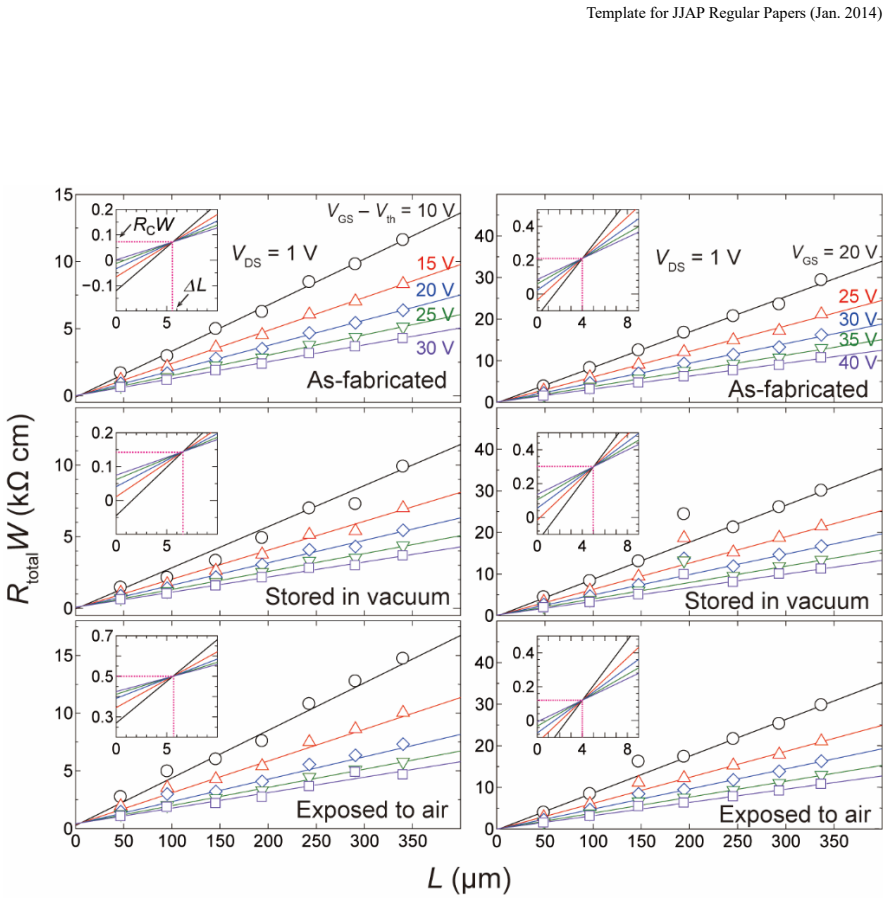

Figure 10
Figure 10. Figure 10: Width-normalized total resistance (RtotalW) extracted at VDS of 1 V as a function of L. The VGS is modified by Vth for the ISO-3 TFTs (a, b, c) since Vth was drastically changed after storage in vacuum conditions. On the other hand, as for the ISO-10 TFTs (d, e, f), Vth was independent of the storage conditions. The inset shows the magnification of the intersection point. Adapted with permission from Ref.… view at source ↗

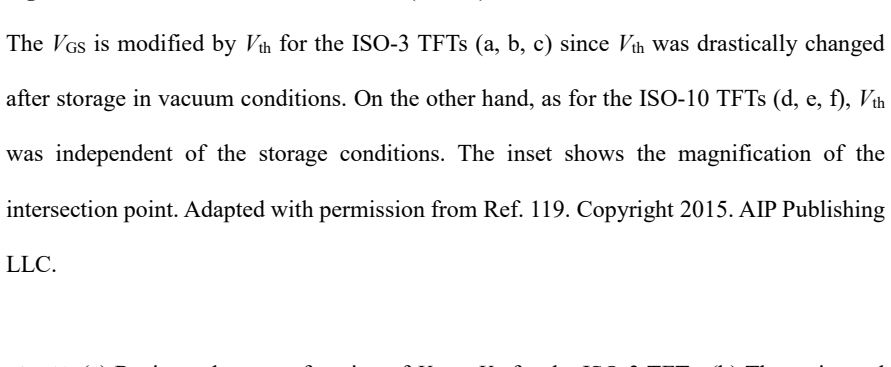

Figure 11

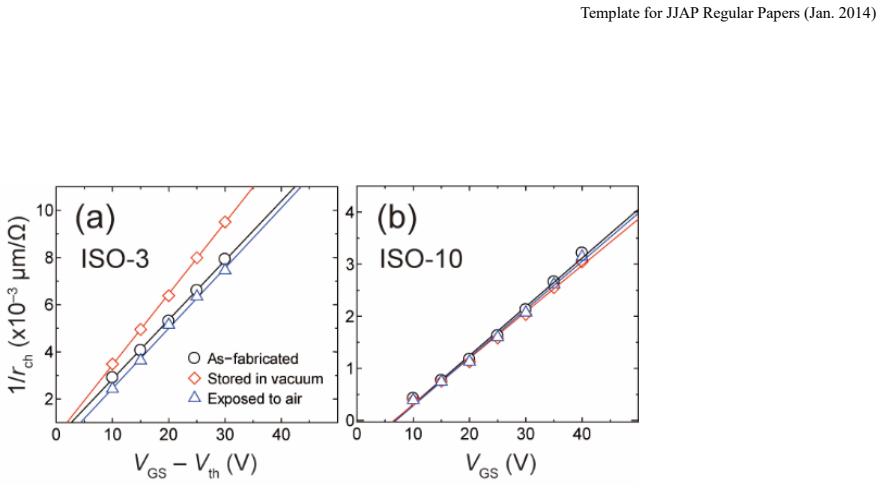

Figure 11. Figure 11: (a) Reciprocal rch as a function of VGS ‒ Vth for the ISO-3 TFTs. (b) The reciprocal rch as a function of VGS for the ISO-10 TFTs. Adapted with permission from Ref. 119. Copyright 2015. AIP Publishing LLC [PITH_FULL_IMAGE:figures/full_fig_p026_11.png] view at source ↗

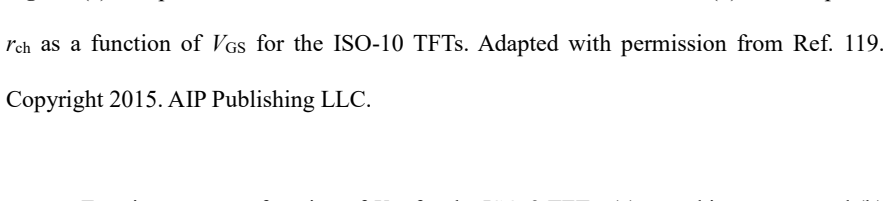

Figure 12

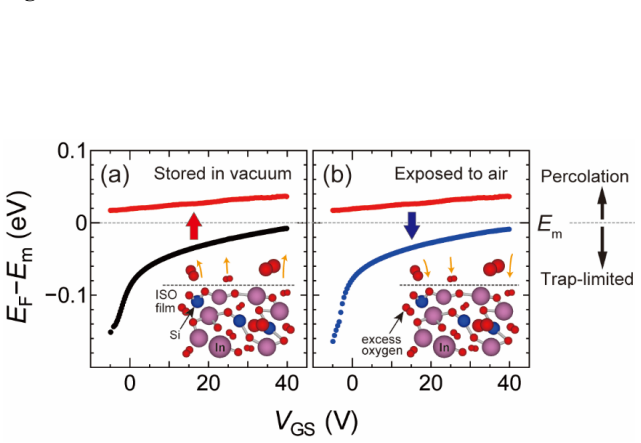

Figure 12. Figure 12: Fermi energy as a function of VGS for the ISO-3 TFTs: (a) stored in vacuum and (b) exposed to air. The Fermi energy, plotted in black, was measured in the initial as-fabricated TFT. After storing the TFT in vacuum, the energy (plotted in red) was measured. Then, after exposure to air, the Fermi energy changed to the line plotted in blue. Above and below Em correspond to percolation and trap-limited conduc… view at source ↗

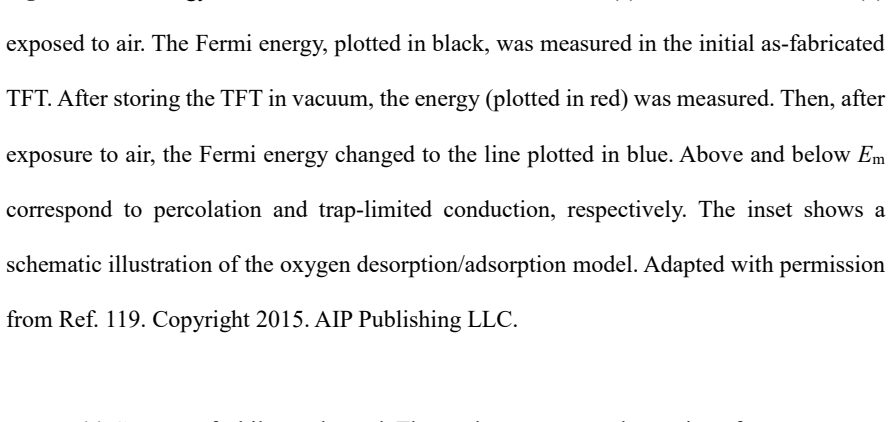

Figure 13

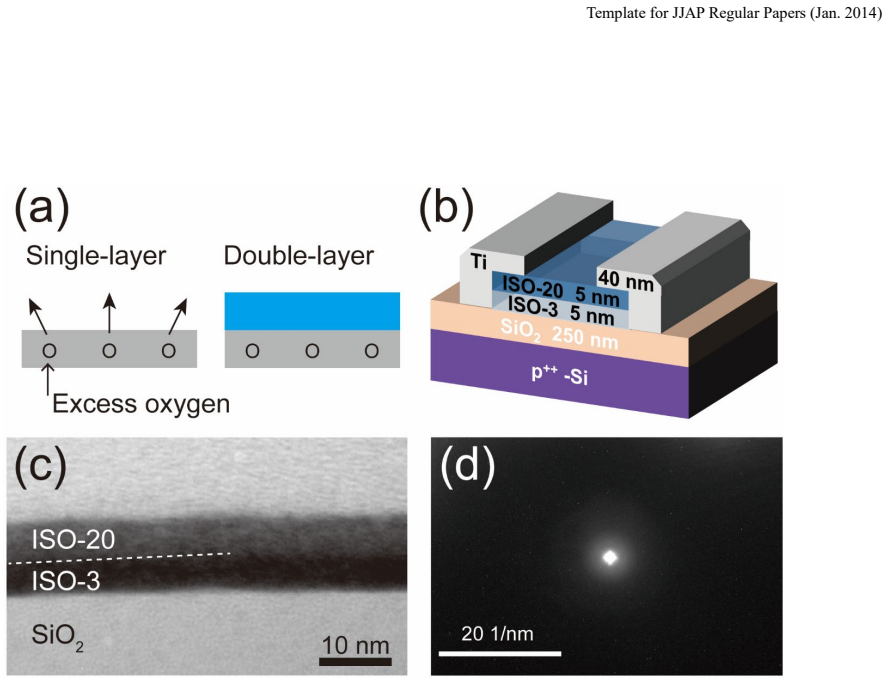

Figure 13. Figure 13: (a) Concept of a bilayer channel. The top layer prevents desorption of excess oxygen [PITH_FULL_IMAGE:figures/full_fig_p026_13.png] view at source ↗

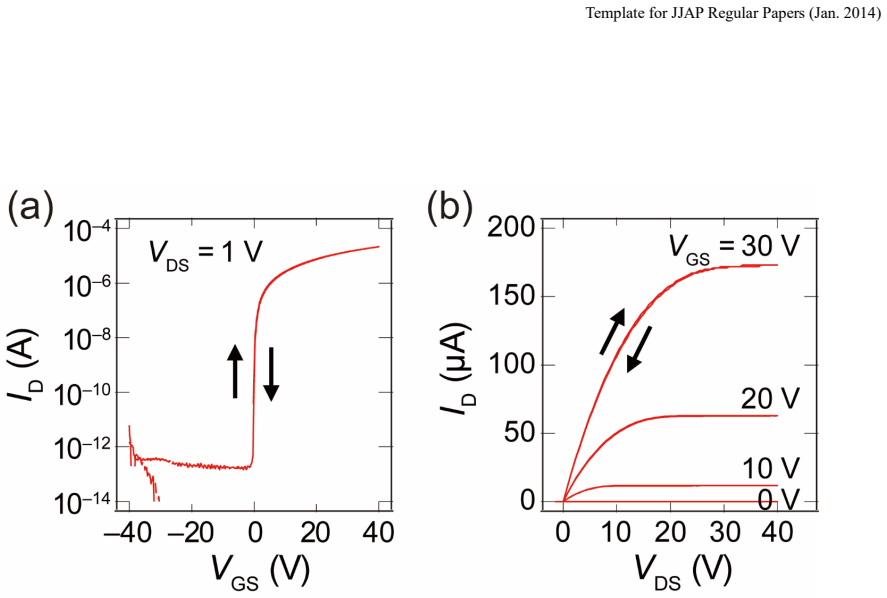

Figure 14
Figure 14. Figure 14: (a) Transfer characteristics and (b) output characteristics of the bilayer TFT using ISO-3/20 stacked channel. Adapted with permission from Ref. 132. Copyright 2016. AIP Publishing LLC [PITH_FULL_IMAGE:figures/full_fig_p027_14.png] view at source ↗
Figure 15

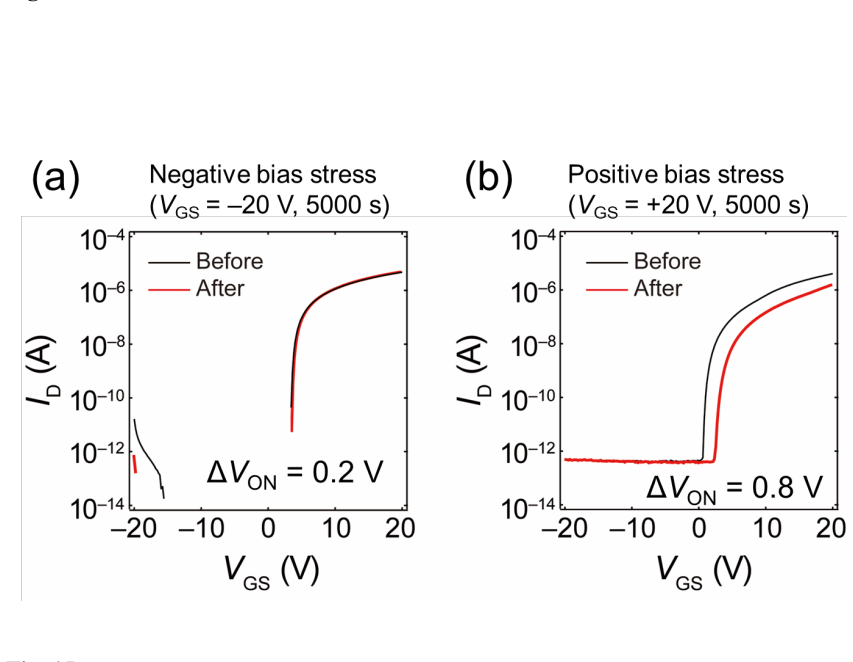

Figure 15. Figure 15: Negative (a) and positive (b) gate bias stress instabilities measured using bilayer TFT. The bias stress was applied at VGS = ±20 V for 5000 s. The device was measured in air in the dark. Table I. Comparison of typical TFT properties estimated from the transfer characteristics presented in [PITH_FULL_IMAGE:figures/full_fig_p027_15.png] view at source ↗
Figure 2
Figure 2. Figure 2 [PITH_FULL_IMAGE:figures/full_fig_p029_2.png] view at source ↗
Figure 3
Figure 3. Figure 3 [PITH_FULL_IMAGE:figures/full_fig_p030_3.png] view at source ↗
Figure 4
Figure 4. Figure 4 [PITH_FULL_IMAGE:figures/full_fig_p031_4.png] view at source ↗
Figure 5
Figure 5. Figure 5 [PITH_FULL_IMAGE:figures/full_fig_p032_5.png] view at source ↗
Figure 6
Figure 6. Figure 6 [PITH_FULL_IMAGE:figures/full_fig_p033_6.png] view at source ↗
Figure 7
Figure 7. Figure 7 [PITH_FULL_IMAGE:figures/full_fig_p034_7.png] view at source ↗

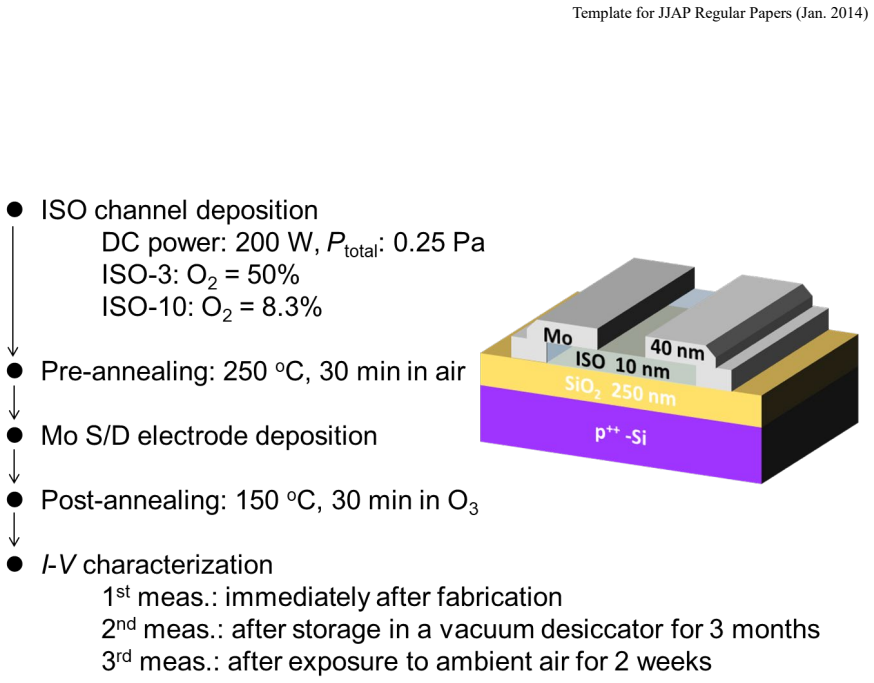

Figure 8
Figure 8. Figure 8 [PITH_FULL_IMAGE:figures/full_fig_p035_8.png] view at source ↗
Figure 9
Figure 9. Figure 9 [PITH_FULL_IMAGE:figures/full_fig_p036_9.png] view at source ↗
Figure 10
Figure 10. Figure 10 [PITH_FULL_IMAGE:figures/full_fig_p037_10.png] view at source ↗
Figure 11
Figure 11. Figure 11 [PITH_FULL_IMAGE:figures/full_fig_p038_11.png] view at source ↗
Figure 12
Figure 12. Figure 12 [PITH_FULL_IMAGE:figures/full_fig_p038_12.png] view at source ↗
Figure 13
Figure 13. Figure 13 [PITH_FULL_IMAGE:figures/full_fig_p039_13.png] view at source ↗
Figure 14
Figure 14. Figure 14 [PITH_FULL_IMAGE:figures/full_fig_p040_14.png] view at source ↗
Figure 15
Figure 15. Figure 15 [PITH_FULL_IMAGE:figures/full_fig_p040_15.png] view at source ↗
read the original abstract

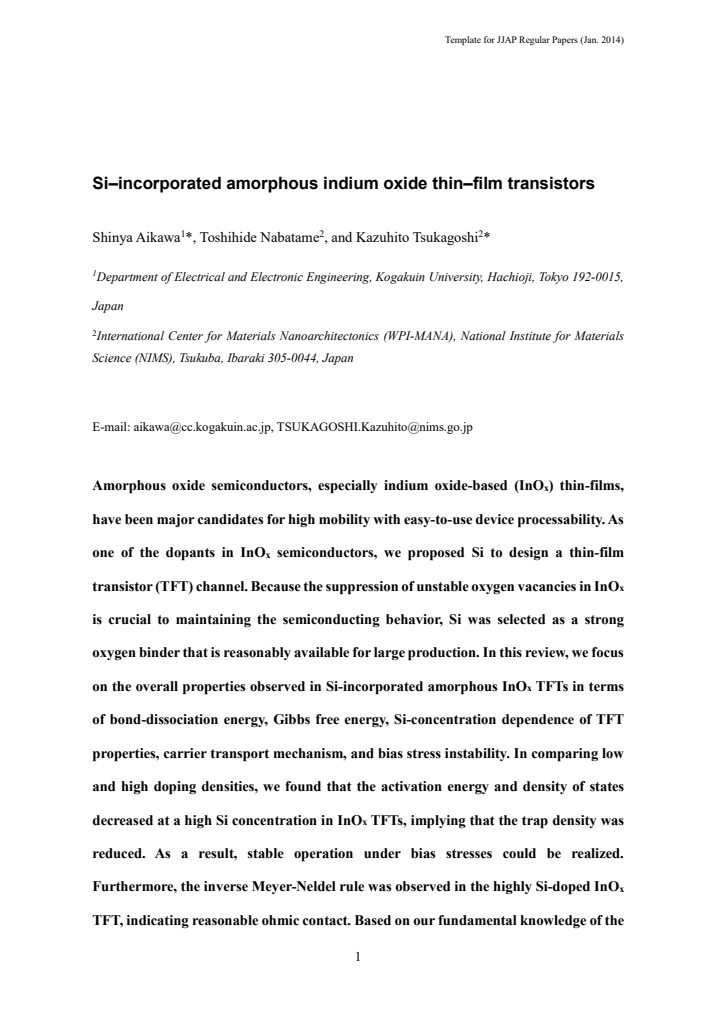

Amorphous oxide semiconductors, especially indium oxide-based (InOx) thin-films, have been major candidates for high mobility with easy-to-use device processability. As one of the dopants in InOx semiconductors, we proposed Si to design a thin-film transistor (TFT) channel. Because the suppression of unstable oxygen vacancies in InOx is crucial to maintaining the semiconducting behavior, Si was selected as a strong oxygen binder that is reasonably available for large production. In this review, we focus on the overall properties observed in Si-incorporated amorphous InOx TFTs in terms of bond-dissociation energy, Gibbs free energy, Si-concentration dependence of TFT properties, carrier transport mechanism, and bias stress instability. In comparing low and high doping densities, we found that the activation energy and density of states decreased at a high Si concentration in InOx TFTs, implying that the trap density was reduced. As a result, stable operation under bias stresses could be realized. Furthermore, the inverse Meyer-Neldel rule was observed in the highly Si-doped InOx TFT, indicating reasonable ohmic contact. Based on our fundamental knowledge of the Si-doped InOx film, we developed a high-mobility bilayer TFT with a homogeneous stacked channel that was different from a TFT with an etch stop layer structure. The TFT showed remarkably stable operation. With simple element components based on InOx, it is possible to systematically discuss vacancy engineering in terms of conduction properties.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript reviews Si-incorporated amorphous indium oxide (InOx) thin-film transistors, proposing Si as a dopant selected for its strong oxygen-binding properties (via bond-dissociation energy and Gibbs free energy) to suppress unstable oxygen vacancies. It summarizes concentration-dependent TFT properties, reporting that high Si levels reduce activation energy and density of states (implying lower trap density and improved bias-stress stability), observes the inverse Meyer-Neldel rule indicating reasonable ohmic contact, and demonstrates a high-mobility bilayer TFT with a homogeneous stacked channel that exhibits stable operation.

Significance. If the reported trends in electrical properties with Si incorporation are robustly supported by data, the work contributes a systematic discussion of vacancy engineering in simple InOx-based amorphous semiconductors. This could inform dopant strategies for stable, high-mobility TFTs in large-area electronics, with the bilayer device example providing a practical implementation distinct from etch-stop-layer structures.

major comments (2)
  1. [Abstract (Si selection criteria)] The rationale for selecting Si (abstract, second sentence) invokes its bond-dissociation energy and Gibbs free energy as stronger than In-O to explain vacancy suppression, but supplies no numerical values, comparison table, or cited references for the energies. This premise is load-bearing for the causal link to reduced trap density at high Si concentrations.
  2. [Abstract (high Si concentration effects)] The claim that activation energy and density of states decrease at high Si concentration (abstract), implying reduced trap density, is central to the stability conclusions but lacks detail on data extraction methods, error analysis, or specific figures/tables showing the quantitative trends.
minor comments (1)
  1. [Abstract] The abstract refers to 'this review' and 'our fundamental knowledge'; clarifying the manuscript's scope relative to the authors' prior publications on InOx TFTs would aid readers.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments and positive overall assessment of our review on Si-incorporated amorphous InOx TFTs. We address each major comment below and will revise the manuscript accordingly to improve clarity, particularly in the abstract.

read point-by-point responses

  1. Referee: [Abstract (Si selection criteria)] The rationale for selecting Si (abstract, second sentence) invokes its bond-dissociation energy and Gibbs free energy as stronger than In-O to explain vacancy suppression, but supplies no numerical values, comparison table, or cited references for the energies. This premise is load-bearing for the causal link to reduced trap density at high Si concentrations.

    Authors: We agree that the abstract would benefit from more explicit support for the Si selection rationale. While the main text discusses the bond-dissociation energies and Gibbs free energies (with numerical comparisons to In-O and supporting references), the abstract itself does not include these details. We will revise the abstract to incorporate a brief citation or key numerical values where space allows, thereby strengthening the causal connection to vacancy suppression and trap density reduction. revision: yes

  2. Referee: [Abstract (high Si concentration effects)] The claim that activation energy and density of states decrease at high Si concentration (abstract), implying reduced trap density, is central to the stability conclusions but lacks detail on data extraction methods, error analysis, or specific figures/tables showing the quantitative trends.

    Authors: The abstract summarizes findings that are presented with supporting data in the main manuscript, including concentration-dependent plots of activation energy and density of states extracted from temperature-dependent measurements. We will revise the abstract to include explicit references to the relevant figures and sections detailing the extraction methods. We will also ensure error analysis is more prominently described in the main text if it requires additional clarification. revision: partial

Circularity Check

0 steps flagged

No significant circularity; experimental observations on trap reduction are independent measurements.

full rationale

The paper reports direct experimental results from fabricated Si-incorporated InOx TFTs, including measured activation energies, density of states, and bias stress stability at varying Si concentrations. The selection of Si is presented as a prior design choice based on thermodynamic considerations (bond-dissociation energy, Gibbs free energy), but this rationale is not used to derive or force the reported data trends by construction. No equations, fits, or self-citations reduce the central claims (e.g., reduced trap density at high Si) to inputs; the results stand as independent empirical findings. This is the typical non-circular case for an experimental materials paper.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

As a review, the central claims rest on standard domain assumptions in oxide semiconductor physics about the role of oxygen vacancies and dopant selection criteria, with no new free parameters, axioms, or invented entities introduced here.

axioms (2)
  • domain assumption Si has higher bond-dissociation energy with oxygen than indium, making it an effective oxygen binder to suppress vacancies.
    Invoked in the abstract to justify Si selection for maintaining semiconducting behavior in InOx.
  • domain assumption Oxygen vacancies are the dominant source of instability and carrier generation in amorphous InOx.
    Underlies the vacancy engineering discussion and interpretation of Si-concentration effects on trap density.
