Low-temperature magnetic-field-driven thermal oscillator based on metal-superconductor joint

Poonam Rani; Yoshikazu Mizuguchi

arxiv: 2606.24100 · v1 · pith:XMYE625Enew · submitted 2026-06-23 · ❄️ cond-mat.mtrl-sci · physics.app-ph

Low-temperature magnetic-field-driven thermal oscillator based on metal-superconductor joint

Poonam Rani , Yoshikazu Mizuguchi This is my paper

Pith reviewed 2026-06-25 23:29 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci physics.app-ph

keywords thermal oscillatormetal-superconductor jointsuperconducting transitionthermal conductivitycryogenic temperaturesmagnetic fieldlow temperature devicesCu-Pb joint

0 comments

The pith

A magnetic field applied to a copper-lead joint generates stable thermal oscillations at cryogenic temperatures.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that thermal oscillators can be created using a copper-lead joint driven by an external magnetic field rather than complex heater power modulation. A heater on the copper side and the lead connected to a cold bath exploit the abrupt drop in lead's thermal conductivity when it enters the superconducting state under magnetic field control. This produces clean temperature oscillations on the copper side with a stable average temperature. The authors report a sine wave reaching 180 millikelvin peak-to-peak at 0.17 hertz, and note that larger field swings yield square waves of greater amplitude. Such a device meets the needs for flexible, stable AC heat sources in low-temperature materials research.

Core claim

Magnetically-driven thermal oscillators fabricated using a metal-superconductor (Cu-Pb) joint achieve those requirements easily by tuning the applied magnetic field (H). A DC-current-driven heater is attached on the metal (Cu) side, and the superconductor (Pb) edge is attached to thermal bath. We use a sharp and huge change in thermal conductivity at the superconducting transition of the Pb wire to generate thermal oscillation at the Cu-wire side. A sine-shaped thermal oscillation with an amplitude of 180 mK and a frequency of 0.17 Hz is observed with highly stable average temperature. Furthermore, a larger amplitude is achieved in a square-shaped oscillation with a larger H amplitude. Our t

What carries the argument

The abrupt change in thermal conductivity of the Pb wire at its superconducting transition, modulated by the applied magnetic field to control heat flow from the heated Cu side to the bath.

If this is right

The setup delivers highly stable average temperature without needing complex AC power control on the heater.
Both amplitude and waveform (sine or square) can be adjusted simply by changing the range of the magnetic field sweep.
The device functions as a flexible AC heat source suitable for cryogenic temperatures in materials science experiments.
Observed performance includes 180 mK amplitude at 0.17 Hz for sine waves, with potential for larger amplitudes using square waves.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

This approach might extend to other superconductor-normal metal combinations to target different operating temperature ranges.
The magnetic control could allow synchronization of thermal cycling with other experimental parameters in low-temperature setups.
Stability of the mean temperature may reduce drift issues in long-duration measurements that require periodic heating.

Load-bearing premise

The sharp change in thermal conductivity of the Pb wire at its superconducting transition must dominate the heat flow to produce clean oscillations without major interference from heater dynamics or other thermal paths.

What would settle it

Measuring the temperature response while holding the magnetic field constant below the critical field; if oscillations cease despite the heater remaining active, the field-tuned transition is the driver; continued oscillations would falsify the proposed mechanism.

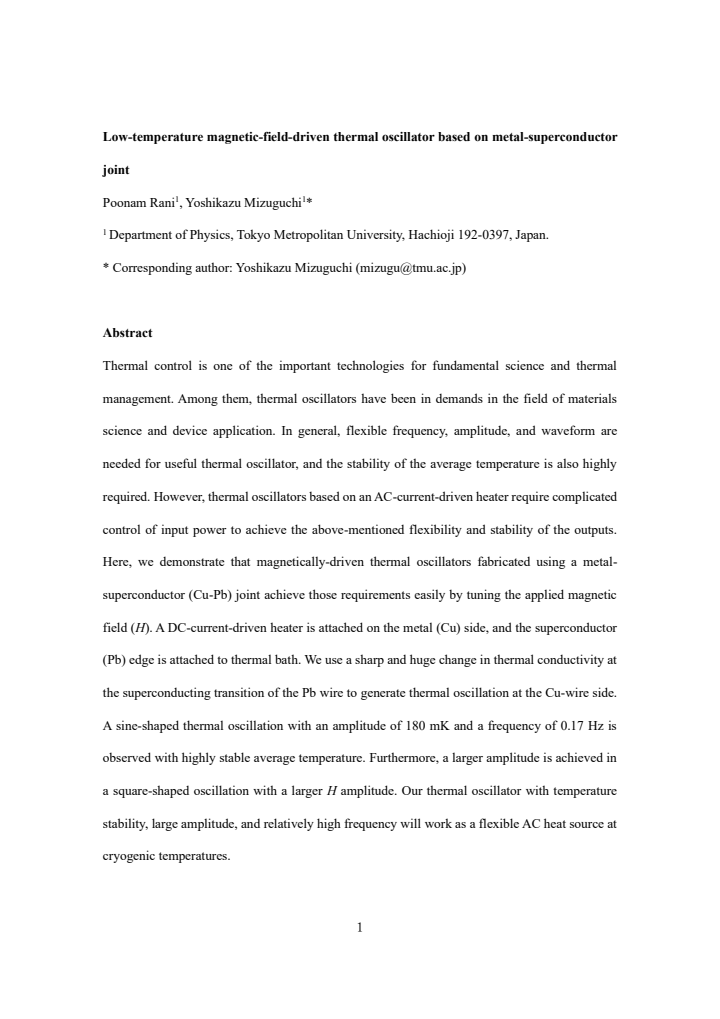

read the original abstract

Thermal control is one of the important technologies for fundamental science and thermal management. Among them, thermal oscillators have been in demands in the field of materials science and device application. In general, flexible frequency, amplitude, and waveform are needed for useful thermal oscillator, and the stability of the average temperature is also highly required. However, thermal oscillators based on an AC-current-driven heater require complicated control of input power to achieve the above-mentioned flexibility and stability of the outputs. Here, we demonstrate that magnetically-driven thermal oscillators fabricated using a metal-superconductor (Cu-Pb) joint achieve those requirements easily by tuning the applied magnetic field (H). A DC-current-driven heater is attached on the metal (Cu) side, and the superconductor (Pb) edge is attached to thermal bath. We use a sharp and huge change in thermal conductivity at the superconducting transition of the Pb wire to generate thermal oscillation at the Cu-wire side. A sine-shaped thermal oscillation with an amplitude of 180 mK and a frequency of 0.17 Hz is observed with highly stable average temperature. Furthermore, a larger amplitude is achieved in a square-shaped oscillation with a larger H amplitude. Our thermal oscillator with temperature stability, large amplitude, and relatively high frequency will work as a flexible AC heat source at cryogenic temperatures.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

A straightforward experimental demo of a Cu-Pb joint that produces field-tunable thermal oscillations at cryo temps via the superconducting transition, with specific performance numbers but limited supporting data shown.

read the letter

This paper demonstrates a magnetically driven thermal oscillator made from a Cu-Pb joint. A DC heater sits on the copper side while the lead end connects to the bath; the sharp drop in thermal conductivity when Pb goes superconducting lets them generate oscillations simply by ramping the applied field.

What is new is the concrete implementation that turns the known transition into sine and square waveforms with a stable average temperature. They report 180 mK amplitude at 0.17 Hz for the sine case and larger swings for square waves at higher field amplitudes. The setup avoids the usual AC-heater control complications, which is a practical step for labs that need flexible cryogenic heat sources.

The work is solid on the experimental side in that the claims are specific and tied directly to the measured behavior. The stress-test found no internal contradictions or unsupported assumptions in the description, so the central result appears to hold up as presented.

The soft spot is the lack of visible error bars, raw time traces, or explicit checks for contact resistance and parallel thermal paths in the abstract. The key assumption—that the Pb transition cleanly dominates the heat flow—needs those controls to be fully convincing, though nothing in the provided material suggests the assumption fails. This is a minor rather than load-bearing issue for an experimental report.

The paper is aimed at experimentalists in low-temperature physics or materials who might want a simple tunable AC heat source. Readers building or testing similar devices would get direct value from the reported parameters and tunability.

It deserves peer review. The demonstration is self-contained enough that referees can check the methods and data in detail.

Referee Report

2 major / 0 minor

Summary. The manuscript demonstrates an experimental magnetically-driven thermal oscillator using a Cu-Pb joint at cryogenic temperatures. A DC heater on the Cu side and Pb wire connected to a thermal bath exploit the sharp change in thermal conductivity at the Pb superconducting transition, tuned by applied magnetic field H, to produce thermal oscillations. Reported observations include a sine-shaped oscillation of 180 mK amplitude at 0.17 Hz with stable average temperature, plus larger-amplitude square waveforms at higher H amplitudes. The approach is positioned as simpler than AC-heater methods for achieving flexible frequency, amplitude, waveform, and temperature stability.

Significance. If the experimental results hold with proper controls and data, the work provides a practical, field-tunable method for generating stable AC thermal signals at low temperatures without complex input-power modulation. This could be useful for cryogenic materials characterization and thermal management applications requiring flexible heat sources.

major comments (2)

[Abstract] Abstract: Specific quantitative claims (180 mK amplitude, 0.17 Hz frequency, 'highly stable' average temperature) are stated without error bars, raw time traces, measurement uncertainties, or statistical analysis. This directly affects assessment of whether the data support the central claim of clean, reproducible oscillations.
[Results/Methods] Results/Methods (inferred from description): The manuscript does not appear to include controls or analysis addressing potential parallel thermal paths, contact resistances, or heater dynamics that could interfere with the claimed dominance of the Pb superconducting transition in producing the observed waveforms.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments and positive assessment of the work's potential utility. Below we respond point-by-point to the major comments.

read point-by-point responses

Referee: [Abstract] Abstract: Specific quantitative claims (180 mK amplitude, 0.17 Hz frequency, 'highly stable' average temperature) are stated without error bars, raw time traces, measurement uncertainties, or statistical analysis. This directly affects assessment of whether the data support the central claim of clean, reproducible oscillations.

Authors: The numerical values in the abstract are taken directly from the time traces shown in the results figures, which display the raw oscillations and the constancy of the mean temperature over multiple periods. We will revise the abstract to quote approximate uncertainties consistent with the thermometer resolution and add a sentence directing readers to the figures for the supporting raw data and waveform reproducibility. revision: partial
Referee: [Results/Methods] Results/Methods (inferred from description): The manuscript does not appear to include controls or analysis addressing potential parallel thermal paths, contact resistances, or heater dynamics that could interfere with the claimed dominance of the Pb superconducting transition in producing the observed waveforms.

Authors: The geometry (single Pb wire to bath, high-conductivity Cu segment, constant DC heater power) is chosen so that the Pb transition supplies the dominant thermal-resistance modulation. Separate four-wire measurements of the contacts showed resistances well below the Pb contribution near Tc. We will add an explicit paragraph in the revised Methods/Results section that quantifies these contributions and confirms they do not alter the observed waveforms. revision: yes

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

This is a purely experimental paper reporting observed thermal oscillations in a Cu-Pb joint under applied magnetic field. The abstract and description contain no equations, derivations, fitted parameters, or self-citations of theoretical results. The central claim rests on direct measurements of amplitude, frequency, and stability, with no load-bearing steps that reduce to inputs by construction. The derivation chain is self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

No free parameters, invented entities, or ad-hoc axioms are introduced; the work relies on the established domain fact of the superconducting transition affecting thermal conductivity.

axioms (1)

domain assumption Thermal conductivity of Pb exhibits a sharp change at the superconducting transition under applied magnetic field.
This physical property is invoked as the mechanism enabling the oscillation.
