Scene-agnostic ALS boresight self-calibration

Aur\'elien Brun , Jan Skaloud This is my paper

Pith reviewed 2026-06-26 08:47 UTC · model grok-4.3

classification 💻 cs.CV
keywords airborne laser scanningboresight calibrationself-calibrationpoint correspondencesfactor graphINS/GNSSstrip adjustmentALS
0
0 comments X

The pith

Boresight calibration for airborne laser scanners can use automatic point matches from normal overlapping flight strips instead of dedicated patterns over special scenes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that boresight calibration in airborne laser scanning no longer requires dedicated flights over structured scenes with planes. Instead, it can use point-to-point correspondences automatically extracted from overlapping strips in routine mapping operations. Two formulations are given: a simple parametric one using the INS/GNSS trajectory and a more rigorous one inside a factor-graph that includes raw inertial data. Tests on four operational flights with five different inertial systems confirm that with good trajectory quality, 3-4 overlapping strips suffice for calibration. This makes self-calibration possible during standard missions where traditional methods fail.

Core claim

For INS/GNSS trajectories of sufficient quality, boresight calibration can be performed without particular scene prerequisites during routine mapping operations using a minimum of 3-4 overlapping strips. This is achieved by replacing plane-based constraints with scene-agnostic point-to-point correspondences extracted automatically from overlapping ALS strips, using either a parametric adjustment or a factor-graph formulation.

What carries the argument

scene-agnostic point-to-point correspondences from overlapping ALS strips, used in either a parametric adjustment with INS/GNSS trajectory or a factor-graph treating GNSS and raw inertial data

If this is right

  • Traditional plane-based methods are limited to calibration scenarios and fail in routine mapping geometry.
  • The lightweight parametric formulation suffices for boresight recovery with tactical and navigation grade inertial sensors.
  • The general factor-graph approach is superior when inertial sensor errors are less observable within an optimal smoother.
  • Calibration becomes feasible in conventional mapping geometry with 3-4 overlapping strips.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Operational costs could decrease by eliminating separate calibration flights in ALS mapping projects.
  • The method might extend to other sensor calibrations that rely on trajectory quality and strip overlaps.
  • Future work could test integration with simultaneous localization and mapping techniques for even less structured environments.

Load-bearing premise

The automatic extraction of reliable point-to-point correspondences from overlapping ALS strips must be accurate enough, and the INS/GNSS trajectory quality must be sufficient for boresight effects to be observable.

What would settle it

Extract point correspondences from overlapping strips in a standard mapping flight and run the adjustment; if the estimated boresight angles deviate significantly from independently verified values or the solution fails to converge, the claim does not hold.

Figures

Figures reproduced from arXiv: 2606.23101 by Aur\'elien Brun, Jan Skaloud.

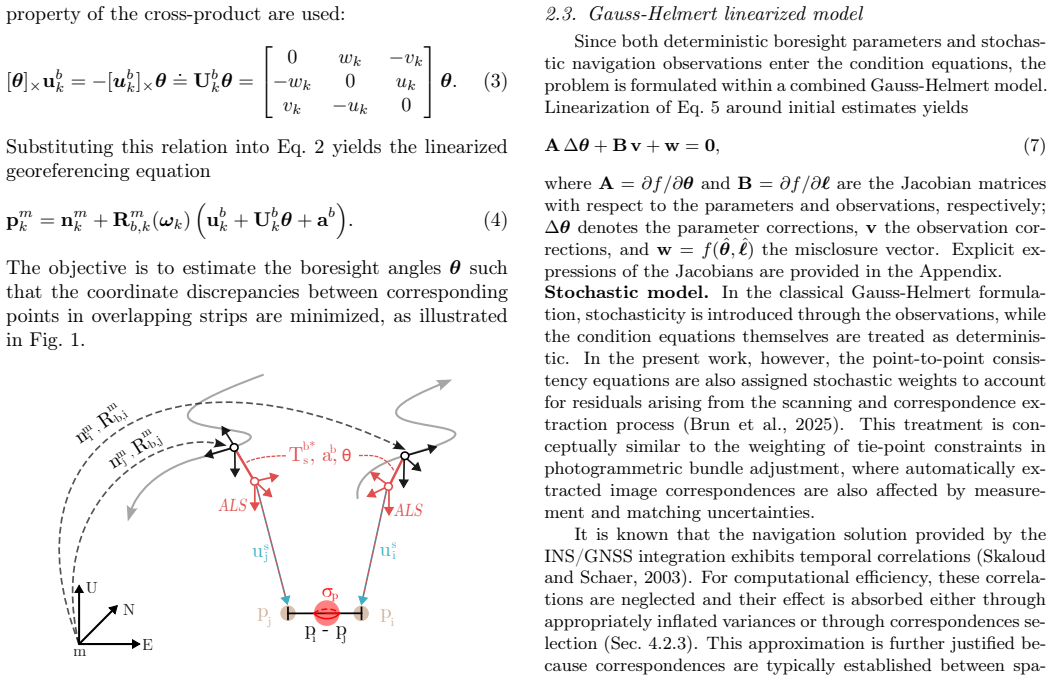

Figure 1
Figure 1. Figure 1: Graphical representation of a point-to-point constraint. [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗

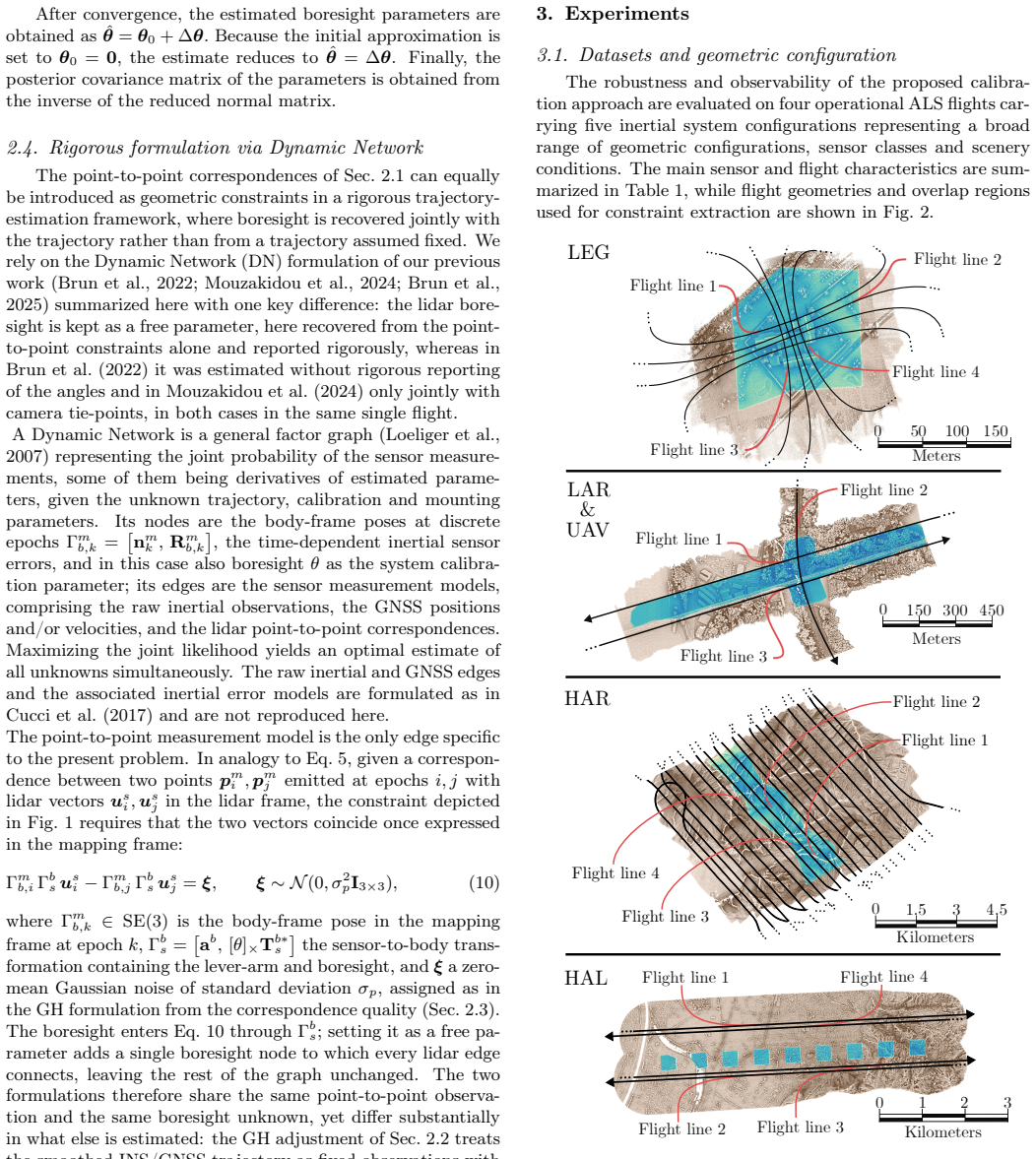

Figure 2
Figure 2. Figure 2: Geometries of the four studied flights. The LAR flight car [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗

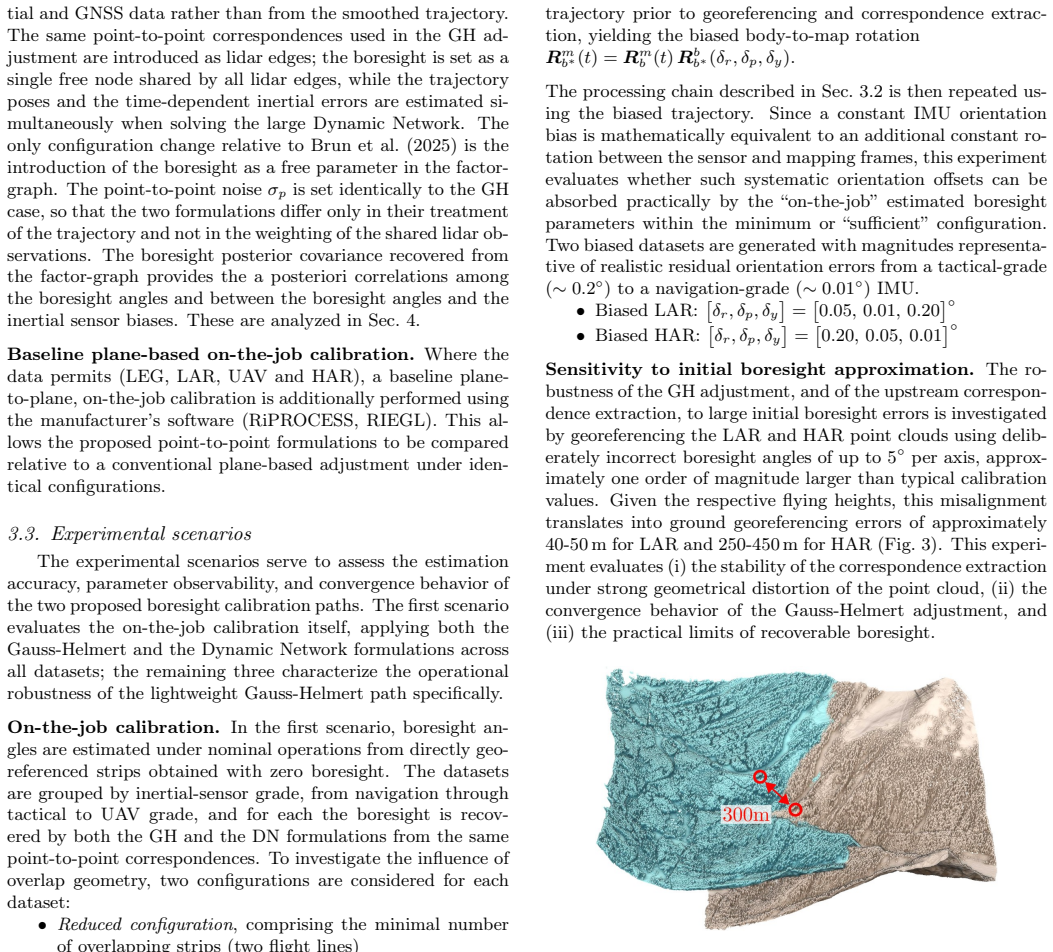

Figure 3
Figure 3. Figure 3: Sample HAR point clouds georeferenced with incorrect [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗

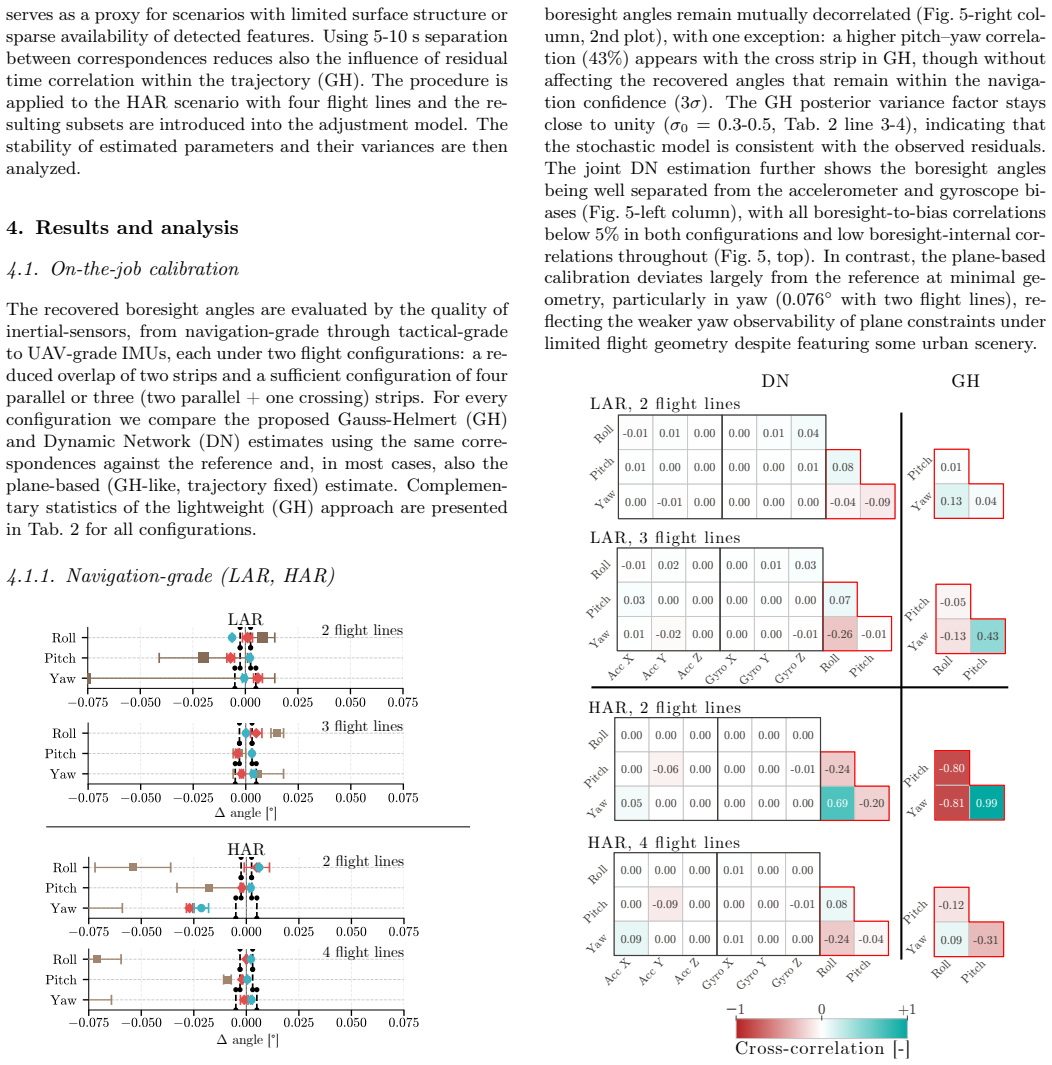

Figure 5
Figure 5. Figure 5: Navigation grade datasets. Left: cross-correlations in DN [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗

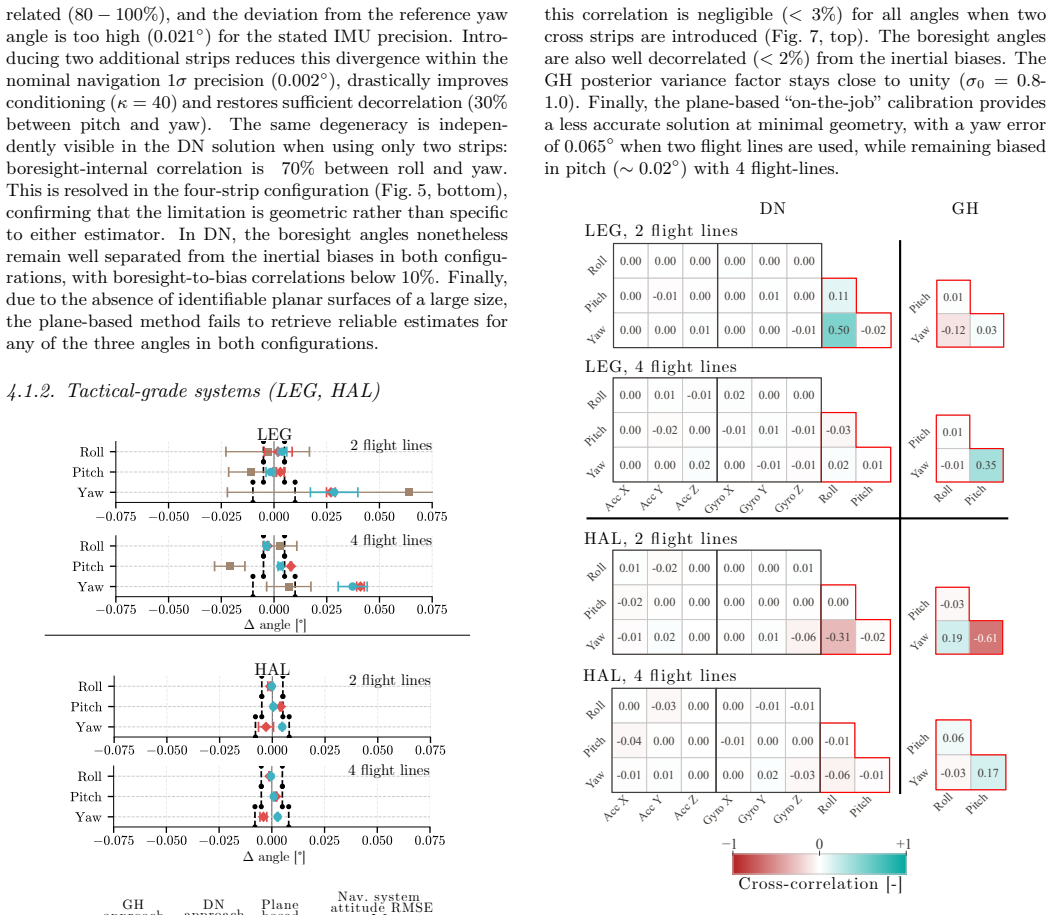

Figure 7
Figure 7. Figure 7: Left: cross-correlations in DN between lidar boresight [PITH_FULL_IMAGE:figures/full_fig_p010_7.png] view at source ↗

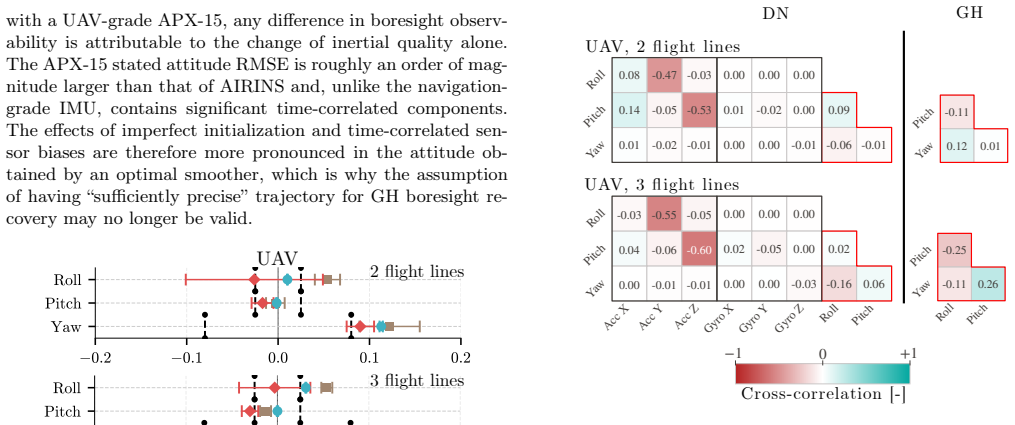

Figure 9
Figure 9. Figure 9: Left: cross-correlations in DN between lidar boresight [PITH_FULL_IMAGE:figures/full_fig_p011_9.png] view at source ↗

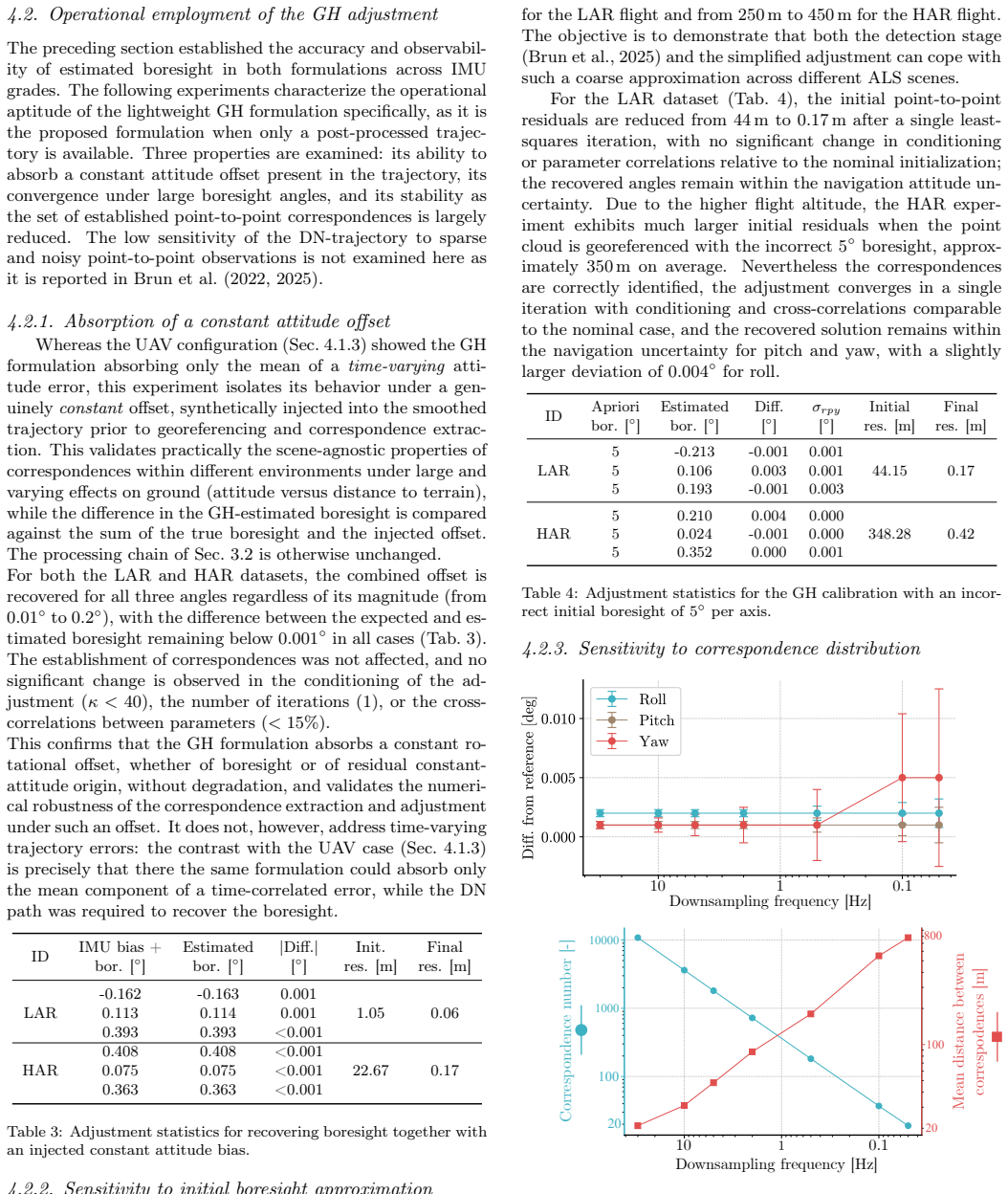

Figure 10
Figure 10. Figure 10: Top: estimated boresight and posterior uncertainty versus [PITH_FULL_IMAGE:figures/full_fig_p012_10.png] view at source ↗

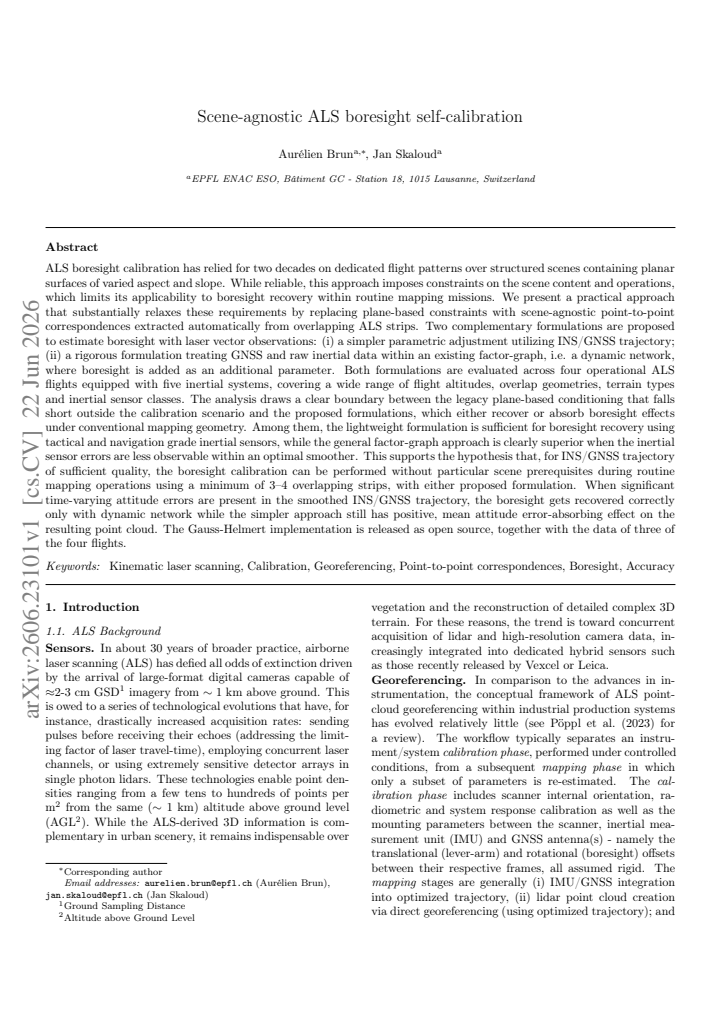

read the original abstract

ALS boresight calibration has relied for two decades on dedicated flight patterns over structured scenes containing planar surfaces of varied aspect and slope. While reliable, this approach imposes constraints on the scene content and operations, which limits its applicability to boresight recovery within routine mapping missions. We present a practical approach that substantially relaxes these requirements by replacing plane-based constraints with scene-agnostic point-to-point correspondences extracted automatically from overlapping ALS strips. Two complementary formulations are proposed to estimate boresight with laser vector observations: (i) a simpler parametric adjustment utilizing INS/GNSS trajectory; (ii) a rigorous formulation treating GNSS and raw inertial data within an existing factor-graph, i.e. a dynamic network, where boresight is added as an additional parameter. Both formulations are evaluated across four operational ALS flights equipped with five inertial systems, covering a wide range of flight altitudes, overlap geometries, terrain types and inertial sensor classes. The analysis draws a clear boundary between the legacy plane-based conditioning that falls short outside the calibration scenario and the proposed formulations, which either recover or absorb boresight effects under conventional mapping geometry. Among them, the lightweight formulation is sufficient for boresight recovery using tactical and navigation grade inertial sensors, while the general factor-graph approach is clearly superior when the inertial sensor errors are less observable within an optimal smoother. This supports the hypothesis that, for INS/GNSS trajectory of sufficient quality, the boresight calibration can be performed without particular scene prerequisites during routine mapping operations using a minimum of 3-4 overlapping strips, with either proposed formulation...

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The paper proposes two formulations for ALS boresight self-calibration that replace traditional plane-based constraints with scene-agnostic point-to-point correspondences automatically extracted from overlapping strips. The first is a lightweight parametric adjustment that uses the INS/GNSS trajectory; the second is a rigorous factor-graph formulation that incorporates raw inertial observations and adds boresight as an additional parameter. Both are evaluated on four operational flights equipped with five inertial systems spanning varied altitudes, overlaps, terrains, and sensor grades, showing that the proposed methods recover or absorb boresight effects under standard mapping geometry while legacy plane-based methods do not.

Significance. If the central claim holds, the work enables boresight calibration during routine mapping flights without dedicated calibration patterns or structured scenes, using only 3-4 overlapping strips when INS/GNSS trajectory quality is adequate. The multi-flight, multi-sensor evaluation on real operational data supplies concrete empirical grounding for the performance boundary between legacy and proposed approaches and directly tests the scene-agnostic setting.

minor comments (2)
  1. The abstract states that correspondences are 'extracted automatically' but does not specify the extraction algorithm or provide quantitative validation metrics (e.g., inlier rates or residual distributions) that would allow readers to assess the reliability of the input observations used in both formulations.
  2. Section describing the factor-graph formulation would benefit from an explicit statement of how the boresight rotation is parameterized (e.g., small-angle approximation or full SO(3) representation) and how it is initialized within the dynamic network.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive assessment, detailed summary of the contributions, and recommendation for minor revision. No major comments were provided in the report.

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper's central claim rests on two formulations for estimating boresight from automatically extracted point-to-point correspondences in overlapping ALS strips, evaluated directly on four real operational flights with five inertial systems across varied conditions. No equations, parameters, or results are shown to reduce by construction to a fitted input defined in terms of the target quantity itself, nor does any load-bearing step rely on a self-citation chain that is unverified or self-referential. The evaluations on external flight data provide independent empirical support, rendering the derivation self-contained against the stated assumptions without circular reduction.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The claim rests on the domain assumption that reliable point correspondences can be extracted automatically and that trajectory quality is sufficient; no free parameters or invented entities are mentioned in the abstract.

axioms (2)
  • domain assumption Point-to-point correspondences can be automatically extracted from overlapping ALS strips with sufficient accuracy for boresight estimation
    Central to both formulations; invoked when replacing plane-based constraints
  • domain assumption INS/GNSS trajectory of sufficient quality makes boresight effects observable
    Explicitly stated as the condition under which the hypothesis holds
