Efficient Spatial Anti-Aliasing Rendering for Line Joins on Vector Maps

Chaoyang He; Ming Li

arxiv: 1906.11999 · v1 · pith:XWBFPO3Bnew · submitted 2019-06-27 · 💻 cs.GR · cs.CG

Efficient Spatial Anti-Aliasing Rendering for Line Joins on Vector Maps

Chaoyang He , Ming Li This is my paper

Pith reviewed 2026-05-25 13:27 UTC · model grok-4.3

classification 💻 cs.GR cs.CG

keywords anti-aliasingline joinsvector mapsOpenGL renderingspatial anti-aliasingfan-shaped curvestriangle approximation

0 comments

The pith

Two triangles plus geometry-based alpha blending render realistic anti-aliased fan-shaped line joins on vector maps.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that the standard practice of splicing many triangles at different scales to approximate fan-shaped line joins can be replaced by a method that uses only two triangles. Alpha values are then computed directly from the geometrical relations of those triangles to produce the anti-aliased curve. This substitution is presented as a way to remove visual unreality while cutting memory use and raising frame rates under the constraints of the OpenGL API. A sympathetic reader would care because line joins appear frequently in vector maps, so any improvement in visual quality and rendering speed directly affects interactive map applications.

Core claim

The central claim is that a simple algorithm which uses only two triangles to substitute the multiple triangles approximation and then renders a realistic fan-shaped curve with alpha operation based on geometrical relation computing produces a realistic anti-aliasing effect, less memory cost, higher frame rate, and drawing line joins without overlapping rendering.

What carries the argument

Two-triangle substitution combined with alpha blending computed from the geometrical relations of the triangles, which replaces multi-triangle fan approximation.

If this is right

Realistic anti-aliasing effect for line joins on vector maps.
Lower memory cost than multiple-triangle approximations.
Higher frame rate during rendering.
Line joins can be drawn without overlapping rendering.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same two-triangle pattern might apply to other curved joins or caps in map rendering pipelines.
Reduced memory footprint could allow denser road networks to be displayed on mobile devices without dropping frame rate.
The geometrical alpha computation could be adapted to other anti-aliasing tasks that currently rely on multi-primitive approximations.

Load-bearing premise

Alpha values derived from geometrical relations on two triangles will produce a visually realistic fan-shaped join without the unreality or performance costs of multi-triangle splicing under OpenGL constraints.

What would settle it

A direct visual comparison or frame-rate benchmark on a vector map where the two-triangle method shows either visible artifacts in the join or no improvement over the multi-triangle approach.

Figures

Figures reproduced from arXiv: 1906.11999 by Chaoyang He, Ming Li.

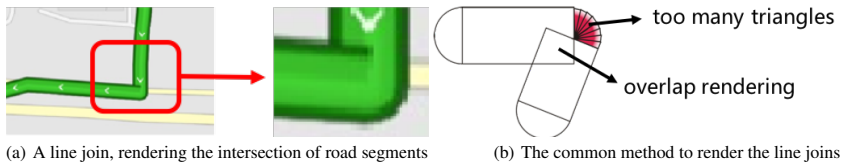

**Figure 1.** Figure 1: Line Joins on Vector Maps In this paper, we propose a simple but efficient algorithm to address these drawbacks. Our main idea is using only two triangles to substitute the multiple triangles approximation and then render a realistic fan-shaped curve with alpha operation based on geometrical relation computing. The main advantages of our method are: 1. It implements anti-aliasing with real curve, creating … view at source ↗

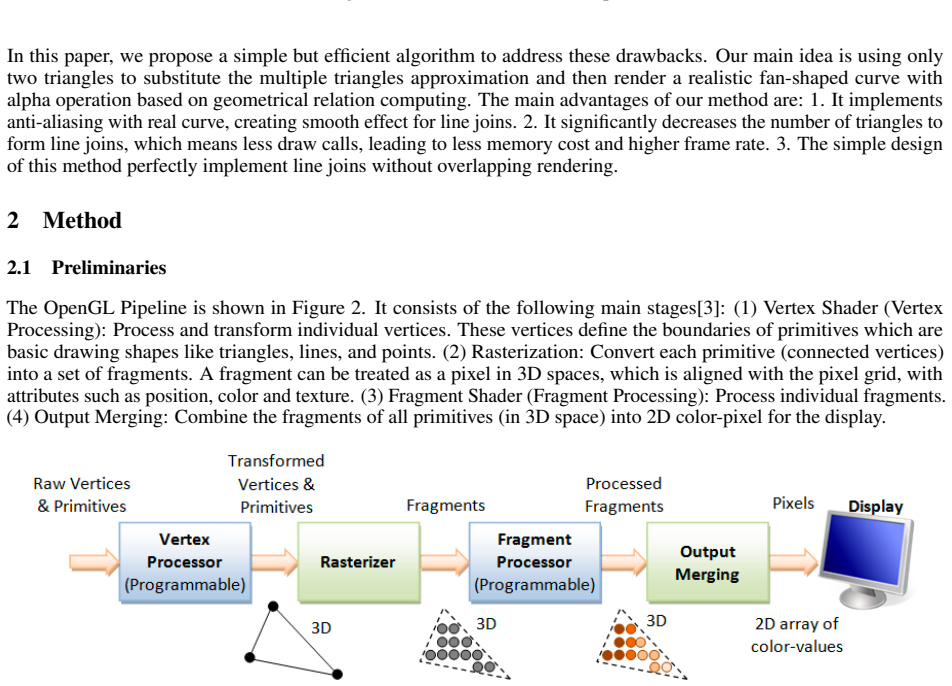

**Figure 2.** Figure 2: OpenGL Rendering Pipeline To be more specific, with regard to the process of rendering line segments onto the screen, a line segment is split into triangles, given its width, geographic coordinates of the triangle and anti-aliasing attribute values. Then, vertex data of the triangles including geographic coordinates, anti-aliasing properties are transmitted to vertex shader, creating memory on GPU for stor… view at source ↗

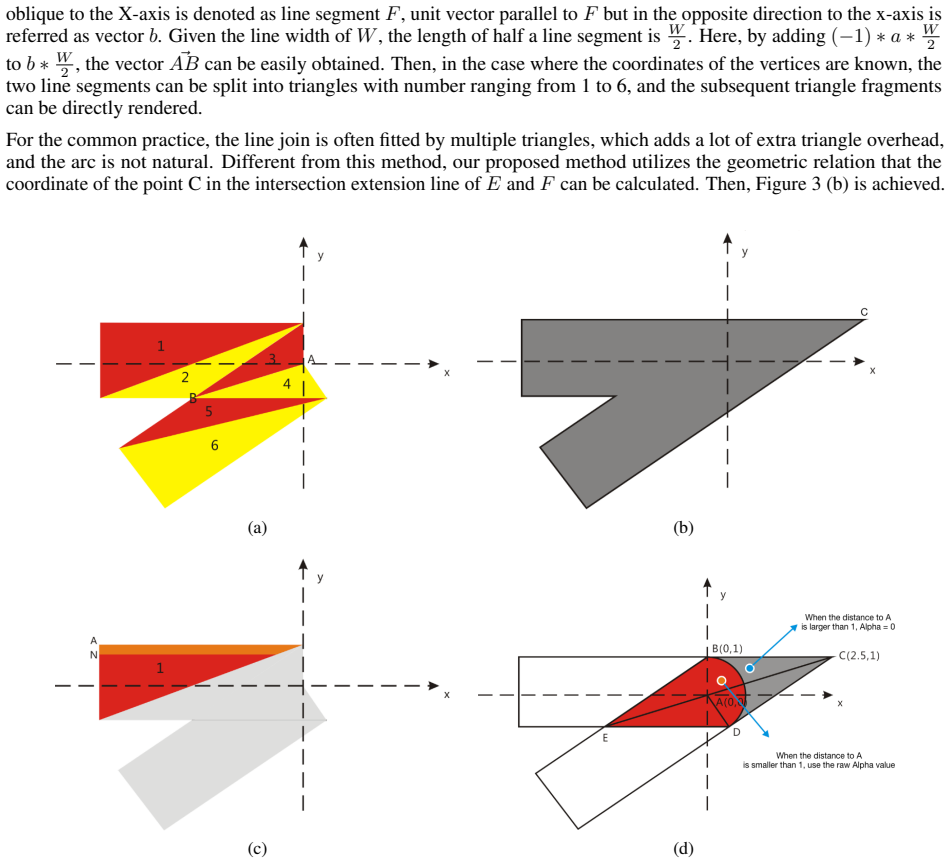

**Figure 3.** Figure 3: Geometric Schematic of the Proposed Spatial Anti-aliasing Rendering Algorithm [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗

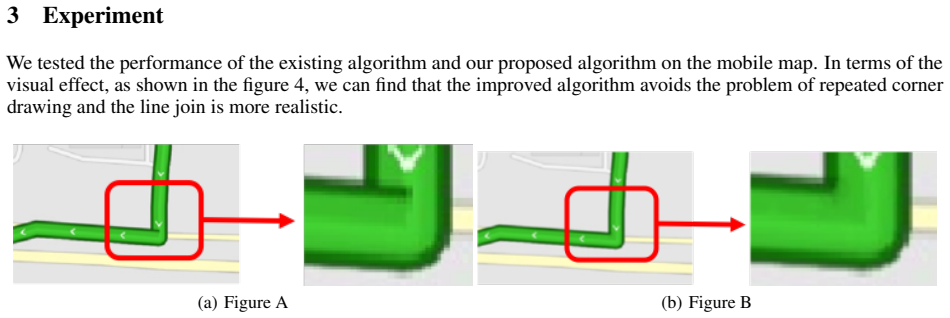

**Figure 4.** Figure 4: Rendering Effect of the Proposed Method In terms of system performance, the optimization of the draw call number can reduce the GPU memory and increase frame rate. We selected 10 road networks with different density in Beijing, China for rendering testing, recording their draw calls and comparing the average value. The original method has different numbers of triangles interpolated because of different cor… view at source ↗

read the original abstract

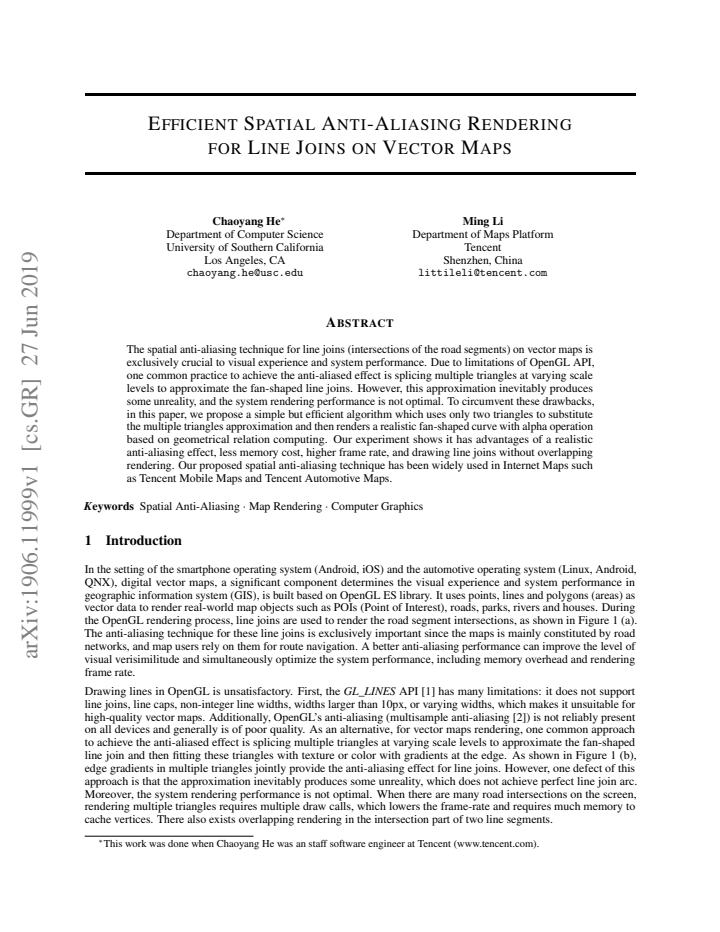

The spatial anti-aliasing technique for line joins (intersections of the road segments) on vector maps is exclusively crucial to visual experience and system performance. Due to limitations of OpenGL API, one common practice to achieve the anti-aliased effect is splicing multiple triangles at varying scale levels to approximate the fan-shaped line joins. However, this approximation inevitably produces some unreality, and the system rendering performance is not optimal. To circumvent these drawbacks, in this paper, we propose a simple but efficient algorithm which uses only two triangles to substitute the multiple triangles approximation and then renders a realistic fan-shaped curve with alpha operation based on geometrical relation computing. Our experiment shows it has advantages of a realistic anti-aliasing effect, less memory cost, higher frame rate, and drawing line joins without overlapping rendering. Our proposed spatial anti-aliasing technique has been widely used in Internet Maps such as Tencent Mobile Maps and Tencent Automotive Maps.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The two-triangle plus geometry-alpha method for map line joins is a narrow implementation tweak whose visual and performance claims rest on an undescribed formula and zero numbers.

read the letter

The concrete move here is replacing the usual multi-triangle fan approximation for round line joins with exactly two triangles whose vertex alphas come from some geometrical relation. That substitution plus the alpha step is the only new piece described. The abstract lists the usual goals—realistic look, lower memory, higher frame rate, no overlap—and states the method has shipped in Tencent maps. Those are the only positives on offer. Everything else is missing. No formula for the alpha, no derivation showing it matches the circular coverage integral, no error measurements, no timing tables, and no side-by-side images against a reference or MSAA render. The stress-test concern lands: without evidence that the alphas reproduce the right pixel coverage for acute or obtuse angles, the realism claim is unsupported. The paper does not contradict itself or invent entities, but it also supplies no reproducible result. A reader who already fights the multi-triangle hack in OpenGL might still want to see the exact geometry computation and try it, but the current text gives nothing to evaluate. This is for mobile map rendering engineers who need a drop-in OpenGL trick. It is too thin for a reading group unless someone wants to reverse-engineer the missing formula. I would not cite it. It could go to peer review because the target is narrow and the idea is specific enough that referees could demand the missing measurements and derivation, but it would need heavy revision to stand on its own.

Referee Report

2 major / 1 minor

Summary. The manuscript presents an algorithm for efficient spatial anti-aliasing of line joins in vector maps. It replaces the common practice of splicing multiple triangles to approximate fan-shaped joins with a method using only two triangles, setting alpha values via geometrical relation computations to achieve a realistic curve. The authors claim this yields realistic anti-aliasing, reduced memory cost, higher frame rates, and no overlapping rendering, and note its use in Tencent maps.

Significance. If the proposed two-triangle method with geometrical alpha computation accurately approximates the coverage of circular joins without introducing visual artifacts for a range of angles, it would provide a performance-efficient alternative for real-time rendering in map applications, addressing limitations of the OpenGL API. The deployment in production maps suggests practical utility, but the lack of supporting data in the manuscript makes it difficult to evaluate the claimed gains.

major comments (2)

[Abstract] Abstract: The assertion that the method 'renders a realistic fan-shaped curve' and that experiments demonstrate advantages in realism, memory, and frame rate is not accompanied by any quantitative metrics, error measurements, or baseline comparisons, which is load-bearing for validating the central claim against multi-triangle approximations.
[Abstract] Abstract: No explicit formula or derivation is given for the 'geometrical relation computing' used to set alpha values on the two triangles, leaving open whether it correctly computes the pixel coverage fraction for arbitrary join angles as required for a true fan-shaped join.

minor comments (1)

The manuscript would benefit from including pseudocode or a diagram illustrating the two-triangle setup and alpha computation.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We address the two major comments below and will revise the paper accordingly to strengthen the presentation of our claims.

read point-by-point responses

Referee: [Abstract] Abstract: The assertion that the method 'renders a realistic fan-shaped curve' and that experiments demonstrate advantages in realism, memory, and frame rate is not accompanied by any quantitative metrics, error measurements, or baseline comparisons, which is load-bearing for validating the central claim against multi-triangle approximations.

Authors: We agree that the abstract would be strengthened by explicit quantitative support. The current manuscript reports advantages based on production deployment in Tencent maps and internal experiments, but does not include numerical error metrics or direct baseline tables in the abstract. In the revision we will add specific measurements (e.g., memory reduction percentages, frame-rate deltas, and coverage-error values versus multi-triangle splicing) to both the abstract and a new results table. revision: yes
Referee: [Abstract] Abstract: No explicit formula or derivation is given for the 'geometrical relation computing' used to set alpha values on the two triangles, leaving open whether it correctly computes the pixel coverage fraction for arbitrary join angles as required for a true fan-shaped join.

Authors: We acknowledge that the abstract (and the provided manuscript excerpt) does not present the explicit formula or derivation. The method computes per-vertex alpha from the geometric intersection of the join angle and the two-triangle coverage; we will insert the closed-form expression together with a short derivation and a diagram showing coverage for representative angles (acute, right, obtuse) in the revised methods section. revision: yes

Circularity Check

0 steps flagged

No circularity: direct algorithmic proposal without fitted predictions or self-referential definitions

full rationale

The paper presents a graphics rendering technique that substitutes multi-triangle splicing with two triangles whose alpha values are computed from explicit geometrical relations. No equations reduce a 'prediction' to a fitted parameter, no self-citations bear load on a uniqueness claim, and no ansatz is smuggled via prior work. The central construction is a self-contained implementation choice whose correctness is evaluated externally by visual and performance metrics rather than by constructional equivalence to its inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The contribution is an algorithmic technique that relies on standard geometric computations and OpenGL alpha blending; no free parameters, new entities, or non-standard axioms are introduced in the abstract.

axioms (1)

domain assumption Geometrical relations between line segments can be computed to set per-fragment alpha values that produce a visually acceptable fan-shaped join
This premise underpins the alpha operation step described in the abstract.

pith-pipeline@v0.9.0 · 5682 in / 1183 out tokens · 27826 ms · 2026-05-25T13:27:04.278024+00:00 · methodology
